engine temperature gauges AUTEL MaxiAP AP200H Bluetooth-compatible OBD2 Scanner ENG/Transmission/ABS/SRS For All Vehicles Car Diagnostic Tool PK Thinkdiag car battery tester Diagnostic Tools

Brand Name:	Autel
External Testing Certification:	ce
Origin:	CN(Origin)
Model Name:	AUTEL MaxiAP AP200H
Electronic:	No
Hardware Version:	AUTEL MaxiAP AP200H
Item Height:	0.85inch
Item Length:	2.32inch
Power:	W
Material Type:	Plastic & Metal
Certification:	CE
Item Type:	Engine Analyzer
Item Weight:	0.1kg
Software Version:	AUTEL MaxiAP AP200H
Voltage:	V
Item Width:	1.73inch
Model name:	AUTEL MaxiAP AP200H
Supports 4 main systems:	Engine, Transmission, SRS, and ABS systems
Communications:	BL 4.2 Dual-Mode
Wireless Frequency:	2.4 GHz
Input Voltage Range:	9 VDC to 26 VDC
Supply Current:	100 mA@12 V
Sleep Mode Current:	3 mA@12 V
Operating Temperature:	0°C to 50°C
Storage Temperature:	-20°C to 70°C
Dimensions (L*W*H):	59mm(2.32inch)*44mm(1.73inch)*21.5mm(0.85inch)
Weight:	32.1g(0.07 lb.)

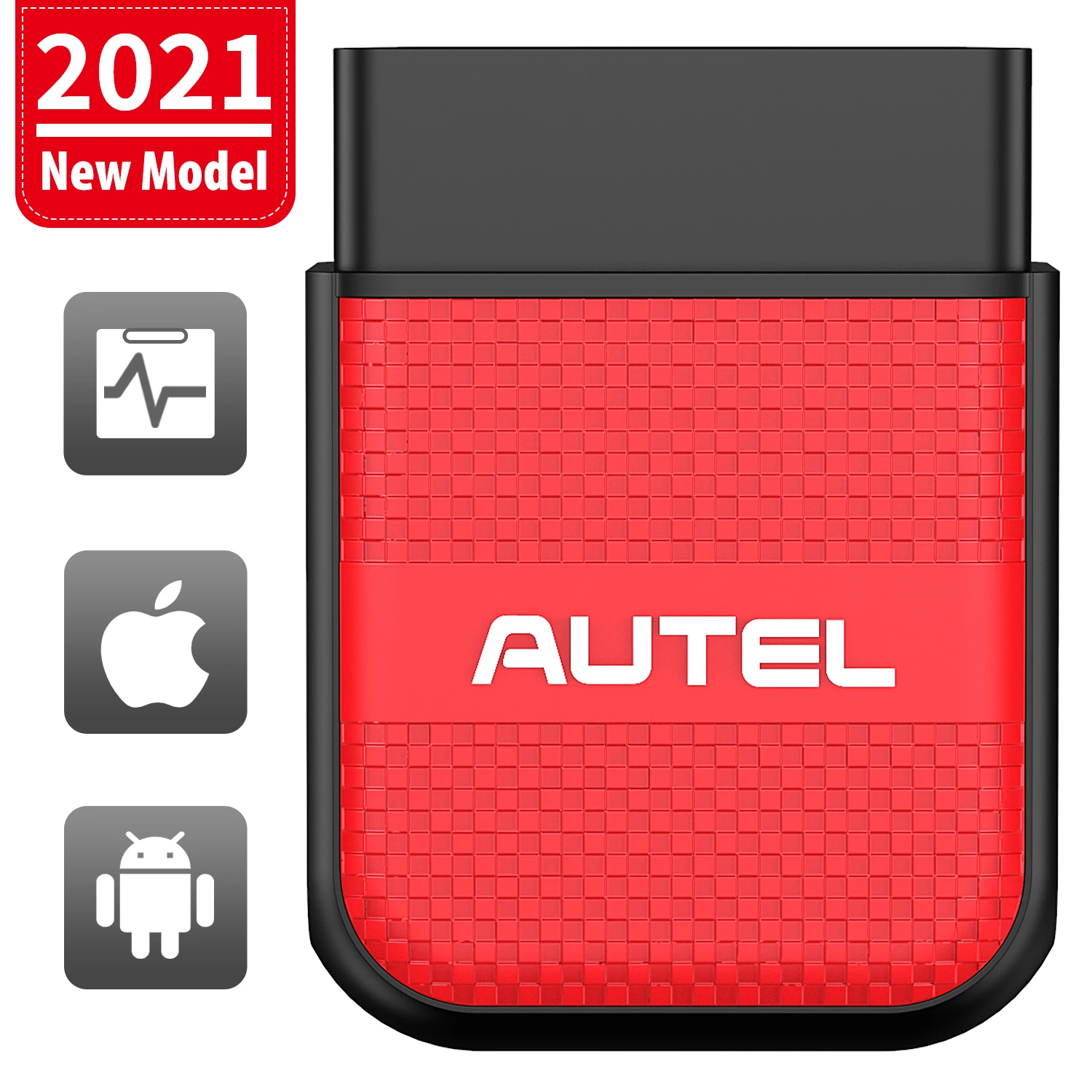

AUTEL MaxiAP AP200H Wireless Bluetooth OBD2 Scanner for All Vehicles (Android/iOS)

Product Description :

Autel MaxiAP AP200H is used to connect to the vehicle's OBDII port and connect with an Android or iOS device for intensive health reports including OBDII ENG/Transmission/ABS/SRS Diagnostic Tool OLS/BMS Resets for All Vehicles (Android/iOS).

AUTEL MaxiAP AP200H Functions:

• Scan fault codes for the vehicle's 4 main systems (Engine, Transmission, SRS, and ABS systems)
• Reset the oil light and perform battery maintenance service
• Provide health snapshot: status & conditions
• Download free software for your vehicle (Renew brand subscription after a year, additional brand lines are available with in-app purchase)
• Support U.S, Asian and European vehicles, including 1996 and newer

AUTEL MaxiAP AP200H Features:

MIL/Live Data/O2 Monitor/IM Readiness: If there is something wrong with vehicle operations, drivers will be alerted.
Provide the Info of Oxygen Sensor
Rich/Lean Indication, Coolant Temp, MAP/TPS Value, Vehicle Speed, Mass Air Flow, Ambient Temp, Engine RPM, etc.
PCM can verify that O2 sensors are properly calibrated and function without noticeable deterioration.
The car's emission control systems will be self-tested, and you can know if your vehicle has completed tests successfully.

ENG/TRAN/SRS/ABS Diagnoses:

The AP200H OBD2 scanner can easily access the Engine, Transmission, Anti-lock Braking System and Supplemental Restraint System to retrieve their DTCs, text or graphic live data stream and other ECU information. Once the detected problems are fixed, you can use this Bluetooth scanner tool to clear DTCs, and then the warning light will be off automatically.

OLS/BMS Reset Service:

After using your vehicle for some time, the engine light will flash, which means that you need to change the engine oil or the filter. The BMS(Battery Maintenance Service) can evaluate the battery charge state, monitor the close-circuit current, register the battery replacement and activate the rest state of the vehicle. To diagnose these problems, you will need our AP200H diagnostic tool that can read and display the codes for resetting.

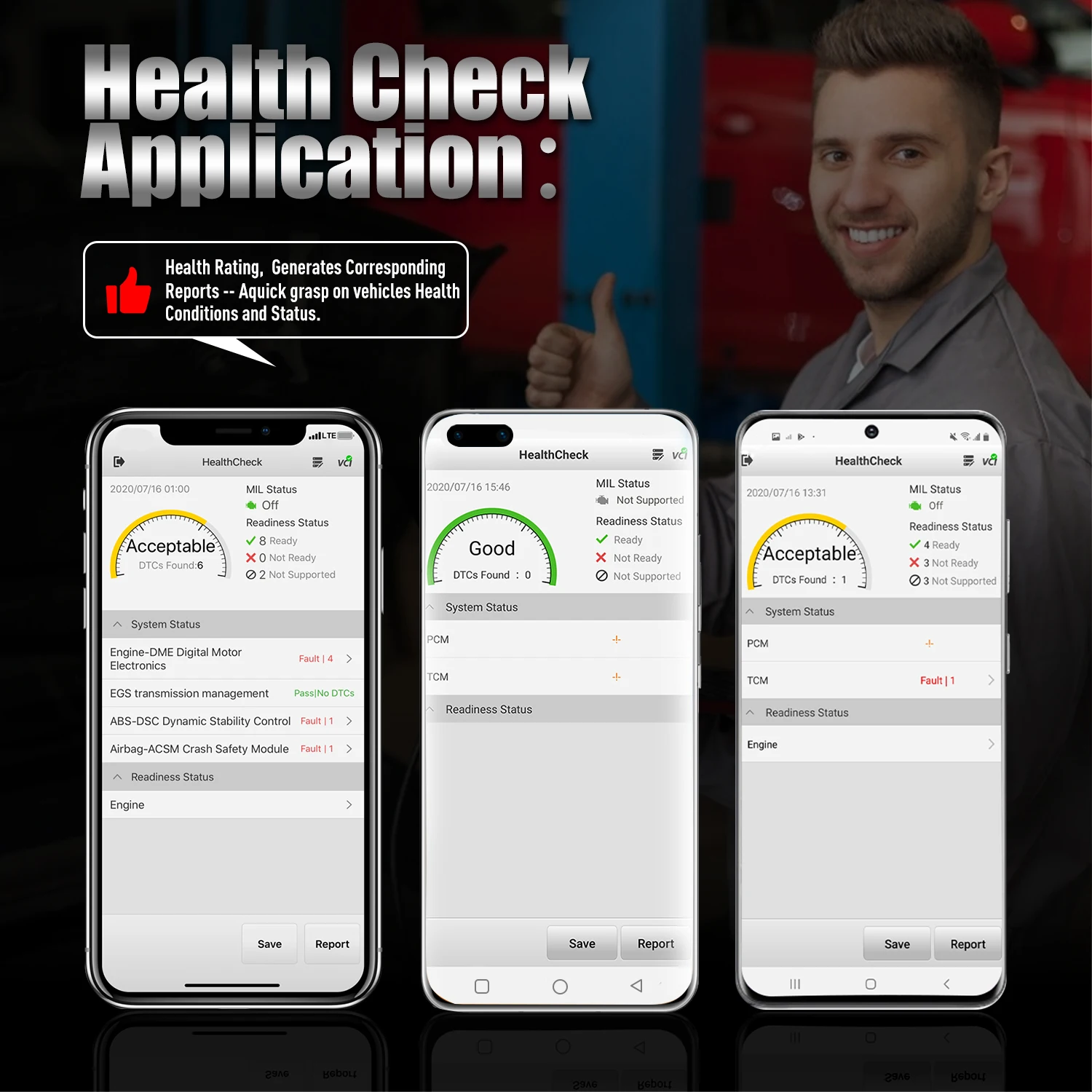

Exclusive Health Rating with Reports:

The AP200H snapshot easy-to-use Health Check Application is used to identify health state of your car. With this function, you can know health rating, generate corresponding reports, and gain a quick grasp on vehicle health condition and status. It can make you know the required service and the needed information, thus, you can take care of your vehicle easier. It can save repair reports for diagnostic and maintenance service sessions as well.

Multi-Lingual Support :

English/Traditional Chinese/French/German/Spanish/Portuguese/Dutch/Polish/Swedish/Korean/Japanese/Russian/Italian....

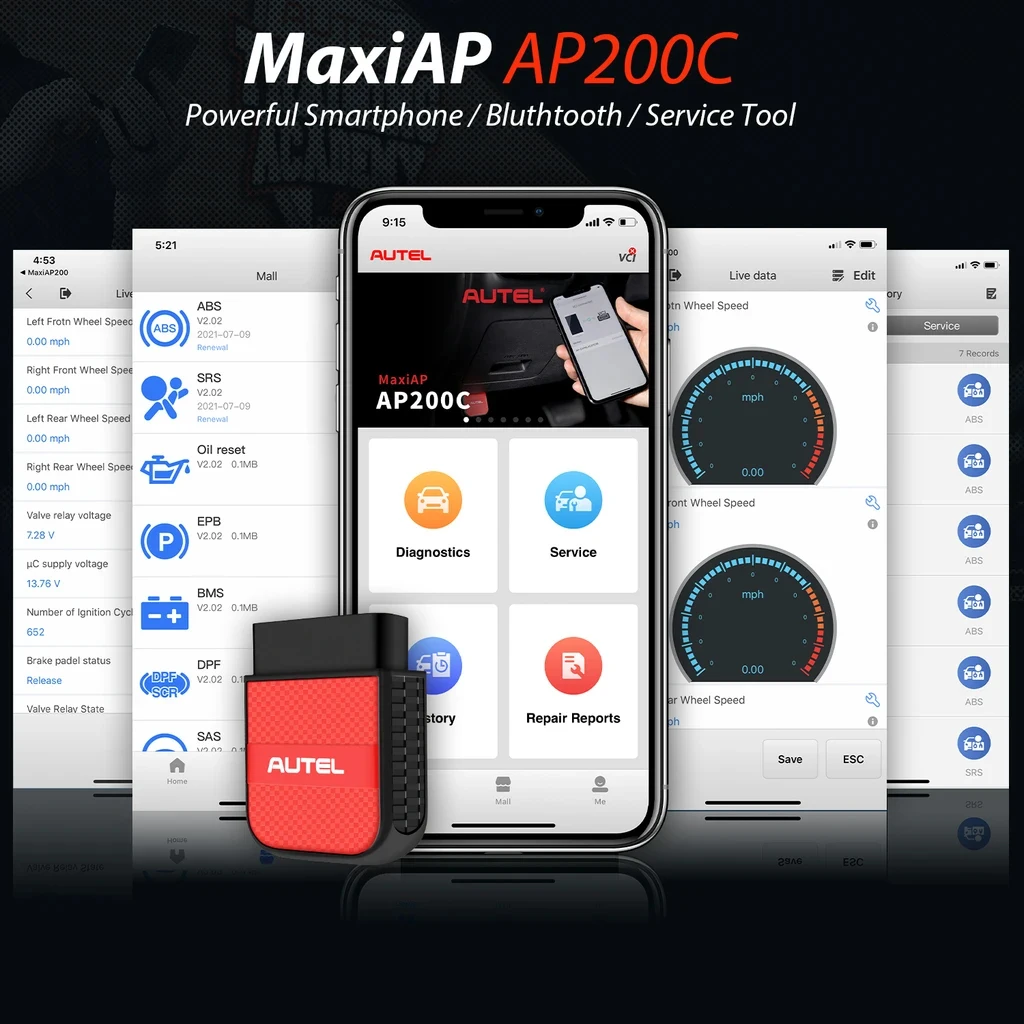

Comparison of AP200C & AP200H & AP200M :

Software Purchases :

1 Year Warranty with 45-Day Replacement & In-APP

The MaxiAP AP200H is used to connect to the vehicle's OBDII port and connect with an Android or iOS device for intensive health reports. By clicking "MALL" function button, you can access app built-in mall quickly and purchase the vehicle of your choice. Follow the instructions to download one free purchase the vehicle of your choice. Click“Buy it now”and enjoy a high-quality product with confidence.

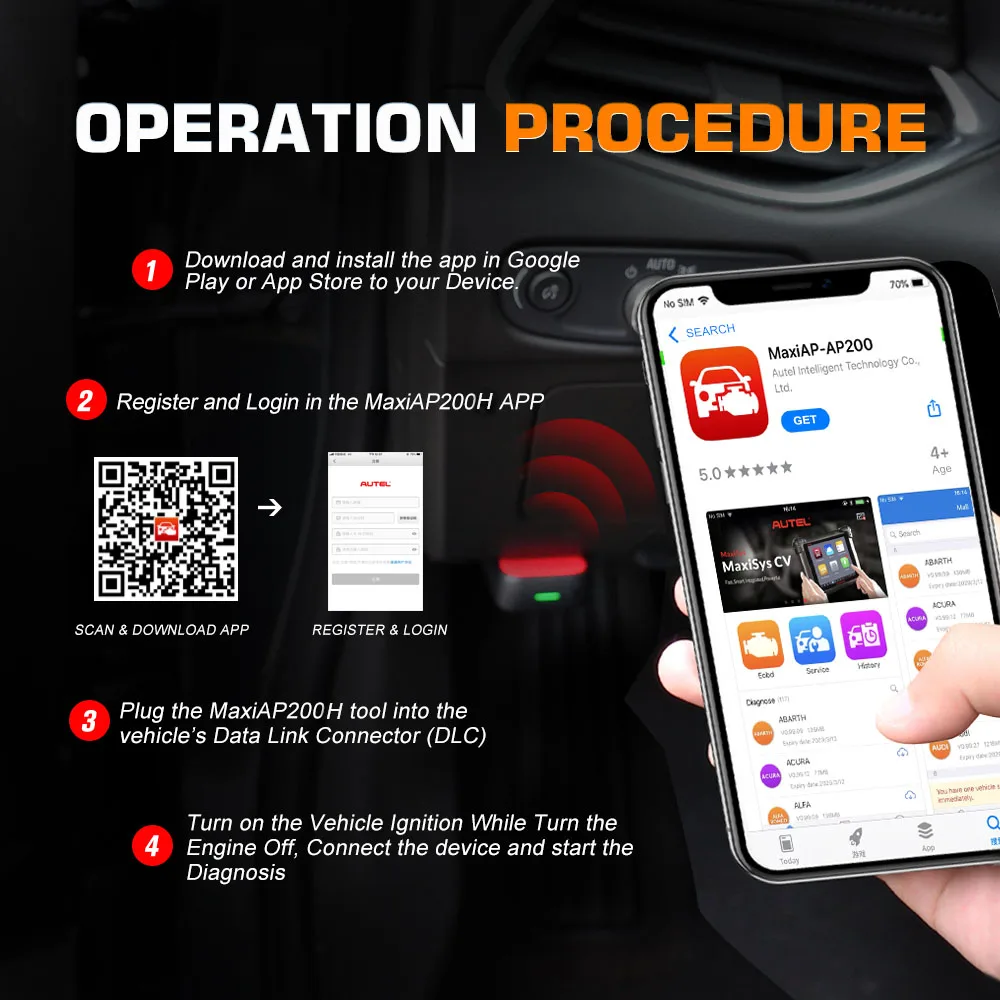

How to use the Autel MaxiAP AP200H?

Renew brand subscription after a year for 15.99$, Download free software for your vehicle brands on 1st year (15.99$ for one extra vehicle), Additional brand lines available with in-app purchase.

Important information :

Legal Disclaimer :

Autel AP200H Health Check Scanner -- "MALL" Application
This function button provides you a quick entrance to access app built-in mall and purchase the vehicle brand of your choice. Follow the instructions to download one free vehicle-line of your chosen brand. All brand lines are valid for up to a year.
Purchase vehicle diagnostic data package

NOTE: When the MaxiAP AP200H has lost connection from the device for more than 10 minutes, the LED goes off and the AP200H enters power saving standby mode. The power LED will light when reconnected.

Before purchasing vehicle diagnostic data package, you have to log in your Autel ID and bind the MaxiAP AP200H device with your account. One vehicle-line is free and valid for up to a full year, you can get it through Mall after successfully binding VCI for the first time.
1. Tap the Mall button on the Home screen, a list of brand lines sorted by alphabet will display.
2. The corresponding price of each software is displayed on the right side of the software.
3. Tap the price of wanted software and jump to the detail screen. You can see a detailed introduction of this software.
4. Tap Buy Now to purchase the software selected immediately.

Specifications:

Item

Description

Communications

BL 4.2 Dual-Mode

Wireless Frequency

2.4 GHz

Input Voltage Range

9 VDC to 26 VDC

Supply Current

100 mA@12 V

Sleep Mode Current

3 mA@12 V

Operating Temp

0°C to 50°C

Storage Temp

-20°C to 70°C

Dimensions (L*W*H)

59 mm (2.32'') * 44 mm (1.73'') * 21.5mm (0.85'')

Weight

32.1g (0.07 lb.)

Package includes :

1PC x AUTEL MaxiAP AP200H Main Unit
