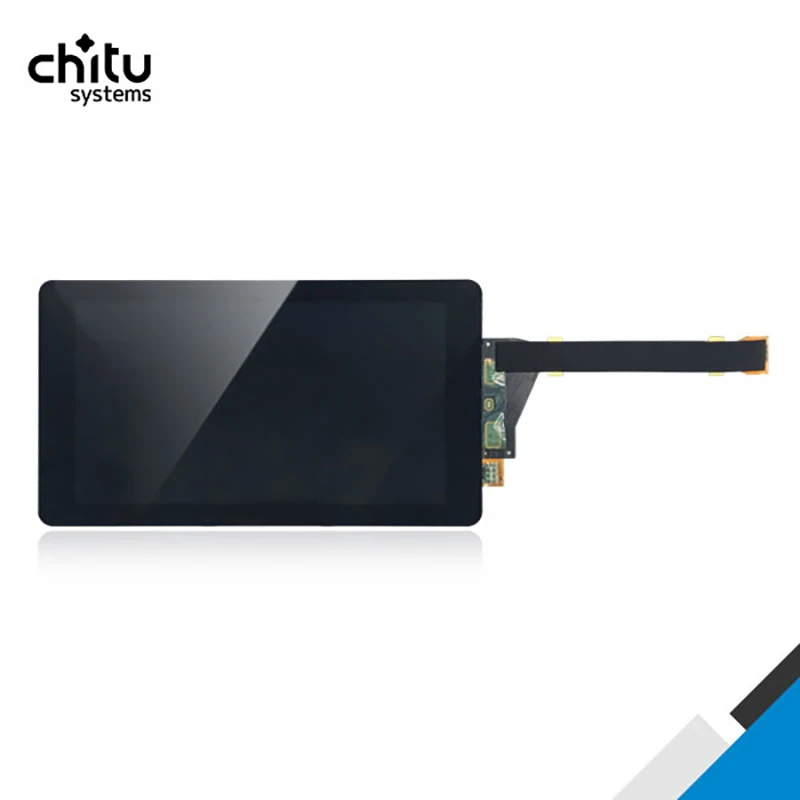

ELEGOO Mars LCD Screen LS055R1SX04 Sharp04 with Glass protector SX04 5.5Inch 2K LCD Screen For Photon extruder stepper motor 3D Printer Parts & Accessories

Code: TD-1005001872071849 89 orders
Free Shipping
$ 144.11 $ 153.46
Size:
1pc
2pcs
3pcs
Note

Quantity:
Other people want this. 27 people have this in their carts right now.
Brand Name:  chitu systems
Item Type:  Module
Origin:  CN(Origin)
Model Number:  Sharp04
Model:  LS055R1SX04
Printer:  Elegoo Mars/Anycubic Photon

Tax free!!!! European sellers can go to



https://www.chitusystems.com/



to place overseas warehouse orders. Tax free.

LS055R1SX04/03 Sharp04  2K 5.5 inch LCD Resin Panel For 3D Printer

Active area      :

68.04(H)X120.96(V)  mm

Pixel format     :

1440(H)×2560(V) Pixel

1 Pixel =R+G+B dots

Pixel pitch        :

0.01575(H) x 0.04725(V) mm

Pixel configuration :

R,G,B vertical stripes

Display mode    :

Normally Black

LDC Driving method :

DC Driving / Column Inversion

Liquid Crystal Mode :

New Mode2

Number of colors  :

16,777,216  Colors                 24 bits

Outline dimensions  :

70.94(W)×128.49 (H)×1.35(D) TYP mm                 Note 3‐1

Mass     :

Approx 25 g

Shipping list:

Elegoo Mars /Photon :sharp04 screen + mipi to mipi board(sharp03 to sharp04)+ cable shield + sticky paper

Elegoo Mars Pro /Photon s : sharp04 screen+ cable shield + sticky paper

Click here to

purchase

.

Care must be taken before purchasing:

Photon and Photon s need adapters. Direct connection without an adapter can damage the motherboard.

If the screen does not light up, you can

click here

to view the solution.

Be sure to pay attention to the orientation of the adapter connections when using on photon or photon s.
