Electric suction tin vacuum Electric inhale suck stannum tin blow suction tin Soldering Iron 220V 30W Welding Tool soldering irons & stations Welding Equipment

Brand Name:	chuilian
Origin:	CN(Origin)
Certification:	CE
Model Number:	suction tin vacuum
Dimensions:	other
Temperature Stability:	other
Input Voltagle:	220v
Output Power:	other
Output Temperature:	other

Product Features :

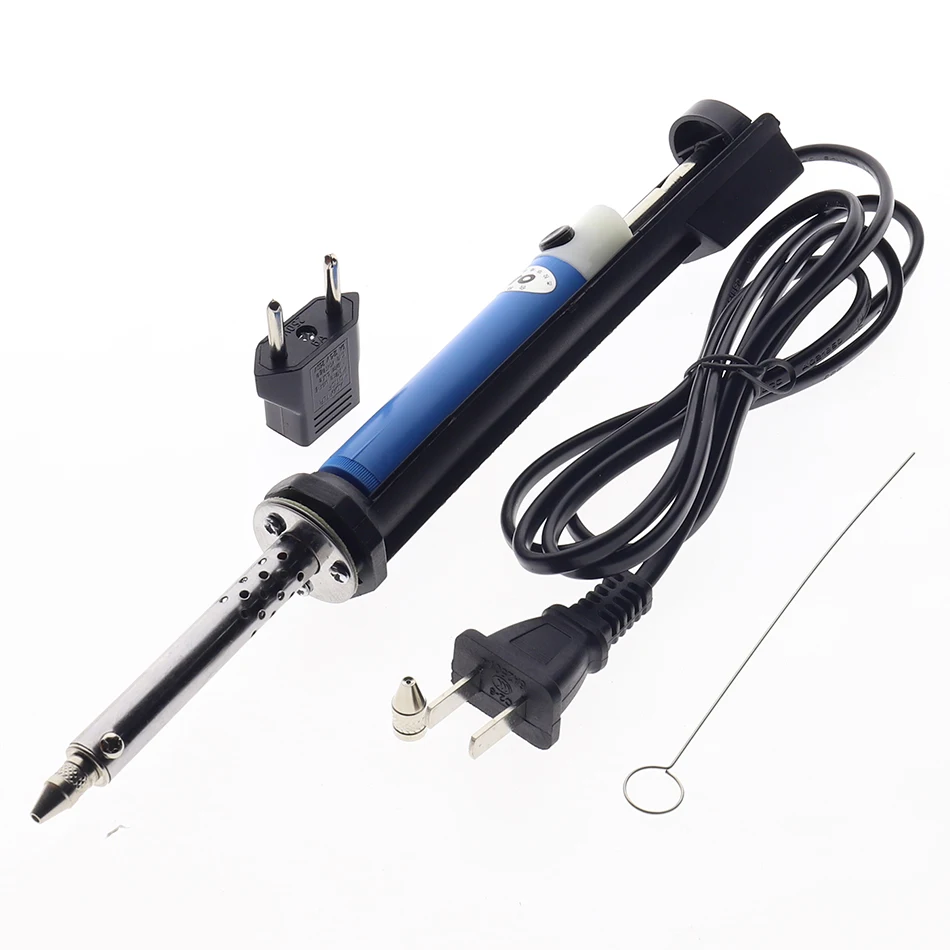

XS-842A dual electric suction tin has a beautiful appearance, novel structure , easy to use and clean

tin suction characteristics , it can be easily taken down incumbent components from the circuit board ,

but will not damage the components and circuit boards . For replacement of integrated circuits, switches

and other multi- leg advantage is more prominent. This suction tin soldering iron can be used for general

use , defense , scientific research, communications, aerospace, computer , radio, television and electronic

professional maintenance staff and an indispensable tool for the majority of radio amateurs .

Usage:

1. the use of suction tin voltage of 220V-50Hz, power 30W

2. power on, preheating for 3-5 minutes

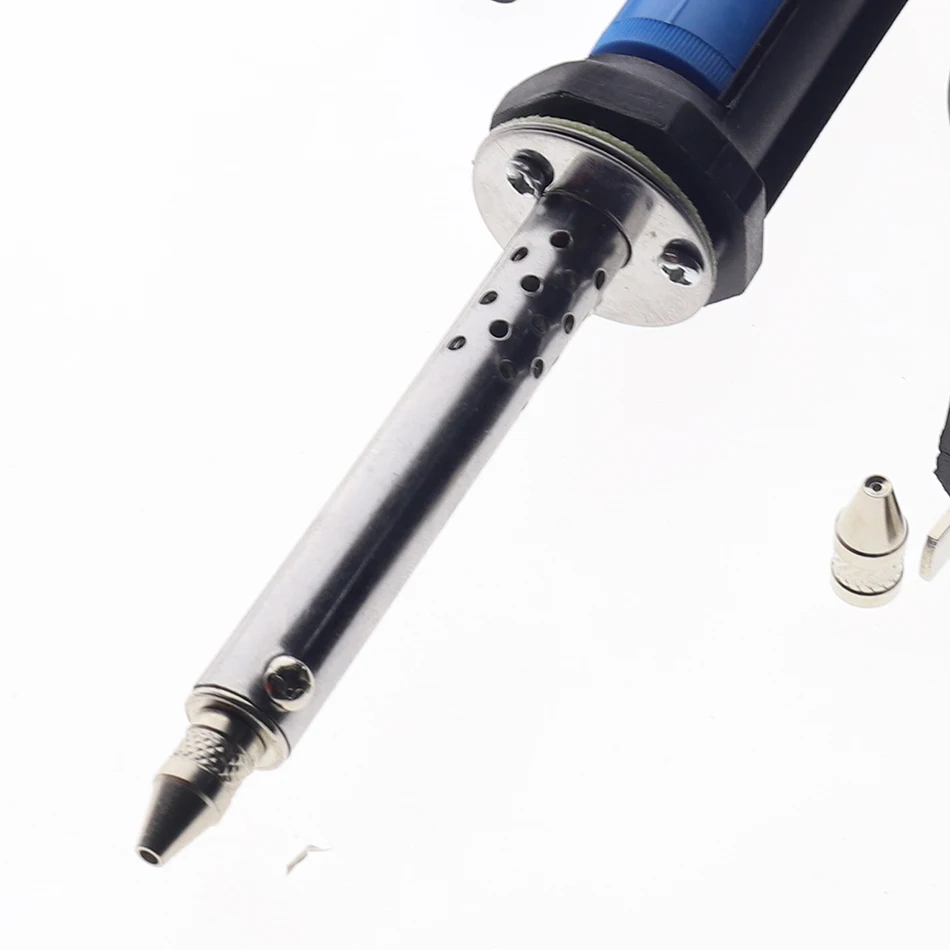

3. push the piston handle stuck under suction nozzle tip portion tin soldering joints aligned with the

intention of seizing the next element , until the solder melts , press the control button , solder i.e. sucked

into the pump

4. the suction tin with two different nozzle diameters can be selected according to the thickness of the

component leads

5. when welding, soldering iron and use the same operating

6. when removing pump will pump the upper direction of the arrow forced under pressure , while the poor

and the handle pulled pump , tubes can be separated from the nozzle when removing the nozzle rotating

counterclockwise , you can nozzle unload

Precautions

1. check whether the use of voltage matches the voltage is too high or too low is not conducive to the use of

2. before you want to use part of the pump nozzle and tighten to prevent leakage , or affect the tin suction effect

3. often remove impurities entering the pump nozzle and solder inside , and a little oil to the piston and

4. after each use , to push the piston 3-4 times to remove residual solder the straw to make the

5. the suction tin energized, installation and removal of non- electric portion of its parts .

6. when the first use of a new suction tin reheat heating element which may be due to a slight smoke ,

this is a normal phenomenon, after ten minutes will naturally disappear

7. use, must be equipped with a soldering iron stand with natural cooling structure and the seat should

be set in iron

8. if the power cord is damaged, in order to avoid dangerous and must be replaced by the manufacturer

or its maintenance department or similarly qualified persons

9. the product has had a ground , should be equipped with a contact with the socket , please use the

user's attention to safety.
