Douk Audio U2 Mini XMOS XU208 USB to Coaxial /Optical /12S Converter Digital Interface DSD256 PCM384K

Brand Name:	Douk Audio
Certification:	CE
Origin:	CN(Origin)
Maximum Power Per Channel:	NO POWER
Model Number:	U2
Package:	Yes
Channels:	2 (2.0)
Type:	Audio Adapter/Converter

Introduction

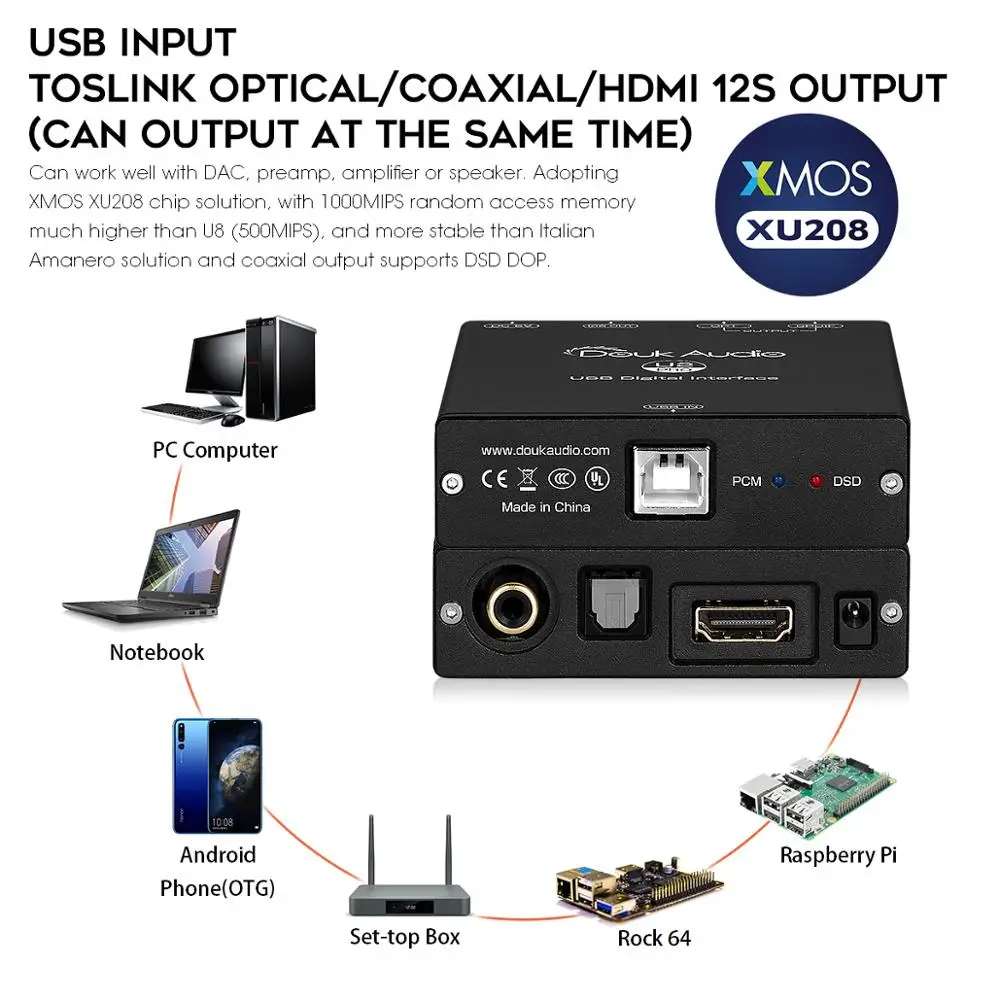

This is a USB to Toslink optical / coaxial / 12S audio converter, suitable for PC computer, notebook, mobile phone, set-top box, rock 64, raspberry pi and so on, it can provide better sound quality than their own sound card.

Features:

With USB input and TOSLINK optical / coaxial /HDMI 12S output(can output at the same time), can work well with DAC, preamp, amplifier or speaker. Adopting XMOS XU208 chip solution, with 1000MIPS random access memory much higher than U8 (500MIPS), and more stable than Italian Amanero solution and coaxial output supports DSD DOP.

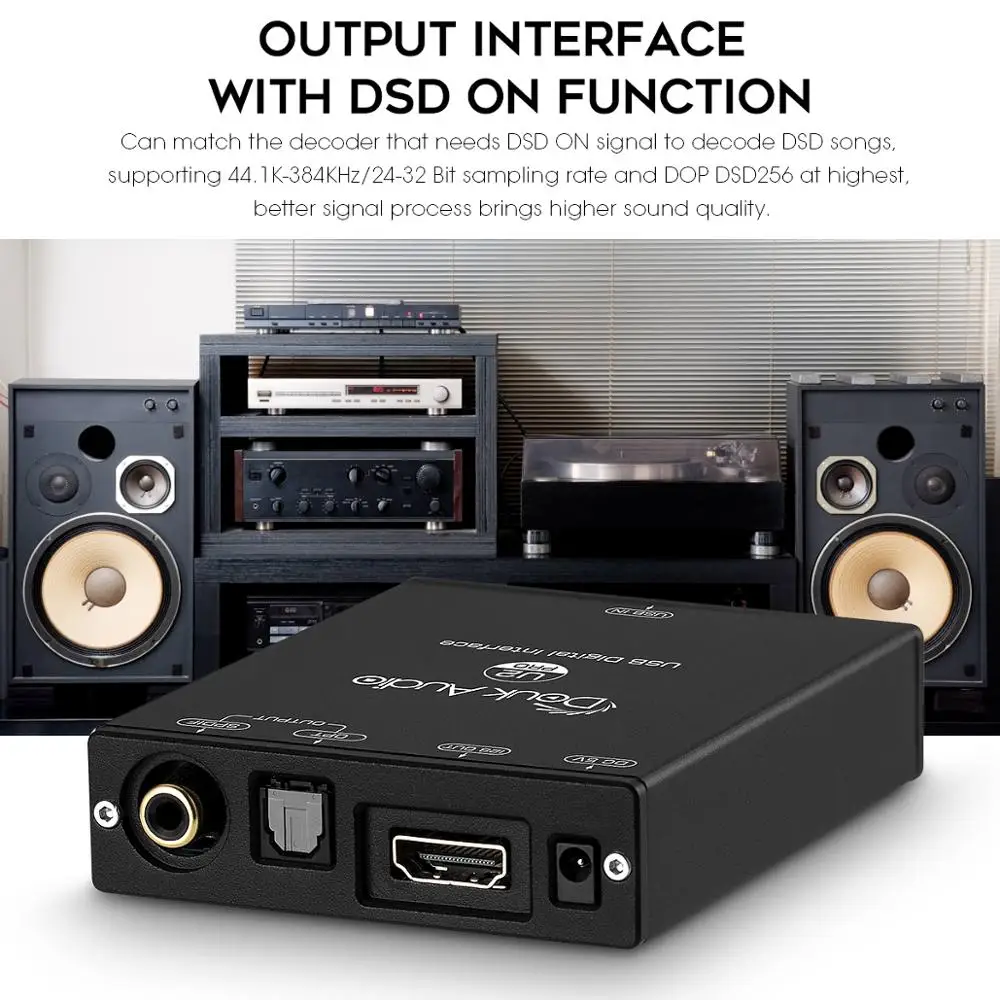

Output interface with DSD ON function can match the decoder that needs DSD ON signal to decode DSD songs, supporting 44.1K-384KHz/16-32 Bit sampling rate and DOP DSD256 at highest, better signal process brings higher sound quality.

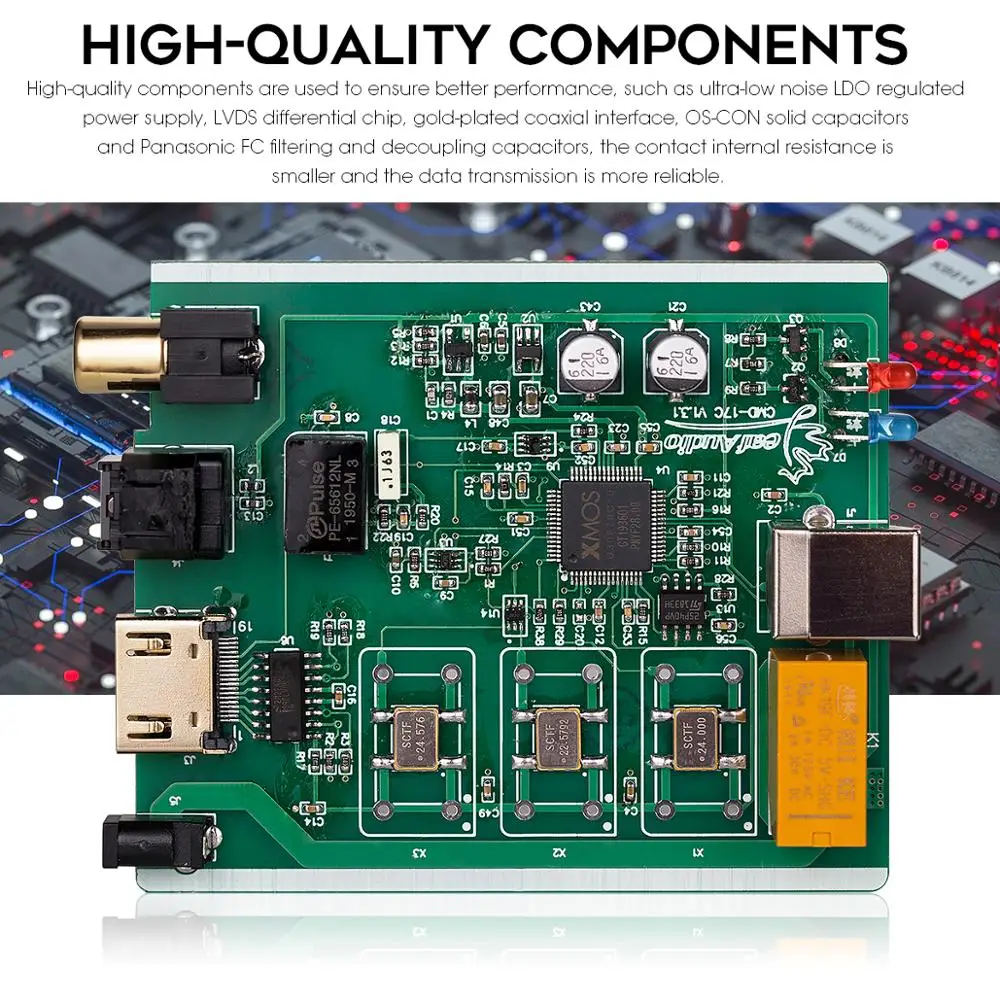

High-quality components are used to ensure better performance, such as ultra-low noise LDO regulated power supply, LVDS differential chip, gold-plated coaxial interface, OS-CON solid capacitors and Panasonic FC filtering and decoupling capacitors, the contact internal resistance is smaller and the data transmission is more reliable.

USB interface can be used as signal input and power input at the same time, and with external DC 5V input (with priority) that can be powered by phone charger or power bank, easy to enjoy HiFi music any time and any where.

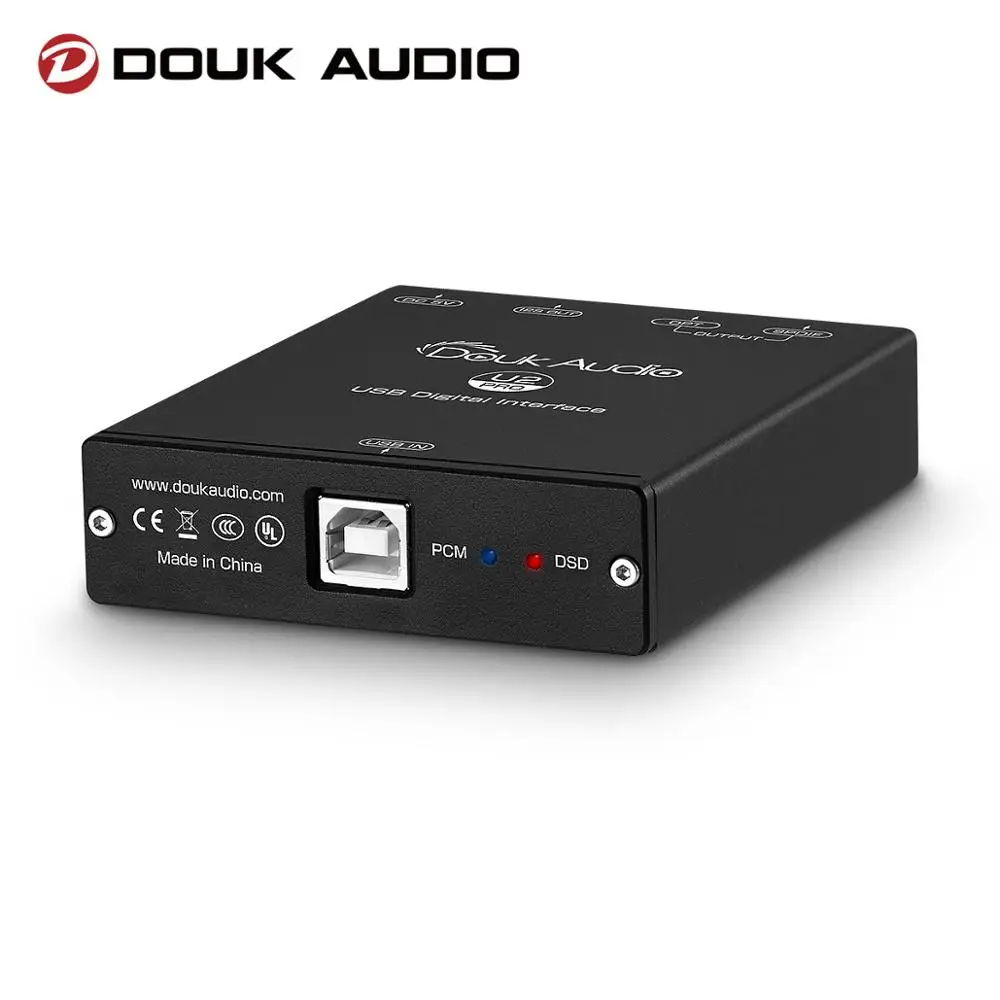

Mini size with exquisite design, with PCM and DSD indicator easy to show the output format, black aluminum alloy cases look more cool and fashionable, very suitable for desktop audio device to use.

Warm tips:

1. 12S output supports all sampling rate while S/PDIF supports 192KHz and DOP DSD64 at highest.

2. The pins of 12S is suitable for the HDMI interface of PS decoders.

3. Please set the volume of operation system to maximum(100) if you want to listen to DSD music.

Parameters

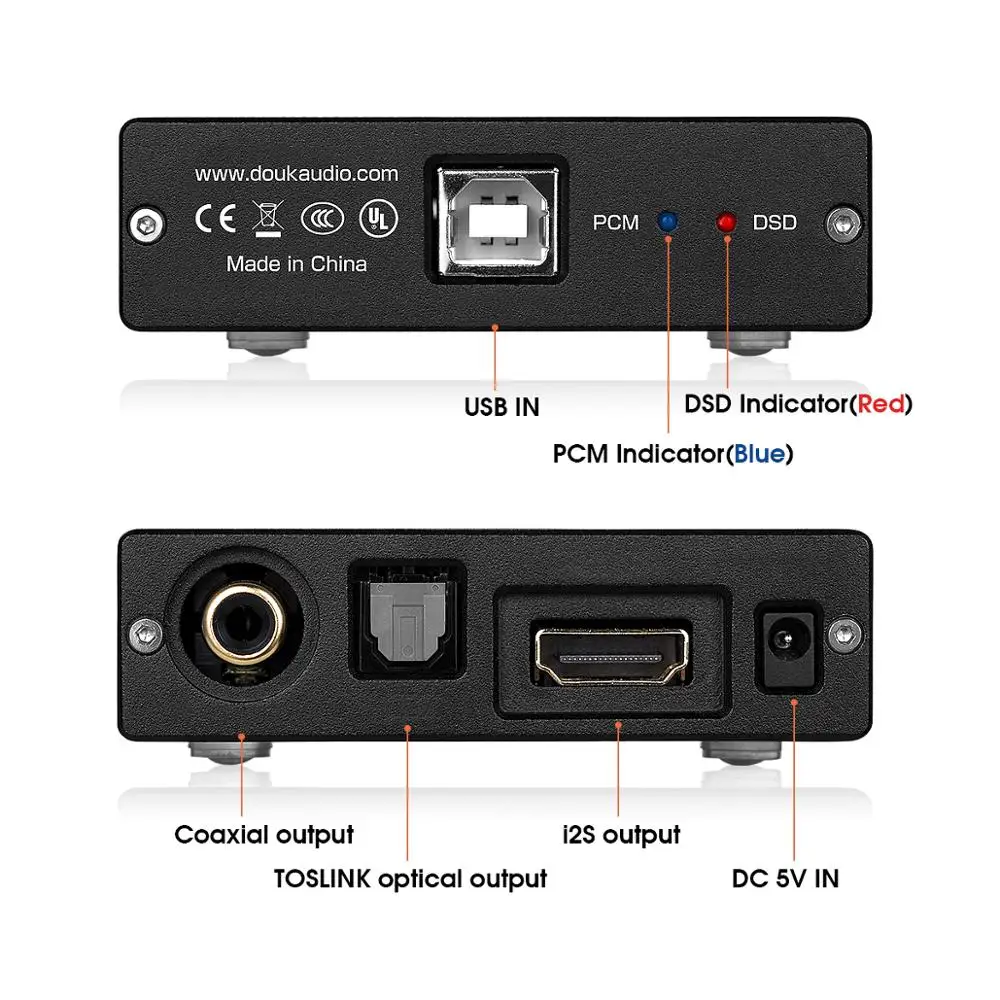

Audio input: USB (type-B)

Audio output: Toslink Optical / Coaxial / HDMI IIS

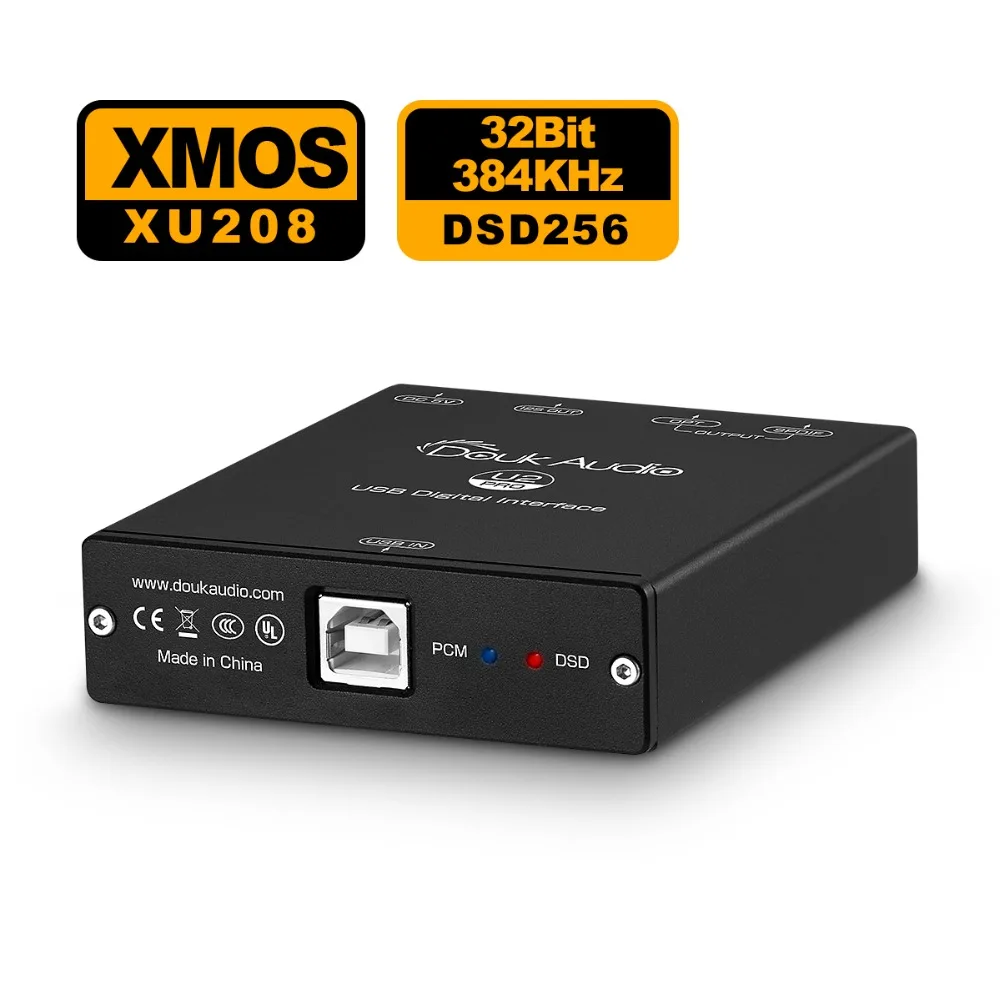

USB chip: XMOS XU208

Supported sampling rate:

PCM: 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 384KHz

DSD: 2.8MHz(DSD64)-DOP, native / 5.6 MHz (DSD128) -DOP, native / 11.2 MHz (DSD256) , native

Bit width(highest): 32 bit (I2S output) / 24 bit (S/PDIF), compatible with 16bit

Working current: 130mA

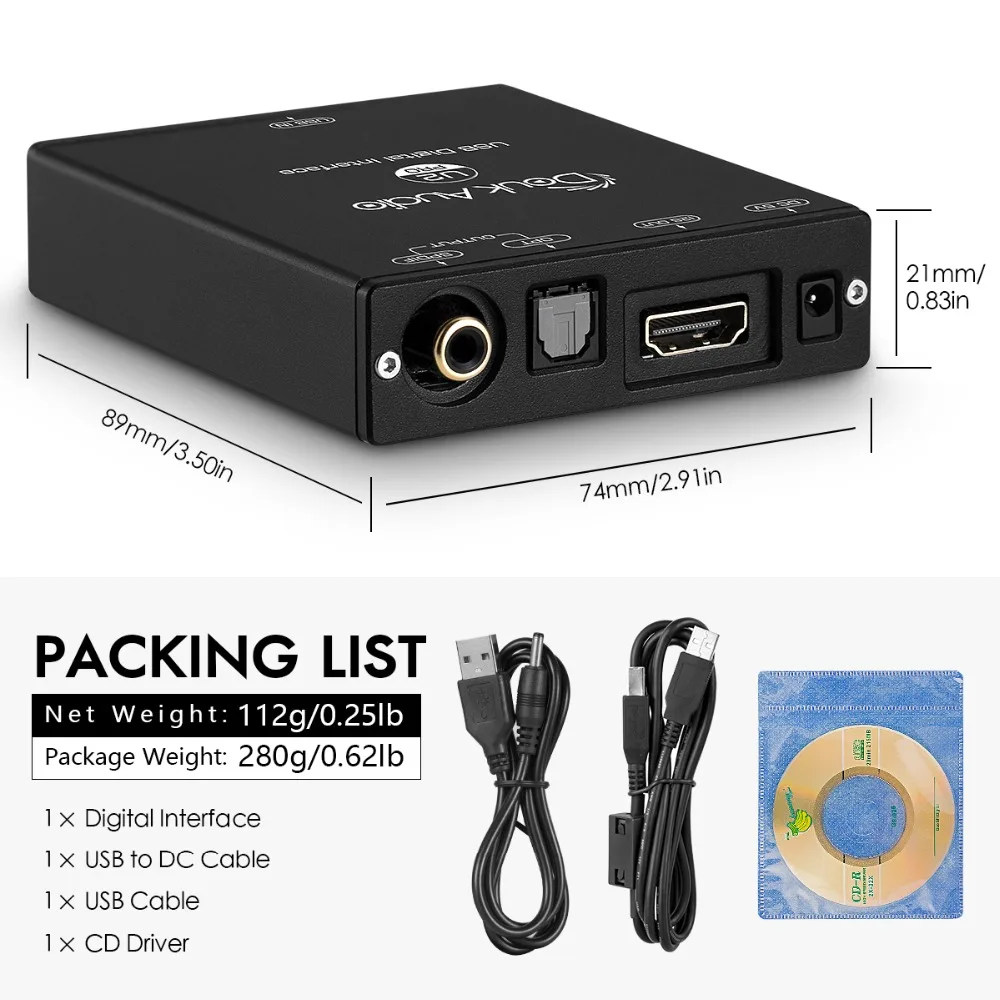

Dimensions(W*D*H): 74*89*21mm / 2.91*3.50*0.83in

Net weight:112g/ 0.25lb

Package weight: 280g / 0.62lb

System Compatibility

1. 32/64 bit Win 7, Win 8 and Win 10 systems need to install driver, please enter website:https://drive.google.com/drive/folders/1ZjWBDD5Te-a8O64fCstuOKIwGRo766wD?usp=sharingto download and install.

2. Native ac OS 10.6 and above, can use the system's own driver. And Native Linux with UAC2 compliant kernel also can use the system's own driver.(Has tested on Ubuntu and Daphile systems, based on INTEL X86)

3. In general, USB input default supports Android 5.0 system while Android 4.2 and above need phones with OTG function. Recommend to use Hiby player to play DSD music. OTG cable (for Android system) or camera kit (for IOS system) need to prepare by youself.

Packing List

1*U2 PRO Converter

1*USB Cable

1*USB to DC Cable

1*Driver CD
