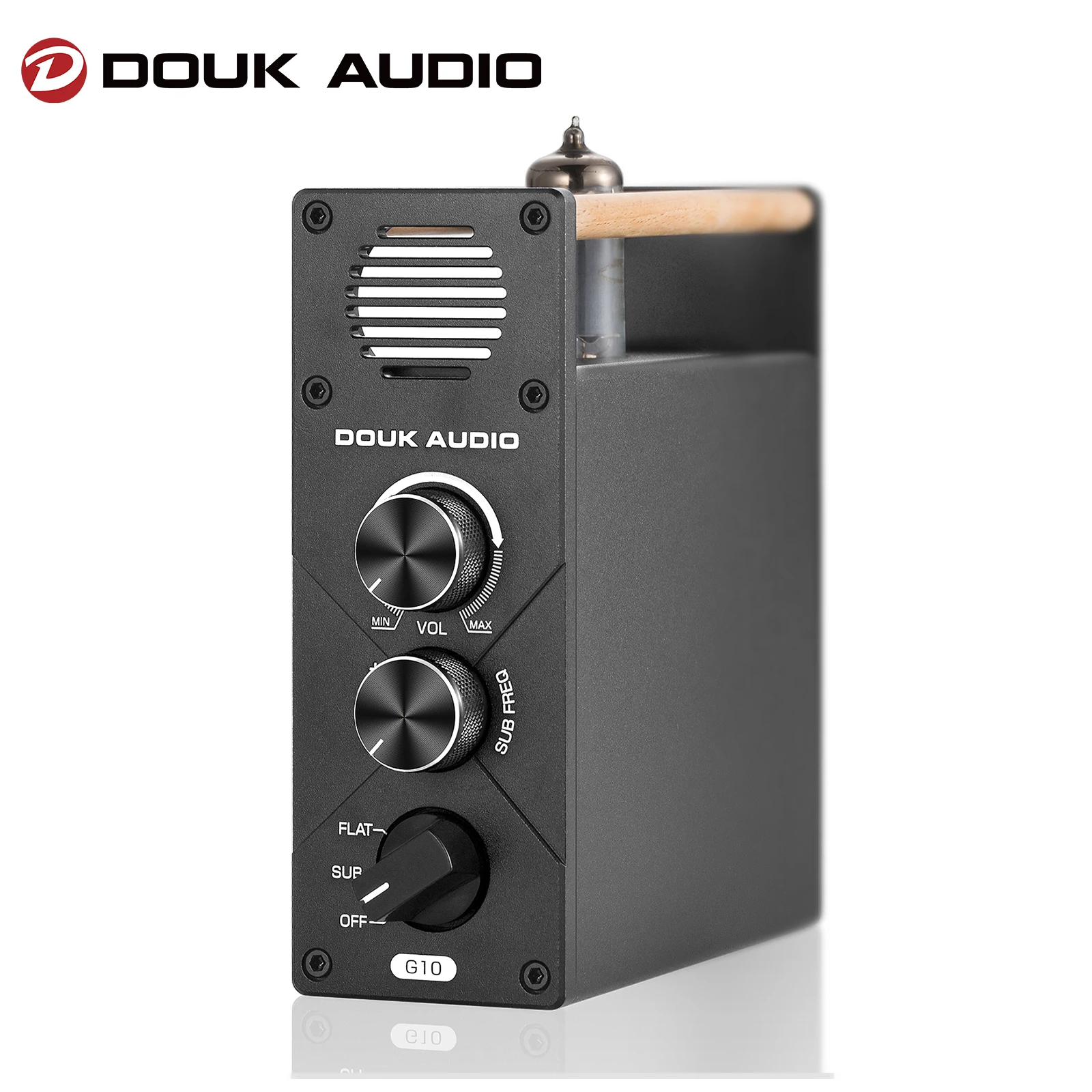

Douk Audio G10 Mini 100W/200W Mono Channel Vacuum Tube Audio Amplifier Full-frequency/Subwoofer Amp

Code: TD-3256801756083811 2 orders
Brand Name:  Douk Audio
Origin:  CN(Origin)
Maximum Power Per Channel:  100W
Package:  Yes
Certification:  CE
Model Number:  G10
Channels:  1
Type:  Hi-Fi Amplifier
Audio Inputs:  Stereo L/R RCA
Audio Outputs:  Banana Speaker Jacks, Subwoofer
Receiver Combo Features:  Blu-ray Player, HD-DVD Player

Warm tips:

1. G10 is mono channel amplifier, want stereo output please buy 2PCS or 3PCS.

2. Wantupgraded GE5654 vacuum tube please click:

LINK

and the best matched tube preamp please click:

LINK

.

Features

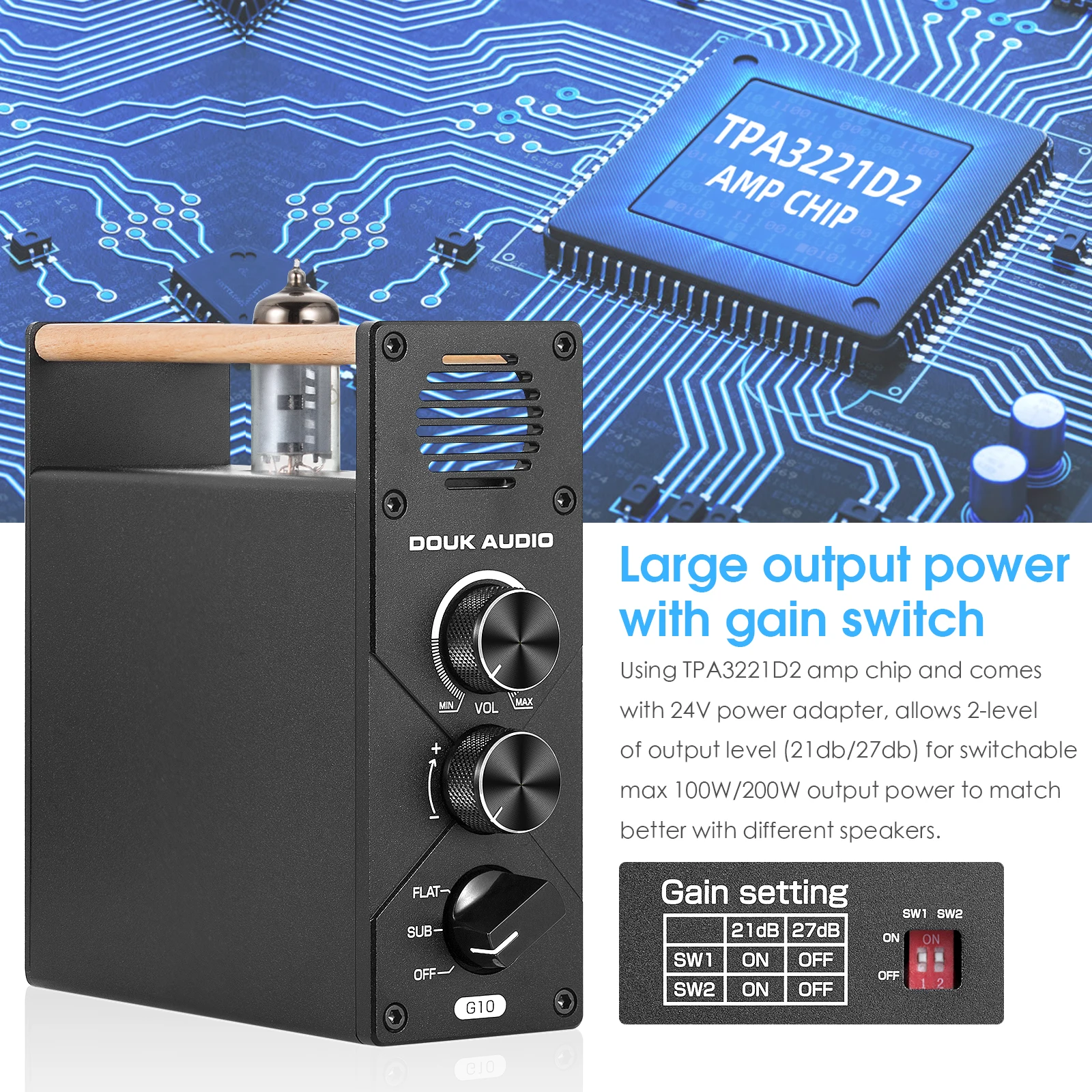

Large output power with gain switch: using TPA3221D2 amp chip and comes with 24V power adapter, allows 2-level of output level (21db/27db) for switchable max 100W/200W output power to match better with different speakers.

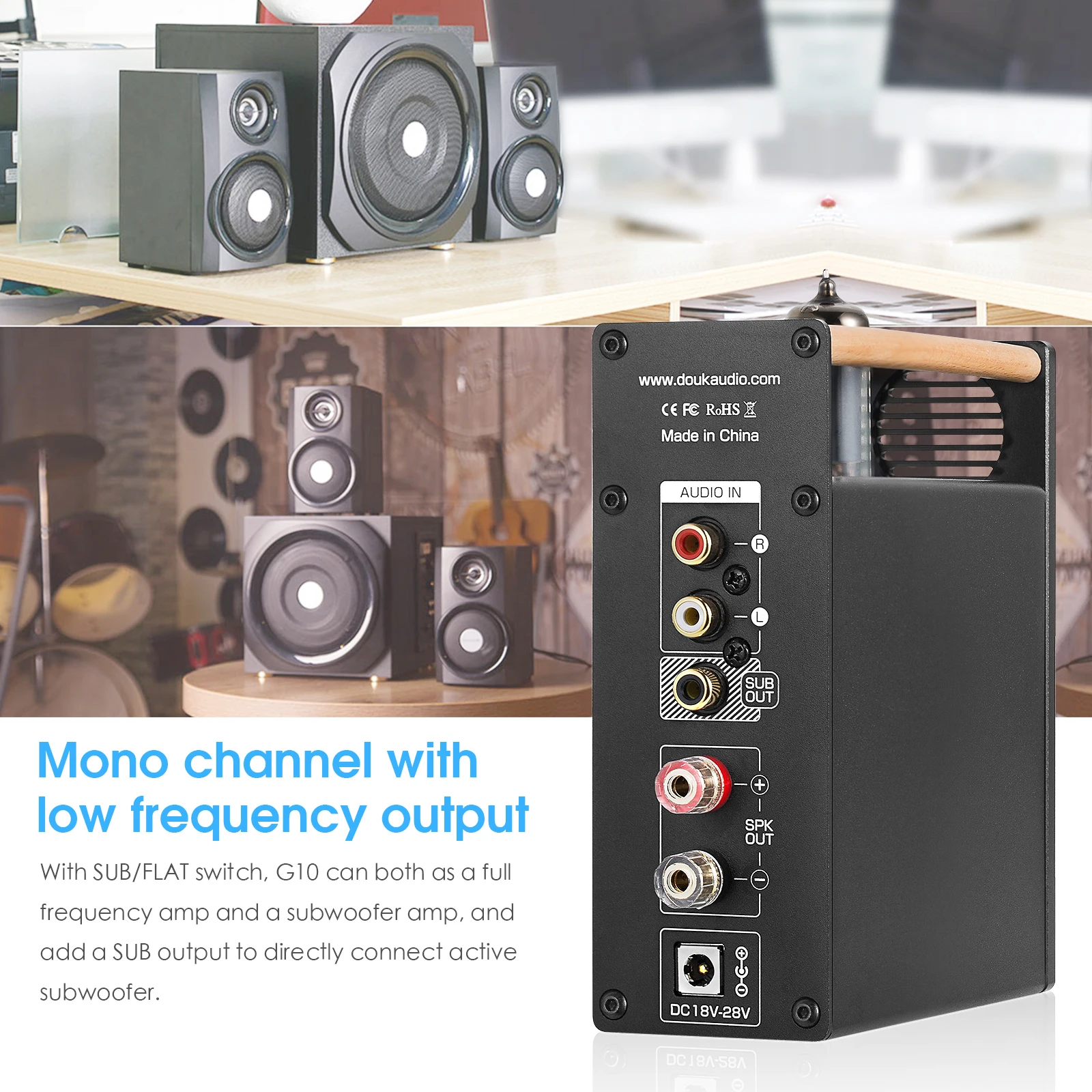

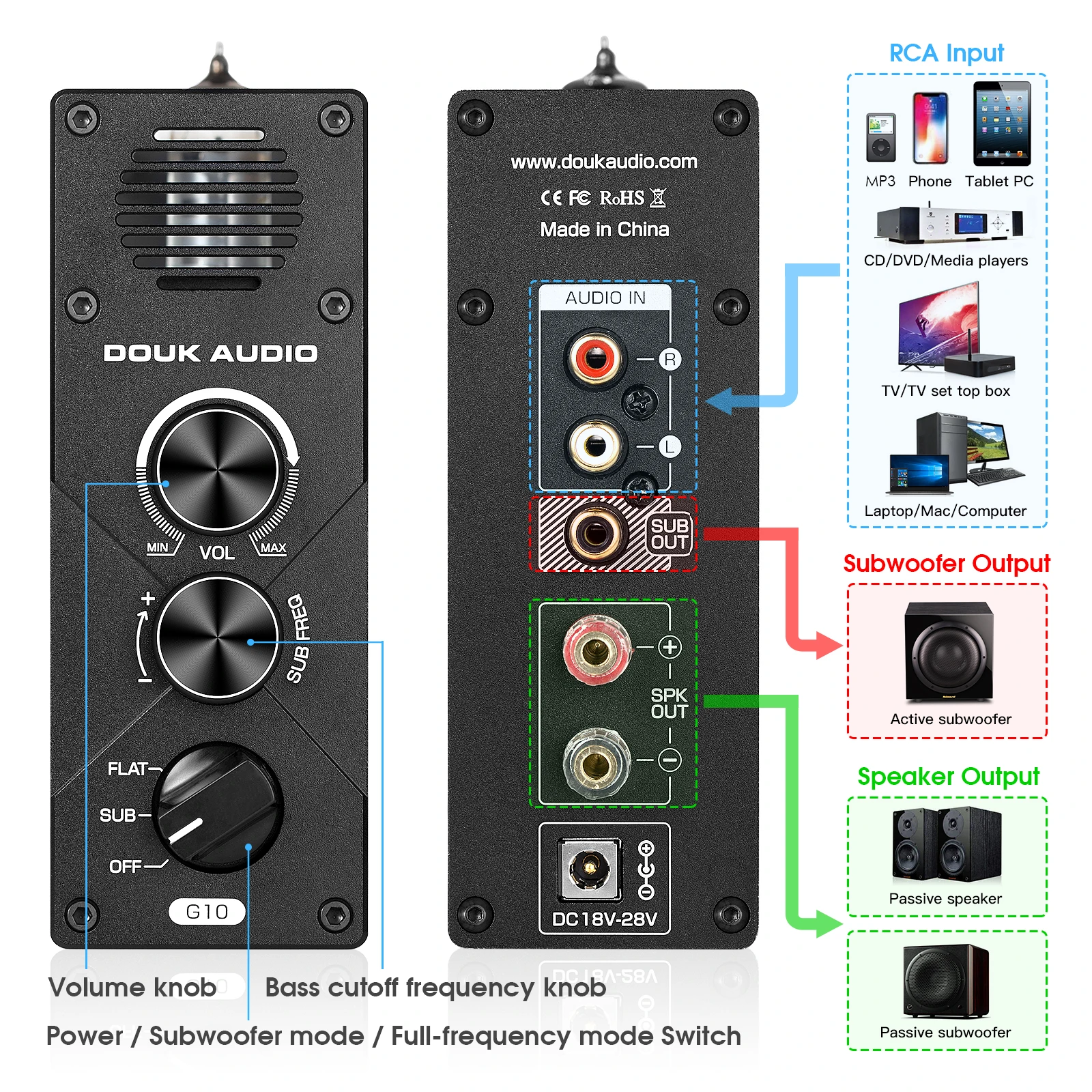

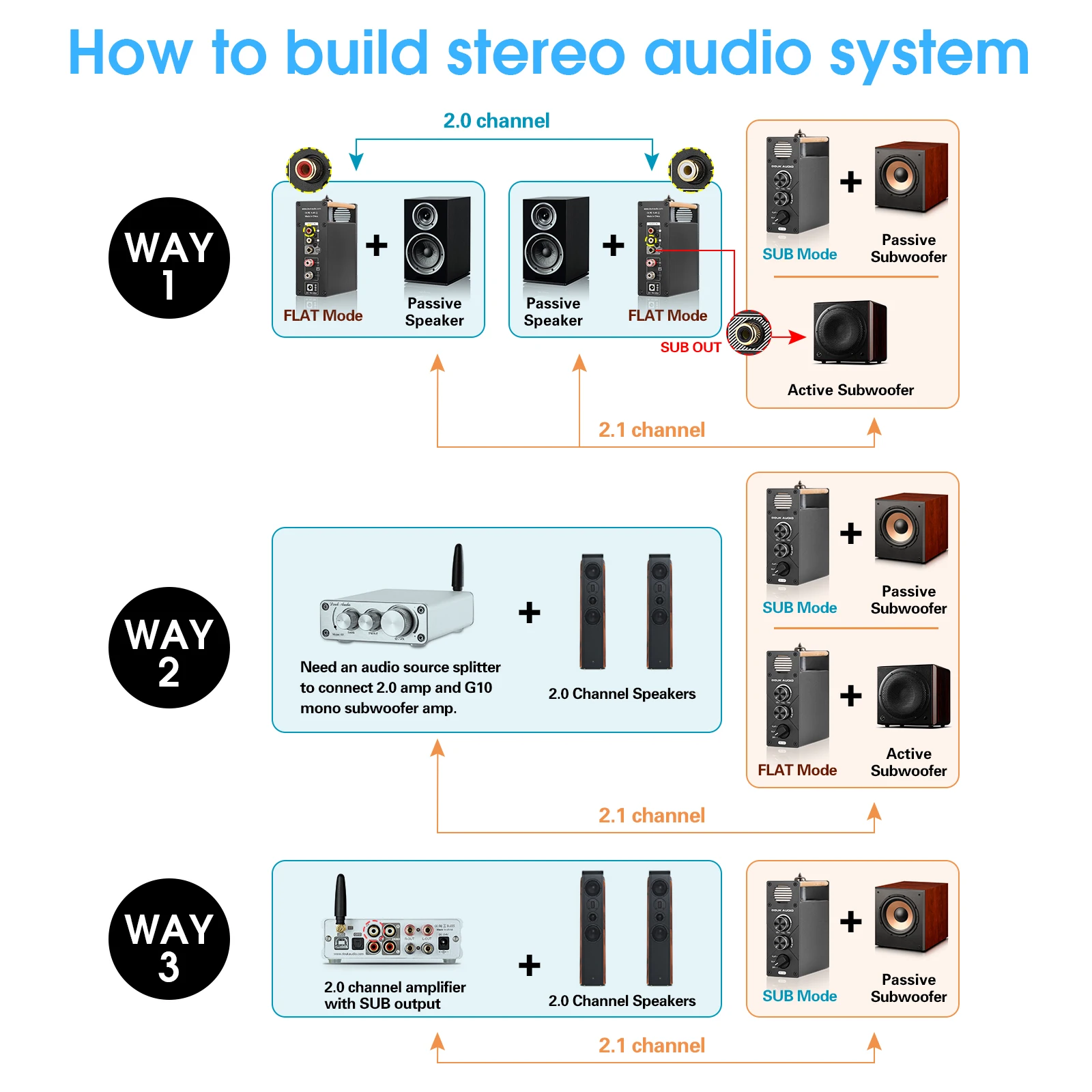

Mono channel with low frequency output: with SUB/FLAT switch, G10 can both as a full frequency amp and a subwoofer amp, and add a SUB output to directly connect active subwoofer. 2PCS G10 can drive left and right channel independently to avoid mutual interference, easy to build 2.0/2.1channel system.

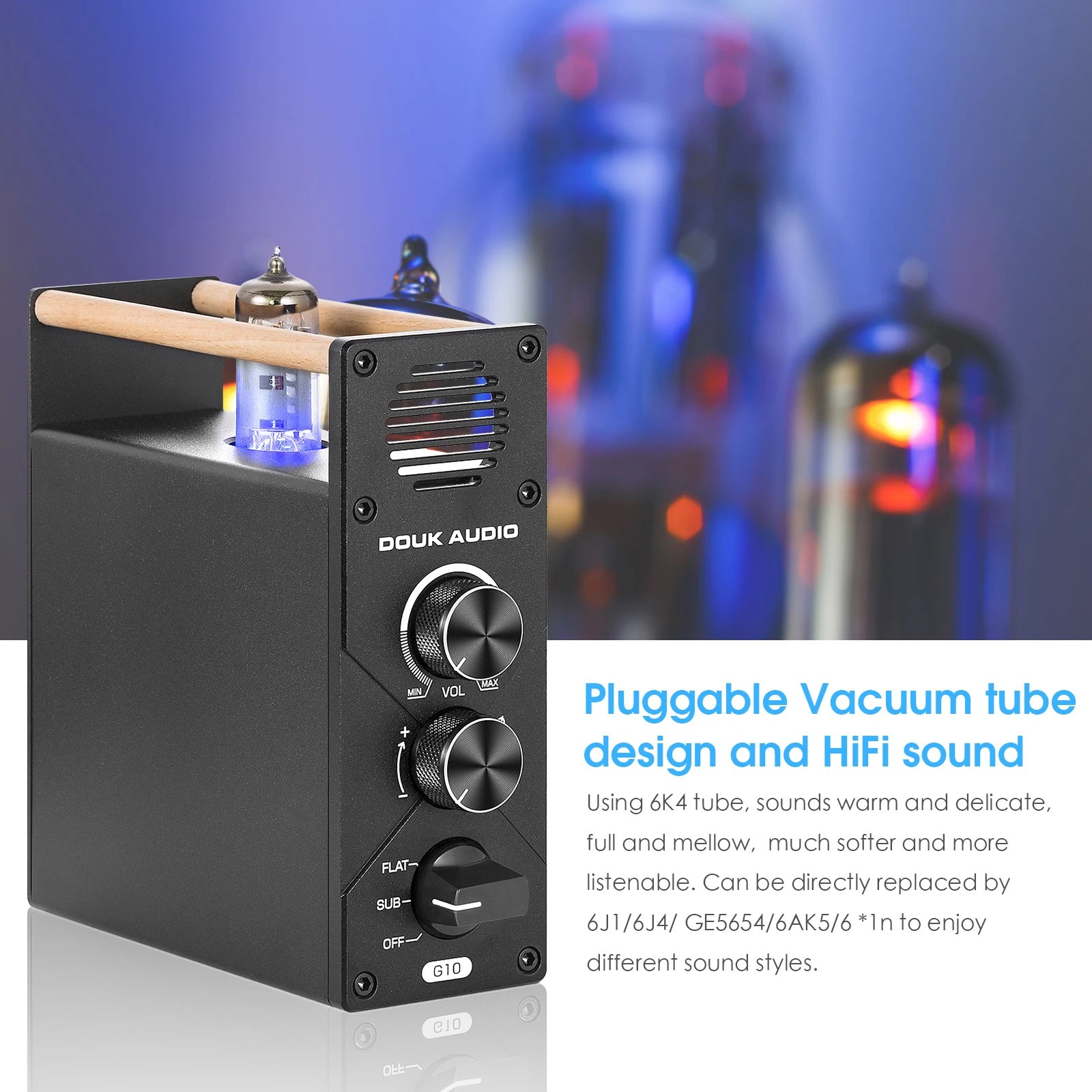

Pluggable Vacuum tube design and HiFi sound: using 6K4 tube, sounds warm and delicate, full and mellow, much softer and more listenable. Can be directly replaced by 6J1/6J4/ GE5654/6AK5/6*1N to enjoy different sound styles.

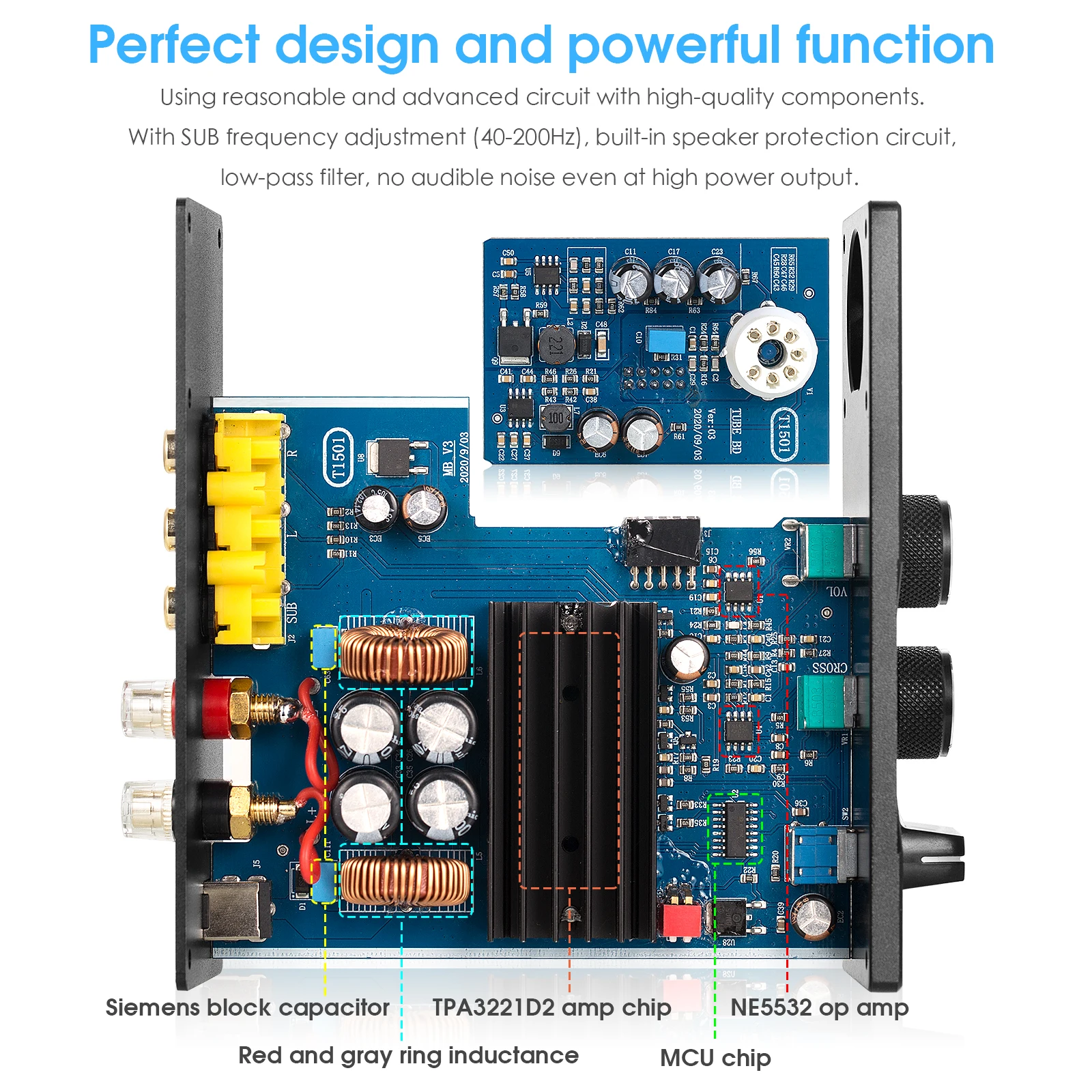

Perfect design and powerful function: using reasonable and advanced circuit with high-quality components. With SUB frequency adjustment (40-200Hz), built-in speaker protection circuit, low-pass filter, no audible noise even at high power output.

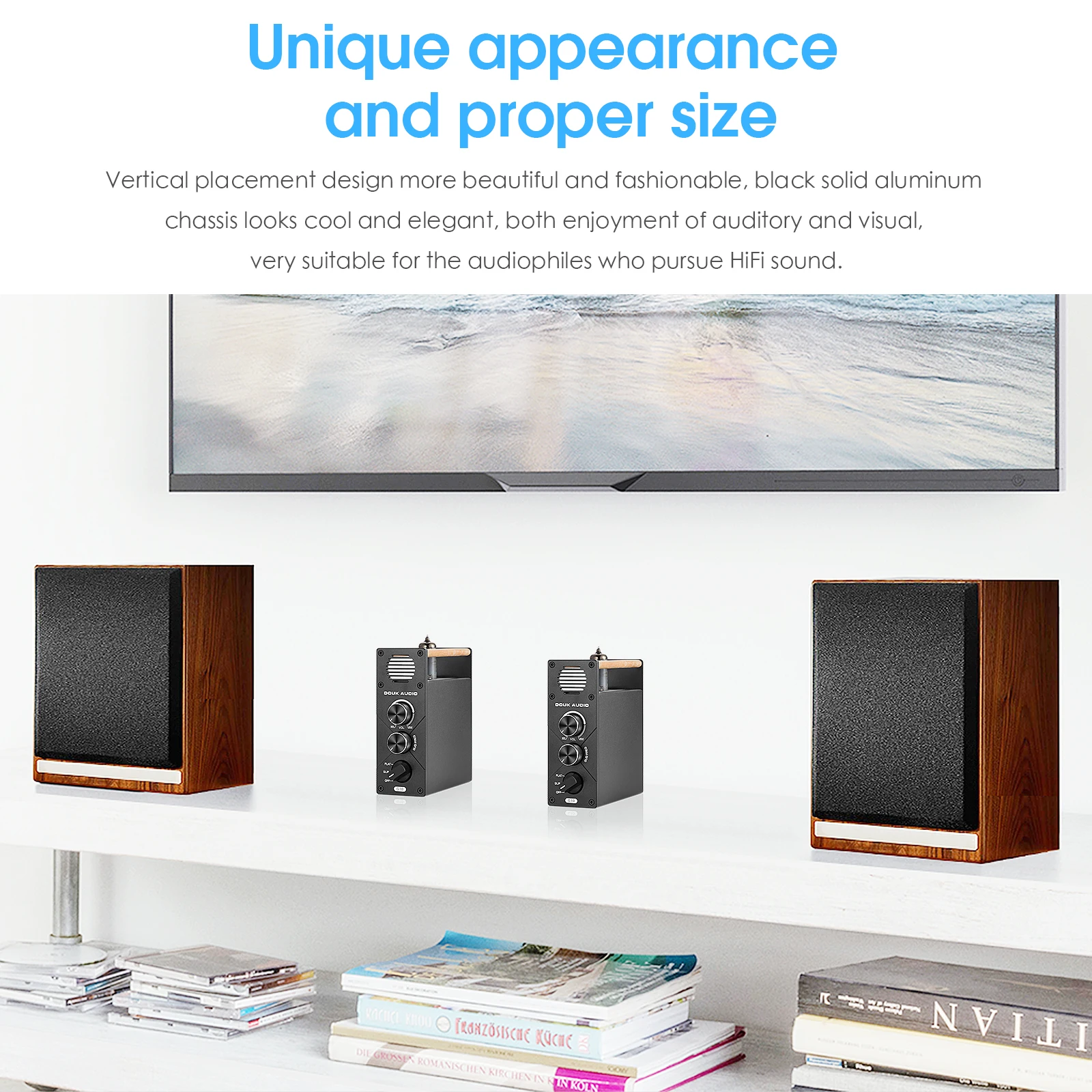

Unique appearance and proper size: vertical placement design more beautiful and fashionable, black solid aluminum chassis looks cool and elegant, both enjoyment of auditory and visual, very suitable for the audiophiles who pursue HiFi sound.

Parameters

Audio input: stereo L/R RCA

Audio output: banana speaker jacks / Low frequency (RCA)

Max power output: 100W(Low Gain) / 200W(High Gain)

Output impedance: 2-8Ω

Full frequency response: -2dB(20Hz-20KHz)

Bass cut-off frequencyadjustmentrange: 40Hz-200Hz

THD: 0.1%

SNR: 98dB

Input sensitivity: 2V

Working voltage: DC 18-28V

Dimensions(W*D*H): 50*120*138mm / 1.97*4.72*5.43in

Package dimensions(W*D*H): 320*240*80mm / 12.60*9.45*3.15in

Net weight: 600g / 1.32lb

Package weight: 1.3kg / 2.87lb

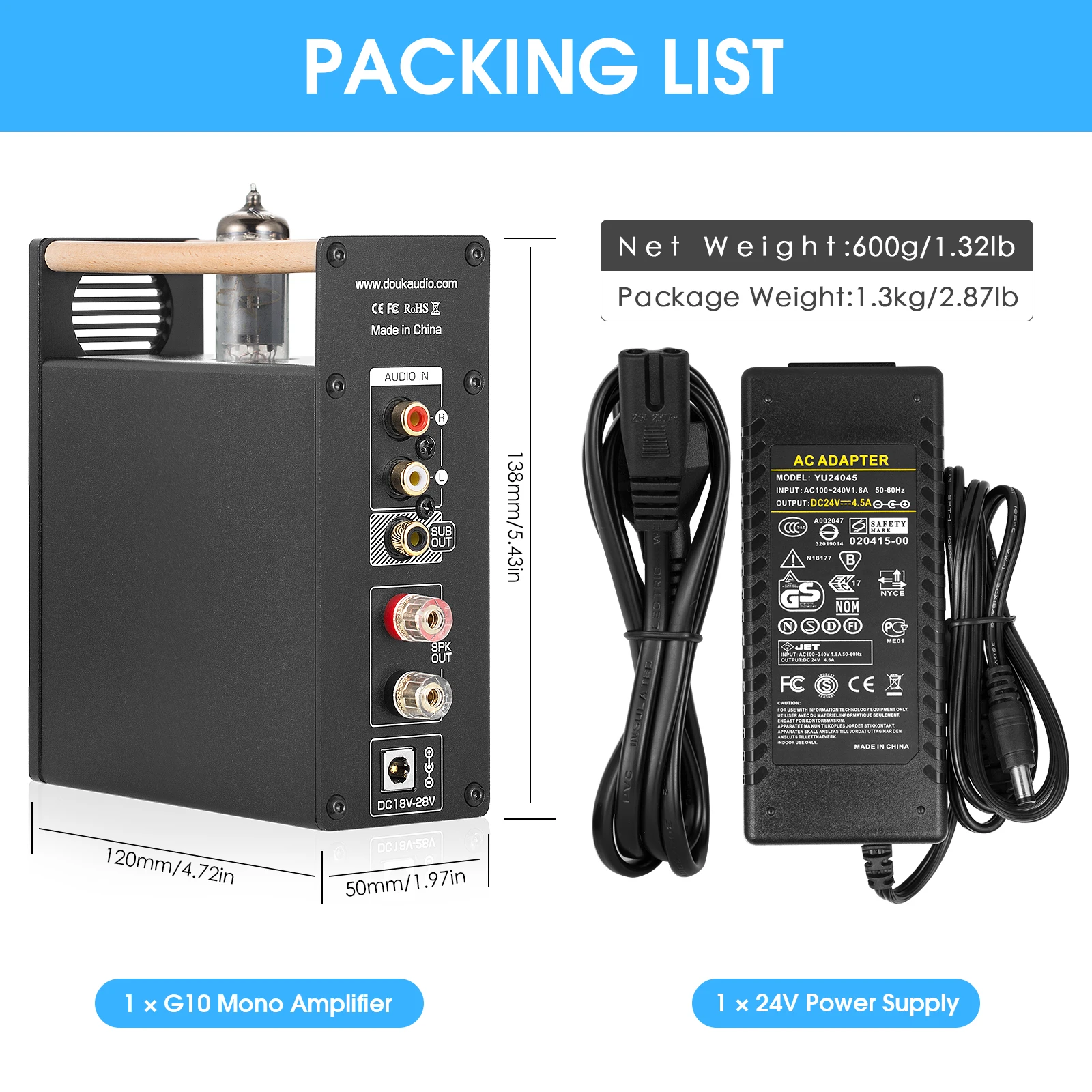

Packing List

1*G10 Mono Amplifier

1*24V Power Adapter
