Comfast CF-AC100 880Mhz Gigabit AC Authentication Gateway Routing MT7621 Multi WAN Load balance Core Gateway wifi project router wireless wifi range extender Modem-Router Combos

Brand Name:	comfast
comfast Model:	CF-AC100
With Modem Function:	Yes
Origin:	CN(Origin)
Type:	Wired
Wired Transfer Rate:	10/100/1000Mbps
WAN Ports:	1 x10/100/1000Mbps
Wi-Fi Supported Frequency:	2.4G & 5G
5G Wi-Fi Transmission Rate:	867Mbps
Package:	Yes
Model Number:	CF-AC100
2.4G Wi-Fi Transmission Rate:	300 Mbps
Function:	Firewall
Function:	VPN
Certification:	CE
Certification:	FCC
Number of USB Interfaces:	1 x USB 2.0
Supports WDS:	No
Max. LAN Data Rate:	1000Mbps
Standards And Protocols:	Wi-Fi 802.11b
Standards And Protocols:	Wi-Fi 802.11n
Standards And Protocols:	Wi-Fi 802.11ac
Standards And Protocols:	Wi-Fi 802.11g
Wi-Fi Transmission Standard:	802.11n
LAN Ports:	4
Supports WPS:	Yes
Application:	Network Security
Products Status:	Stock
WAN Ports:	1
Wireless:	Wireless
VPN:	Yes
Number of USB Interfaces:	1
Wi-Fi Transmission Speed:	10/100/1000Mbps
Max. LAN Data Rate:	1000Mbs

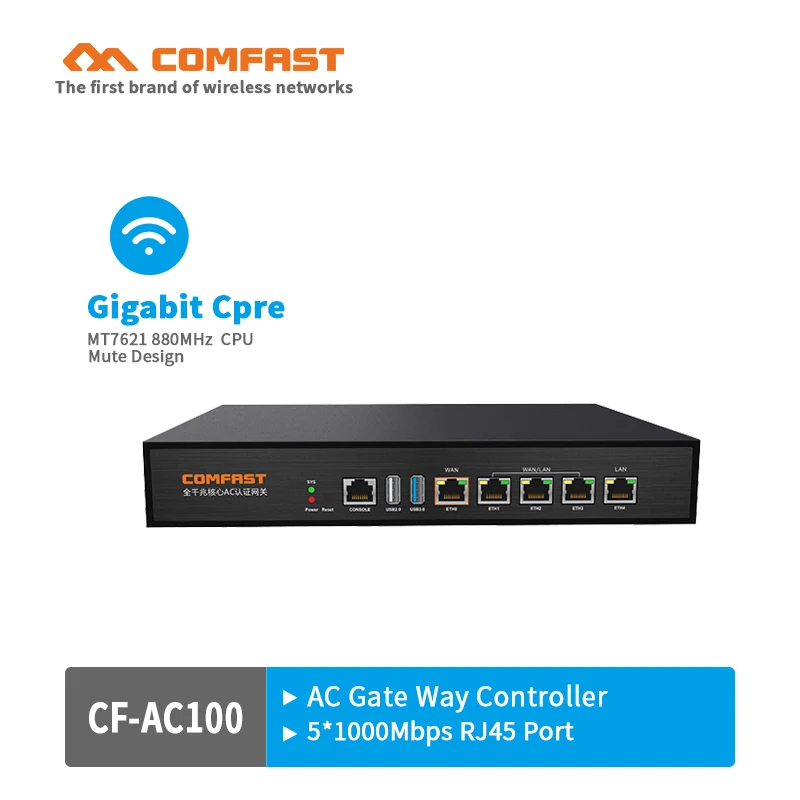

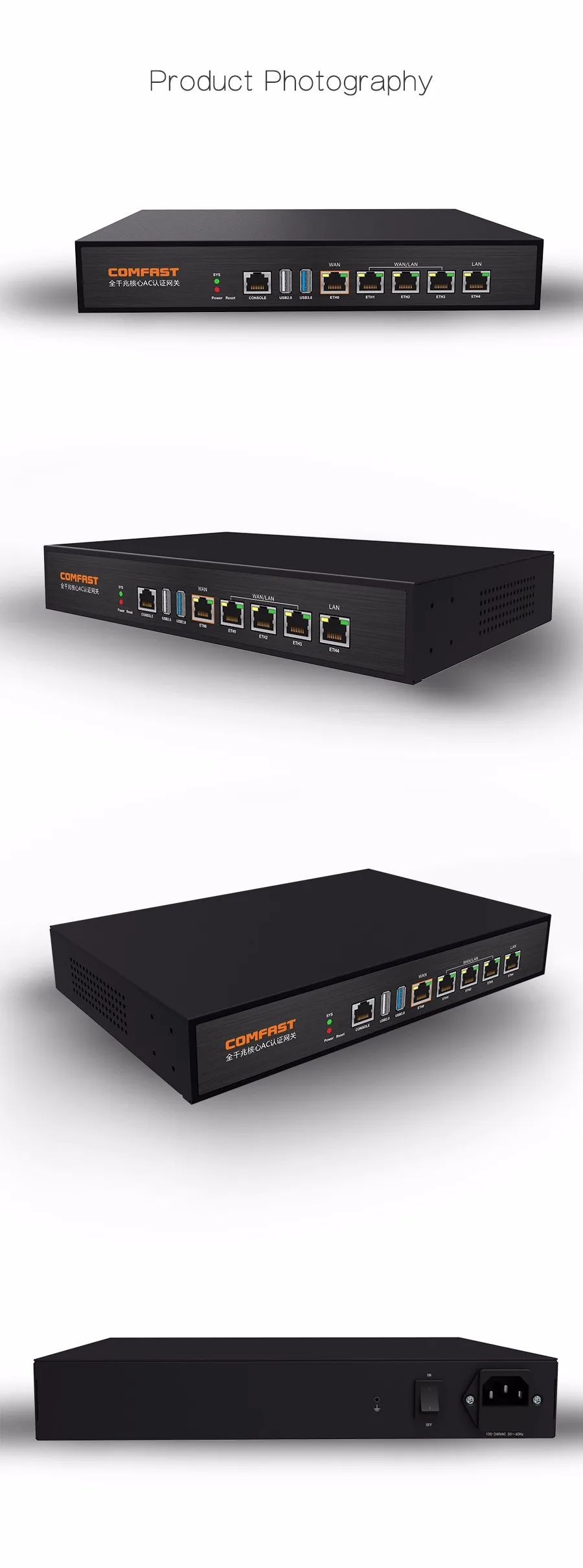

Comfast CF-AC100 880Mhz Gigabit AC Authentication Gateway Routing MT7621 Multi WAN Load balance Core Gateway wifi project router

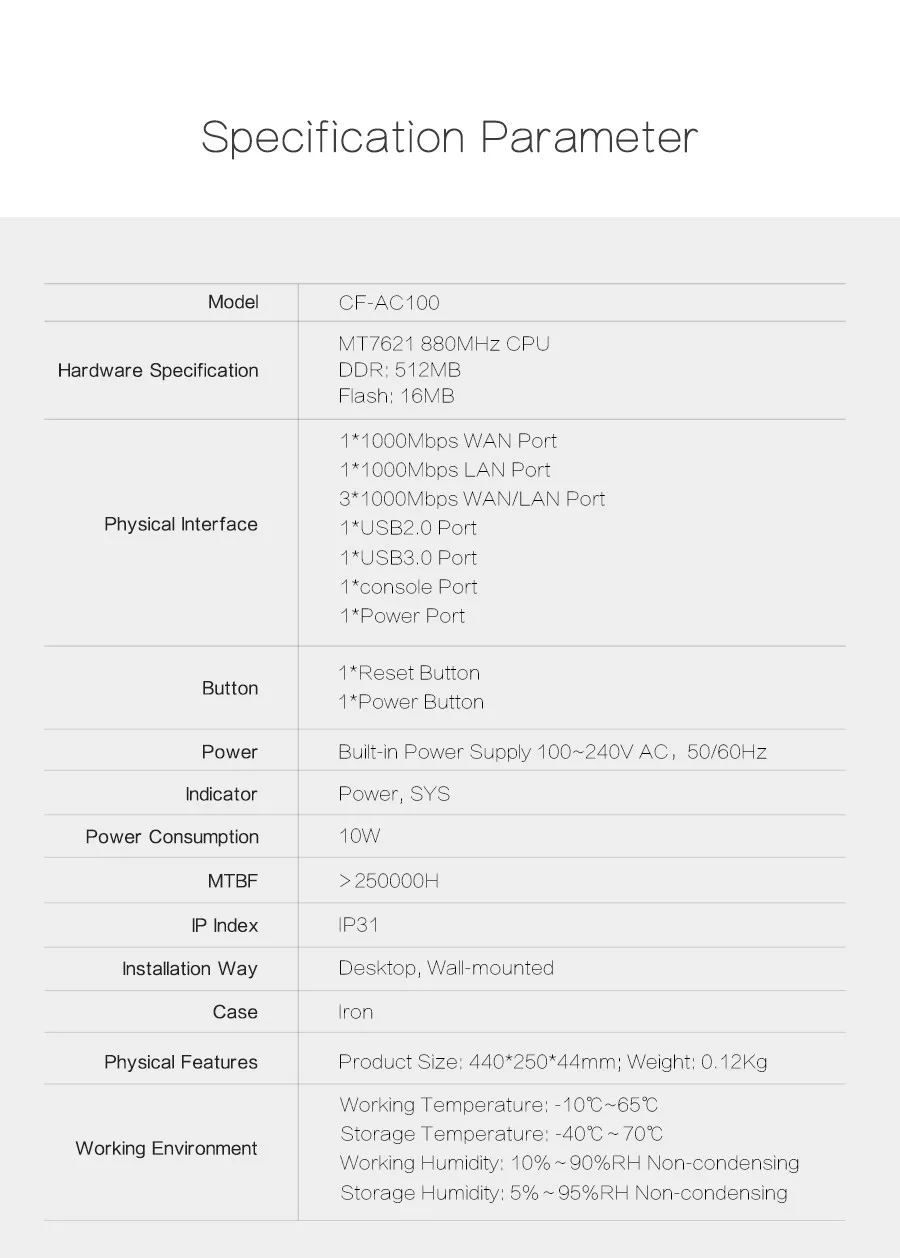

Specification:

Brand: COMFAST
Model: CF-AC100
Colour: Black

Hardware specifications：MT7621 Dual-core 880MHz CPU , DDR3:512MB , Flash : 32MB ；

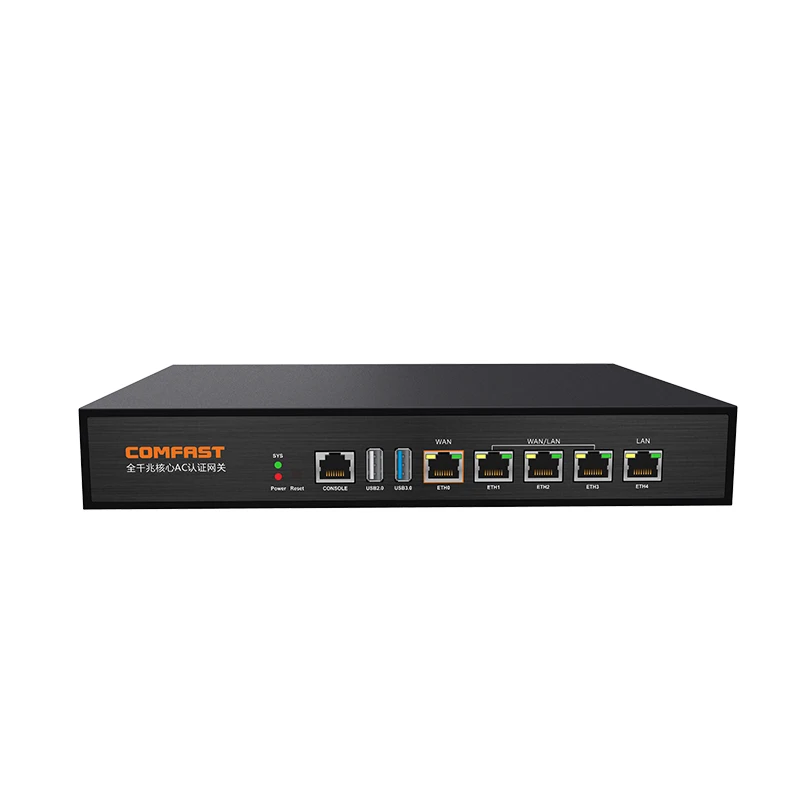

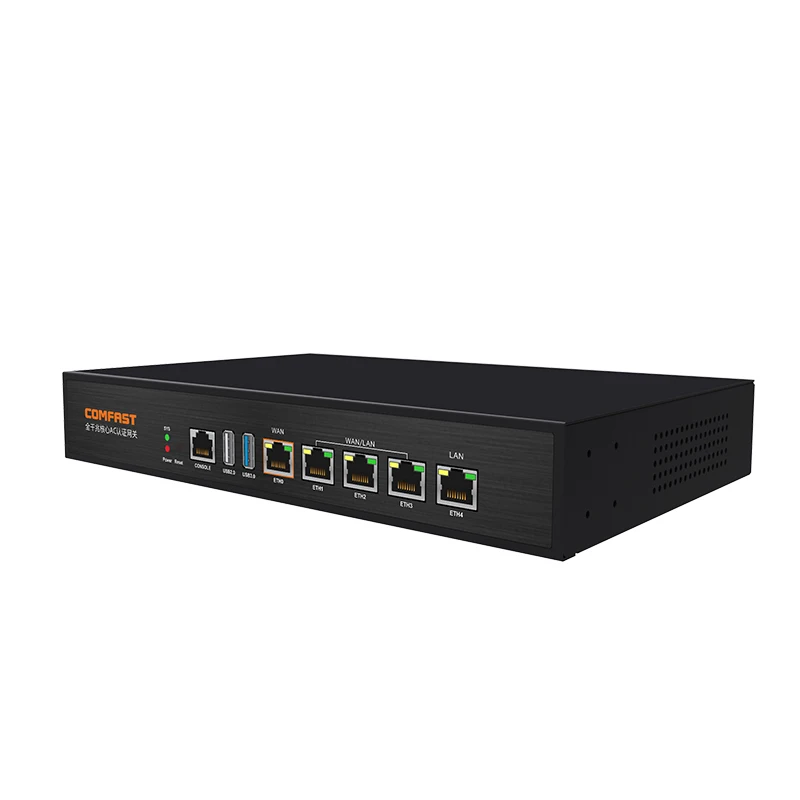

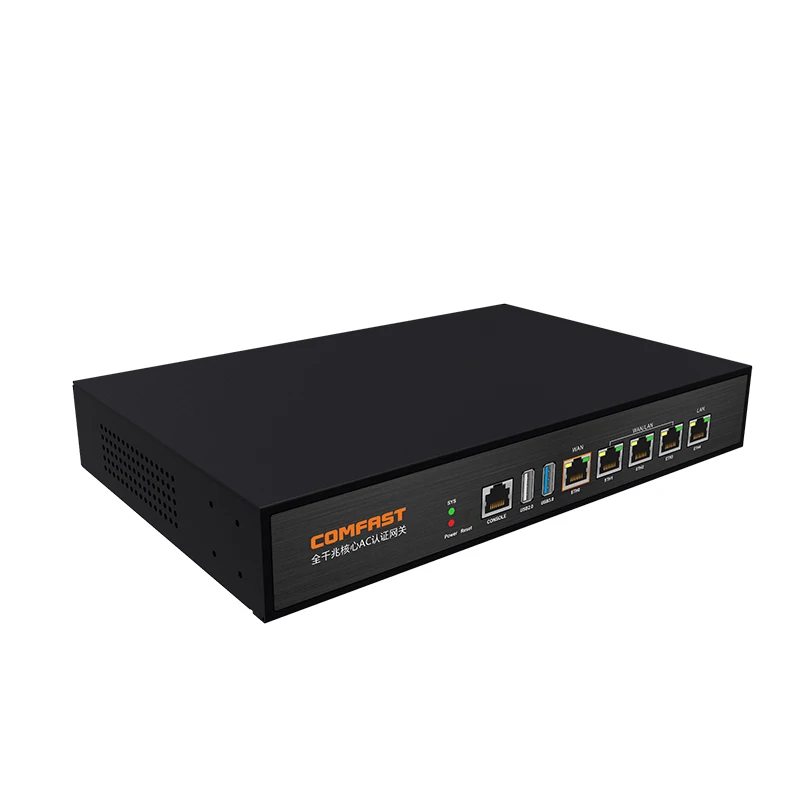

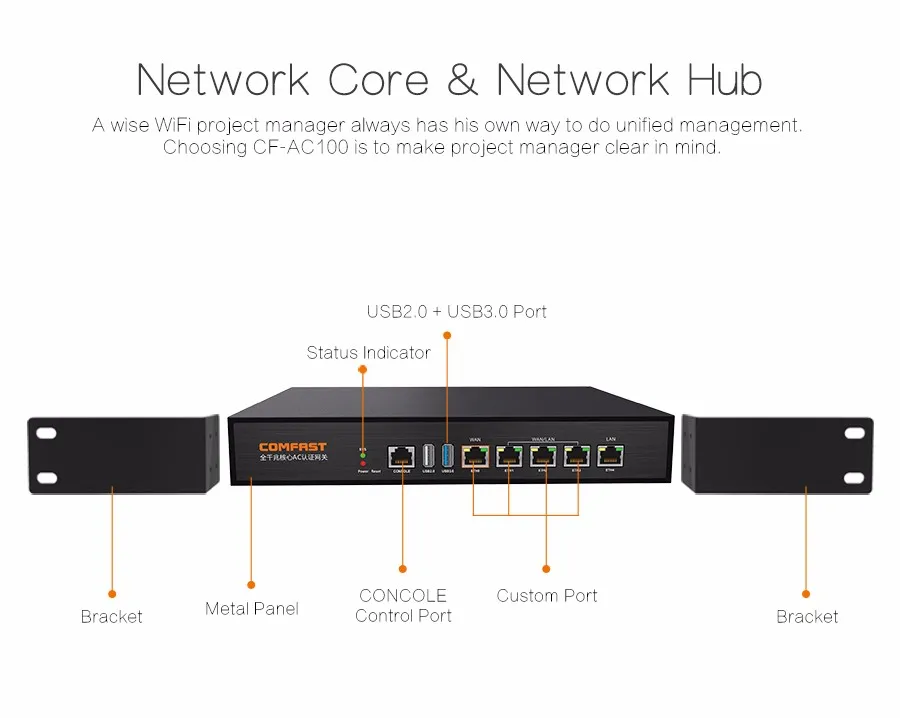

Physical interface ：3*10/100/1000Mbps WAN/LAN ports + 1*10/100/1000Mbps WAN port + 1*10/100/1000Mbps LAN port , 1*DC Power connector , 1*USB3.0 port ，1*USB2.0 port ，1*console port ;

Button : 1*Reset button , 1* power ON /OFF button ;

Power : Built-in power supply 100~240V AC 50/60Hz ;
Indicator light ：Power light ，System lights ；

Maximum power consumption ：10W

Access support ：The device can access and manage up to 128 units AP ；The device supports up to 500 terminal devices to access ；

Protection level ：IP31

Installation method ：Swing installation

Shell: Iron shell craft

Dimensions ：280*180*44mm

Working Environment:

Working Temperature: -10'C~55"C

Storage Temperature: -40"C~70'C

Working Humidity : 10%~90%RH No-condensing

Storage humidity ：5

%~90%RH No-condensing

Software specification:

Cyber security ACL : Black and white list access control list based on IP and network segment ，MAC-based black and white list access control list ,Port filtering based on source port and destination port ；

Cyber security ARP defense ：IP / MAC One-click binding ;  ARP Attack defense ; ARP Trust mechanism ;

Cyber security Attack defense : DDOS Anti-cyber attack ; Connection limit ，MAC filter ; prevent WAN port

Attack defense ;

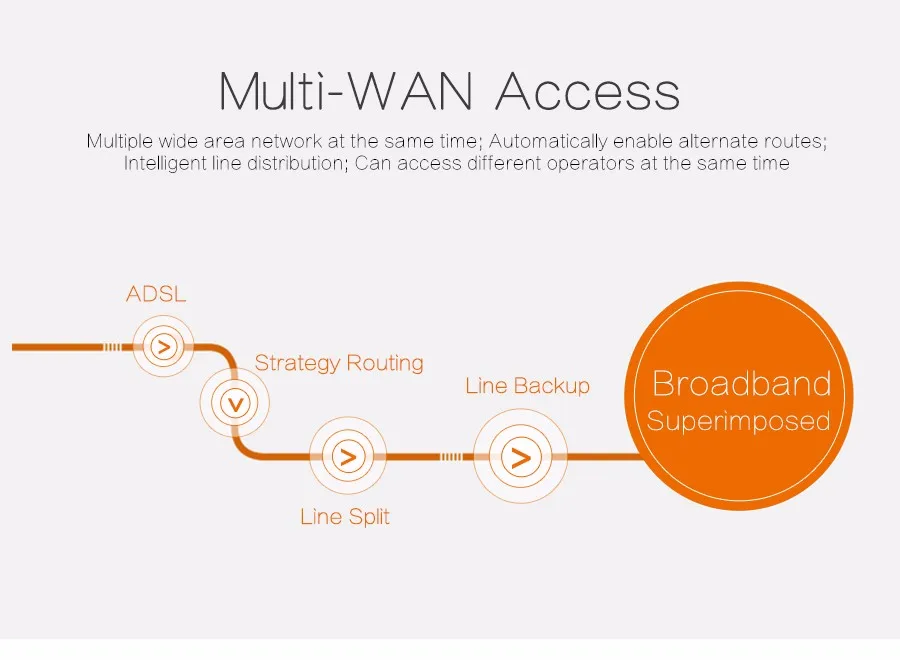

Smart balance ：Support multiple intelligent equalization of the same isp, bandwidth overlap ；

Policy routing ：Support different ISP strategy routing, intelligent line selection ；

Fast continuity detection ：Multiple WAN online status detection ，Automatically switch to other lines offline ；

Network address translation port mapping ：Support port mapping ；

Network address translation DMZ : Support DMZ Host ；

Network address translation UPNP : Support UPNP ;

Network function DHCP server ：Support DHCP dynamic address allocation and forwarding, support multiple address pools, support DHCP Sever ; support static address binding ;

Network function Static routing ：Support Static routing , RIP V1 、RIP V2 ；OSPF Dynamic routing protocol function ;

Network function DSN set up : Unified configuration of DNS for each external network line ；

Network function Multi-line DNS ：Configure the DNS of each external network line separately ；

Network function Chinese Network ：Facilitate Chinese people to watch domestic video website resources abroad ；

Network function Directed routing ：The equipment in the designated intranet takes the designated exit line ；

Network function Automatic redial ：Configure external network line interval time redial, or fixed-point time redial ；

Network function One-line multi-dial ：One external network port can support multiple dial-ups ；

Network function VLAN : Extend the intranet network, realize network isolation, and cooperate with the three-layer switch ；

Dynamic domain name update ：Support 3322 .org 、dyndns .org 、oray.com , Multi-WAN ports can update dynamic domain names independently ；

WEB management ：Chinese and English WEB management ；

Configuration management ：Support configuration file backup and loading；

Configuration file backup and loading ：Support configuration file backup and loading ;

Local system upgrade ：Support Local system upgrade ;

Partition backup ：Prevent configuration loss due to unexpected circumstances, and can automatically restore the last configuration ；

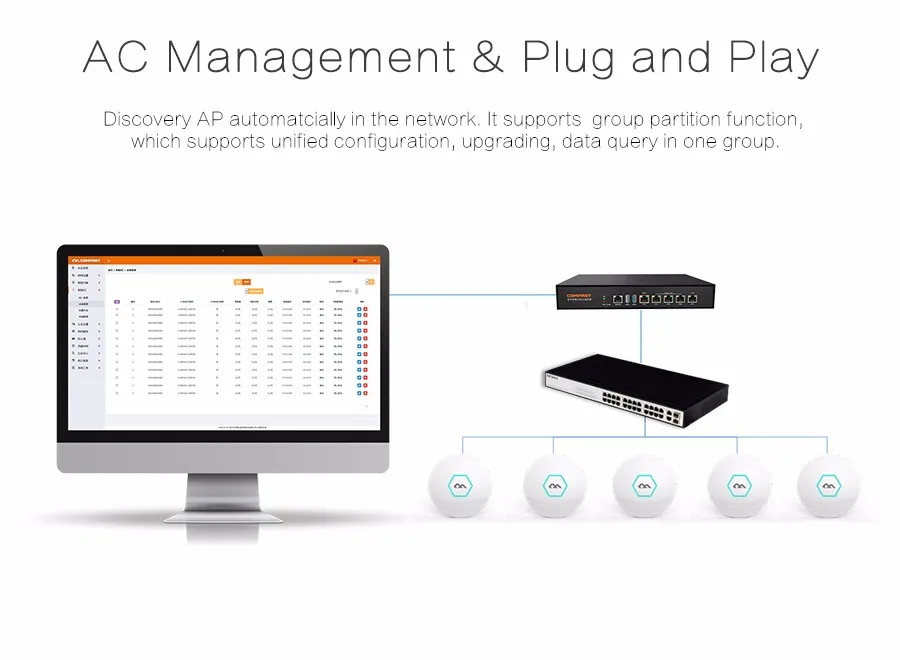

AC management Group management ：Unified configuration of AP's SSID, encryption method and other wireless configuration ；

AC management

AC management Batch upgrade ：Batch firmware upgrade for single or multiple APs of the same model ；

Virtual Private Network（VPN）：Support PPTV client, PPTV server supports borrowed lines ，Support L2TP client ；

Qos Intelligent flow control : Support four modes, balanced mode, web browsing priority, video, download priority and custom mode ；

Qos IP Speed limit : Support IP speed limit on the IP or IP segment in the network ；

Qos Intranet monitoring ：Perform traffic statistics on devices in the network, view real-time upstream and downstream traffic and online time and other information；

WEB security ：URL Keyword filtering ；

System log ：Can view system log ；

System status monitoring ：You can view the system usage status, CPU usage and traffic usage in the past week；

PING test : Support system ping ;

User settings: support to modify user management password ；

Time setting ：Support copy system time, support network time synchronization, time server setting ；

System restart ：Support time interval and time point to restart the device regularly ；
