Brand Name: | FEELWORLD |
---|---|
Photography Accessories Type: | Video Switcher |
Origin: | CN(Origin) |
Model Number: | L2 PLUS |
Package: | Yes |
Model Number: | Feelworld LIVEPRO L2 Plus |
PK: | Feelworld Livepro L1 |
PK: | DEVICEWELL HDS7105 |
PK: | YOLOBOX |
MODEL NAME: | Feelworld LIVE PRO L2 Plus |
MODEL NAME: | Feelworld LIVEPROL2 Plus |

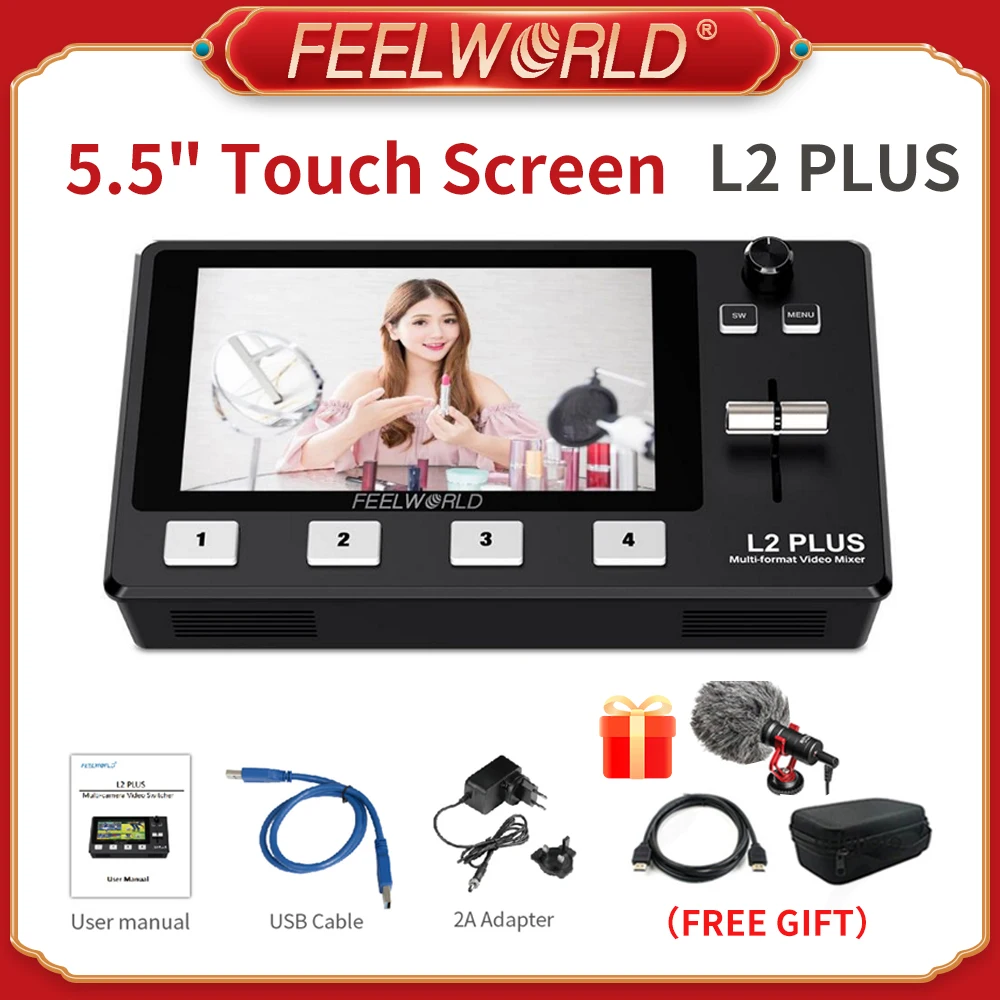

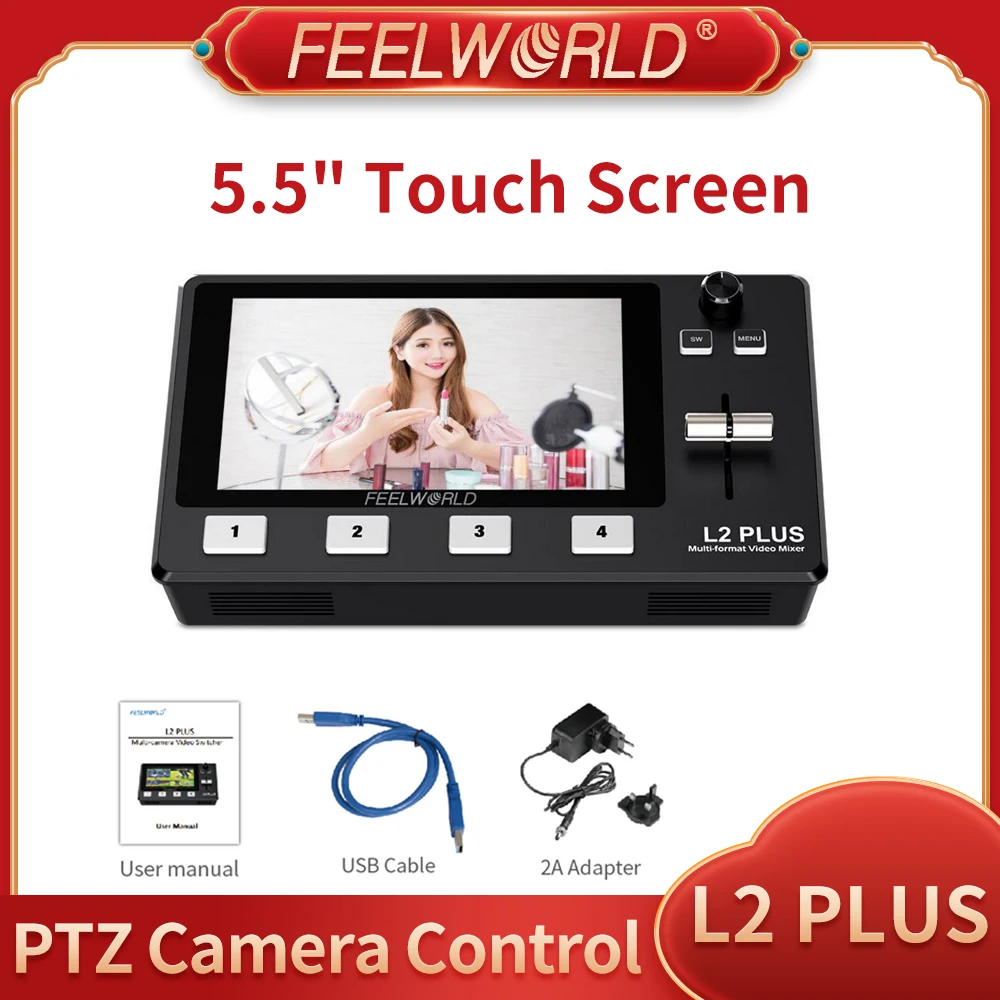

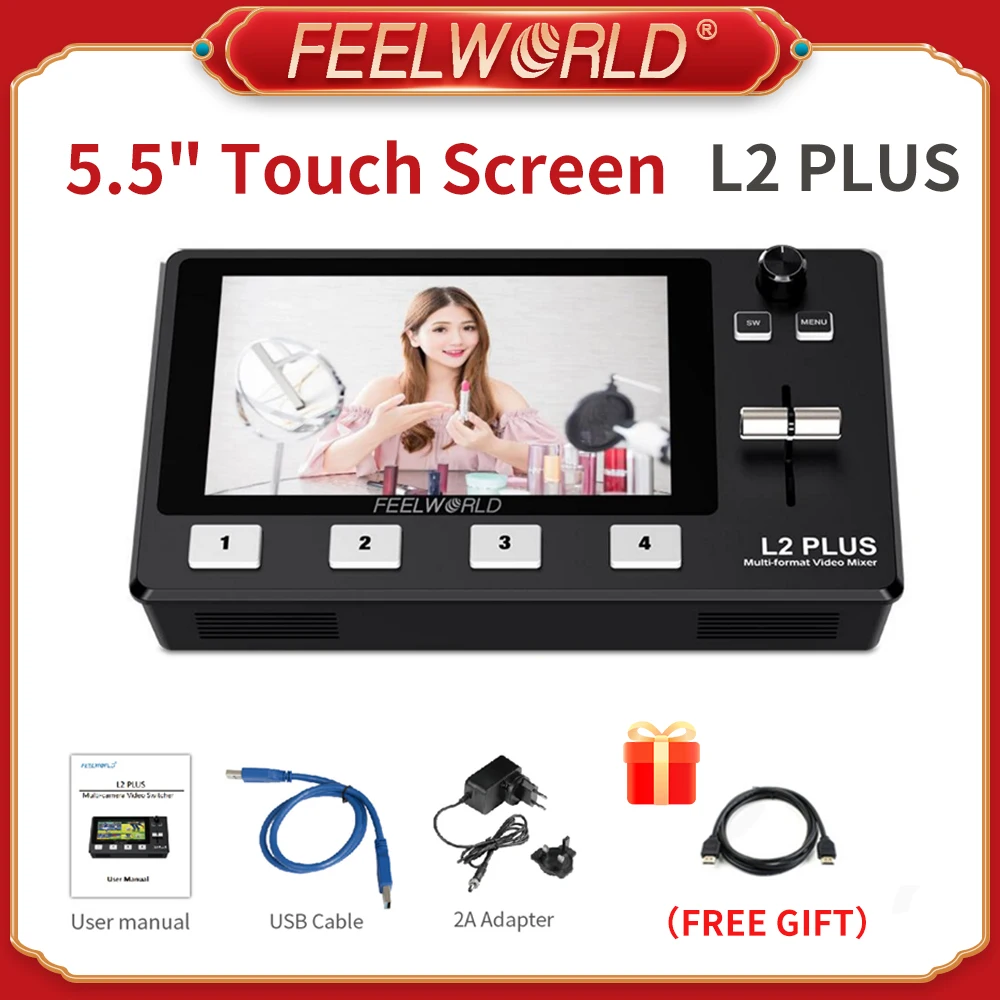

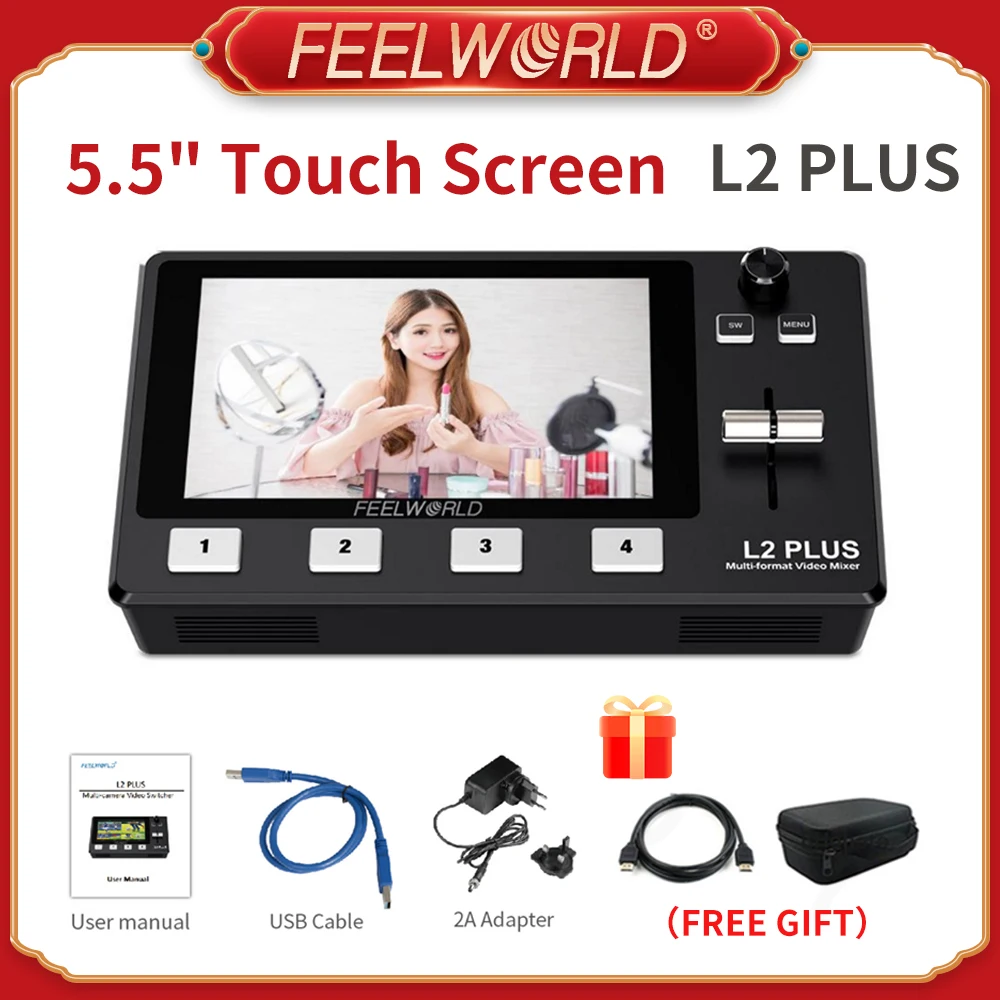

FEATURES: | 5.5" LCD Touch Screen |
FEATURES: | 4 x HDMI Inputs |
FEATURES: | Audio Input & Output |
FEATURES: | USB3.0 Live Streaming |
FEATURES: | PTZ Control |
FEATURES: | Chroma Key, Logo Overlay |
FEATURES: | Feelworld Livepro L1 Upgrade |
Features:
* 5.5-inch full HD IPS screen, provides real picture
* Touch screen operation, easy to use
* Real-time 6-picture preview ( 4 inputs sources + PST preview + PGM output picture)
* USB 3.0 fast to live streaming
* PTZ camera control (Up to 8 cameras)
* Chroma key, LOGO overlay
* T-Bar easily switch the transition effects and signal sources
* 15 transition effects and 9 PIP modes, the live picture more vivid
* Audio offers AFV or Line In mode
* Remote control via PC/smartphone APP
Display Spec.
Model
L2 PLUS
Screen Size
5.5" Touch screen
Backlight
LED

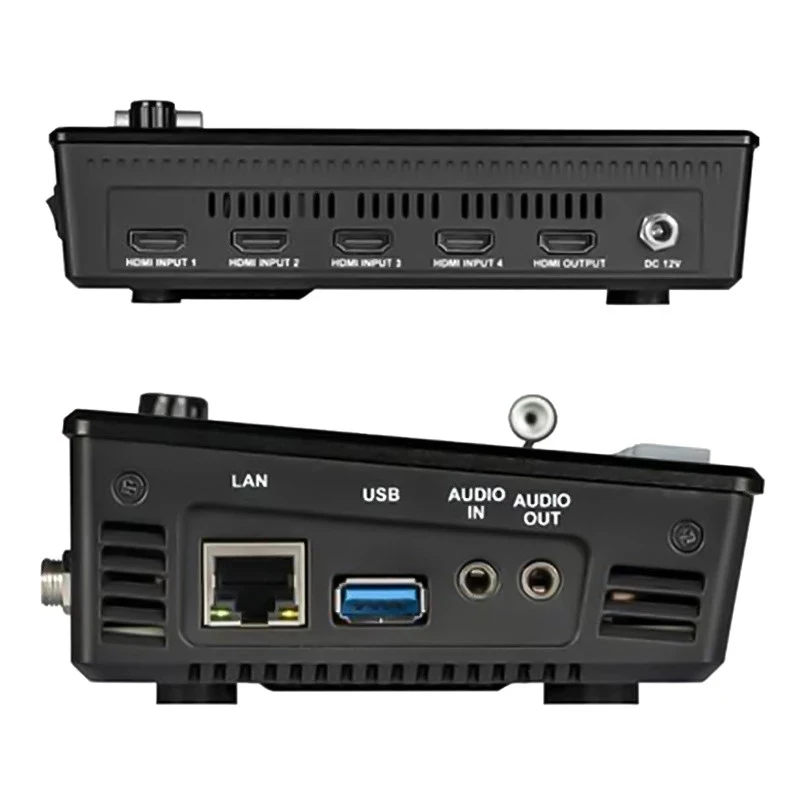

Input
4 X HDMI
HDMI-A
Output
1 X HDMI
HDMI-A
1×USB TypeA
USB 3.0
Audio
Audio In
1×3.5mm (can be connect to microphone)
Audio Out
1×3.5mm Stereo Jack
Input Solution
HDMI
SMPTE 720p@50/60 | 1080i@50/60 | 1080p@23/24/30/50/60
VESA 1024X768@60 | 1280X720@60 | 1280X768@60 | 1280X800@60 | 1280X1024@60 | 1360X768@60 | 1366X768@60 | 1440X900@60 | 1600X1200@60 | 1680X1050@60 | 1920X1080@60 | 1920X1200@60VESA 1024X768@60 | 1280X720@60 | 1280X768@60 | 1280X800@60 | 1280X1024@60 | 1360X768@60 | 1366X768@60 | 1440X900@60 | 1600X1200@60 | 1680X1050@60 | 1920X1080@60 | 1920X1200@60
Output SolutionOutput Solution
HDMI
SMPTE 720p@50/60|1080p@24/25/30/50/60
VESA 1024X768@60 | 1280X720@60 | 1280X768@60 | 1280X1024@60 | 1360X768@60
USB Streaming
1280X720@50/60 | 1280X1024@60 | 1360X768@60 | 1920X1080@24/25/30/50/601280X720@50/60 | 1280X1024@60 | 1360X768@60 | 1920X1080@24/25/30/50/60
Note: Please refer connected computer for applicable resolution supportNote: Please refer connected computer for applicable resolution supportNote: Please refer connected computer for applicable resolution supportNote: Please refer connected computer for applicable resolution supportNote: Please refer connected computer for applicable resolution supportNote: Please refer connected computer for applicable resolution supportNote: Please refer connected computer for applicable resolution supportNote: Please refer connected computer for applicable resolution support
GeneralGeneralGeneralGeneral
Input Voltage Input Voltage
DC 12V / 2A
Max Power
21W
Working Temperature
0℃~50℃
Humidity
5%~85%
Unit Size
191(L) x 110(W) x 43(H)mm
Unit Weight
610g
Color Box Size
260(L)*130(W)*82(H)mm
Outer Carton Qty
15
Outer Carton Size
470*275*480mm
Gross Weight
16.6kgs
