box stream VOLKSTEC High Precision CATV Digital Signal Level Meter MER BER Spetrum analyzer DB200 DB200P DB Meter free shipping free sat box TV Receivers

Code: TD-32855359554 7 orders
Free Shipping
$ 386.32
Color:
200P 5-870MHz
200 46-870MHz
Note

Quantity:
Other people want this. 18 people have this in their carts right now.

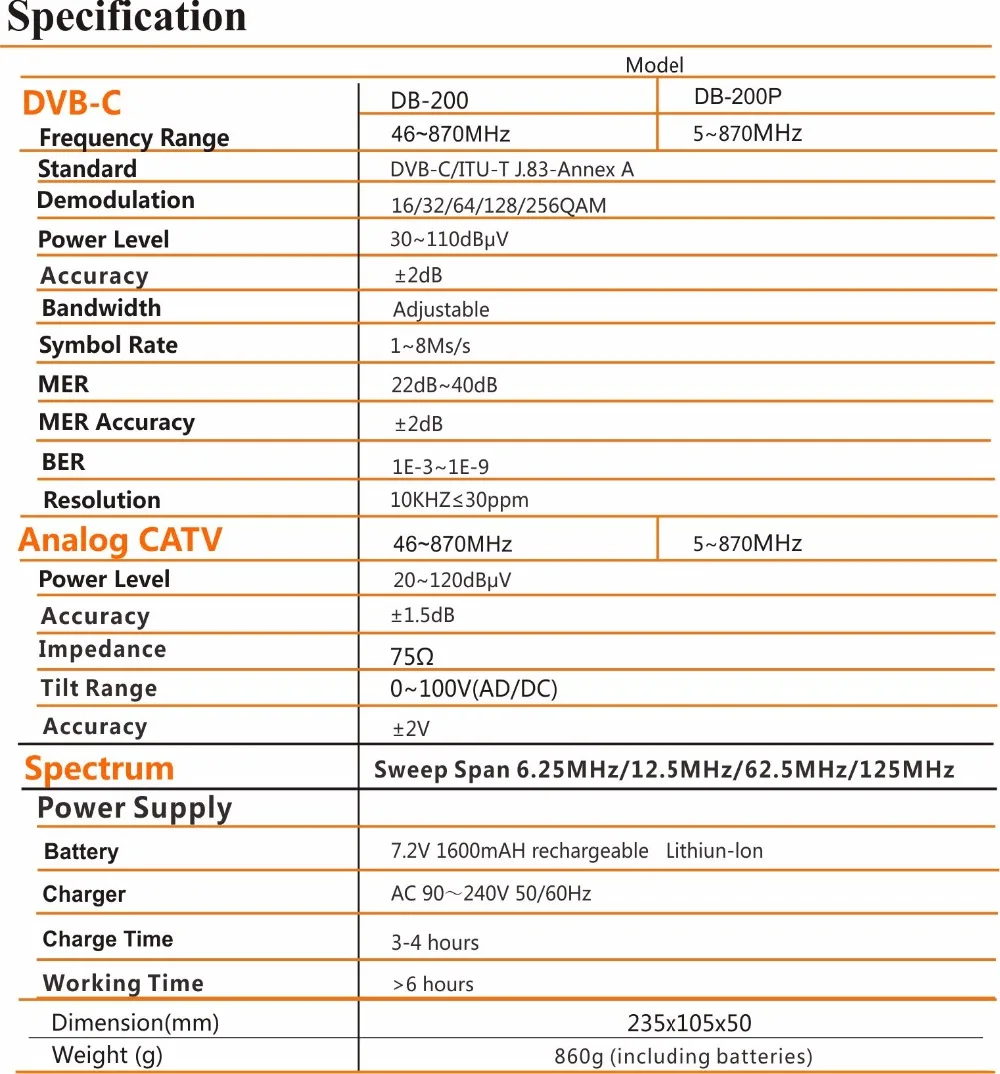

Brand Name:  VOLKSTEC
Certification:  CE
Origin:  CN(Origin)
Package:  Yes
Model Number:  DB-200 Series
Voltage:  12V
Frequency range:  5MHz~870MHz
Constellation diagram:  Yes
Standard:  DVB-C/ITU-T J.83-Annex A
Demodulation:  16/32/64/128/256QAM
Bandwidth:  Adjustable
MER:  22dB~40dB
BER:  1E-3~1E-9
Fast spectrum analysis:  6.25MHz/12.5MHz/62.5MHz/125MHz
Dimensions:  235x105x50mm
Weight:  0.9kg

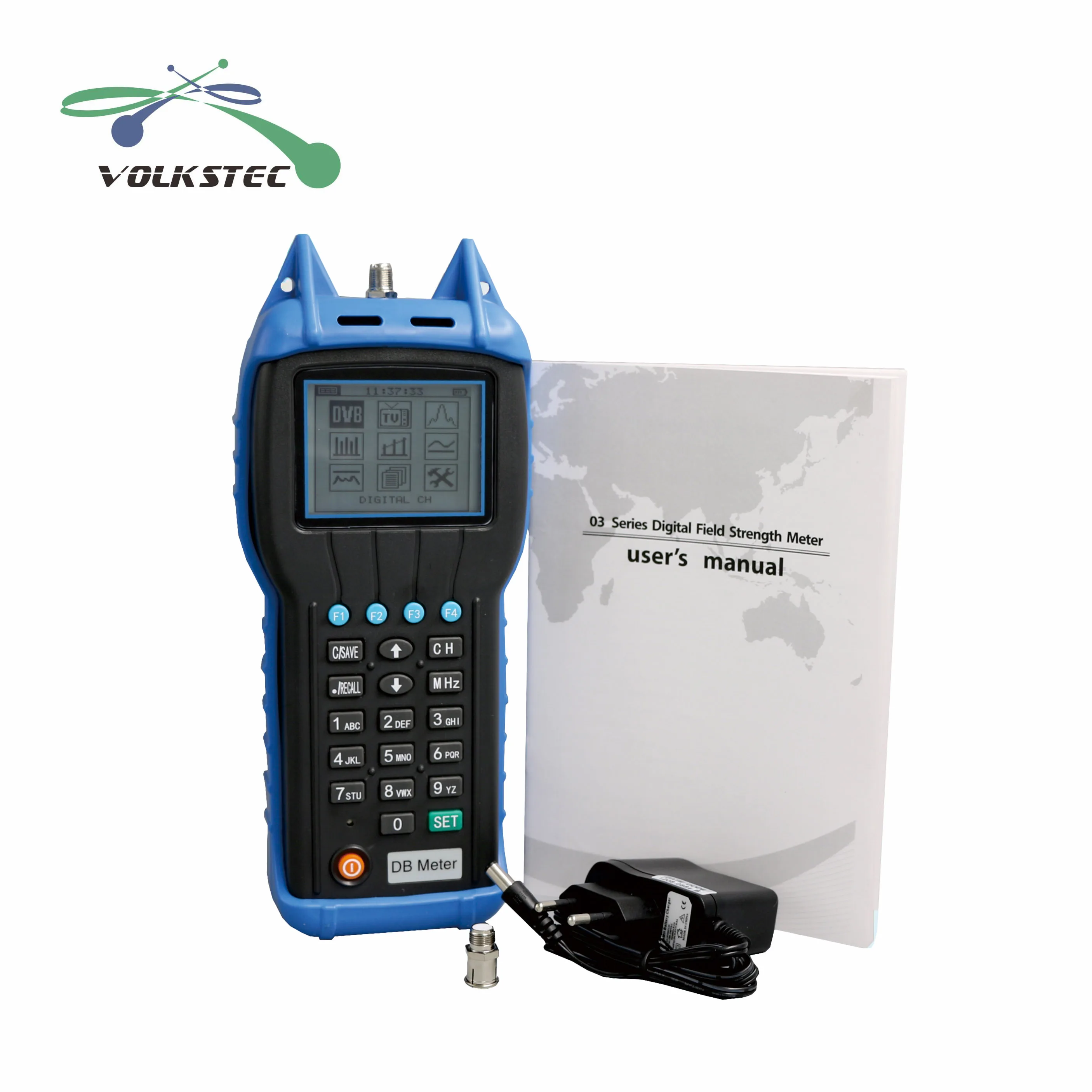

VOLKSTEC High Precision CATV Digital Signal Level Meter MER BER Spetrum analyzer DB200 DB200P DB Meter free shipping

High Precision digital CATV signal level meter DB200/DB200P

series handheld QAM analyzer incorporates the newest technology, supporting digital signal analysis functions for channel power, MER, BER and constellation diagrams for 16/32/64/128/256 QAM modulation types. Analog channel analysis includes single frequency level, carrier level of full channels spectrum, tilt and C/N.

Features

Really portable design

Light LCD screen

Support DVB-C/ITU-T J.83-Annex A

Digital TV analysis includes channel power, MER, BER and constellation diagram

Analog channel measurement includes RF level, tilt, C/N and trunk voltage

Channel scan/Limit test

Fast spectrum analysis
