Name: H.264 H.265 Streaming Encoder WIFI 4G LTE HDMI to IP Live Video Encoder with UTP ✅ SRT ✅ RTSP ✅ RTMP ✅ RTMPS apple tv box
Brand: MMO Dropship
SKU: 1005003722862261
Price: 620 VND
Availability: InStock
Rating: 4.9 (74 reviews)

Code: TD-1005003722862261 4 orders

Free Shipping

$ 620

Quantity:

Other people want this. 10 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	URayTech
Certification:	CE
Certification:	FCC
Certification:	RoHS
Origin:	CN(Origin)
Package:	Yes
Model Number:	UHE264-1WB-4G
Voltage:	12V
Input:	HDMI(Support HDCP)
Output:	Ethernet Port(1000M) or WIFI(2.4G /5G) or 3G /4G
Streaming Protocol:	UTP, SRT, RTSP, RTMP, RTMPS
Video Encoding:	HEVC /H.265 and H.264 /AVC for selection
Audio Encoding:	AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
Video Stream:	Up to 2 Video Streams Output Simultaneously
Bitrate Control:	32kbit /s to 32mbit /s Adjustable
Service:	Provide SDK and API and CGI for Secondary Development
Video Resolution:	Max 1920x1080P /60fps Input and Output
Battery:	SONY Battery F550, F750, F970 For Selection
OSD Setting:	Support Insert Logo and Text and Time on the Output Displayed Video
Control Panel:	Webpage or APP Control
Upgrade:	Firmware is Upgradeable
Hot Shoe:	Yes, included
Customization:	Support Logo, Language, Firmware etc Customization
Warranty:	5-year Warranty and Free Lifetime Technical Support

Overview

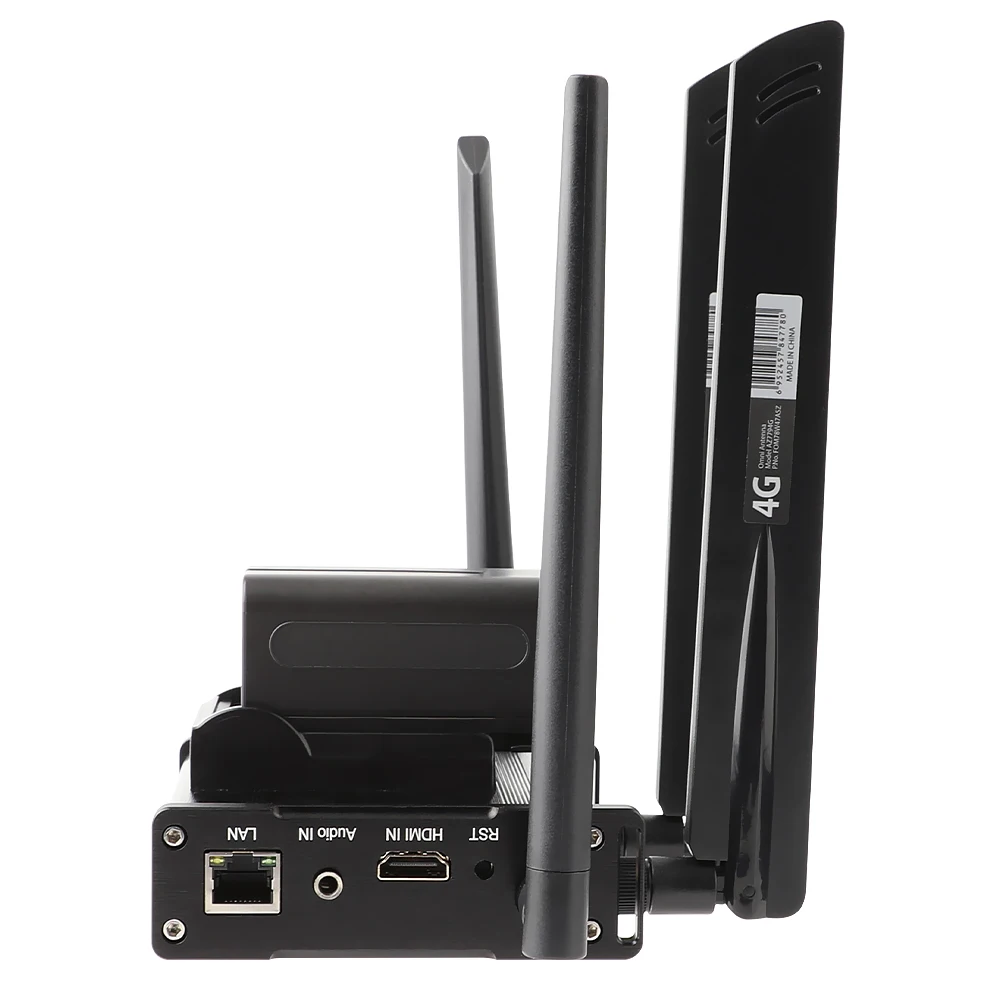

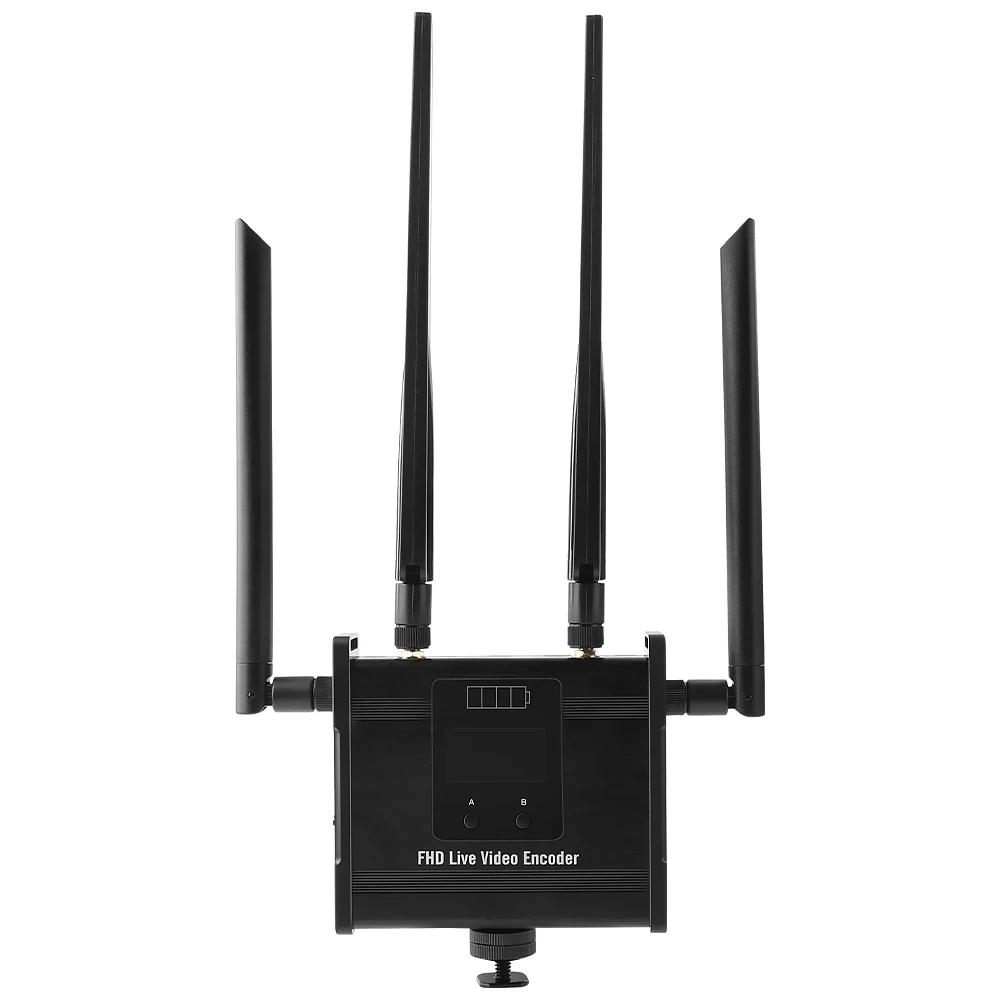

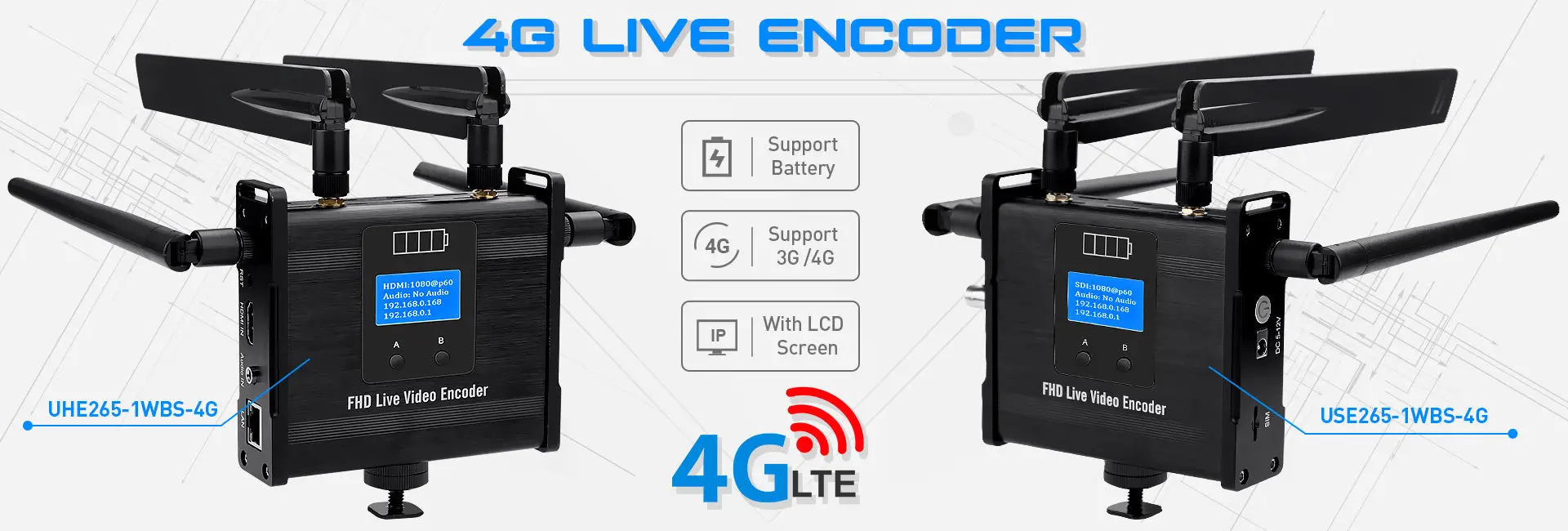

URaytech video encoder(Model No. UHE265-1WBS-4G) is a HD audio and video encoding device with powerful functionality. It supports HDMI(audio build-in) and external stereo audio(3.5mm jack) input, H.265 /H.264 video encoding and AAC /MP3 /MP2 /AC3 /G.711 audio encoding, 2 video streams output simultaneously.

It supports

SRT,UTP, RTSP, RTMP, RTMPS

streaming protocol. It enable you to choose 4G LTE or WIFI or LAN port to transmit the video stream.

Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platforms, such as YouTube Live, Ustream, Twitch, Facebook Live etc.

If you input external audio, you can choose HDMI embedded audio or external audio as output audio.

We produce multi-channel video encoder decoder which is packed by 1U rack or 3U rack. For 3U rack, support up to 16 encoder cards to be installed.

All URayTech video encoders and video decoders include a five-year manufacturer warranty and free lifetime technical support. Also we provide SDK and API and CGI control protocol for secondary development. Meanwhile, we can provide many free service such as logo printing, language customization, firmware development etc.

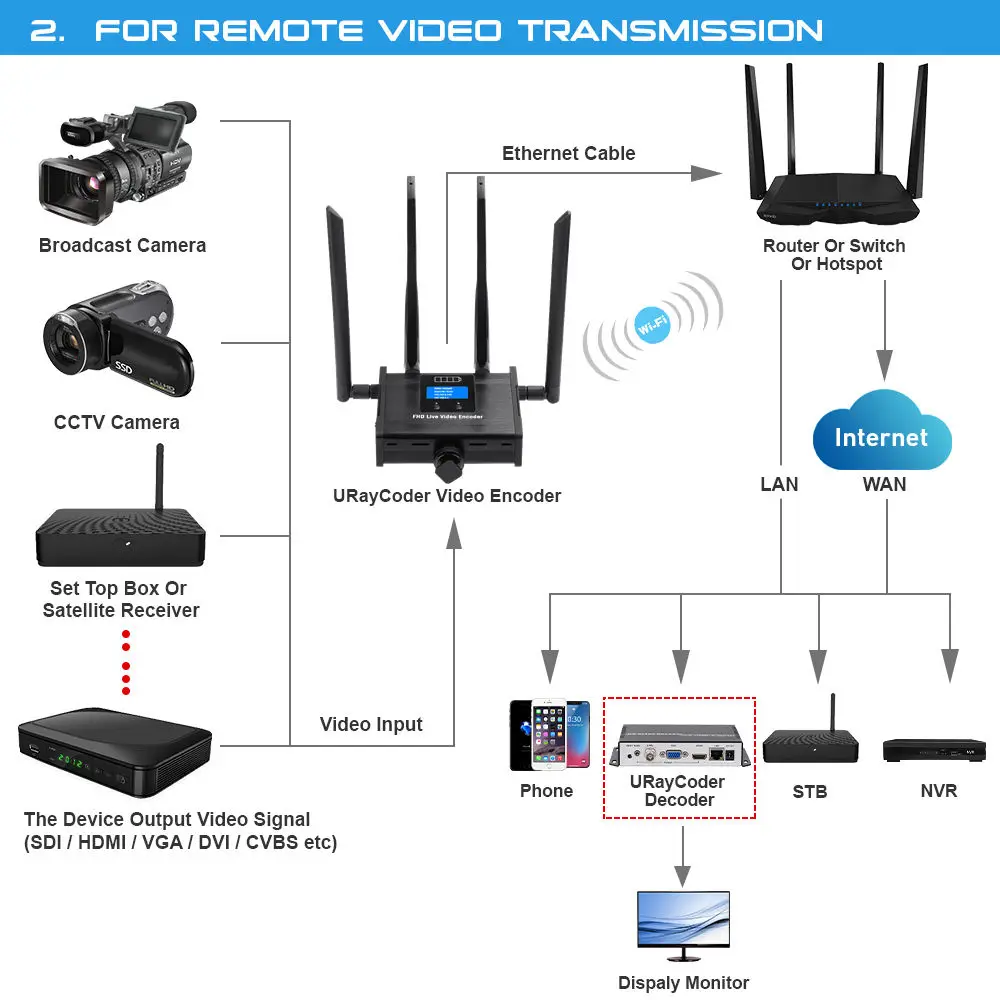

Typical Connection

The Feature

• Embedded HiLinux system, stable and effective

• Support wide area network remote management(via port forwarding)

• Support HEVC /H.265 and MPEG-4 /H.264 AVC video encoding for selection

• Support AAC, AAC+, AAC++, MP3, MP2, AC3, G.711 audio encoding for selection

• The bitrate of output video stream is adjustable from 32kbit/s to 32mbit/s(CBR or VBR bitrate controlling mode)

• Support SRT,UTP, RTSP, RTMP, RTMPS etc streaming protocol

• Support insert image, logo, text, roll text, time on the output video stream

• Support output displayed video resolution and frame rate setting(max 1920x1080P@60fps)

• Support different protocol transmission for the 2 output video streams

• Support choose HDMI embedded audio or external audio as output audio

• Support upgrade device by upgrading new firmware

• Support configure the encoder via webpage or APP

• Support 4G(FDD LTE/TDD LTE)

• Support hot shoe mount at camera

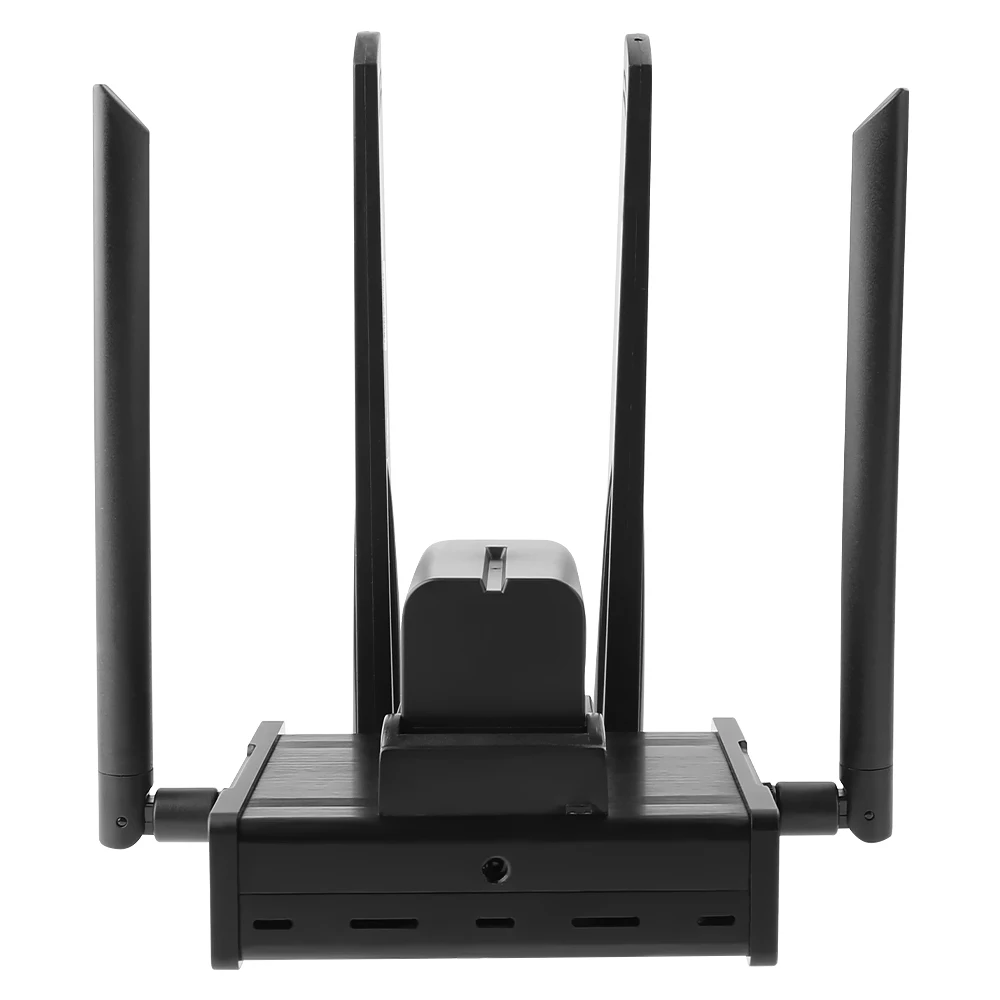

• Support external SONY battery F550, F750, F970 for selection

• Support 2.4G WIFI and 5G WIFI

• Support connect to spare WIFI automaticlly when WIFI signal lost connection

• Provide SDK and API and CGI for secondary development

• Support brightness, contrast, hue, saturation setting on output displayed video

• Network interface full-duplex mode with 1000M speed

• Support HDCP and HD blue-ray

• English webpage operating interface, language is customizable

• A click to restore the default configuration

• Stable and effective, support 7 x 24h working time

• Support multichannel 1U rack or 3U rack structure, up to 16 encoder cards can be installed in 3U rack

•

Provide many kinds of customization(logo print, language customization, firmware or function customization etc)

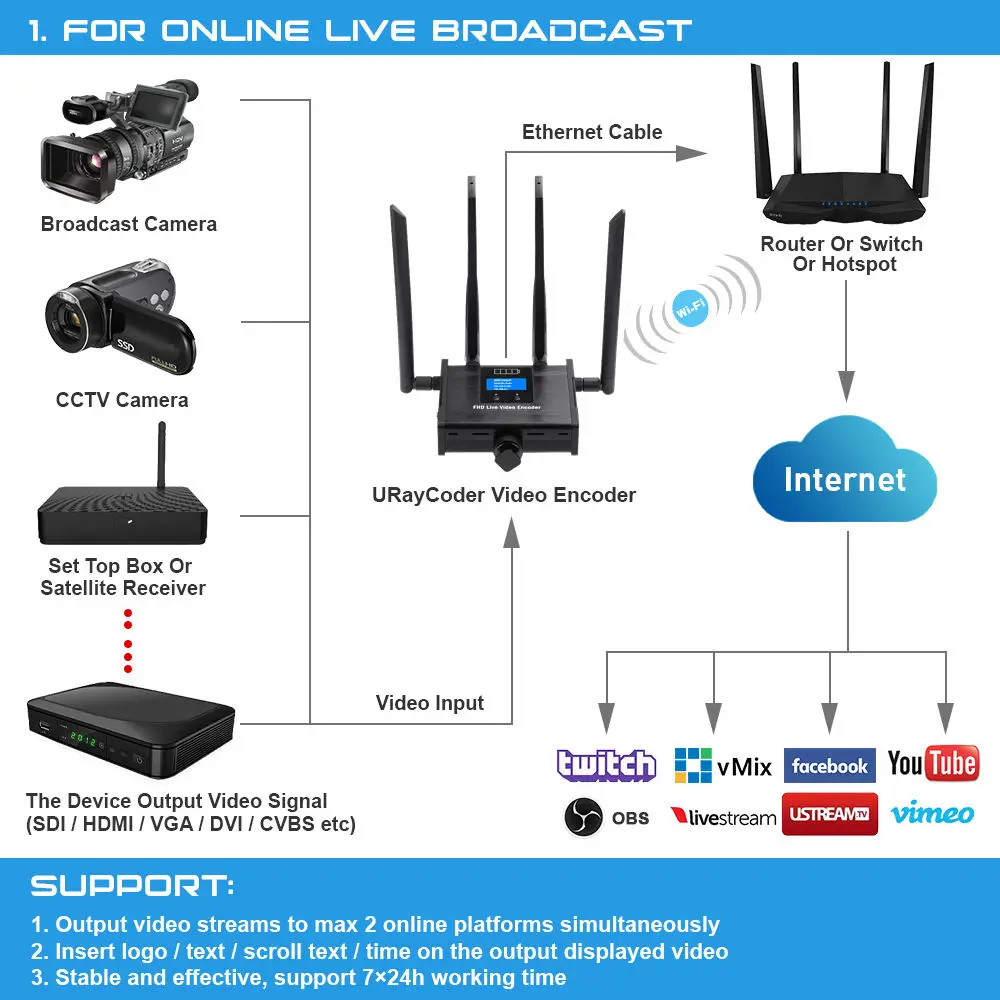

• Multi platforms live streaming

This HDMI encoder is easy to be operated. Turn your HDMI-equipped camera /device into a video source, and live broadcast on any streaming platform. It is compatible with most of live broadcast platforms, you can choose any of the popular live streaming platform to live streaming at anytime you like, such as Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using streaming media server, such as Wowza or Xtream codes.

It supports multi-stream output, up to 2 video streams output simultaneously.

You can push multi video stream to multi-platform at the same time.

• Multi type video stream URL play

Not only pushing video streams to online platforms, you can also use video software or APP such as VLC or Vmix etc to play video stream URL. With these video stream URL, you can play video at anywhere, at any time. Meanwhile, you can add logo or text or time to displayed video.

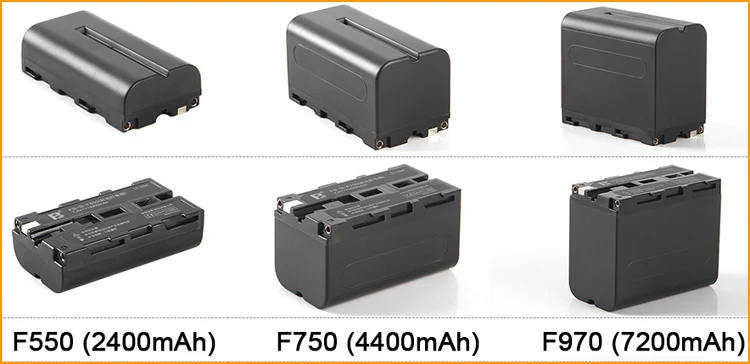

• Long-lasting battery life

You can use SONY battery F550, F750, F970. Normally the battery enable you to do live stream broadcast for 8+ hour. When the electric quantity is low, you can just connect a USB battery pack to keep it going.

Note: 1. The working time of the battery is based on the battery model

2. The battery is not included because of the shipping reason.You can buy SONY battery F550/ 750 /F970 at your local place.

The Specification

Model No.

UHE265-1WBS-4G

Video

Input

HDMI(Support HDCP)

Input Resolution

Max 1080P or 1080i resolution, Max 60fps frame rate

Encoding Type

HEVC /H.265 and H.264 /AVC for selection

Encoding Levels

H.265 main profile; H.264 high /main /baseline profile

Video Bitrate

Adjustable from 32kbit /s to 32mbit /s

Bitrate Control

CBR or VBR or Strong CBR for selection

Output Resolution

It is adjustable, max 1920x1080P /60fps

Video Pre-processing

De-interlacing, noise reducing and sharpening

Audio

Input

HDMI embedded audio or external stereo audio(3.5mm jack)

Audio Encoding

AAC, AAC+, AAC++, MP3, MP2, AC3, G.711

Sampling Rate

44.1KHz, 48KHz

Bitrate Control

Adjustable from 48000~320000

Sampling Accuracy

24bit

ONVIF

G.711

Network

Interface

Ethernet port Or WIFI(2.4G /5.8G) Or 4G LTE*

4G Band

TDD-LTE: B38/B40/B41

FDD-LTE:B1/B3/B5/B7/B8/B20

Streaming Protocol

UTP, SRT, RTSP, RTMP, RTMPS

Control Panel

Webpage control panel(language customizable) or APP

Firmware Upgrade

Firmware is upgradeable

General

Dimension (W* L* H)

125 x 90 x 60 /mm

Net Weight

0.4kg

Hot shoe

Included

External Battery

Support SONY battery F550 /F750 /F970 for selection

Temperature

0 to 45(For working), -20 to 80(For storing)

Input Voltage

9-12V DC 1A

Power Consumption

Control Panel

1. Status

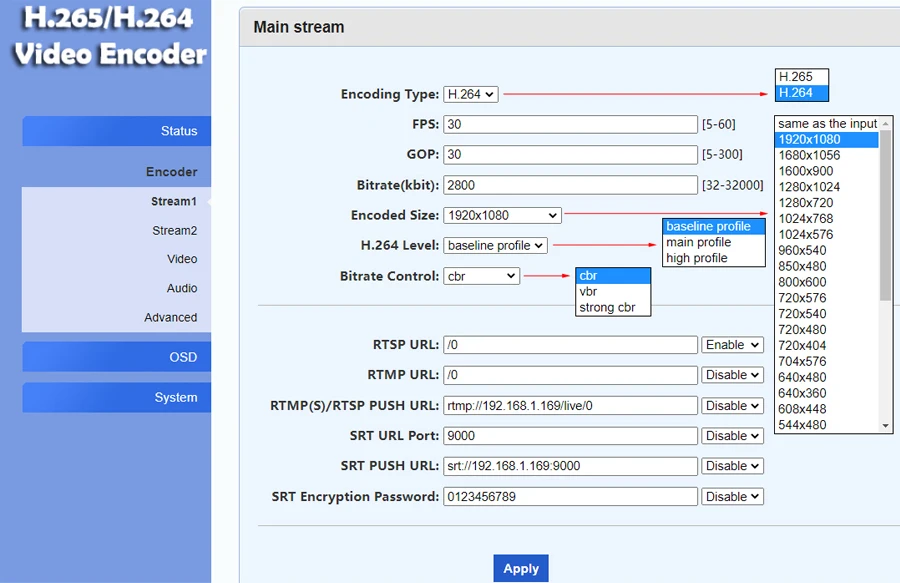

2. Encoder - Main Stream

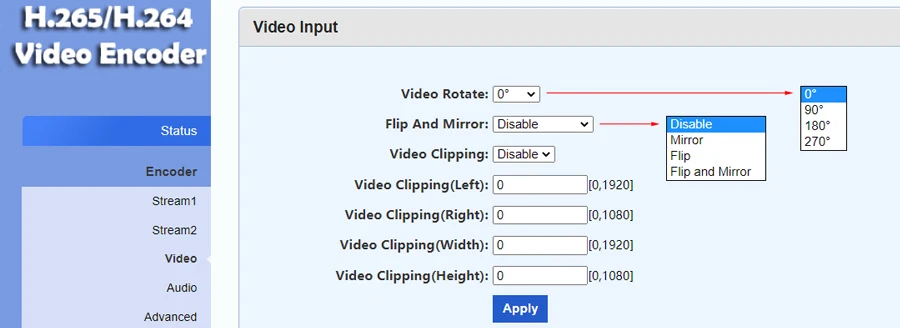

3. Encoder - Video

4. Encoder - Audio

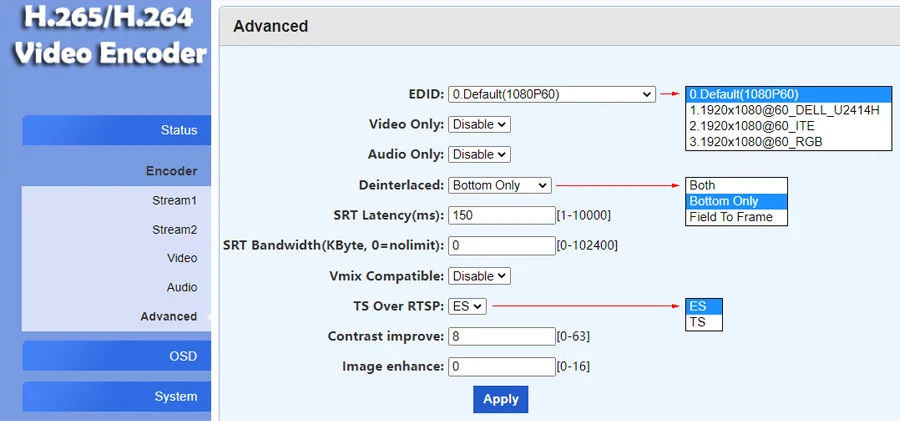

5. Encoder - Advanced

6. OSD - Main Stream

7. OSD - Logo Upload

8. System - Network

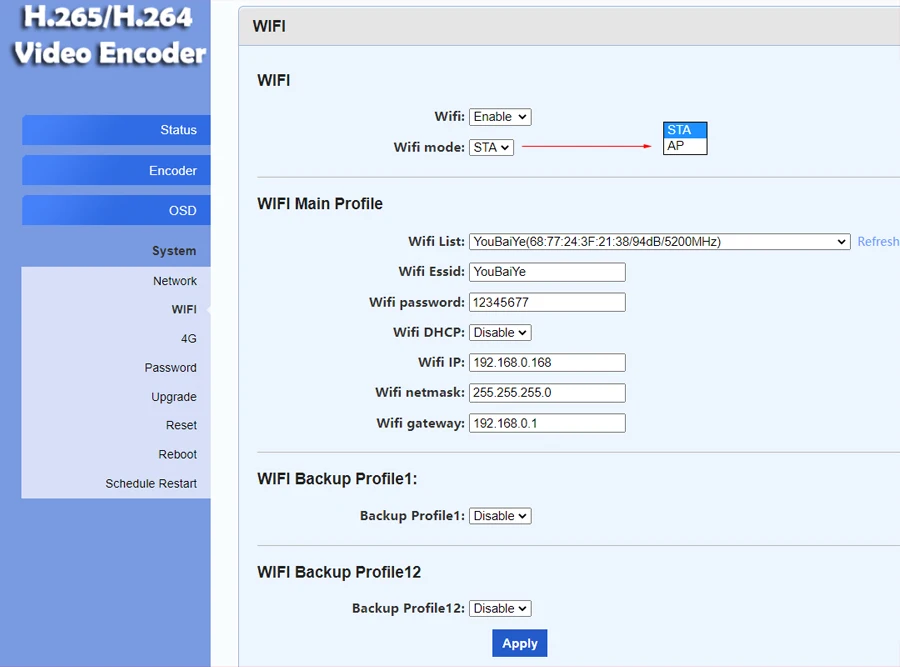

9. System - WIFI

10. System - Upgrade Firmware

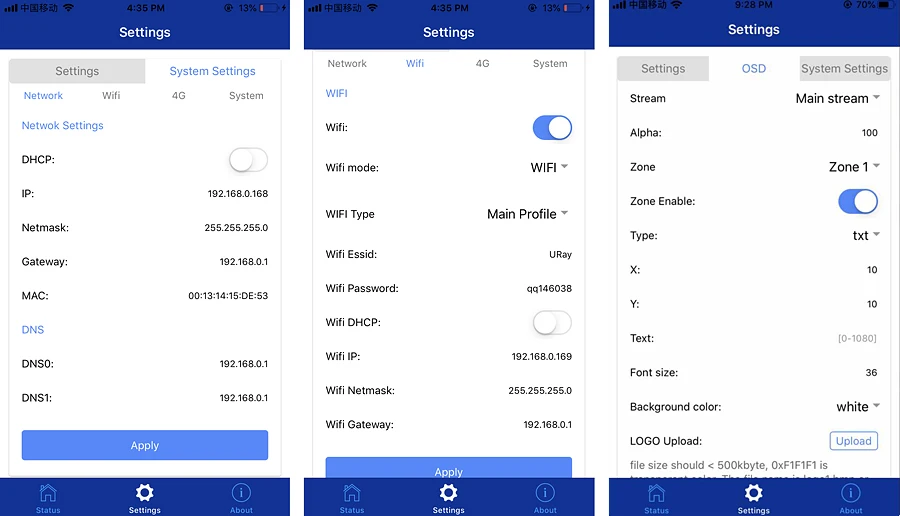

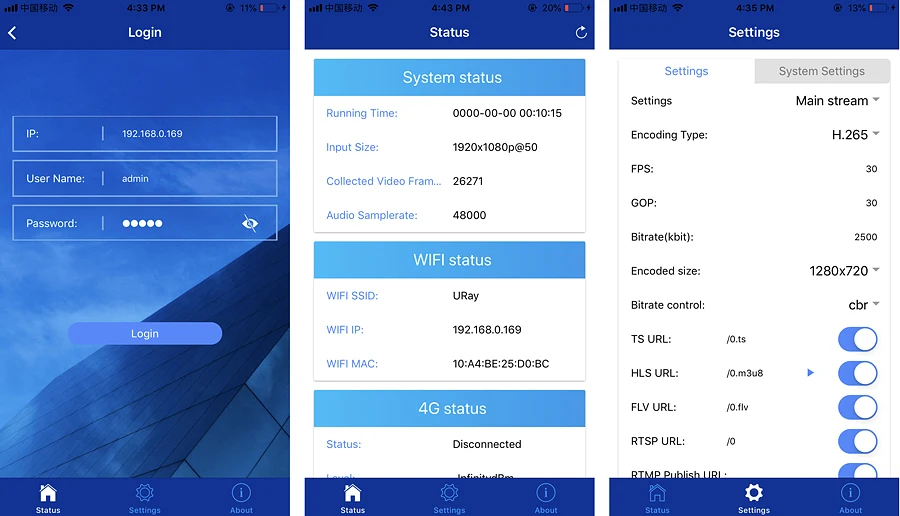

APP Control

• If you have problem of making payment, please contact us.

• If you are worried about customhouse charge, please contact us.

• If you need to print your logo on the device, please contact us.

• If you require any files regarding to the product(user manual, new firmware etc), please contact us.

• If you have questions before buying, please contact us.

• If you meet the technical problems after buying, please contact us.

• If you want to test this device before buying, please contact us.

About Us

Shenzhen URay Technology Co., Ltd is a technical enterprise with high speed and stable development. These years we are concentrating on the technical research and improvement, producing and marketing all types of video encoder and video decoder also video capture card. Our main product line is HDMI encoder and decoder, SDI encoder and decoder, VGA encoder and decoder, HDMI capture card, SDI capture card etc. Presently these products are widely used in the industrial and enterprise and school and hospital etc. Vast of video encoders and video decoders and video capture cards are exported overseas to many countries in different continent in a year. We are looking forward to the cooperation and development with the customers for creating a bright feature.

For more information about our company and product, please visit our official website.
