best amplifier for car New Link U5 Radio Connector Icom Power Amplifier Interface sound digital amp Audio Amplifier Boards

Code: TD-32723079153 19 orders
Free Shipping
$ 98.46 $ 123.25
Color:
DIN8-DIN8 connection
DIN8-DIN13 connectio
Note

Quantity:
Other people want this. 19 people have this in their carts right now.
Brand Name:  FLAMESER
Certification:  NONE
Origin:  CN(Origin)
Maximum Power Per Channel:  6W

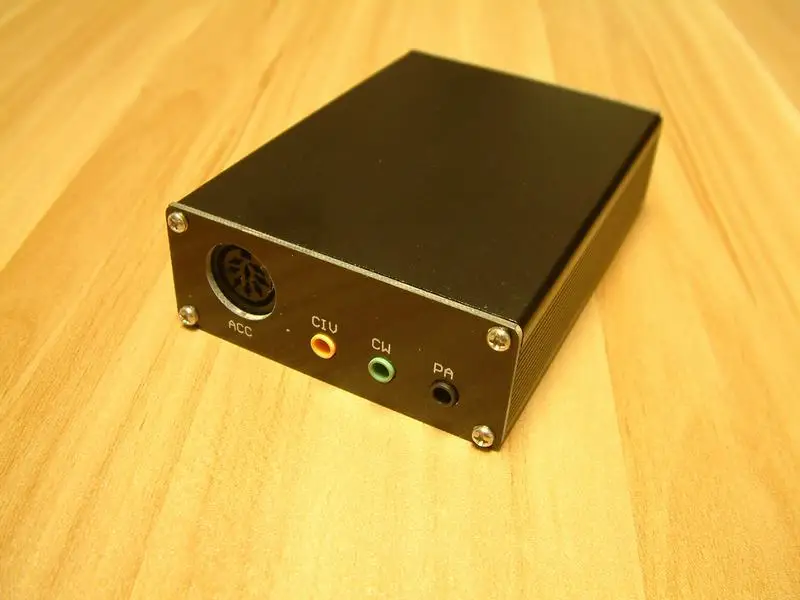

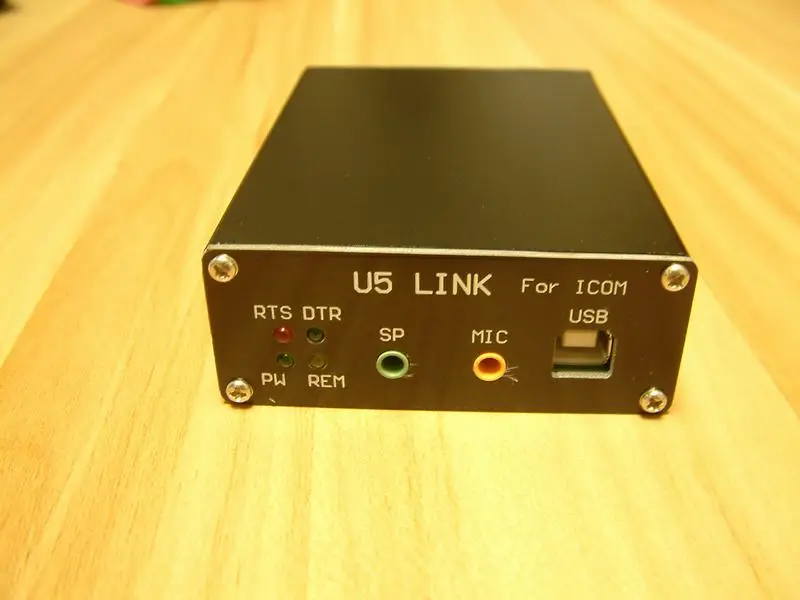

New Link U5 Radio Connector Icom  Power Amplifier Interface

Hello When you buy, please explain the connection line DIN8-DIN8 or DIN8-DIN13! Thank you! !

2017 new version of MINI link U5 series radio communication device, plug and play, compact and portable, compatible with a variety of working modes, suitable for a variety of application environment.

Full software support:

HRD\DM780\LOGG32\NIMM\WriteLog\ECHOLINK\ EasyPal\SSTV\Cw_player\APRS\AGWTracker\MMTTY\EXTFSK\MMVARI\MIXW and so on.

Performance introduction:

* imported high grade FIDI FT-232RL USB interface chip

* imported 6N137 high-speed communication optocoupler, with a rate of up to 115200.

* matching mechanism, finished product data cable connection (supporting power supply), (data line ordering, please specify radio type, see below data line, support radio type description).

* radio remote control interface support: All-optical isolation, CIV remote control support 115200 stable high speed communication

* complete signal support: contains TXD\RXD\RTS\DTR\CTS signals.

* provides an independent and isolated power amplifier trigger interface that supports PTT input and PTT output control.

* support SQL control, CTS signal introduction

* high quality custom change.

* plug and play, without any setup, no external power supply

* standardized voice / data radio interface: ACC (DIN 8 specification)

* the professional wave peak is welded, and the technological level is high.

* digital mode optimization of ground wire wiring structure.

Marking configuration: a total of 1 interface boxes, 5 lines

U5-ICOM host 1,

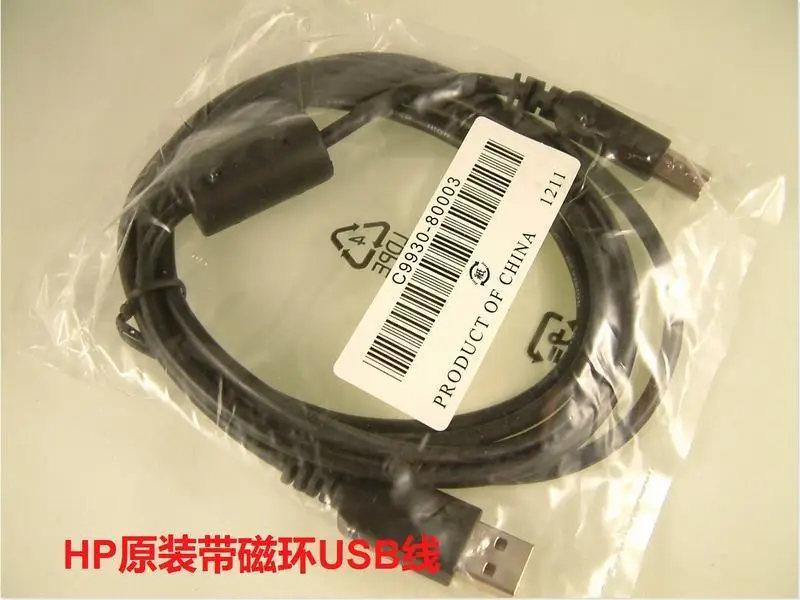

USB line 1

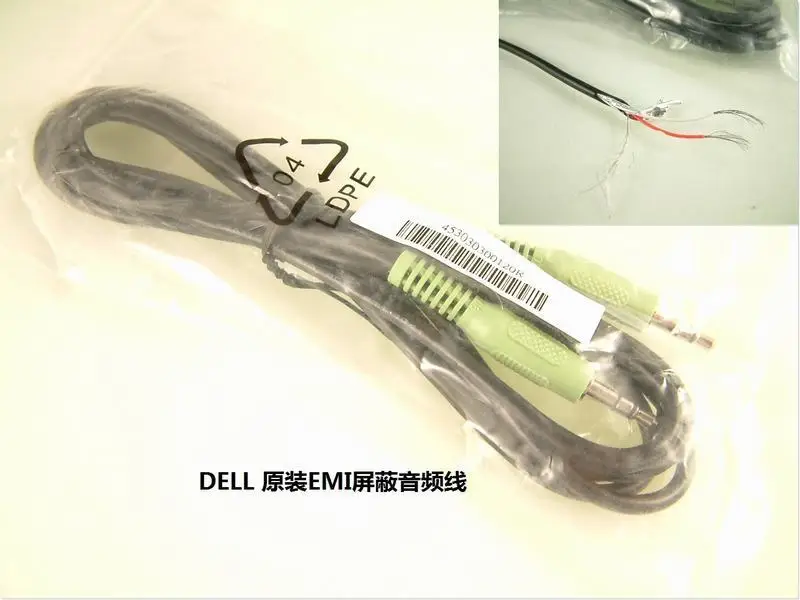

DELL original audio line 2

CIV remote line 1 (the same audio line)

ICOM special mechanism data line, black, 2 specifications, optional 1 (message cable model DIN13-DIN8 or DIN8-DIN8)

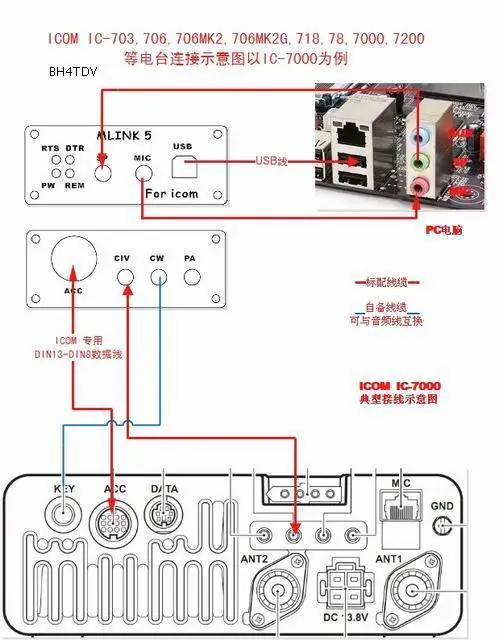

ICOM dedicated DIN13-DIN8 data line adapter radio model:

ICOM IC-703706706MK2706MK2G, 718,7870007200 and so on

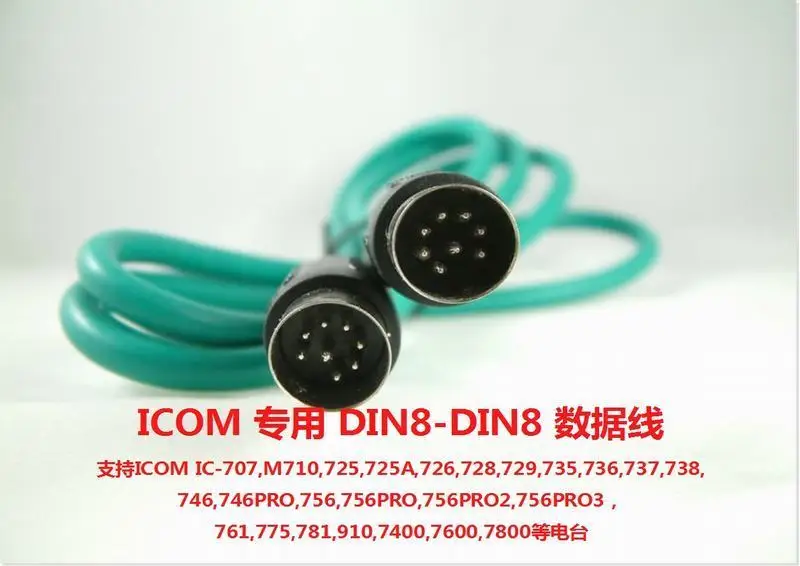

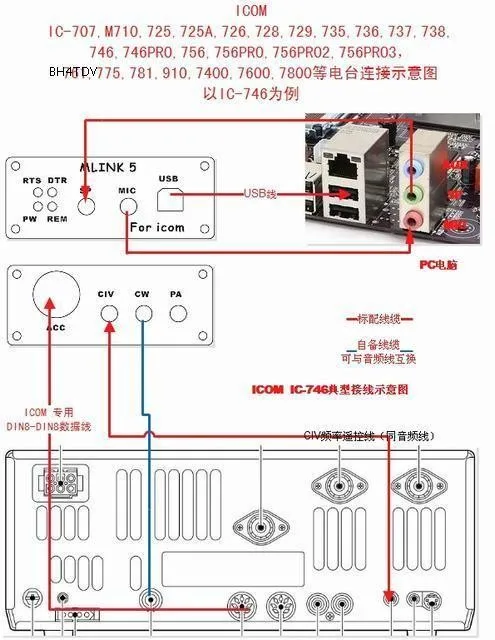

ICOM dedicated DIN8-DIN8 data line adapter radio model:

ICOM IC-707, M710725725A, 726728729735736737738,

746746PRO, 756756PRO, 756PRO2756PRO3761775781910740076007800 and so on.
