2021 Free Shipping HIFI PASS A3 Single-ended Class A Power Amplifier Board 30W+30W AMP ( 2 Channel) tube amp Audio Amplifier Boards
Code: TD-1005002610943409
9 orders
Free Shipping
$ 89
Other people want this. 15 people have this in their carts right now.
| Brand Name: | SENGTERBELLE |
|---|---|
| Certification: | CE |
| Origin: | CN(Origin) |
| Maximum Power Per Channel: | NO POWER |
| Model Number: | PASS A3 |
| Package: | Yes |
Product Details:

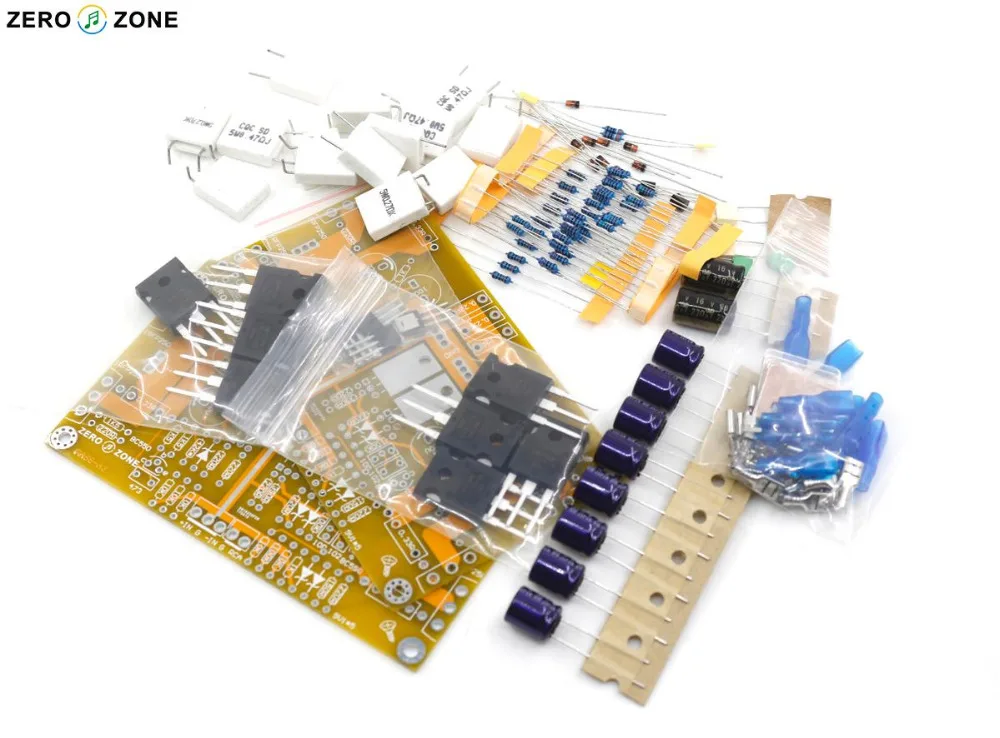

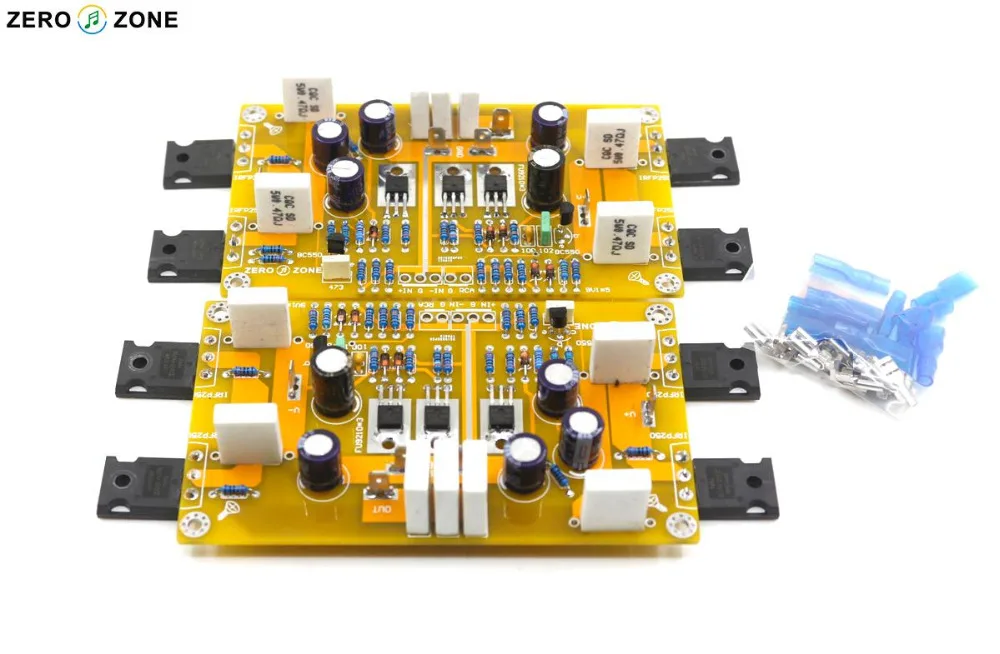

(Tube amp Style) PASS A3 Single-Ended Class A Power Amplifier Kit. Free debugging. if Welding is correct. connect power will can works.

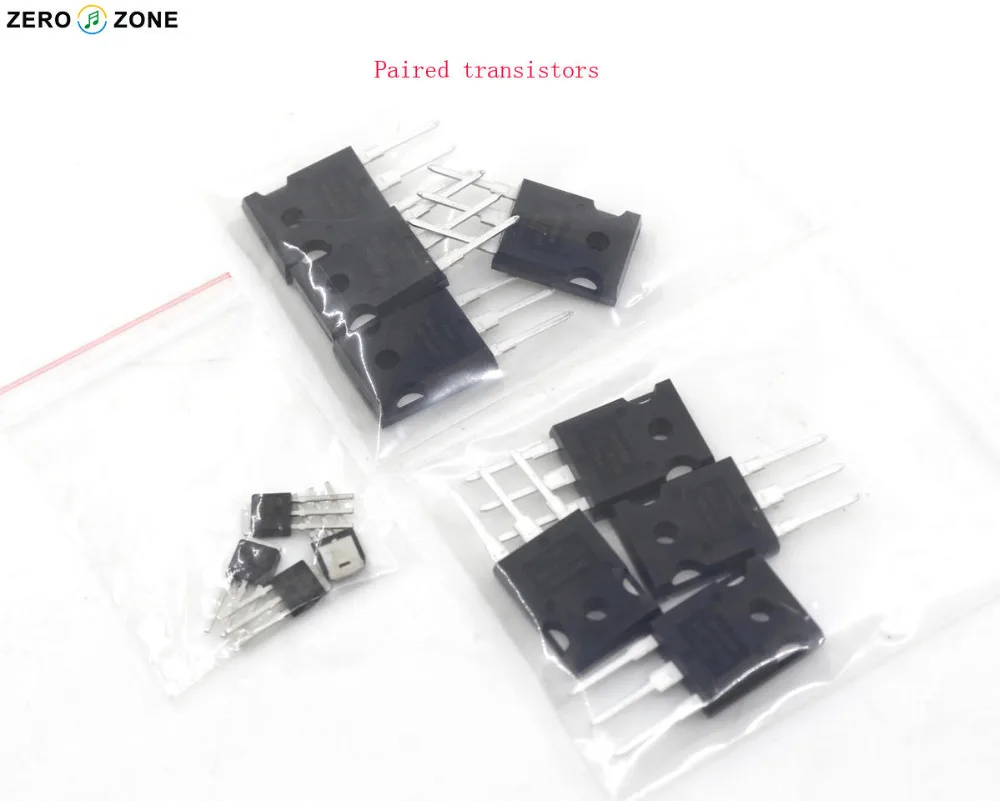

Reference to Famous PASS A3 circuit . All the FET are equipped same with the origianl machine, the input differentialTransistors using the new US FU9210, the power Transistors using the new origianl N-channel IRFP250, FET after precision matching,
Sound style: Sweet and mellow, music taste very good, transparent.sound will be better than most of General amplifier.
PCB Size: 122MMX74MM
Operating voltage: Recommended DC: + - 25V
( the Transformer voltage recommned AC20V-0-AC20V. transformer power above 200VA)
Power: 30watts @ 8ohms; 60watts @ 4 ohms
Distortion rate @ 1 KHz: 1% at rated output;
0.003% @ 5 watts into 8 ohms
Input impedance: 36kohm balanced, 18kohm single-ended
Output noise: <300uV unweighted 20-20kHz
Dynamic range: 140dB
Gain: 26 dB
Signal input support: balanced input or unbalanced input
Note: single-ended class A has huge heat! A heat sink must be installed before power on. Otherwise it may burn board.Recommended each board radiator greater than 2kg.
