arc welders Soldering Iron 60W/80W Adjustable Temperature Electric Solder Iron Rework Station Mini Handle Heat Pencil Welding Repair Tools best soldering iron for electronics Welding Equipment

60W Adjustable Temperature Electric Soldering Iron EU US Plug 110V / 220V Rework Solder Iron Station Welding Repair

Introduction :

This compact desgined station is ideal for professional use. Soldering can be performed and adjusted from the control knob from 200°C - 450°C. Interchangeable iron plated tips are available to make the soldering station excellent for electronic and electric use.

Features :

100% brand new.

Professional Soldering Tool is great for lead-free soldering semiconductors

High quality long lasting ceramic type heater.

Adjustable temperature controlled soldering irons: 200-450 ° C (there is a knob wheel on the Electronic Soldering Gun for temperature adjust)

Ideal for hobbies, kits, radios, and electronics work.

Iron plated tip and stainless steel construction offer longer steel construction offer longer life.

Operating:

Clean the parts to be joined

Clean soldering iron tip and "tin" all faces of tip with a coating of solder

3.Heat parts (not solder )to be joined

Apply flux-core solder to heated parts, not tit till solder me soldering tip ,and heat it till solder melts and flows freely.

Caution:

When the soldering iron is plugged in for the first time, there comes out a smoke from the tip end. The smoke stops in a smoke while and a smoke never comes out again.

Use soldering stand and other aids to avoid bur fingers.

Don't pulled the soldering and other aids to avoid burnt fingers.

After finish the longer life tip face

Don't file the long life tip face and Don't apply too much solder unnecessarily.

Specification :

Soldering Iron Length: 18.5cm

Cable Length: 143cm

Working Voltage: 110V / 220V

Power: 60W

Package includes：

Take the selected picture

Clean ball

IRON TIP:

heater:

tweezers：

Cleaning sponge：

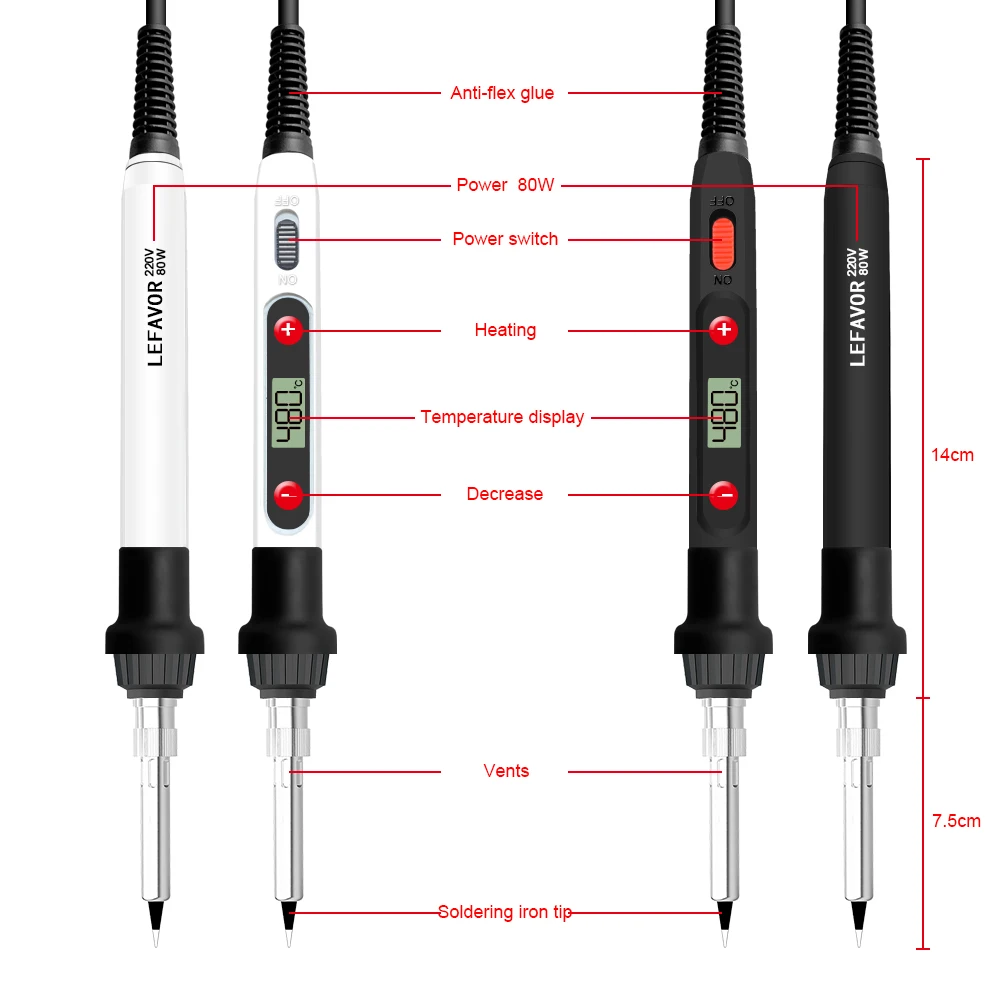

80W Digital display electric soldering iron

Temperature adjustment range:200-500C

I.Temperature Calibration:

1.After 60 seconds of power on, put the soldering tip on a thermometer, and a moderate amount of solder on the soldering tip; make the test point and the soldering tip have good touch.

2.When thermometer displays a stable temperature (about 2 seconds), write down the temperature.

3.Move soldering iron away from thermometer; press the (-) and (+) button at the same time to enter temperature Calibration.

4.Input adjustment quantity. Adjustment quantity=set temperature - measured temperature (see example)

5.Press the (-) and (+) at the same time to exit temperature interface, finished. Example 1, when setting temperature is 350℃ while measured temperature is 342℃, the correction steps are as follows: a.press the (-) and (+) at the same time to enter temperature correction interface. b.press the "+" button till the LCD displays 8℃ c.press the (-) and (+) at the same time to exit temperature correction interface Example 2, when setting temperature is 350℃ while measured temperature is 330℃,the correction steps are as follows: a.press the (-) and (+) at the same time to enter temperature correction interface. b.press the (-) button till the LCD displays -20℃ c.press the (-) and (+) at the same time to exit temperature correction interface

80W digital display electric soldering iron with switch
