Name: antenna lora Communication Outdoor antenna for wifi router 2G 3G 4G Repeater gsm cdma dcs pcs mobile signal amplifier UMTS LTE signal booster antenna lora
Brand: MMO Dropship
SKU: 1005001634068149
Price: 70.4 VND
Availability: InStock
Rating: 4.9 (88 reviews)

Code: TD-1005001634068149 4 orders

Free Shipping

$ 70.4 $ 73.78

Color:

Note

Quantity:

Other people want this. 11 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	ZQTMAX
Origin:	CN(Origin)
Gain(dB):	30dbi
Model Number:	outdoor
Certification:	CE
Specification:	10M
Frequency Range:	698MHz-2700 MHz
Suitable:	LTE 4G 3G 2G PCS DCS WCDMA CDMA GSM repeater
Feature:	360 degree signal cover
4g antenna:	lte antenna

Features

This product is designed to boost multiple users with maximum power. It is best used in the following applications:

Match up with N female

4G 3G PCS DCS CDMA GSM

signal repeater

2. Wireless Communications and data transmission system Repeater

3. Omni-directional use for indoor

Attention:

This is an outdoor Omni-directional antenna only. It doesn't work alone. You need a Cell Phone Signal Booster/Repeater to work with this antenna.

Specification:

1.Model No.:SB-CI-1

2.Frequency range:698-2700MHZ

3.Gain: power is the same as the selected style

4.VSWR: Under 1.5

5.Vertical polarization

6.Omni antenna

7.F/B ratio: less than18dB

8.Polarization:Vertical

9.Max power:100 W

10.Nominal Impedance:50 OHM

11.Connector:N Female/N Male/SMA

12.Weight:about 800g

13.Rated wind velocity: 60m/s

Package Contents:

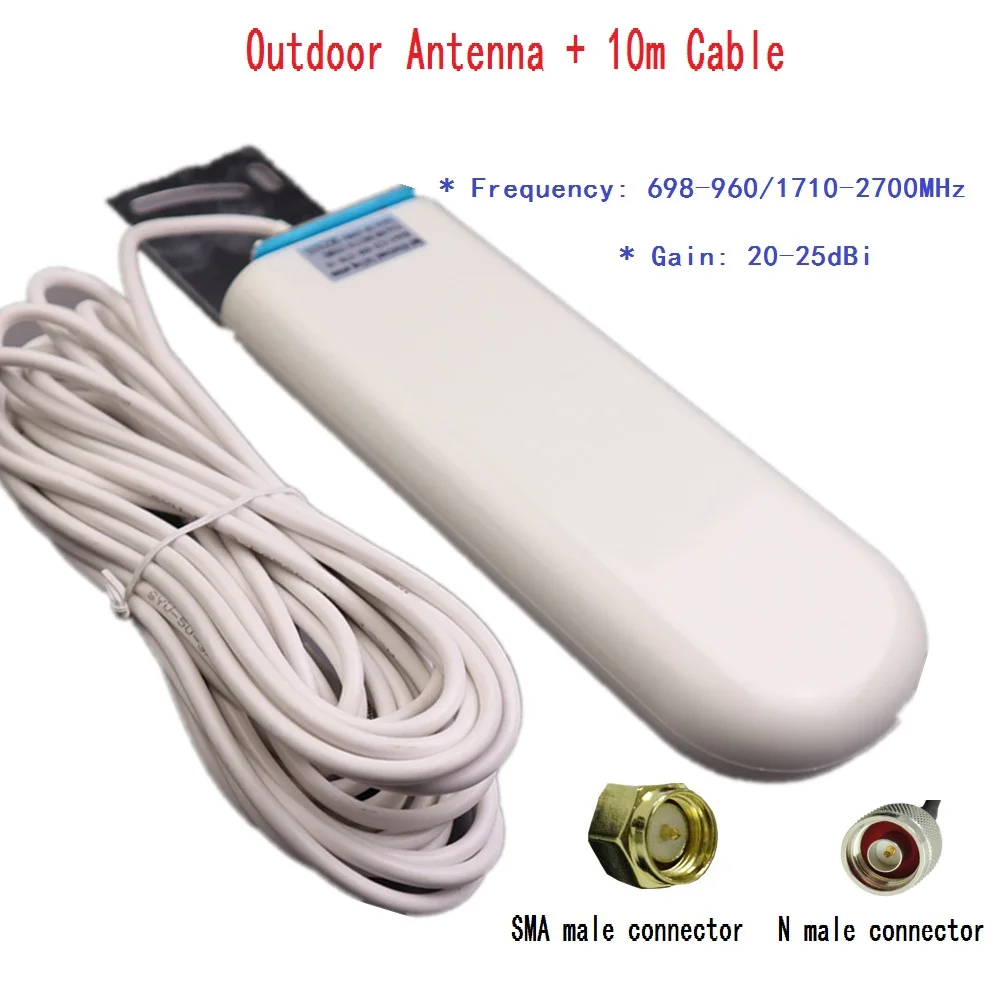

1 x 10m cable outdoor Omni-directional Antenna

Real item Details:

how it work

1. Receives Signal

The powerful antenna reaches out to access a good signal, and delivers it to the booster.

2. Boostes Signal

The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.

3. Broadcasts Signal

Your devices get increased cell reception, and calls and data are fed through the booster back to the network.

2065129835

how to install

Step 1:

Find a position where could receive great signal,mostly a higher position, like at rooftop. Install outdoor antenna at it and make it toward the base station.

Note:

the outdoor antenna shall receive good signal, otherwise the repeater could not work.

Step 2:

Connect outdoor antenna to booster at BTS connector with the cable.

Step 3:

Connect indoor antenna to booster at MS connector. And it would be better to install it

at a height of 2 meters.

Note: The two antennas shall be totally separated by a brick wall with a distance of at least 10 meters. Otherwise, the signal would intervene to each other, showing full of signal on display, but actually the booster doesn't work properly.

Step4:

Plug in power supply and done!

Please Notice

Please read these carefully BEFORE you place order

Since March,2017, Aliexpress doesn't allow to ship signal boosters to UNITED STATES, UNITED KINGDOM, CANADA and AUSTRALIA. If buyers from these countries want to buy signal boosters on Aliexpress, please contact us, we will offer solutions.

Please confirm your cell phone frequency first before you place the order, if you donrsquot know how to check, you can call your mobile phone operator or contact us before you buy.

Frequency doesnrsquot match, the signal booster canrsquot works.If you buy wrong signal booster, we will contact you within 2 days, we will go on shipping the wrong signal booster to you if we don't get your reply.

Please make sure you can get at least 2 bars 2G/3G/4G signal of outdoor before you buy, otherwise this product canrsquot help you. It needs outdoor good signal to improve your indoor signal.

Russian friends please offer full name when you place order. Brazillian friends please offer tax number when you place order.

Better to choose the AliExpress Premium Shipping or China Post with better shipping&Custom service.

We will inform you if we have choose the safer and faster delivery for you.For that,we will according the situation to choose the best for you.

Any other after service problem if you do not clear, please contact our support center service.
