Brand Name: | DIFEISI |
---|---|
DIY Supplies: | ELECTRICAL |
Certification: | CE |
Origin: | CN(Origin) |
Model Number: | AN8008 Digital Multimeter 9999 Counts Voltmeter |
Is Smart Device: | Yes |
Display Type: | Digital Display |
Operating Temperature: | 0 - 40 ℃ |
Model Number: | ANENG AN8008 Multimeter |
AC Current: | 999.9mV/9.999V/99.99V/999.9V |
AC Voltage: | 999.9mV/9.999V/99.99V/999.9V |
Measuring Resistance Range: | 99.99/999.9/9.999k/99.99k/999.9K/999.9M |
Operating Mode: | Automatic measurement |
Measuring Inductance Range: | No |
DC Current: | 999.9mV/9.999V/99.99V/999.9V |
DC Voltage: | 999.9mV/9.999V/99.99V/999.9V |
Measuring Capacitance Range: | 9.99nF/99.99nF/999.9nF/9.99uF/99.99uF/999.9uF/9 |
Dimensions: | 65x130x32 mm |
Frequency: | 99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9. |
Square Wave Output: | 50Hz/100Hz/200Hz/300Hz/400Hz/500Hz/600Hz/7 |
DC/AC Voltage(mV): | 9.999mV/99.99mV |
DC/AC Voltage(V): | 600mV |
DC/AC Current (mA&A): | 999.9mA/9.999A |
Duty Cycle: | 1%-99% |
Special Function: | Voltage Function have Low Frequency test function |
Operating Mode: | Auto Manual Ranging |
Measuring Voltage Range: | 999.9mV/9.999V/99.99V/999.9V |
Measuring Current Range: | 60mA/600mA/10A |
Feature: | Digital Multimeter Capacitor |
Feature: | DC/AC Voltage Current Tester |
Feature: | AN8008 Multimeter Voltage Current Tester Transistor |
MASTECH MS8212A Digital Multimeter Pen type Voltmeter DC AC Voltage Current Tester Ammeter Diode Continuity Capacitance Meter
USD 25.81/piece
MASTECH Multimeter DC AC Current 1000A Digital Clamp Meter True RMS Ammeter NCV Voltage Ohm Tester Multimeter MS2115A 2115B
USD 68.54-86.92/piece
Digital Multimeter BSIDE ZT301 True-RMS DC/DA Voltmeter Ammeter multimeter Professional DMM Resistance Ohm Cap Temp Tester Meter
USD 23.03-28.71/piece
BK-9205B Multimeter Digital 1999 Counts AC DC Voltage Current Tester Voltmeter Ammeter Capacitor Overload Protect LCD Display
USD 14.44/piece
RZ Digital Multimeter Ammeter Voltmeter Resistance Frequency backlight Meter voltage Diode Frequency ZT100 ZT101 Voltmeter
USD 6.97-19.91/piece
ZT102 Multimeter Digital 6000 Counts AC/DC Voltage Current Tester Voltmeter Ammeter Mini Ohm Diode Resistance Frequency Meter
USD 13.92-20.49/piece
BSIDE ZT-5B Digital Multimeter True RMS 6000 Counts Voltmeter Auto-Ranging Volt Amp Ohm Hz NCV Diode Capacitance Temp Tester
USD 13.85-23.86/piece
BSIDE ZT102A Multimeter Digital TRMS AC/DC Voltage Current Temp Ohm Tester Frequency Resistance Capacitance Meter Multimeter
USD 13.56-21.00/piece
A

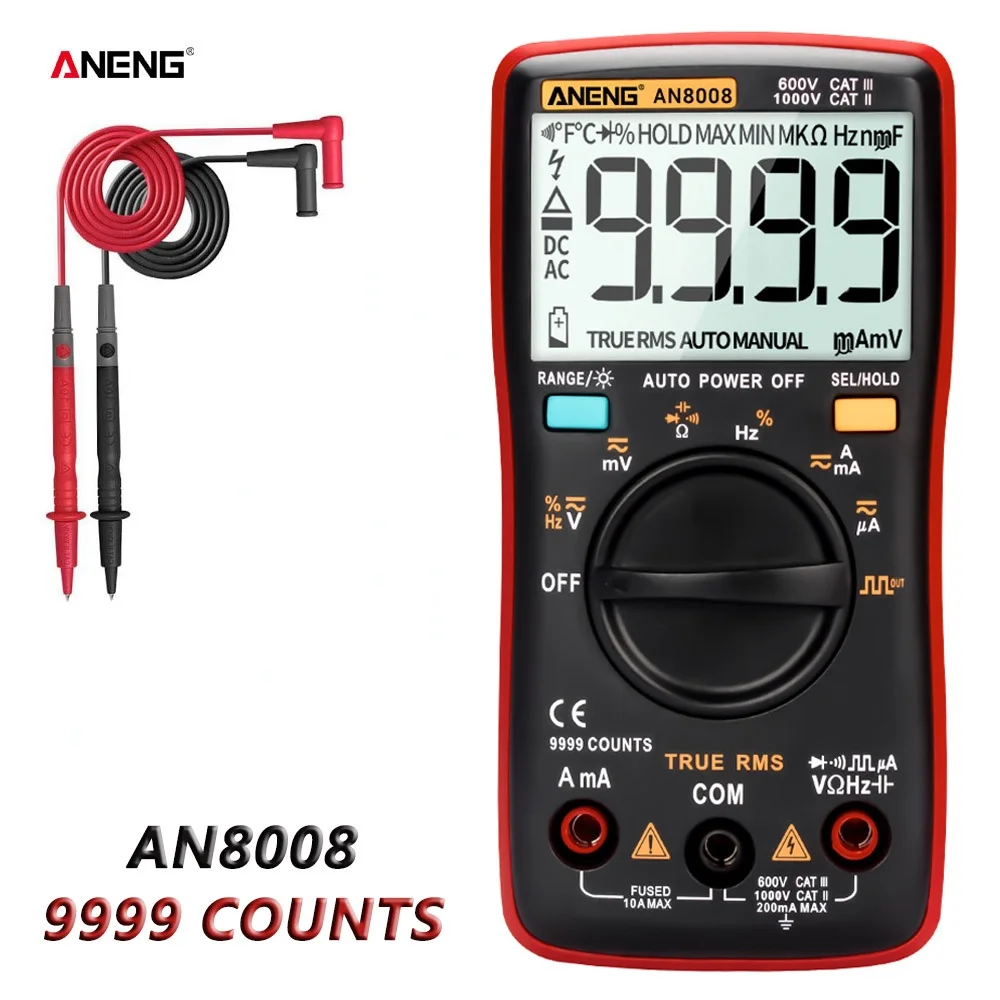

NENG AN8008 True-RMS Digital 9999 counts Multimeter
Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual.
Feature:
The product is battery-powered with true-rms, LCD display and backlight.

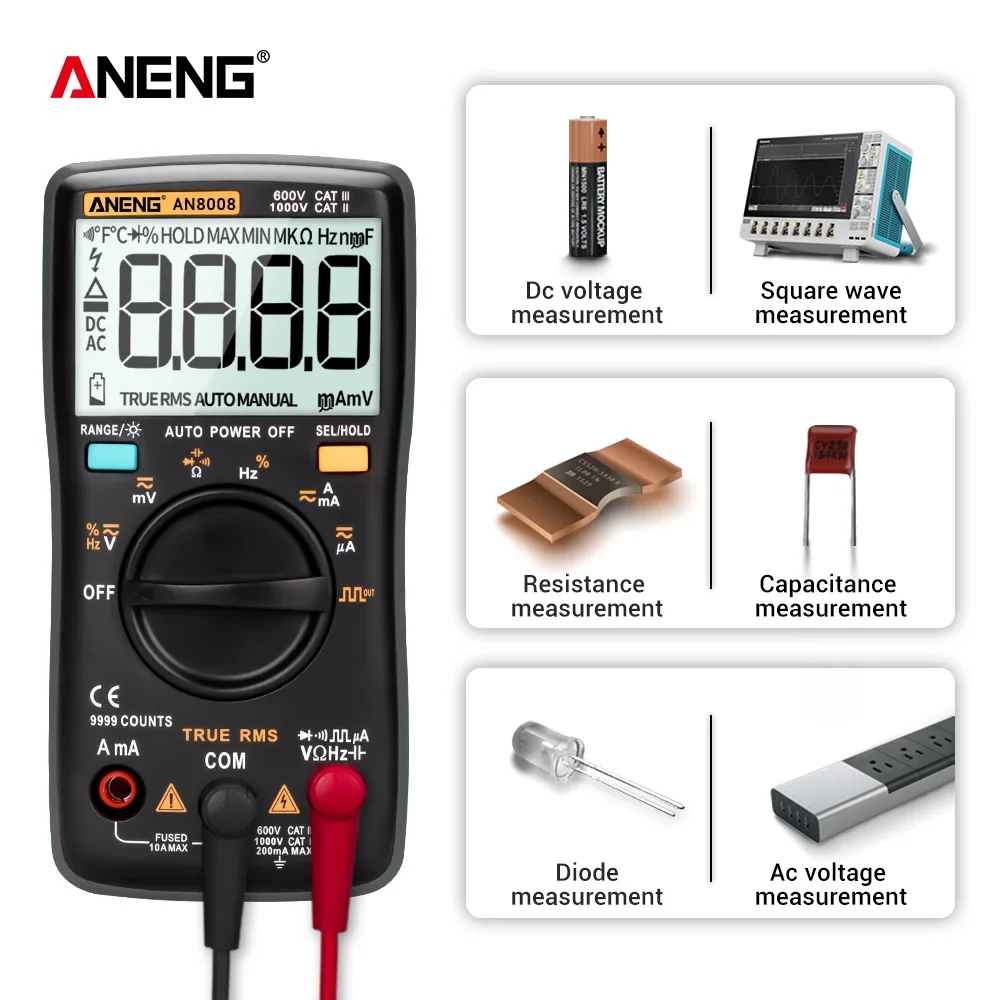

1-1.AN8008 Multifunction:Can measure AC/DC voltage,AC/DC current,resistance,capacitance,
frequency,duty cycle,square wave output,diode and continuity.
1-2.Portable design:There is a back bracket for supporting multimeter,convenient to operate.
1-3.Wide range of applications:It's a perfect tool for the laboratory,factory and home.
1-4.Clear to read:With large LCD backlight display and data hold,easy to read data.
1-5.More advantages:Auto/manual range,true RMS,auto power off and over range indication.
Specification:
Brand Name
ANENG
Model
AN8008
Counts
9999
Diode Test
Yes
Continuity
Yes
Square wave output
Yes
Backlight
Yes
Data hold
Yes
Auto/manual range
Yes
Auto power off
Yes
Over range Indication
Yes
Duty Cycle
1%-99% ±( 0.1%+2)
DC voltage
999.9mV/9.999V/99.99V/999.9V±(0.5%+3),9.999mV/99.99mV±(0.5%+3)
AC voltage
999.9mV/9.999V/99.99V/750V±(1.0%+3),9.999mV/99.99mV±(1.0%+3)
DC current
999.9mA/9.999A±(1.0%+3),99.99μA/999.9μA±(0.8%+3)
AC current
999.9mA/9.999A±(1.2%+3),99.99μA/9999μA±(1.0%+3)
Resistance
99.99Ω±(1.0%+3),999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ±(0.5%+3),9.999MΩ±(1.5%+3)
Capacitance
9.999nF±(5.0%+20),99.99nF/999.9nF/9.999μF/99.99μF/999.9μF±(2.0%+5),9.999mF±(5.0%+5)
Frequency
99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±(0.1% + 2)
Power
2 x 1.5V AAA (Not included)
Package List:
1 x Digital Multimeter
2 x Test Leads Pens
1 x Storage bag
1 x User Manual
