DC0-100V/7-110V 50A Digital Voltmeter Ammeter LED Display DC Amp Volt Meter Voltage Current Tester Volt Detector with FL-2 Shunt noise measuring device Measurement & Analysis Tools
Code: TD-1005001810700683
173 orders
Free Shipping
$ 32.59
$ 33.49
Other people want this. 17 people have this in their carts right now.
| Brand Name: | Dmyond |
|---|---|
| Origin: | CN(Origin) |
| DIY Supplies: | ELECTRICAL |
| Certification: | CE |
| Display Type: | Digital Only |
| Dimensions: | 48*29*26mm |
| Power Supply: | DC |
| Operating Temperature: | -10 -65℃ |
| Accuracy Class: | 0.1 |
| Model Number: | Digital Voltmeter Ammeter |
| Voltage Measuring Range: | DC 0 -100V / DC 7 -110V |
| Current Measuring Range: | DC 0 -50A |
| Current Resolution: | 0.1A |

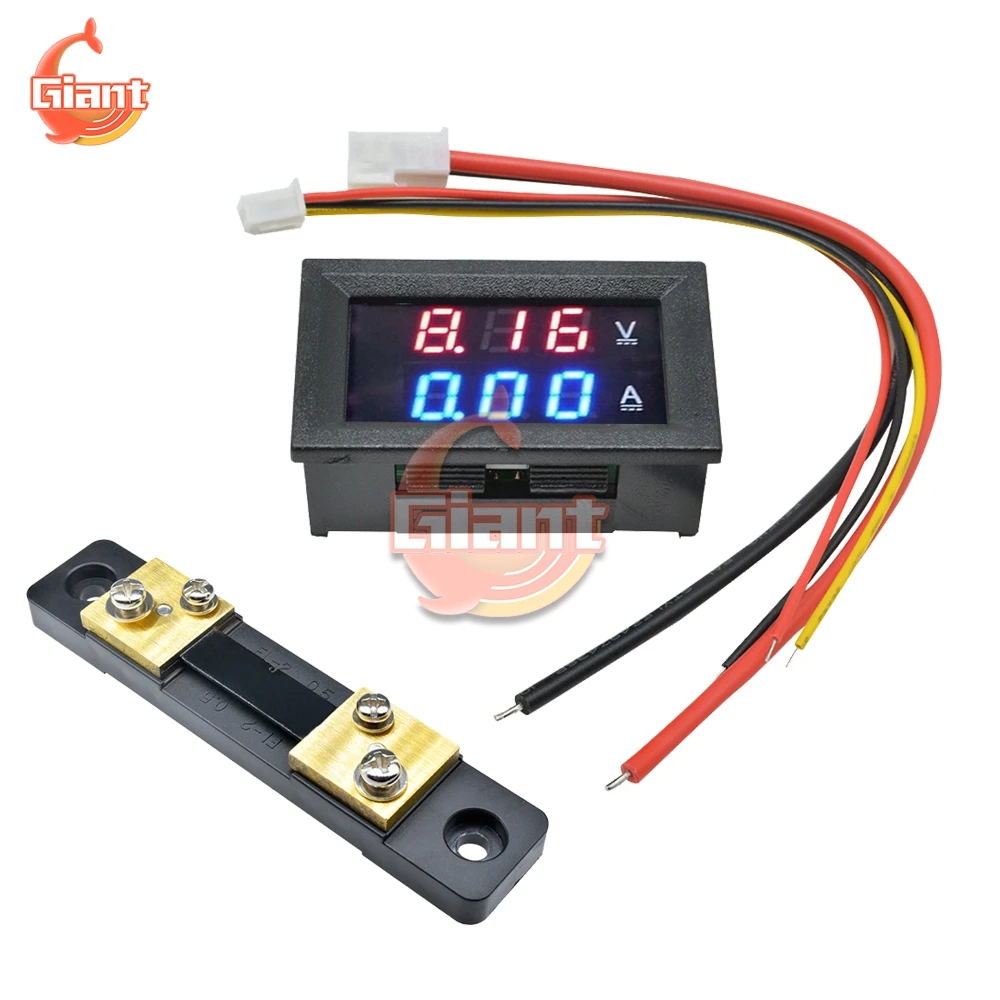

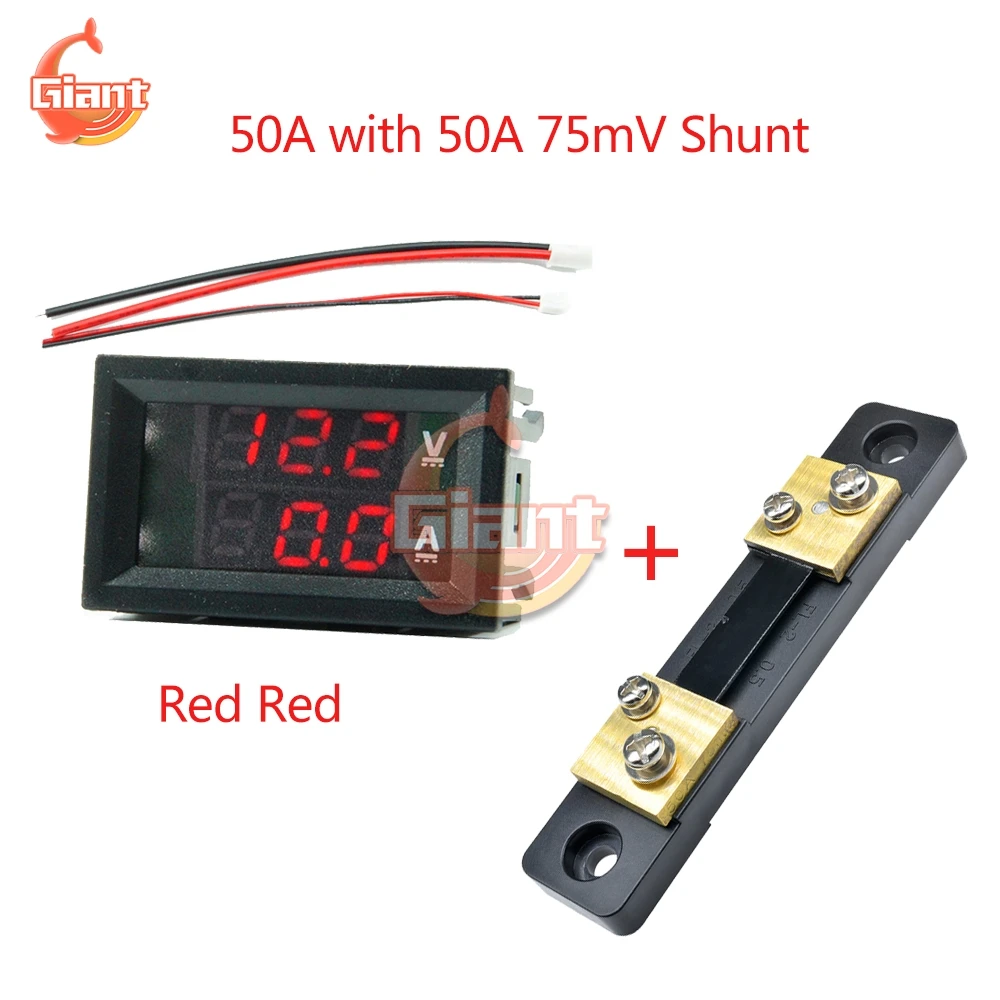

DC 0-100V/ 7-110V 50A Digital Voltmeter Ammeter LED Display DC Amp Volt Meter Voltage Current Tester Volt Detector with FL-2 50A/100A
75mV
Shunt

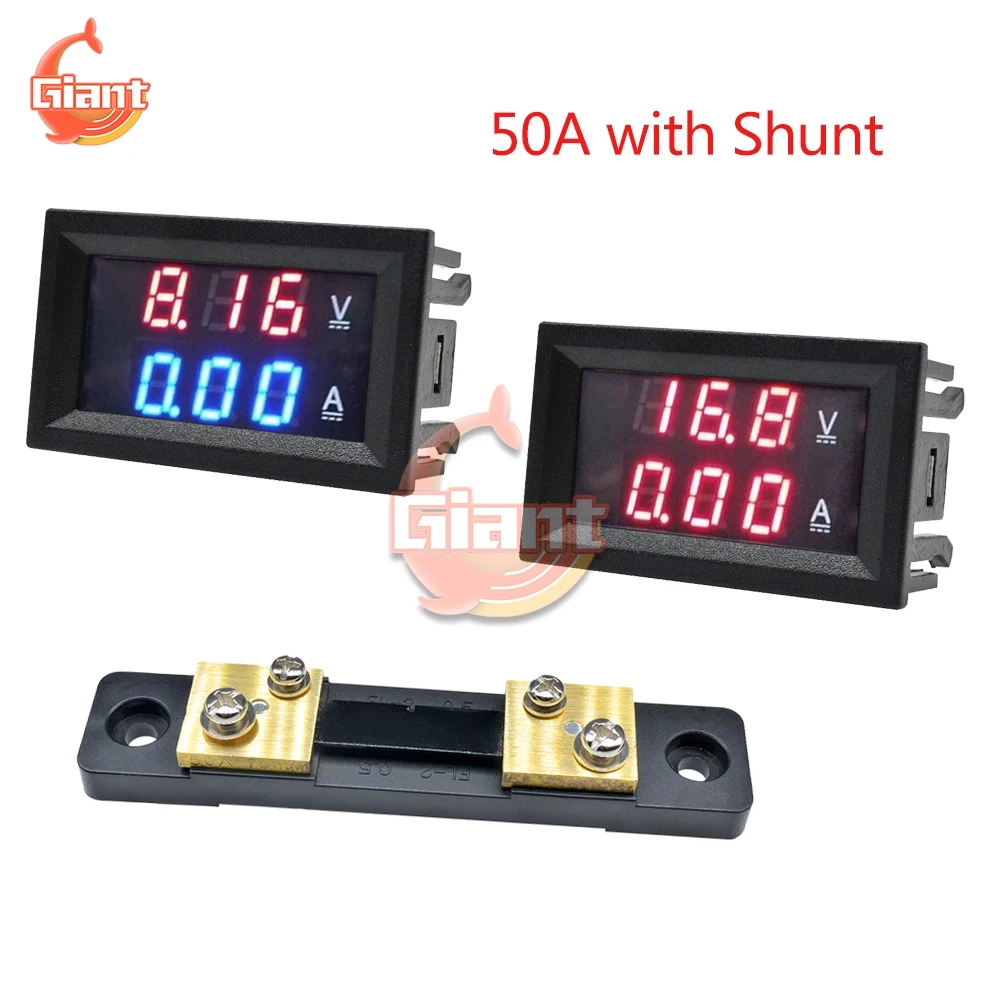

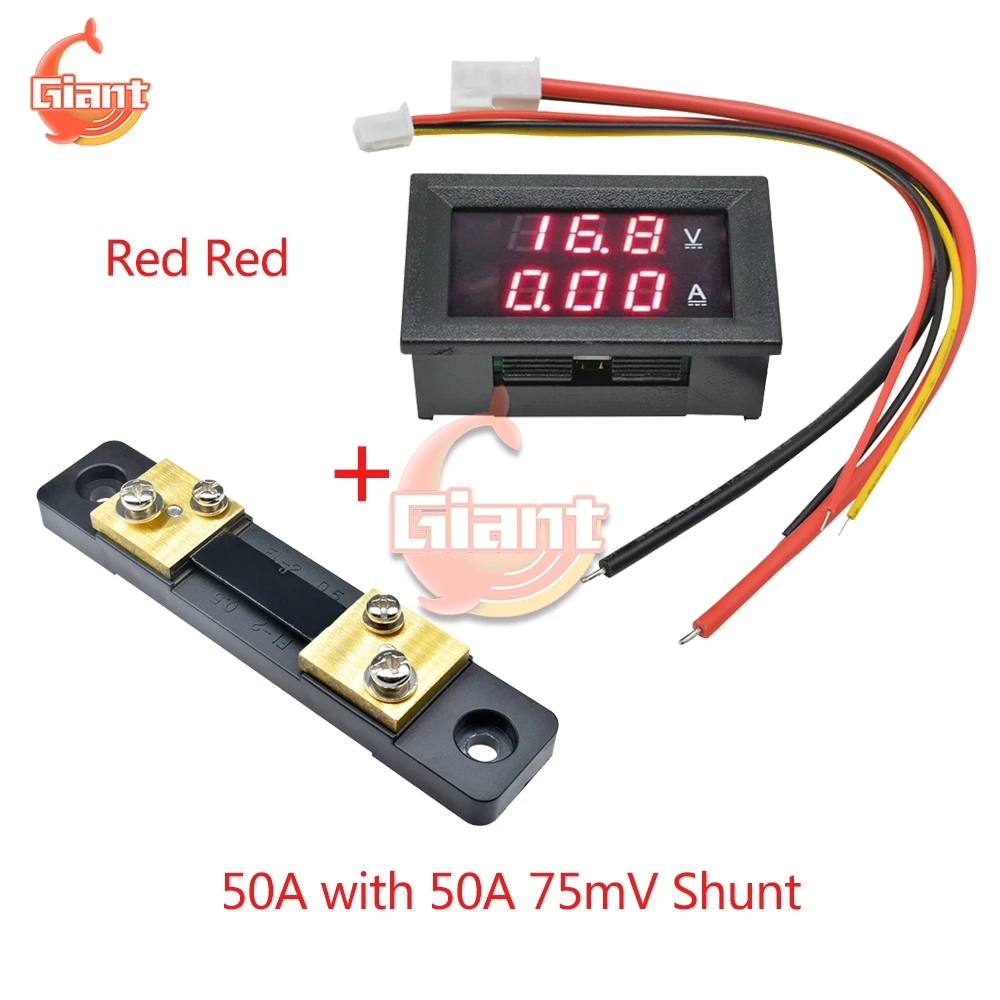

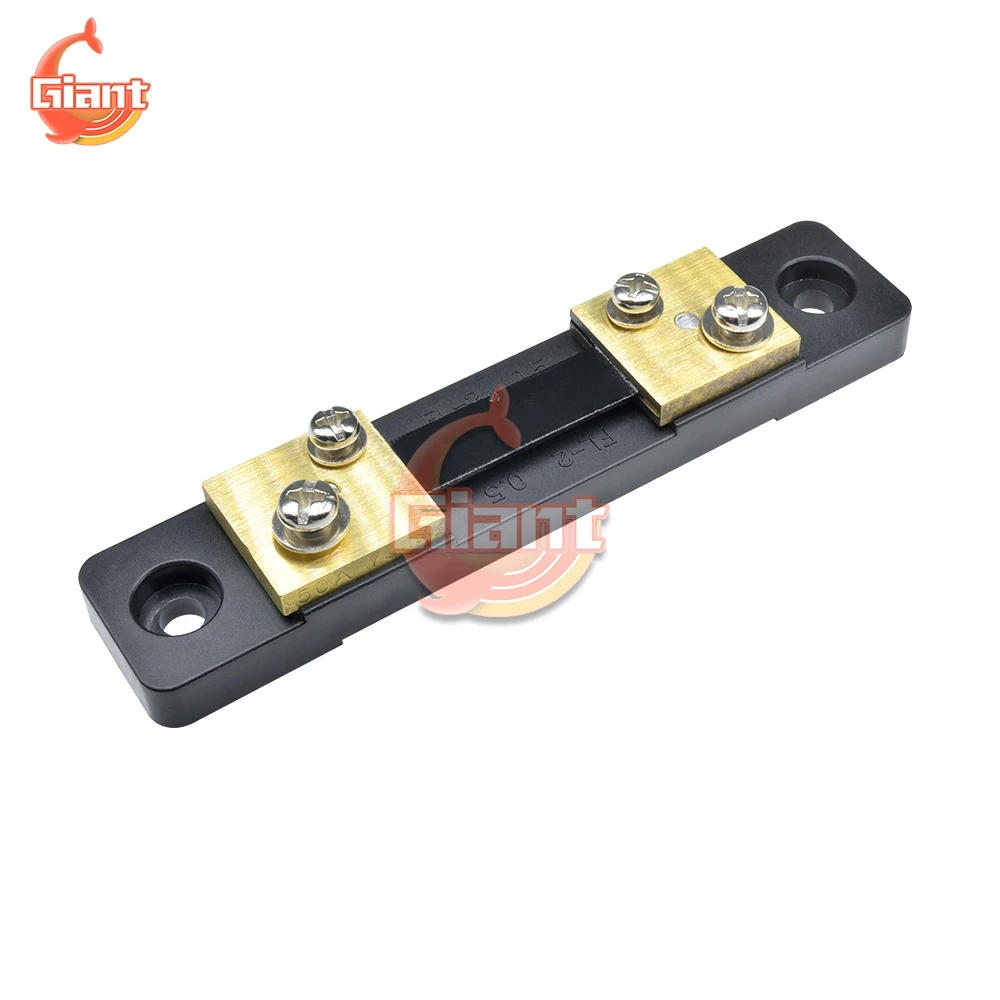

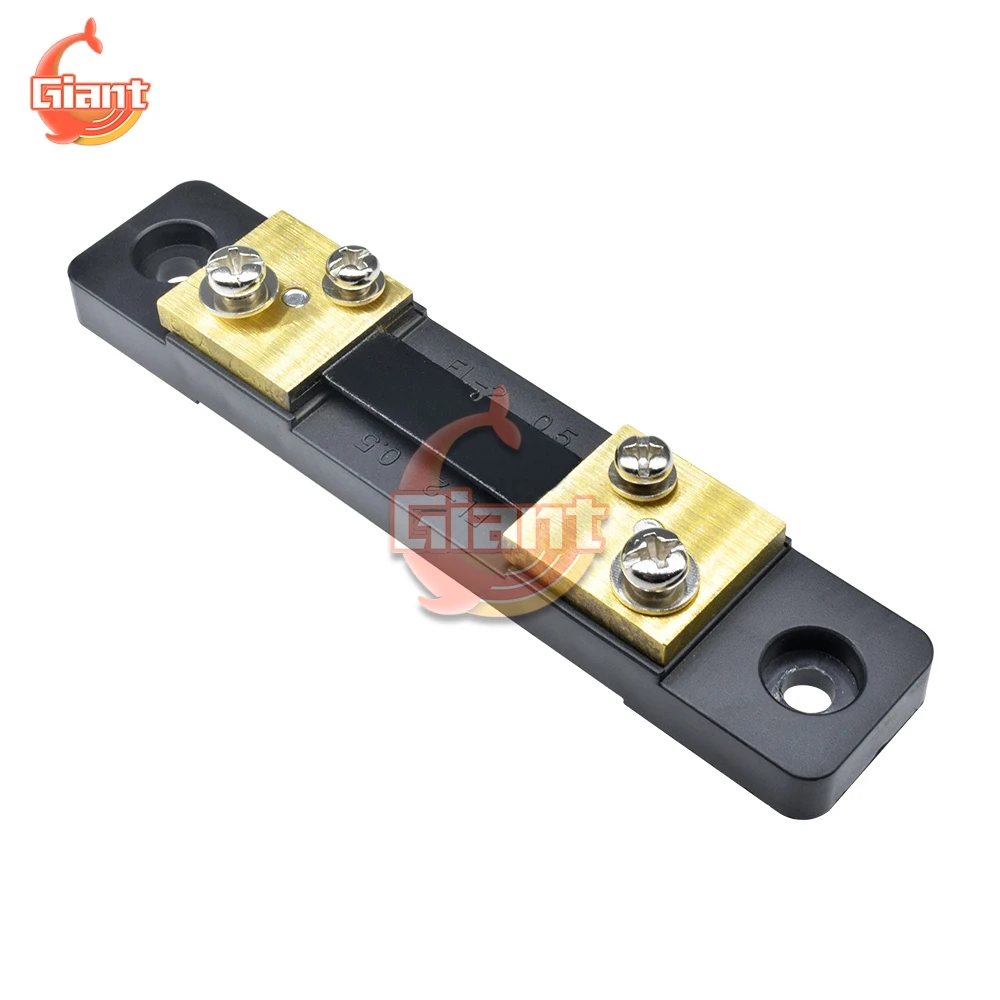

50A 75mV FL-2 External Shunt Description:
Product Name: DC Shunt
Model: FL-2
Material: Metal, Plastic
Accuracy: 0.5 Class
Current: 50A
Voltage Drop: 75mV
Parameters:
1. Accuracy level :2-4000A, 0.5 level;5000-10000A, 1 level.
2. Environmental conditions: -40 ~ +60 °, the relative temperature ≤ 95% (35 ° C)
3. Overload performance: 120% of rated current, 2 hours
4. Voltage drop: 75mV
5. Load heat: Temperature rise changes stabilized, rated current of 50A does not exceed 80 ° C; rated current of 50A does not exceed 120 ° C.

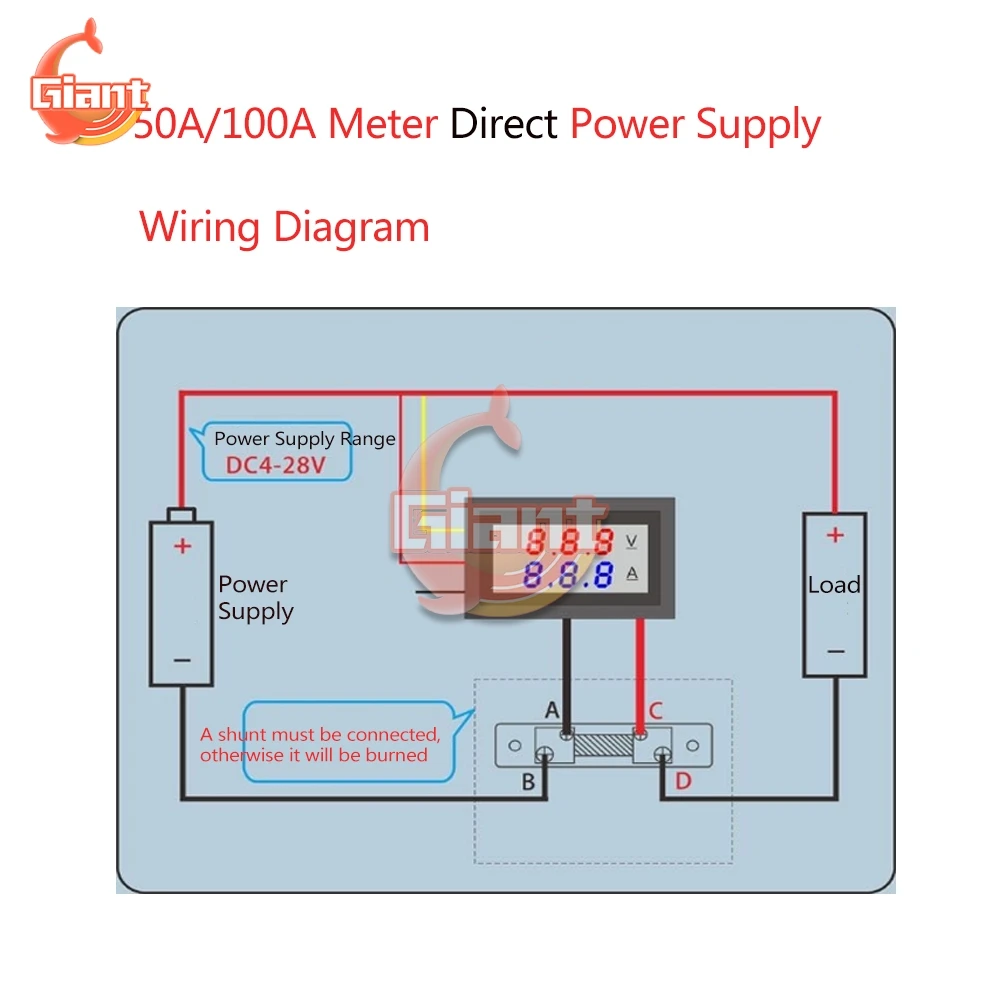

DC 0-100V 50A LED Digital Voltmeter Ammeter
Parameters:
Working voltage: DC4~30V (5~12V recommended)
Working current of Meter itself: ≤20mA
Measuring current range: DC0.05A~50A(display mode 0.0A~10.00A~100A)
Voltage measurement range: DC 0 - 100V (display mode 0.00V~10.0V~100V)
Refresh speed: 300ms/time
Display mode: 0.28 inch 3-digit LED, two color blue and red
Product size: 47.65*28.82*22.20mm
Operation Temp: -10°C-+65°C
Hole size: 45.5*26.0mm
Product weight: about 20g
Reverse connection protection: there is reverse connection protection of working power supply, but long time reverse connection may also cause damage.

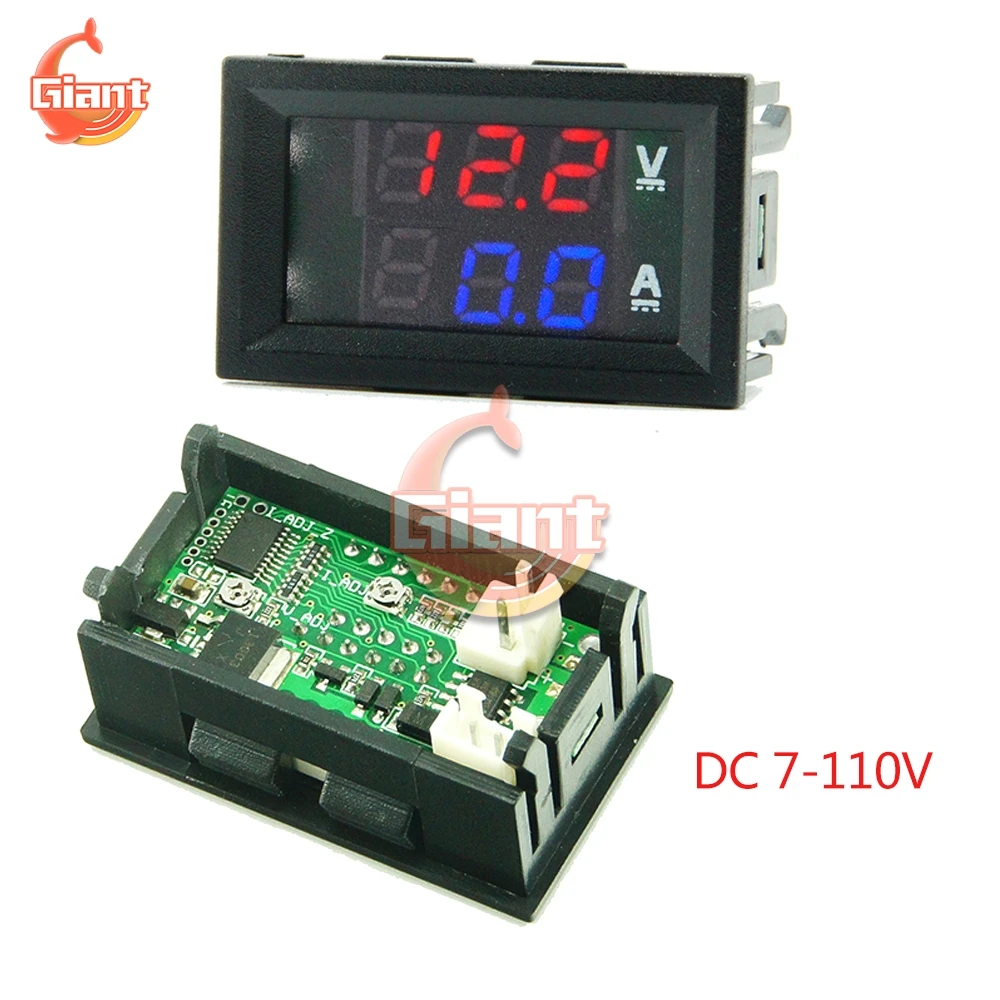

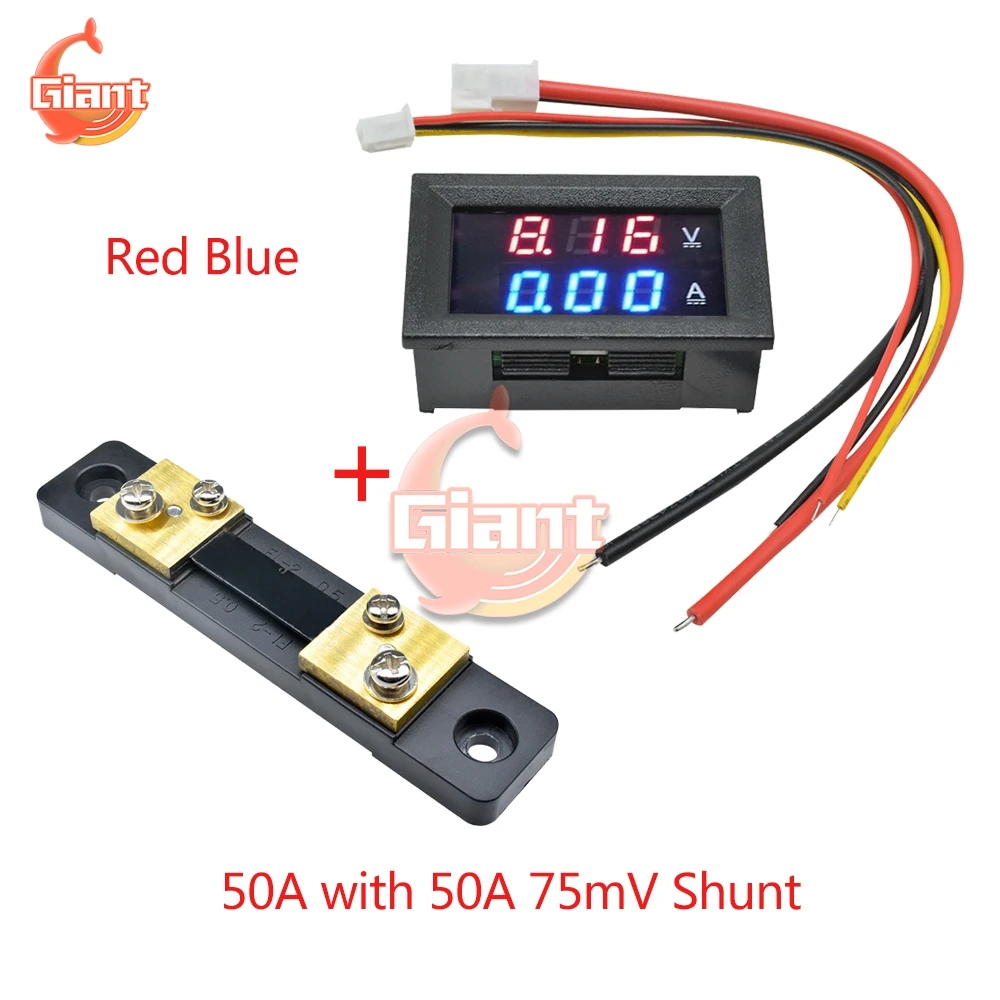

DC 7-110V 50A LED Digital Voltmeter Ammeter
Specification:
Working voltage: DC 5 -12V
Current measurement range: DC0.05A~50A( Display mode 0.0A -50A)
Voltage measurement range: DC 7 -110V (display mode 0.0V -10.0V -110.0V)
Refresh speed: 300ms/time
Display Size: 0.28 inch 3-digit LED
Display Color: Red Red, Red Blue (Optional)
Reverse connection protection: there is reverse connection protection of working power supply, but long time reverse connection may also cause damage
Product size: 46.75×28.82×22.20mm
Hole size: 45.5×26.0mm
Operation Temperature: -10 -65°C

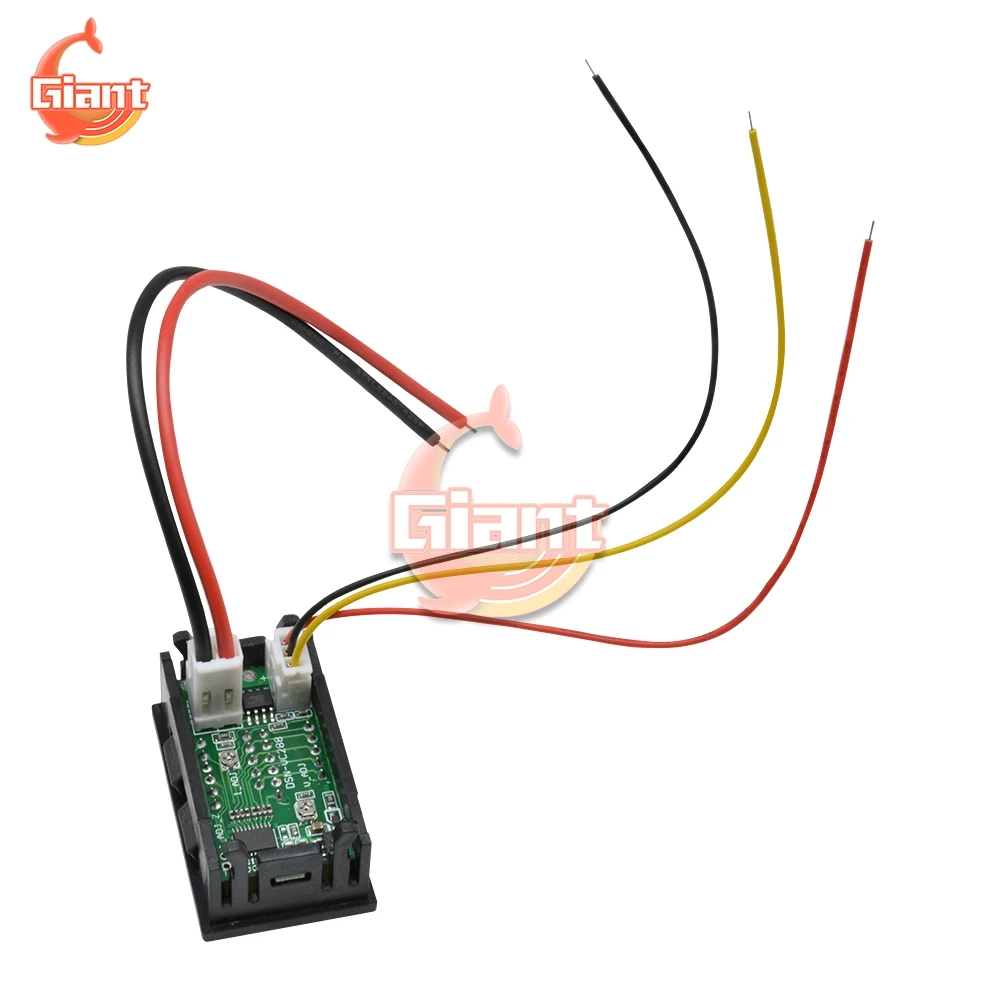

Product wire: 4 wires (2P thin wire, 2P thick wire)

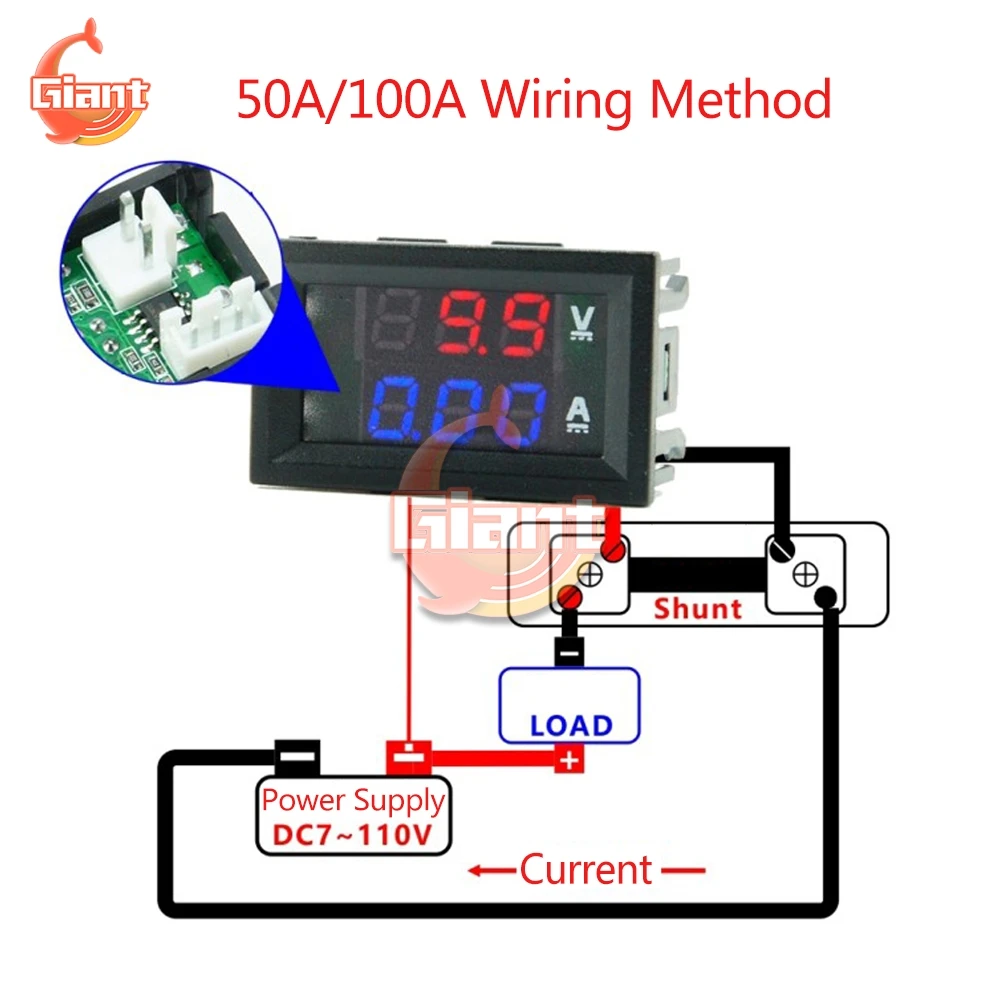

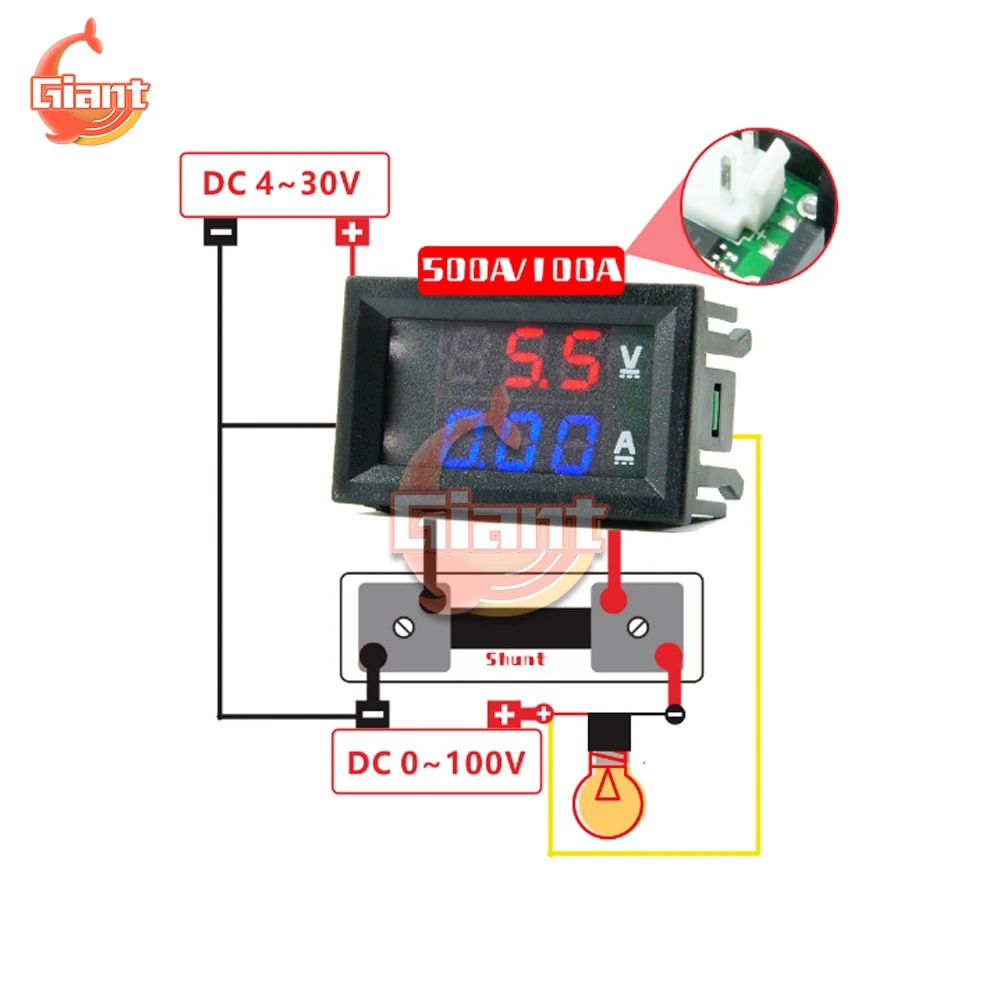

Lead definition:
Thin red line: positive pole of instrument power supply and positive pole of voltage measurement
Thin black wire: the negative pole of the power supply of the instrument and the negative pole of the voltage measurement
Thick red line: the positive pole of the current test, in series with the negative pole of the load
Thick black wire: negative pole of current test, connected to negative pole of load power supply
Note:
DC 7 -110V can be measured directly, no independent power supply is required, and wiring is convenient. The product withstand voltage is 150V. If the voltage exceeds 110V, the digital tube will be turned off. If the voltage exceeds 150V, including pulse voltage, the meter will be completely damaged.
