Name: amplifier with wifi 802.11N Outdoor directional 400meters large-area wifi coverage router wireless waterproof access Point POE AP wifi signal booster 5ghz
Brand: MMO Dropship
SKU: 1005003231624568
Price: 621.69 VND
Availability: InStock
Rating: 4.9 (92 reviews)

Code: TD-1005003231624568

Free Shipping

$ 621.69 $ 665.08

Bundle:

US POE Adapter

EU POE Adapter

AU POE Adapter

UK POE Adapter

Note

Quantity:

Other people want this. 17 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	OUTENGDA
Origin:	CN(Origin)
With Modem Function:	No
Type:	wireless
Certification:	CE
Certification:	NONE
Wired Transfer Rate:	10/100Mbps
WAN Ports:	1 x10/100Mbps
Number of USB Interfaces:	None
Wi-Fi Supported Frequency:	2.4G
Package:	Yes
Max. LAN Data Rate:	300Mbps
Model Number:	HW9341
Standards And Protocols:	Wi-Fi 802.11g
Standards And Protocols:	Wi-Fi 802.11b
Standards And Protocols:	Wi-Fi 802.11n
Wi-Fi Transmission Standard:	802.11n
2.4G Wi-Fi Transmission Rate:	300 Mbps
LAN Ports:	1
Supports WPS:	No
Function:	Firewall
Application:	Outdoor

Model: HW9341

Product name: 300Mbps Outdoor Wireless AP/Repeater/Extender

PRODUCT DESCRIPTIONS

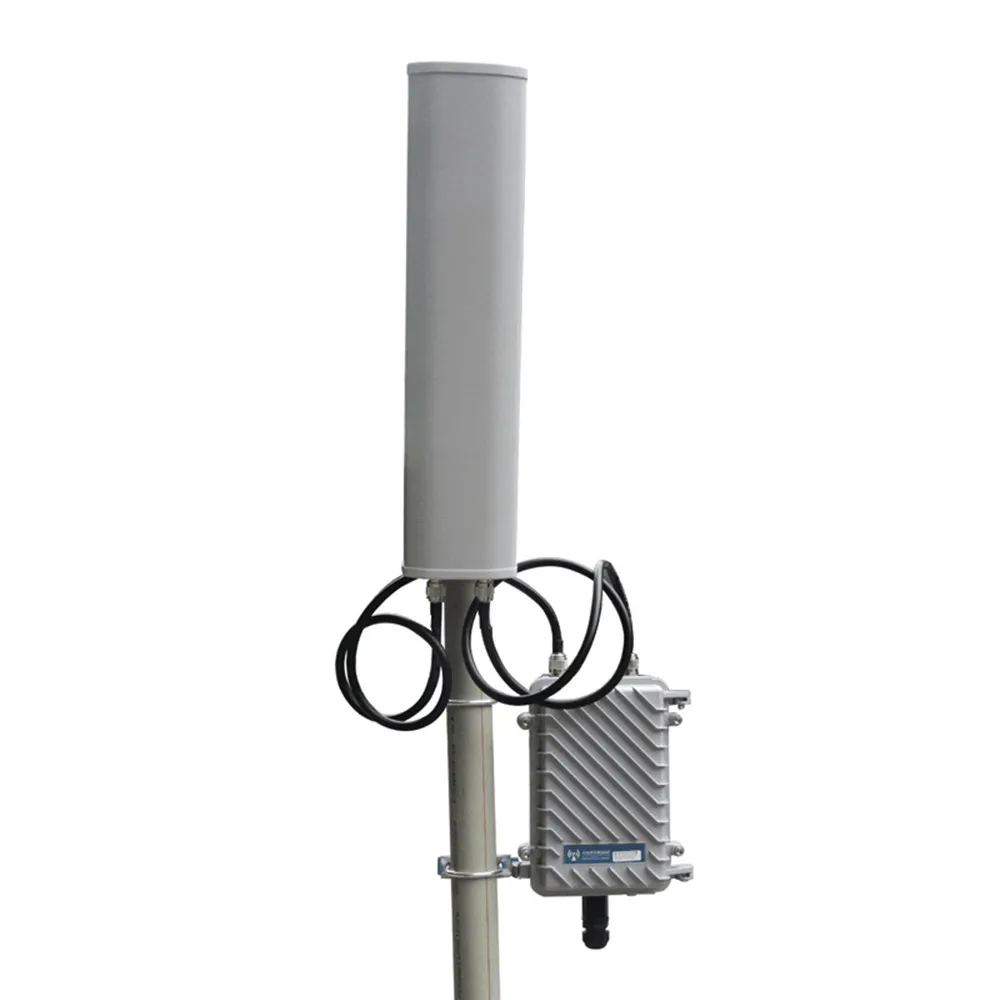

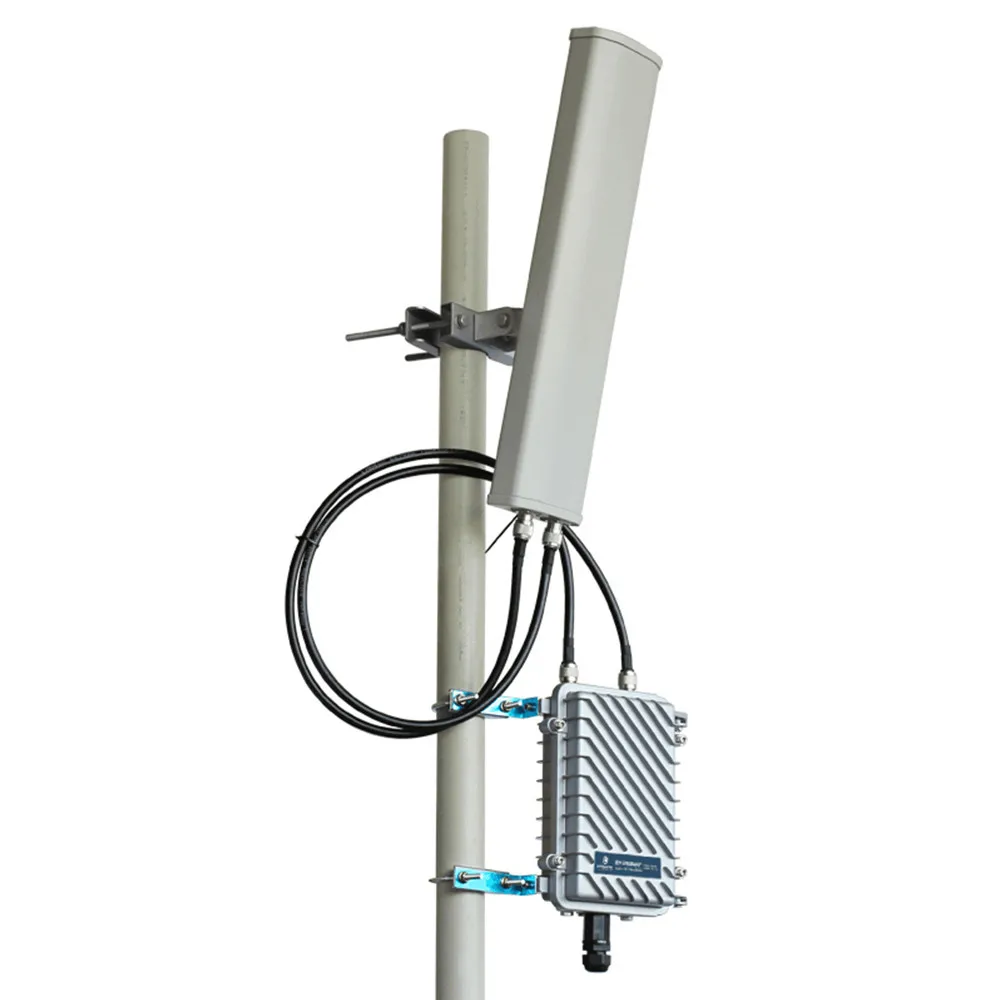

HW9341 is a high-performance outdoor CPE/AP with Qualcomm Chipset,

with detachable outdoor 14dBi directional panel antenna

and adjustable high RF power, make this outdoor access point with

circular sector

WiFi coverage

Radius

about 400 meters Max.

. It supports Wireless AP, Gateway, WiFi Repeater, WISP operation mode, effective solution for outdoor long range WiFi coverage application. HW9341

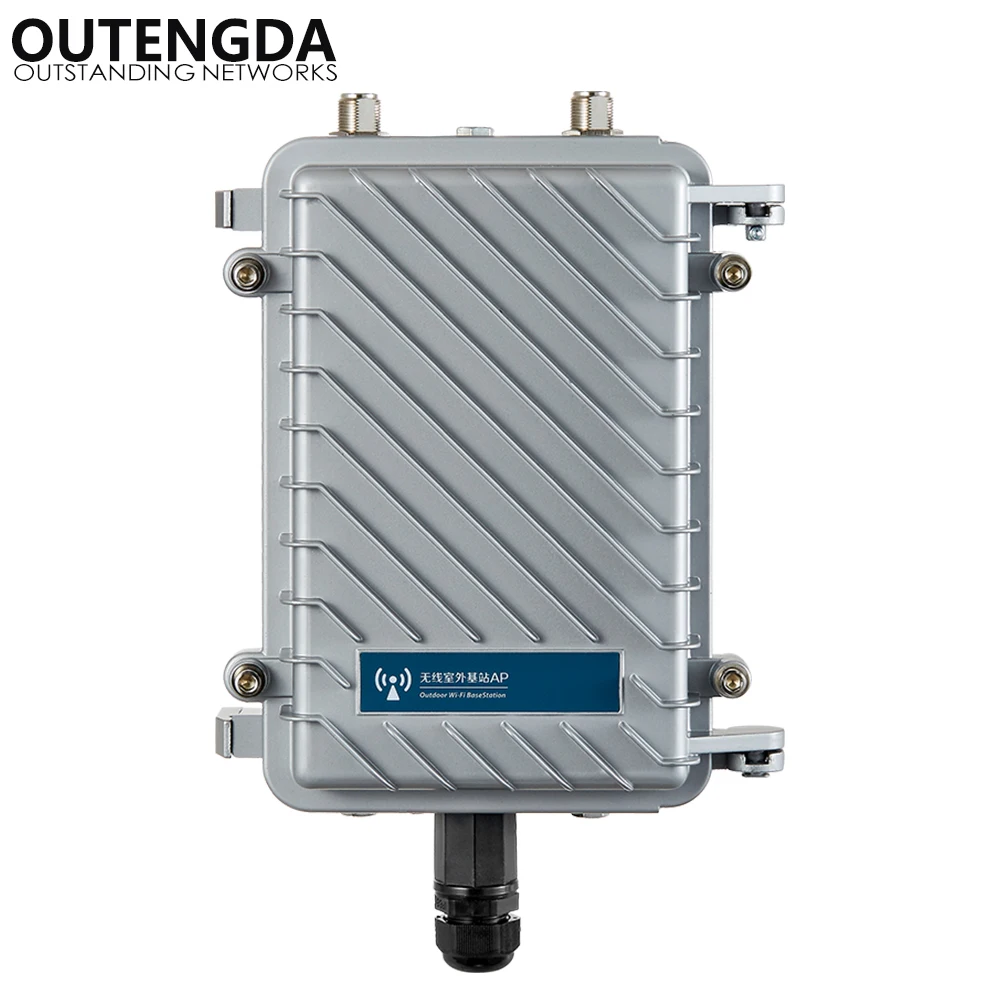

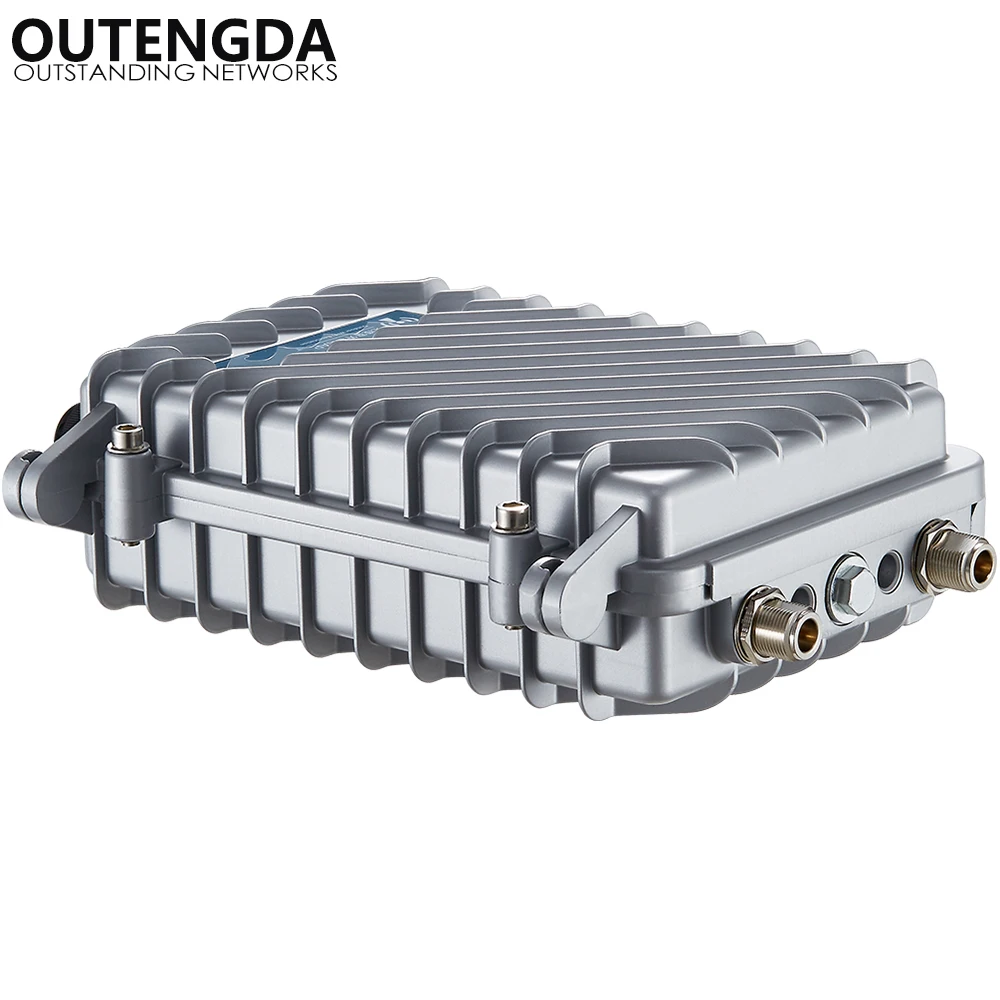

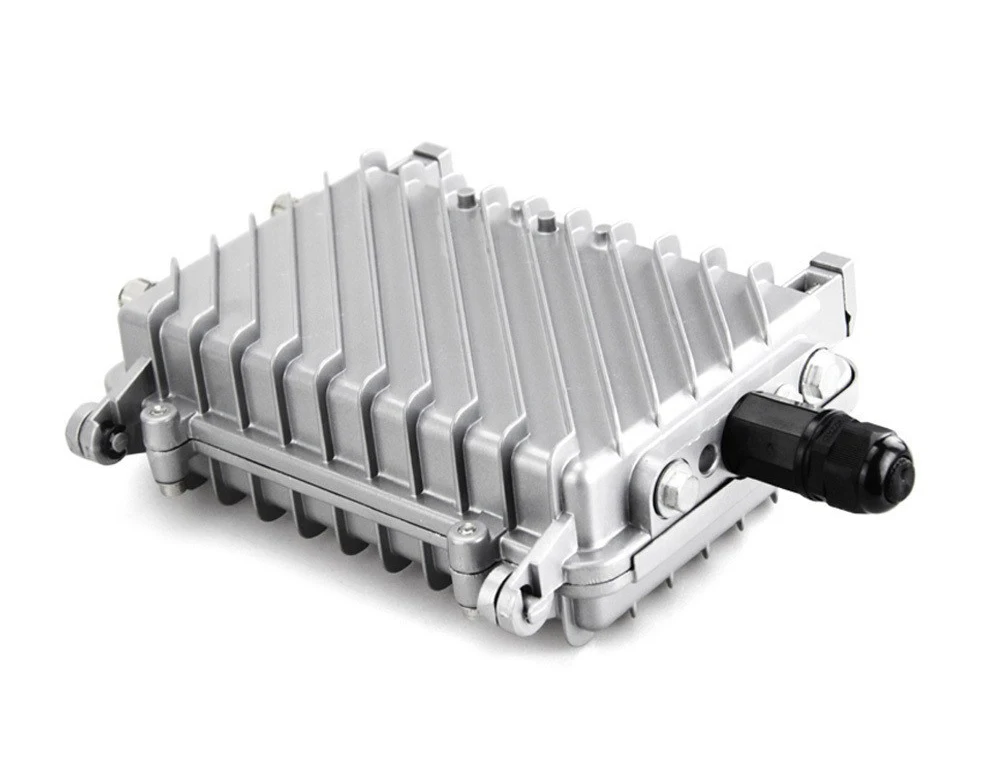

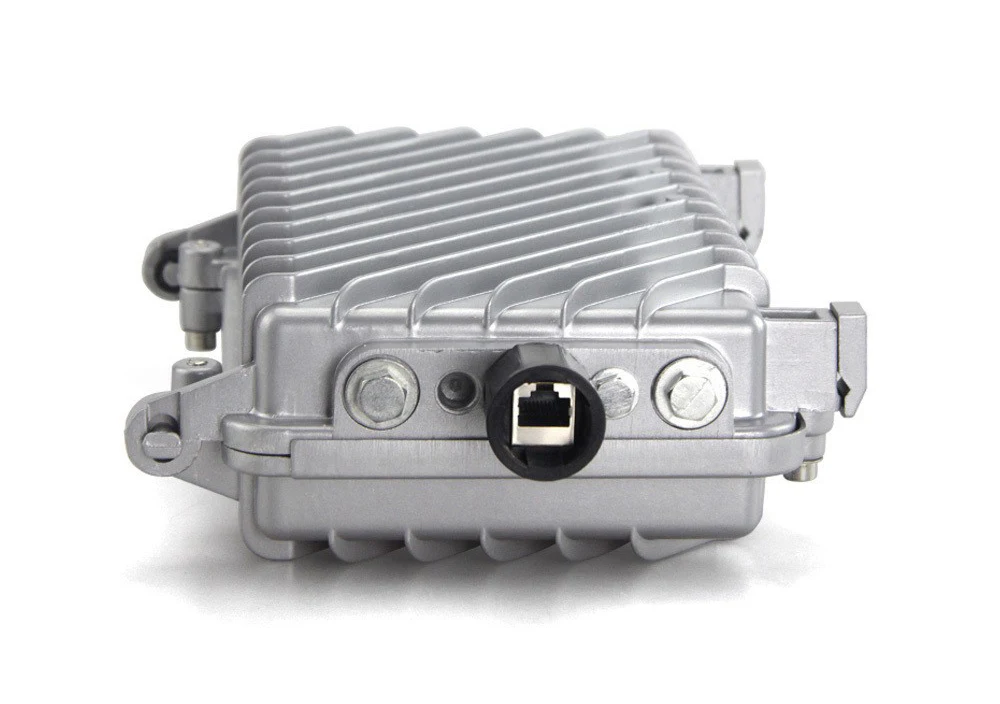

AP main box with the metal outdoor shell

and

panel ANT with material UPVC outdoor shell

to avoid the damage from outdoor rain, dust, sunshine, and thunderstorm weather, adaptive to the various environment also.

Features

MIMO Technology, 300Mbps Data Rate

Comply with IEEE 802.11b/g/n standard, 2.4GHz frequency, 2T2R protocol with 300Mbps data rate.

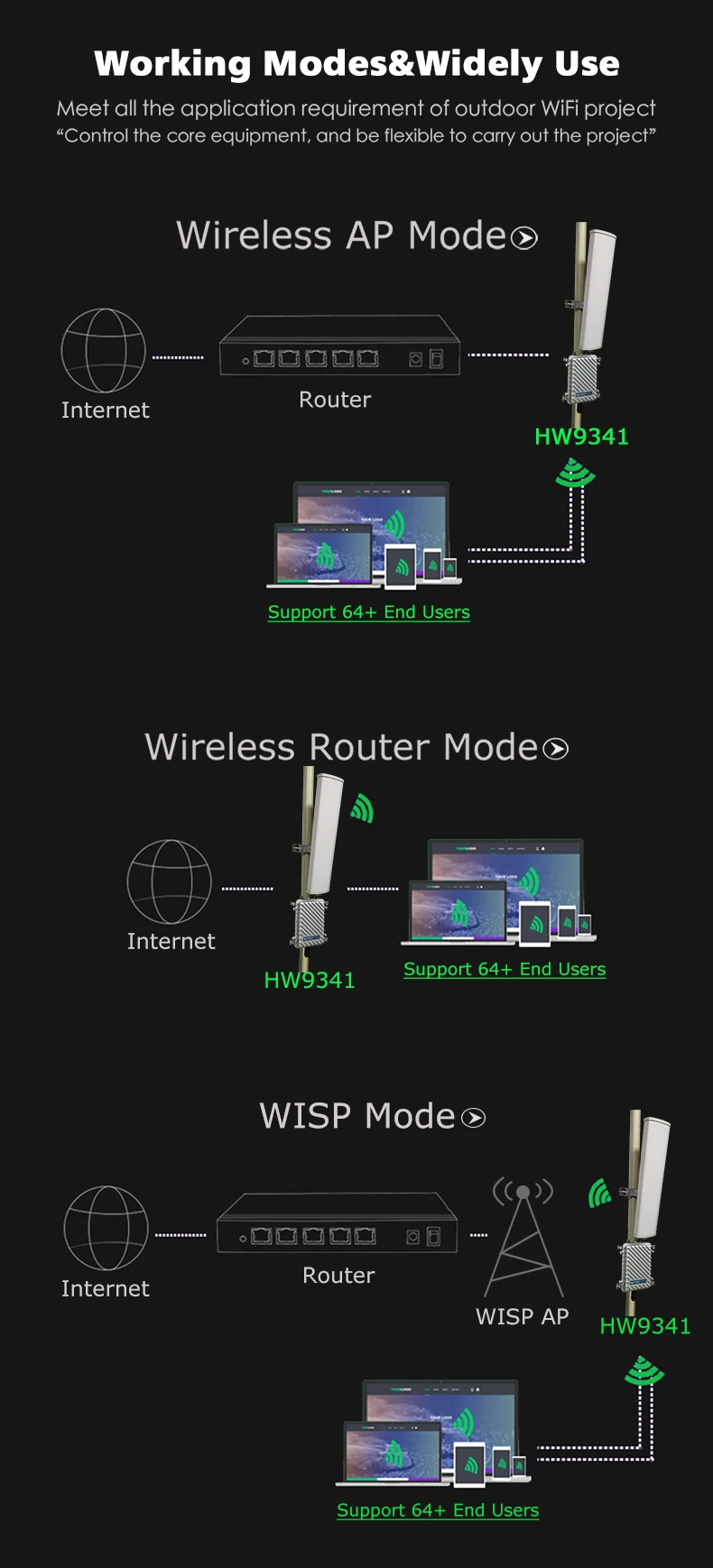

Various Operation Modes for different network environment

It supports Wireless AP, Gateway, WiFi Repeater, Bridge, WISP, WDS operation mode, then with SMA connector for detachable Omni/panel antenna, the user can flexibly choose a suitable wireless mode to do WiFi Coverage or PTP, PTMP, MPTMP applications.

Excellent Outdoor Weatherproof and Lighting Protection

With metal waterproof, dustproof and sunscreen shell, temperature adaptive and board protective to work in the harsh outdoor environment, meanwhile, the auxiliary cooling function makes HW9341 work normal

different environment.

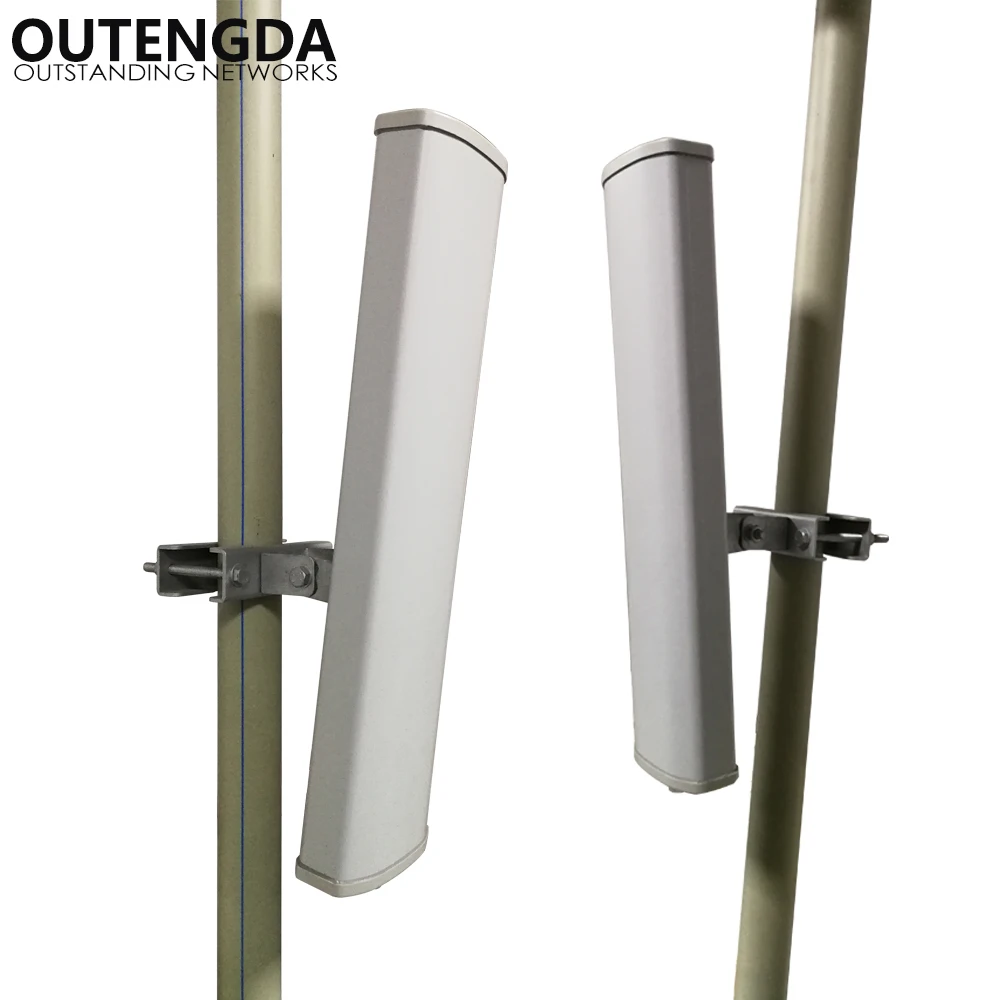

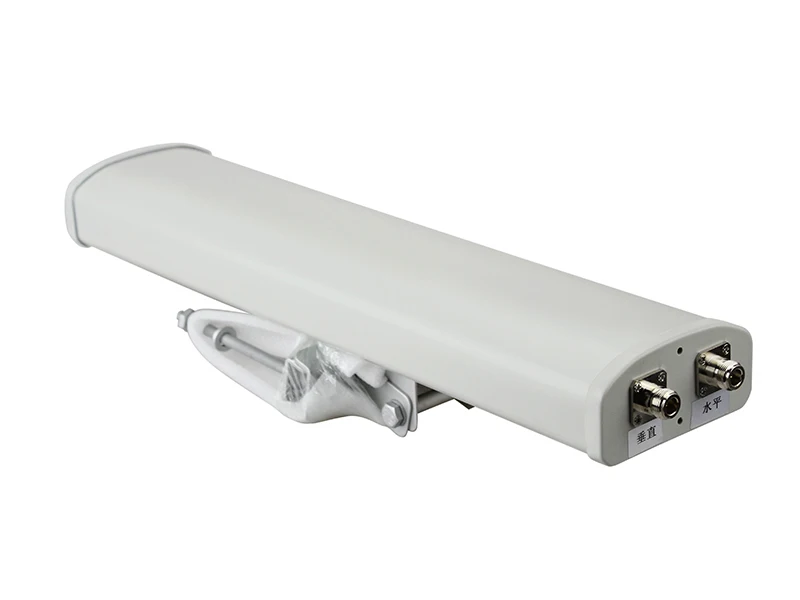

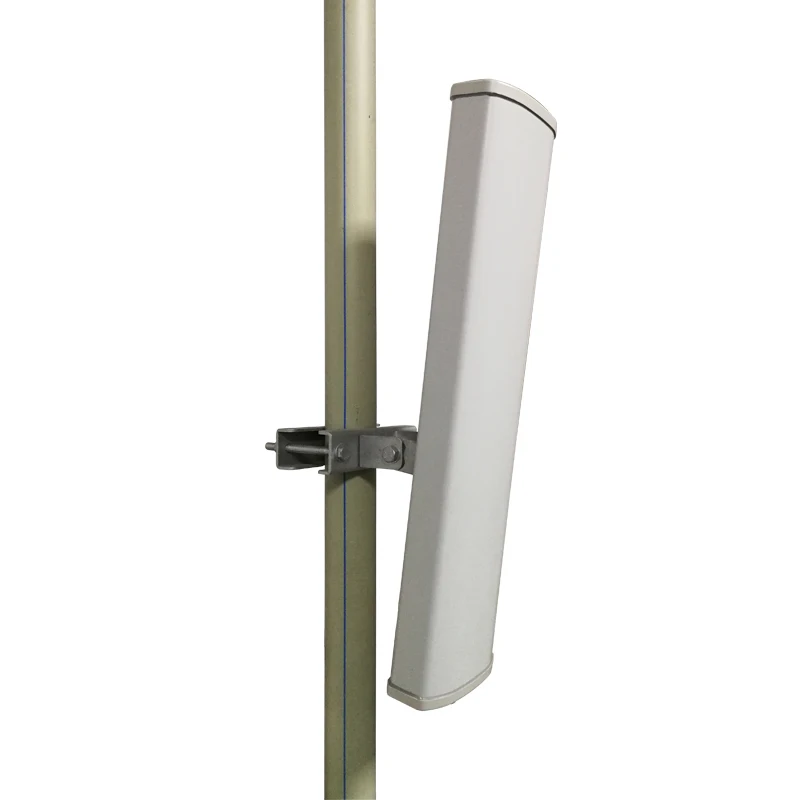

14dBi 2.4G dual polarization directional antenna

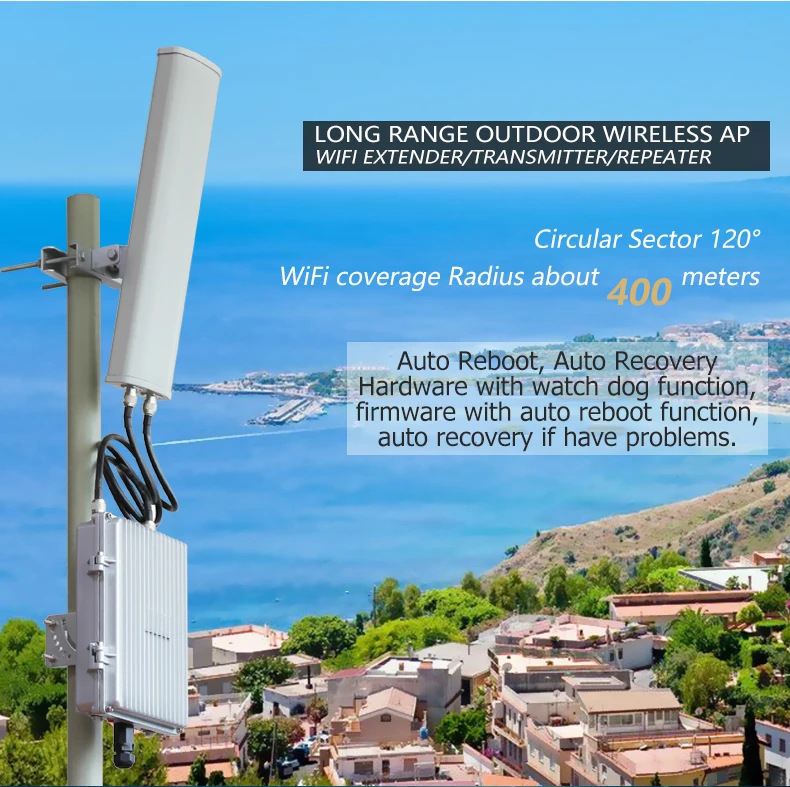

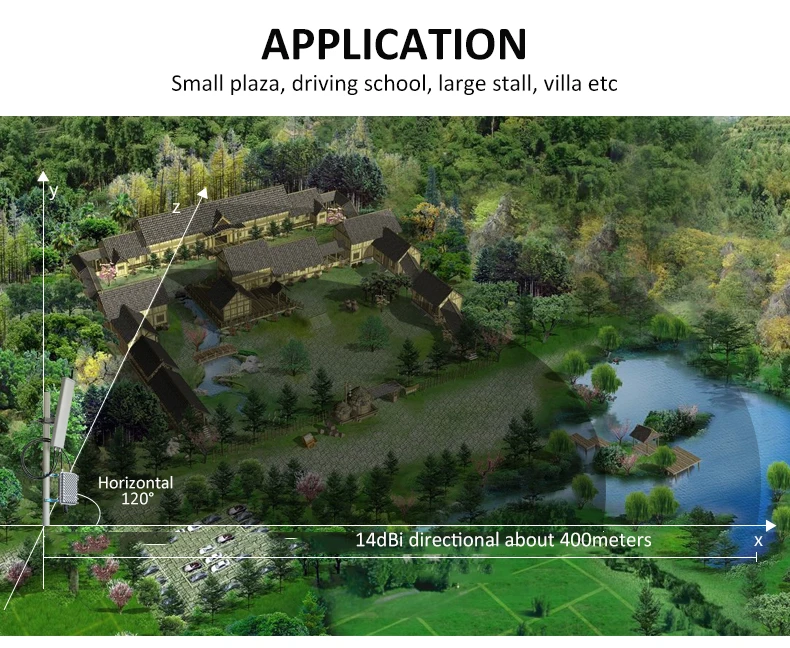

With 14dBi high power dual polarization directional antenna, make this outdoor access point with WiFi coverage(circular sector) radius about 400 meters.

SPEC.

Hardware

Chipset Qualcomm Atheros 9531

Wireless IEEE 802.11b/g/n, 2T2R 300Mbps MIMO Technology

Memory 128MB DDR2 RAM

Flash 16MB

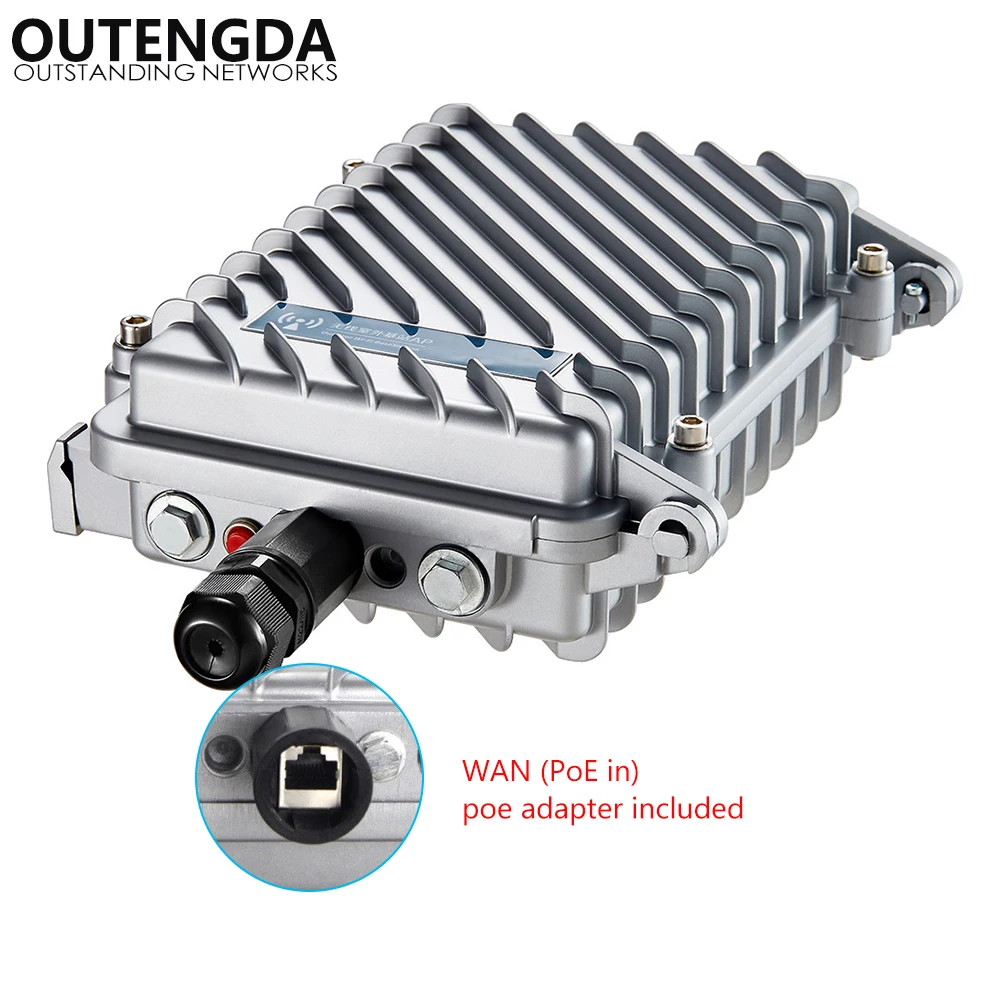

Interface 1*10/100Mbps RJ45 Port, support 12~24V PoE

1* Reset Button to restore factory default

Antenna 2 * SMA Connector, Outdoor use External Directional Antenna

LED Indicator Power, WIFI

Power 24V/1A Passive PoE,

Poe

adapter included

RF Data 2.4~2.4835GHz; Korea, Japan, ETSI, FCC

Data Rate 300Mbps

AP main-box size 310mm x 160mm x 80mm(12.21in x 6.3in x 3.15in)

Antenna Size 500mm x 114mm x 54mm(19.7in x 4.49in x 2.13in)

Antenna SPEC. 2.4GHz Dual polarization directional antenna with 14dBi high-gain

Antenna Transmission Angle 120° Horizontal，15° Vertical

Firmware

Operation Mode Gateway, Repeater, WISP, Wireless AP

Network Protocol IEEE 802.3(Ethernet)

IEEE 802.3u(Fast Ethernet)

IEEE 802.11b/g/n(2.4G WLAN)

Wireless Setting Wireless Analyzer

Distance Control 802.1xACK Time output

Multi-SSID Maximum 4 SSID

BSSID

Wireless Security WEP Encryption-64/128/152 bit

WPA/WPA2 Personal Encryption (WPA-PSK using TKIP or AES)

WPA/WPA2 Enterprise Encryption (WPA-EAP using TKIP)

Hide SSID

System Setting Web-based configuration (HTTP/Telnet)

Firmware Upgrade Upgrade firmware via web browser or TFTP

Administration Management Admin Username/Password can be configured

System Monitoring Device and Networking status statistic

System Log Support local log, host log, log file exporting

Reset to factory defaults

Backup device configuration, then restore this configuration if need

Environment

Temperature Operating Temperature:

-40℃~ 70℃

Storage Temperature: -40℃~ 70℃

Humidity Operating Humidity 5%~95% RH Non-condensing

Storage Humidity 5%~95% RH Non-condensing

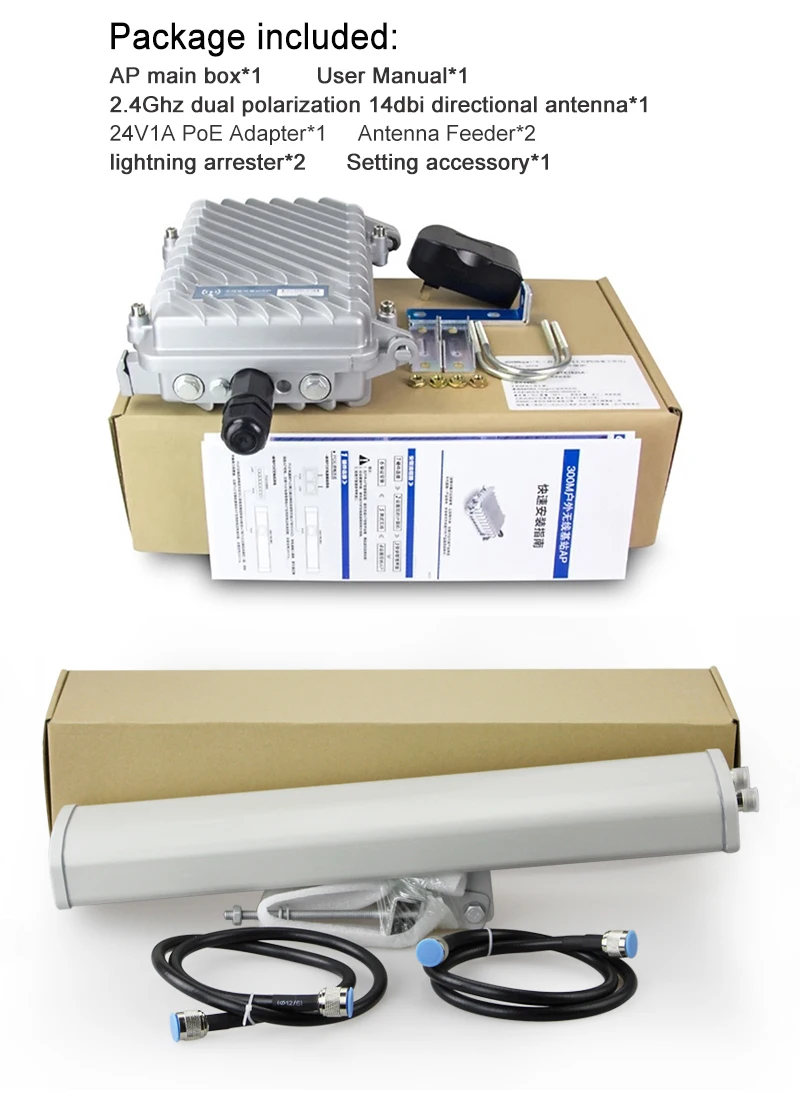

Package

HW9341 unit * 1

2.4G dual polarization 14dBi directional antenna * 1

Antenna Feeder * 2

24V/1A PoE Adapter * 1

Setting accessory* 1

User Manual* 1
