wifi signal booster for garden Global Verson Xiaomi Router AX3000(2-Pack) Mesh Wifi6 2.4G 5.0 GHz Full Gigabit 5G VPN Repeater Full OFDMA PPPoE For Home wifi signal booster Wireless Routers

Brand Name:	XIAOMI
With Modem Function:	No
Origin:	CN(Origin)
Type:	wireless
Wi-Fi Supported Frequency:	2.4G & 5G
Function:	Firewall
Certification:	NONE
Number of USB Interfaces:	None
Max. LAN Data Rate:	1000Mbps
Standards And Protocols:	Wi-Fi 802.11g
Wi-Fi Transmission Standard:	802.11g
Wired Transfer Rate:	1000Mbps
Package:	Yes
Model Number:	XIAOMI AX3000
LAN Ports:	3

2021 New Xiaomi Router AX3000 Global Verson Mesh Wifi6 2.4G 5.0 GHz Full Gigabit 5G WiFi Repeater 4 Antennas Network Routers Mesh Routers

Xiaomi Router AX3000 Main Feature

Powerful WiFi6, 3000M fast network

5G 160MHz high bandwidth

OFDMA efficient transmission

Super stable operation without dropping the connection

Independent network acceleration engine

360-degree signal coverage

4 independent signal amplifiers

Mesh network covering the whole house

256MB large memory

Xiaomi Router AX3000

Powerful WiFi6, 3000M fast network

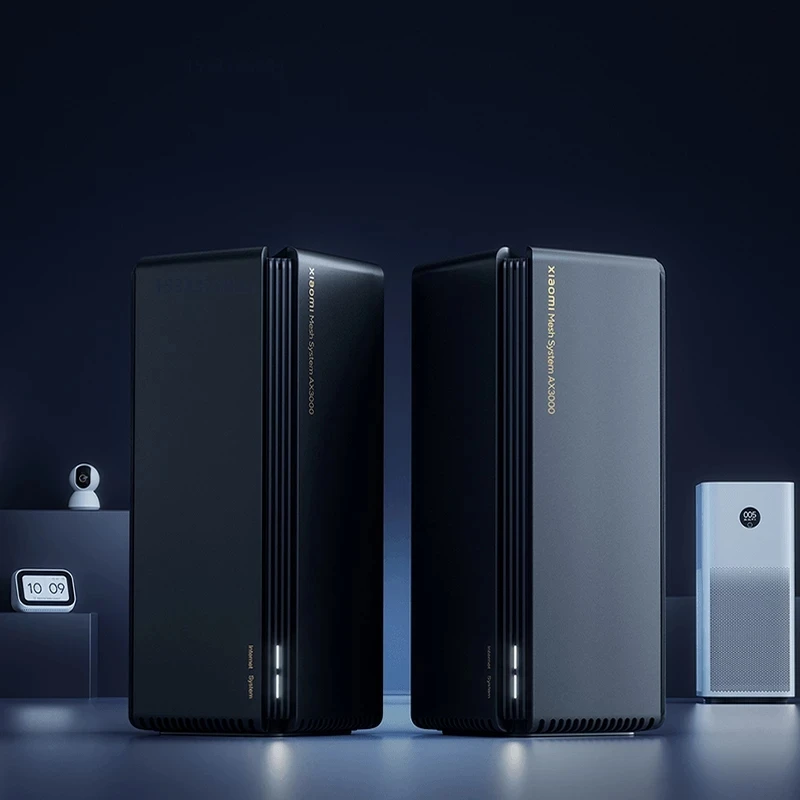

Xiaomi's mesh system provides full coverage for complex home arrangements

Xiaomi Mesh System AX3000 (2-Pack) combines into a mesh network that provides Wi-Fi 6 coverage throughout the home, covering up to 4,000 square feet of space. Xiaomi Mesh System AX3000 supports mesh networking with the same model and/or Mi Router AX9000 for up to 10 total devices. The signal roams between different routers automatically and seamlessly, allowing you to play as you go.

Mesh system with self-repairing* capabilities

In a mesh network created using Xiaomi Mesh System AX3000, when a failed node is detected, the entire network architecture is re-planned to ensure normal mesh network operation.

The easy-to-use mesh set is smart and simple to install

Xiaomi Mesh System AX3000 (2-Pack) bundle is pre-configured at the factory, so no complicated set-up is required, and it is ready to use*. It's now easy to enter the high-speed Internet era, with no expertise required.

Get started right away and enjoy lightning-fast Wi-Fi 6

Xiaomi Mesh System AX3000 (2-Pack) offers 2.4GHz and 5GHz bands, each with 802.11ax technology. The two bands offer a combined dual-band wireless speed of up to 2976Mbps *. That's nearly twice the speed of a typical AC1200 router. 1024 QAM technology is also faster than Wi-Fi 5's 256 QAM, so you don't have to wait for high-speed Internet access.

160MHz high-bandwidth for a superb experience

If bandwidth is like a highway, conventional 2-lane traffic systems are always congested. With the Xiaomi Mesh System AX3000 (2-Pack), however, the width of every lane, and speeds in the 5GHz band are doubled *. Enjoy an ultimate smooth online experience, even when connecting with multiple devices.

High-efficiency OFDMA transmission makes Internet access smoother for multiple devices*

OFDMA technology allows routers to process data flows from multiple devices simultaneously when large devices require data transmission, effectively reducing network congestion and greatly reducing latency.

Stable online connectivity for 254 devices simultaneously*

The smart home era is bringing an ever increasing number of connected devices into the home. Each Xiaomi Mesh System AX3000 (2-Pack) product comes with 256MB of RAM to cater to occasional complex environments with large numbers of devices such as family gatherings or parties, so that stable connectivity and response is ensured in time.

Not just energy efficient, but more durable

Target Wake Time technology only connects when a transmit signal is received, otherwise remaining in sleep mode. This effectively reduces average power consumption when connecting to Wi-Fi devices, and extends the product life span.

* TWT technologies require to be supported by endpoint devices.

A simpler, smarter user experience

Xiaomi Mesh System AX3000 (2-Pack) supports intelligent control via the Xiaomi Home/Mi Home app, simplifying network configuration so that even novice users can easily access high-speed networks.

One pack, More options

If this package does not meet your needs, we also offer Xiaomi Mesh System AX3000 (1-Pack). Whether you live in a small apartment or a large house with several floors, we have the right on-demand solution for you to create the Internet connectivity you want.

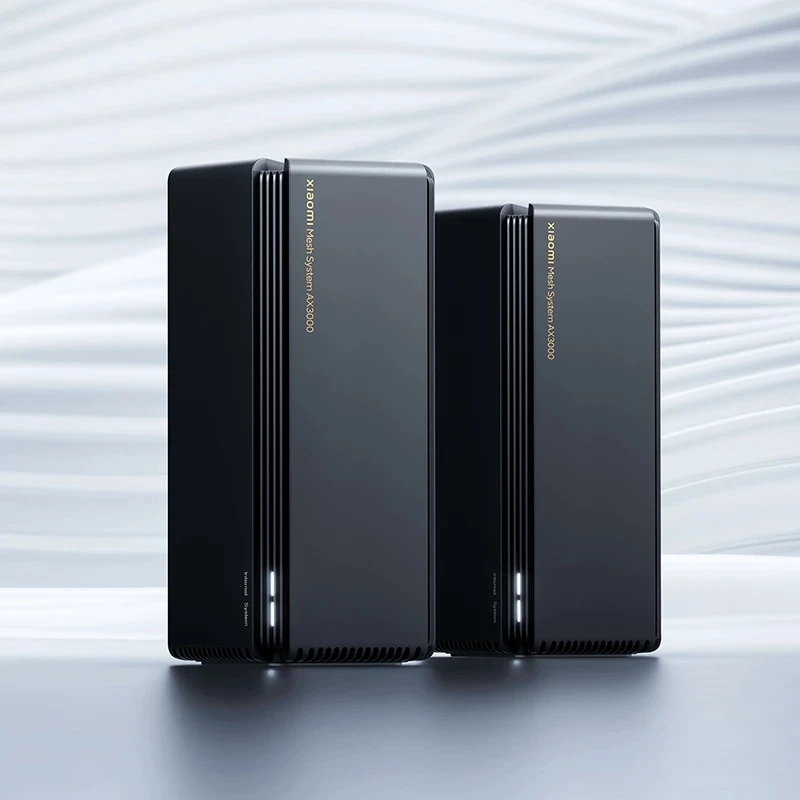

Cool black rectangle cube-shaped design

Concealed dual-band high-performance antennas, tower-type thermal architecture, large channel convection and extra-large metal heat sink ensure stable operability.

Notes:

* Images on this page are illustration and the design of the real product may differ.

* A failure of the first node connected to the ISP will cut off Internet access for the entire network, preventing self-repair. This does not therefore cover the first mesh node used for ISP fibre optic connectivity.

* Only the two Xiaomi Mesh System AX3000 units in the kit are pre-connected to each other at the factory - this is not provided for all Xiaomi's mesh router products.

* 2,976Mbps is the maximum theoretical wireless speed when the 2.4GHz (576Mbps) and 5GHz (2,402Mbps) bands are used concurrently. Actual speeds may vary depending on network conditions and surroundings.

* 254 devices is the total combined 2.4G/5G/LAN connectivity under laboratory conditions.

* Wi-Fi coverage data was tested by Xiaomi's internal lab. Actual Wi-Fi coverage may differ due to network and environmental conditions.

* Use of Wi-Fi 6 (802.11ax), and features including 160Mhz, OFDMA, MU-MIMO, and 1024 QAM require end devices that also support the corresponding features.

Xiaomi Mesh System AX3000（2-Pack）

L×W×H (per unit)

97mm × 97mm × 222mm

Product color

Black

Hardware configuration

Processor

Qualcomm® IPQ5000 Dual-core A53 1.0GHz CPU

Network processing unit

Single core 1.0GHz NPU

Memory

256MB

2.4G Wi-Fi

2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 574Mbps)

5GHz Wi-Fi

2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 2402Mbps)

Antennas

High gain antennas

Heat dissipation

Natural heat dissipation

Total ports

1×10/100/1000Mbps self-adaptive WAN port (Auto MDI/MDIX)

3×10/100/1000Mbps self-adaptive LAN ports (Auto MDI/MDIX)

LED indicator light

2 lights, System indicator × 1, Internet indicator × 1

System reset button

×1

Mesh networking button

×1

Power input port

×1

Protocol standards

IEEE 802.11a/b/g/n/ac/ax，IEEE 802.3/3u/3ab

Wireless specificationsWireless specifications

Dual-band

2.4GHz, 5GHz

Modulation

11b：DSSS：DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)

11a/g：OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps),

64QAM(48/54Mbps)

11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.

Data rate：MCS0-MCS15

11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.

11ax：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.

Data rates: MCS0-MCS11 (supports 2 streams).

Software specifications

Operating system

MiWiFi ROM, a smart router operating system based on OpenWRT

WiFi Encryption

WPA-PSK/WPA2-PSK/WPA3-SAE encryption,

Wireless access control (black and white list), SSID hidden

Management applications

Supports Web, Android, iOS

Working Environment

Working environment Temperature

0-40℃

Operating humidity

10%-90%RH (non-condensing)

Storage temperature

-40-70℃

Storage humidity

5%-90%RH (non-condensing)

Package contents

Xiaomi Mesh System AX3000

Instruction Manual

Power cord

Network cable
