AIYIMA TPA3156 Bluetooth Subwoofer Amplifier 2.1 50Wx2+100W Digital Power Amplifier APTX HD 5.1 Home Theater COAX OPT DSP Amp karaoke amplifier Audio Amplifier Boards

Brand Name:	Aiyima
Certification:	CE
Certification:	RoHS
Origin:	CN(Origin)
Maximum Power Per Channel:	Above 200W
Package:	Yes
Channels:	3 (2.1)

AIYIMA Bluetooth APTX-HD LM3886 Power Auidio Amplifier CSR8675 Sound Speaker Amplificador AMP Hifi Stereo Home Power Amplifiers

USD 221.93/piece

AIYIMA Bluetooth 5.0 APTX LL Preamplifier Bile Preamp Headphone Tube Amplifier Audio Hifi Amp PC-USB DAC RCA Amplificador

USD 71.23-78.48/piece

AIYIMA 4 Inch Midrange Woofer Speaker Bass Sound Speaker 4 Ohm 40W Aluminum-magnesium Composite Basin Loudspeaker For SONOS

USD 32.49/piece

AIYIMA T9 HiFi Bluetooth 5.0 Vacuum Tube Amplifier USB DAC Stereo Amplificador COAX OPT Home Audio Power Amplifier VU Meter 100W

USD 86.32-104.85/piece

AIYIMA Bluetooth APTX-HD TPA3255 Power Amplifier 300Wx2 Hifi Stereo Sound Amplifier Speaker Audio Amplificador Balance AUX Input

USD 166.67/piece

AIYIMA TPA3116 Amplificador Subwoofer Audio Bluetooth Sound Amplifier 2.1 50Wx2+100W HiFi TPA3116D2 Digital Power Home Amplifier

USD 51.93-77.40/piece

AIYIMA APTX Bluetooth Headphone Amplifier Audio Decoder Hifi Home Theater USB DAC Coaxial OPT PC-USB Mini Amp Remote Control

USD 103.49-112.19/piece

AIYIMA A07 TPA3255 2.0 HiFi Power Amplifier Audio 300Wx2 A04 TPA3251 Digital Amp 175Wx2 A05 TPA3221 APTX-HD Bluetooth Amplifier

USD 42.77-92.87/piece

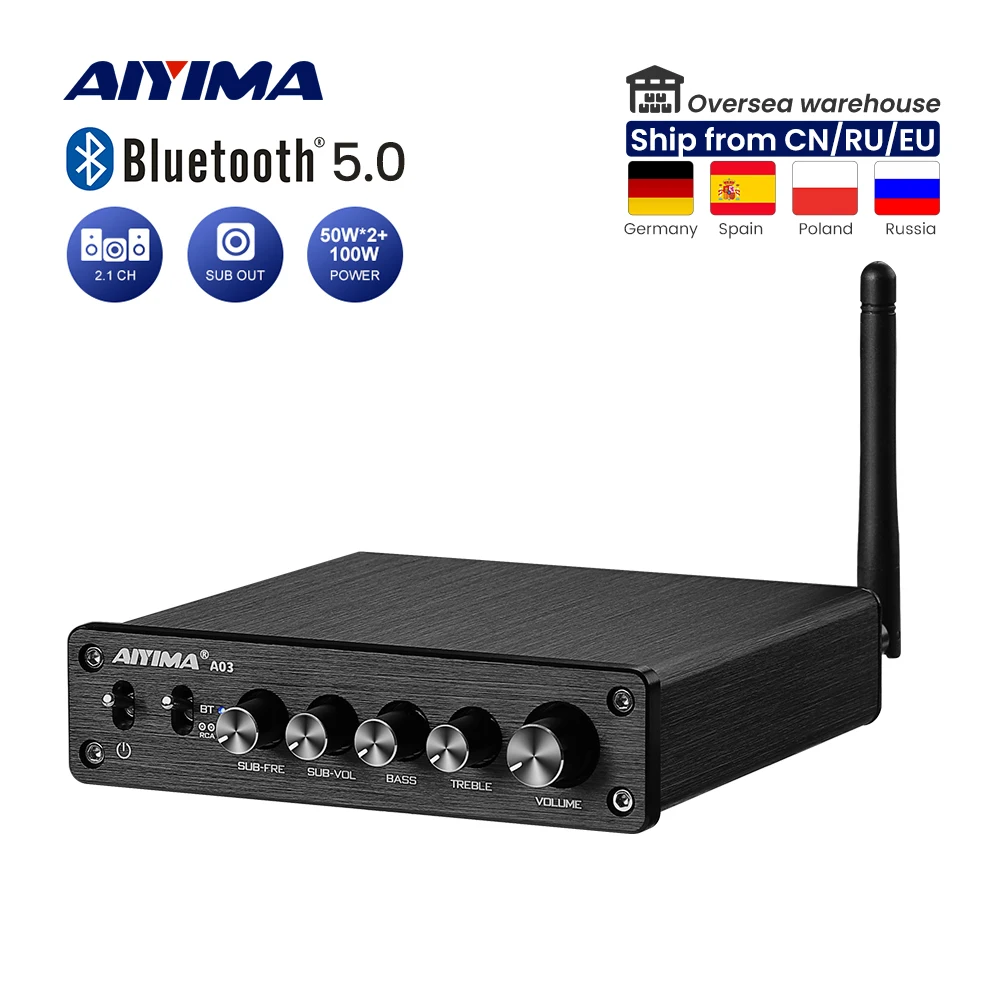

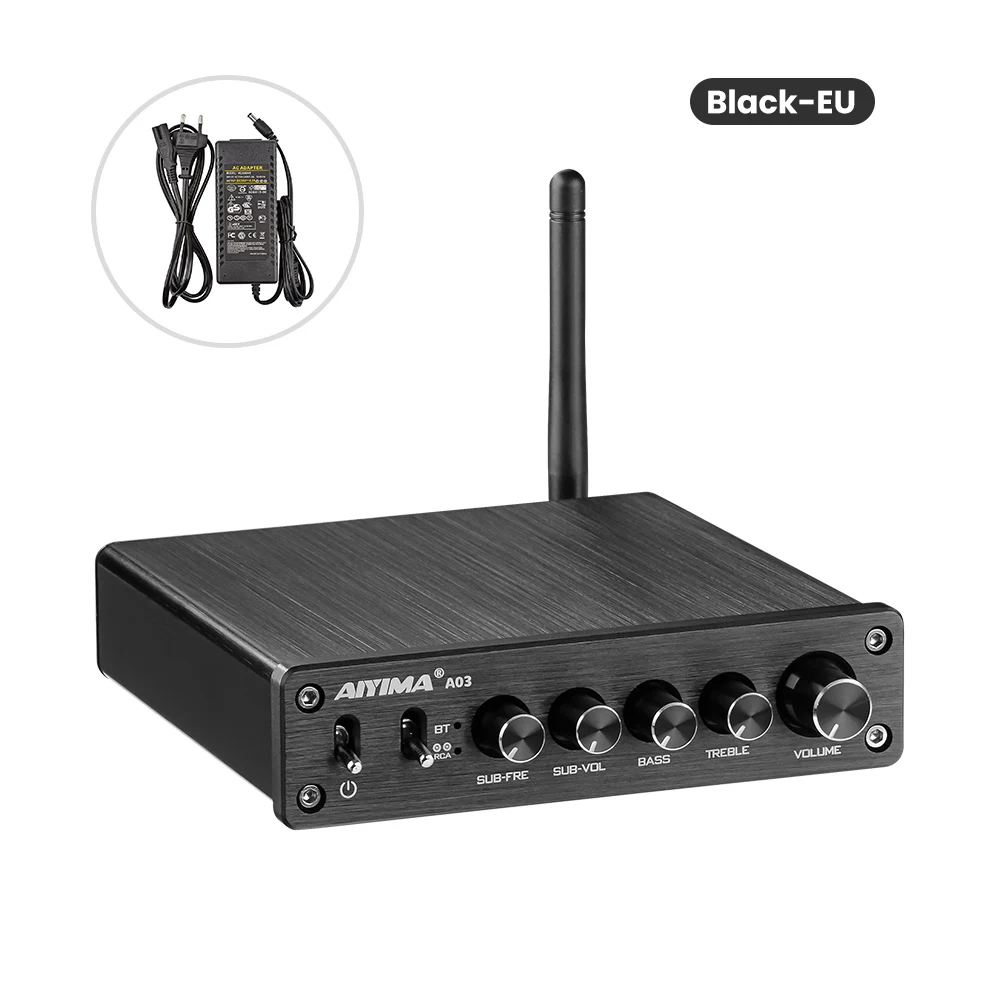

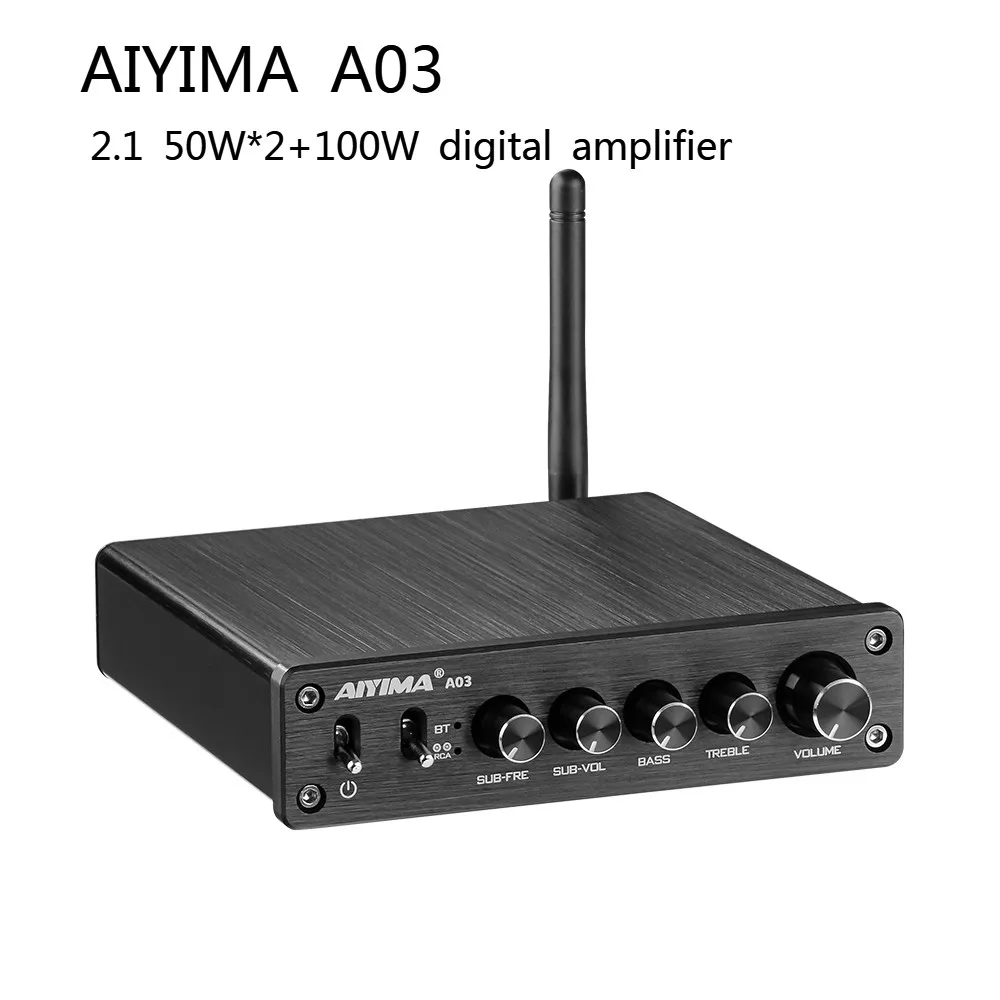

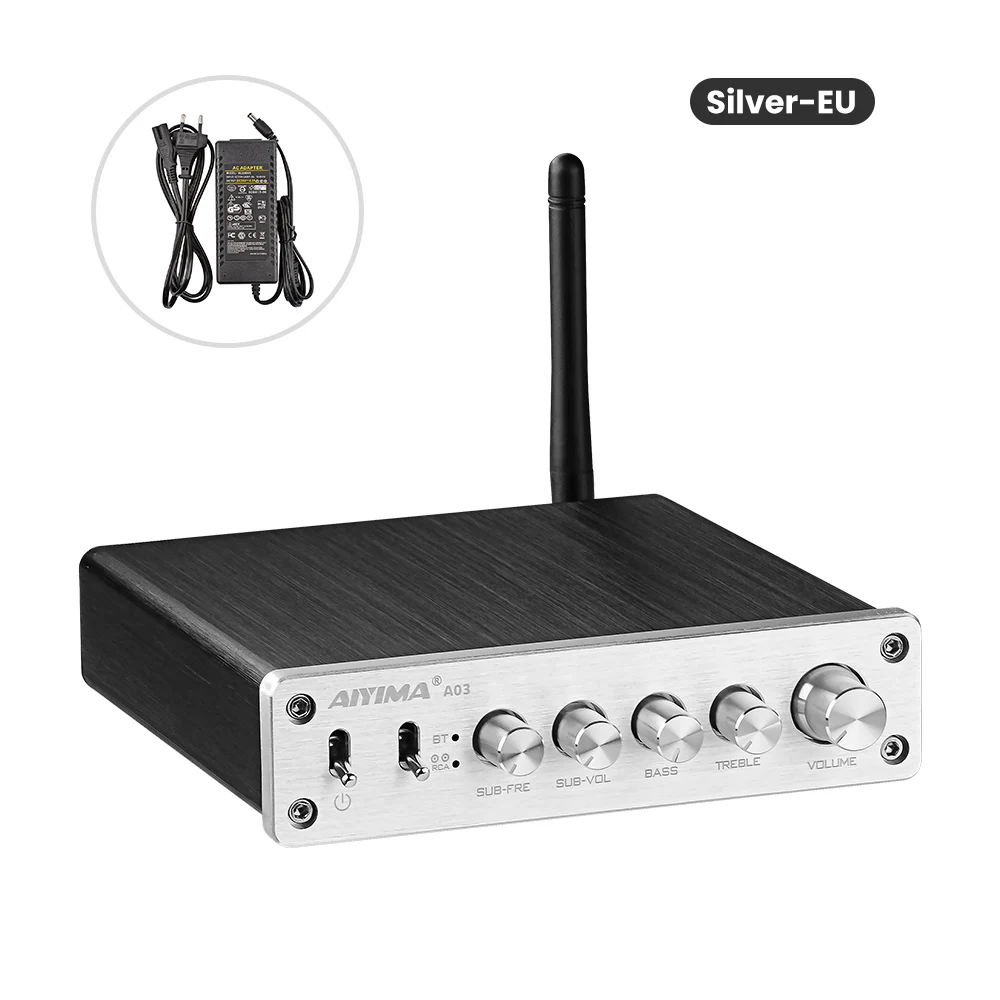

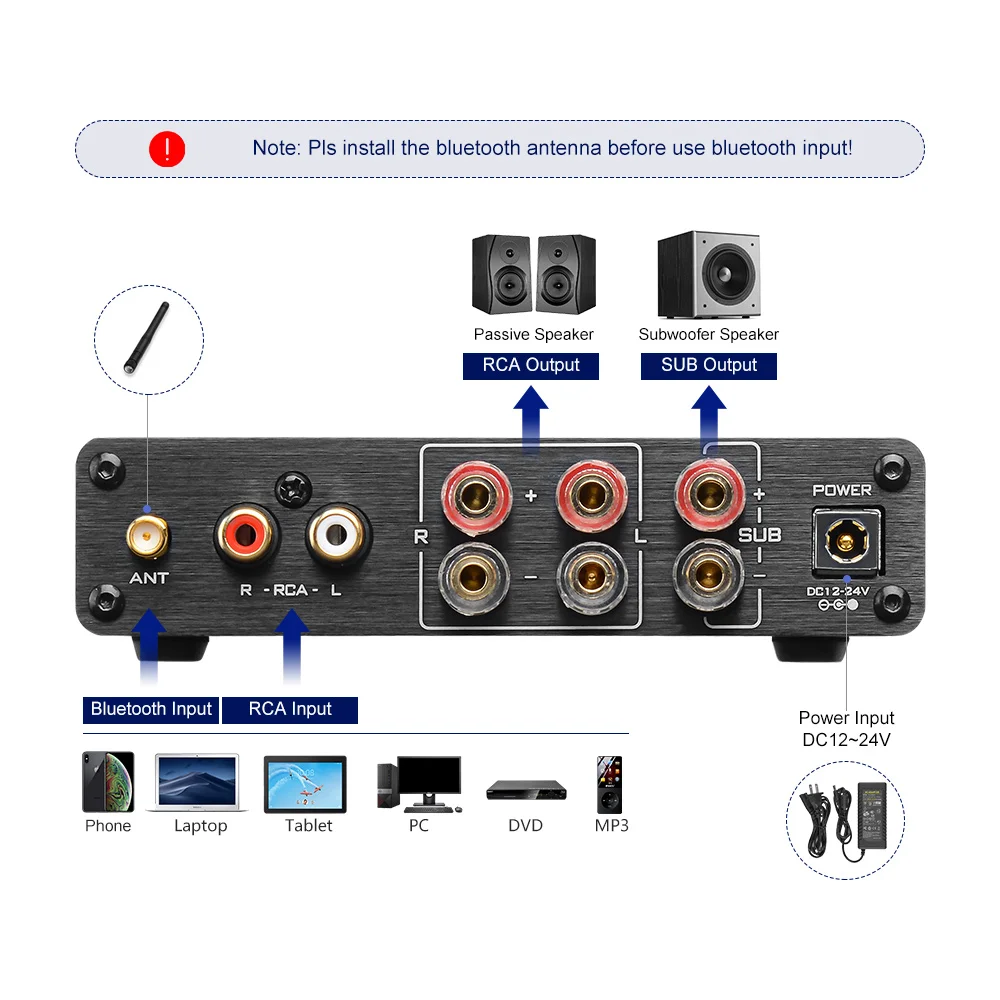

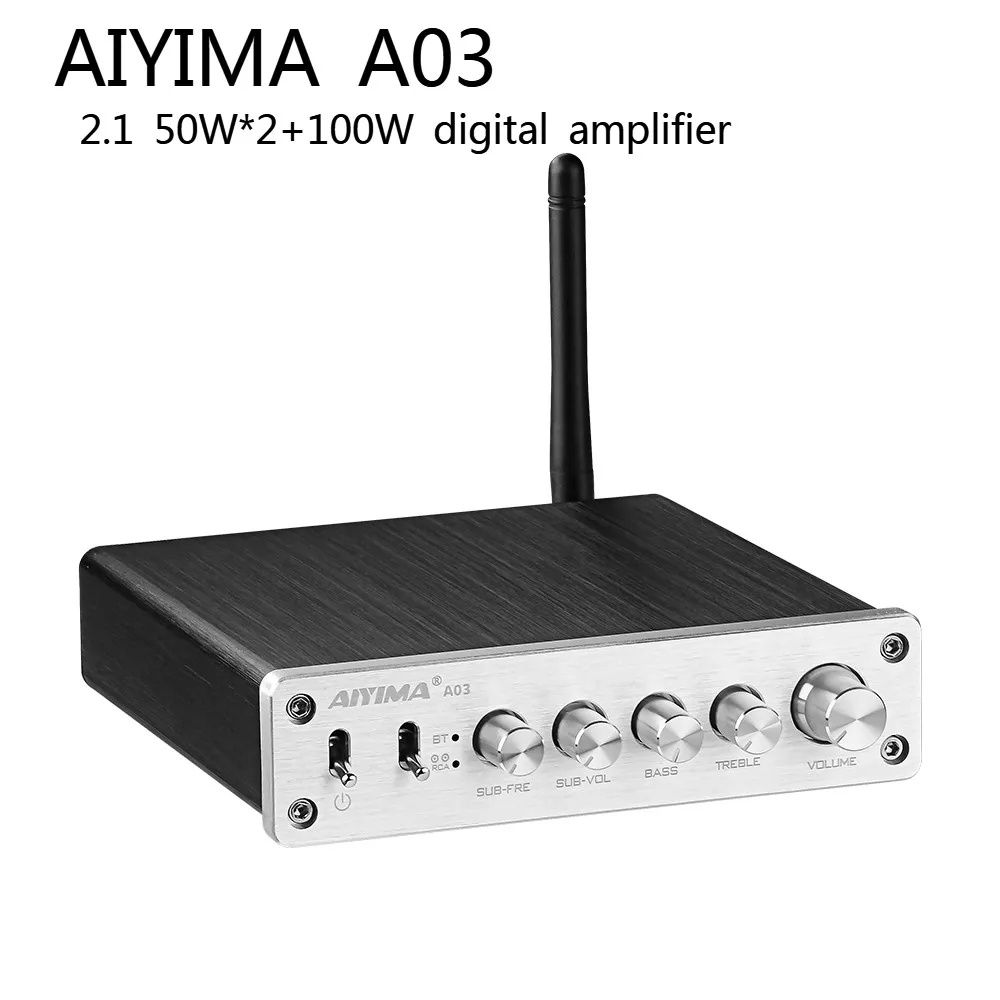

1.  AIYIMA A03 2.1 50W*2+100W digital amplifier

Note:



TPA3116D2 send from Russia . TPA3156D2 send from China

Description:

1.

Support two input

, one



AUX input

, connect wired analog signal input; another one



Bluetooth 5.0 wireless input

, can connect with mobile phone, computer and other Bluetooth devices.

2. Support the frequency adjustment of the subwoofer, you can adjust the bass frequency according to your needs.

3 support the bass frequency adjustment of the left and right satellite boxes, making the left and right speaker output more playable; in addition, the left and right speakers can also be used when the subwoofer is not connected

4.Two pieces of



TPA3156

, one for the left and right channel output, one for the subwoofer output, the Bluetooth part adopts the imported



QCC3034



high quality Bluetooth receiver, and the internal uses 4 NE5532 op amps, 3 of which can be plugged and unplugged, which is convenient for customers to change different styles. Op amps, increase playability.

5. Material, plug-in capacitors all use original imported goods,large reservoir.

6. No switch sound

7. Large heat sink, long-term high-power stable work

8.

Power supply voltage: DC12V-24V

, current 3A or more, voltage socket 5.5*2.5mm, external negative internal negative



(

recommended DC24V 6A

)

9.

Output impedance 4-8 Ohm

10.

Output power left and right channel 50W+50W 4 ohm load , subwoofer 100W .

2.1 channel.

11. Frequency response: 20-20KHz

12. Distortion: 0.1%

13.Signal to noise ratio:> 82db

14.Sensitivity: 82db

15.Left and right channel bass adjustment range: +12db -14db

16.Left and right channel treble adjustment range: ±10db

17.Subwoofer cut-off frequency: 40-240HZ

18. Length * width * height (124 * 130 * 33mm)

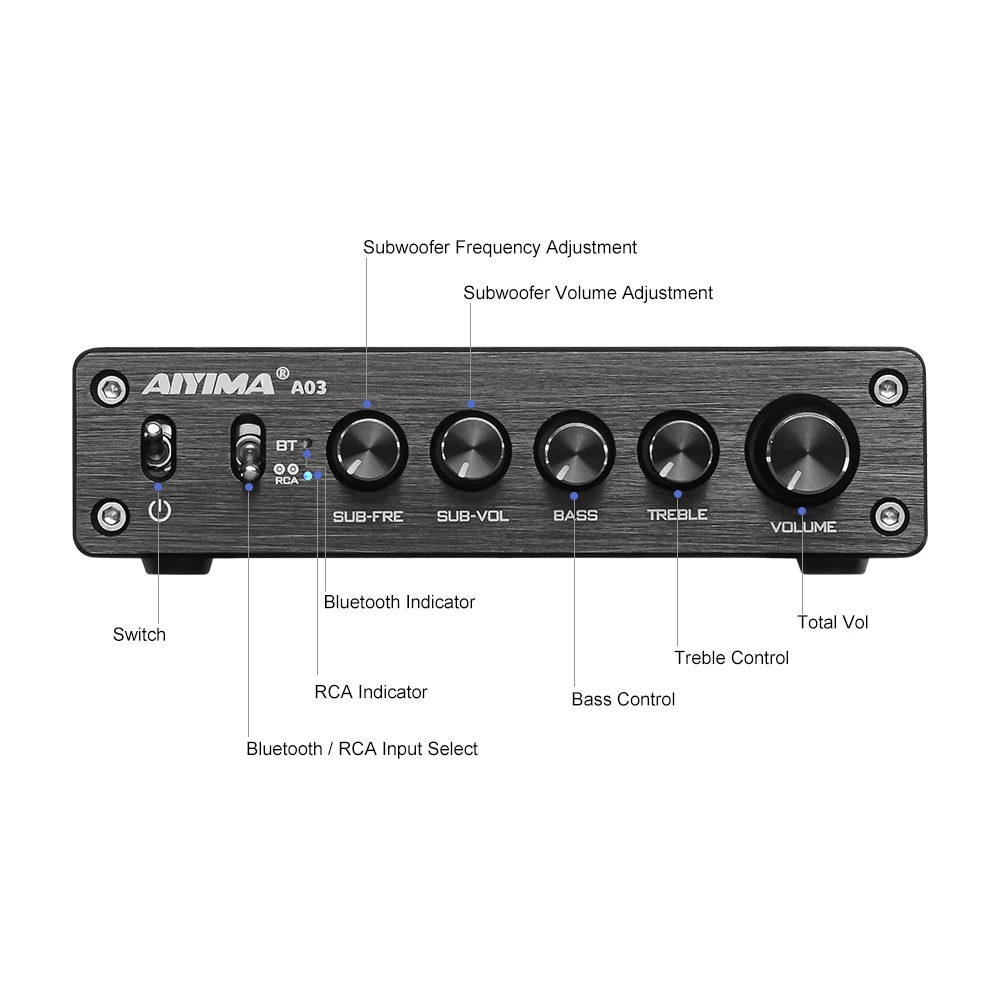

19. The function of the knob from right to left is: total volume adjustment, left and right channel treble adjustment, left and right channel bass adjustment, subwoofer volume adjustment, subwoofer frequency adjustment.

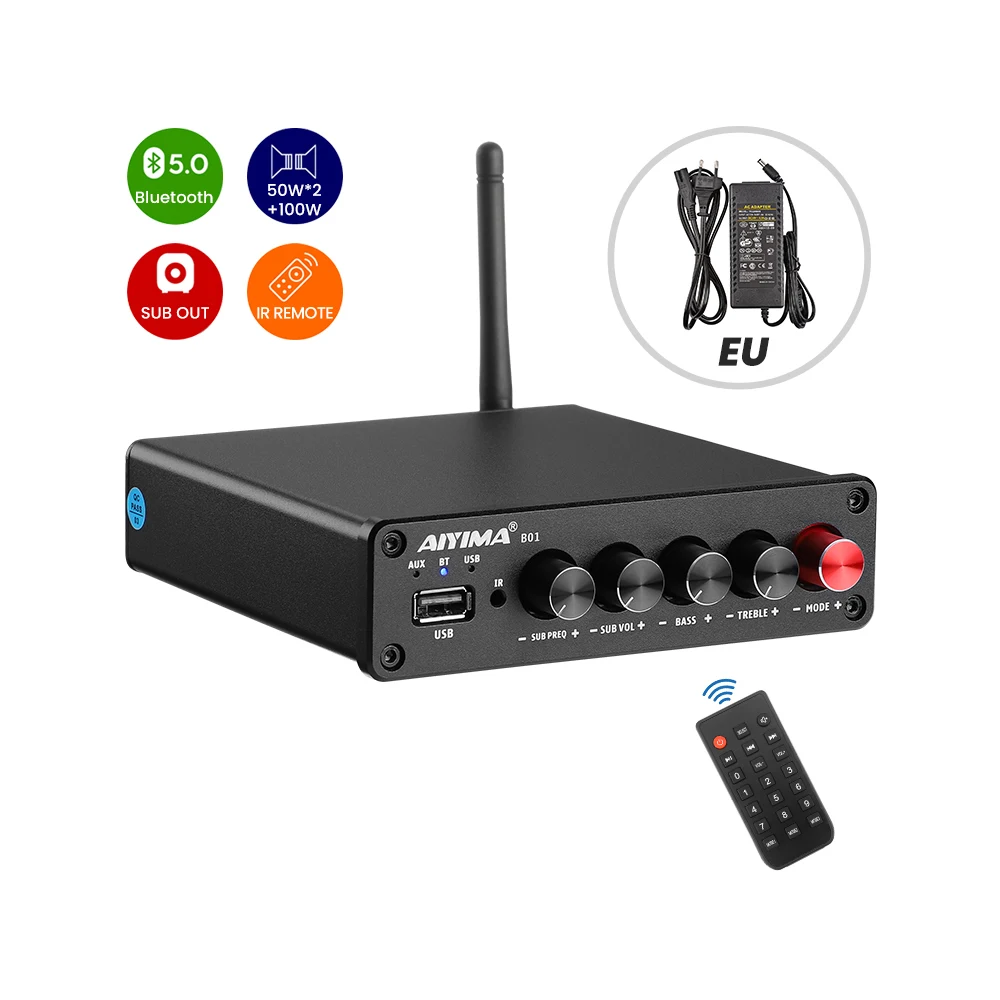

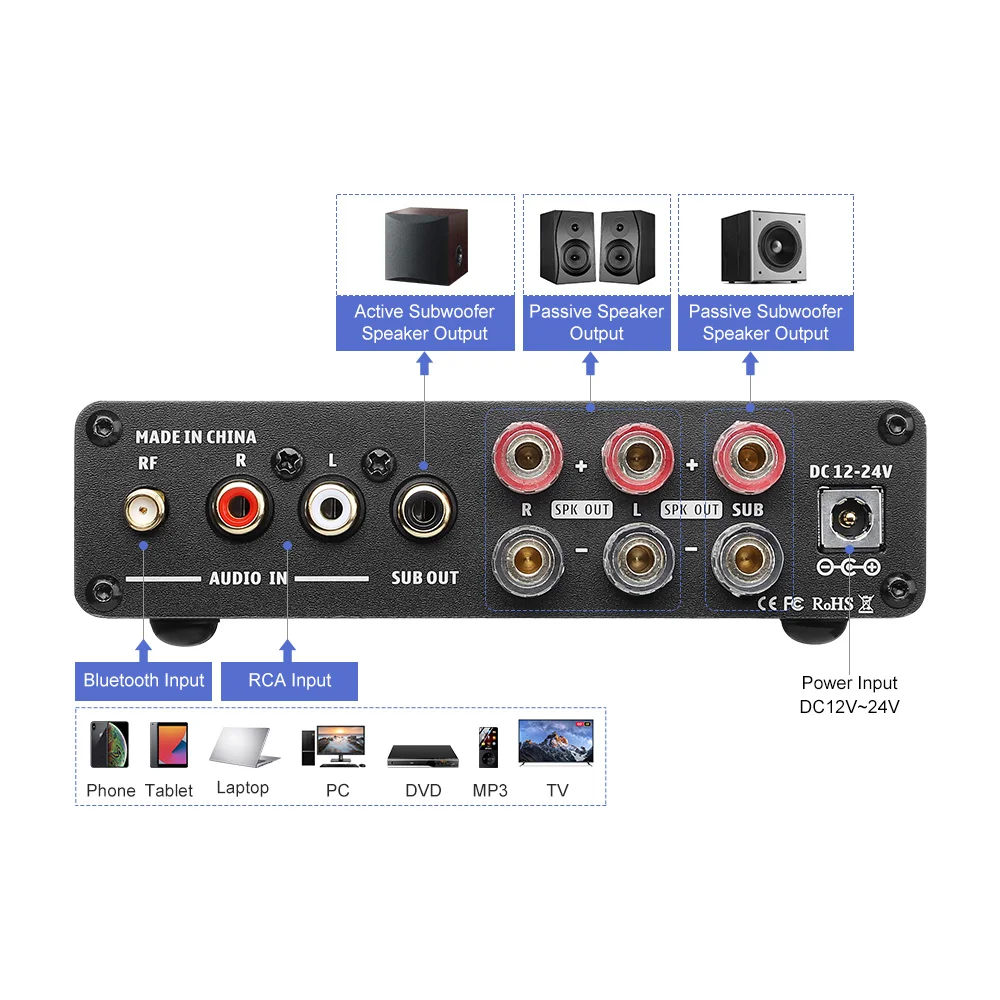

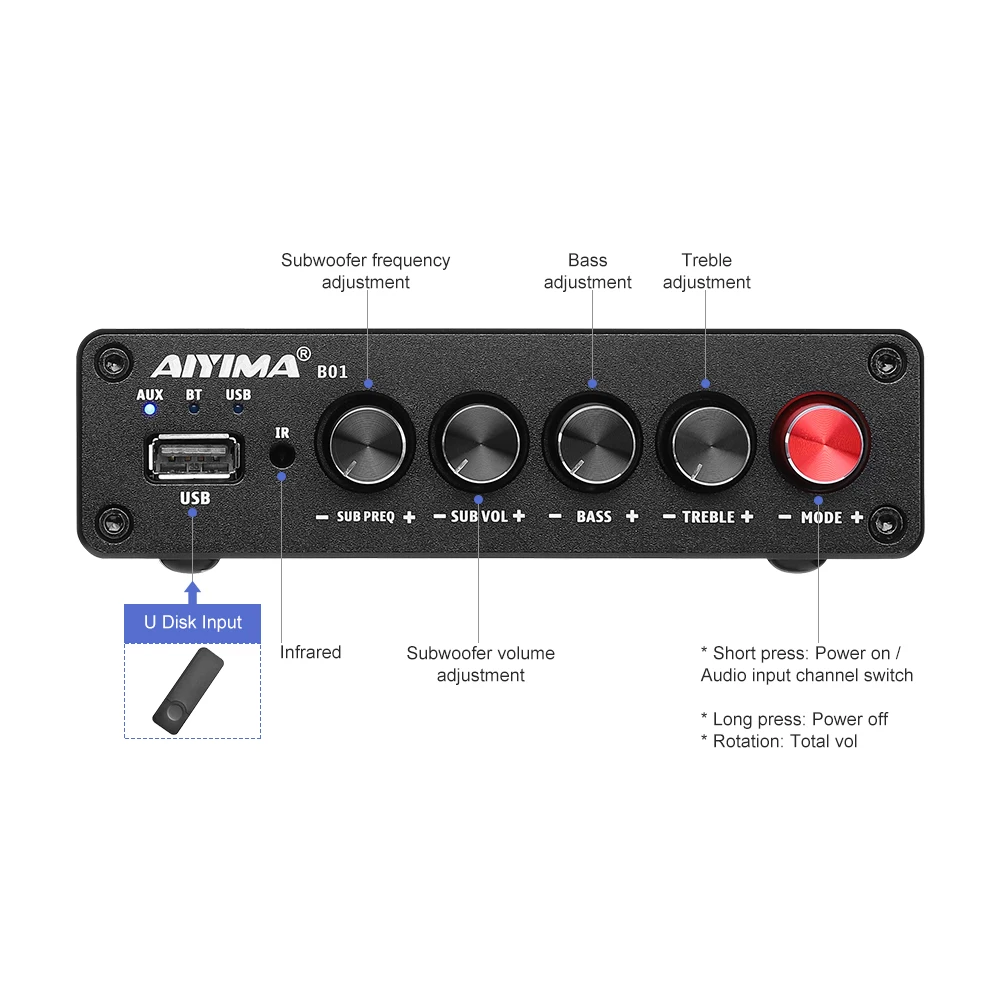

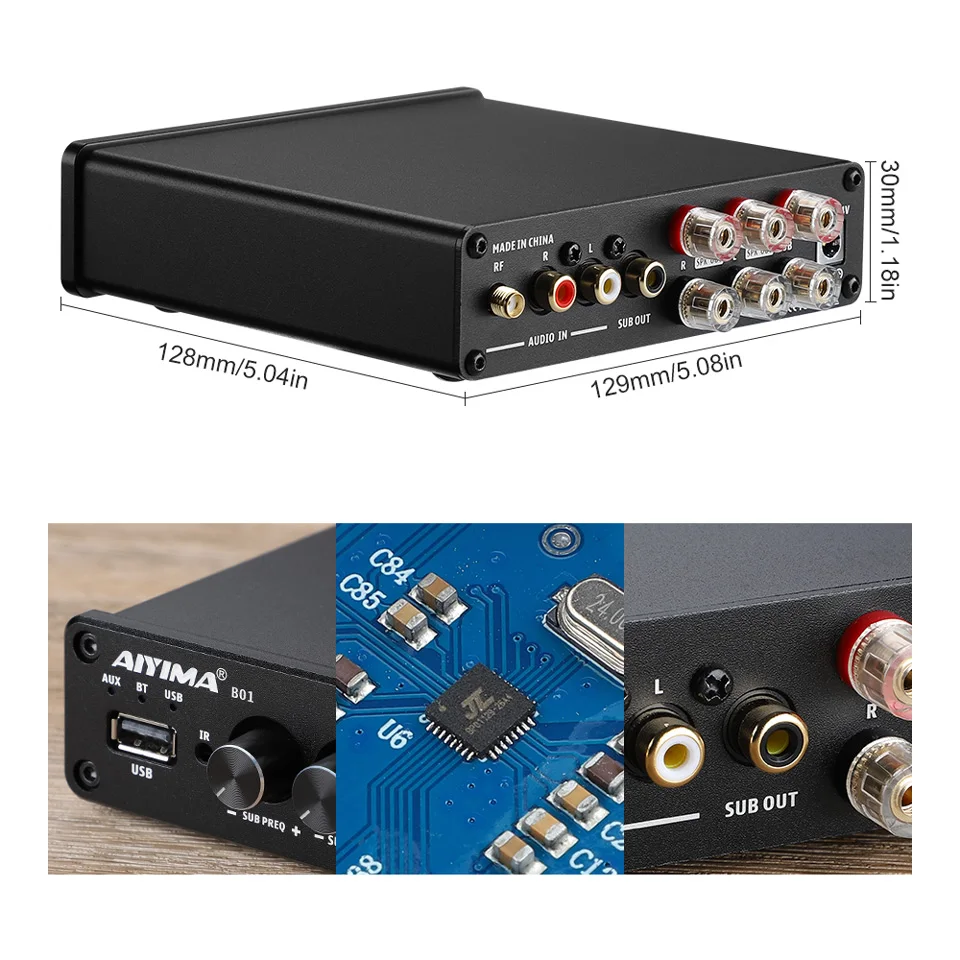

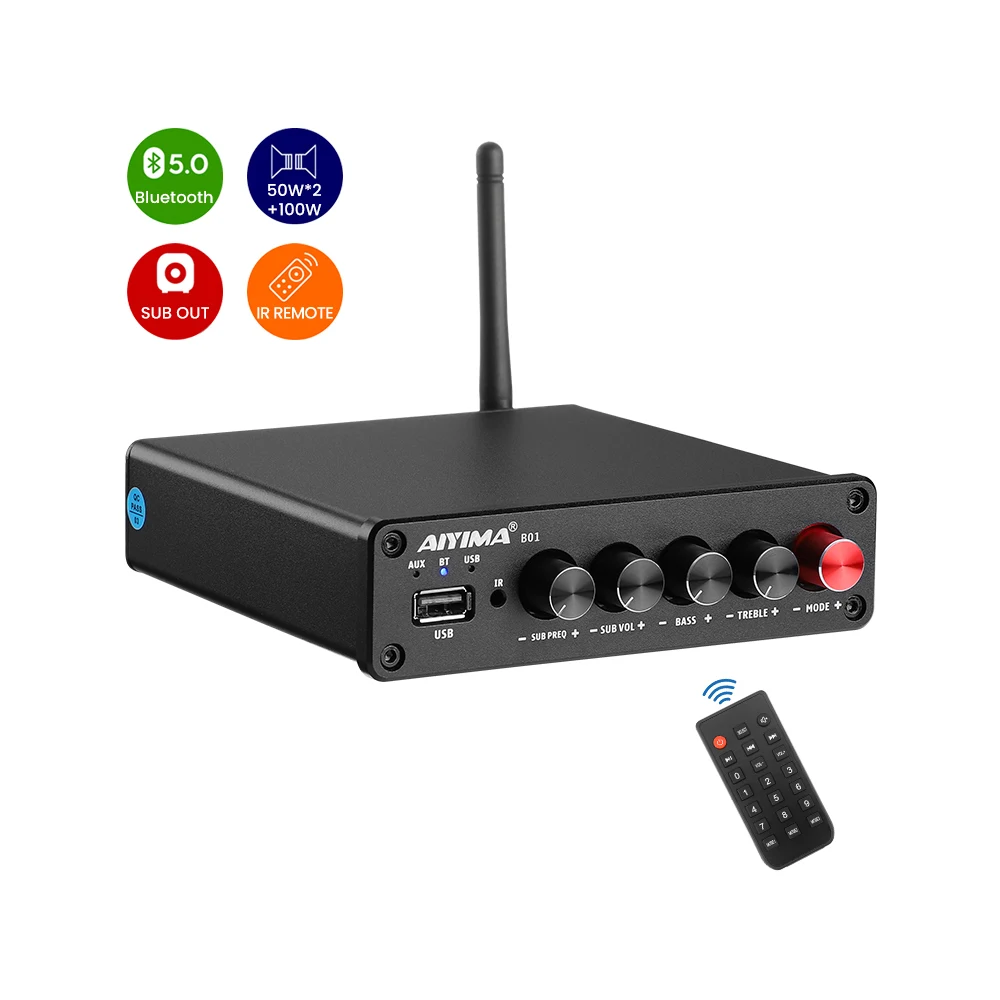

2. AIYIMA B01 2.1 50W*2+100W digital amplifier

Parameters:

Model: AIYIMA B01

Nmber of channels: 2.0 / 2.1 / 2.2

Audio input: Bluetooth/Stereo RCA/U-disk(choose one input)

Audio output: banana speaker jacks

U-disk support format: MP3, WMA, APE, FLAC, WAV...

Bluetooth version: 5.0

Speaker impedance: 4-8Ω

Max output power: 50W*2+100W (4Ω load)

SNR: ≥98dB

Input sensitivity: 0.775V

THD: 0.05%(1kHz 1W)

Frequency Response: 20Hz-20KHz(±3dB)

Low frequency adjustment range: 40-300Hz

Working voltage: DC 12-24V

Dimensions(W*D*H): 130*128*30mm

Features:

1.M3 amplifier supports stereo RCA and Bluetooth 5.0 input, compatible with phones, tablets, computers, TVs, MP3 players, TV, CD players etc. It is also a digital music player with U-disk input supporting MP3 and lossless formats such as WAV, APE, FLAC and WMA.

2.Reasonable circuit layout and concise wiring ensures HiFi clear and clean sound, treble and bass control makes sound more delicate and charming. Independent low frequency adjustment and bass volume control are designed, the bass effects is greatly enhanced, the shocking auditory effects make you feel like in the cinema.

Separate structure makes it multi-functional, it can independently connect to a pair of stereo speakers or subwoofer, and a low frequency output is specially added for the users who only have active subwoofer, easy to build 2.0 channel / 2.1 channel / 2.2 channel audio system as you like.

3.Using classic 2PCS TPA3116D2 amp chip, max output power can reach 50W*2(left and right channel) +100W (subwoofer out), equipped with high-quality 24V/4.5A power supply enough to drive most / bookshelf/ computer/ desktop passive speakers and subwoofers.

4.Exquisite appearance but durable aluminum alloy case in proper size, with input switch, working indicator and remote control, very clear to show the working statusand convenient to operate, very suitable for home and desktop audio system use.

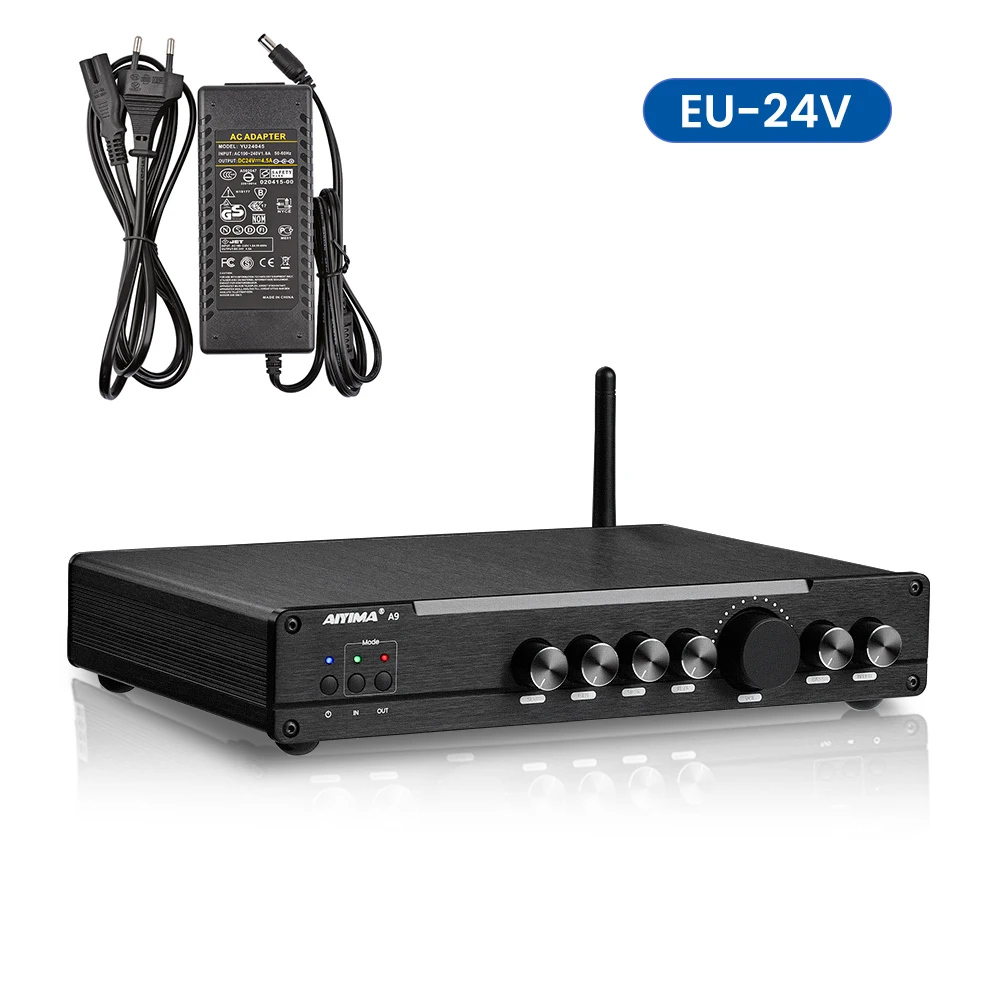

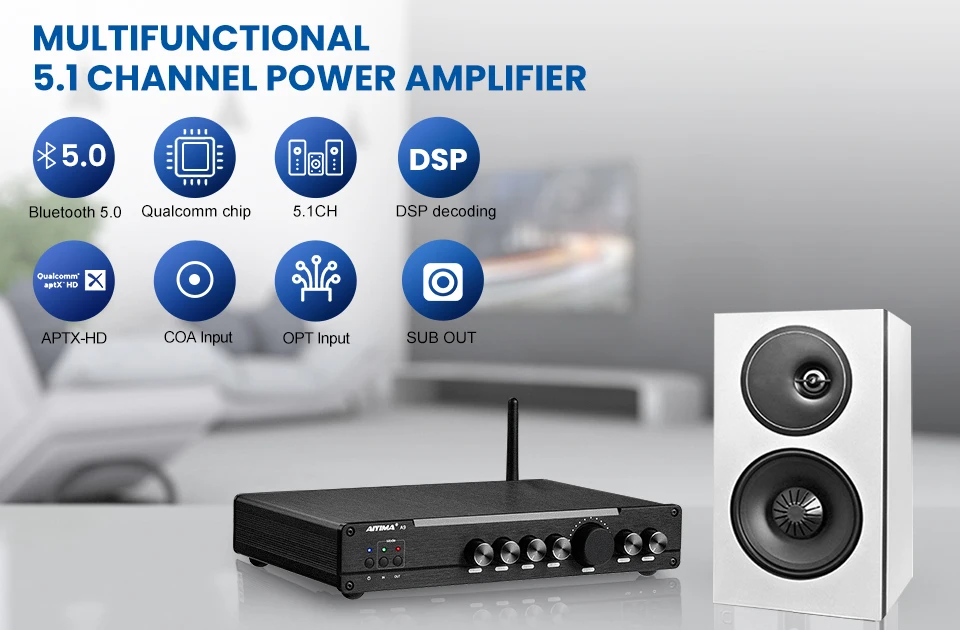

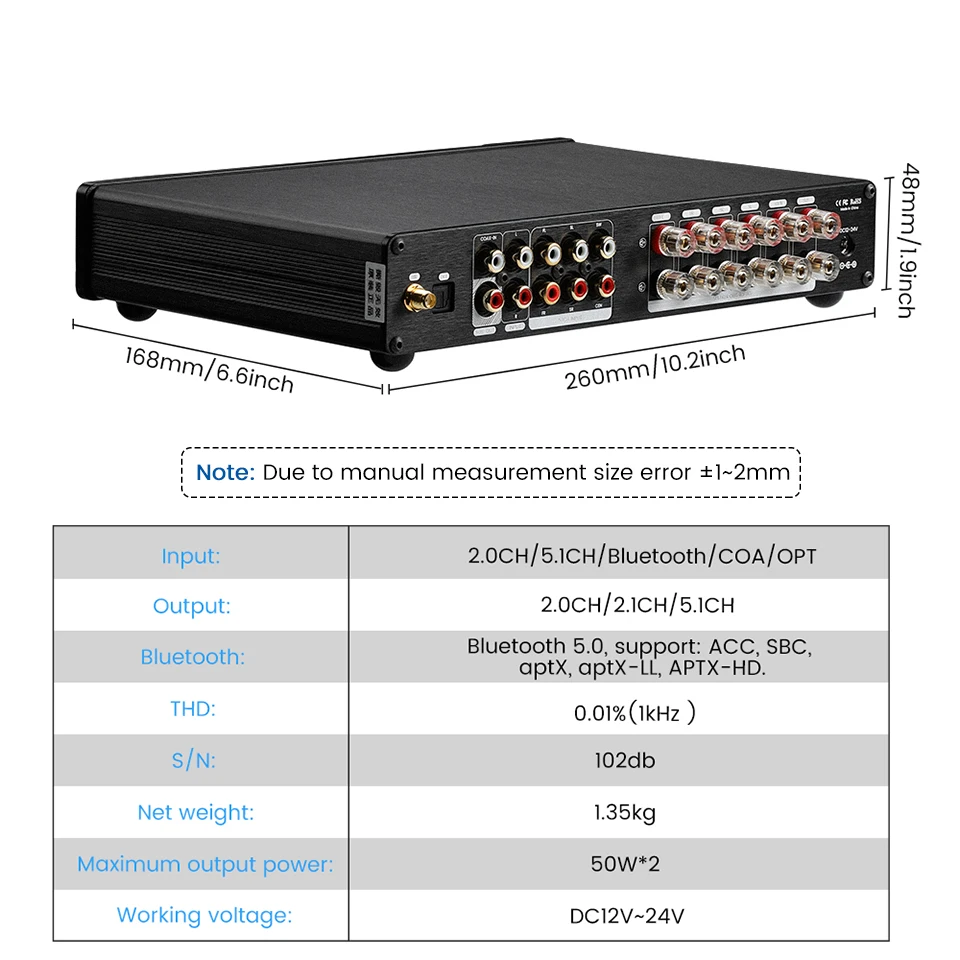

3. AIYIMA A09 APTX HD 5.1 Home Theater Amplifier

Features:

5.1 channel amp with professtional DSP decoding: A9 with built-in DSP decoding chip which applies professional algorithms and dynamic separation techniques, it auto allocates and simulates 2.1 and 5.1 channel and provide excellent smart noise reduction, precise sound positioning and stereo surrounded sense even though playing audio files of 2.0 channel.

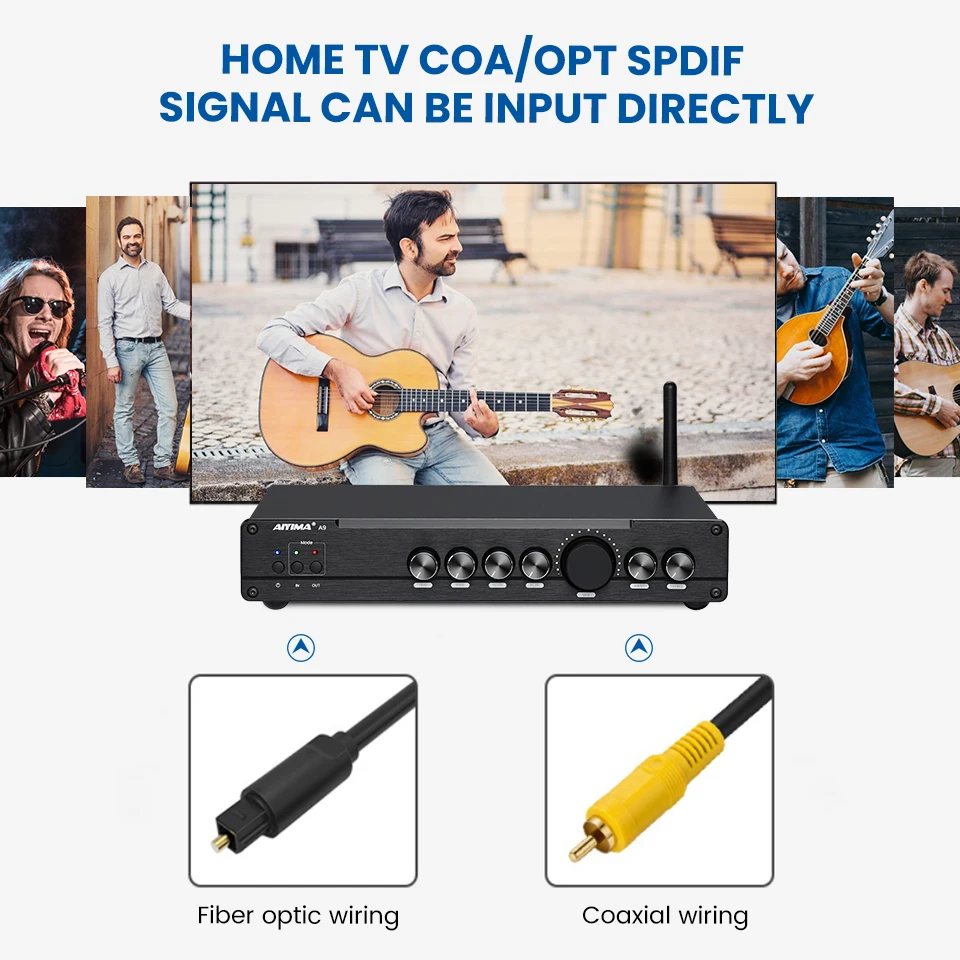

Multiple inputs for different purposes: with Bluetooth 5.0 / coaxial / optical three digital inputs and RCA input, strong compatibility and works perfectly with most home audio devices.

Lossless transmission and strong power: QCC3031 Bluetooth chip supports APTX/APTX-HD/LDAC, provides further distance connection and lossless signal transmission. 3PCS classic TPA3116 chip, responsible for front (50W+50W)/ surronded (50W+50W) / center(50W) / subwoofer(100W) outputs, easily to drive 3-8'' speakers and 5-10'' subwoofers.

Unprecedented real 5.1 channel digital amp with many advanced designs:

A low frequency output is specaially designed to connect active subwoofer, build 2.1 channel system for those who don't have passive subwoofer.

Switchable 2.0/2.1/5.1 channel outputs,A9 can be used in different scenarios with one selection button, no need to plug in and out cables repeatedly.

Parameters

Brand: AIYIMA

Model: A9

Audio input: Bluetooth/Coaxial /Optical/ 2.0 Channel RCA / 5.1 Channel RCA

Audio output: 5.1 channel banana speaker jacks / Subwoofer

Bluetooth chip:

QCC3031

(support SBC/AAC/APTX/APTX-HD )

Amp chip: TPA3116

Output power:

Front main channel: 50W+50W (recommend 3-8'')

Surrounded channel: 50W+50W (recommend 3-8'')

Center channel: 50W (recommend 3-8'')

Bass channel: 100W (recommend 5-10'')

Output impedance: 4-8Ω

THD: 0.01% (@1Khz)

S/N ratio: ≥102dB

Frequency response:

Front main channel: 10Hz-40KHz

Surrounded channel: 10Hz-40KHz

Center channel: 10Hz-40KHz

Bass channel: 10Hz-180Hz

Treble & bass range: ±10dB (±2dB)

Supported sampling rate:

COAX IN: 16-32Bit / 44.1-192KHz

OPT IN: 16-32Bit / 44.1-192KHz

Bluetooth IN: 16-24Bit / 44.1-96KHz

Working voltage: DC 24V (5.5mm/2.5mm)

Dimensions(W*D*H): 260*169*41mm / 10.23*6.65*1.61in

Net weight: 1.35kg

Package weight: 1.8kg
