AIYIMA A3001 TPA3255 Subwoofer Power Speaker Amplifier 300W Mono Hifi Home Audio Amplifier NE5532 OP AMP Bass Treble Adjust

Brand Name:	Aiyima
Certification:	CE
Certification:	FCC
Certification:	RoHS
Origin:	CN(Origin)
Maximum Power Per Channel:	101-130W
Model Number:	TPA3255D2
Package:	Yes
Channels:	2 (2.0)

AIYIMA Bluetooth APTX-HD LM3886 Power Auidio Amplifier CSR8675 Sound Speaker Amplificador AMP Hifi Stereo Home Power Amplifiers

USD 221.93/piece

AIYIMA Bluetooth 5.0 APTX LL Preamplifier Bile Preamp Headphone Tube Amplifier Audio Hifi Amp PC-USB DAC RCA Amplificador

USD 71.23-78.48/piece

AIYIMA 4 Inch Midrange Woofer Speaker Bass Sound Speaker 4 Ohm 40W Aluminum-magnesium Composite Basin Loudspeaker For SONOS

USD 32.49/piece

AIYIMA T9 HiFi Bluetooth 5.0 Vacuum Tube Amplifier USB DAC Stereo Amplificador COAX OPT Home Audio Power Amplifier VU Meter 100W

USD 86.32-104.85/piece

AIYIMA Bluetooth APTX-HD TPA3255 Power Amplifier 300Wx2 Hifi Stereo Sound Amplifier Speaker Audio Amplificador Balance AUX Input

USD 166.67/piece

AIYIMA TPA3116 Amplificador Subwoofer Audio Bluetooth Sound Amplifier 2.1 50Wx2+100W HiFi TPA3116D2 Digital Power Home Amplifier

USD 51.93-77.40/piece

AIYIMA APTX Bluetooth Headphone Amplifier Audio Decoder Hifi Home Theater USB DAC Coaxial OPT PC-USB Mini Amp Remote Control

USD 103.49-112.19/piece

AIYIMA A07 TPA3255 2.0 HiFi Power Amplifier Audio 300Wx2 A04 TPA3251 Digital Amp 175Wx2 A05 TPA3221 APTX-HD Bluetooth Amplifier

USD 42.77-92.87/piece

Parameters:

Maximum output power: 300W*1 4Ω load

Power amplifier chip: TPA3255D2

Tone chip: NE5532

DC chip: 2596

Full frequency frequency response: 20Hz-20kHz (±3dB)

Speaker matching impedance: 4-8Ω

Distortion: 0.03% when outputting 1W

Working voltage: DC24-35V

Signal to noise ratio: ≥106dB

Input sensitivity: 0.775V

Dimensions (L*W*H): 120*117.5*36MM (without protruding knob section)

Bass cutoff frequency adjustment range: 40-300Hz

Bass attenuation slope: -12dB Slope

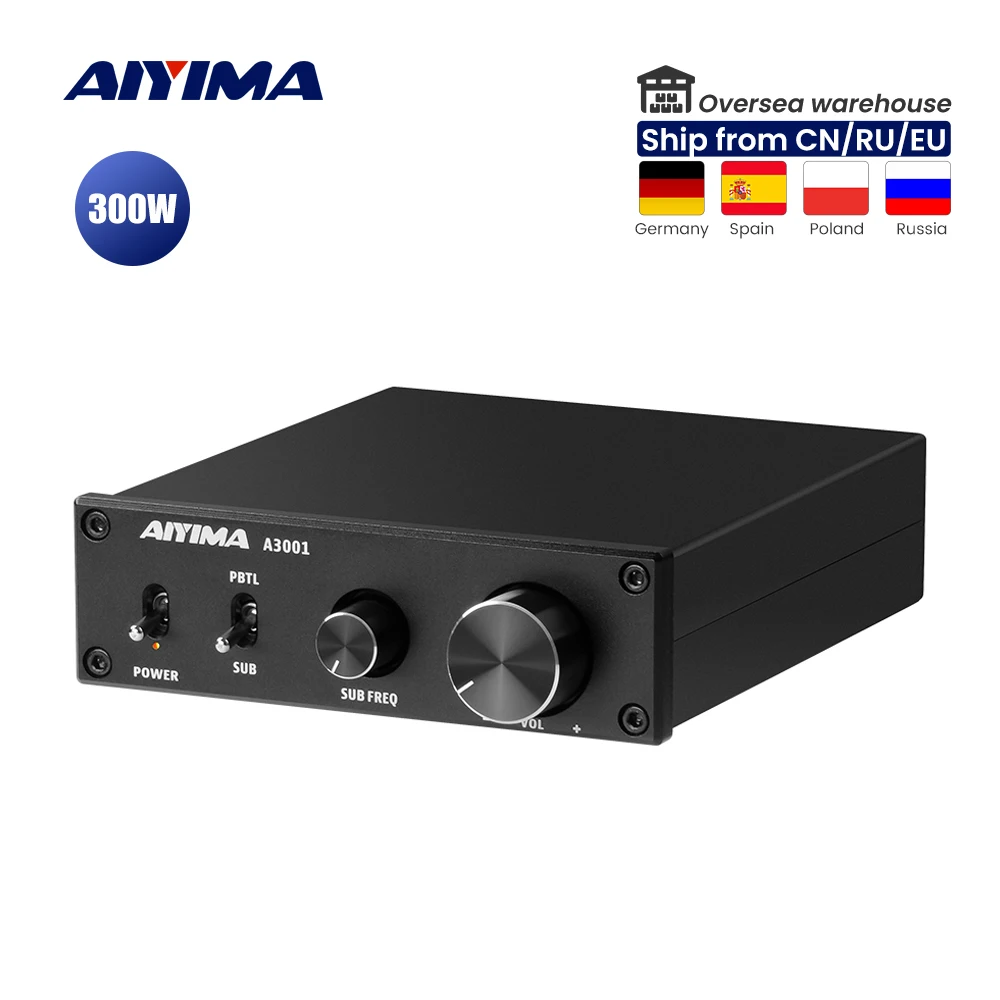

Panel description:

1.Power switch

2. Power indicator

3. Full/bass operation mode switch.

4. Bass up frequency adjustment knob (knob is only available in bass mode)

5. Volume knob (clockwise volume increases, counterclockwise volume decreases)

6. Audio input interface (such as CD, DAC decoder, mobile phone, TV, etc., red to the right channel input, white to the left channel input)

7. Low-pass output (connected to the active subwoofer, synchronized output with the amplifier)

8. Speaker interface (red to positive, black to negative)

9. Power interface (DC power supply must not exceed 35V)

Operation Steps:

1. Make sure the VOL knob is at its minimum.

2. Connect the speaker according to the back panel interface indication, pay attention to distinguish between positive and negative.

3. Connect the audio source you want to use.

4. Connect the power supply.

5. Select the desired working mode

6. Press the power button.

7. Turn the knob clockwise to select the desired volume level.

8. In the SUB mode, the bass cutoff frequency can be changed by adjusting the SUB FREQ knob.

PBTL/SUB Switch:

When "PBTL/SUB" is switched to "SUB", SPK OUT connects to the passive subwoofer.

When "PBTL/SUB" is switched to "PBTL", SPK OUT connects to the full range speaker.

The SUBOUT is connected to active subwoofer.

Note:

1. Do not open the case privately. Improper handling may result in electric shock.

2. Please use the switching power supply of the regular manufacturer, otherwise the risk of damage to the machine will be damaged.

3. Do not place the machine in a high temperature and high humidity environment.

Package included:

1Pc

Common problem:

Q: All my lines are connected, but there is no sound output?

Answer:

1. Check if the POWER indicator is on. If it is not lit, press the POWER button to turn it on. After pressing the power button, the indicator light still does not light. At this time, you can find a laptop power supply to test to determine whether it is a machine fault or a power failure.

2. If the indicator light is on, check if the VOL knob is in the minimum state, such as clockwise rotation in the minimum state.

3. If both of the above are normal, check if the device that inputs the sound source is paused, muted, or the volume is at its minimum.

Q: Why is the sound broken?

A: When the power amplifier exceeds the normal output power, there will be a large distortion. At this time, you can adjust the volume of the front stage or the volume of the power amplifier to be normal.

Q: Why does the speaker have a large current sound?

A: If you are not using the original standard power supply, please replace the power supply before testing. A lot of power supply in the market has a large interference coefficient, which will cause a large current sound.

Q: Why do I not play the sound source after I plug in the input cable, will the speaker have a lot of noise?

A: When using a signal line without shielding, there will be interference signals entering the amplifier. If you hate this sound, you are advised to replace the shielded signal line or unplug the signal line.

Q: Why doesn't my amp work after working for a while, and then work normally after disconnecting for a while?

A: Usually this is the overheat protection of the amplifier. The output power may have exceeded the design power. At this point, you can lower the volume and try again.

Q: Why is the volume of the machine unchanged, and the sound source is different when accessing different audio sources (such as connecting the CD first and then changing to the mobile phone)?

A: The output signal amplitude of different types of audio equipment is different. The mobile phone is usually 0.35mV, while the CD is 1V. The output signal amplitude of the source directly affects the size of the sound.

Q: Why is the power amplifier starting to listen to the sound is not very good, the high frequency is not clear, but the sound is normal after working for 8 hours?

A: Speakers and amplifiers are very sensitive devices. There will also be a familiar and matching process between each other. Usually, our new amplifiers and speakers will be down for more than 10 hours, and the sound will be very good.
