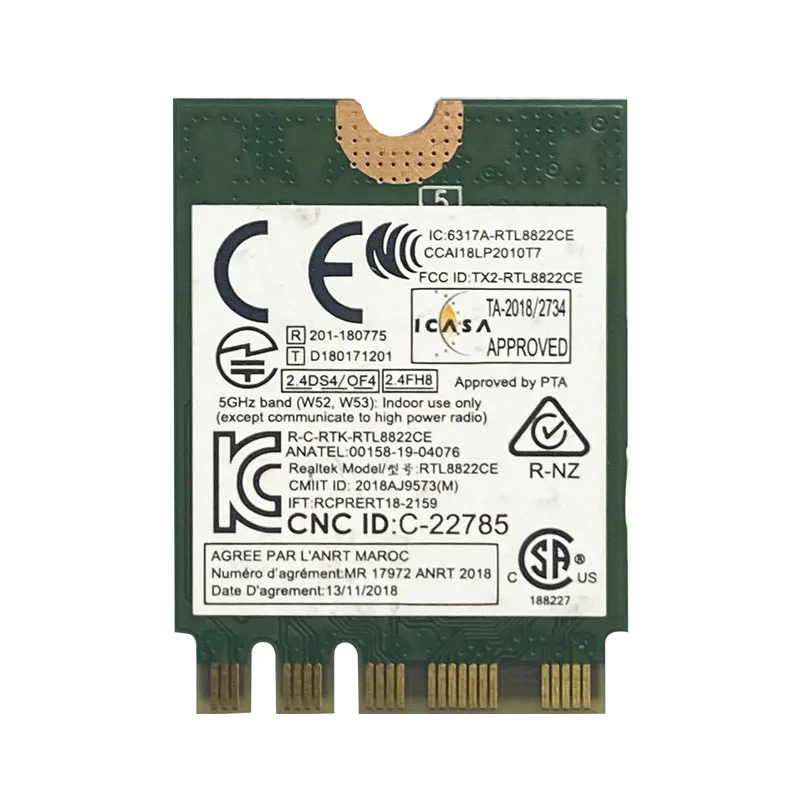

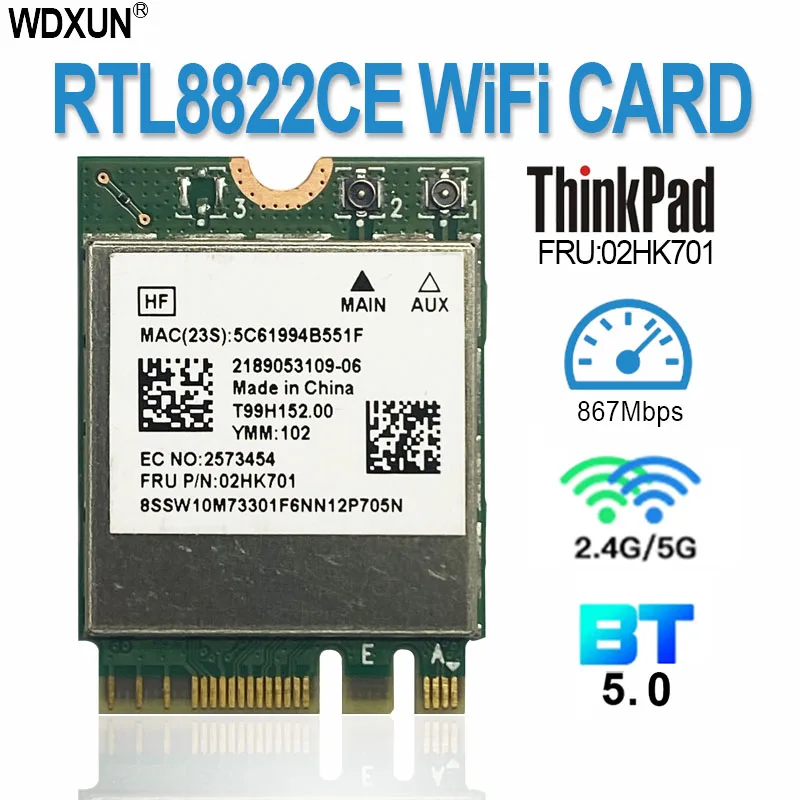

802.11AC RTL8822CE 8822CE wireless WiFi 867Mbps Bluetooth 5.0 NGFF FRU 02HK701 network card For Lenovo E460 E465 E470 E475 E560 wifi card for pc Network Cards

802.11AC RTL8822CE 8822CE wireless WiFi 867Mbps Bluetooth 5.0 NGFF FRU 02HK701 network card For Lenovo E460 E465 E470 E475 E560 wifi card for pc Network Cards

Name: 802.11AC RTL8822CE 8822CE wireless WiFi 867Mbps Bluetooth 5.0 NGFF FRU 02HK701 network card For Lenovo E460 E465 E470 E475 E560 wifi card for pc
Brand: MMO Dropship
SKU: 1005003827515746
Price: 35.19 VND
Availability: InStock
Rating: 4.9 (74 reviews)

Code: TD-1005003827515746

Free Shipping

$ 35.19 $ 36.99

Quantity:

Other people want this. 9 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	WDXUN
Transmission Rate:	867Mbps
Certification:	CE
Certification:	FCC
Origin:	CN(Origin)
Kind:	Internal
Type:	wireless
Lan Transmission Rate:	1000M Ethernet
Application:	Laptop
Wireless Protocol:	802.11n
Wireless Protocol:	802.11a/g
Wireless Protocol:	802.11ac
Adapter Socket:	PCI-e
Interface Type:	NGFF
Wi-Fi Supported Frequency:	2.4G & 5G
Applicable Network Type:	Gigabit Ethernet
Model Number:	RTL8822CE

802.11ac Wave 2 Compliant with MU-MIMO, WiFi+Bluetooth 5.0,

M.2 Module (WiFi 5), RTL8822CE, 2T2R

STANDARD

WI-FIIEEE 802.11ac/a/b/g/n

ChipsetRealtek RTL8822CE

Host Interface

WLAN : PCIe

RADIO

Antenna2 x IPEX MHF4 connectors

Operating Frequency802.11ac/a/b/g/n ISM Band

2.412GHz~2.484GHz

5.150GHz~5.850GHz

*Subject to local regulations

MODULATIONS

802.11bDSSS (DBPSK, DQPSK, CCK)

802.11gOFDM (BPSK, QPSK, 16-QAM, 64-QAM)

802.11nOFDM (BPSK, QPSK, 16-QAM, 64-QAM)

802.11aOFDM (BPSK, QPSK, 16-QAM, 64-QAM)

802.11acOFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)

POWER & SENSITIVITY

WiFiPower – TX (± 2dBm)Sensitivity – RX

11b @ 11Mbps18dBm≤ -85dBm

11g @ 54Mbps17dBm≤ -74dBm

11gn HT20 @ MCS 716dBm≤ -70dBm

11gn HT40 @ MCS 716dBm≤ -67dBm

11a @ 54Mbps17dBm≤ -68dBm

11an HT20 @ MCS 716dBm≤ -67dBm

11an HT40 @ MCS 716dBm≤ -64dBm

11ac VHT80 @ MCS 914dBm≤ -54dBm

POWER CONSUMPTION

Continue TX606mA

Continue RX302mA

ENVIRONMENTAL

Operating VoltageDC 3.3V

Temperature Range0~ 70°C (Operating)-40 ~ 80°C (Storing)

Humidity (Non-Condensing)5 ~ 90% (Operating)5 ~ 90% (Storing)

SIZE

Dimension (MM)30mm(±0.15mm) x 22mm(±0.15mm) x 2.0mm(±0.15mm)

Weight:2.5g

SOFTWARE

DriverWindows 10/ Linux / Android

Security64/128-bits WEP, WPA, WPA2, WPA3, 802.1x

Chipset: Realtek RTL8822CE

Antenna: 2 x IPEX MHF4 connectors, 2T2R

Interface: PCIe: WLAN; USB: Bluetooth

Output Power up to 18dBm

Support: Windows 10, Linux, Android

For Lenovo E460 E465 E470 E475 E560 E570

RTL8822CE is an 802.11ac/a/b/g/n Dual -Band WiFi+Bluetooth M.2 (Key A,E) module (WiFi 5) based on Realtek RTL8822CE chipset, It supports Multiple drivers (Android/ Windows/ Linux) for various platform. This module support MU-MIMO two steams on dual band 2.4GHz or 5GHz operating and incorporates the latest Bluetooth 5.0, the data rate up to 867Mbps on ac mode. The RTL8822CE is designed by M.2 2230 slot type form factor.

The RTL8822CE is using highly integrated single-chip MIMO (Multiple In, Multiple Out) wireless local area network (WLAN) RTL8822CE solution to let users enjoy the high digital content through the latest wireless technology without using cables and cords. RTL8822CE combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF in a single chip. RTL8822CE module enables a high performance, cost effective, low power, compact solution that easily fits in the PCI Express and USB M.2 2230 A-E Key module which is Incorporated with advanced security encryption WEP, WPA, WPA2, WPS,WPA3, and 802.1x, it will prevent user’s devices from malicious attacks.

Specification
