7RYMS MinBo M1 Mini Cardioid Digital/Analog Shotgun Microphone for DSLR Camera/Smartphone Video Recording Volgging(TRS/USB C)

Brand Name:	7RYMS
Transducer:	Condenser Microphone
Set Type:	Single Microphone
Style:	Hanging Microphones
Use:	Pro Studio
Origin:	CN(Origin)
Package:	Yes
Model Number:	MinBo M1
Polar Patterns:	Cardioid
Certification:	CE
Certification:	FCC
Communication:	Wired
Polar Pattern:	Cardioid Pattern
Frequency Response:	60Hz ~ 20kHz
S/N:	>60dB
Maximum SPL:	>100dB
Working voltage:	4.75V ~ 5.25V
Receiving Sensitivity:	Analog: -35±2dB Digital: -15dB ~ -35dB ±2dB
Output Interface:	3.5mm TRS & USB-C Interface
Feature1:	Microphone for pc
Feature2:	Condenser microphone
Feature3:	Microphone for mobile
Feature4:	Microphone for phone
Feature5:	microphone for computer
Feature6:	microphone for blogger
Feature7:	Microphone for cell phone
Feature8:	microphone for radio

Foreword

Thanks for Purchasing 7Ryms MinBo M1

Main Features

.Cardioid Pattern, Accurate Sound Pickup
.Digital / Analog Output Mode Switch, Universal for Camera and Smartphone
.Stepless Gain Control with Preamp in Digital Mode
.Support Real-time Monitor in Digital Mode
.No Power Driven, Plug and Play
.Professional Shock-mount, Eeffective Shock Absorption
.Full Metal Material, Super Shielding

Notice

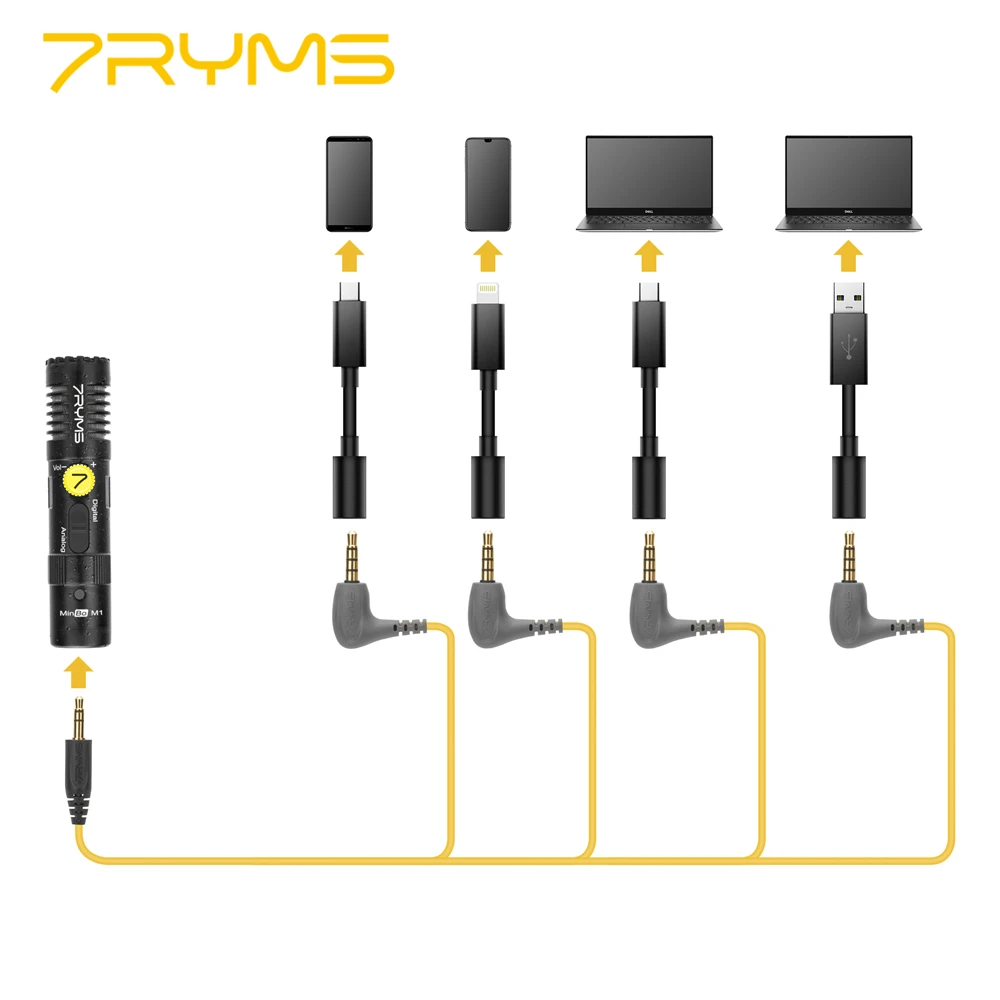

1.When working with devices with USB-A and Lightning interface in digital mode, it is necessary topurchase relevant audio output cable or audio adapter cable by yourself
2.Some smartphones with USB-C interface are incompatible in digital mode, such as ViVO andOPPO

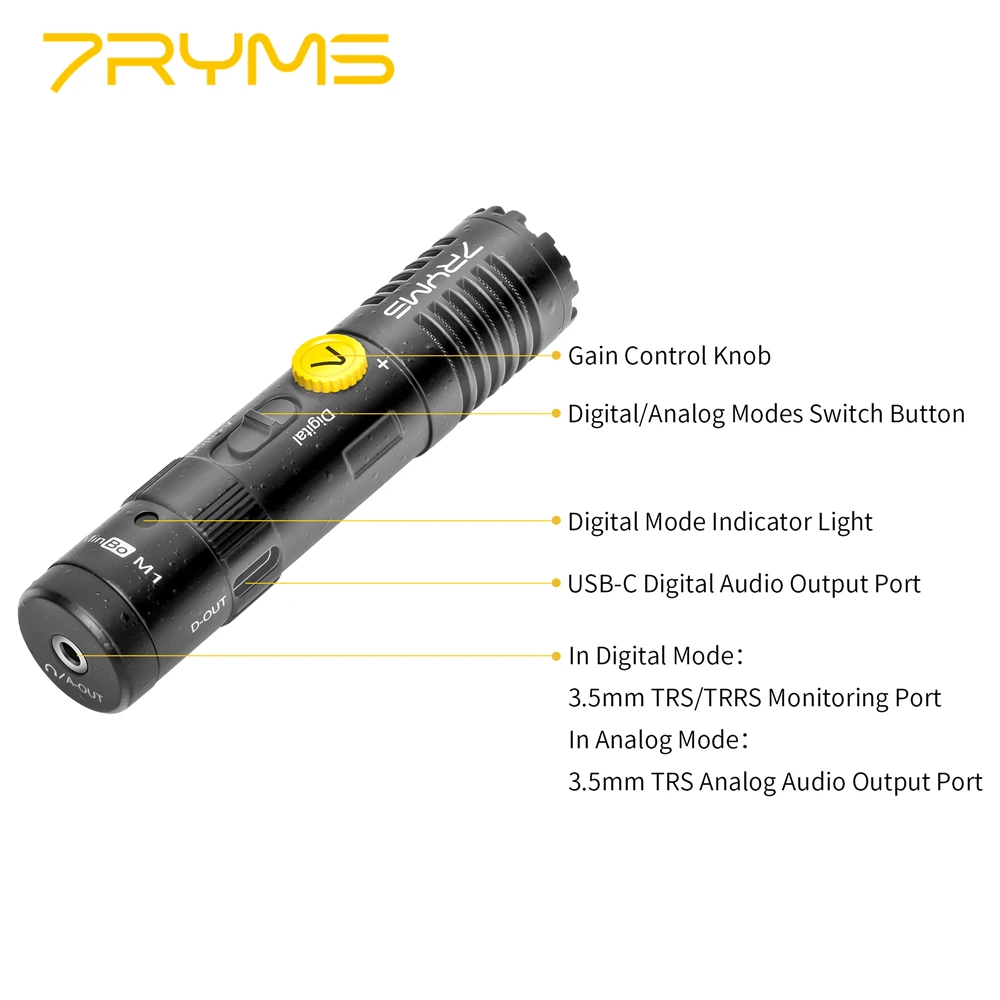

3.When working in digital mode, the 3.5mm TRS audio output port is intelligently identified as themonitoring port, the gain control knob and digital mode indicator light are available only in digitalmode

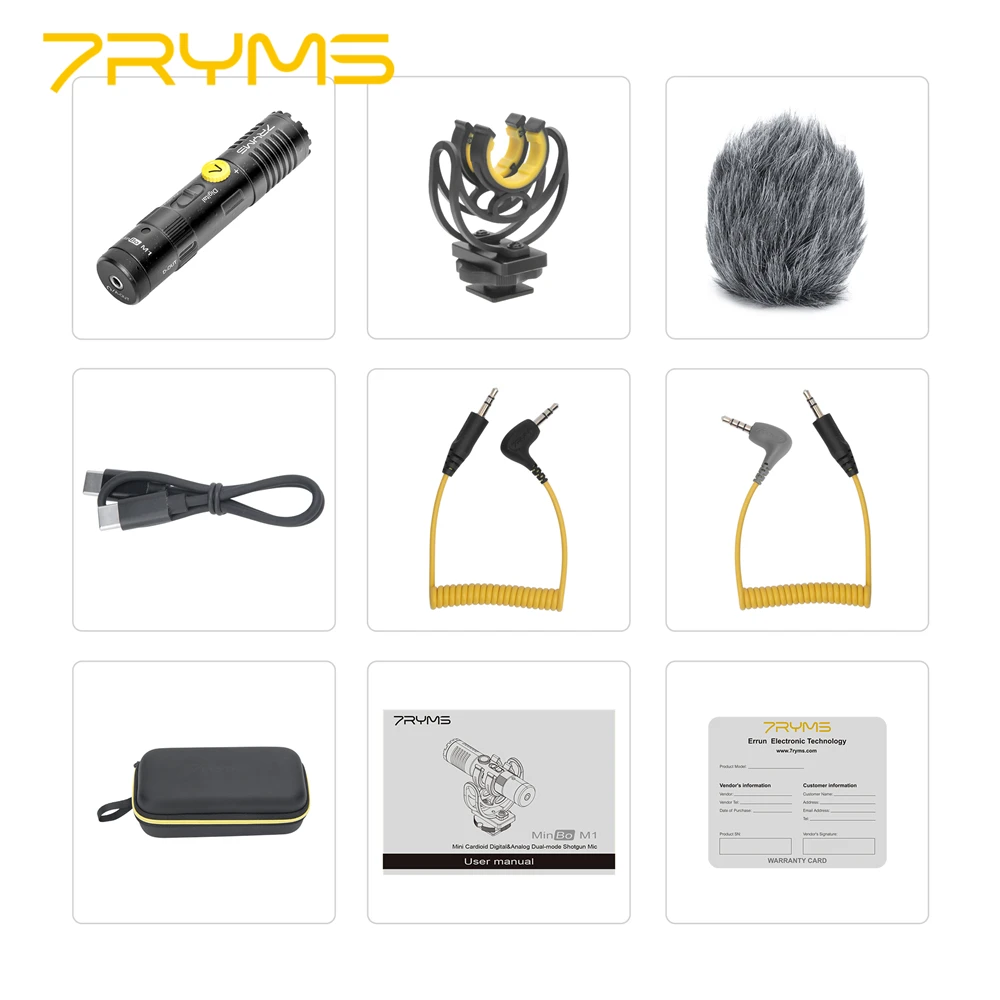

Item Check List

1.Microphone
2. Shock Mount
3. 3.5mm TRS - TRS Audio Cable
4. 3.5mm TRS - TRRS Audio Cable
5. USB C-USB C Audio Cable
6. Wind Muff
7. Carry Case
8. User Manual
9. Warranty Card

Specification

Polar Pattern

Cardioid Pattern

Frequency Response

60Hz ~ 20kHz

S/N

>60dB

Maximum SPL

>100dB

Receiving Sensitivity

Analog: -35±2dB
Digital: -15dB ~ -35dB ±2dB

Working voltage

4.75V ~ 5.25V

Output Interface

3.5mm TRS & USB-C Interface

Dimension

Ф 22mm * L42mm

Net Weight

35g

Operating Temperature

0℃ ~ 50℃

Storage Temperature

-20℃ ~ 60℃
