3018 Plus Metal Frame CNC Engraver GRBL PCB Milling Machine Frame, Frame + Nema 17 Stepper Motors. wood router table Woodworking Machinery

Brand Name:	MASTER JIANG
Origin:	CN(Origin)
Model Number:	3018 plus frame/frame with stepper motors
CNC or Not:	CNC
Is Smart Device:	No
Condition:	New
Certification:	CE

Upgrade 3018 Series--3018 Plus Metal Frame Engraver GRBL DIY Pcb Milling Machine, Carved On Metal, Frame/Frame+Nema 17 Stepper Motor

About Warehouse in RU/EU: Fast Shipping! No Customs Taxes!

Ships From

Russian Federation

: Russian Federation

Ships From

Spain(EU)

:

A

ustria,

B

elgium,

B

ulgaria,

C

roatia,

C

zech Republic,

D

enmark,

E

stonia,

Fi

nland,

F

rance,

G

ermany,

H

ungary,

I

reland,

I

taly,

L

atvia,

L

ithuania,

L

uxembourg,

M

onaco,

N

etherlands,

P

oland,

P

ortugal(no service for islands in specify zip codes),

R

omania,

S

lovakia,

S

lovenia,

S

pain(no service for islands in specify zip codes),

S

weden

Feature:

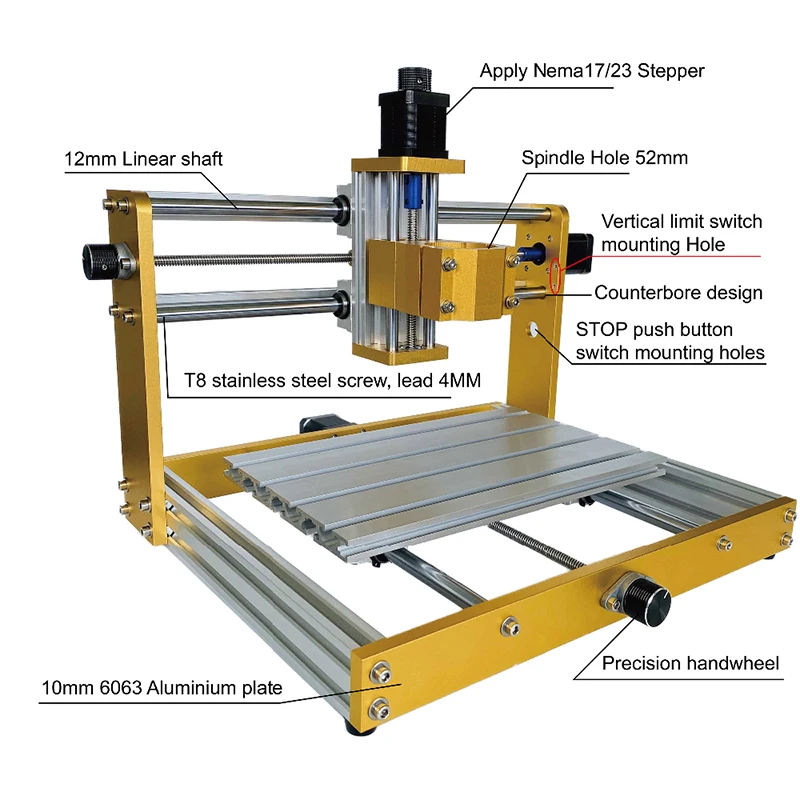

X, Y, Z working area: 300 x 180 x 60 mm (about 11.81 x 7.08 x 2.59 inch )

Aluminum table area: 300 x 180 mm (about 11.81 x 7.08 inch )

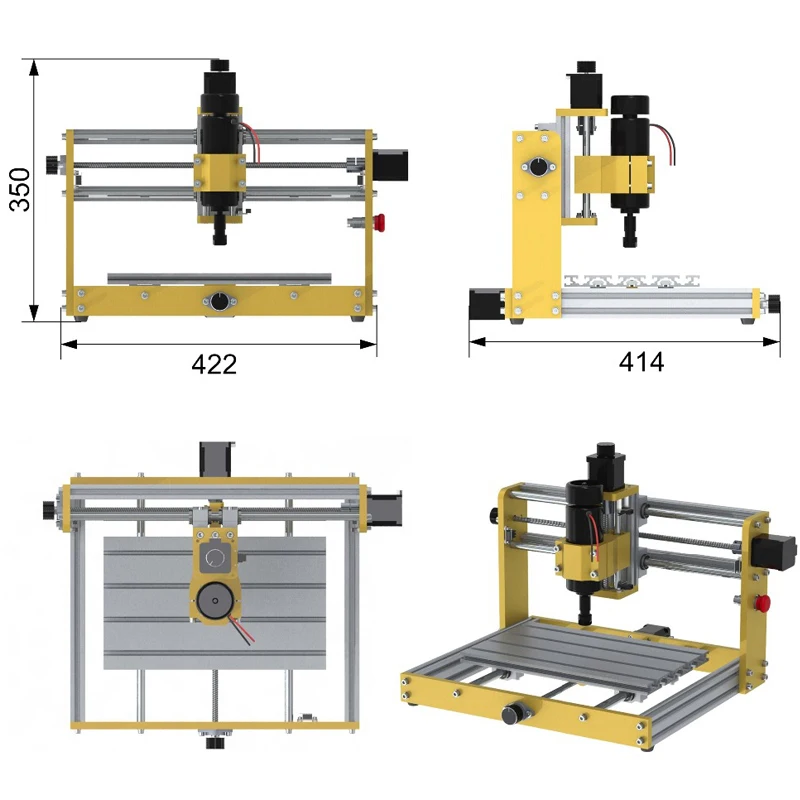

Frame: 390 x 320 x 250 mm (about 15.35 x 12.59 x 9.84 inch )

Material: Aluminium

Stepper Motor: Apply to Nema17/23 42/57BYG Stepper motor

Screw: T8 anti-backlash nut, pitch 2mm, lead 4mm

Spindle hole diameter: 52mm

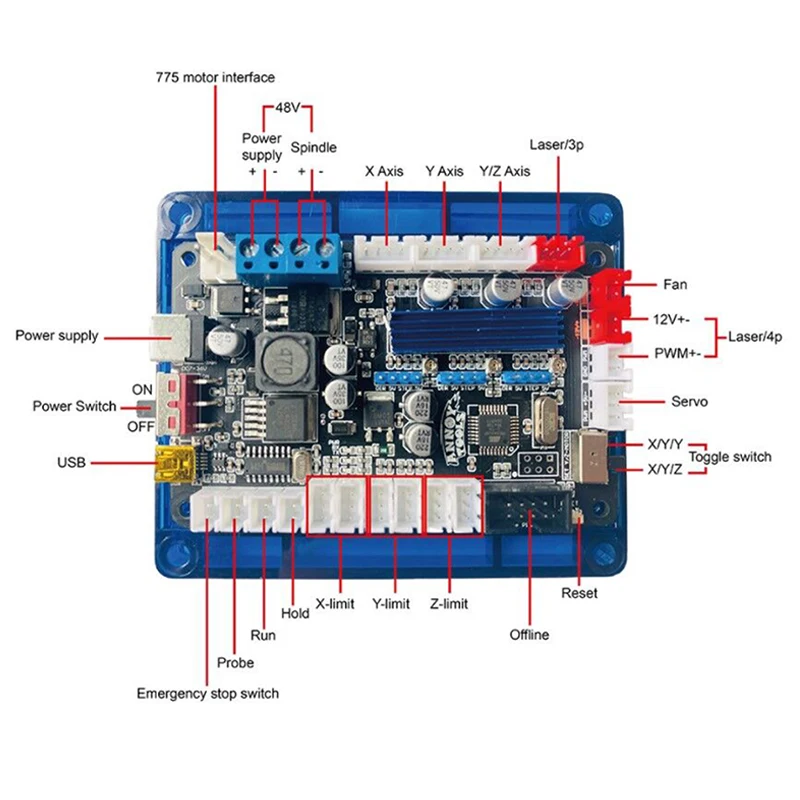

Control board: 5.2/5.3 Multi-function control board (2 versions will be sent randomly)

Supported System: Win 7/8/10

Supported Software: CANDLE 1.1, LASERGRBL, Weidiao and etc.

Suppoted Material: Wood, acrylic, PVC, nylon, epoxy resin, glass fiber PCB board, POM, carbon fiber board

Suppoted Material of Laser: wood, plastic, anodized aluminum, stainless steel (304, 201)

If you need limit switches with machine together, please click the photo below for choosing Version 2!

We can send them with machine together and reduce the shipping cost of your order

If you need Z-probe, please click the photo below:

If you need emergency stop button, please click the photo below:

Friendly Reminder:

1. The spindle motor and laser cannot be connected at the same time

2. The offline control board and the SUB data cable cannot be connected at the same time

3. Turn on the power after the electrical connection is completed

4. The positive and negative of the input power must not be reversed, and the reverse connection will burn

5. The 48VDC interface cannot be connected to the switching power supply, and the voltage that can be passed through the DC seat of the control board cannot be greater than 5A

Package Introduction:

Frame 1：

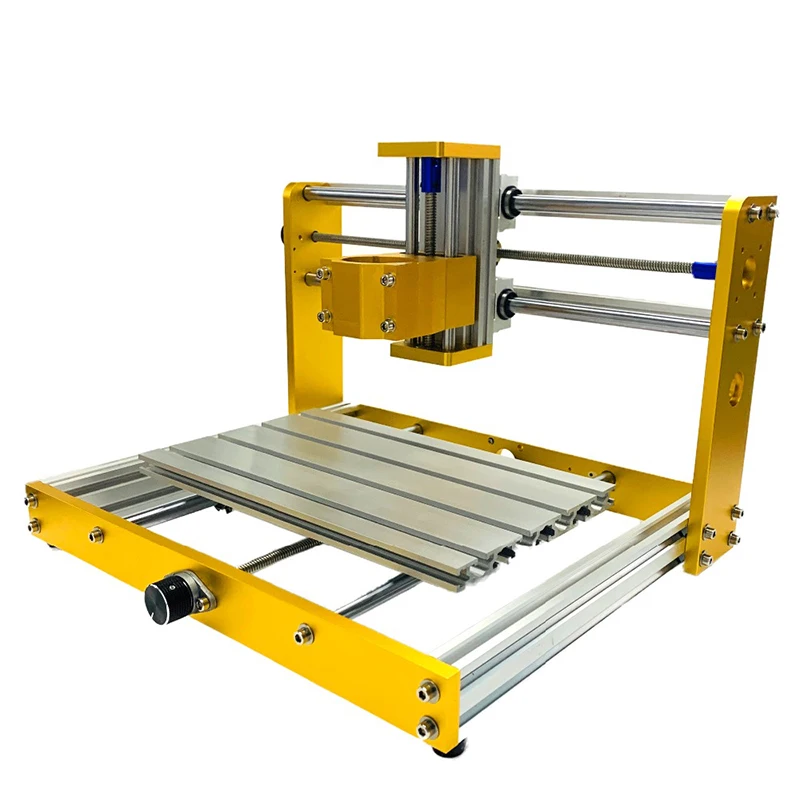

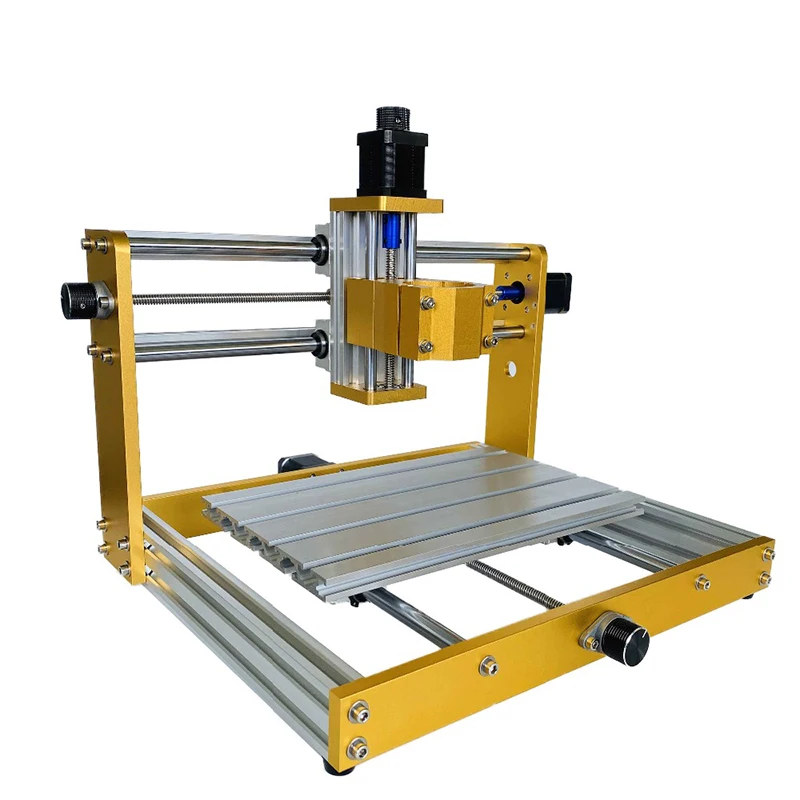

1 x CNC 3018 Plus Metal Frame  (Only frame, shown as picture )

With stepper motor 1:

1 x CNC 3018 Plus Metal Frame

3 x Nema17 Stepper Motor (shown as picture)

Frame 2：

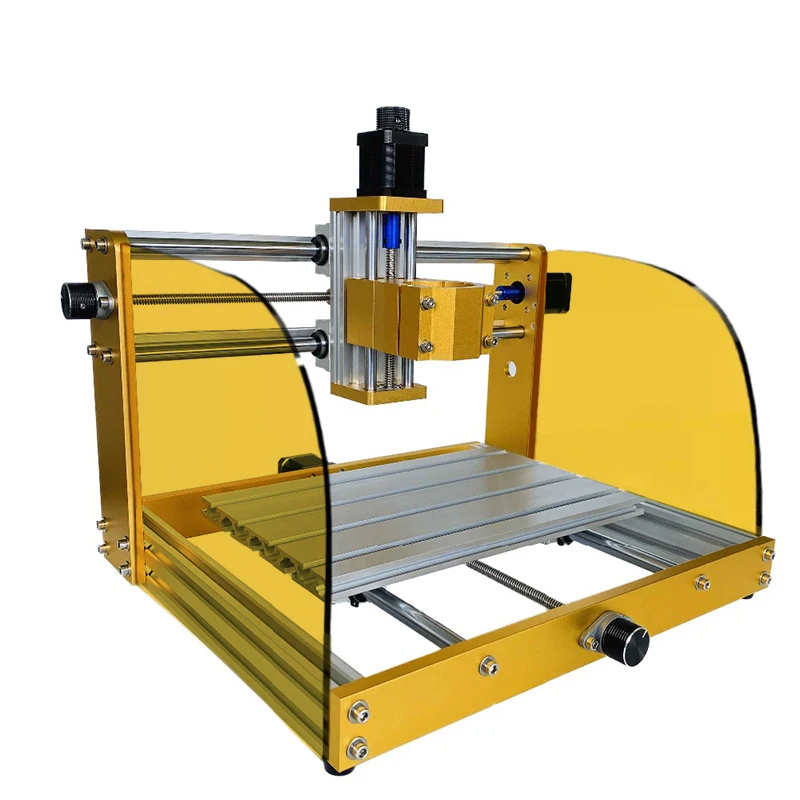

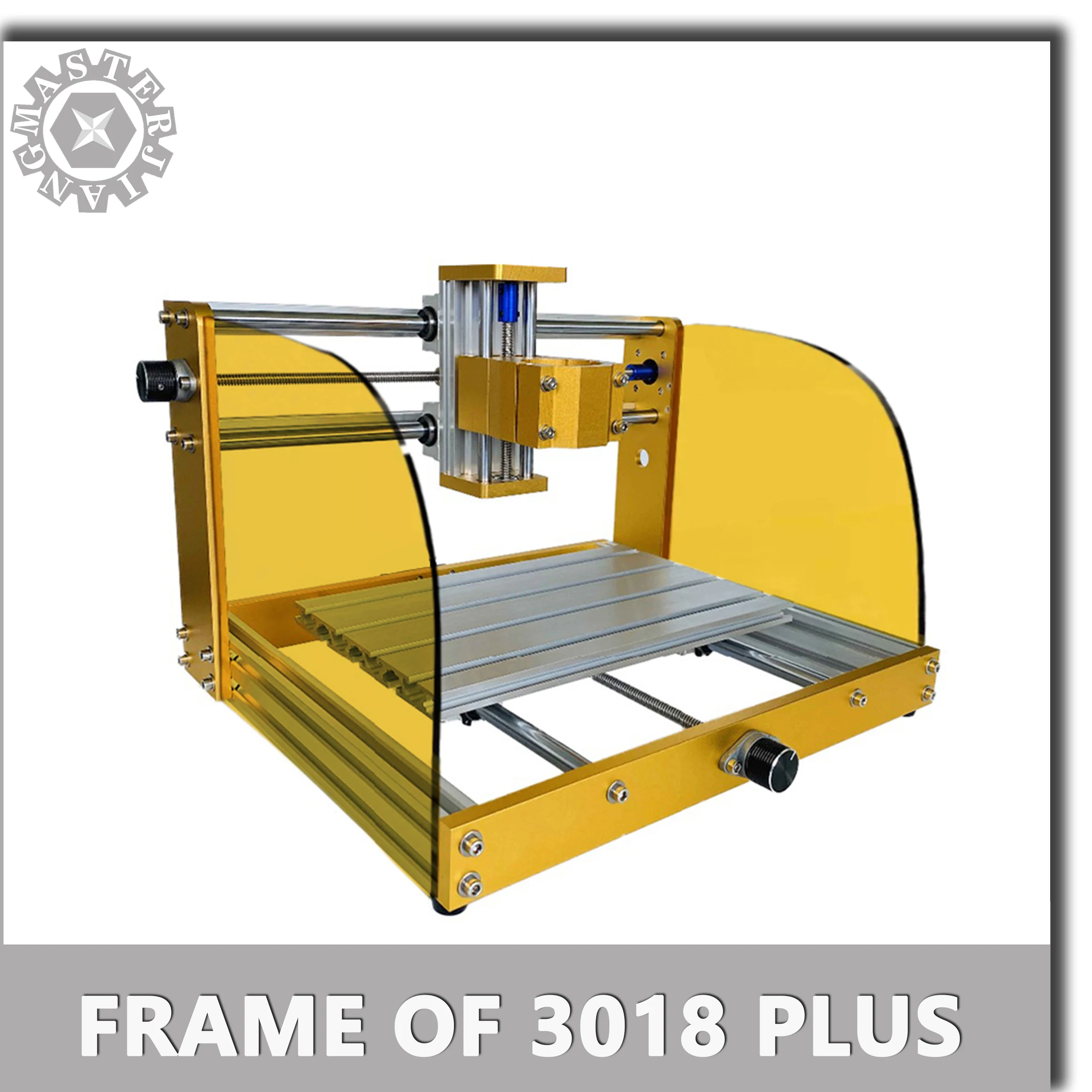

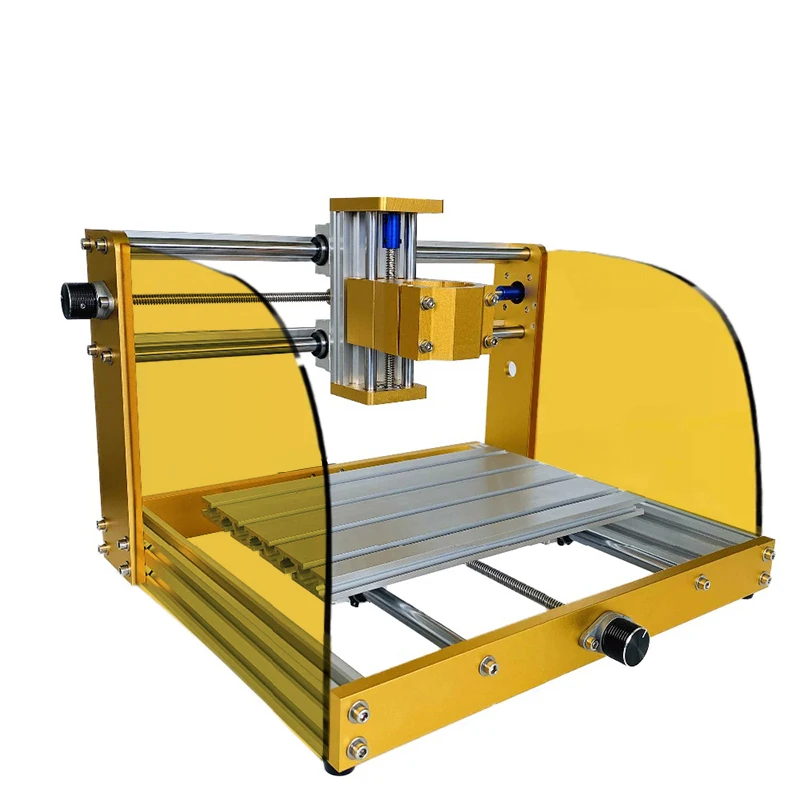

1 x CNC 3018 Plus Metal Frame with 2 protection plates (Only frame, shown as picture )

With stepper motor 2:

1 x CNC 3018 Plus Metal Frame with 2 protection plates

3 x Nema17 Stepper Motor  (shown as picture)

Note:

1.The laser cannot be used to carve or engrave mirror or reflective materials!

2. This kit is disassemble, needs the customer DIY assembling, needs certain electronic and the Mechanical Foundation.

3.If you'd like to order the kits with spindle and laser,please click the photo below for more checking:

2 Versions will be sent randomly

Control Board 5.2

Control Board 5.3
