2022 New Original Xiaomi Redmi AX5400 Gaming Router WiFi6 Mesh 2.5G 5400Mbs VPN 160MHz 4K QAM 512MB Repeater External Amplifier

Brand Name:	XIAOMI
With Modem Function:	No
Origin:	CN(Origin)
Type:	wireless
WAN Ports:	1 x10/100/1000Mbps
Wi-Fi Supported Frequency:	2.4G & 5G
5G Wi-Fi Transmission Rate:	1000Mbps
2.4G Wi-Fi Transmission Rate:	450 Mbps
Function:	Firewall
Certification:	CE
Number of USB Interfaces:	None
Max. LAN Data Rate:	1000Mbps
Standards And Protocols:	Wi-Fi 802.11g
Wi-Fi Transmission Standard:	802.11ac
Wired Transfer Rate:	10/100/1000Mbps
Package:	Yes
Model Number:	Redmi AX5400
Supports WDS:	No
LAN Ports:	4
Supports WPS:	No
Application:	home
Size:	241 x 182 x 228mm
Product color:	Black
Processor:	Qualcomm IPQ5018
Network processing unit:	1.0GHz NPU
Memory:	512MB
2.4G Wi-Fi:	2x2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate can reach 574Mbps)
5G Wi-Fi:	4x4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate can reach 2402Mbps)
Antennas:	4 external high gain antennas
Product heat dissipation:	Natural Heat Dissipation
LED indicator:	7 (System indicator x 1, Internet indicator x 5, RGB lighting x 1)
System reset button:	1
Power input interface:	1
Mesh button:	1
Protocol standards:	IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab/3bz
Wireless security:	WPA-PSK/WPA2-PSK/WPA3-SAE encryption
Measurement unit:	100000015
Sold in:	sell_by_piece
each pack:	1
Package weight:	1.800
Package size - length (cm):	25
Package size - height (cm):	10
Package size - width (cm):	20

Xiaomi Redmi AX5400 Gaming Router Main Features

● 5400 megabit wireless speed

● OFDMA+MU-MIMO

● Dual WAN access + dual LAN aggregation

● Built-in 4 major game accelerators, Suitable for any game worldwide

● 6 independent high performance signal amplifiers

● One-click Mesh networking, Building a Whole House Game Network

● Using a new generation of WiFi6 enhanced version, the 5GHz bandwidth is directly doubled

● It supports up to 2.5Gbps bandwidth rate transmission, undertakes home broadband beyond gigabit

● Using Qualcomm high-performance router chips to greatly improve data processing capabilities and reduce network congestion

● 512MB large memory, it supports 248 devices online at the same time

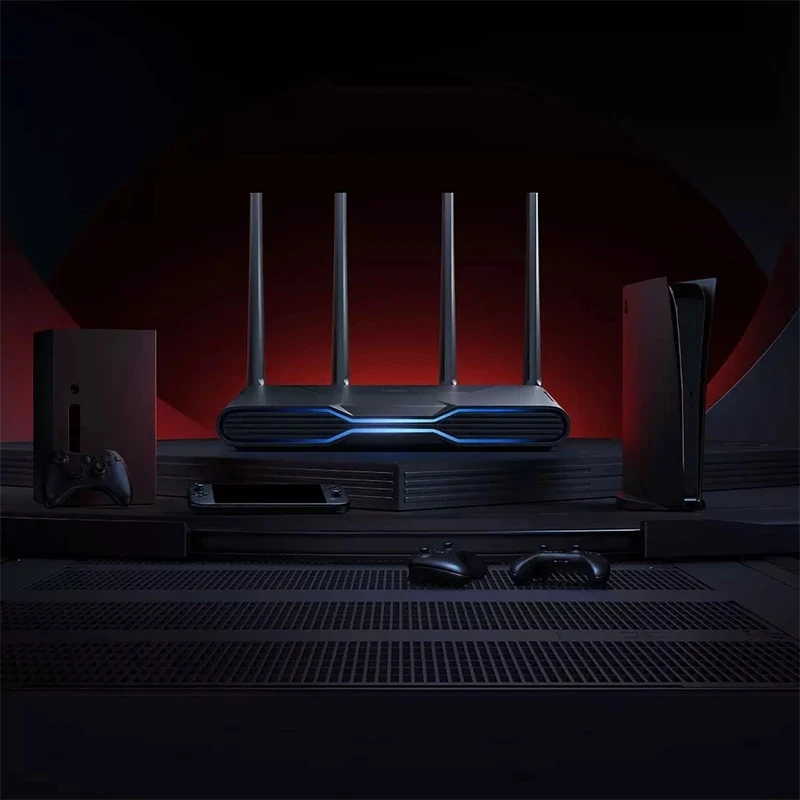

Xiaomi Redmi Gaming Router AX5400

All-platform game acceleration, Fast is Everything.allowing you to play games more smoothly

5400M Wireless Speed

Free Any Bondage

With ultra-high speed, downloading large games or 4K high-definition movies will be much faster, no need to wait that long. Smoother gaming experience and Higher winning score should be what you pursue for sure.

Faster WiFi6 Enhanced Version

Speed Upgraded to 120%

Thanks to the next-generation WiFi6 enhanced version, the 5GHz bandwidth is directly doubled*, resulting in a doubling of the speed. With 4K QAM capable devices, 5GHz speeds can be an additional 20%* faster by further compressing data density.

*When used with terminals that support 4K QAM technology, the theoretical rate of the 5GHz frequency band is 20% higher than that of the 1024 QAM technology, and the actual rate will vary depending on the terminal and the environment.Wisetech

OFDMA+MU-MIMO

More Friends Face-to-face Gaming Together

The combination of MU-MIMO and OFDMA enables up to 16 devices to be sent in one transmission*. When multiple devices are used at the same time. Faster speed and lower delay.

*This function requires the device to support OFDMA

2.5G Next-Generation Network Port

Win at the starting line

It supports transmission of up to 2.5Gbps bandwidth rate, undertakes home broadband beyond gigabit, and obtains a higher-speed gaming experience; a more forward-looking upper limit setting can also fully meet the broadband upgrade in the next few years.

Qualcomm Professional Chip

High Tech High Performance

Using Qualcomm high-performance router chips, in addition to the CPU responsible for computing, an independent NPU core is added, which greatly improves data processing capabilities, reduces network congestion and packet loss, and allows you to focus on the whole process and show off in the game.

512MB large memory

More devices are stable online

Designed for multi-device families, it supports 248 devices online at the same time*. Whether it is mobile phones, computers, game consoles, and other game devices, or whole-house smart devices such as TVs and sweeping robots, they can be connected to the Internet stably and respond quickly.Wisetech

Dual WAN access + Dual LAN aggregation

Break the upper limit and provide more possibilities

It not only supports access to superimposed operator broadband through dual WAN, but also supports dual LAN aggregation to connect multi-network port devices such as NAS, build a family high-speed private cloud disk, break through the gigabit limit, and explore more high-speed transmission methods.

* The aggregated bandwidth is a theoretical value, and the actual effect will vary depending on the network environment.

Independent gaming network port

Gaming first, Independent transmission channel

Open up a high-speed data channel for e-sports PC games, accelerating independently, reducing latency, and obtaining a smoother and faster gaming experience.

Built-in 4 Major Game Accelerators

Freedom to fight on the global game battlefield

Game accelerator benefits* are prepared for console and PC gamers, support PS, Xbox, Switch *, optimize game nodes, reduce update and download time, and greatly improve global game stability and fluency.

*How to get it: Enter the Mijia App-Router management page, click to install the corresponding function, operate according to the instructions on the page, and get free benefits.

Exclusive Acceleration for Xiaomi Mobile Phone

Extra Speed, One Step Ahead

Intelligently identify Xiaomi/Redmi phones*, enable exclusive acceleration in mobile game scenarios, cover mainstream mobile games, reduce data packet loss and delay to enhance the gaming experience greatly.

*This function requires the Mobile Manager App in the MIUI system to be upgraded to version 4.2.3 or above. Some video software containing entertainment themes may trigger game acceleration, which is normal.

6-way independent high-performance signal amplifier

Start your favorite games anytime & anywhere

The independent signal amplifier can effectively enhance the signal transmission power, bring a stronger wall penetration effect, much wider coverage.

One-click Mesh networking

Building a Whole House Game Network

Equipped with self-developed Mesh technology, it can form a Mesh network with multiple Xiaomi/Redmi routers*, whether it is a super-large apartment or a complex apartment such as a jump floor, it can easily achieve seamless roaming in the whole house and create a full-scene game network.

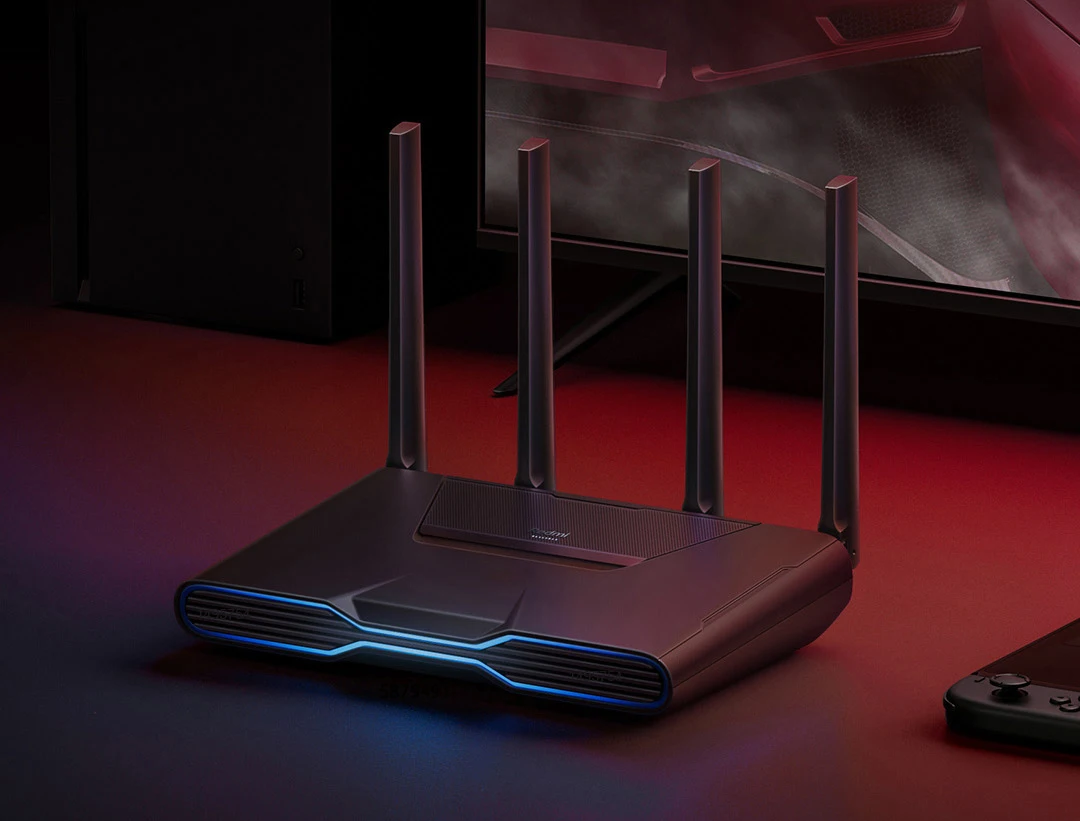

Sports car streamline shape

Swift as thunder

Customize the dynamic look for e-sports players, inspired by formula racing, supplemented by cyber mech elements, and feel the fast thrill of adrenaline rush.

Stunning RGB Ambient Light illuminates the shadows

Immersive gaming atmosphere

The 16 million colors adjustable ambient light supports custom light color*, and there are a variety of optional breathing light effects, which can fill the exclusive gaming atmosphere and stimulate the hidden gaming energy.

*Setting method: Enter the Mijia App-router management page to set the lighting color and lighting effect

More technical support

Automatic device discovery, one-click network configuration*

Specification

Router Dimensions

 241 x 182 x 228mm

 Router Color

 Black

 Processor

 Qualcomm IPQ5018

 Network acceleration engine

 1.0GHz NPU

 RAM

 512MB

 2.4G Wi-Fi

 2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate can reach 574Mbps)

 5G Wi-Fi

 4×4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate can reach 4804Mbps)

 Product antenna

 4 external antennas

 Product heat dissipation

 natural heat dissipation

 Machine interface

 1 10/100/1000/2500M self-adaptive WAN/LAN port (Auto MDI/MDIX)

 1 10/100/1000M auto-adaptive WAN/LAN port (Auto MDI/MDIX)

 3 10/100/1000M auto-adaptive LAN ports (Auto MDI/MDIX)

 LED indicator

 7 (top status indicator × 1, network port light × 5, atmosphere light × 1)

 System reset button

 1

 Power input interface

 1

 Mesh button

 1

 Protocol standard

 IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab/3bz

Certification standard: GB/T9254-2008; GB4943.1-2011

 Dual Band

 2.4GHz and 5GHz

 Wireless channel

 2.4GHz Channel: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, Tookfun

 5GHz Channel: 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165

 Operating system

 MiWiFi ROM, an intelligent routing operating system based on OpenWrt deep customization

 Wireless security

 WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (black and white list), SSID hiding, intelligent anti-rubbing network

 Management application

 support Web, Android, iOS, Tookfun

 Working environment temperature

 0-40℃

 Working humidity

 10%-90%RH (non-condensing)

 Storage temperature

 -40-70℃

 Storage humidity

 5%-90%RH (non-condensing)

Please Notes:

*5400 megabit is the wireless rate specification level of the router, including the theoretical rate of 574Mbps in the 2.4G band and 4804Mbps in the 5G band.

*Calculated compared to the theoretical rate of the WiFi65G frequency band of 4x480MHz.

*The theoretical rate of 5G frequency band is 20% higher than that of 1024QAM technology when used with terminals that support 4KQAM technology, and the actual rate will vary depending on the terminal and the environment.

*MU-MIMO and OFDMA technology require terminal equipment support, and 16 terminal equipment is served at the same time as the theoretical data source Qualcomm.

*Data forwarding speed improvement data comparison before and after the Redmi gaming router AX5400 turns on and off the NPU, the data comes from Xiaomi Lab "Redmi Gaming Router AX5400 Test Report".

*248 units are the comprehensive access value of 2.4G/5G/LAN under laboratory conditions.

*The supported game devices are for reference only, please refer to the corresponding Accelerator Network instructions for details.

*NetEase UU Accelerator, Xunyou Accelerator, Qiyou Online Treasure Accelerator must meet the following requirements: the account is newly registered and comes from a plug-in (one account can only be claimed once), the account is bound to this model and the machine has not been received (one machine can only receive it) Once) You need to bind the account to this model to receive the Youbangbang accelerator, and the machine has not been collected before (one machine can only be collected once)

*It can be networked with the latest software versions of Xiaomi routers AX9000/AX6000/AX3600/AX3000/AX1800 and Redmi routers AX3000/AX1800/AX5/AX6/AX6S. The maximum number of connected devices in the entire mesh network is 10. The carrier-customized version does not currently support mixing with retail products.

*The product pictures on the above pages are for illustration only, the actual product may have slightly different effects, please refer to the actual product.

*One-click network distribution requires the device to support Xiaomi FunConnect, which is subject to the device manual. A Xiaomi smart device that is not connected to the network means that the device is in the initialization state. If the device has been connected to the network, it can be reset by itself. The specific reset method is subject to the device manual.

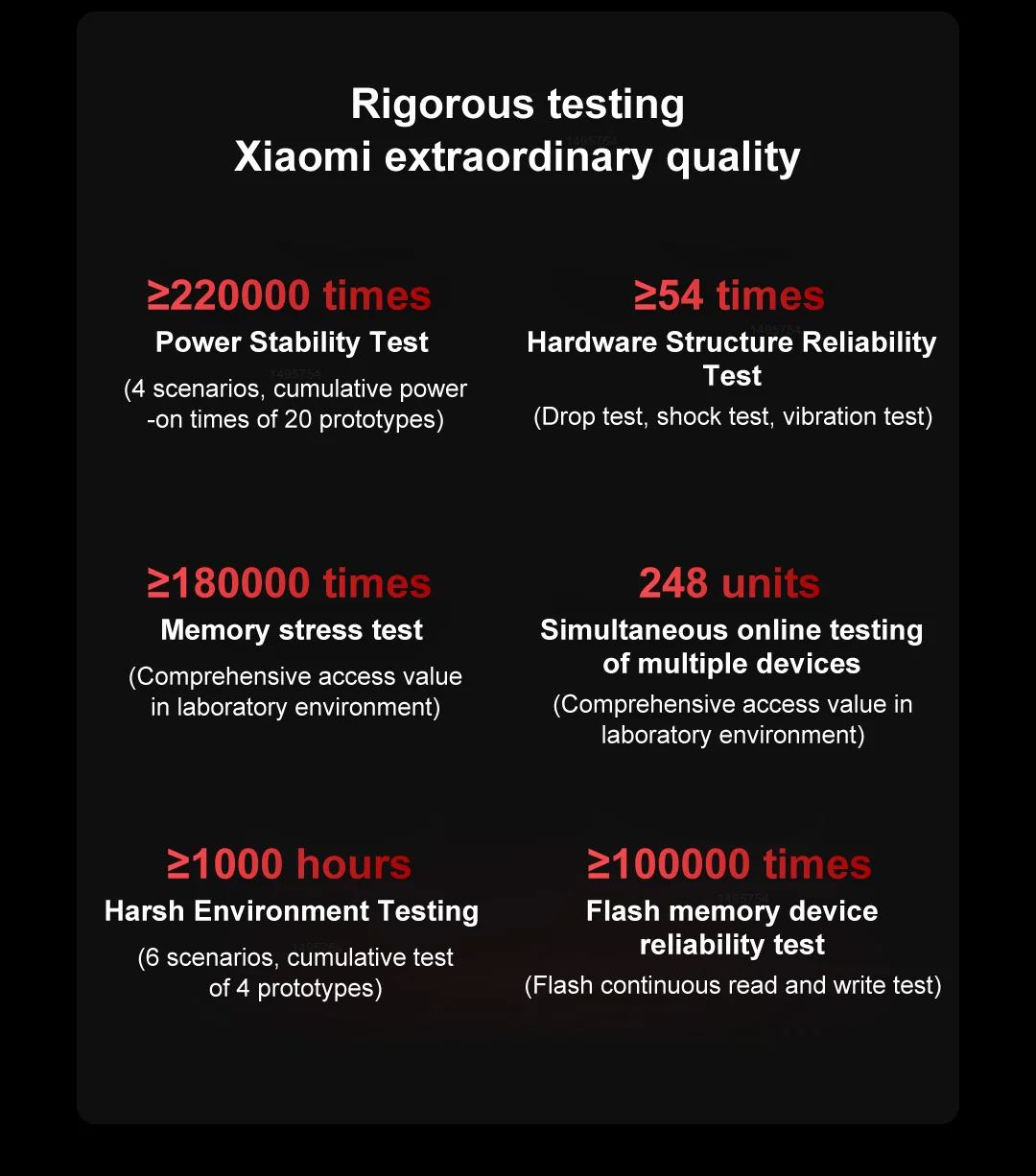

*Power stability test, hardware structure reliability test, memory stress test, simultaneous online test of multiple devices, harsh environment test, Flash memory device reliability test. The data are all from the "Routing Reliability Test Report" of Xiaomi Lab.

*The content and functions displayed on the above pages cannot be guaranteed to provide permanent services and may be adjusted due to changes in copyright, business, or technical conditions. If the changes are no longer notified separately, please refer to the actual content and functions of the product.
