Name: best automotive engine analyzer Auto Diagnostic Programmer UPA-USB V1.3 With Full Adapters UPA USB Main Unit OBD2 ECU Chip Tunning Tool battery load testing
Brand: MMO Dropship
SKU: 3256804221702219
Price: 80.61 VND
Availability: InStock
Rating: 4.9 (83 reviews)

Code: TD-3256804221702219 1 order

Free Shipping

$ 80.61

Other people want this. 10 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	aermotor
Origin:	CN(Origin)
External Testing Certification:	ce
Hardware Version:	Latest UPA USB
Item Length:	10inch
Certification:	CE
Software Version:	UPA V1.3
Item Width:	8inch
Model Name:	UPA-USB V1.3
Item Height:	5inch
Item Type:	Auto Key Programmer
Item Weight:	0.56kg
Voltage:	v
Electronic:	No
Material Type:	Plastic
Function:	Extensive and Accurate
Feature 1:	Support NEC Function
Feature 2:	Full 20 Adapters
Package:	Perfect Packing
Service:	Best
Shipping:	Fast and Stable
Warranty:	1 Year

Auto Diagnostic Programmer UPA-USB V1.3 With Full Adapters UPA USB Main Unit OBD2 ECU Chip Tunning Tool

UPA USB Programmer Description:

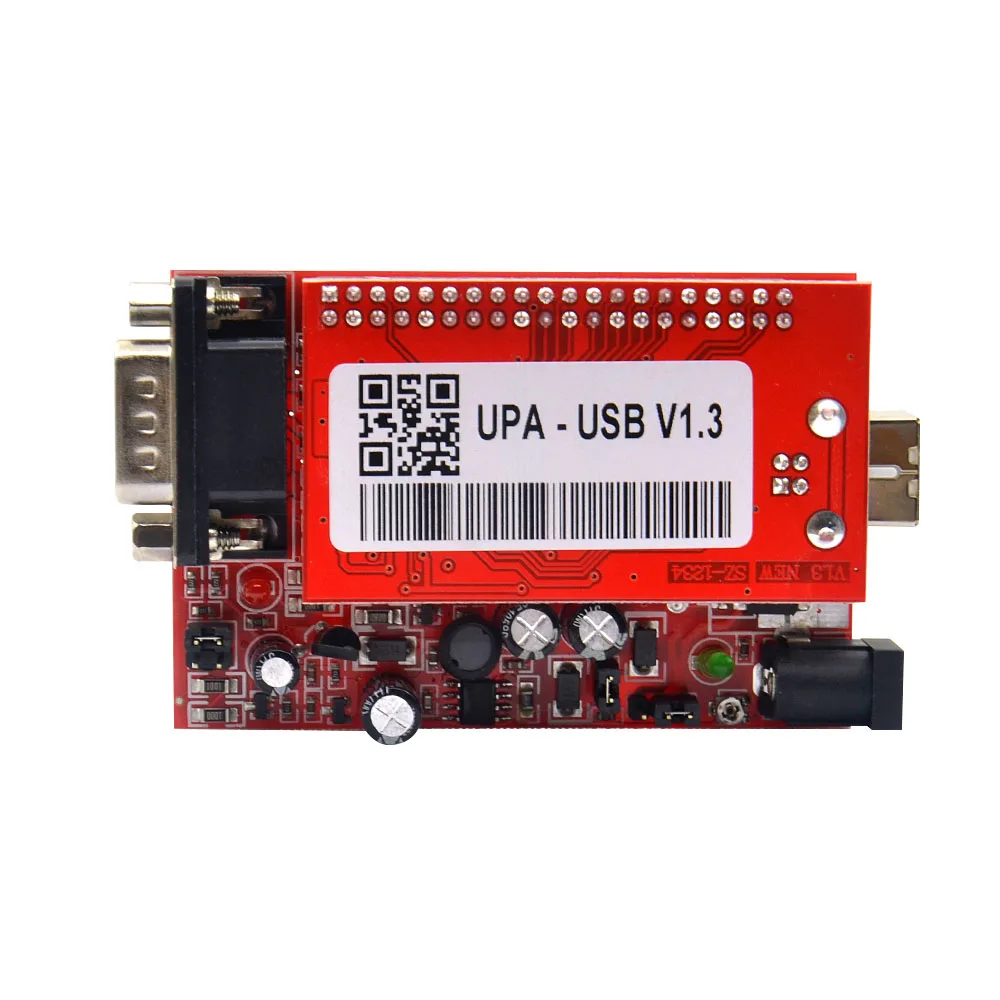

Upa-usb 2014 is the full set with all adapters,The main Device can be directly connected to the Elrasoft.com UUSP (UPA-USB Serial Programmer) or by an optional DB9 male / female 1:1 extension cable. It's equipped with an 40pin ZIF Socket for all narrow and wide DIP / DIL devices as well as with a 16 pin SOIC ZIF (150mil, narrow) socket to cover most commonly used devices.

Device configuration is done over special config keys which make the work convenient and safe compared to wiring up all manually.Additional packages can be covered by commonly available Adapters plugged into the 40 pin ZIF socket.

The main Device further includes a 10 pin ISP connector where the included ISP Adapters can be connected using a standard 1:1 flatribbon cable (included). The included PLCC ISP Adapters are to be put directly over the soldered chip of the target device making the work convenient and safe compared to soldering or using clips connecting up all manually. (Power from the UUSP to the ISP target can be enabled or disabled by a jumper next to the 10 pin ISP connector)

UPA Programmer EEproms:

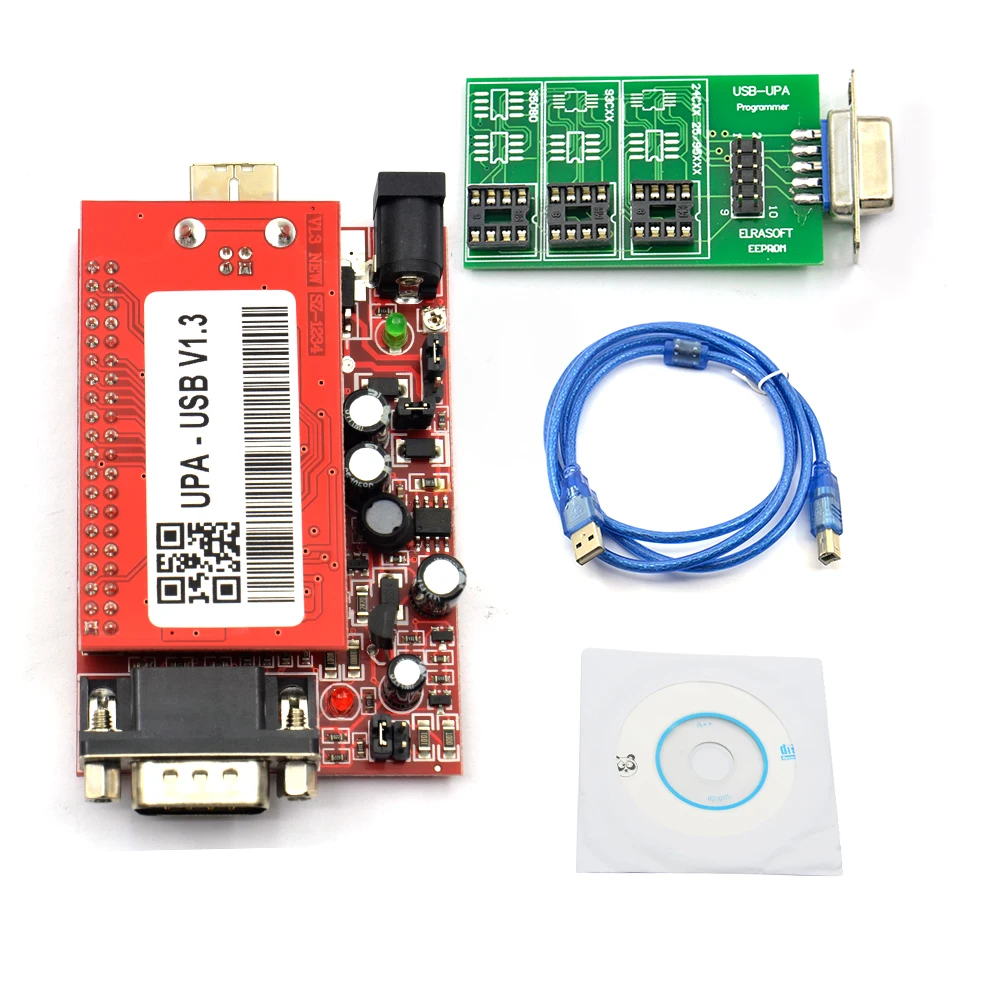

Simply connect the mainboard to the UPA programmer directly or by using a DB9 male / female extension cable (1:1). Insert the correct config key into the slot of the mainboard and start programming either via the ZIF or SOIC Socket. You can also use the included DIL to 10pin Flat-ribbon header, put it inside the ZIF socket and wire up an SOIC clip or clamps for ISP use from there.

UPA USB Programmer Support:

STMicroelectronics ST62*:

ST6240, ST6245, ST6249

NSC CR16*: CR16HCS5(9), CR16MCS5(9), CR16MES5(9), CR16MFS5(9), CR16MCT5/9, CR16HCT5/9

Motorola HC05*: MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC705B16, MC68HC05B32, MC68HC05E6,

MC68HC705E6, MC68HC05H12, MC68HC05L28, MC68HC05P3, MC68HC705P3*,MC68HC05X16, MC68HC05X32

Motorola HC08*: MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A,

MC68HC908AZ60, MC68HC908AZ60A

Motorola HC11*: MC68HC11A1, MC68HC11A8, MC68HC11E9, MC68HC11EA9, MC68HC11E20, MC68HC11F1, MC68HC11K4, MC68HC11KA2, MC68HC11KA4, MC68HC11KG4, MC68HC11KS2, MC68HC11KS8, MC68HC11L6, MC68HC11P2, MC68HC11PA8, MC68HC11PH8

Motorola HC12*: MC68HC912B32, MC68HC912BE32, MC68HC912D60, MC68HC912D60A, MC68HC912DC128A, MC68HC912DG128, MC68HC912DG128A

Motorola HCS12*: MC9S12D64, MC9S12A128, MC9S12DG128, MC9S12DG256, MC9S12H128, MC9S12H256, MC9S12HZ64, MC9S12HZ128, MC9S12HZ256

Freescale (Motorola) HCS12X*: MC9S12XD64, MC9S12XD128, MC9S12XDG128, MC9S12XDP384, MC9S12XDP512, MC9S12XHZ256, MC9S12XHZ512

Freescale (Motorola) HCS12XE*: MC9S12XEG128, MC9S12XET256, MC9S12XEQ384, MC9S12XEQ512, MC9S12XEP768, MC9S12XEP100

Atmel 8051 Architecture: AT89S51, AT89S52, AT89S53, AT89S8252, AT89S8253

Atmel AVR 8-Bit Risk: AT90S1200, AT90S2313, AT90S2323, AT90S2333, AT90S2343, AT90S4433, AT90S4434, AT90S8515, AT90S8535, ATmega8, ATmega16, ATmega161, ATmega162, ATmega163, ATmega323, ATmega64, ATmega103, ATmega128, ATtiny12, ATtiny15, ATtiny2313, ATmega8515, ATmega8535

Microchip PIC12: PIC12F508, PIC12F509, PIC12F629, PIC12F675

Microchip PIC16: PIC16F627(A), PIC16F628(A), PIC16F648A, PIC16F72, PIC16F73, PIC16F74, PIC16F76, PIC16F77, PIC16F818, PIC16F819, PIC16F83, PIC16F84(A), PIC16F870, PIC16F871, PIC16F872, PIC16F873(A), PIC16F874(A), PIC16F876(A), PIC16F877(A)

EEPROMs I2C: 24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C65, 24C128, 24C256, 24C512, 85C72, 85C82, 85C92, BAW574252, GRM-003, GRM-004, GRM-005, KKZ-06F, MCM2814, PCA8581, PCF8581, PCF8582, PCF8594, PCF8598, PCF85102, PCF85116, SDA2516, SDA2526, SDA2546, X24C00, X24C01

EEPROMs Microwire: 7002, 93C06, 93C14, 93C46, 93C56, 93C57, 93C66, 93C76, 93C86, 93S46, 93S56, 93S66, GRN-001, GRO-002, KKZ-01, S220, S2914, ST61907, XLS93C46

EEPROMs SPI: M35080, 25C010, 25C020, 25C040, 25C080, 25C128, 25C160, 25C256, 25C320, 25C640, M25P05, M25P10, M25P20, M25P40, M25P80, ST95010, ST95020, ST95040, ST95080, ST95160, ST95320, ST95640, ST95P02, ST95P04, ST95P08, X5043, X5045

EEPROMs Miscellaneous: CXK1011, CXK1012, CXK1013, M6M80011, M6M80021, M6M80041, SDE2506, TC89101, TC89102, 77005, 77007, BR9010, BR9020, BR9040, CAT64LC10, CAT64LC20, CAT64LC40, S-29190A, S-29290A ,S-29390A

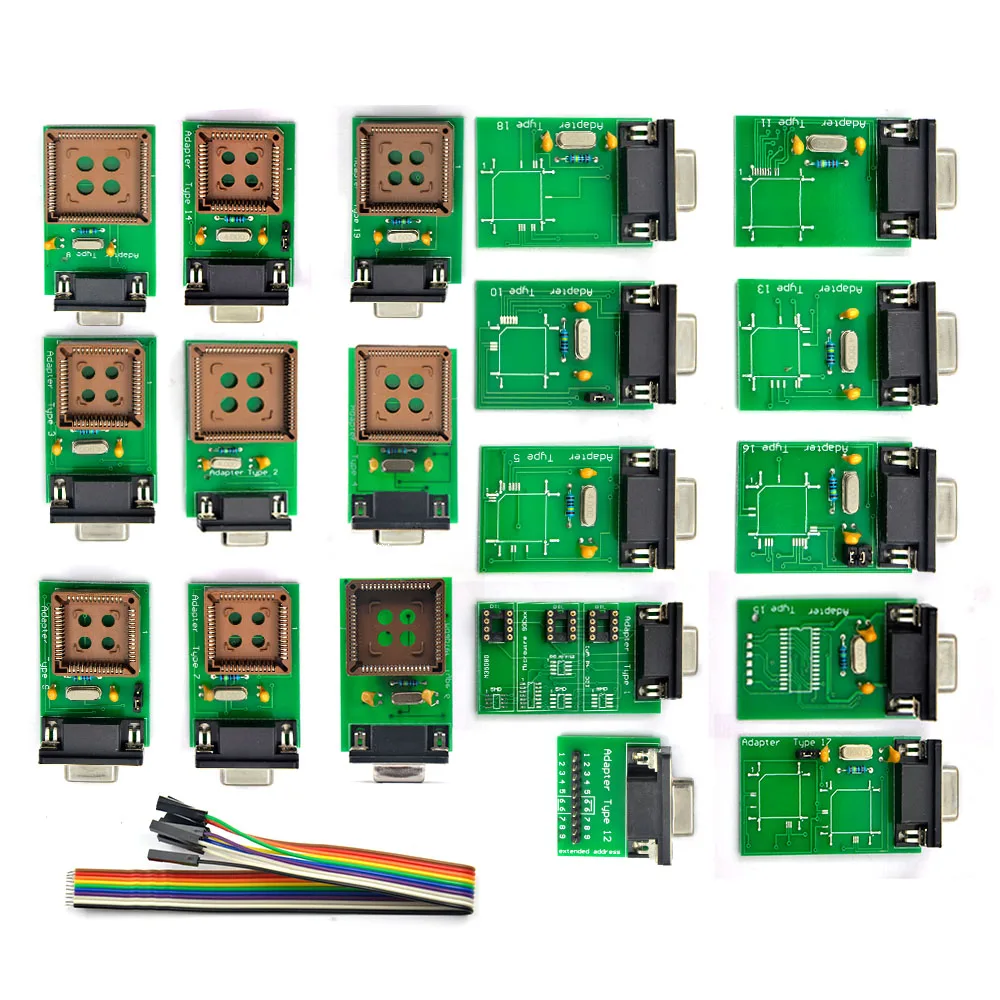

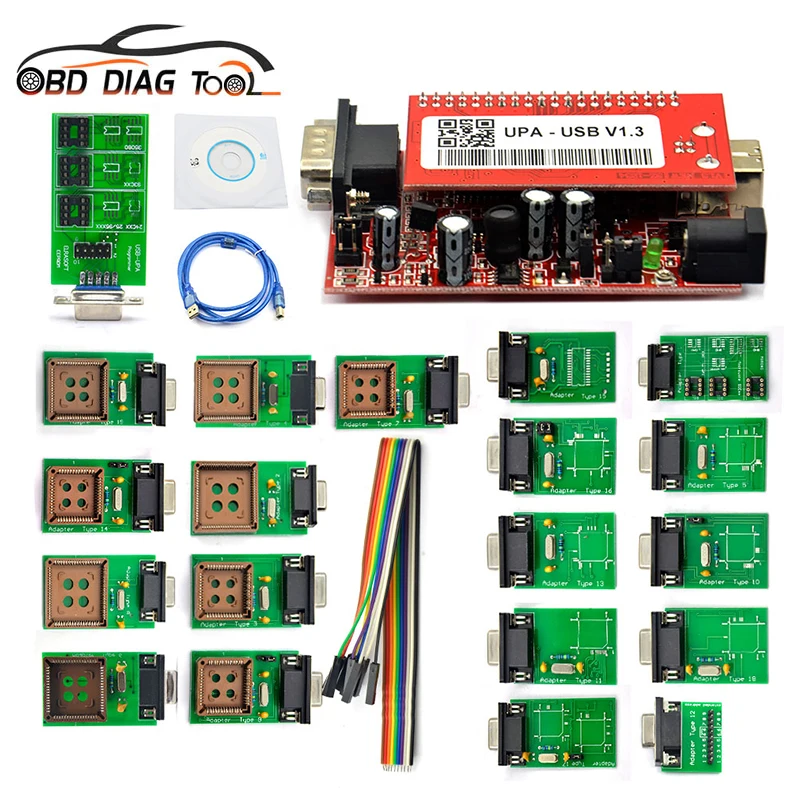

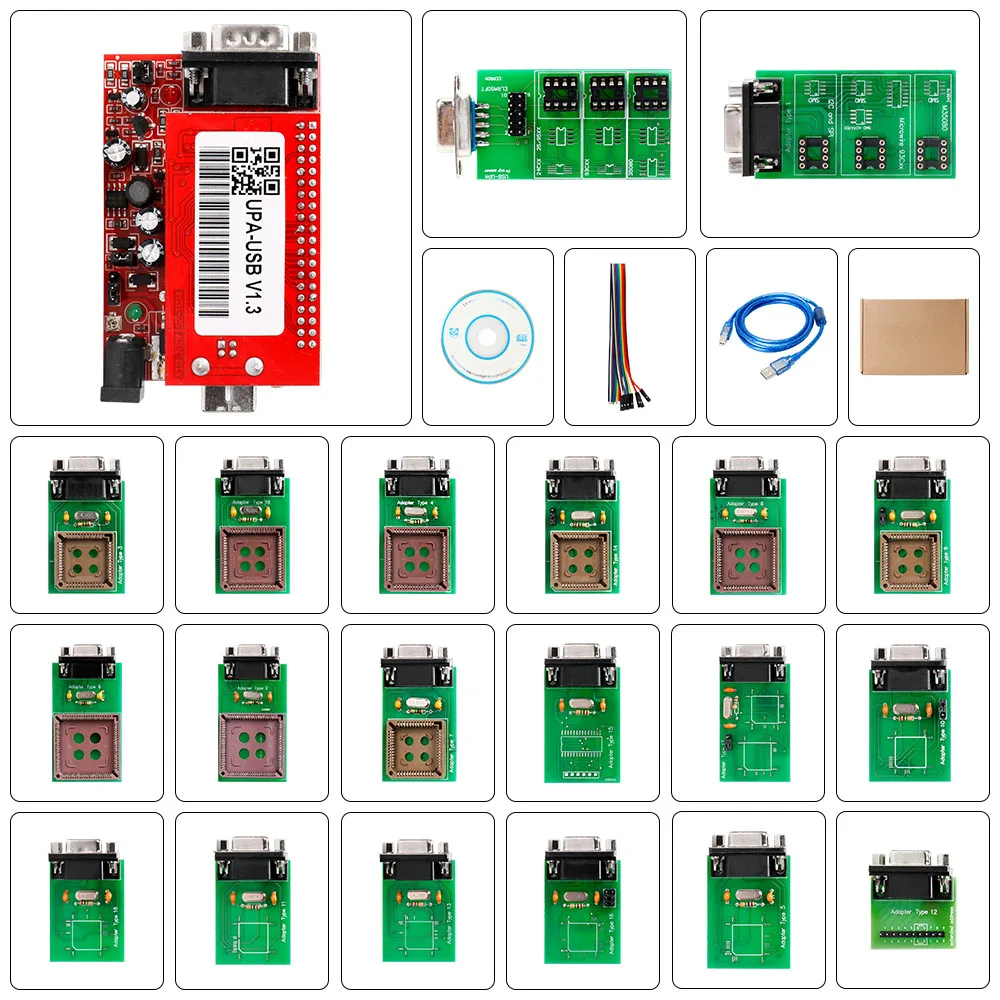

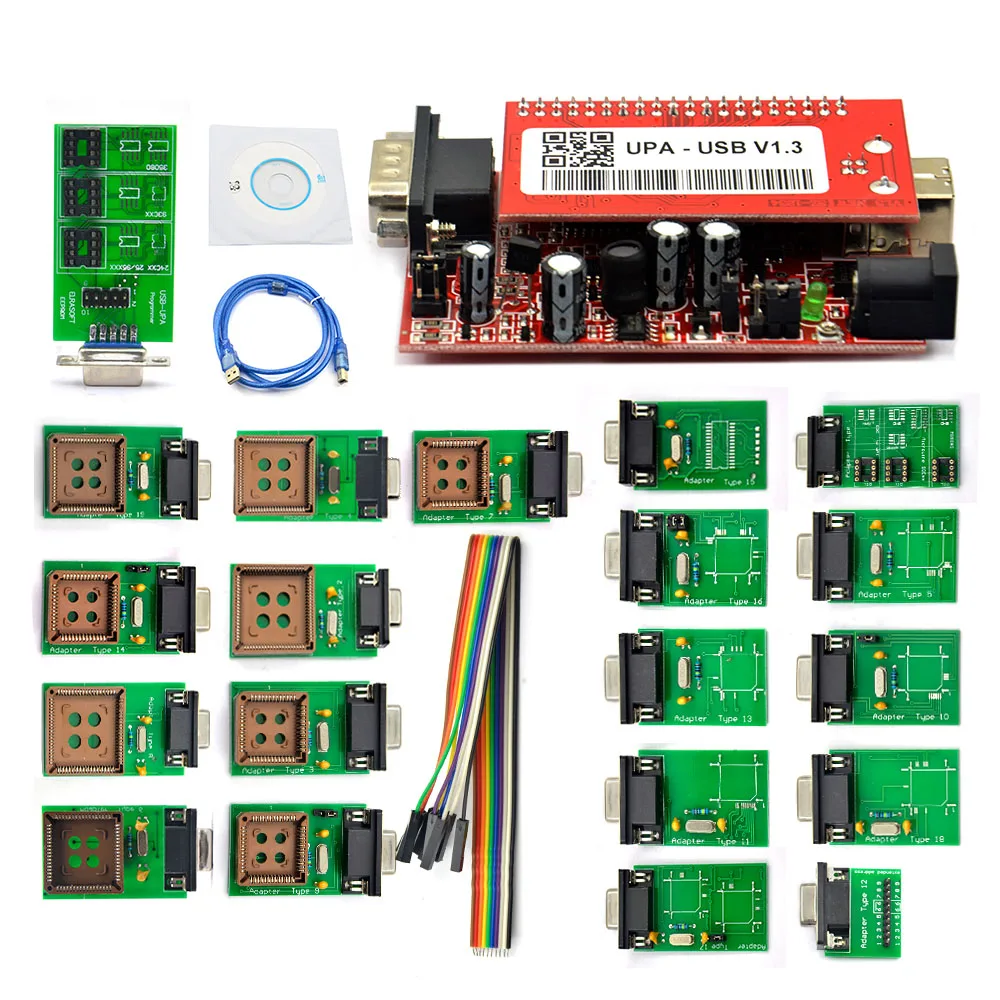

Package Listing:

1*Main unit

1*USB cable

1*CD

1*5 pin cable

1*Adapter Type1 Per eprom I2C,SPI, Microware e M35080

1*Adapter Type2 Motorola MC68HC11P2+MC68HC11PH8-PLCC84

1*Adapter Type3 Motorola MC68HC08AS-PLCC52

1*Adapter Type4 Motorola MC68HC11KA2/4+MC68HC11KS-PLCC68

1*Adapter Type5 Motorola MC68HC(9)08-QFP64

1*Adapter Type6 Motorola MC68HC11F1-PLCC68

1*Adapter Type7 Motorola MC68HC05H12-PLCC52

1*Adapter Type8 Motorola MC68HC11K-PLCC84

1*Adapter Type9 Motorola MC68HC11A8/E1/E9/E20+MC68HC11EA9-PLCC52

1*Adapter Type10 Motorola MC68HC11KA2/4+MC68HC11PA8-QFP64

1*Adapter Type11 Motorola MC68HC11K-QFP80

1*Adapter Type12 Extended address

1*Adapter Type13 Motorola MC68HC11A8/E1/E9/E20-QFP64

1*Adapter Type14 Motorola MC68HC05B4/B6/B8/B16/B32+MC68HC705B16/B32-PLCC52

1*Adapter Type15 Motorola MC68HC(7)05E6-SOIC28

1*Adapter Type16 Motorola MC68HC05B4/B6/B8/B16/B32+MC68HC(7)05X16/X32-QFP64

1*Adapter Type17 Motorola MC68HC(9)12B32-MC68HC(9)12D60(A)-QFP80

1*Adapter Type18 Motorola MC68HC11F1-QFP80

1*Adapter Type19 Motorola MC68HC11L6-PLCC68
