1pc TMC2208 v1.2 Stepping Motor Mute Driver Stepstick Power Tube Built-in Driver Replace 256 Segment TMC2100 For 3d Printer Part canon print head 3D Printer Parts & Accessories

Code: TD-32851167114 1 order
Free Shipping
$ 29.09 $ 29.99
Quantity:
Other people want this. 15 people have this in their carts right now.
Brand Name:  FYSETC
Origin:  CN(Origin)
Item Type:  DRIVER
Model Number:  TMC2208 v1.2
characteristitic:  stepsticks
compatible motherboard:  for lerdge/MKS mo
application:  replace TMC2100 V1.3

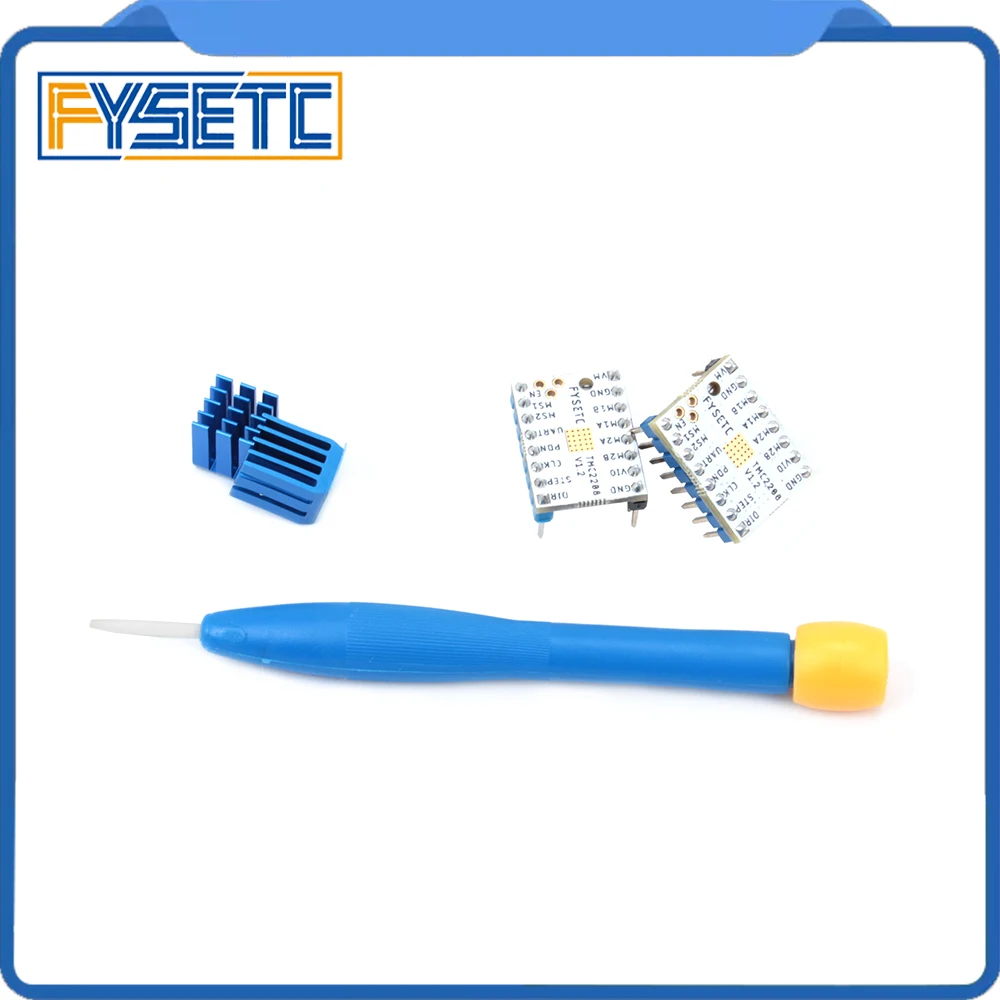

gift:  anti-static screwdrivers
microsteps:  256
voltage range:  4.75V-36V
current:  1.4A
Peak Current:  2A
materials:  PCB

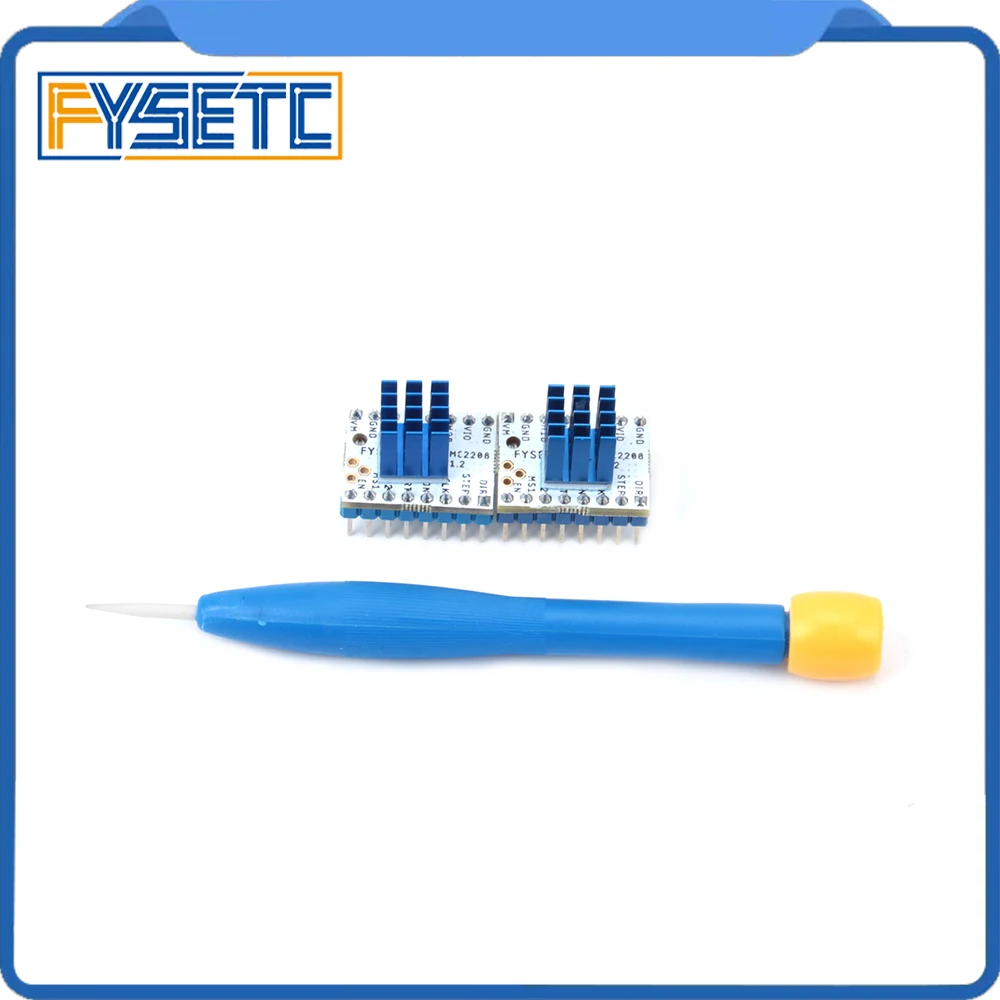

with heatsinks:  yes

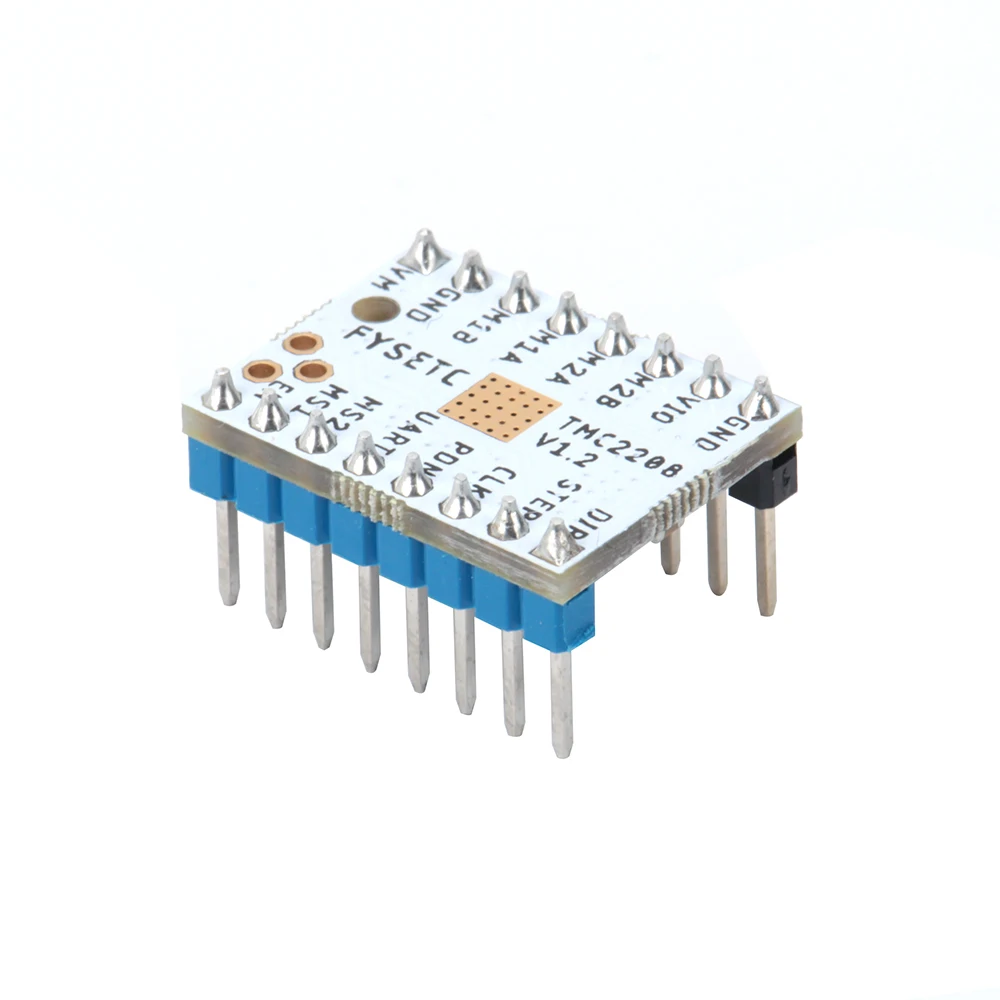

1pc TMC2208 v1.2 Stepping Motor Mute Driver Stepstick Power Tube Built-in Driver Replace 256 Segments TMC2100 For 3d Printer Part

TMC2208 single-axis stepper motor drive chip, power tube built-in drive current 1.4A peak current 2A, voltage range 4.75V-36V, 256 subdivision; with patented technology spreadCycle ™ high chopper frequency, dcStep ™, stallGuard2 ™ stall detection technology, CoolStep ™ current dynamic adjustment technology, can save 70% of the energy, StealthChop mute technology

Flexible microPlyer interpolation unit, the component can provide up to 256 microstep / step resolution, even in the pulse rate is limited system can still be perfect to achieve sinusoidal control; As stealthChop fine music technology is widely used in 3D printing, so These components are also designed to be compatible with existing 3D printer electronics, eliminating the need for costly redesign. Both components have pulse / direction input, can be completely independent operation. The configuration is implemented via digital input.

Can replace the original TMC2100 ,lower heat, especially for the 3D printing market!!!

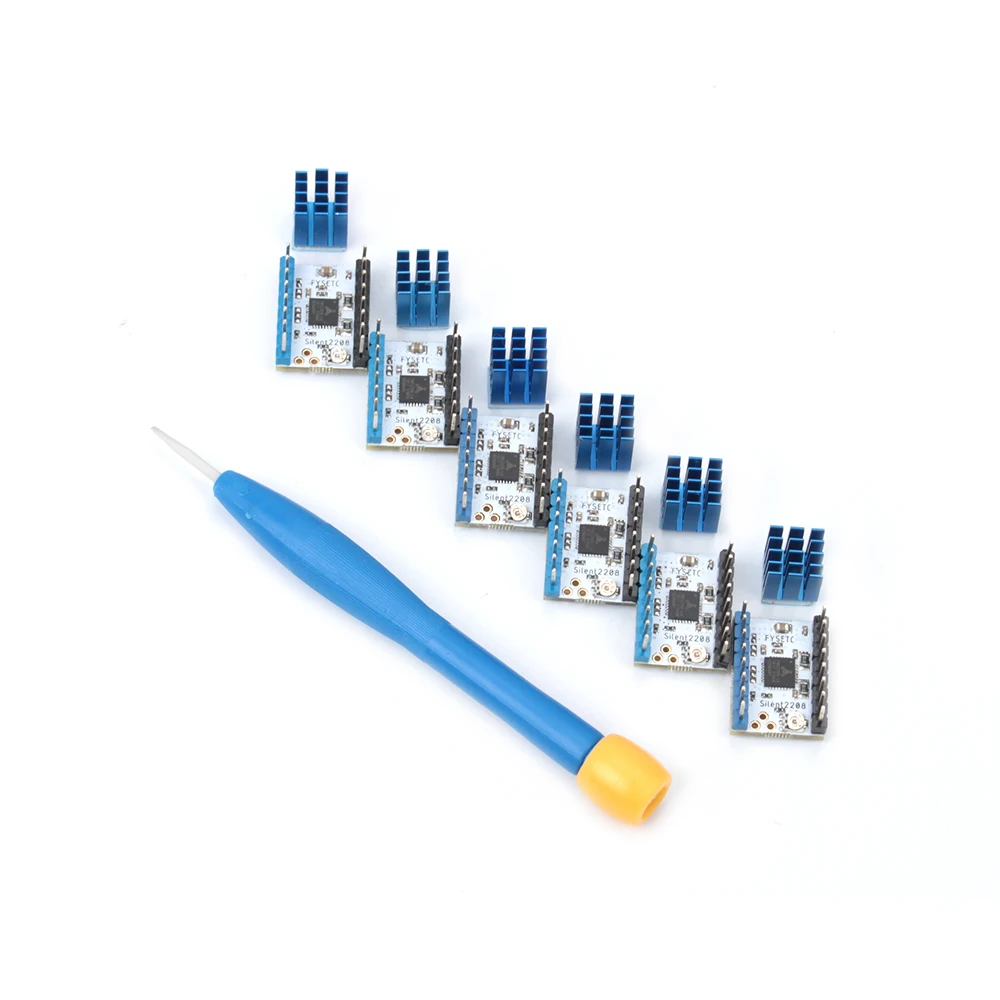

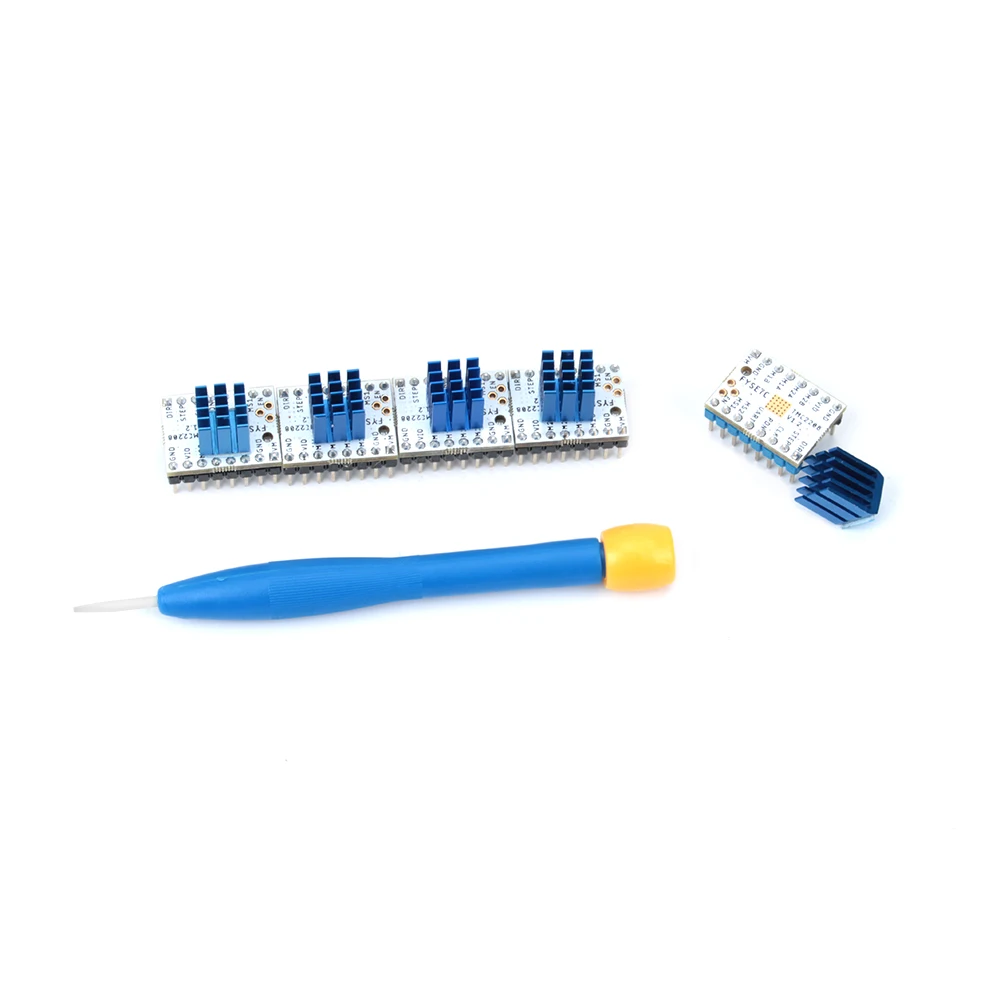

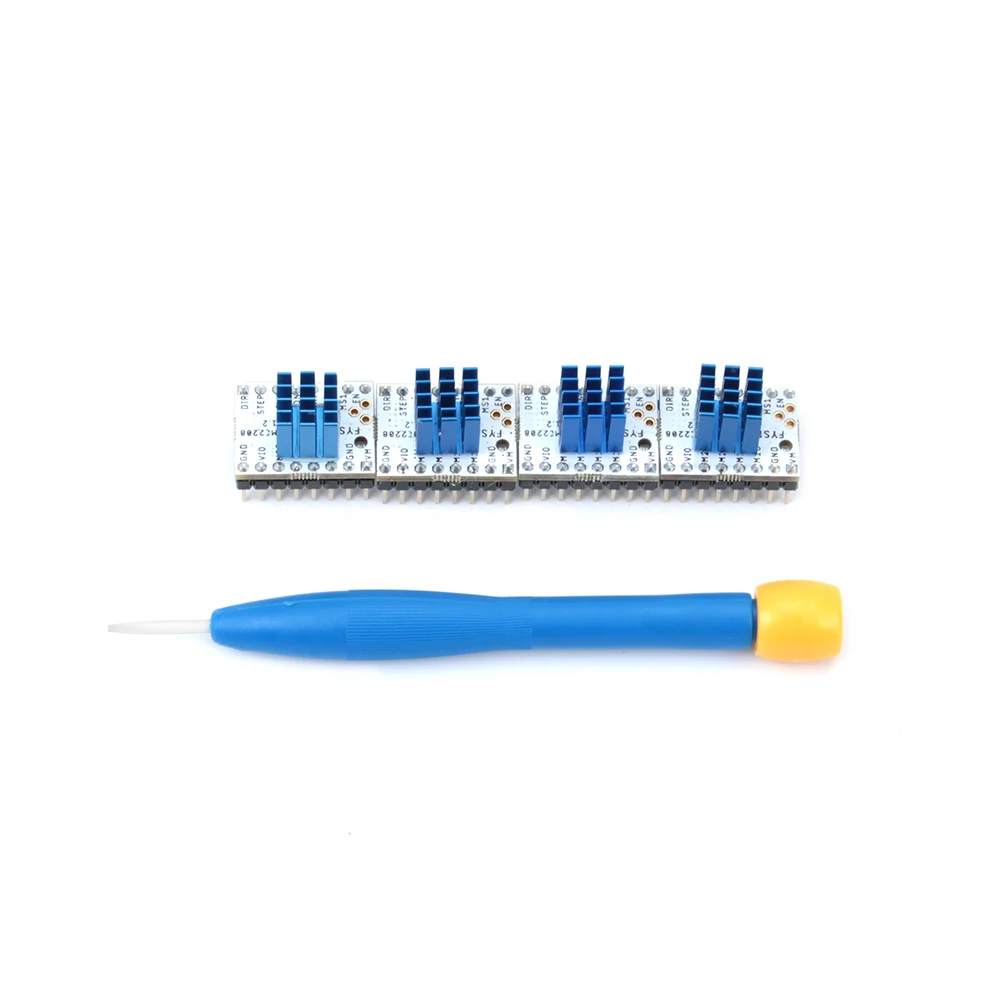

every body have the only screwdriver,if you order more and need more screwdriver,pls contact us.

if not,we will only send out one.

more information for the TMC2208:

https://wiki.fysetc.com

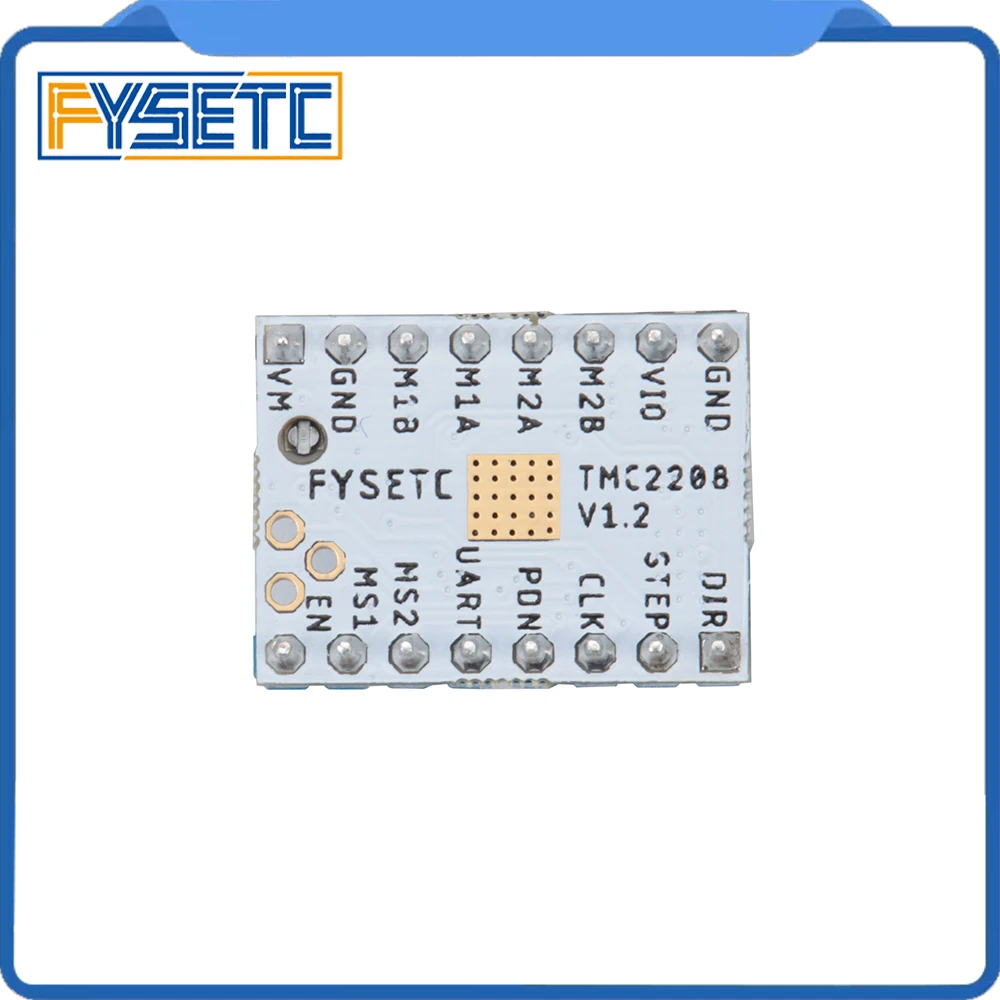

The latest version of the TMC2208 V1.2 takes the UART out and uses the UART function directly, eliminating the need for more wiring. Especially for the F6 motherboard, the effect is more obviously!

If  you want the F6,pls click this link

https://www.aliexpress.com/item/FYSETC-F6-V1-3-Board-ALL-in-one-Electronics-Solution-Mainboard-6X-Special-TMC2208-V1-2/32914190940.html

if u want the Tester TMC2208,

please click below picture for purchase.
