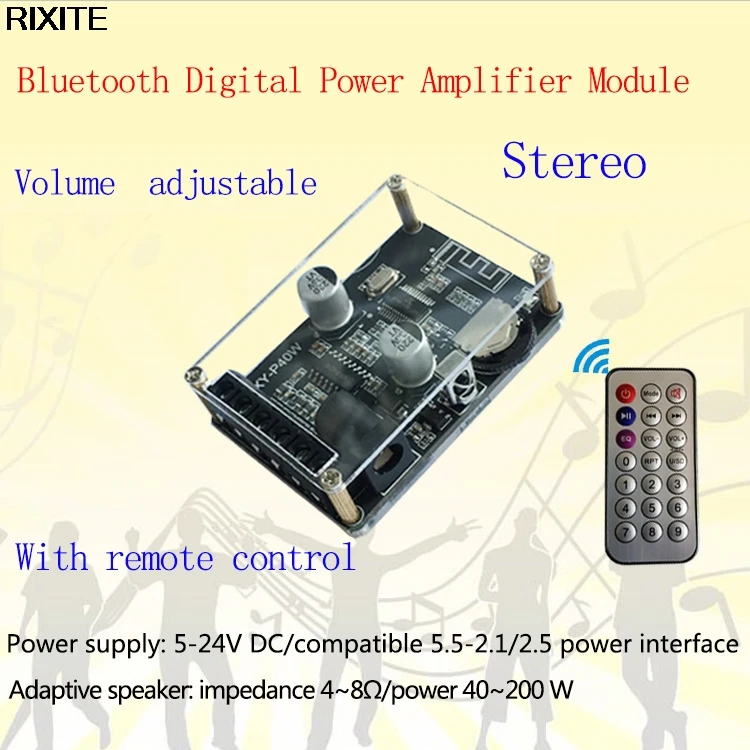

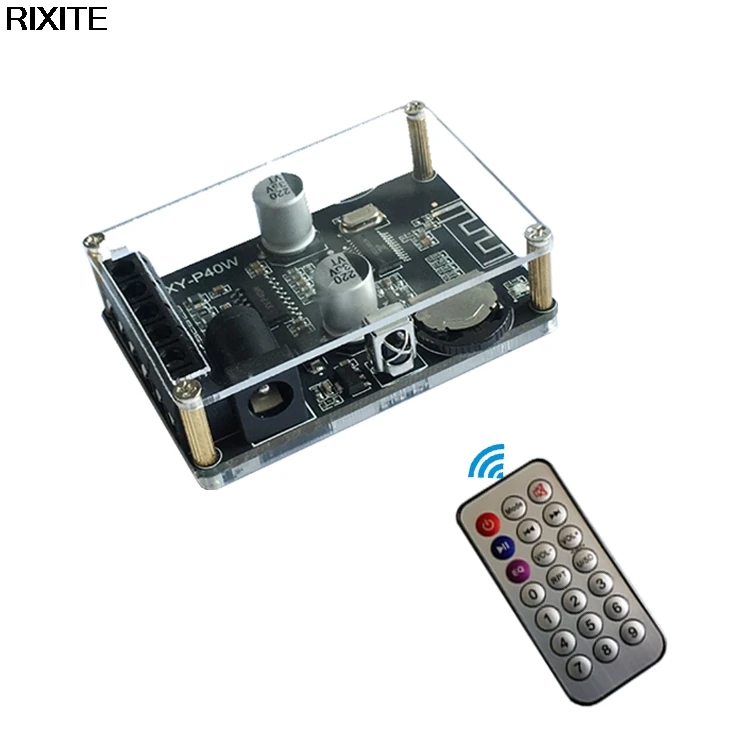

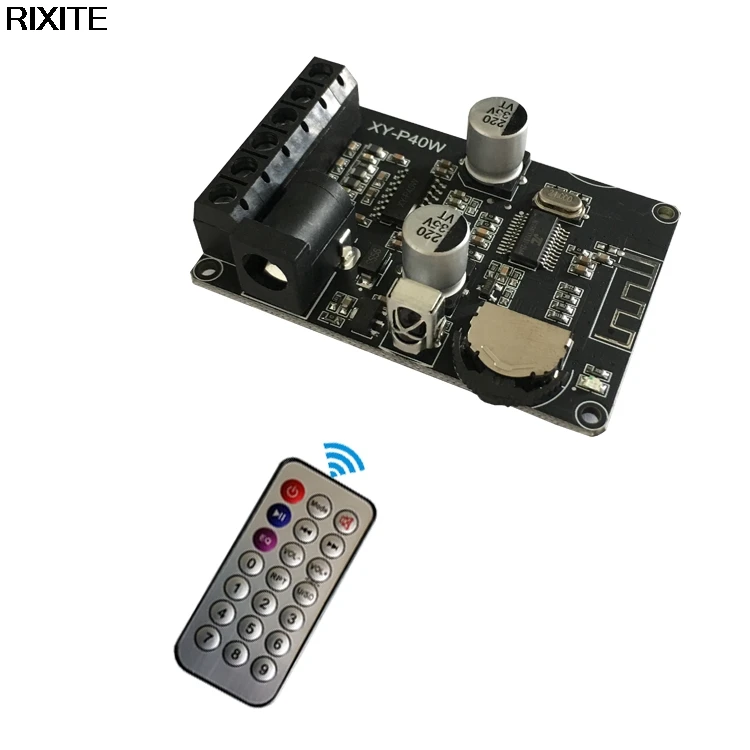

XY-P40W Bluetooth 5.0 Power Amplifier Audio Board Stereo Digital Amplifier Small Stereo AMP Home Theater With Remote Control 6 channel amp Audio Amplifier Boards
Code: TD-1005002412395799
Free Shipping
$ 33.05
Other people want this. 29 people have this in their carts right now.
| Brand Name: | RIXITE |
|---|---|
| Certification: | NONE |
| Origin: | CN(Origin) |
| Maximum Power Per Channel: | 40W |
| Model Number: | XY-40W |
| Package: | No |
| Channels: | 2 (2.0) |
Product Characteristics
Product Name
Bluetooth stereo audio power amplifier board
Product Model
XY-P40W
Supply voltage
DC: 5~24V
Bluetooth version
5.0
Connect distance
15 meters(visible)
Output mode
stereo
Output power
(@1KHz)
20W*2 @12V 4
Ω
30W*2 @16V 4
Ω
30W*2 @21V 8
Ω
40W*2 @24V 8
Ω
Speaker selected
(30W~150W)
4
Ω(5~16V supply)
8
Ω(5~24V supply)
protection
Power reverse protection
Short circuit protection
Thermal protection
NOTE: If supply power is low and output power is big, noise may be caused, turn down the volume and a bigger supply will be better
Operation specification

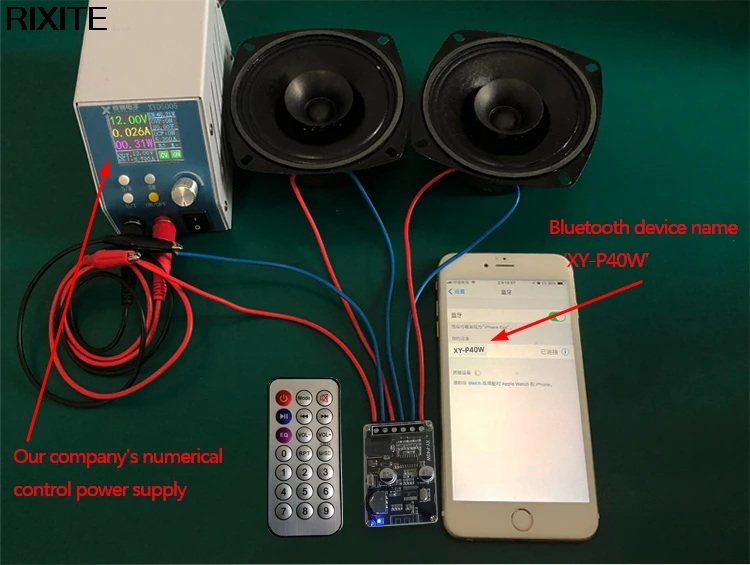

Supply the module, the blue LED is on, and it goes into Bluetooth mode
;Waiting for pairing after playing the audio tone; Turn on phone Bluetooth,"XY-P40W"will be searched and display; Click the
"XY-P40W",it will connect to the board. It connects successfully with an audio tone; After this you can play the music. The power amplifier board will prepare for the next pairing with an audio tone, When the Bluetooth is disconnected.
NOTE
:
Keep 2 meters away from router to avoid WIFI interference

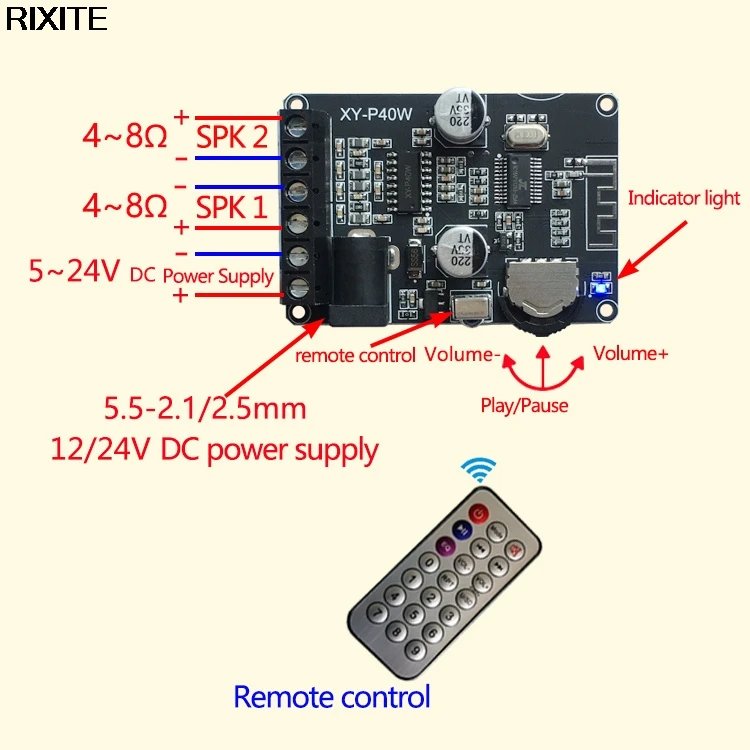

Driving 4
Ω load, power supply must be under 16V; and driving 8Ω load, supply must be under 24V.
The supply current must be 2A at least.
The line connecting speaker with module should be within one meter.
ESD protection, please release ESD on your hands before you contact the module.
40W and upper power speakers is recommended.
Fault Check
Check the power supply if the LED is not bright.
If the LED is on, but Bluetooth device "XY-P40W"is not searched, check if the router is in the near, and keep away from the router.
The speaker tapped when power on.
Check that the speaker load is so small that the current through the speaker is enough for chip goes into DC protection. Try to lower the supply and restart.
Check that if the power supply is low that cannot drive the speaker. 2A power supply current is ok.
Floor noise in speaker when playing
Play another music to verify the noise is not related with music itself.
Replace the speaker to check If the noise is caused by speaker itself.
Replace the power supply to check If the noise is caused by unstable power.
It plays intermittently
Check if the temperature of the board is high, and it goes into thermal protection.
Check if the Bluetooth is unstable, adjust the angle between the connected device; And Check if a WIFI source is in the near
