wood work bench NEJE 20W Laser Module Kit Cutting Engraving Module Laser Head 450nm Blue Light With TTL / PWM Modulation for DIY Creation wood locator Woodworking Machinery

Brand Name:	NEJE
Origin:	CN(Origin)
Model Number:	NEJE-Module-10W/15W/20W
CNC or Not:	CNC
Is Smart Device:	Yes
Condition:	New
Certification:	CE
Certification:	FCC
Certification:	RoHS
Certification:	UL
Brand:	NEJE
Optical power output:	2.5W~7.5W

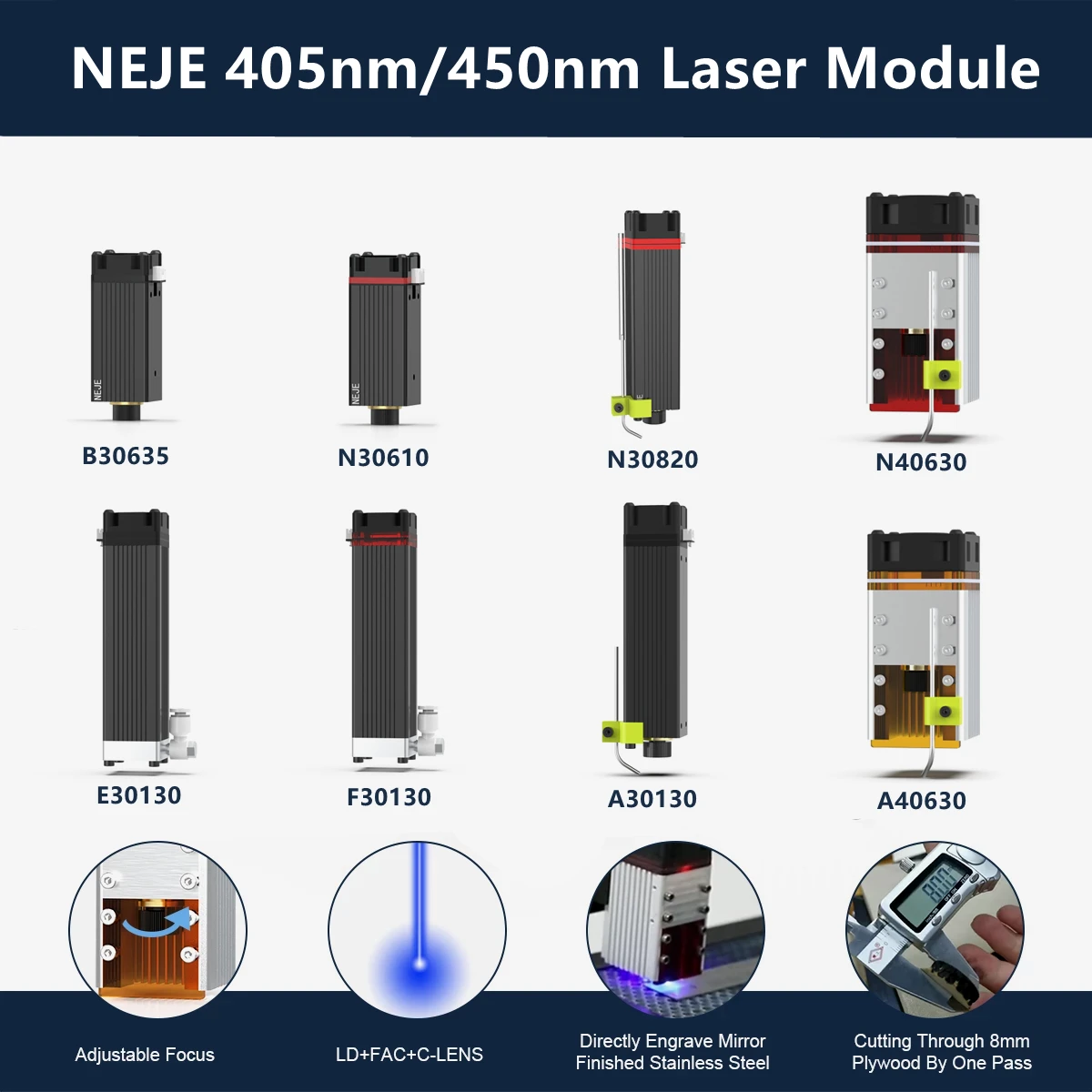

Laser Module:	N30820/N30610/B30635
Beam Shape:	Dot (Focusable)
Life Time:	10000-20,000 hours

Note：

B30635

 is a module specially designed for wood grayscale images and micro-engraving;

N30820 and N40630

 have strong comprehensive capabilities, the optical power is 5.5 - 7.5W output, and the focus is square light spot, good at carving with wood , rubber stamping, glass, transparent acrylic and cutting Plywood, black acrylic, cloth, etc...

N30610, A40630, A30130

 modules have very fine square light spots, and are better at high-resolution engraving and grayscale engraving of hard materials. A40630 and A30130 also have strong cutting ability and are suitable for cutting Plywood, mdf board and black acrylic.

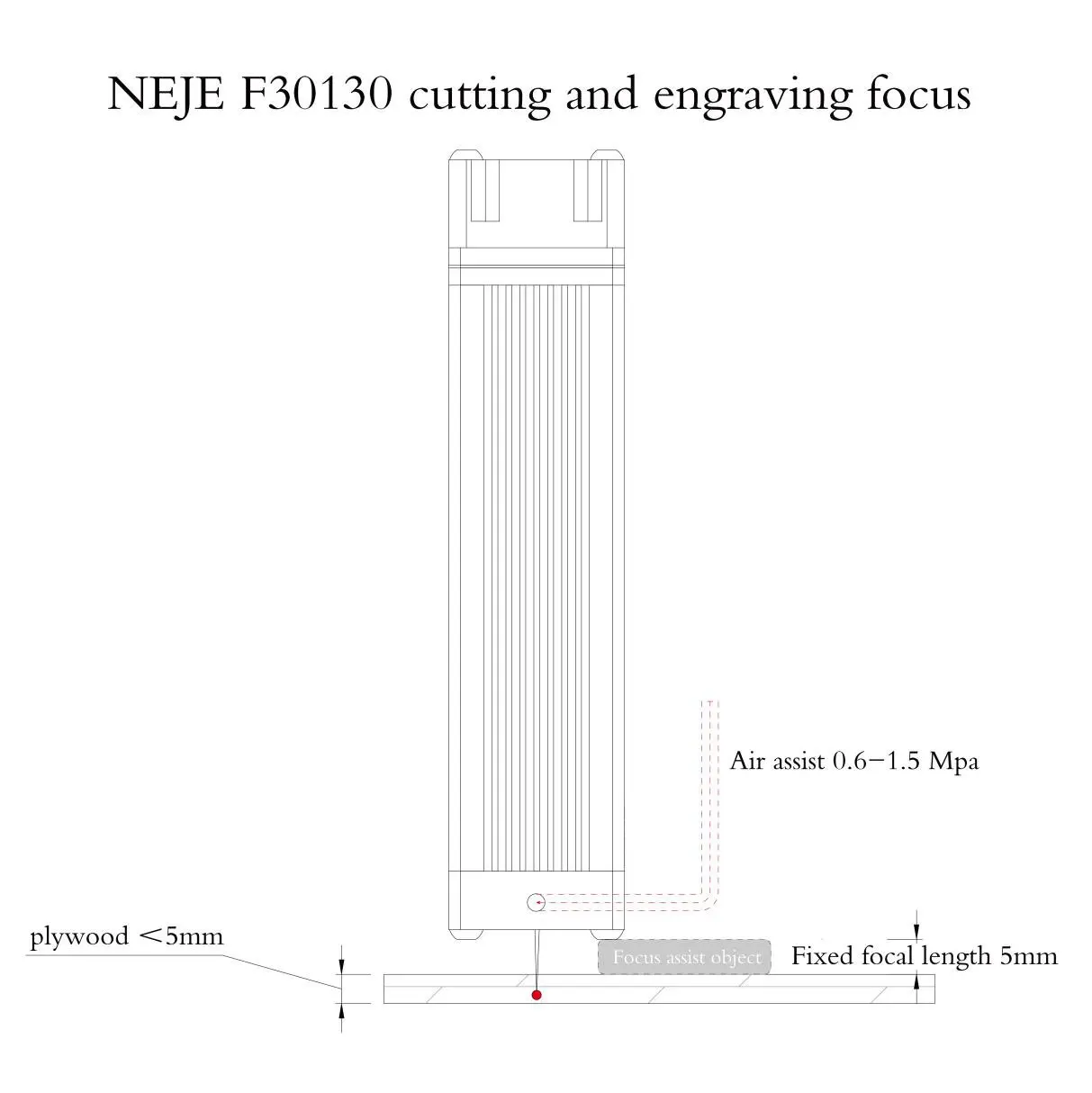

F30130, E30130

 are the series of modules specially designed by NEJE for long-time cutting. These four modules are fixed focal length modules, which require clean air source support, F30130 is 10mm focal length, good at cutting plywood and metal engraving less than 4mm, E30130 is 20mm focal length, through internal NEJE optical processing, the spot shape is square, suitable for cutting materials with strong symmetry requirements such as model aircraft

N40630 Module Feature

Designed for laserGRBL, lightburn, Laser Engraver, 3D printer, CNC mill, Arduino project.

5.5W~7.5W Optical power output, 4mm plywood from 1 pass(speed 100).

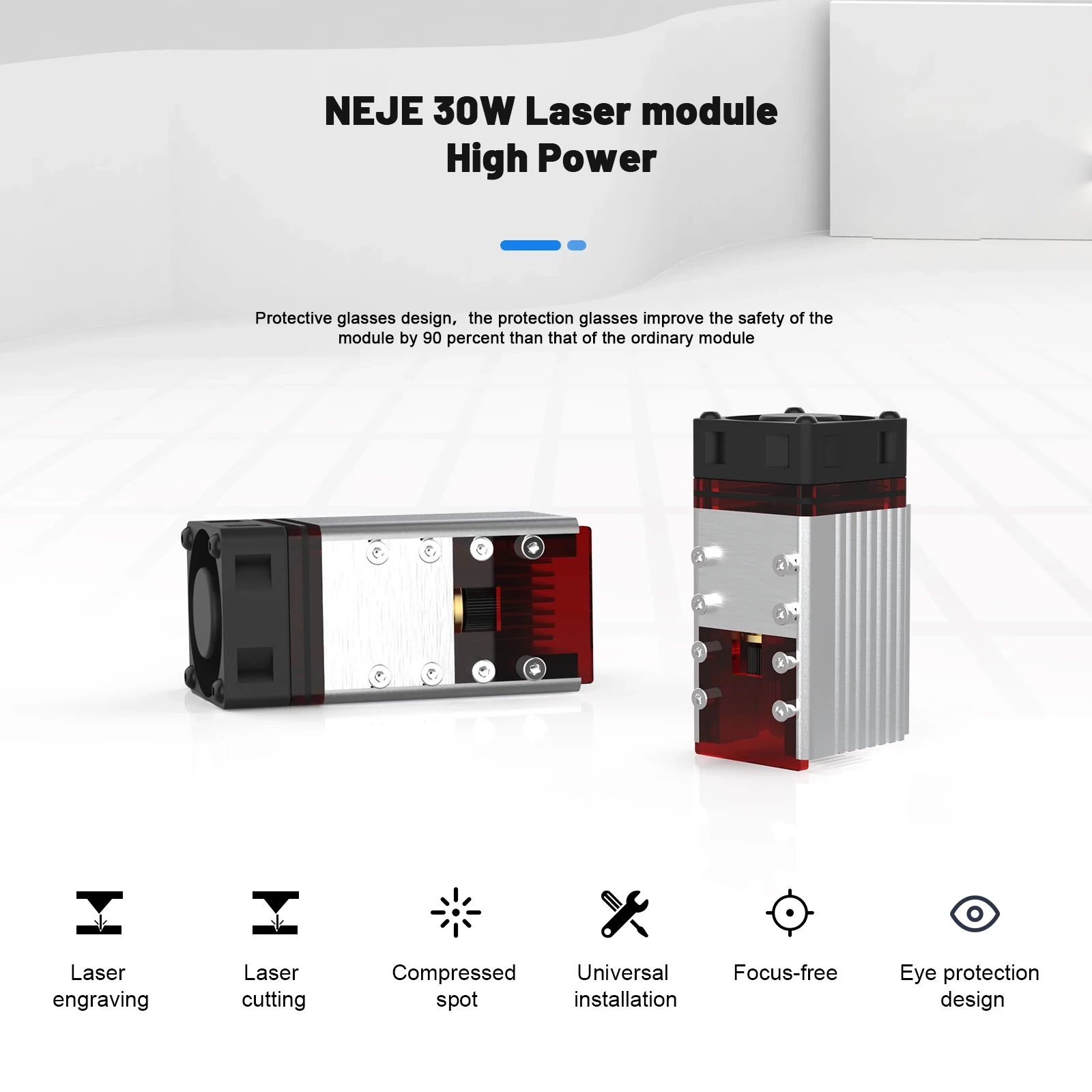

More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.

More Quiet, Intelligent drive adjust the cooling fan speed according to laser temperature.

Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for NEJE laser module.

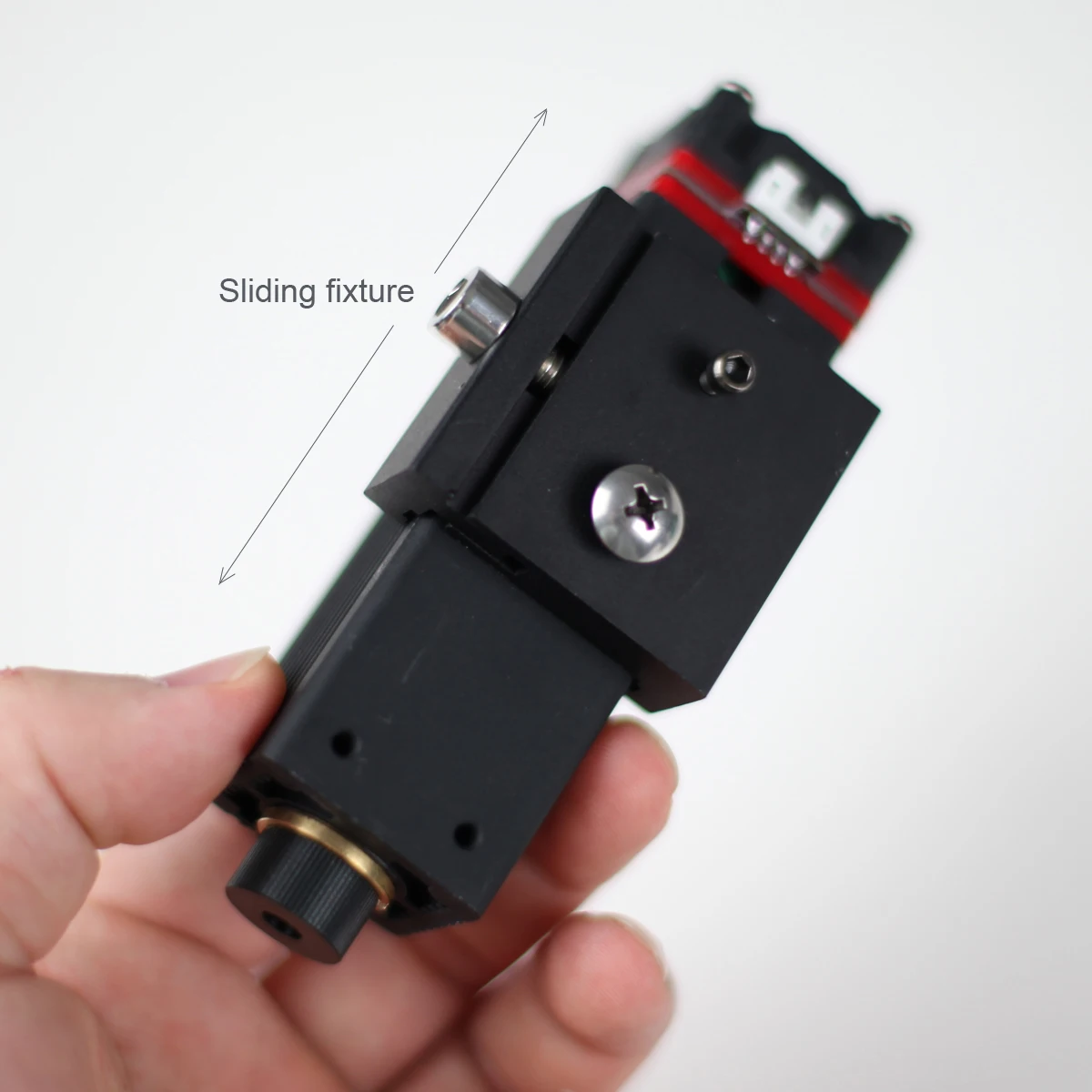

The slidable mounting fixture is provided for easy adjustment of focus.

Specification

Model：N40630

Heatsink Material：Aircraft Aluminum + Brass Shell

Luminous Color：Blue

Section Size：40mm x 40mm

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension：60 * 40 * 40mm

Adapter Plug：5.5 2.1 port

Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

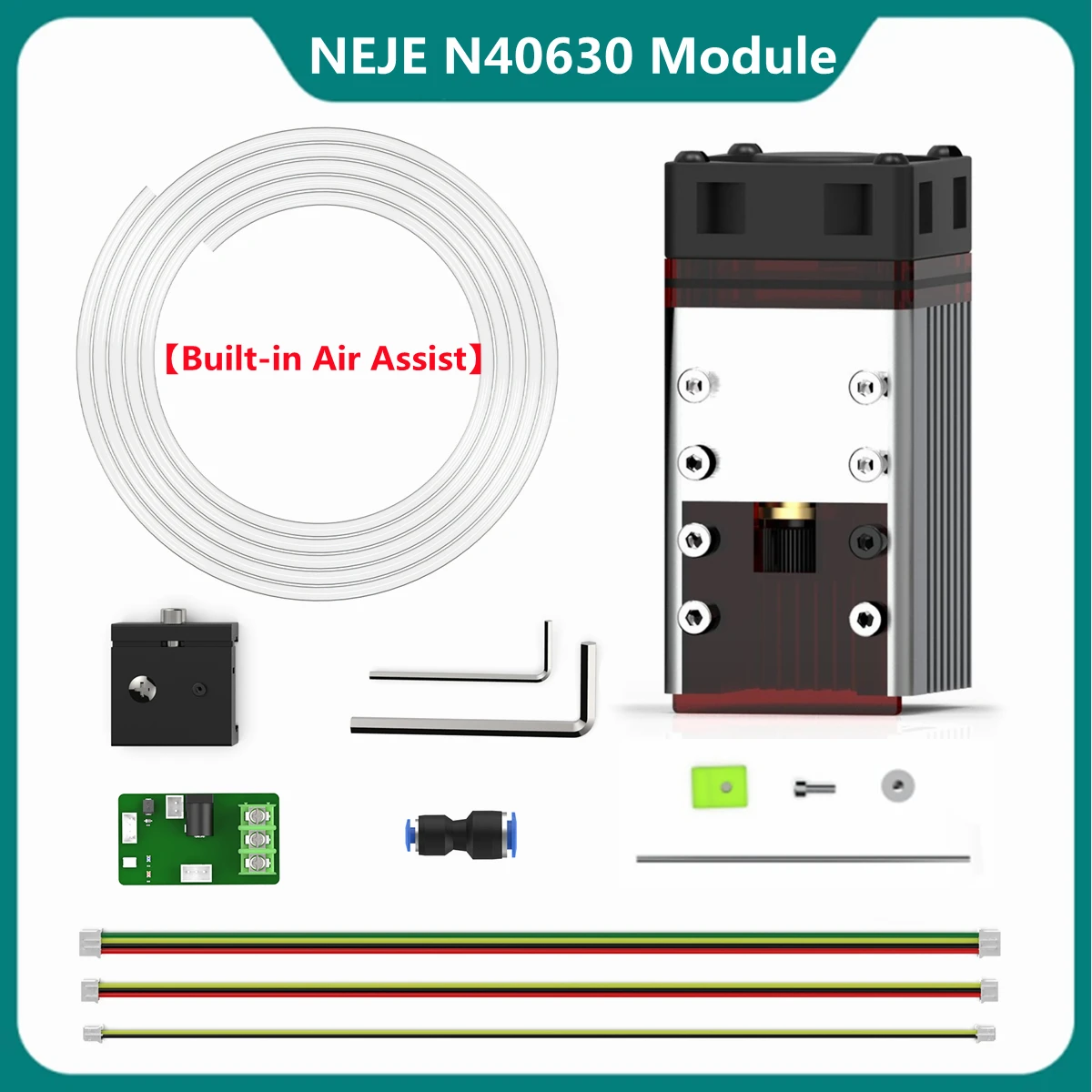

N40630 Module + FREE MF8 Air Assist Package Included

1 x Air Assist

1 x N40630 Laser Engraving Module

1 x Laser Module Sliding slot

1 x 4 Pin Cable(320mm Cable)

1 x NEJE interface tranfer board

1 x 2.5mm L-shaped wrench

1 x 5mm L-shaped wrench

1 x 3pin input cable

1 x 2pin TTL cable

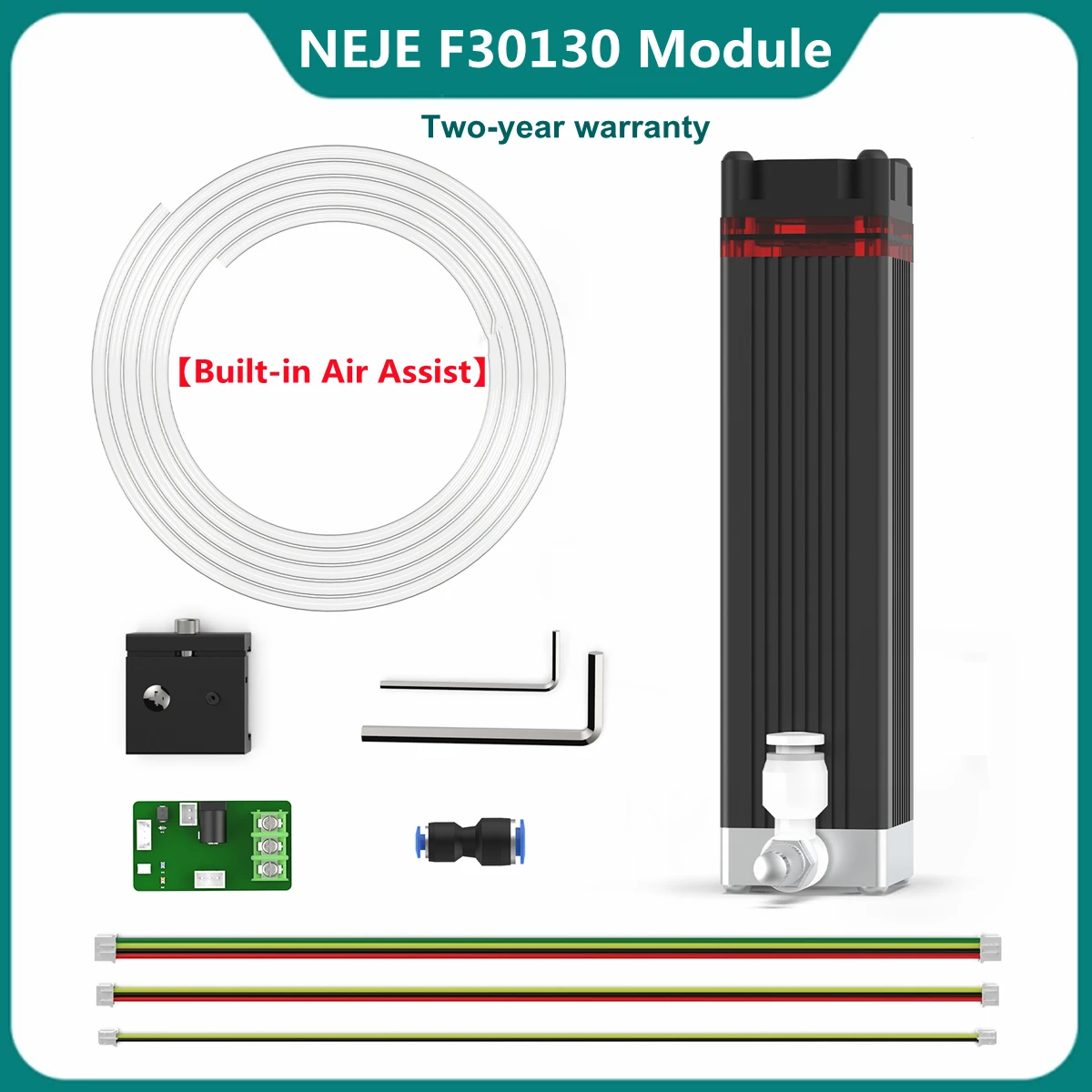

F30130 Module Packing List:

1 x FREE Air Assist

1 x F30130 Laser Engraving Module

1 x Laser Module Sliding fixture

1 x 4 Pin Cable(30cm)

1 x 2pin yellow and black signal line + 3pin input line

1 x NEJE Interface adapter board

1 x 2.5mm L-shaped wrench

1 x 5mm L-shaped wrench

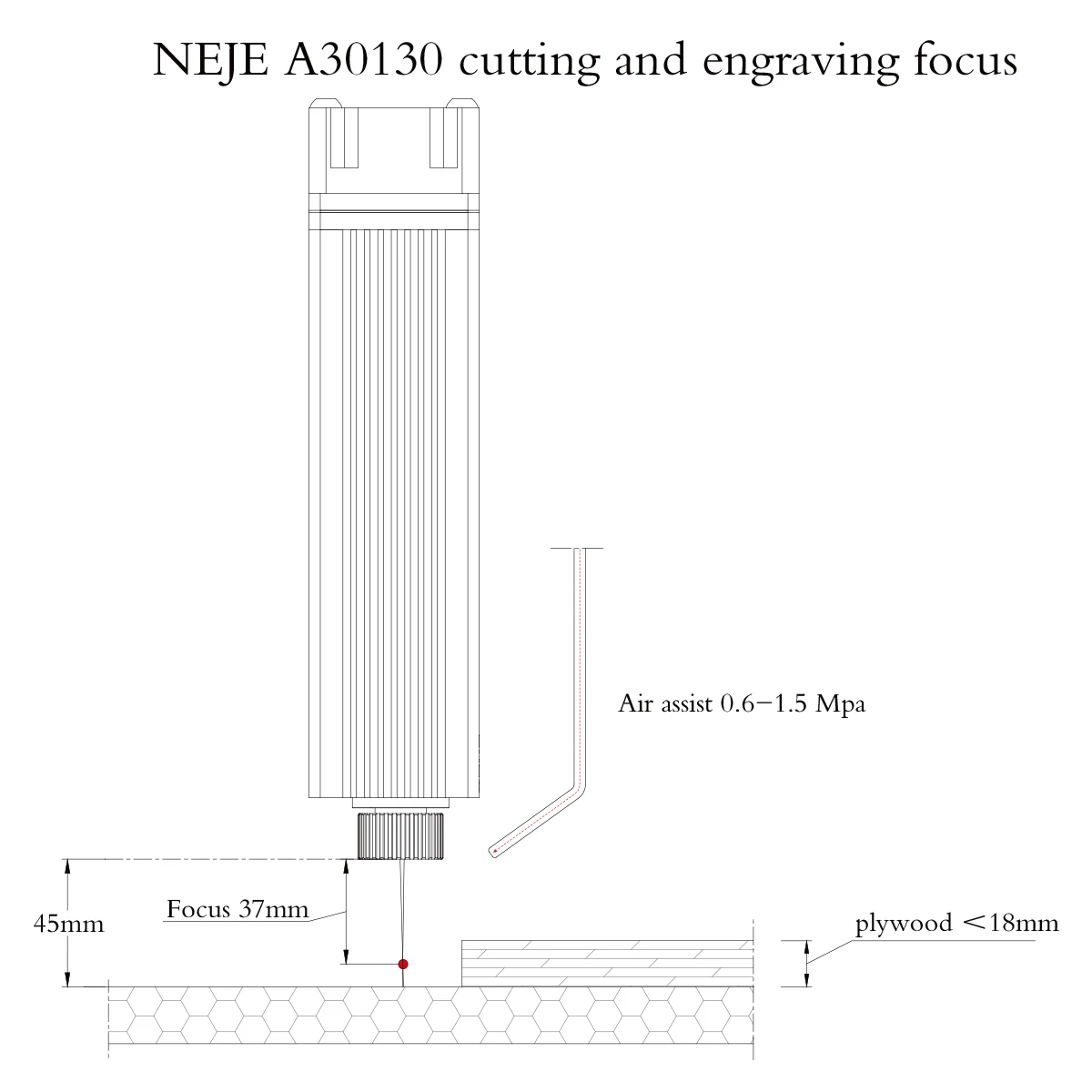

A30130 Module Feature:

-【Extended engraving module】 Thanks to optical processing, the A30130 module has a small and large divergence angle, it can engrave stainless steel directly, and the maximum cutting thickness is 18mm. Built-in fast smart drive, the temperature feedback can be timely and intelligently adjust the fan heat dissipation. Safe and quiet to use.

-【More materials, clearer】 Wood, MDF, leather, paper, cotton, etc. are accepted. The cut edges are very clean. Masking spray can etch stainless steel, glass, clear acrylic, etc.

-【Portable professional control software]】 32-bit control system, the fastest speed can reach 200,000 mm/min, compatible with GRBL, Lightburn, NEJE software of app (Android, you can change it by sharing photos with your brand. Mobile phone or select pictures from album.

-【Perfect after-sales service]】 The whole machine is guaranteed free of charge for 2 years (engraving module: 2 years and 20,000 hours warranty) and parts at risk are shipped worldwide within 24 hours

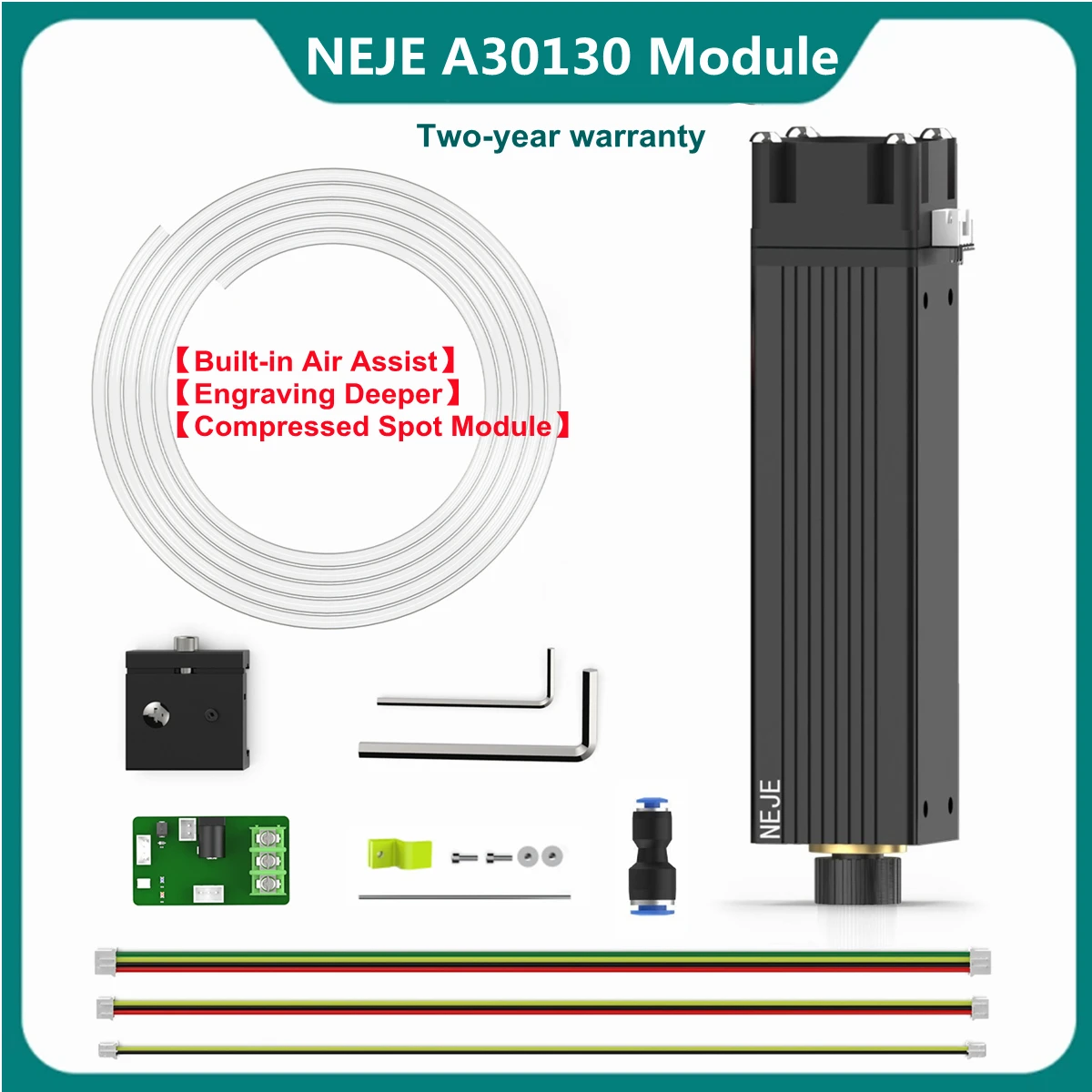

Packing List

1 x FREE Air Assist

1 x laser module

1 x sliding card slot

1 x L wrench

1 x L-shaped small wrench

1 x interface adapter board

1 x 4pin laser line

1 x 3pin 2.54 interface output cable

1 x 2pin TTL control line

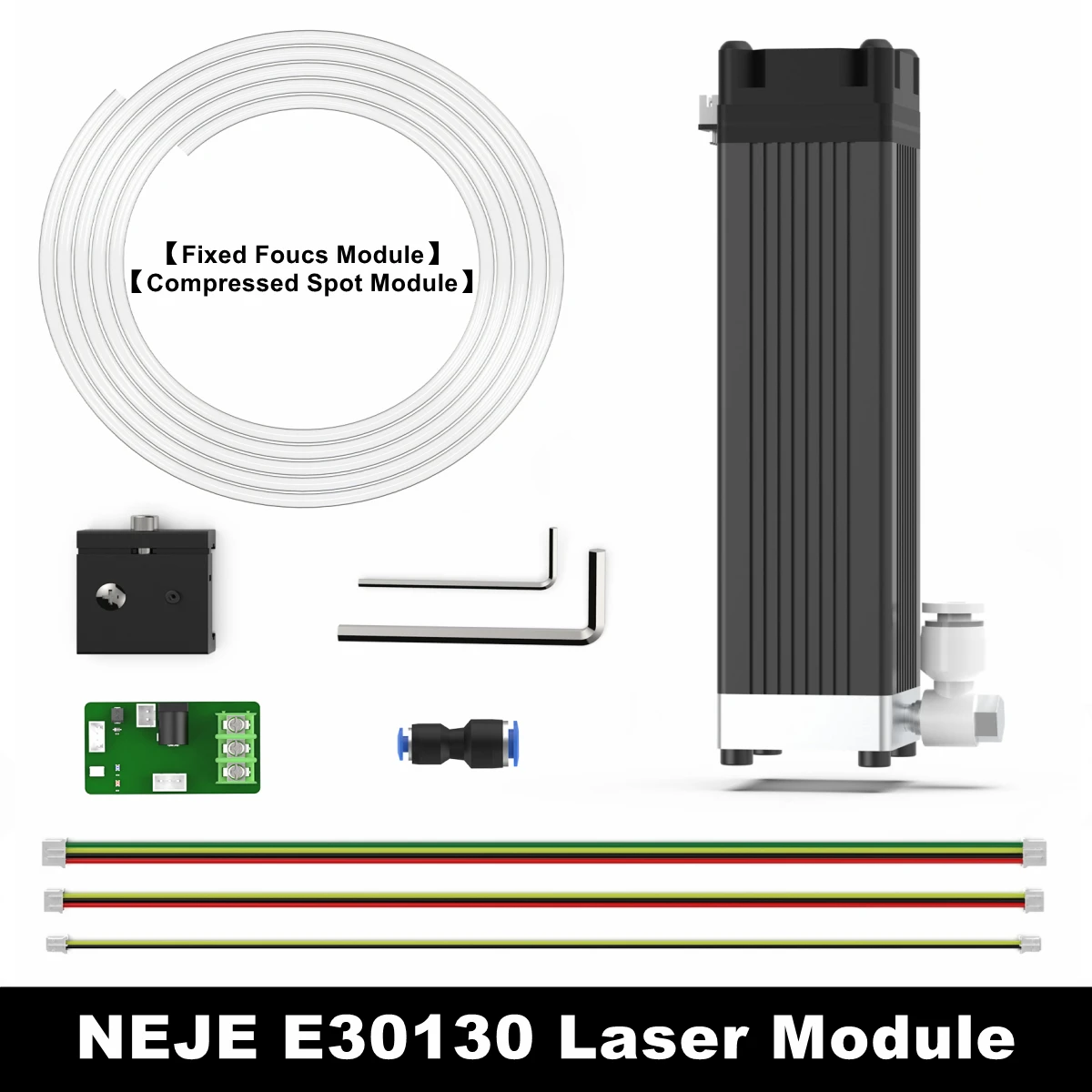

E30130 Module Packing List:

1 x FREE Air Assist

1 x E30130 Laser Engraving Module

1 x Laser Module Sliding fixture

1 x 4 Pin Cable(30cm)

1 x 2pin yellow and black signal line + 3pin input line

1 x NEJE Interface adapter board

1 x 2.5mm L-shaped wrench

1 x 5mm L-shaped wrench

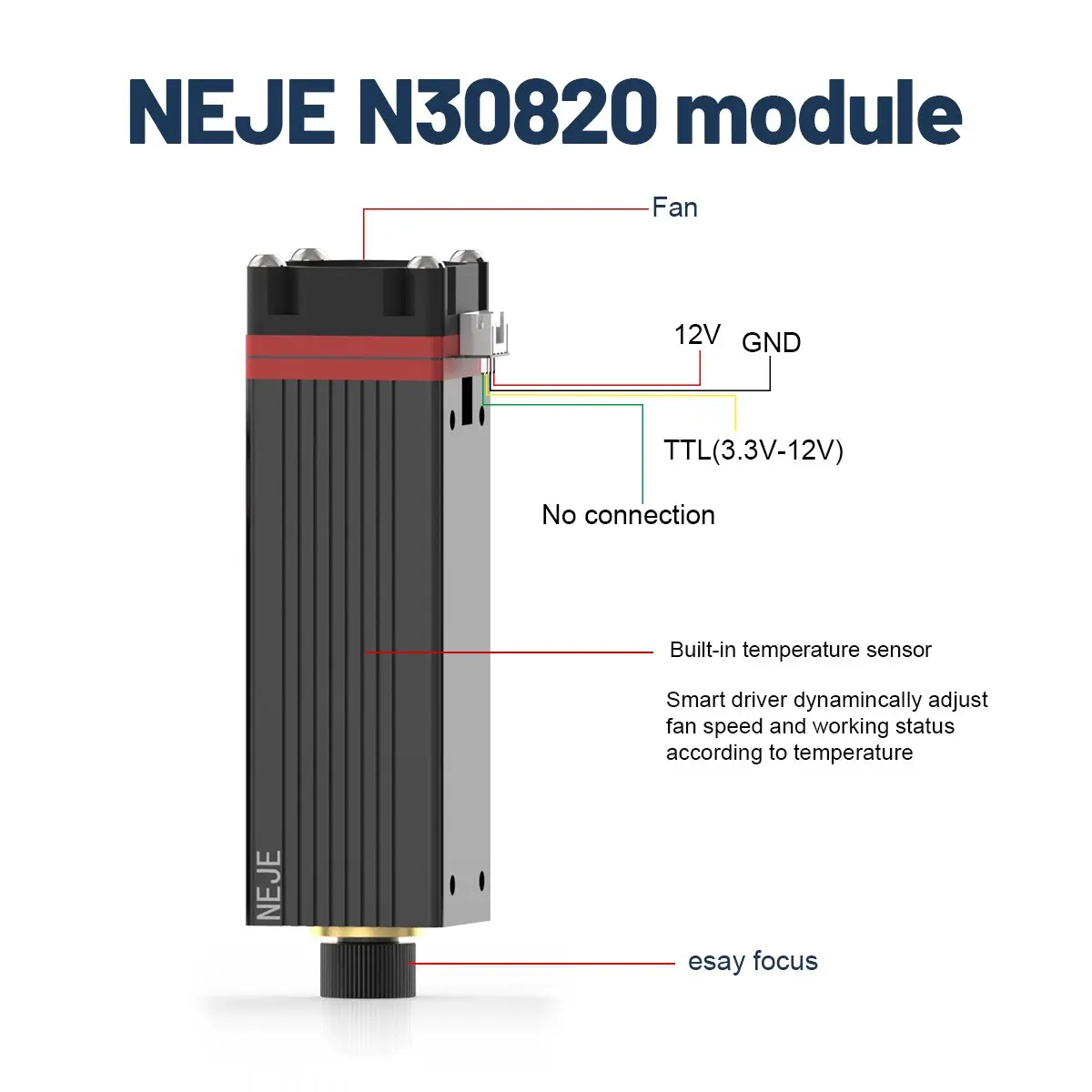

N30820 Laser Module Packing list

1 x MF11 Air Assist

1 x N30820 20w Engraving Module

1 x 2 Screw

1 x sliding card slot

1 x Adapter board

1 x 2 pin cable

1 x 3 pin cable

1 x 4 pin cable

1 x L-shaped wrench

N30610 Laser Module Package List

B30635 Laser Module Package List

N25410 Laser Features

packing list
