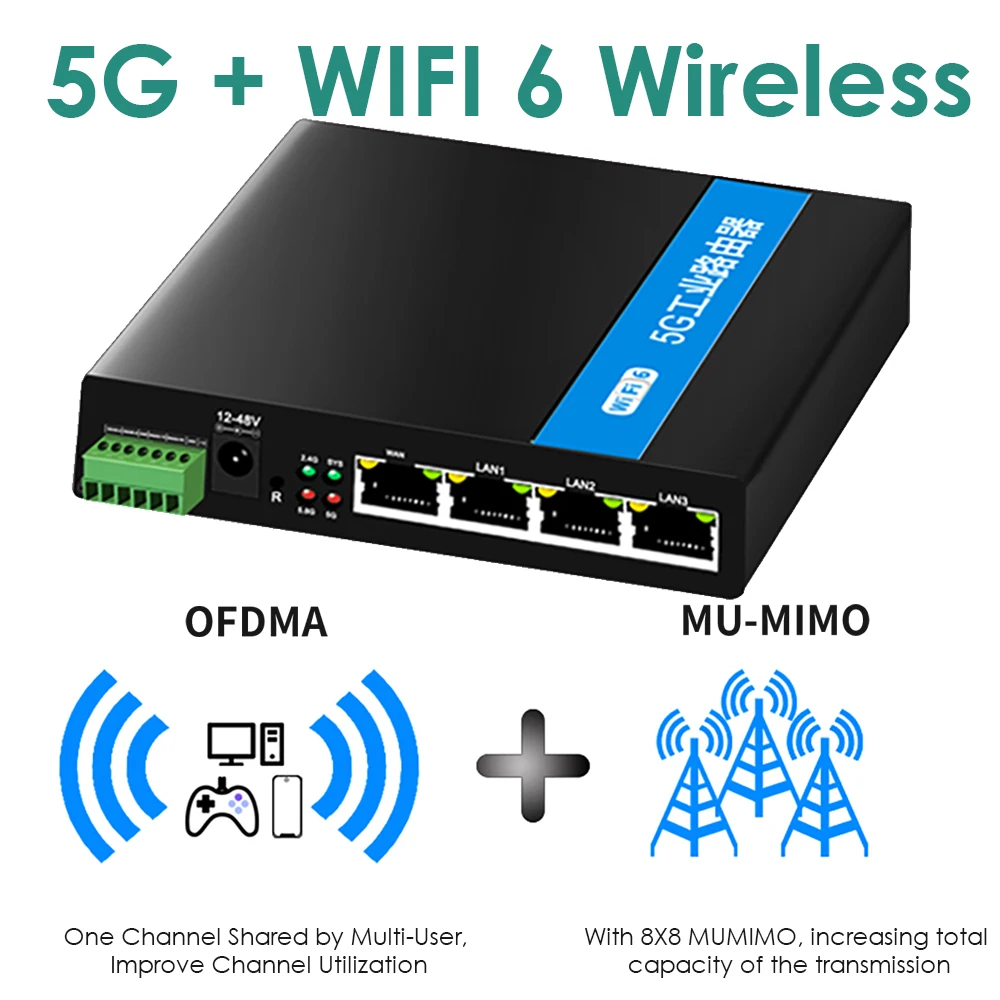

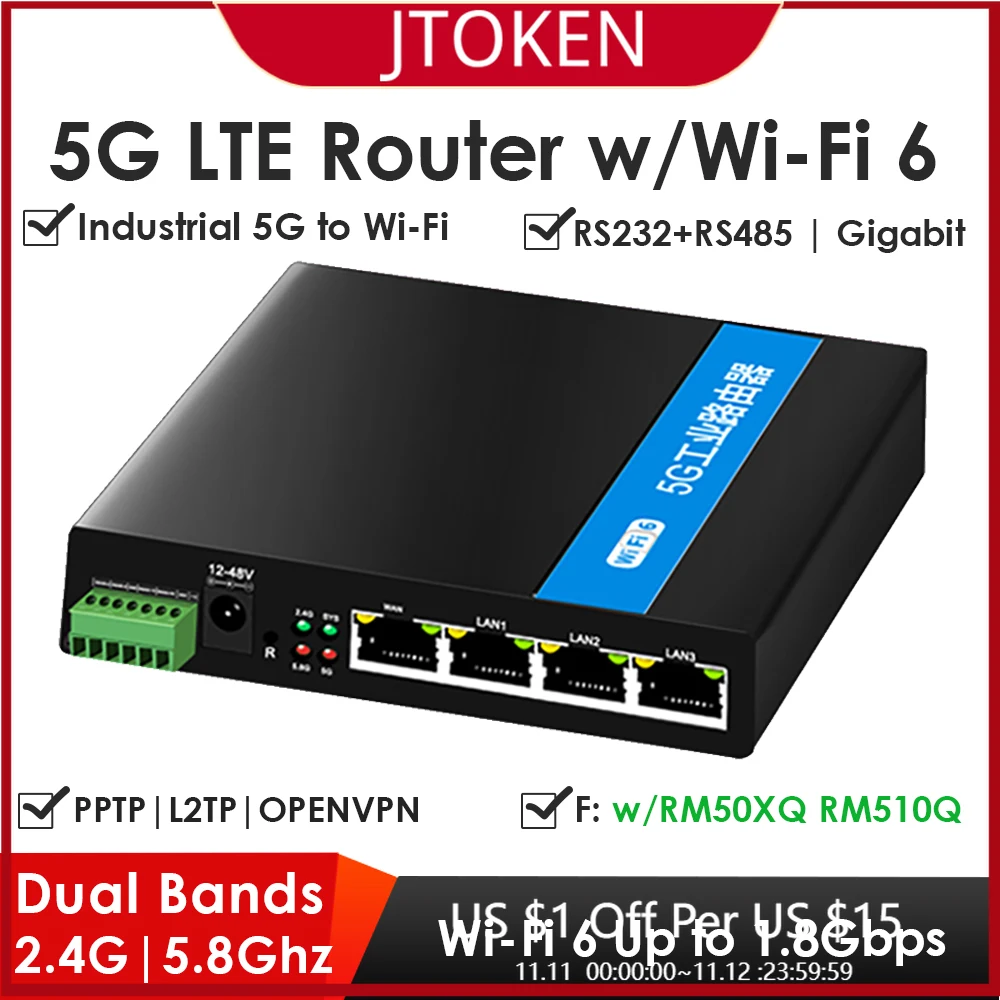

wifi amplifier for home 5G LTE Router with SIM Card Slot, Dual Band Wi-Fi 6 Router, Wireless Speed Up to 1.8Gbps, 3x Gigabit LAN Ports, OFDMA, MU-MIMO wireless signal booster for home Wireless Routers

Brand Name:	JTOKEN
Origin:	CN(Origin)
With Modem Function:	Yes
Type:	wireless
Certification:	CE
Wired Transfer Rate:	1000Mbps
WAN Ports:	1 x10/100/1000Mbps
Number of USB Interfaces:	None
Wi-Fi Supported Frequency:	2.4G & 5G
5G Wi-Fi Transmission Rate:	1733Mbps
Package:	Yes
Max. LAN Data Rate:	1000Mbps
Model Number:	EX6
Standards And Protocols:	Wi-Fi 802.11g
Standards And Protocols:	Wi-Fi 802.11b
Standards And Protocols:	Wi-Fi 802.11n
Standards And Protocols:	Wi-Fi 802.11ac
Wi-Fi Transmission Standard:	802.11ac
2.4G Wi-Fi Transmission Rate:	300 Mbps
LAN Ports:	3
Supports WPS:	No
Function:	Firewall
Function:	VPN
Application:	Multi-service
VPN:	Supported
L2TP:	Supported
PPTP:	Supported
Hardware Watchdog:	Supported

Overview

CPU

Dual-core four threads 880Mhz frequency;

Memory

On-board SMD DDR3 128MB, Expandable up to 512MB;

Flash

16MB Nor Flash;

WIFI

802.11ax (Wi-Fi 6), Max Data Transmission Rate Up to 1800Mbps, Dual Bands 2.4GHz and 5.8GHz;

Network Supported

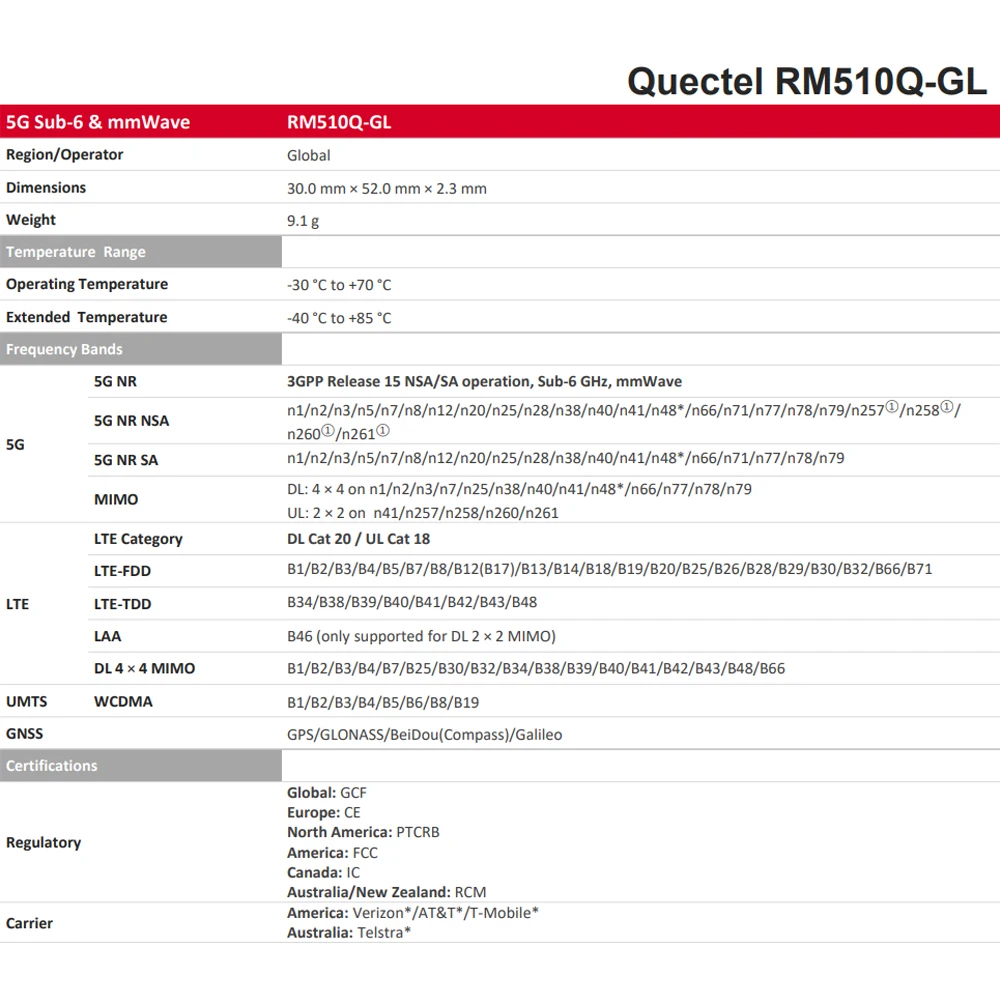

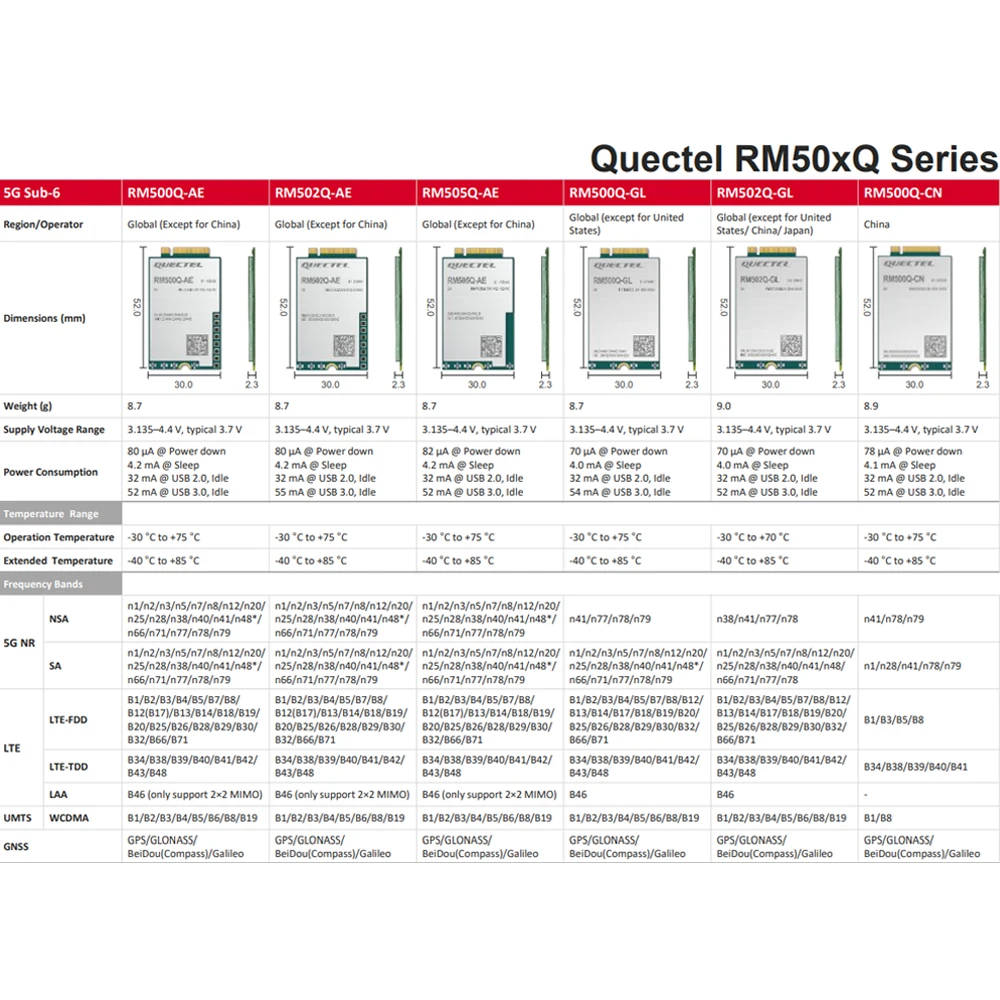

Industrial Grade 5G IoT Modules

System Time

NTP, Built-in RTC

WAN

1x WAN Port

LAN

3x LAN Ports(10M/100M/1000M Adaptive MDI MDIX Port)

SIM Card Slot

1x Drawer SIM Card Slot, Supports SIM/UIM Card in 1.8V/3V

USB

Not Supported

Reset

1x Reset Button

Antenna Ports

4x 4G/5G Antenna, Impedance 50 Ohms, SMA Internal Hole Interface;

2x 2.4GHz Wi-Fi Antenna, Impedance 50 Ohms, SMA Internal Hole Interface;

2x 5.8GHz Wi-Fi Antenna, Impedance 50 Ohms, SMA Internal Hole Interface;

Power Connector

1x 2PIN PH3.81 Connector

Console Port

1x Built-in Console Port

Indicators

4x Indicators(1x 5G, 1x SYS, 2x Wi-Fi)

Power Supply

External Power Adapter(DC 12V 2A)

Working Voltage

Wide Voltage Input DC 9V~36V

Standby Consumption

300~500mA@12V DC

Working Consumption

500~700mA@12V DC

Working Temperature

-40°C ~ +85°C (-40°F ~ +185°F)

Storage Temperature

-40°C ~ +85°C (-40°F ~ +185°F)

Working Humidity

5%~95%(Non-condensing)

Device Ventilation

Natual Heat Dissipation, No Noise

Chassis

Metal Chassis

Dimensions

155mm(L) x 115mm(W) x 29mm(H) (Antennas Excluded)

Installation

Rail Mounted, Wall Mounted

Weight

N.W.: 0.47kg (Antennas and Accessories Excluded)

G.W.: 0.85kg (Antennas and Accessories Included)

Safety and Reliability

Power Inverting Protection, Overvoltage Protection, Overcurrent Protection, Built-in 1.5KV Electromagnetic Isolation Protection of Ethernet Port;

Built-in 15KV ESD Protection of RS232/RS485; Built-in 15KV ESD Protection of SIM/UIM Card Interface;

Protection Level

IP45

Certification

CCC, RoHS

MTBF

>100,000 hours

Network Access

APN, VPDN Supported

Access Authentication

CHAP/PAP Certification Supported

Network Mode

GSM/GPRS/EDGE, LIMTS/HAPA+/EVDO/TD-SCDMA/TD LTE/FDD LTE/5G NR

LAN Protocol

ARP, Ethernet Supported

WAN Protocol

Static IP, DHCP, PPPoE, PPP Supported

IP Applications

PING, Trace, DHCP Server, DHCP Relay, DHCP Client, DNS Relay, DDNS, Telnet Supported

IP Routing

Routing Supported

NAT

Supported

Industrial Protocol

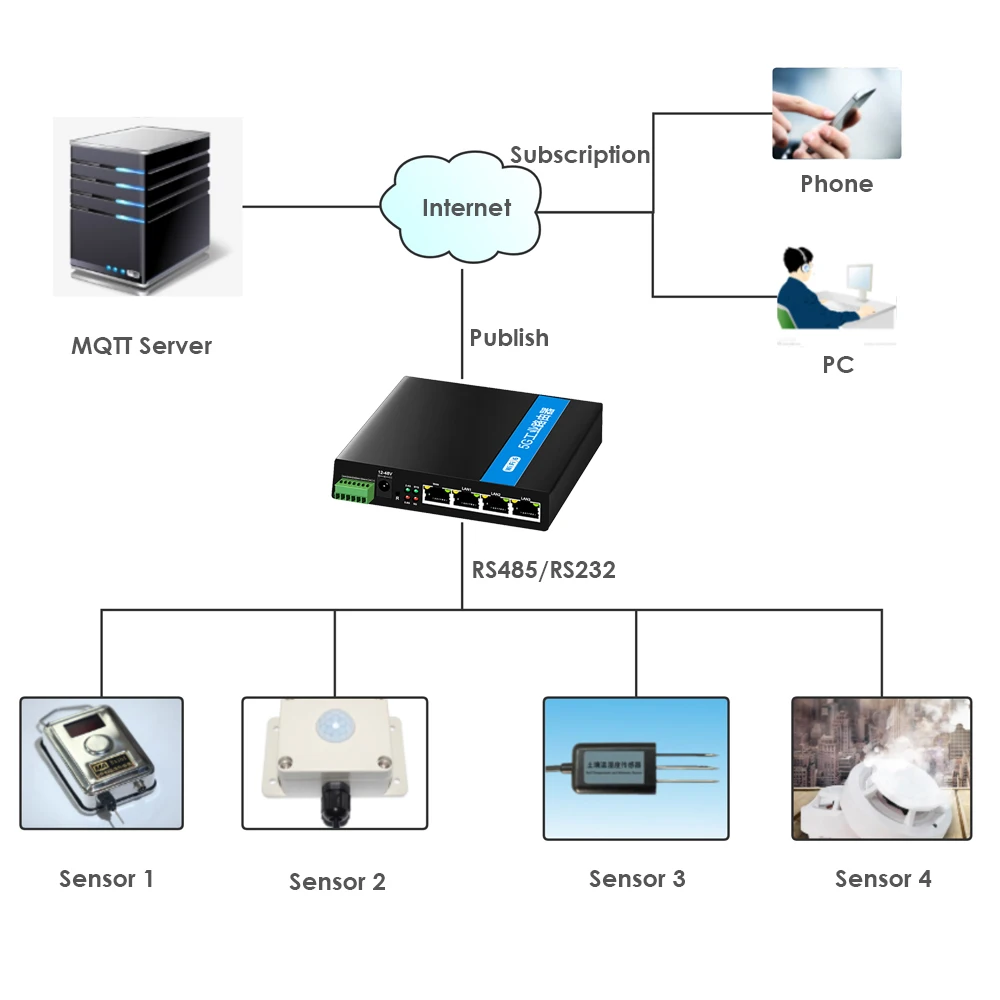

IEC101/104 Regulations, 212 Environmental Protection Protocol, MQTT, MUDBUS and other industrial protocols are supported

Firewall

Full Status Packet Inspection(SPI), Protection Against Denial of Service (DOS) Attacks, Filtering Multicast/Ping Packets, Access Control Lists(ACL), Content URL Filtering, Port Mapping, Virtual IP Mapping, IP-MAC Binding

Data Security

IPsec VPN /L2TP/PPTP/GRE/OPEN VPN/CA Certificate

Backup Function

Wired, Dual 5G Three-Way Mutual Backup

Link Online Monitoring

Send heartbeat packet detection, disconnection automatically connected

Embedded Watchdog

Self-test technology, Self-pairing when any failure

Protocols

IEEE 802.11 b/g/n/ac/wifi6 ax

Transmission Rate

Up to 1.8Gbps

Security

Open Systems, Shared Key, WPA/WPA2 Authentication, WEP/TKIP/AES Encryption

Working Mode

AP, Client Working Mode

Transmission Distance

100m(Depends on the actual environment)

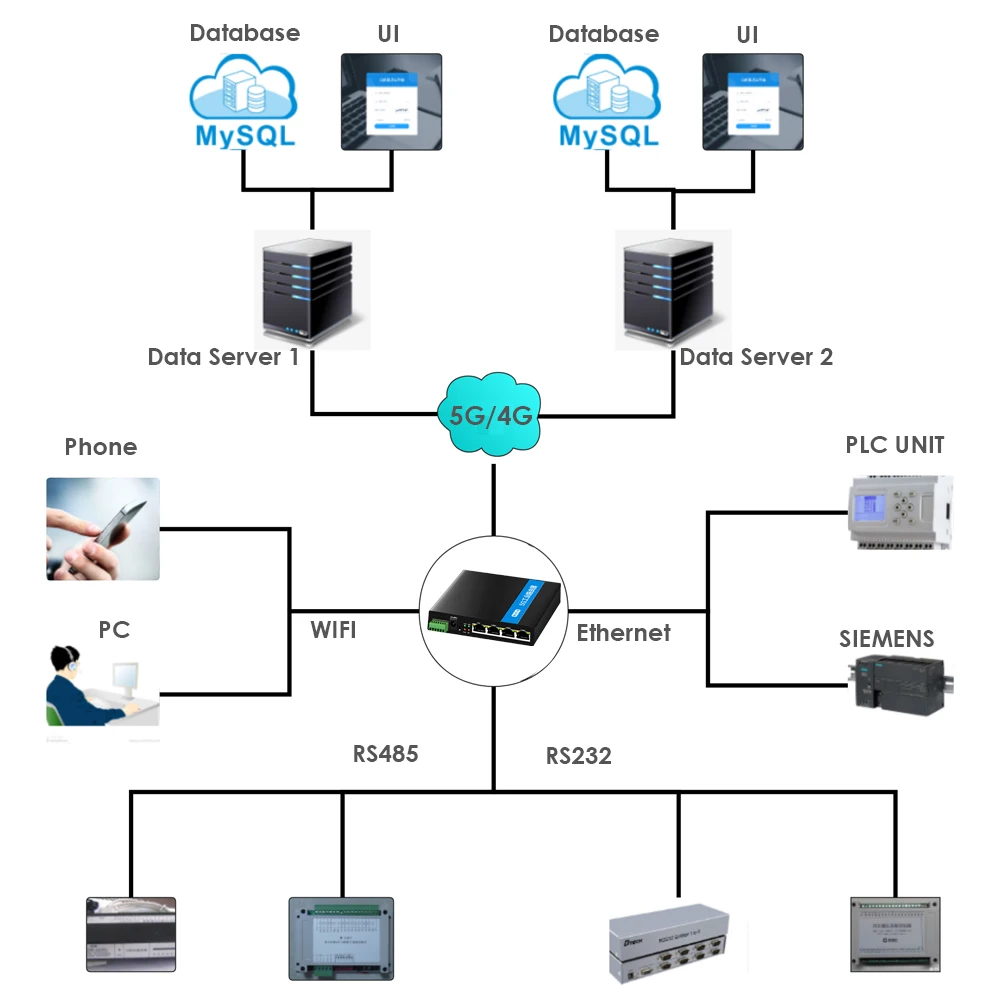

DTU Integration

TCP/UDP Transparent Transmission Mode;

TCP Server Mode;

Modbus RTU to Modbus TCP Bridge;

DCUDP, DCTCP Mode

QOS Management

Bandwidth Limit, IP Speed Limit

Configuration Method

By Telnet, Web, SSH and Console

Upgrade Method

Web Upgrades and FOTA

Log

Local System Logs, Remote Logs, Serial Output Logs, Important Logs Saved when Powered off

SMS

Status Query, Configuration, Restart

Dial-on-Demand

Dial-on-demand, Data Activation, SMS Activation

Network Management

STAR Device Manager Network Management Platform Supported, Batch Management

Simple Network Management

SNMP v1/v2c/v3 and SNMP TRAP

Traffic Management

Traffic Threshold Setting, Traffic Statistics and Traffic Alarms

Alarm

System Restart, LAN Port Online and Offline, Traffic Alarm, SIM Card Failure Alarm and other alarms

Maintenance

Ping, Route Tracing, Internet Speed Testing

Status Query

System Status, Modem Status, Network Connection Status, Routing Status
