welding visor 5Pcs 900M-T Lead Free Soldering Iron Tips SI/I/B/K/2.4D/1C Welding Tips Head For Hakko Saike 936 852d 909D Soldering Station home depot welding rods Welding & Soldering Supplies

Origin:	CN(Origin)
is_customized:	no
Certification:	CE
Model Number:	Solder Iron Tips

5Pcs Lead Free Soldering Iron Tip 900M-T SI/I/B/K/2.4D/1C Welding Tips Head For Hakko Saike 936 852d 909D Soldering Station

Details:

*100% brand new and high quality

*Replacement Iron Tip for Hakko 936 Station, For 900M.933.376.907.913.951,898D,852D+

*Lead-free paint environmentally friendly soldering iron tip, high temperature resistance, more suitable for high melting point lead-free soldering

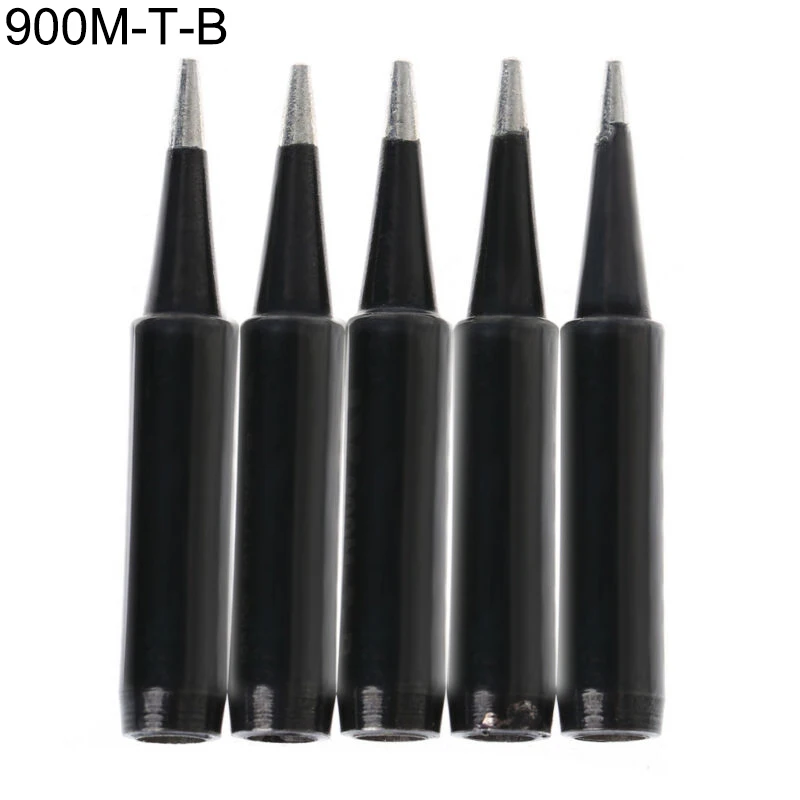

*Type B: (conical):

Features: B-type soldering iron tip is non-directional, the entire tip of the soldering iron can be welded.

Applications: Suitable for general welding, regardless of the size of the solder joints, you can also use a B-type soldering iron.

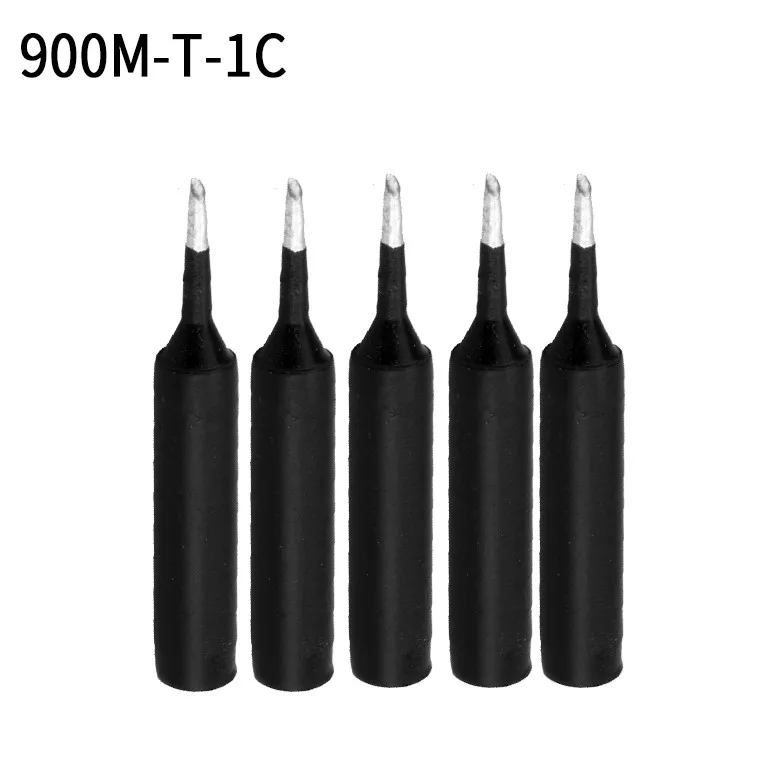

*C type (beveled cylindrical):

Features: Welding with the beveled part of the tip of the tip of the soldering iron, suitable for welding with a large amount of tin.

Scope of application: Suitable for welding machines that require multi-tin quantity, such as welding area with large welding area, thick terminal and large welding pad.

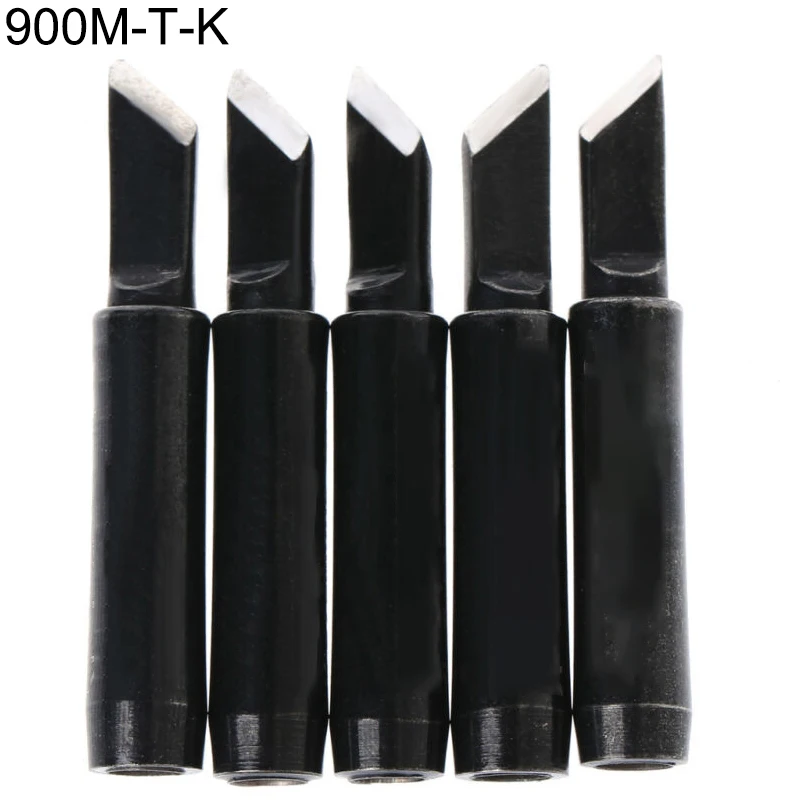

*K type (blade shape):

Features: use blade type part welding, vertical or pull-welded welding can be a multi-purpose tip.

Applications: Suitable for SOJ.PLCC.SOP.QFP. Power supply, grounding components, tin bridges, connectors, etc.

* Tips for maintenance:

1: Try to use low temperature soldering

High temperature will accelerate the oxidation of the tip and reduce the life of the tip. If the tip temperature exceeds 470 ° C, its oxidation rate is twice that of 380 ° C.

2: Do not apply too much pressure

When welding, do not apply too much pressure, otherwise the tip will be damaged and deformed. As long as the tip can fully contact the solder joint, the heat can be transferred. Also choose the appropriate tip to help heat transfer.

3: Always keep tin on the iron head

This can reduce the oxidation chance of the soldering iron tip and make the soldering iron head more durable. After use, the new solder should be added after the temperature of the soldering iron tip is slightly lowered, so that the tin plating layer has better anti-oxidation effect.

4: Keep the tip clean and instantly clean the oxide

If there is black oxide on the soldering iron tip, the soldering iron tip may not be tinned. At this time, it must be cleaned immediately. When cleaning, first adjust the temperature of the soldering iron tip to about 250 ° C, then clean the soldering iron tip with a cleaning sponge, and then on. Tin. Repeat the action until the oxide is cleaned.

5: Select low-activity flux

Highly active or corrosive fluxes will accelerate the corrosion of the soldering iron when heated, so low-corrosion fluxes should be used.

*Color: Black(As Pictures Show)

*Material: Metal

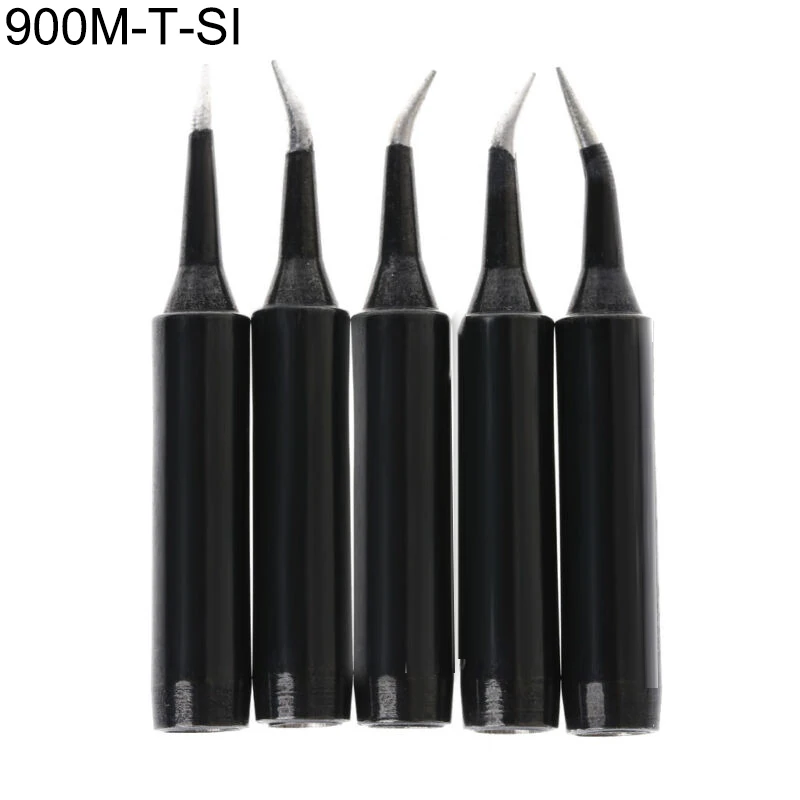

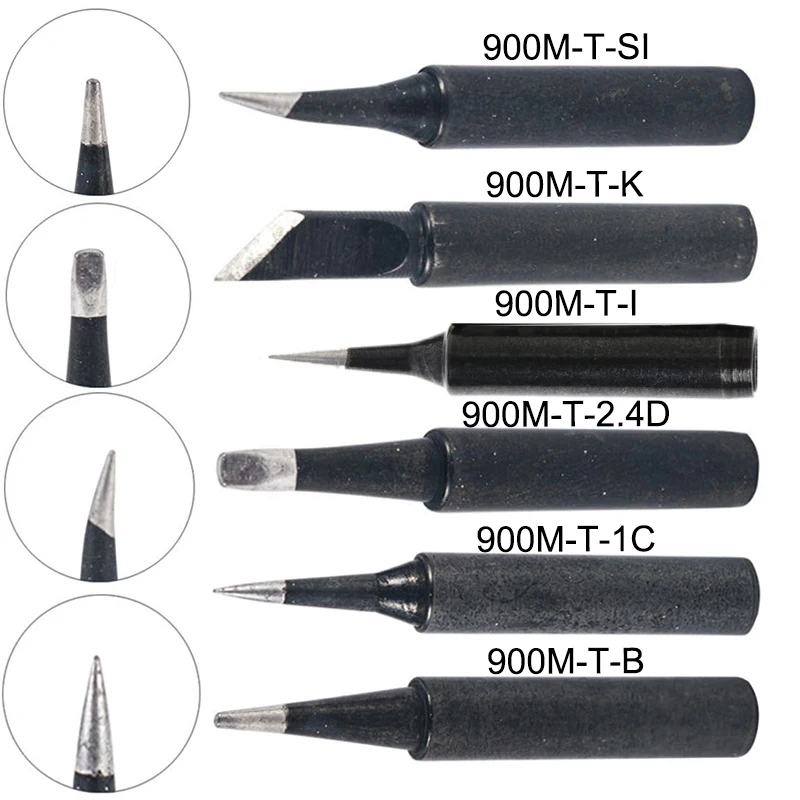

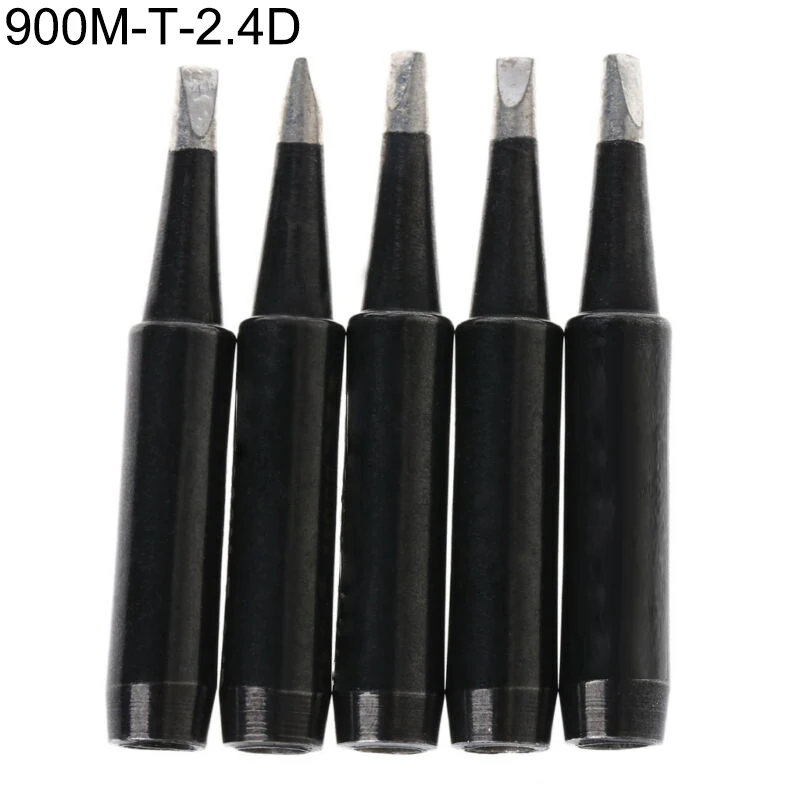

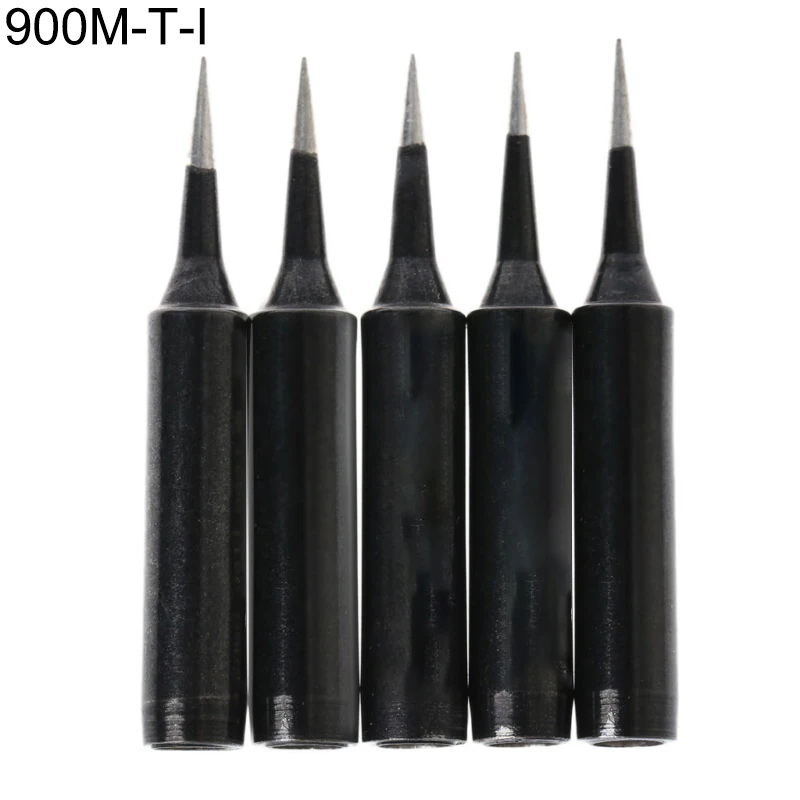

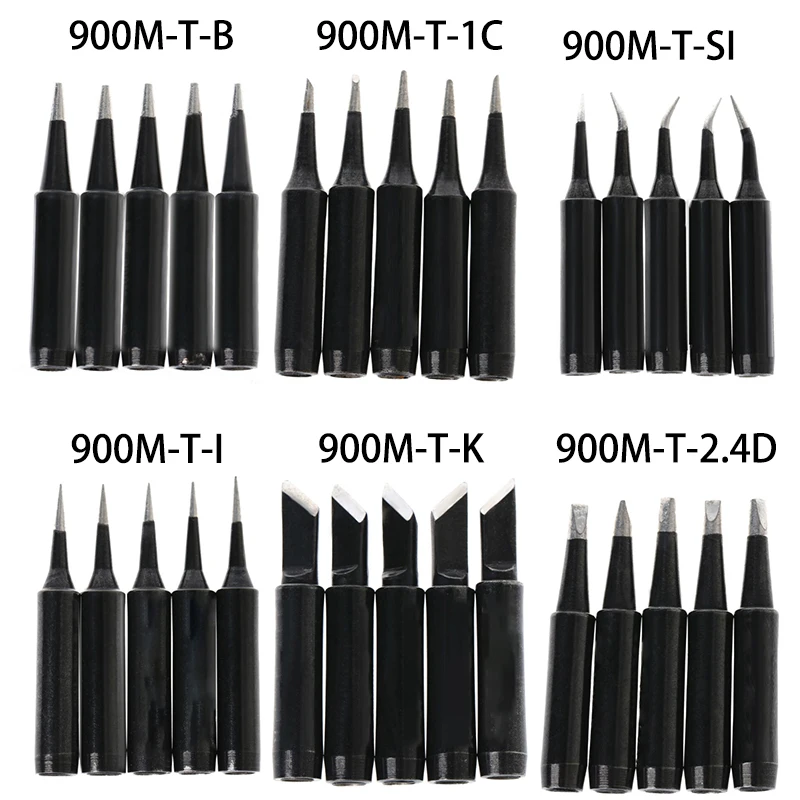

*Optional type: 900M-T-SI,900M-T-B,900M-T-I,900M-T-K,900M-T-2.4D,900M-T-1C(As Pictures Show)

*Diameter: 5mm (Approx.)

Package Contents:

5*Soldering Iron Tips

Note:

The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
