Vgate vLinker MC+ ELM327 for BimmerCode FORScan OBD 2 OBD2 Scanner WIFI Bluetooth-Compatible for IOS PK OBDLINK ELM 327 V 1 5 high quality auto inspection equipment Code Readers & Scanning Tools

Brand Name:	JFIND
Certification:	CE
Origin:	CN(Origin)
Special Features:	Other
Software Version:	Vgate vLinker ELM327 V2.2
Language:	English
Software Update:	No
Hardware Version:	Vgate vLinker ELM327 V2.2
Item Type:	Code Readers & Scan Tools

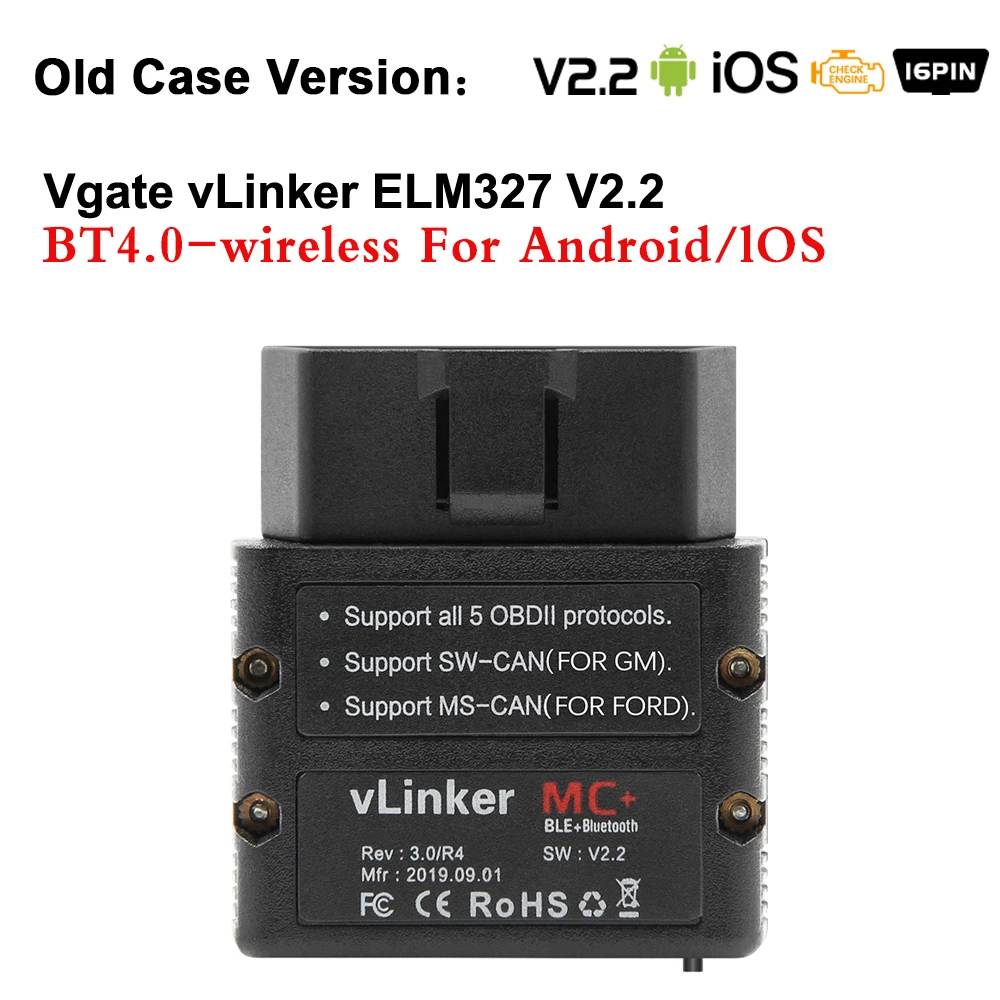

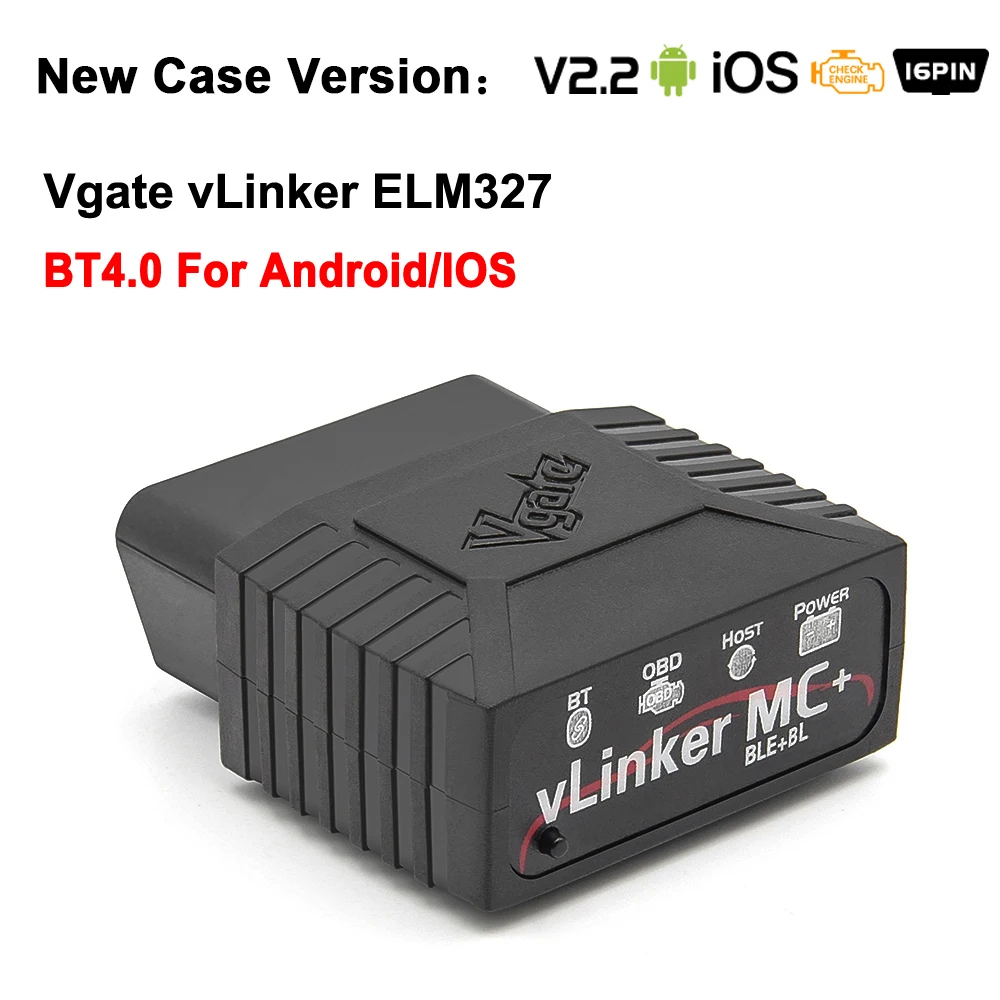

Item Name:	100% Original Vgate vLinker BT3.0/4.0/WIFI
Special Features:	Adapter Auto Sleep/User-defined operation/All OBD2 protocols
Product Name:	100% Original Vgate vLinker ELM 327 V2.2 Code Reader
Function:	More Powerful Than iCar Pro/OBDlink/ELS27 etc.
Operating system For BT4.0/WIFI:	Android/IOS

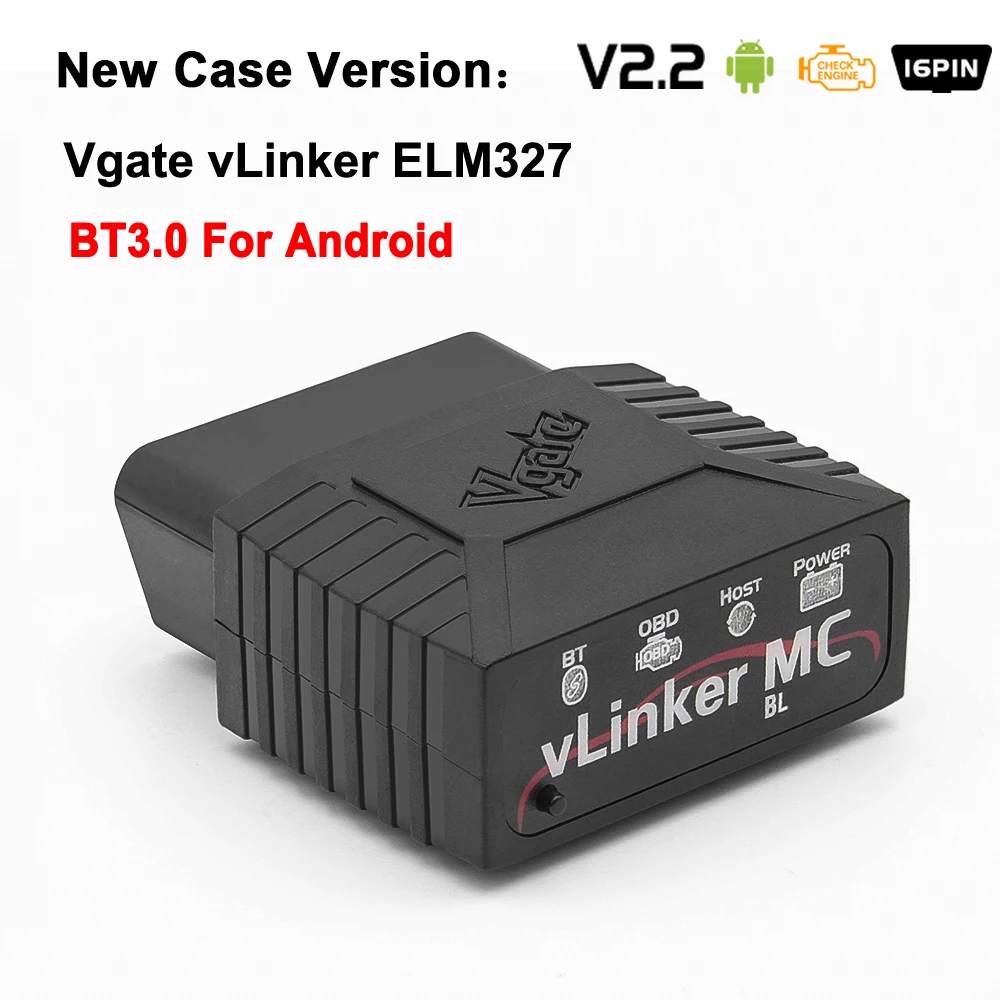

Operating system For BT3.0:	Android
Car Maker:	For BMW/BENZ/VW/OPEL/AUDI/Toyota etc.
Item Type:	Vgate vLinker withBT4.0 WIFI Scanner

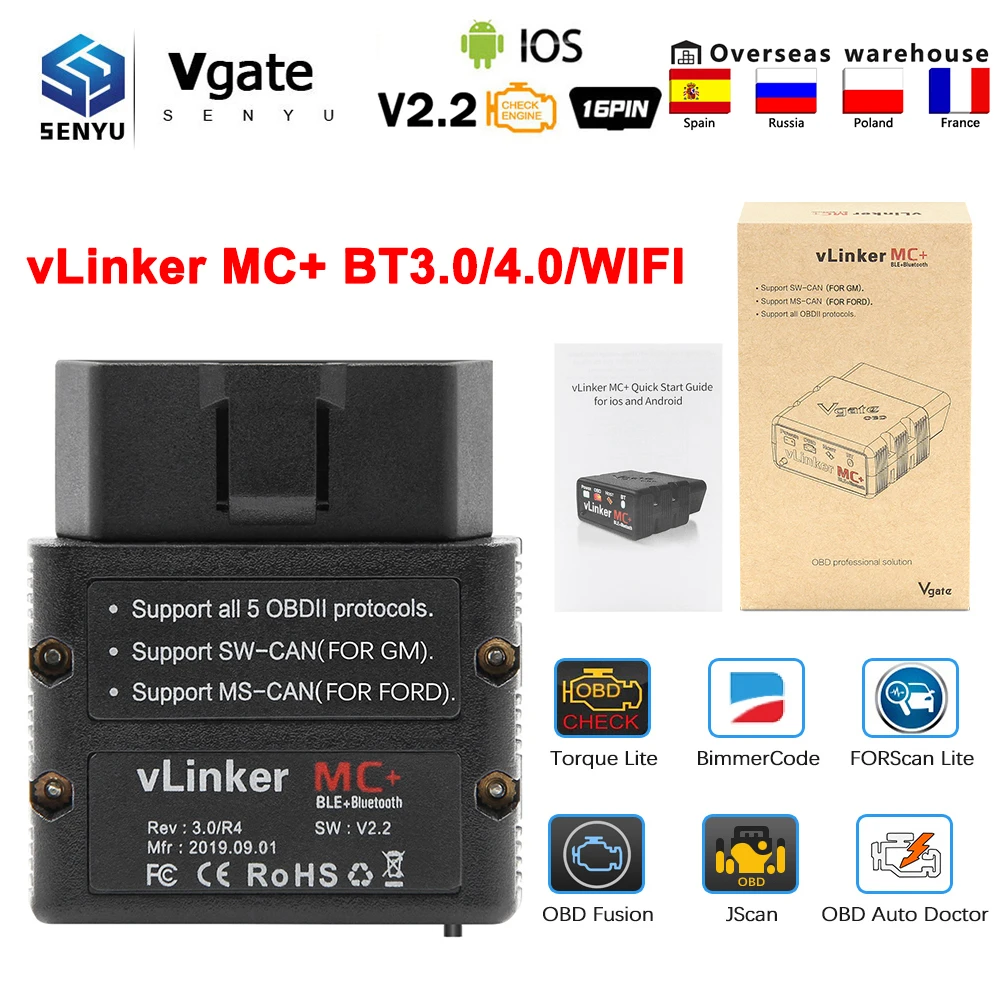

Vgate Vlinker ELM327 V2.2 Wireless-BT4.0/3.0 WIFI OBD2 Scanner ELM 327 For Android/IOS work for OBDLINK Forscan ELM329 for BimmerCode

Purchase Notes：

1.Our products support popular software such as:BimmerCode/Torque/Forscan/JScan/Auto Doctor/OBD Fusion etc.,We only sell adapters to be compatible with these software, but some of the functions of the software or the software itself are not free, you need to pay additional fees to the software company

2.If your mobile phone is IOS, when you use BT4.0 Ver., please connect to BT directly in the software,Don't connect to BTin phone settings.If you are using MC BT version on Android, you need to press the switch first, and then search for BT：vlinker MC-Android

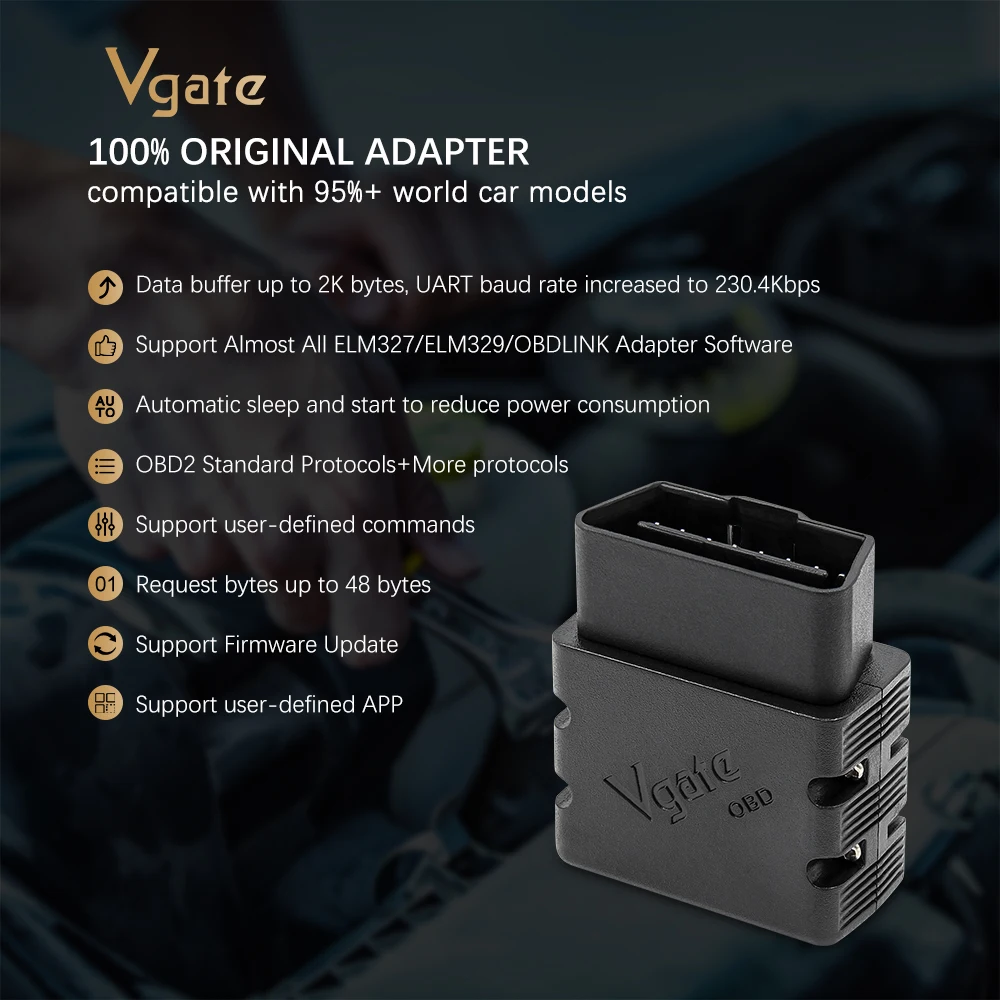

100% Original Vgate vLinker BT3.0/4.0/WIFI:

compatible with 95%+ world car models

1.Data buffer up to 2K bytes, UART baud rate increased to 230. 4 Kbpsc

2.Support Almost All ELM327/ELM329/OBDLINK Adapter Software

3.Automatic sleep and start to reduce power consumptione

4.OBD2 Standard Protocols+More protocols

5.Support user-defined commands

6.Request bytes up to 48 bytes

7.Support Firmware Update

8.Support user-defined APP

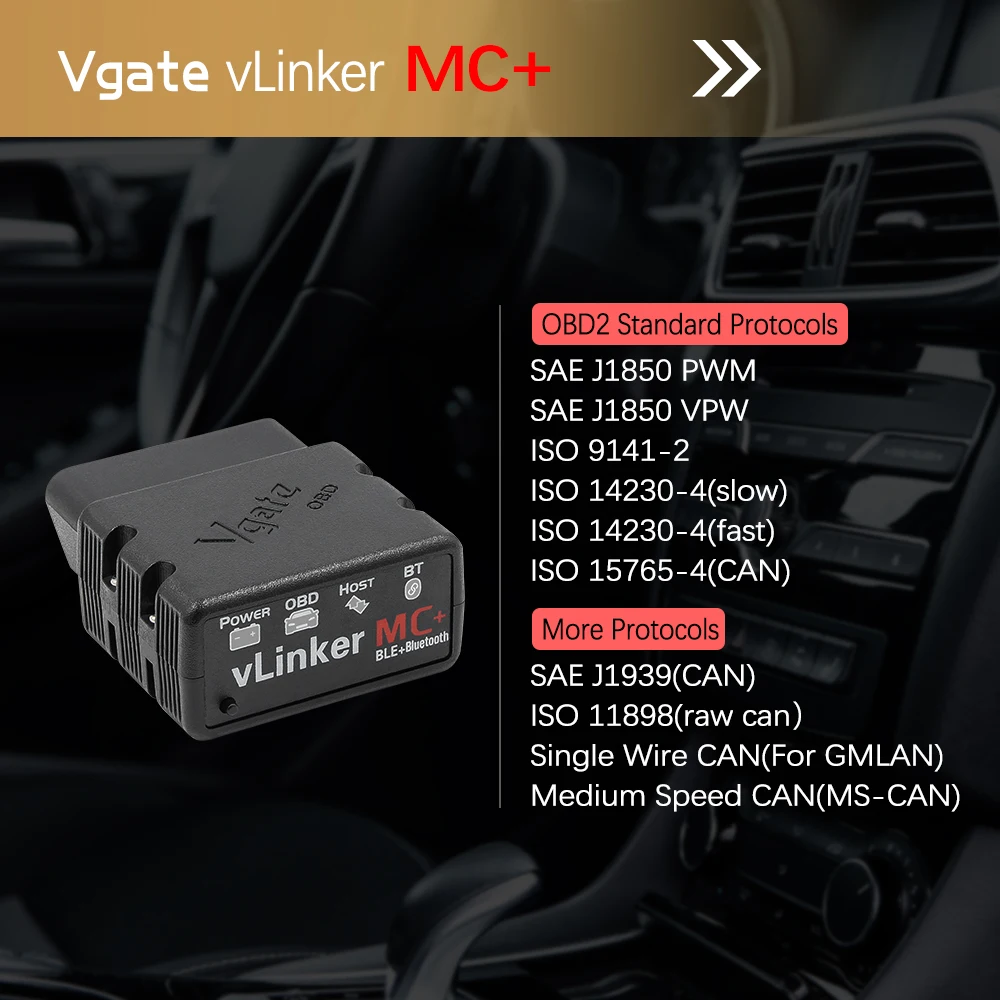

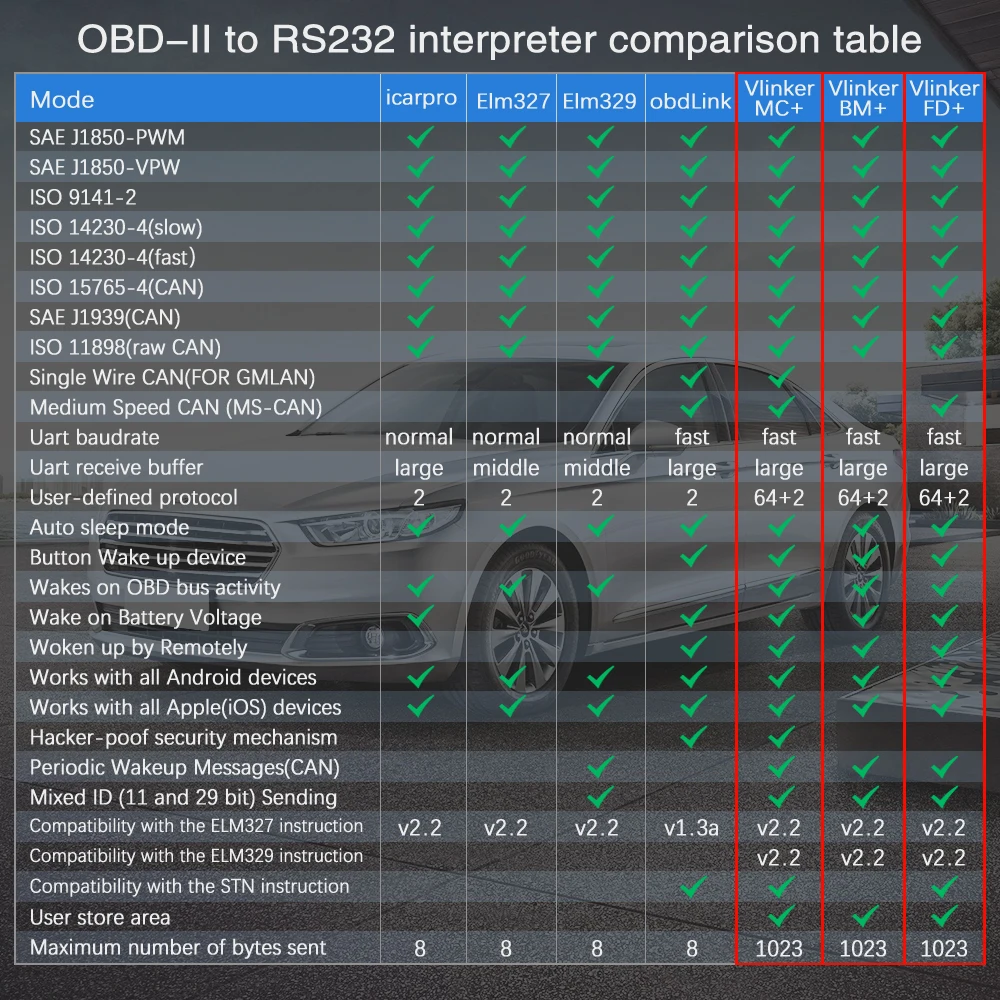

Support Protocols

Multiple protocols：

--15 ELM format protocols;

-- 23 STN format protocols;

-- Up to 64 user-defined protocols.

OBDII 5 standard protocols：

-- SAE J1850 VPW

-- SAE J1850 PWM

-- ISO 9141-2

-- ISO 14230-4

-- ISO 15765-4 CAN

Additional

protocols：

-- SAE J1939 CAN

-- ISO 11898 (raw CAN)

-- for GMLAN Single Wire CAN (for GMW3089)

-- for Ford Medium Speed CAN (MS CAN)

These

protocols

cover almost 99% of the OBDII Cars on the market

Software Support：

Perfect compatibility: For Bimmer Code/For Torque/For Forscan/For JScan/For Auto Doctor/For OBD Fusion etc. 99% APP Software

Please Note：

We only sell adapters. If you need to charge for some functions of the software you choose, this money is paid to the software developer，not to us

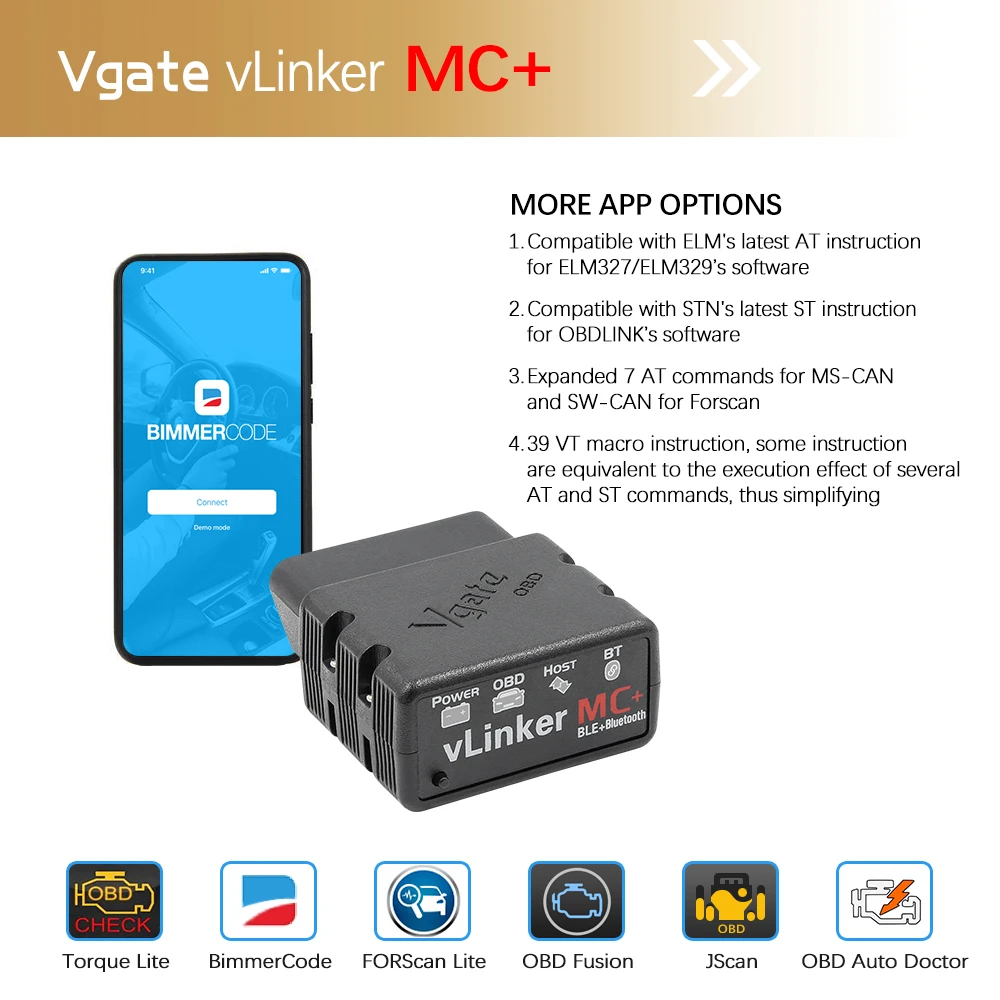

Rich instruction set, compatible with more APP software：

-- Fully compatible with ELM's AT command set;

-- Fully compatible with STN's ST command set;

-- Expanded 7 AT commands for HS-CAN, MS-CAN, SW-CAN;

--39 VT macro commands, some instructions are equivalent to the effect of several AT and ST instructions, simplifying the communication steps.

-- Compatible with ELM and STN power management solutions.

-- Support for instructions, UART silence, battery low voltage, OBD bus silence, etc. Up to 5 ways to go to sleep;

-- Support UART active, battery voltage drop, OBD bus active, key, etc. Up to 5 ways to wake up from sleep mode.

-- Device sleep power consumption is less than 2 mA.

-- OBD request byte up to 48 bytes, can meet the needs of some special long framecommunication.

-- UART data buffer up to 2K bytes, baudrate increased to 230.4Kbps.

-- 256-byte storage unit

-- More than 100,000 erasable times

-- Read and write operations on any unit in the storage area by using the VT command

-- Mix ID Sending" mode of CAN protocol.

-- Optional formatted send data according to protocol

-- Multiple WM sequence settings

-- Support AT command to manually set WM sequence

-- Support for specifying a protocol or a full protocol-wide temporary WM sequence

-- Support for a permanent link between a protocol and a private WM sequence

-- Secure bootloader for easy firmware updates

Typical Applications：

• Vehicle telematics

• Fleet management and tracking applications

• Usage-based insurance (UBI)

• OBD data loggers

• Automotive diagnostic scan tools and code readers

• Digital dashboards

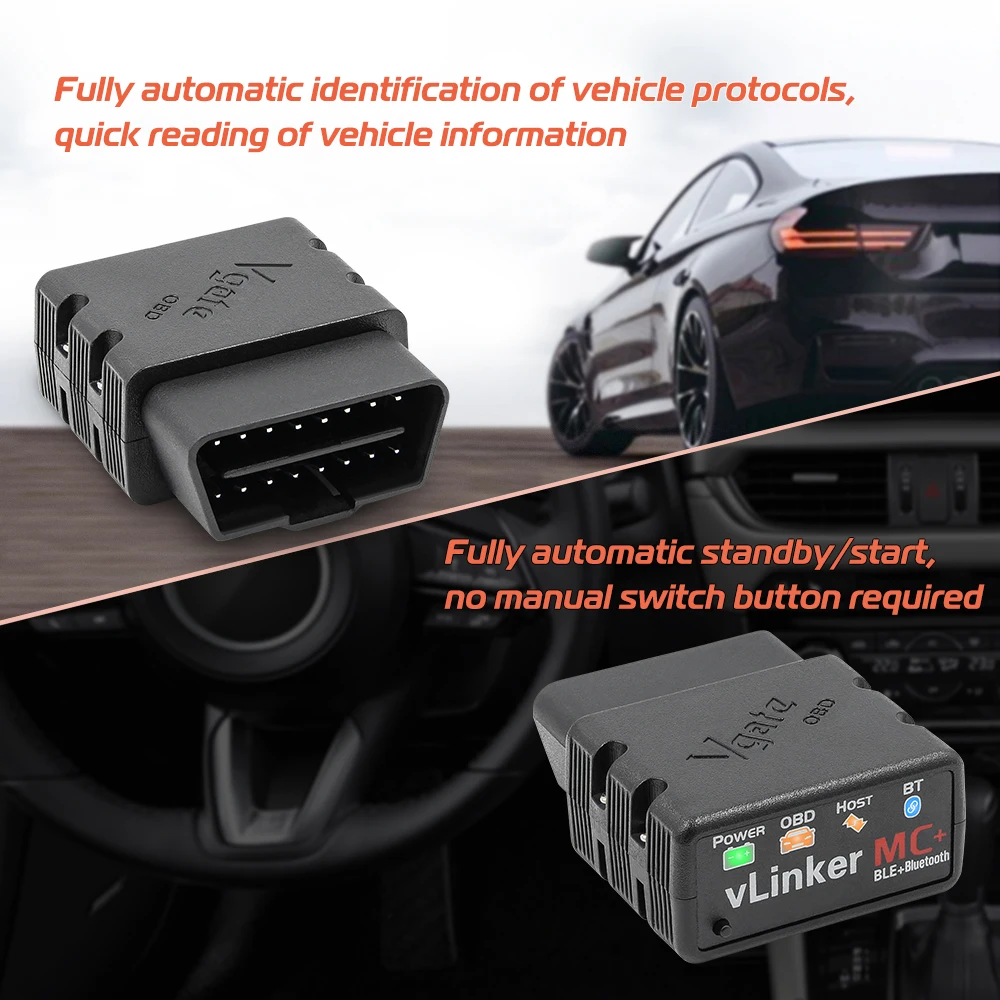

Special Function:

Fully automatic identification of vehicle protocols,quick reading of vehicle information

Fully automatic standby/start,no manual switch button required

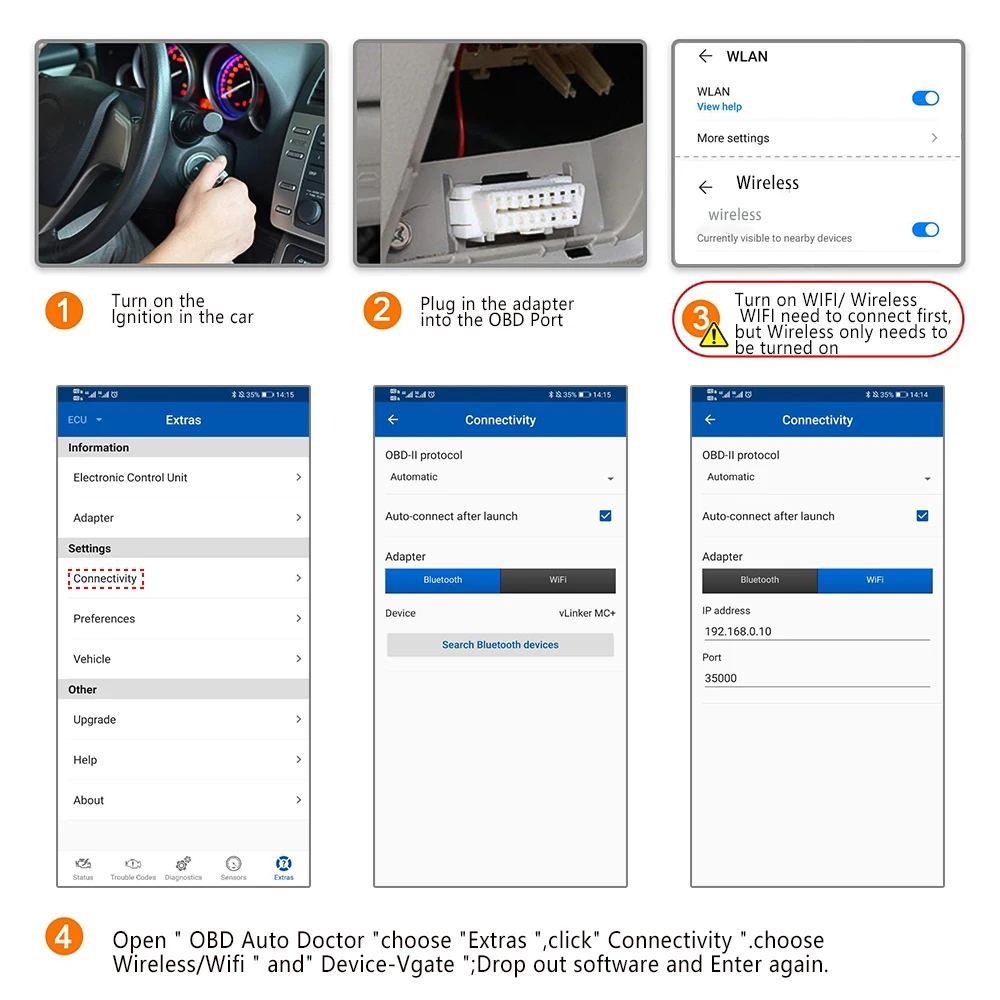

Connection method:

BT4.0/3.0：

1.Turn on theIgnition in the car

2.Plug in the adapterinto the OBD Port

3.Turn on

Wireless-BT4.0,

BT4.0

only needs to be turned on

4.

Open OBD Auto Doctor choose “Extras” ，cick “Connectivity”,choose “Wireless-BT4.0”and  “vLinker MC+” Drop out software and Enter again

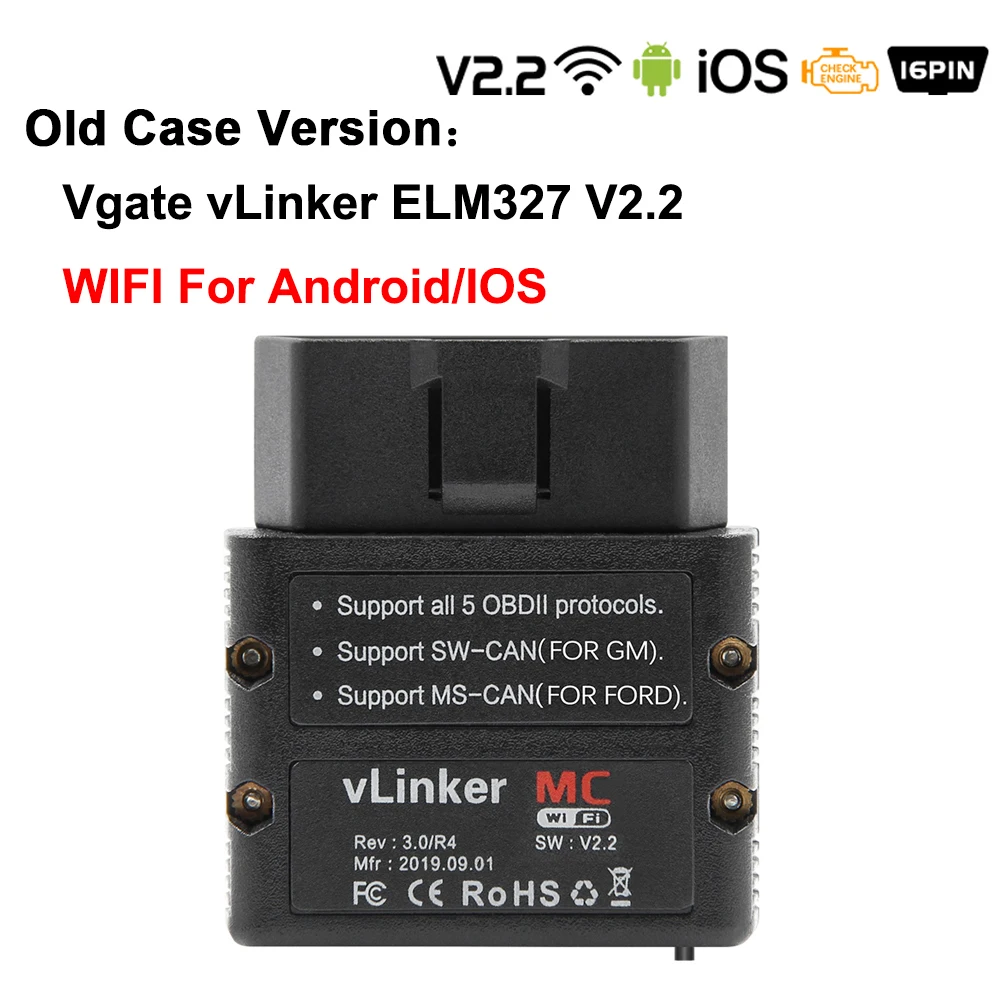

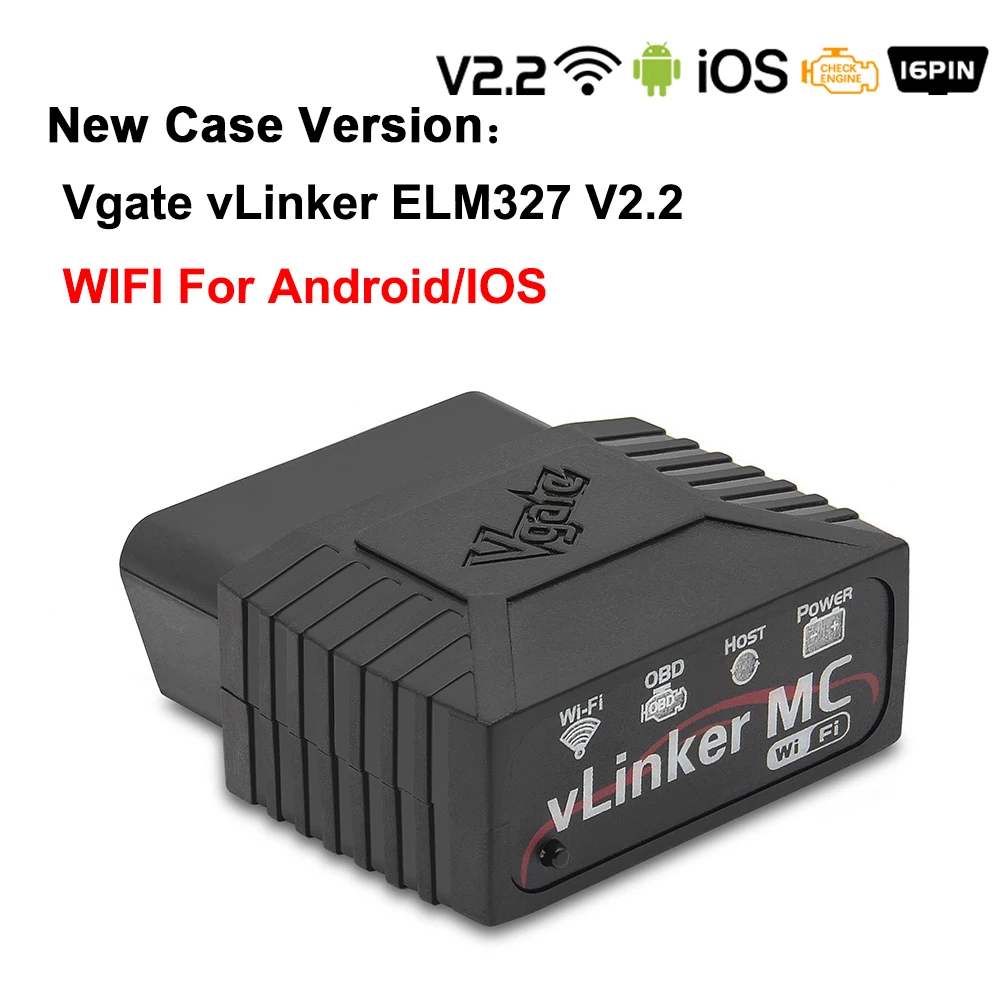

WIFI：

1.Turn on theIgnition in the car

2.Plug in the adapterinto the OBD Port

3.Turn on WIFI,

connected “vLinker”

4.

Open OBD Auto Doctor choose “Extras” ，cick “Connectivity”,choose “WIFI”，Drop out software and Enter again

1 x Vgate vLinker WIFI/Wireless-BT4.0/3.0

1 x User manual
