VEVOR 2.2KW 3KW Water Cooled Spindle Motor High Speed ER20 Collet Match with CNC Engraving Milling Machine & Frequency Converter bit holder Machine Tools & Accessories

Code: TD-3256802679485263 49 orders
Free Shipping
$ 402.74
Color:
VEVOR 2.2KW 3KW Water Cooled Spindle Motor High Speed ER20 Collet Match with CNC Engraving Milling Machine & Frequency Converter bit holder
VEVOR 2.2KW 3KW Water Cooled Spindle Motor High Speed ER20 Collet Match with CNC Engraving Milling Machine & Frequency Converter bit holder
Note

Quantity:
Other people want this. 12 people have this in their carts right now.
Origin:  CN(Origin)
Operating Speed:  8000-24000 R/min
Certification:  CE
Application:  Milling
Drive:  MOTOR
Brand:  VEVOR
Voltage:  220V~250V
Frequency:  400 Hz
Speed:  8000-24000 R/min
Runout off:  less than 0.005 mm
Power:  2.2 KW, 3.0 KW
Type:  Water Cooling
Current:  8A, 12.6A

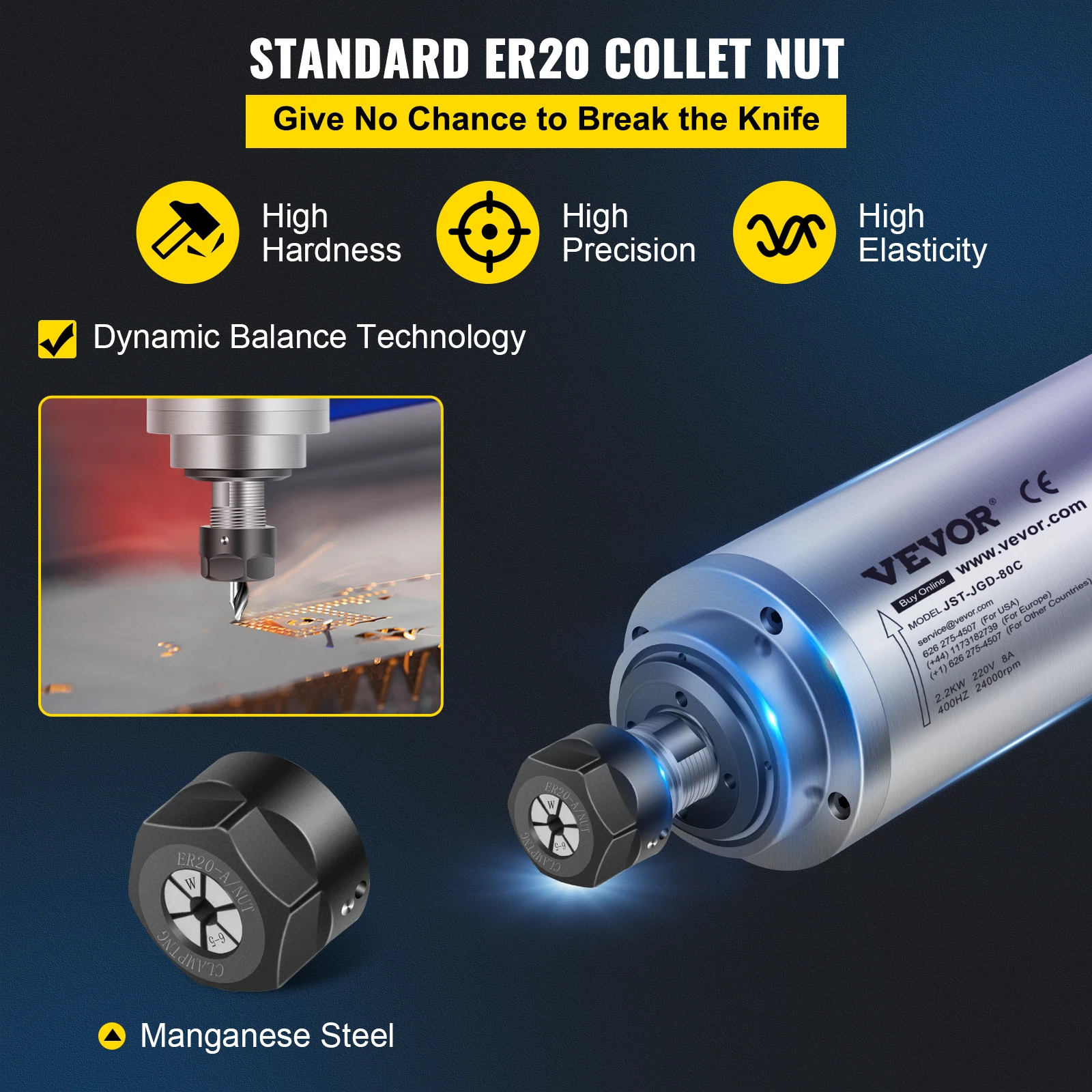

Collet Size:  ER20
Bearings:  3 bearings
Nominal Rated Input Voltage:  220V

VEVOR 1.5KW 2.2KW 220V Air Cooled Spindle Motor with Four Bearings ER11 ER20 Collet for CNC Router Engraver Frequency Converters

USD 101.99-146.99/piece

VEVOR 2.2KW CNC Square Air Cooled Spindle Motor ER20 Collet 4 Bearing Frequency Converter CNC Router Engraving Milling Machine

USD 205.85/piece

VEVOR CNC 3018 PRO Router Engraver with Laser Module 3 Axis Engraving Machine GRBL Wood Milling Wood Router for DIY Woodworking

USD 147.99-356.99/piece

VEVOR 4KW 220V Air Cooled Spindle Motor w/ Aviation Plug ER20 ER25 Collet For CNC Engraving Milling Machine Frequency Converters

USD 191.99-229.99/piece

VEVOR 2.2KW 3KW Water Cooled Spindle Motor High Speed ER20 Collet Match with CNC Engraving Milling Machine & Frequency Converter

USD 136.29-161.42/piece

VEVOR 0.8KW 220V Air Cooled Spindle Motor with ER11 Match with CNC Engraving Milling Machine and Mach3 PWM Frequency Converters

USD 86.99/piece

VEVOR 0.8 KW 1.5 KW Water Cooled Spindle Motor High Speed ER11 Collet Match with CNC Engraving Machine and Frequency Converters

USD 93.99-112.99/piece

VEVOR VFD Frequency Inverter 1.5/2.2/3.0/4.0/7.5KW 220V 3 Phase Variable Speed Drive Frequency Converter for CNC Milling Machine

USD 59.97-170.11/piece

Preparations before using

Spindle working environment temperature is usually -10 ~ 40 .

Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.

Using correctly

Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter's specifications and parameter settings need match spindles parameter.

Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.

It should ensure that before use of water-cooled spindle, the cooling system is working properly. Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts ,collets,cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.

2.2 KW

Water Cooled Spindle Motor

3.3 KW

Water Cooled Spindle Motor
