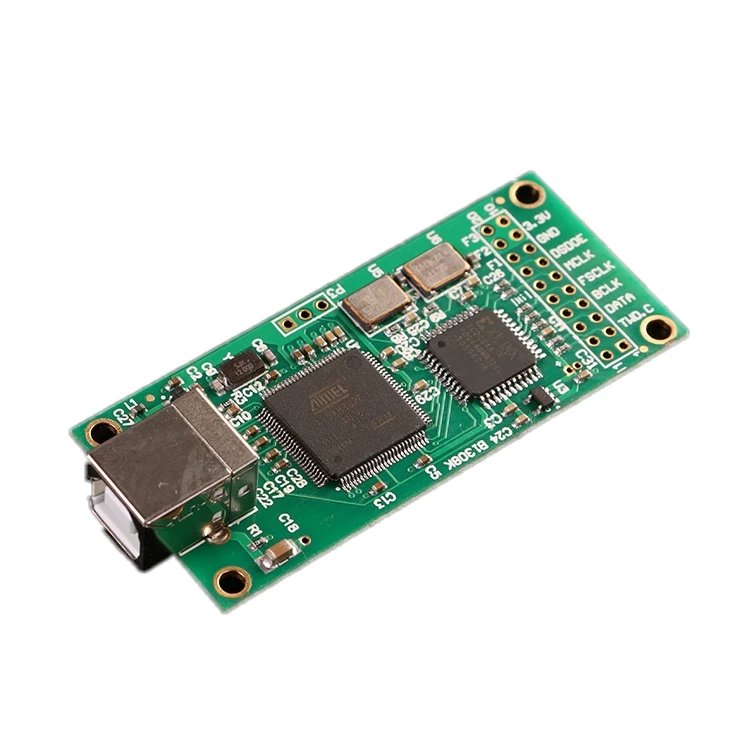

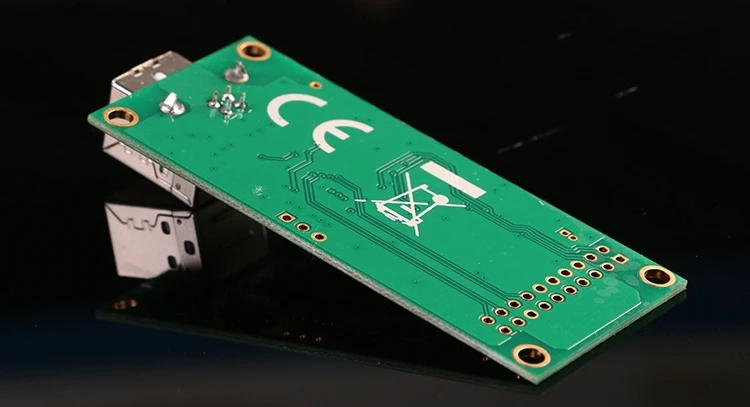

USB IIS Digital Interface DAC Decoder Board Support DSD512 32bit 384K I2S DSD Output audio amplifier Decoder Professional Amplifier Audio Amplifier Boards

Code: TD-32874113831 97 orders
Free Shipping
$ 46.04 $ 49.64
Quantity:
Other people want this. 23 people have this in their carts right now.
Brand Name:  TCXRE
Certification:  NONE
Origin:  CN(Origin)
Maximum Power Per Channel:  NO POWER
Model Number:  Amanero
Package:  Yes
Channels:  2 (2.0)

data:http://amanero.com

Driver:http://amanero.com/drivers.htm

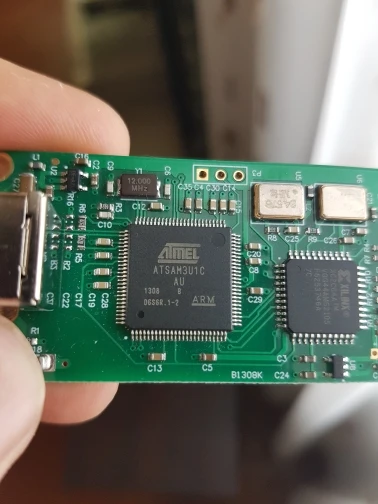

Now the Chip is

ATSAM3U1C



Design features: Double thick gold plating coating! Better stability! Italy with the program regulator IC design, Korea's chip capacitors!

About the design:
Use the original original design to ensure the integrity and reliability of the signal, authorization procedures, and military A-level PCB production, double-sided gold sinking process! Professional program programmer, each board listens for 1 hour before shipping to ensure stable and reliable board compatibility.

About the driver:

Amanero adopts ARM+CPLD architecture USB-2.0 high-speed transmission 480Mb/S, asynchronous USB to IIS PCM supports 44.1KHz/48KHz/88.2KHz/96KHz/176.2KHz/192KHz/352.4KHz/384KHz, DSD supports DSD64/DSD128/DSD256/DSD512 .

Professional audio architecture, ARM V7M responsible for the coordination of USB data processing, CPLD alone to complete the clock processing and sample reconstruction and IIS data processing. Has a more reasonable and efficient audio quality.

The music architecture and processing methods give you surprises when listening to music using the USB interface. Supports Apple MAC, linux, Raspberry Pi, and OTG-enabled Android 4.4 and above systems are all free drivers

High speed transmission 480Mb/S,

asynchronous USB to IIS

PCM support 44.1KHz/48KHz/88.2KHz/96KHz/176.2KHz/192KHz/352.4KHz/384KHz,

DSD supports DSD64/DSD128/DSD256/DSD512

What is a digital interface?

The digital interface is the digital audio interface. The input is generally connected to a computer, and the audio data is transmitted via USB2.0. This is several levels higher than the computer's own sound card. It is usually used for professional audio digital processing technology. Output I2S signal can easily dock various DACs for easy use
