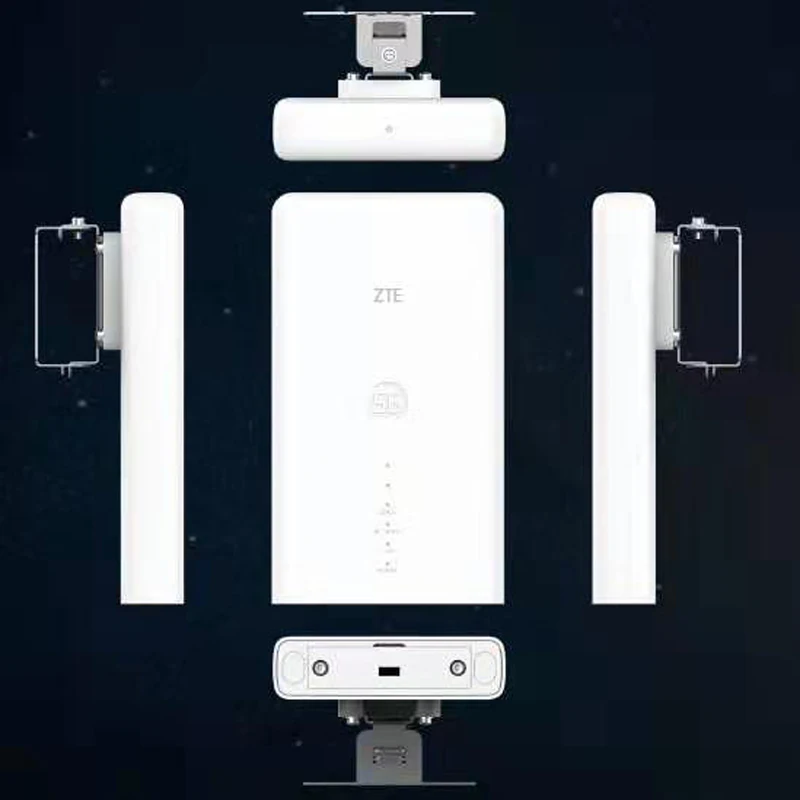

Unlocked Outdoor Router MC7010 5G Sub6+4G LTE 5G NR NSA+SA Qualcomm 5G SDX55M platform n1/n3/n7/n8/n20/n28/n38/n41/n77/n78/n79

Code: TD-3256802011712553 2 orders
Free Shipping
$ 546.75 $ 655
Color:
With EU Adapter
With UK Adapter
With AU Adapter
With US Adapter
Note

Quantity:
Other people want this. 26 people have this in their carts right now.
Brand Name:  HARVILON
With Modem Function:  Yes
Origin:  CN(Origin)
Type:  wireless
Wired Transfer Rate:  150 Mbps
Wi-Fi Supported Frequency:  2.4G & 5G
5G Wi-Fi Transmission Rate:  1000Mbps
Package:  Yes
Model Number:  MC7010
2.4G Wi-Fi Transmission Rate:  300 Mbps
Function:  Firewall
Supports WDS:  Yes
Max. LAN Data Rate:  300Mbps
Standards And Protocols:  Wi-Fi 802.11g
Supports WPS:  Yes
Application:  Soho

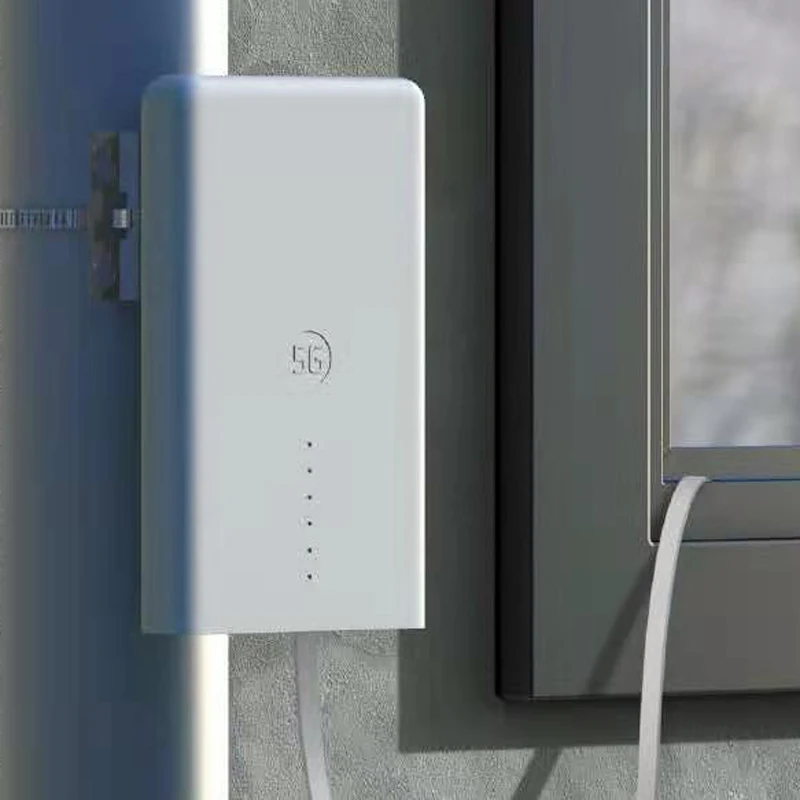

MC7010is a 5G outdoor FWA that can provide both high speed data service and voice service toresidential, business and enterprise users.MC7010 supports data downlink speeds up to 3.8Gbps and 542Mbps for uplink.With built-in high gain antenna,MC7010provideswide service coverage and high data throughput.

TheMC7010isa5G FWAproduct whichhas the following functions:

•5G/4G/UMTS multi-mode

•NSA/SA

•5G sub6G Band:N1/28/41/78/79

•ZTE remote management

•Firewall

•IPV4/IPV6

•VPN pass through

•Fota

•All mainstream browser

•WebUI &ZTE Link

•ZTE ODU installation Assistant

Software Specifications

Basic Information

5G FWA ODU

NSA/SA

5G/4G/UMTS multi-mode

WirelessBand Configuration

5G sub6G Band:N1/28/41/78/79

LTEFDDBand:B1/3/5/8/28

LTETDDBand:34/39/40/41

UMTS Band 1/2/5/8

MIMO For Wireless

5G Sub6: N41/78 supports 4MIMO

LTE: 1/3/39/41supports 4MIMO

Peek Data Rate

NSA5G Sub6G+LTETDD

DL 1.8 Gb/s

UL 331 Mb/s

NSASub6G +LTE FDD

DL 3.8 Gb/s

UL 542Mb/s

SASub6G --TDD

DL 1.8 Gb/s

UL 662 Mb/s

LTE FDD(DL Category 22, UL Category20):

DL 2.4Gb/s

UL 316MbpsMb/s

Management

WebUI

ZTELinkfor Android or iOS

Brower

IE (7.0 and later)

Firefox (3.0 and later)

Safari (4.0 and later)

Opera (10.0 and later)

Chrome (10.0 and later)

Other Function

SMS (Via WebUI)

Phonebook (Via WebUI)

Network Lock (Customized)

SIM Lock (Customized)

Port forwarding

IP filter

DMZ

UPnP

VPN pass-through(PP2P/L2TP)

IPV4/IPV6

TR069

On line Upgrade (Fota)

Hardware Specifications

Interface

••

1×4FFSIM

••

2.5GigabitEthernet2.5GigabitEthernet

1×USBType C for Debug

LED

Power

Network mode

WAN signal strength

LAN port

Button &Switch

ResetHole

Power Adapter

48V POE adapter for sub6 and mmWave

Dimension

188*105mm*29mm

Environment

Operating temperature:-40 to55° C

Storage temperature:-40 to70° C

Humidity:5%~ 95%

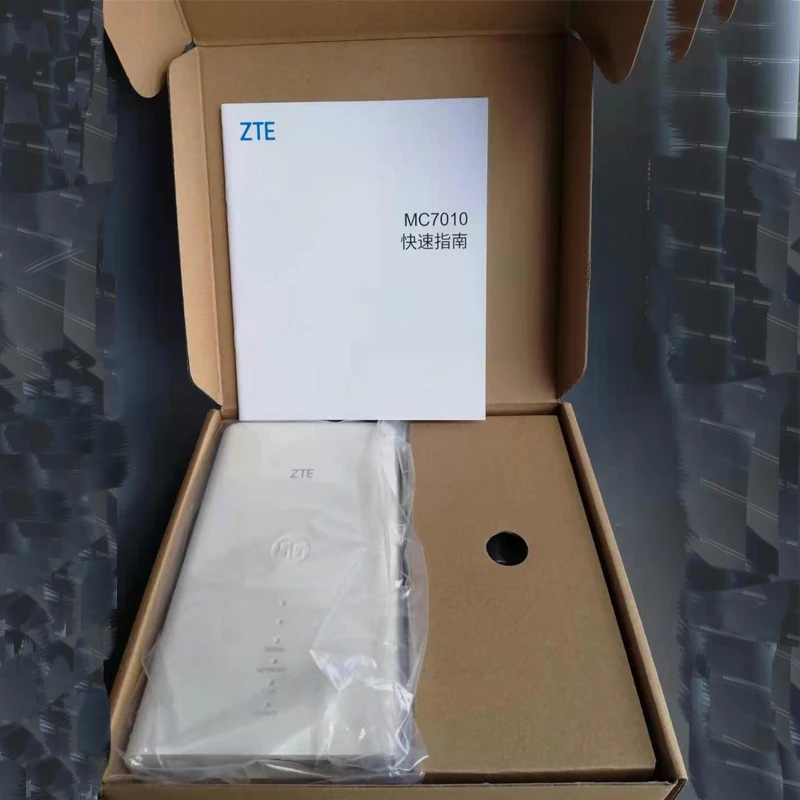

Package

1×AC adapter

1×Network cable

1×Quick guide

1×Warranty card

Certification

CE

ROHS

REACH
