UNI-T UT243 Power Harmonics Clamp Meter True RMS Phase Sequence Detection Max/Min Modes Auto Range 10000 Count LCD Dual Display digital storage oscilloscope Measurement & Analysis Tools
Code: TD-2255801022808097
3 orders
Free Shipping
$ 417.99
$ 420.9
Other people want this. 30 people have this in their carts right now.
| Brand Name: | UNI-T |
|---|---|
| DIY Supplies: | ELECTRICAL |
| Origin: | CN(Origin) |
| Measuring Voltage Range: | 600V |
| Measuring Resistance Range: | 0 |
| Certification: | CE |
| Measuring Inductance Range: | 0 |
| Weight: | 601g |
| Measuring Capacitance Range: | 0 |
| Model Number: | UT243 |
| Dimensions: | 303mmX112mmX39mm |
| Operating Temperature: | 0-40℃ |
| Measuring Current Range: | 1000A |
| Display Type: | Digital Only |

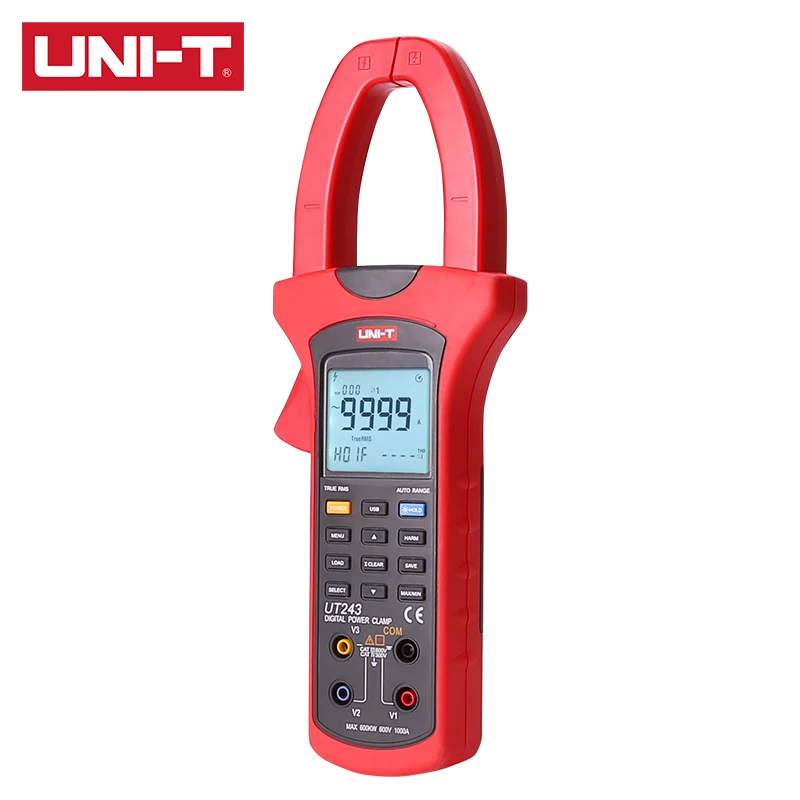

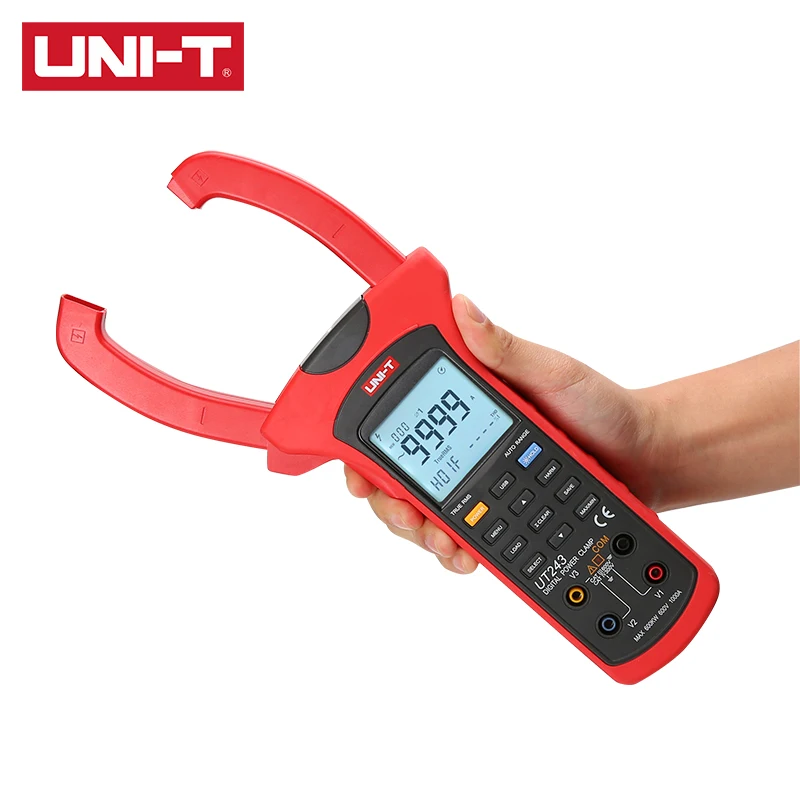

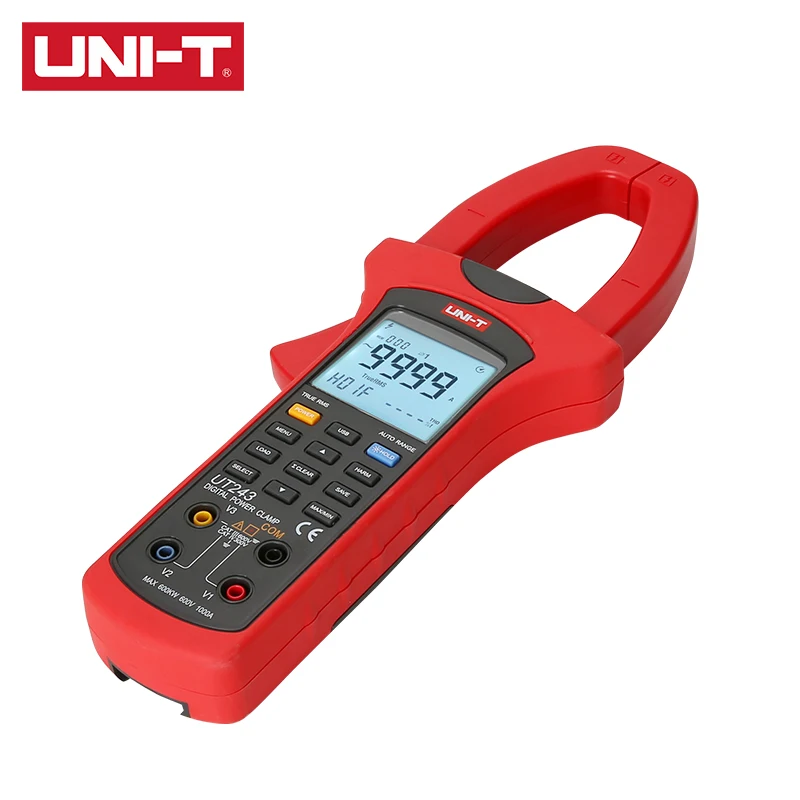

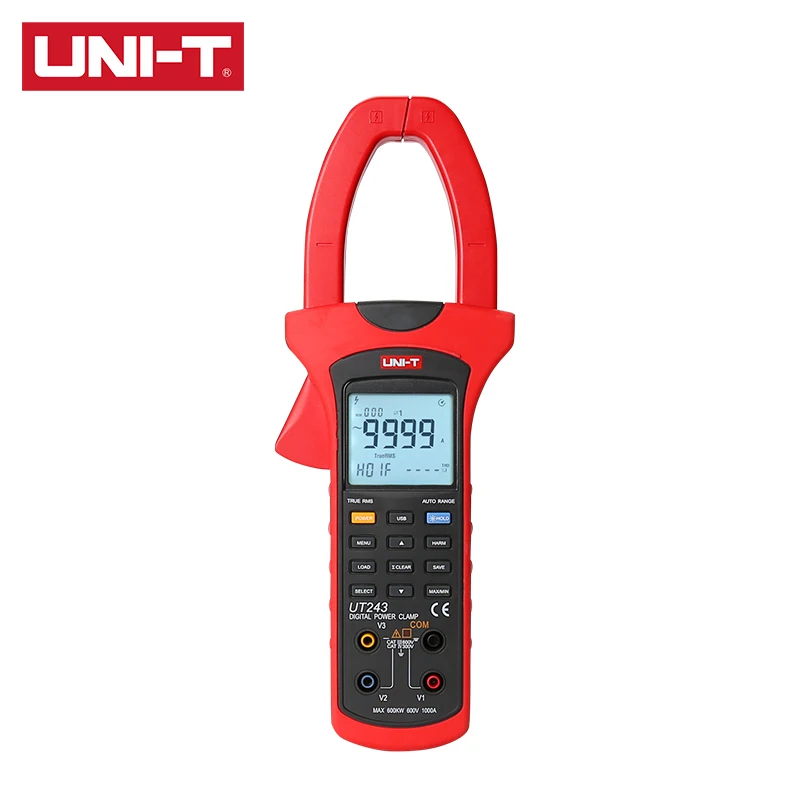

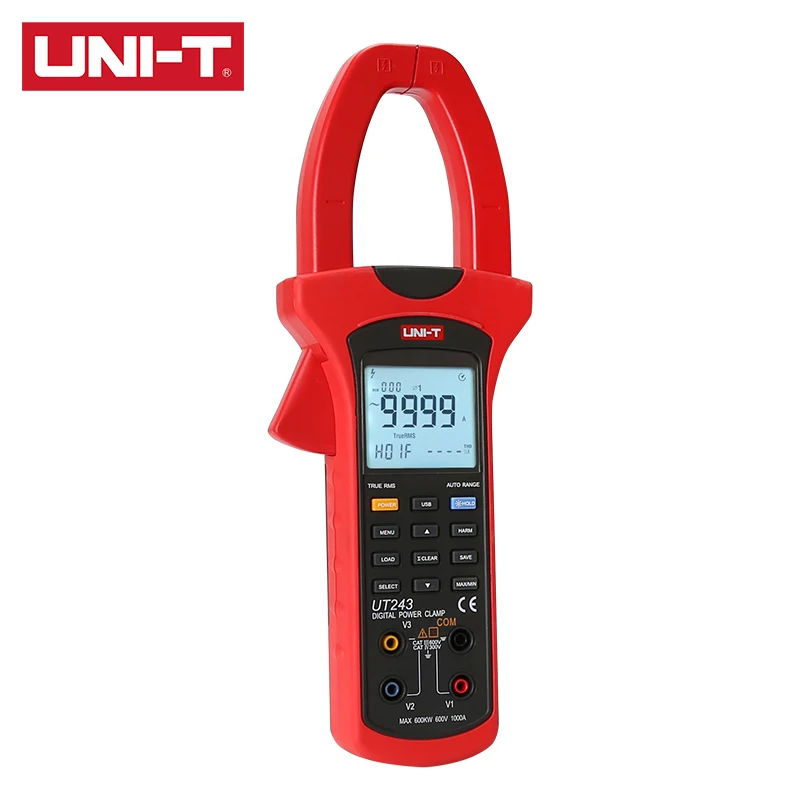

UT243 Power and Harmonics Clamp Meter
UT243 is an intelligent, handheld and stable power and harmonics clamp meter, with functions of digital ammeter
and power meter. It can measure voltage, current, active/reactive power, power factor, phase angle and more.
UT243 series can measure single harmonic components up to 20 times.
Features
1. True RMS voltage/current measurement
2. 3-phase 3-wire, 3-phase 4-wire and single-phase 2-wire measurements
3. 10000 count LCD dual display
4. Phase sequence detection
5. Max/Min modes
6. Auto range, auto power off, backlight, low battery indication
7. Equipped with USB interface and PC software CD
Tech. Spec
Specifications
Range
UT243
AC current (A)
1000A
±(2%+5)
AC voltage (V)
600V
±(1.2%+5)
Frequency (Hz)
40Hz~80Hz
±(0.5%+5)
Active power (W)
0.01kW~600kW
±(3%+5)
Apparent power (VA)
0.01kVA~600kVA
±(3%+5)
Reactive power (VAr)
0.01kVAr~600kVAr
±(4%+5)
Power factor
0.3~1
±0.022
Phase angle (°)
0°~360°
±2°
Active energy (Wh)
1kWh~9999kWh
±(3%+2)
Features
Display count
10000
Auto range
√
Jaw opening
50mm
True RMS
AC voltage/AC current
√
Auto power off
√
Low battery indication
√
Data hold
√
MAX/MIN
√
Data storage
999
USB interface
√
LCD backlight
√
Full icon display
√
Harmonic analysis
1~20
Setup
√
Single-phase 2-wire
√
3-phase 3-wire
√
3-phase 4-wire
√
Phase sequence test
Positive phase, reverse phase, phase deficiency
√
Input impedance for DCV
≥5MΩ
Input protection
√
General Characterisitics
Power
1.5V battery (R6) x 4
Display
46mm x 42mm
Product color
Red and grey
Product net weight
601g
Product size
303mm x 112mm x 39mm
Standard accessories
Batteries, test leads, alligator clips, USB interface cable, PC software CD
Standard individual packing
Gift box, English manual, tool box
Standard quantity per carton
5pcs
Standard carton measurement
510mm x 375mm x 320mm
Standard carton gross weight
12.3kg

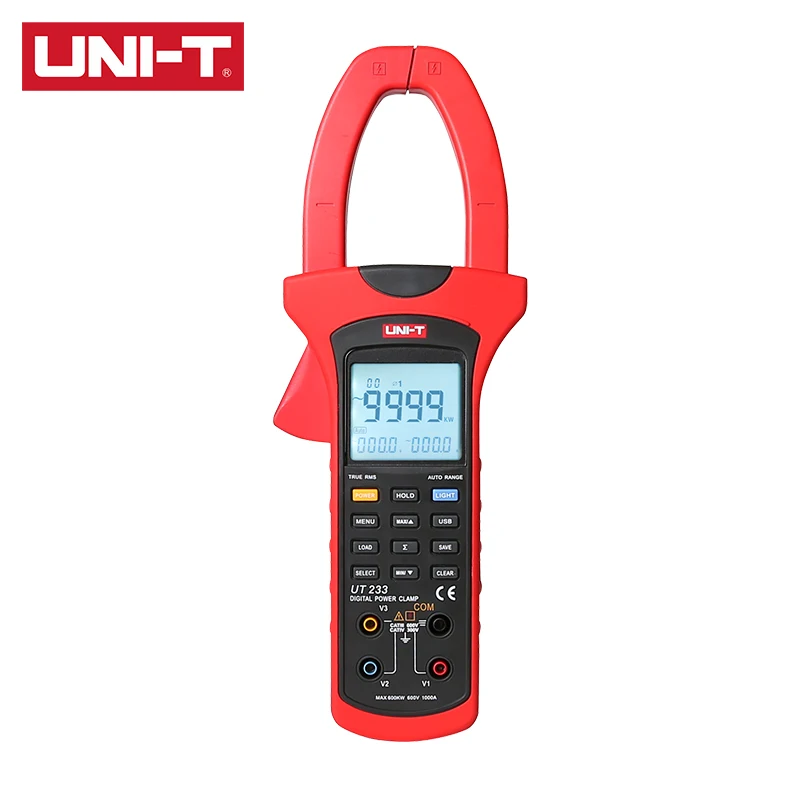

UT230 series clamp digital power meter integrates digital ammeter and power measuring instrument in one. The instrument is equipped with powerful measurement and data processing software to complete the measurement of voltage, current, active power, power factor, apparent power, reactive power, phase angle, electrical energy, and other parameters. In addition, the Hall effect clamp meter with power meter can also monitor power quality without interrupting the circuit. Equipped with a dedicated Windows graphical analysis software to accurately analyze power trends or intermittent problems. Very suitable for power quality fault maintenance of on-site power equipment and variable loads of power supply lines.
Features
1. True effective value measurement, in non-sinusoidal current, can accurately measure active current
2.9999 word count, dual display LCD screen, can display multiple sets of parameters at the same time
3.51 segment analog bar, two scale bar graphs, real-time display of voltage and current fluctuations
4. Using full-automatic range conversion circuit and panel key operation, simple and easy to use.
5.99 groups of stored data, single / continuous recording or readback can be set
6. The energy measurement can display the measurement time at the same time, and the power quality can be monitored for a long time
7. Three sampling rates are adjustable: fast, slow and medium speed
8. Maximum / minimum measurement mode
9. Automatic calibration function
10. Automatic shutdown; data retention; backlight; low voltage prompt
11.USB data transmission, equipped with special Windows graphics analysis software
12. The instrument complies with CE European Community (European Union) standards
Models & Comparison
basic skills
Range
Basic accuracy
model
UT231
UT232
UT233
AC current (A)
40A / 100A / 400A / 1000A
± (2% + 5)
± (2% + 5)
± (2% + 5)
AC voltage (V)
15V / 100V / 300V / 600V
± (1.2% + 5)
± (1.2% + 5)
± (1.2% + 5)
Frequency (Hz)
20Hz ～ 500Hz
√
Celsius (° C)
-50 ° C ～ 1000 ° C
± (1% + 3)
Fahrenheit (° F)
-58 ° F ～ 1832 ° F
± (1% + 5)
Active power (W)
0.01KW-600KW
± (3% + 5)
± (3% + 5)
± (3% + 5)
Apparent power (VA)
0.01KVA ～ 600KVA
± (3% + 5)
Please Note: Battery not included.
