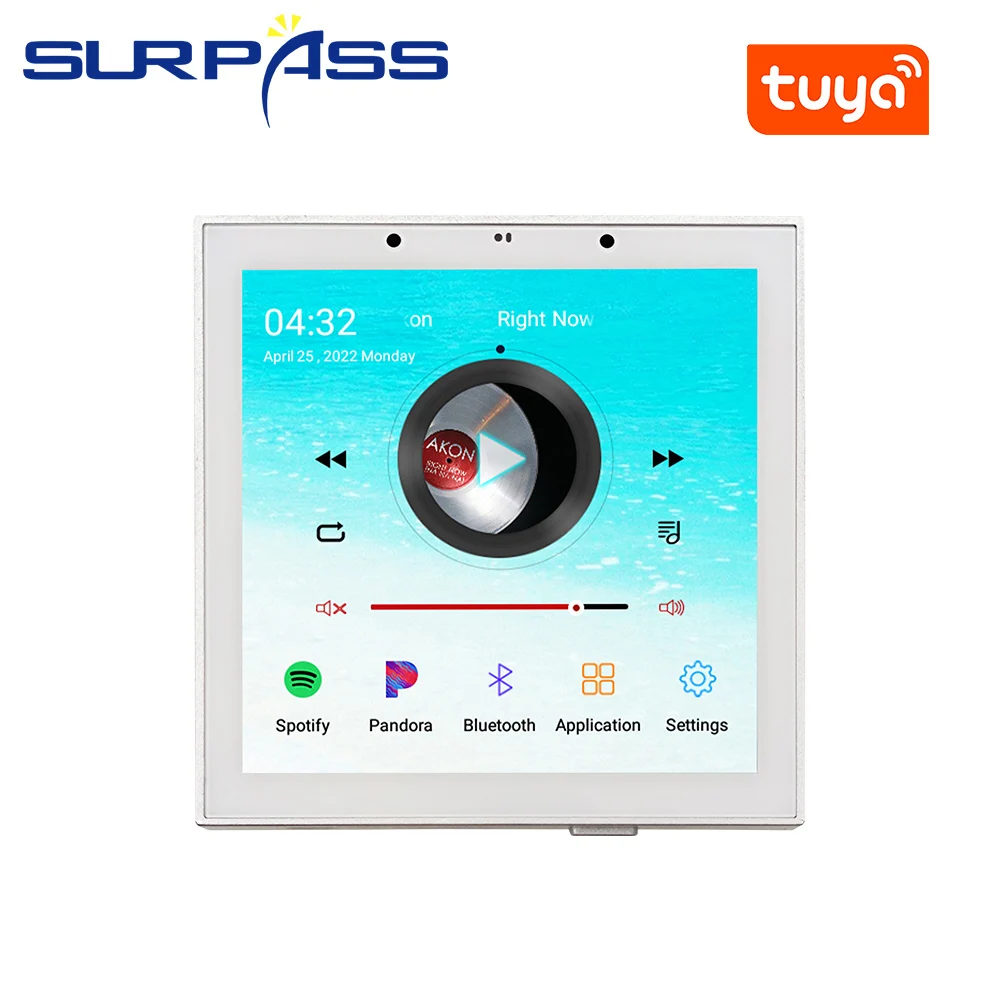

TUYA Amplificadores Audio Smart Home Theater WiFi Bluetooth Android 8 System Mini Wall Power Amplifier Touch Screen Music Player

TUYA Amplificadores Audio Smart Home Theater WiFi Bluetooth Android 8 System Mini Wall Power Amplifier Touch Screen Music Player

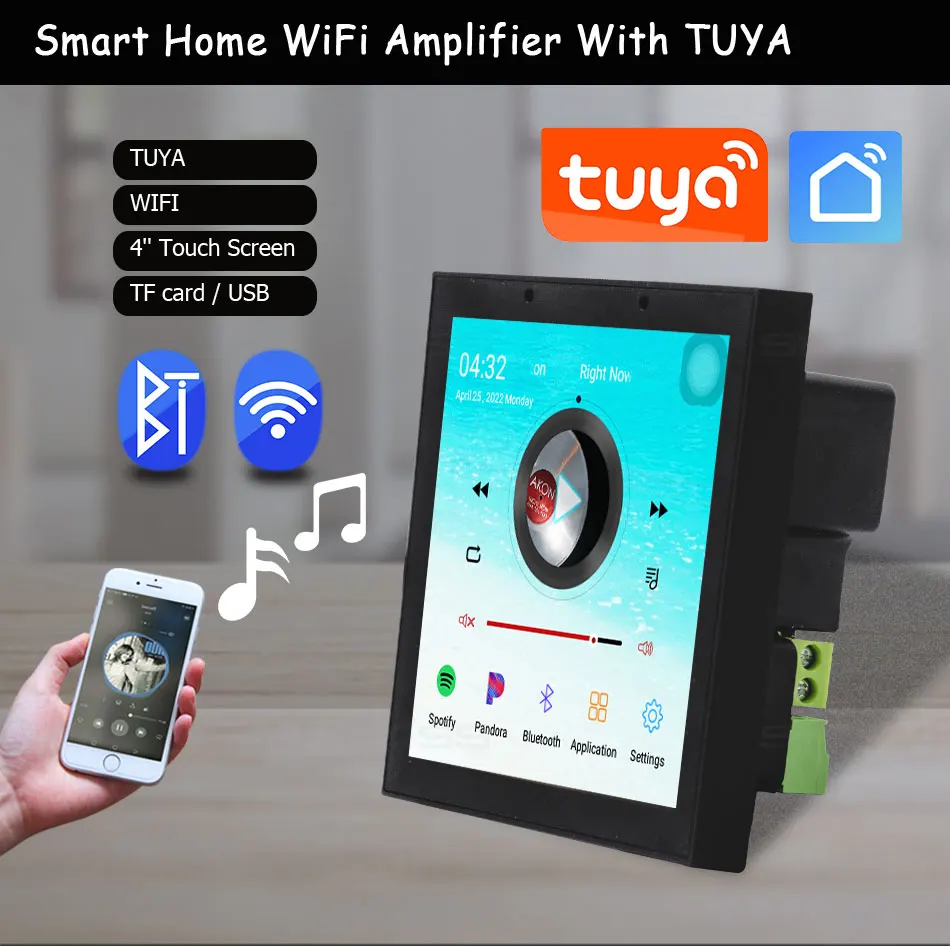

Name: TUYA Amplificadores Audio Smart Home Theater WiFi Bluetooth Android 8 System Mini Wall Power Amplifier Touch Screen Music Player
Brand: MMO Dropship
SKU: 3256803165844380
Price: 341.46 VND
Availability: InStock
Rating: 4.9 (86 reviews)

Code: TD-3256803165844380 52 orders

Free Shipping

$ 341.46

Color:

Note

Quantity:

Other people want this. 27 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	Surpass
Maximum Power Per Channel:	25W
Origin:	CN(Origin)
Package:	Yes
Channels:	2 (2.0)
Certification:	CE
Model Number:	SP-PW420T
Name:	WIFI Bluetooth-compatible Wall Amplifier Support Tuya
Size:	86MM * 86MM * 11MM
Weight:	0.5kg
Wire Box Hole Size:	868657MM
Color:	white, black, gold
Operating system:	Android 8.1 System
CPU:	Cortex1.2G
Main screen size:	4inches
Resolution:	480*480
Material:	IPS
Touch screen:	Multi-touch capacitive screen
Output power:	220W or 415W
Output impedance:	4-8Ohm
T.H.D:	0.03%(1W.1KHZ)
Frequency response:	20Hz-20KHz
SNR:	98db
Bluetooth:	4.0
WIFI:	Support

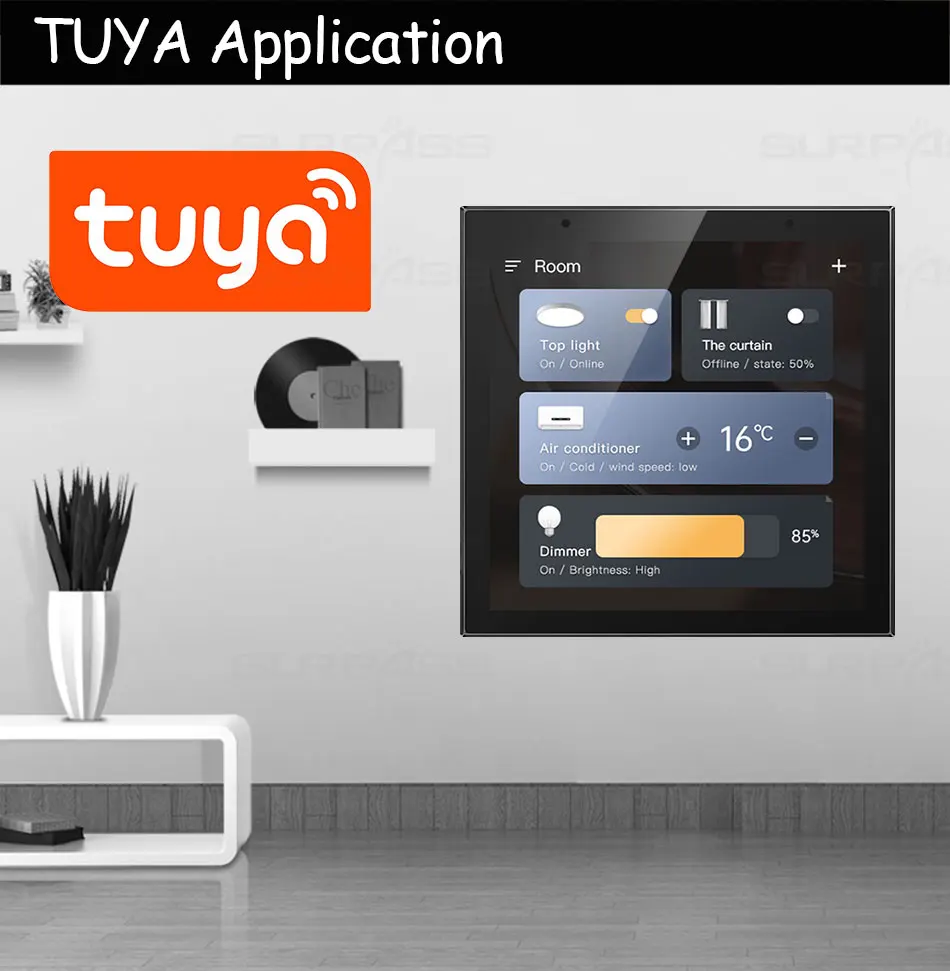

Feature:	Mobile App Control, Tuya

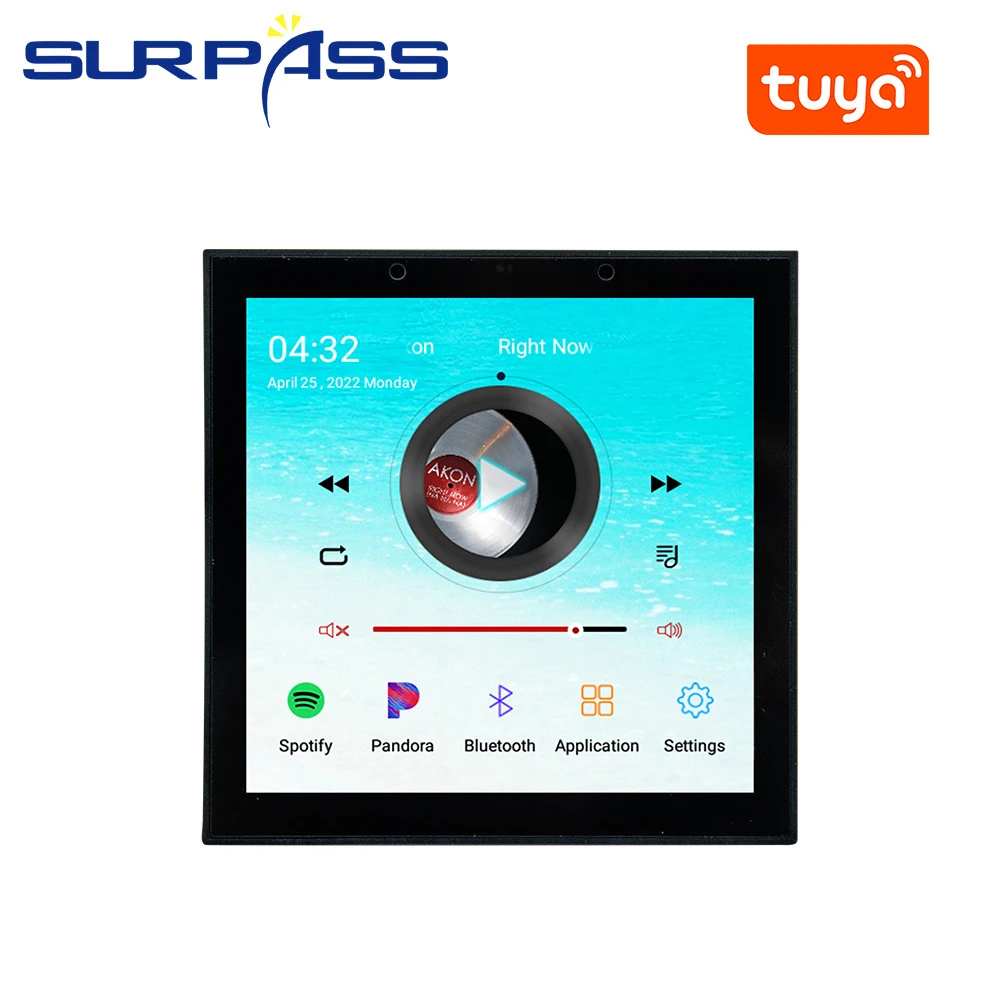

Screen Size:	4inch HD Touch Screen
Installation:	86 standard wire box, front wall
Power Supply Mode:	AC 110-250VC
Channels:	2 (2.0)
Type:	Digital power wall amplifier with TUYA

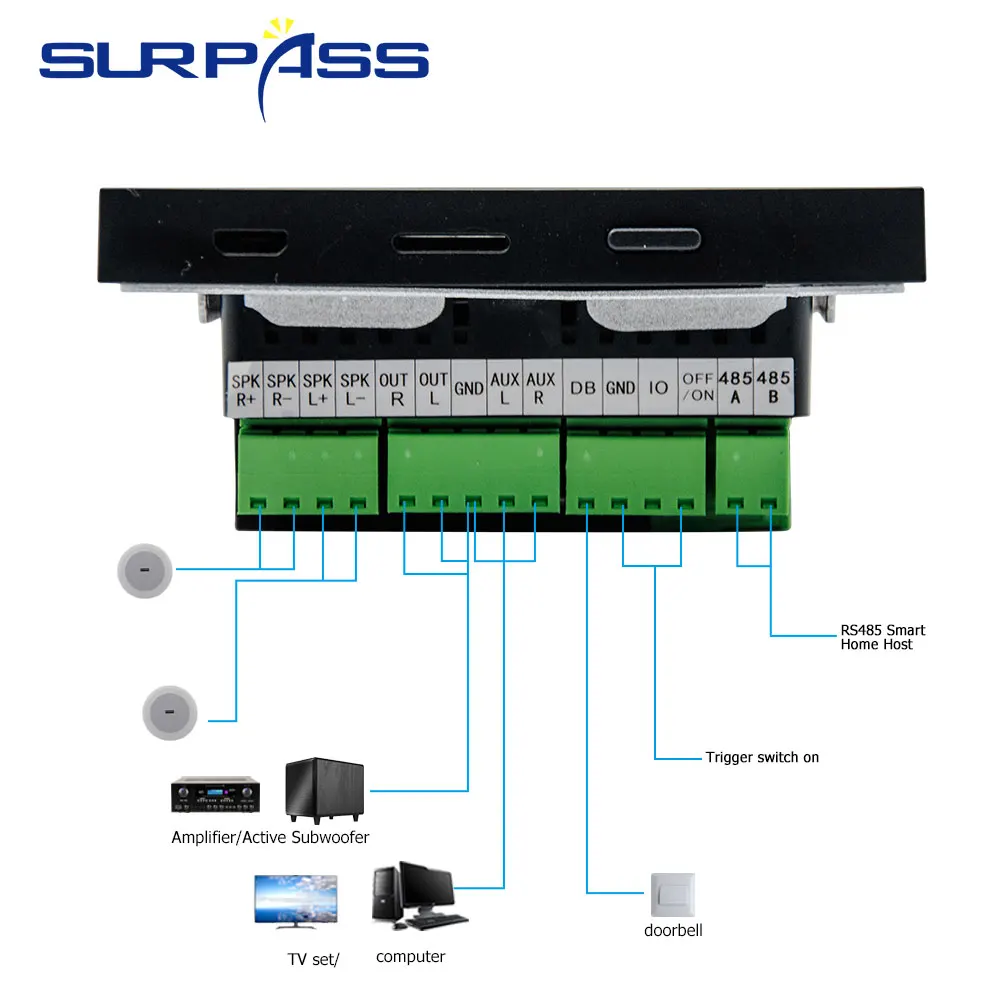

WiFi audio Wall panel Amplifier Products Instruction Details:

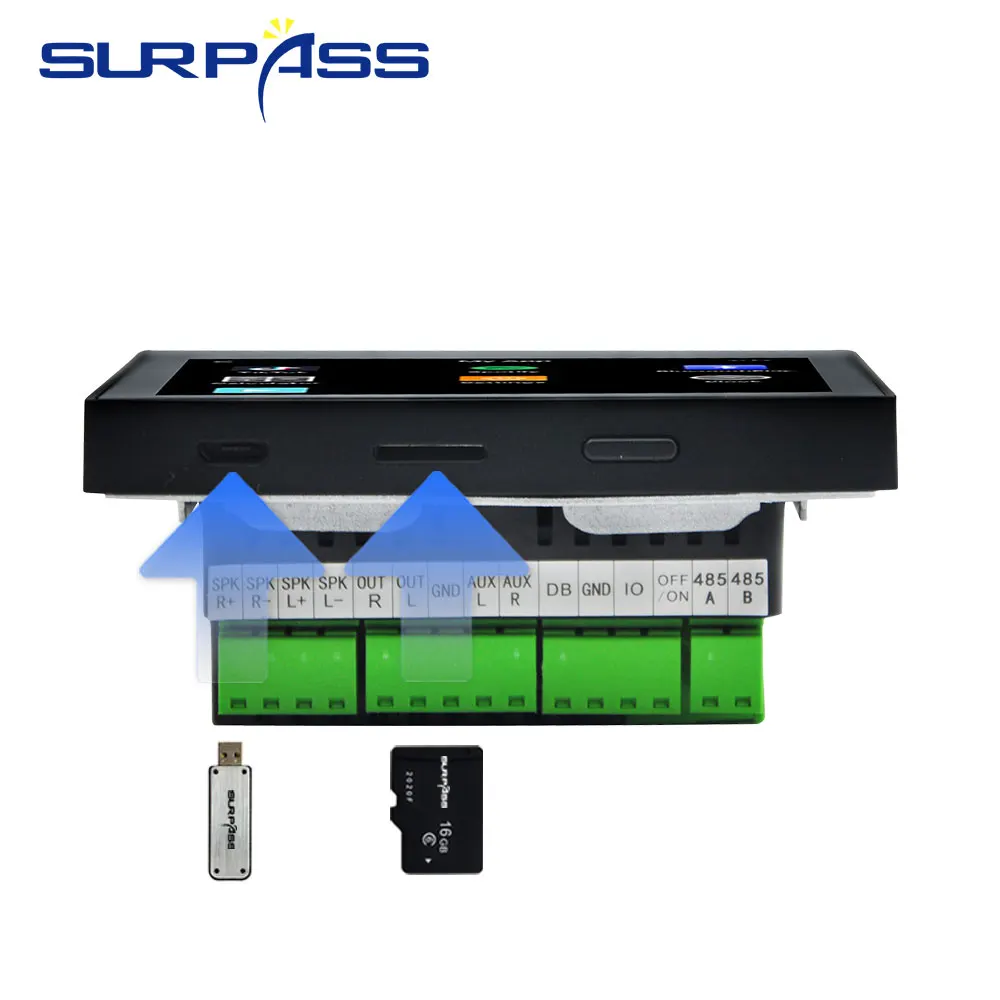

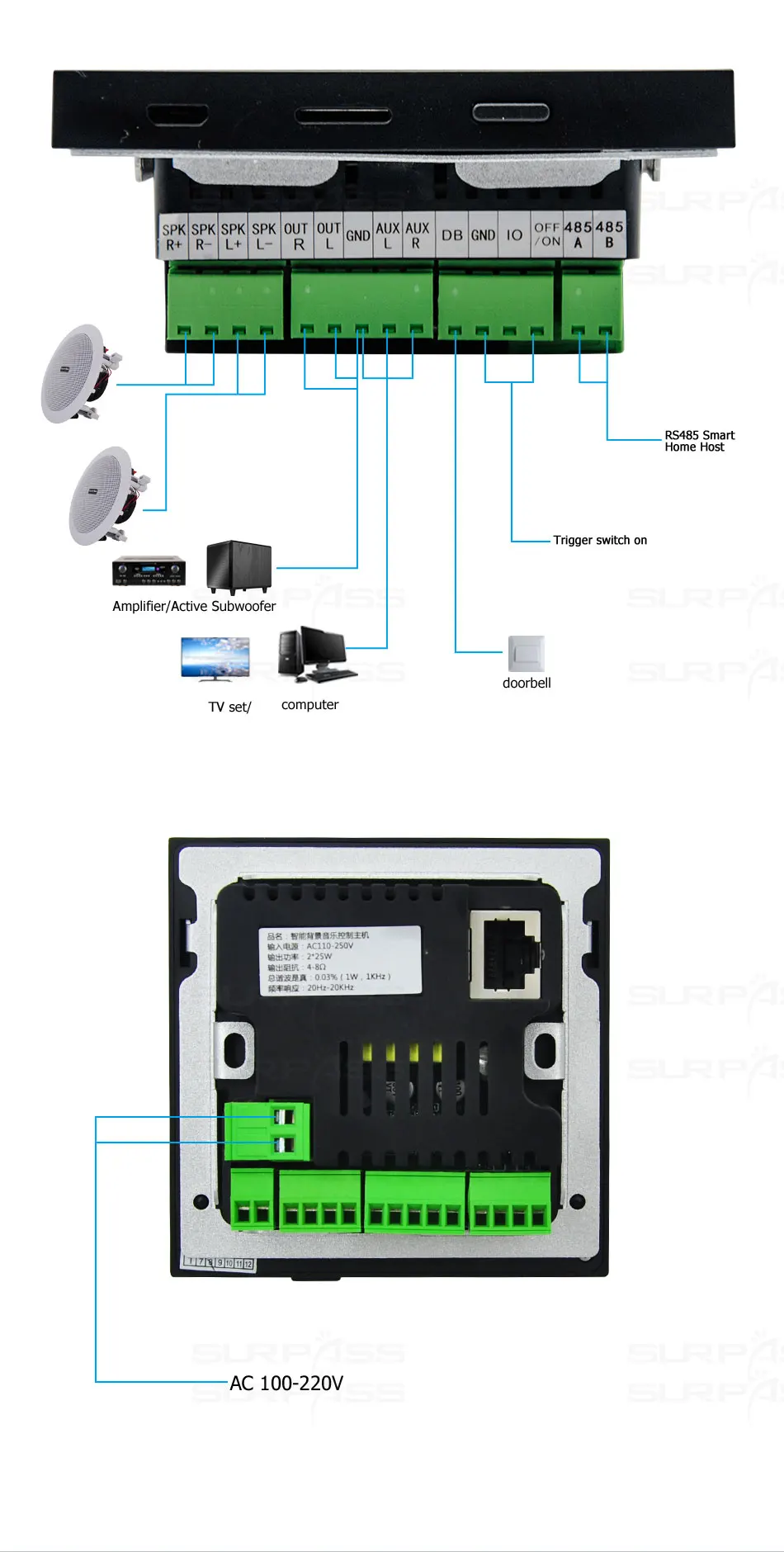

1. Speaker: speaker cable (200 cores), RVH2X100, RVH2X200 connected to SPK R+ and SPK R-.
2. Audio output: audio cable (three-core shielded cable: commonly known as microphone cable),
RVVP2X0.5, RVVP2X0.75, connect to OUT R + OUT L + GND, can be connected to other amplifier.
3. Audio input: audio cable (three-core shielded line: commonly known as microphone line),
RVVP2X0.5, RVVP2X0.75, connect AUX L + AUX R + GND.
4. Trigger doorbell: Connect GND + DB to trigger the doorbell.
5. Trigger on/off: connect GND + ON to trigger on/off.
6. RS485 interface (optional): 485 cable, connected to 485A + 485B.
7. USB: External OTG USB, can read U disk with adapter.
8. TF card: Read TF card interface.
9. Power switch: long press for 2 seconds to turn on, long press for 2 seconds to turn off,
short press for lock screen / unlock.
10. Volume down key
11. Volume up key
12. Microphone

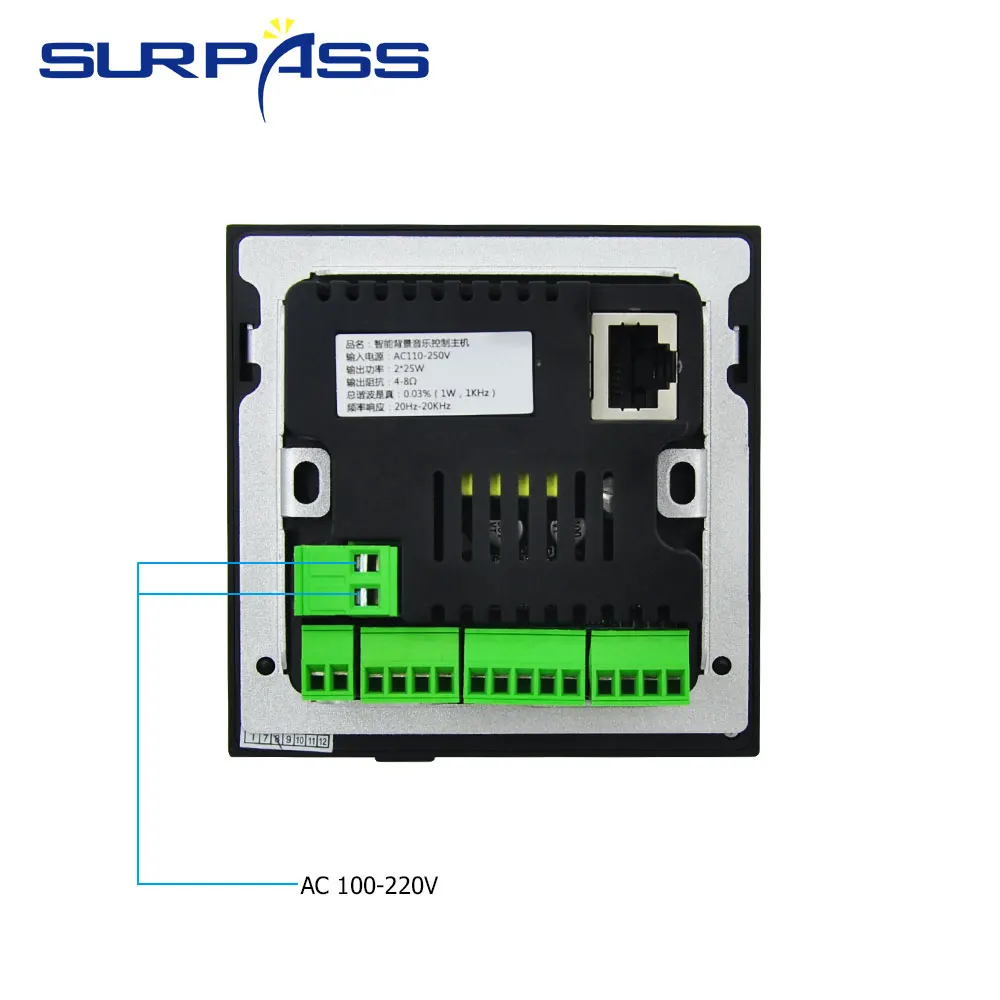

13. Power supply terminal: Connect AC110V-240V power supply.

Hardware Parameters:

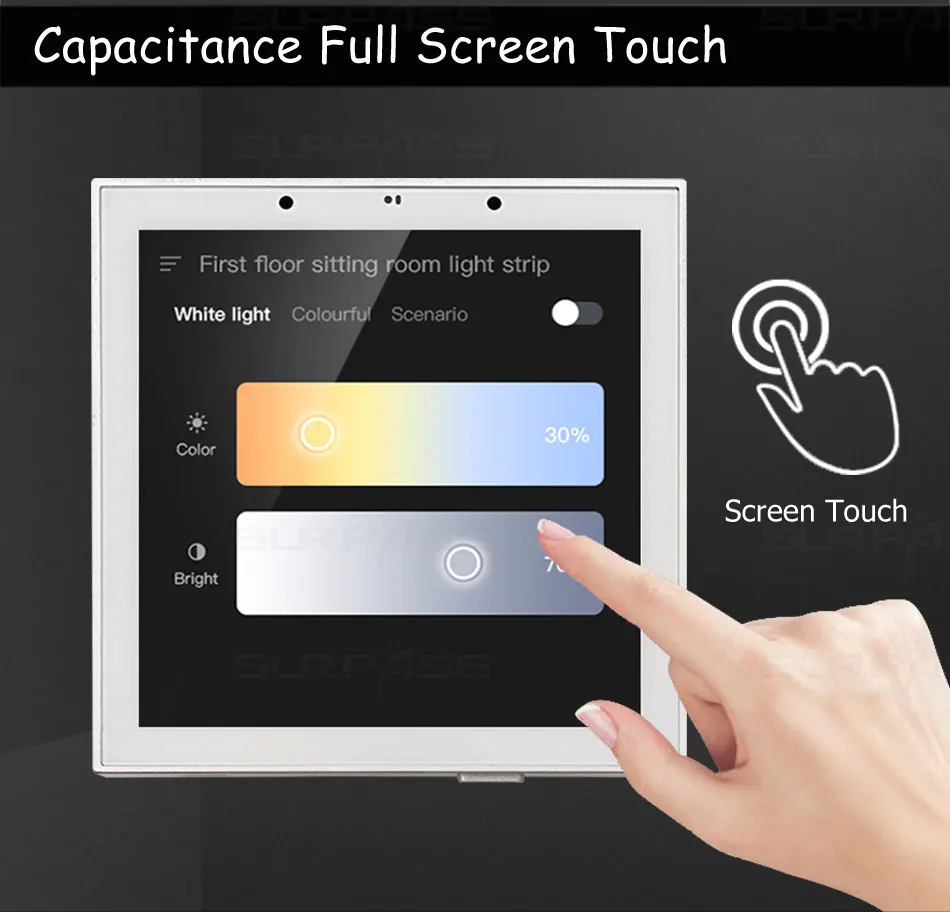

● Capacitance Full Screen Touch
● 4-inch IPS Display, 480*480 Resolution
● Android 8.1 System, 4 Core Processor, Cortex 1.2G CPU
● Power Supply Mode: AC 110-250VC

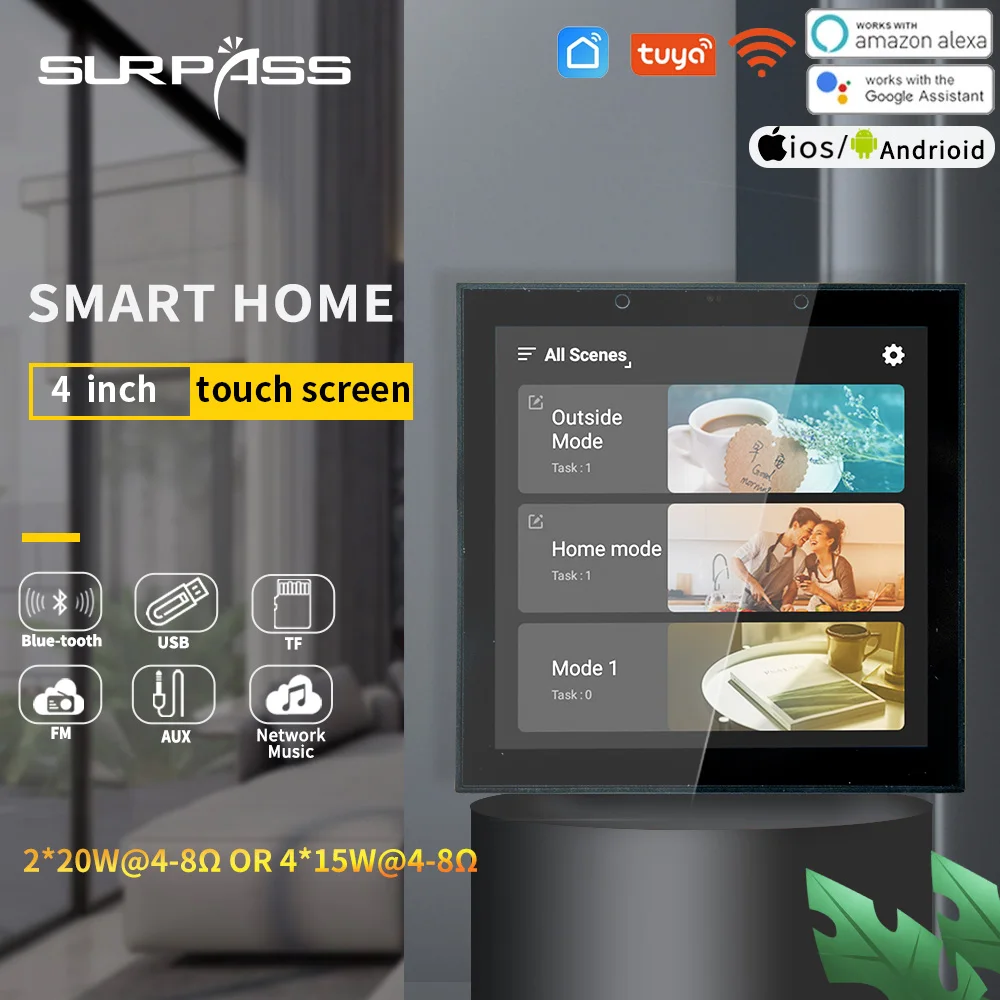

● Output Power: 2*20W or 4*15W(simulation power amplifier)
● Output Impedance: 4-8Ω
● Audio Inputs; Output
● Network: Support WIFI
● Installation: 86 standard wire box, front wall
● Bluetooth: Support
● Frequency Response: 20Hz-20KHz
● Total Harmonic Distortion: 0.03%(1W,1KHz)
● Audio S/N: 96dB

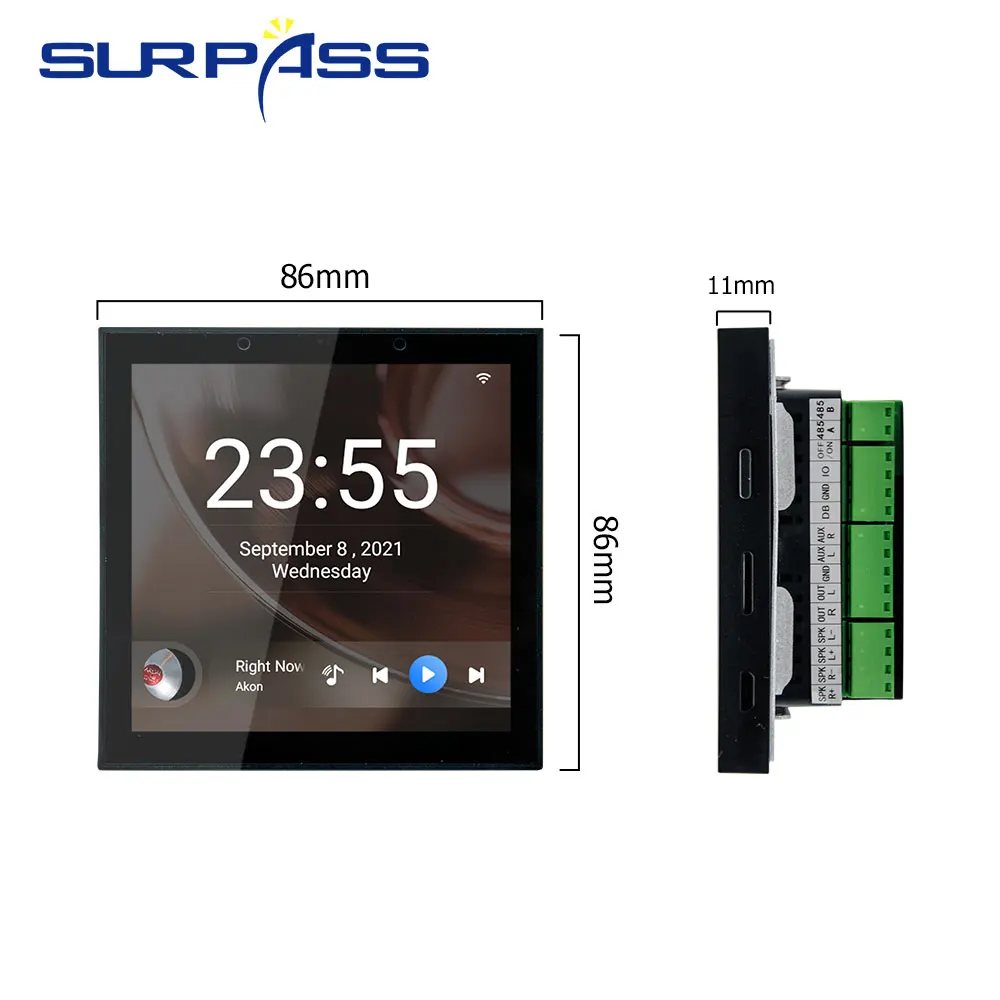

● Product Size: 86*86*11MM
● Wire Box Opening Size: 86*86*57MM

Kindly remind

►

► K

Package include:

1. wall amplifier device*1
2. remote control
3. mounted box, bracket and screw
