tracker for car GPS Tracker Car Real Time GSM GPRS GPS Locator TK102B Tracker GPS Bicycle Vehicle Tracker Device Remote Control Over Speed Alarm car tracking device GPS Trackers

Brand Name:	BOJECHER
Origin:	CN(Origin)
Certification:	CE
Item Size:	56*48*62mm
Special Feature:	Internet Connected
GPS type:	GPS Tracker
Model Name:	TK102B/ TK102-2
Out Power:	w
GPS Geographic Location:	europe
Gps Module:	Yes
Screen Size:	Under 2 Inches
Voltage:	5V
Battery Life:	10 To 19 Hours
Network:	GSM, GPRS
Special Feature:	Internet Connected
Feature 1:	Remote Control
Alarm model:	Fence alarm, SOS alarm, overspeed alarm, mobile alarm
GPS chip:	UBLOX Chip
Battery Type:	lithium battery
Gps positioning:	Global(Europe/Aisa/Africa/North America)

Real Time GSM GPRS GPS Tracker TK102B Car Vehicle Tracking Locator Device

Specifications:

Simply insert a GSM sim card into the GPS unit. Whenever you call the unit it will respond with the coordinates of its location thru a SMS message. You can then use these coordinates on any mapping software (for example Google Earth) which will show where exactly the unit is located.

This Cutting-Edge GPS tracker is designed for advanced tracking/monitoring, especially for vehicle tracking using GPS, GSM and GPRS technology. The GPS tracker is designed for use in any vehicle to track it's location, such as cars, trucks, boats, motor homes, vans and construction machinery and many more - the live tracking possibilities are limitless! This is particularly useful if your vehicle, pets, child or your belongings have been stolen. Time to enjoy the benefits this GPS tracker brings!

Features:

- Built-in GPS personal locator.
- GSM / SMS communication or GPRS connection.
- GPS and LBS accurate real-time location.
- Support single location and continuous tracking.
- Support location triggered by tracker.
- Support location triggered by authorized cell phone
- Geo-fence protection, after setting the certain distance, once beyond the distance, your phone will receive alarm alert.
- Over-speed alarm, once the speed is beyond the setting speed, it will alarm.
- Movement alert, timely monitor your vehicle's status, anti-theft.
- SOS button, help you get help in emergency circumstance.
- Low battery alert, timely remind you of the low battery.
- Support TF card.

Application:

* Asset/container/machine tracking
* Vehicle rental / fleet management
* Car insurance business
* Motorcycle/scooter tracking
* Manage personnel safety

Notice:

Please make sure your SIM card is 2G or compatible with 2G GSM network.

Using mobile phone send SMS commands to device and set online platform

please open the gprs function and ask APN name.

Locate current position by GPRS/SMS

The first kind of Operation by SMS:

device default password 123456

if forget password or device reply password error, pls send reset123456

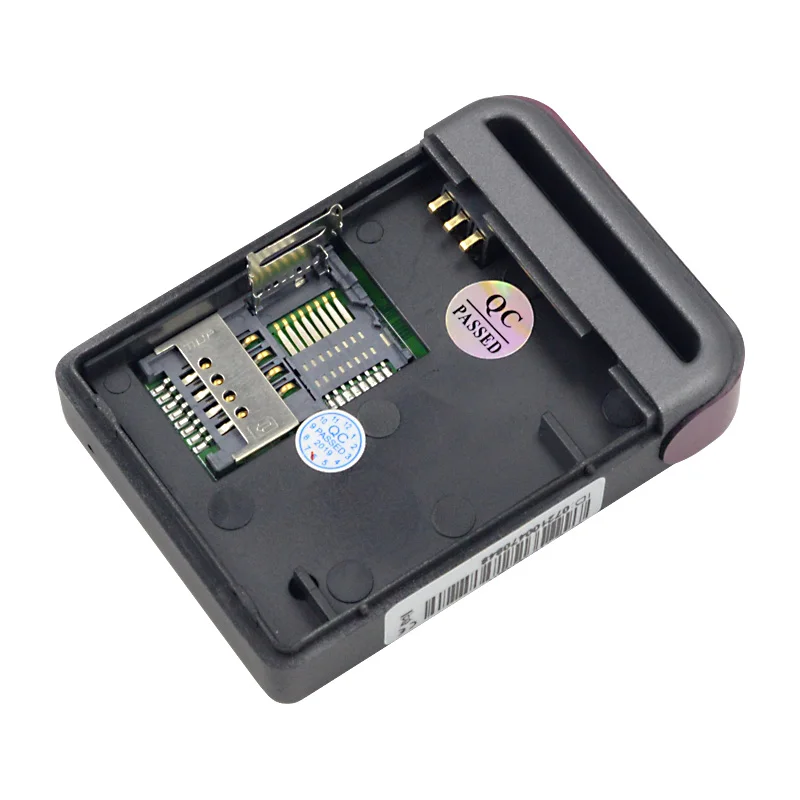

step 1: Put the SIM card and battery in place (Remark: 2G GSM card,pls  press the power

step 2:  take device to outdoor(In 40-- 120 seconds, the unit will begin to acquire the GSM signals and the GPS signals. The indicator will keep flashing every 3 seconds when the unit has received the signals.

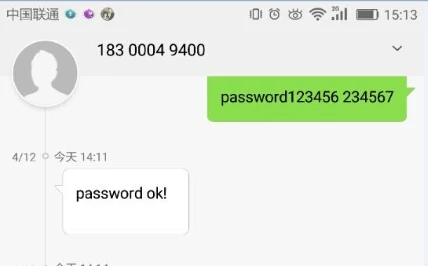

step 3:  Reset your password(please remeber it, if forget password or device reply password error, pls send reset123456). Use your Authorized number send SMS:“password+123456+space+new password”to change the password.

For Example:

then new password is 234567.

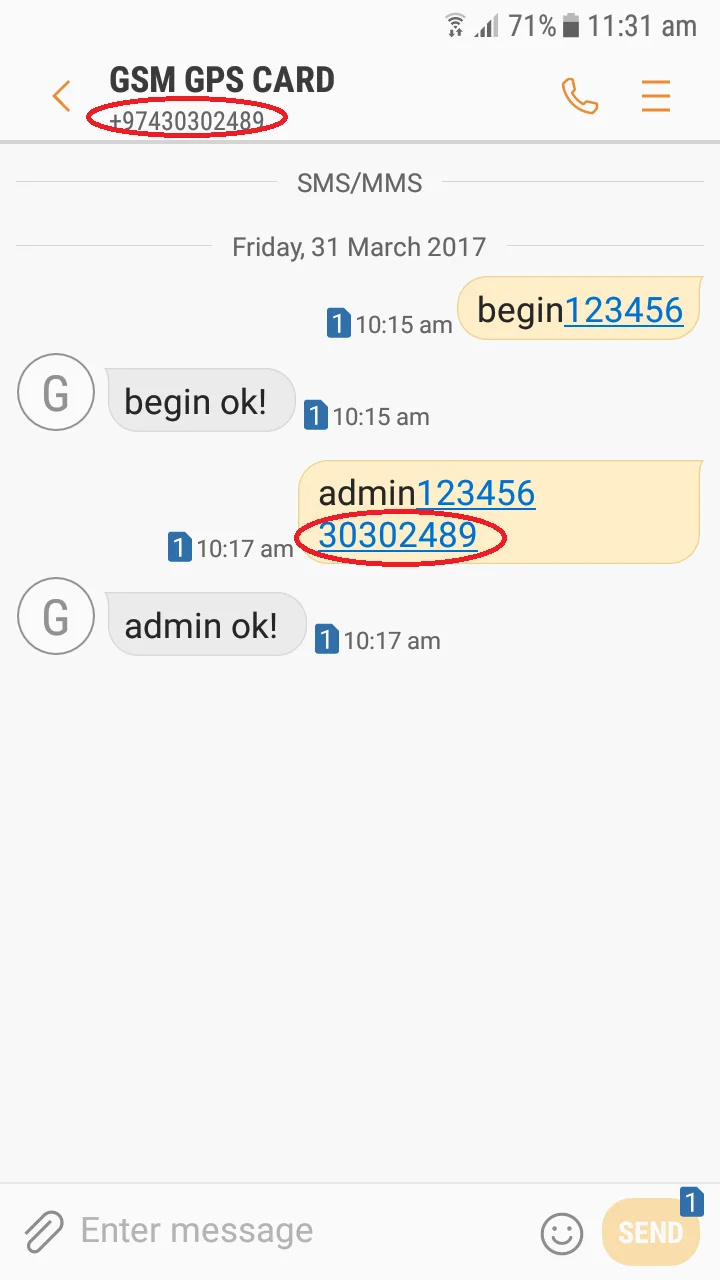

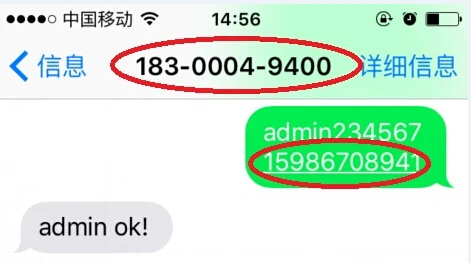

Step 4: Send SMS:“admin+new password+space+Authorized number” to device, Get admin ok!

For Example:

Step 5:Use your Authorized numbercall to the device, you will get the Google link

Open link and can see blow ,device have been positioning normal.please note that SIM card number  andAuthorized number should not be same, or it will not reply.

When GPS signals is weak, within 20s,GPS can not location,will use LBS location,the replied SMS as below:

IfSIM card number  andAuthorized number  are same, then when you call the device  it will not reply.

Step 6:

Last Geo-info is last time position information. Now is LBS position information.

LAC: Location Area Code

CID:Cell Identity

MCC:Mobile Country Code

MNC:Mobile Network Code

By these LBS information, police can find the position.

website:

http://www.gps110.org/Skins/DefaultIndex/

http://www.gps110.org/Skins/DefaultIndex/

User mobile App:

Andriod: Scan the QR code to install the applictions on your android mobile

IOS:search "dagps" in the Apple app store(IOS 9.3 and later)

Parameters:

- Network: GSM / GPRS
- Band: 850 / 900 / 1800 / 1900MHz
- GPRS: Class 12, TCP / IP
- Working voltage: DC 9 – 58V
- Standby current: About 0.2mA
- GPS locating time: 45s ( cold start ), 35s ( warm start ), 1s ( hot start )

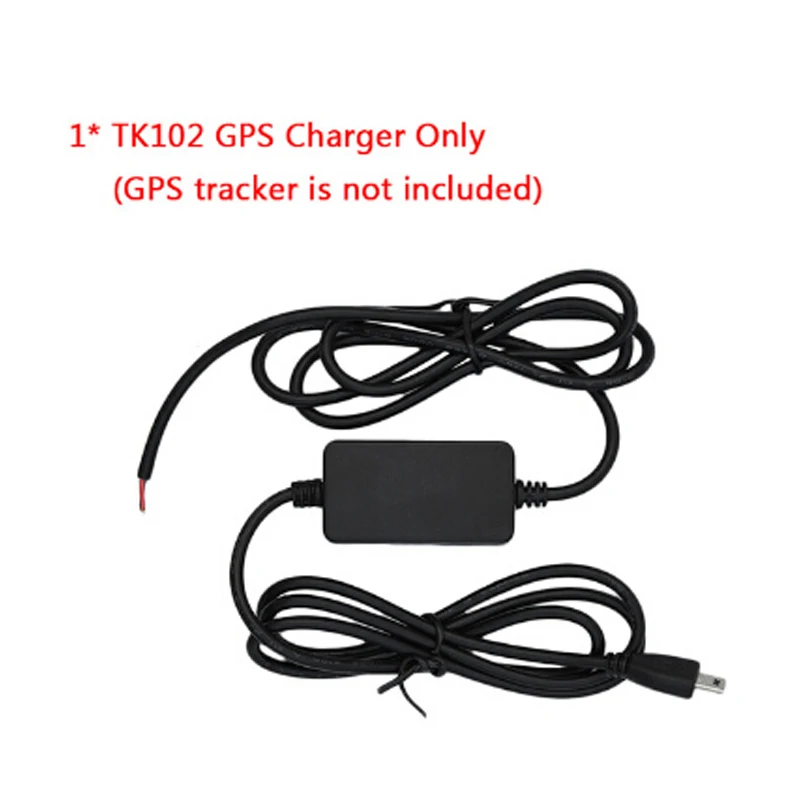

- Car charger: 12 – 24V input, 5V output
- Power adapter: 100 – 240V input, 5V output
- GPS precision: 30m ( 2D RM )
- Working temperature: - 20 - 55 degrees
- Working humidity: 5 - 95 percent RH

Type: Tracker

GPS Bands : GSM 850/900/1800/1900MHz
GPRS : TCP/IP
Network : GSM, GPRS
Package weight: 0.099 kg
Product size (L x W x H) : 6.5 x 4.5 x 1.7 cm / 2.55 x 1.77 x 0.67 inches
Package size (L x W x H) : 23.5 x 16 x 2 cm / 9.24 x 6.29 x 0.79 inches

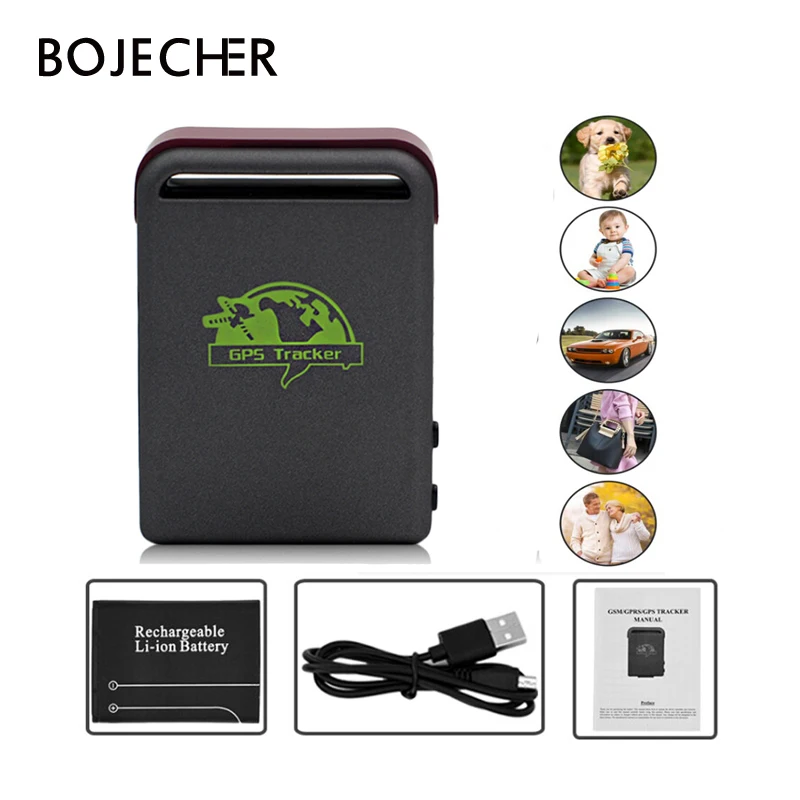

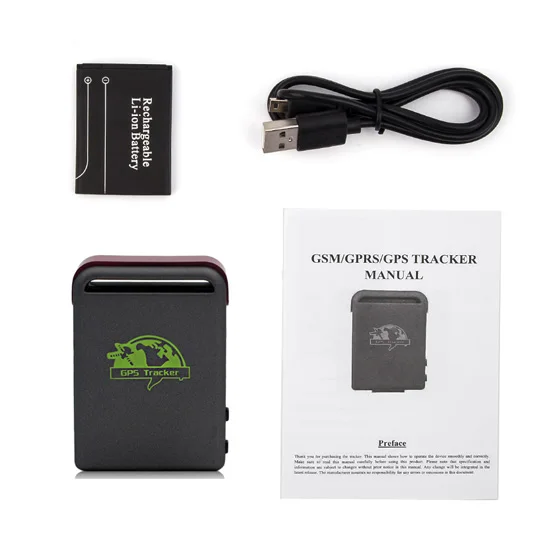

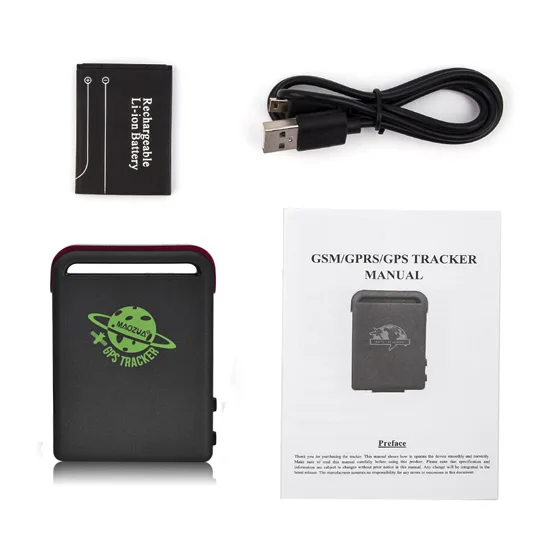

Package Contents:

1 x TK102B Car GPS Tracker,
1 x English User Manual
1 x USB Cable
1 x Rechargeable Battery
