TMC2225 2225 Module Stepper Motor Driver Controller StepStick 3D Printer Parts canon printer print head 3D Printer Parts & Accessories

Code: TD-1005002007150541 5 orders
Free Shipping
$ 29.9 $ 30.5
Quantity:
Other people want this. 30 people have this in their carts right now.
Default Current:  1.25a
Max Current:  2.0a
Logic Voltage:  3.3v/5v
Input Voltage:  4.75v-36v
Microstep:  Up to 1/256
Mode:  Dir/step,uart
Brand Name:  Deek-Robot
Item Type:  MOTOR
Model Number:  TMC2225 Stepper Motor Driver
Origin:  CN(Origin)

Overview:

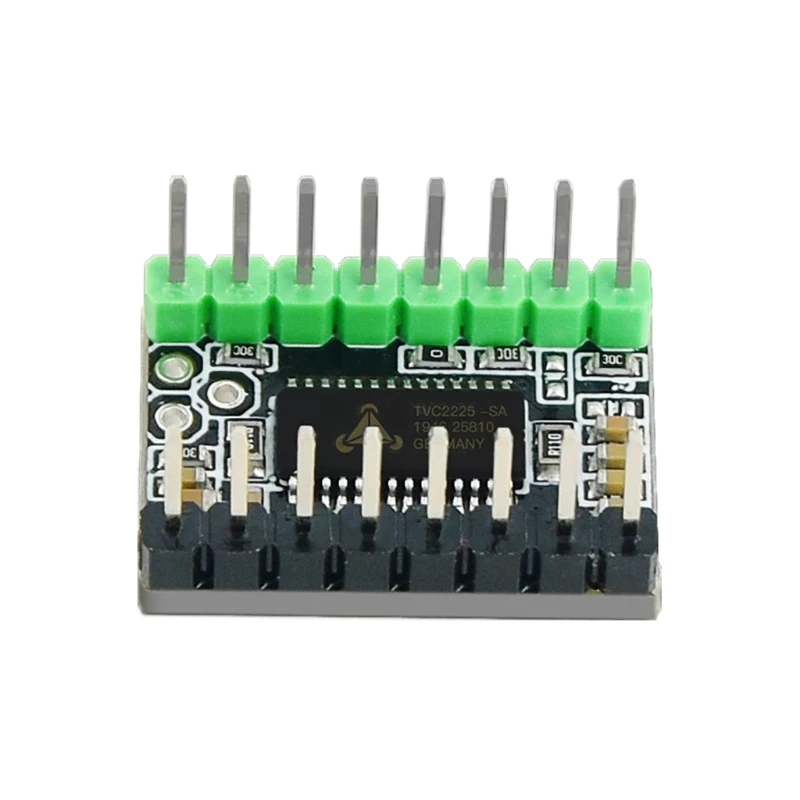

Tmc2225 is the next generation product to replace tmc2208, have better price and all function of tmc2208. The only difference between TMC2225 and TMC2208 is package.The package of TMC2225 is HTSSOP,and the package of TMC2208 is QFN, so TMC2225 have better heat dissipation performance.



Features:

Ultra quiet

Large heat sink,good heat dissipation

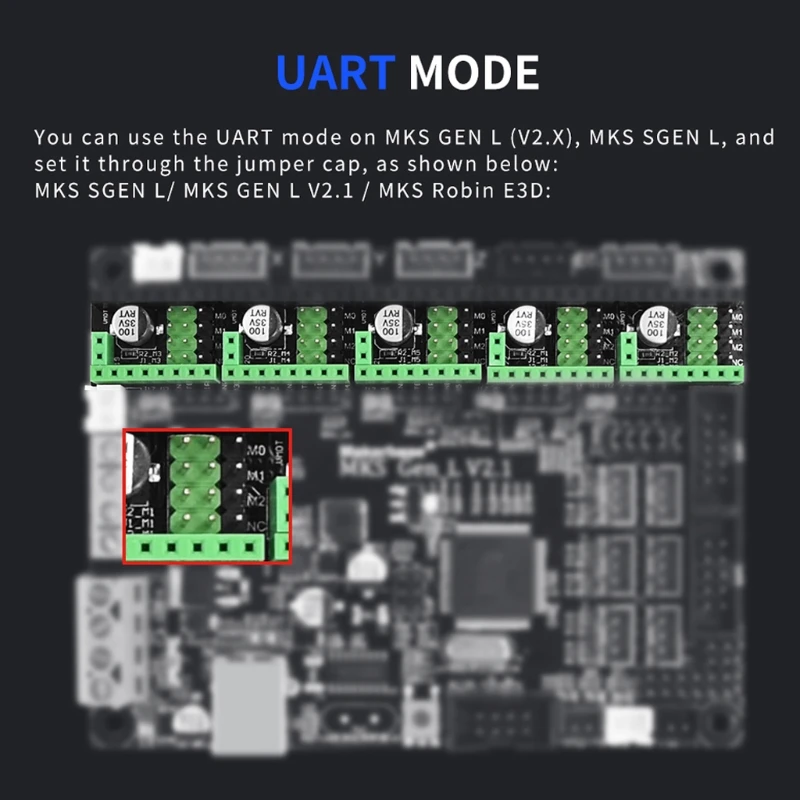

Support uart mode by set jumper caps instead of welding on mks gen_l V2.0,skr1.3/1.4,mks sgen_l.



P

arameter:

Default current:1.25a

Max current:2.0a

Logic voltage:3.3v/5v

Input voltage:4.75v-36v

Microstep:up to 1/256

Mode:dir/step,uart

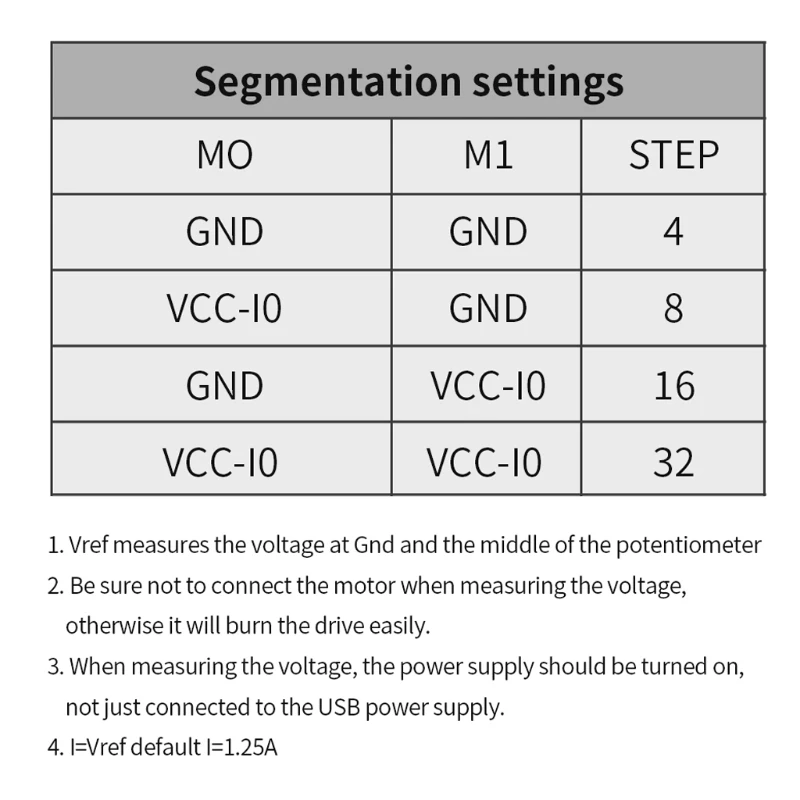

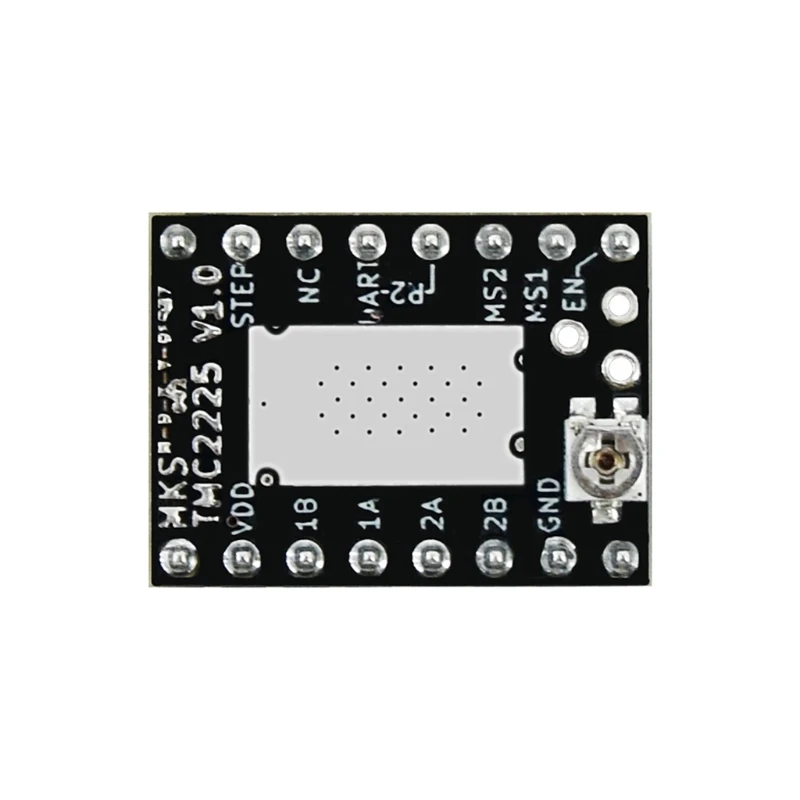

Microstep set:

Microstep setting

M0 M1 STEP

GND GND 4

VCC-IO GND 8

GND VCC_IO 16

VCC_IO VCC_IO 32

Driver current regulation:

Verf measures the voltage of Gnd and potentiometer middle.

Please DO NOT connect the motors when measuring the voltage, or it's easy to burn the drive.

Please connect the power supply when measuring voltage as well, do not connect only the USB power.

Please pay special attention to the direction, do not insert wrongly!

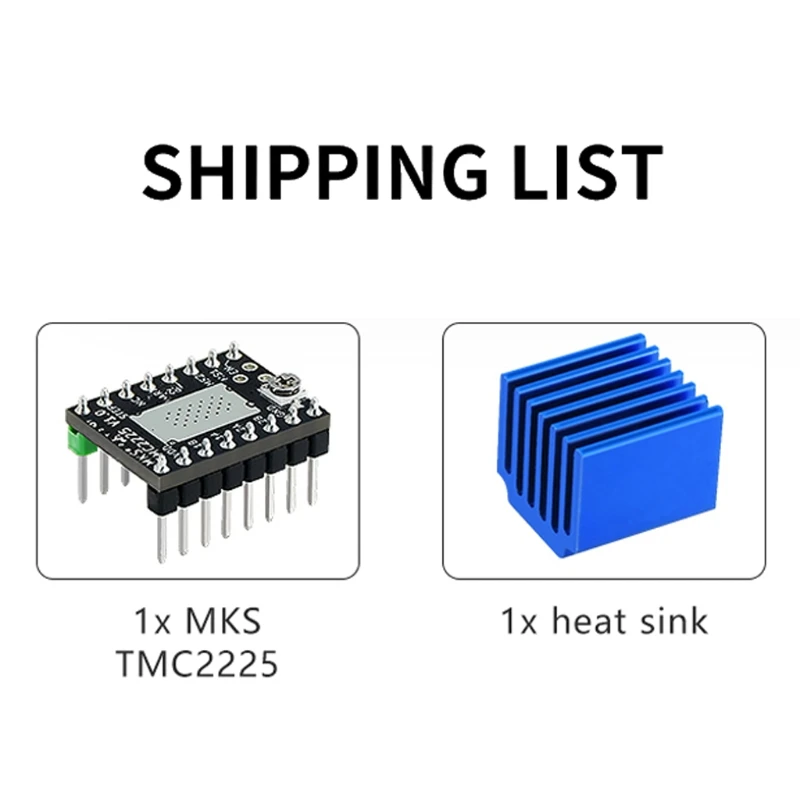

Package includes:

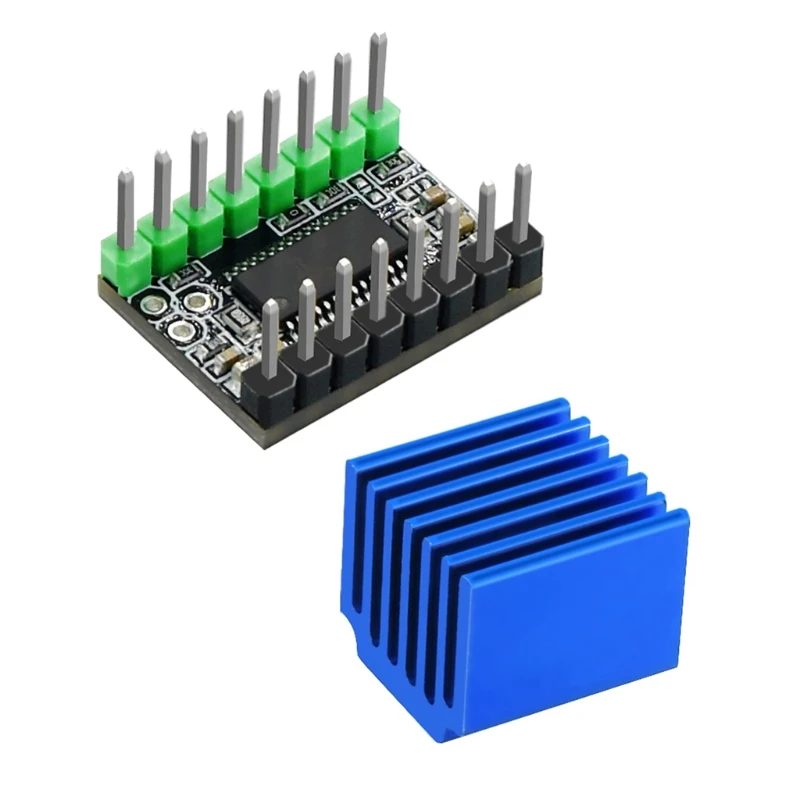

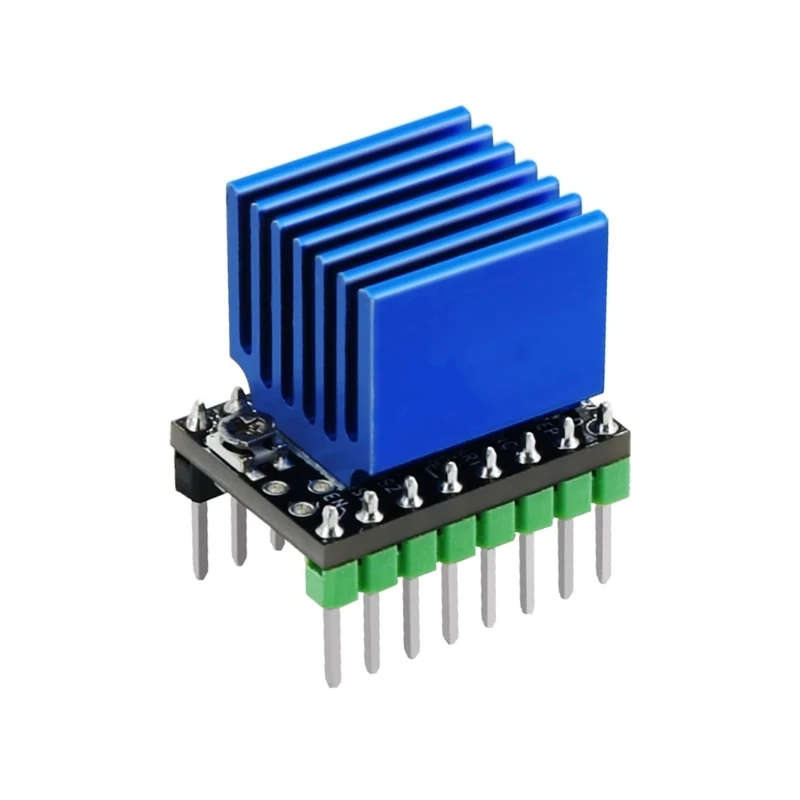

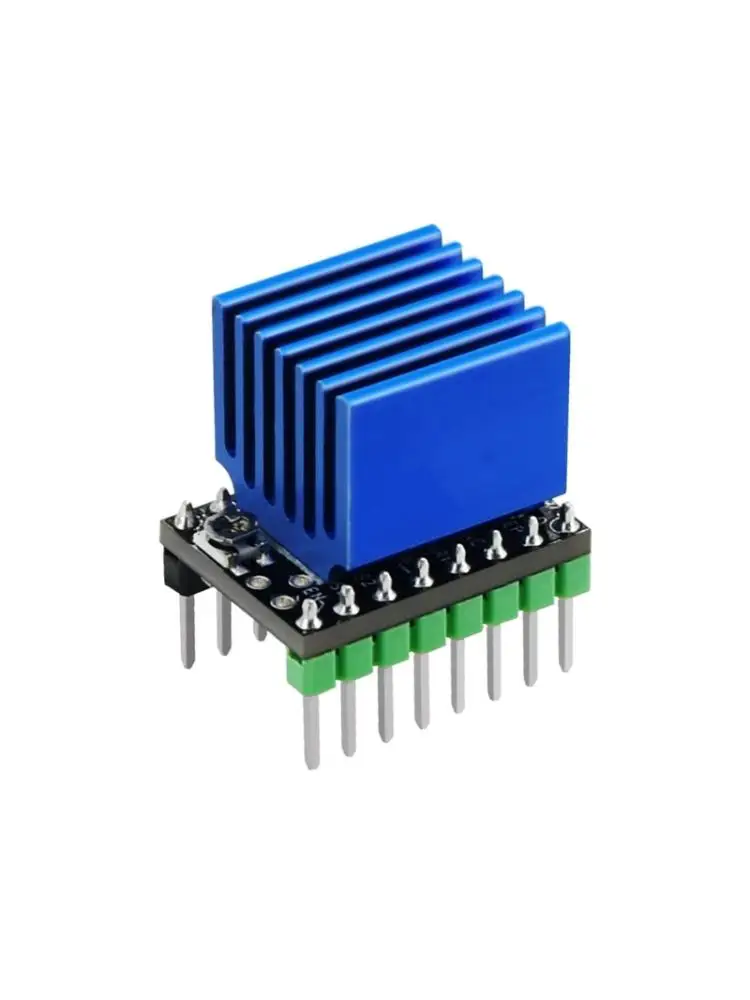

1 x TMC2225 Stepper Motor Driver

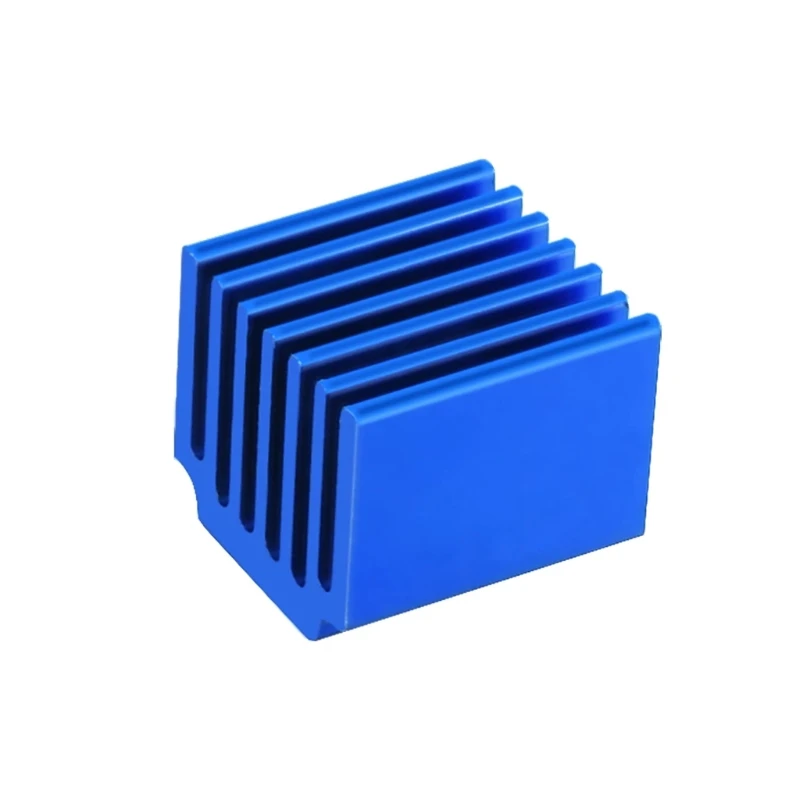

1 x Heatsink
