sub amp TDA7498E Bluetooth 5.0 Digital Power Amplifier Board 160W*2+220W Stereo 2.1 Channel Amp DC32V I4-013 motor vehicle amplifiers Audio Amplifier Boards

Code: TD-1005002037158654 192 orders
Free Shipping
$ 75.98 $ 91.4
Quantity:
Other people want this. 14 people have this in their carts right now.
Brand Name:  Kaisaya
Certification:  NONE
Origin:  CN(Origin)
Maximum Power Per Channel:  131-200W
Model Number:  XH-A128
Package:  No
Channels:  3 (2.1)
Type:  Bluetooth Digital Amplifier Board
style:  Stereo Amplifier
type 1:  Audio Amplifier

3.2 inch Touch LCD HackRF One+PortaPack H2+0.5ppm TXCO SDR Radio+Havoc Firmware With Plastic Shell Battery Inside For Ham radio

USD 225.11-241.40/piece

HiFi Audio Cable Ground Loop Noise Isolator GND Black Hole Eliminate Static Electricity Power Purifier Electronic T0894

USD 17.98-35.98/piece

SI4732 All Band Radio FM AM (MW and SW) SSB (LSB and USB) With Speaker Antenna battery

USD 29.98-41.48/piece

Vinyl turntable adjustment ruler Tonearm and cartridge position wheelbase adjustment tool T0030

USD 165.98/piece

Kaisaya HIFI Power IRS2092 1000W Mono channel Digital power amplifier board Class D Stage power amplifier board

USD 34.58/piece

TDA7498E Bluetooth 5.0 Digital Power Amplifier Board 160W*2+220W Stereo 2.1 Channel Amp DC32V I4-013

USD 35.98/piece

Infineon MA12070 Audio Amplifier Board 2*80W Stereo Class D Amplificador Support Raspberry Pi attach IIS I2S input

USD 37.58-42.98/piece

Tecsun PL-330 Portable Stereo firmware 3306 Digital Tuning short wave-single sideband radio with lithium battery I3-011

USD 72.98/piece

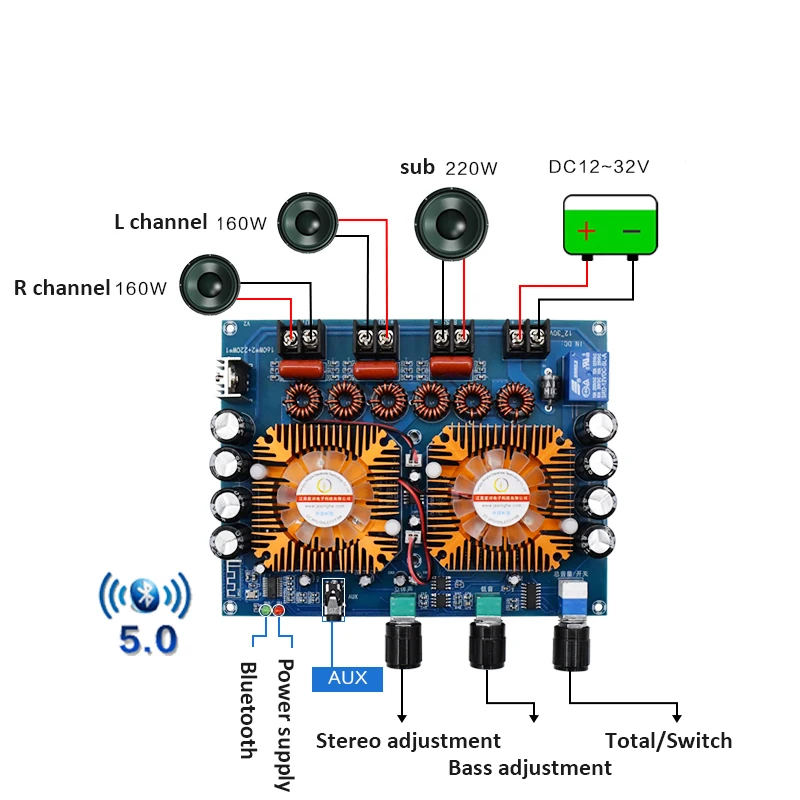

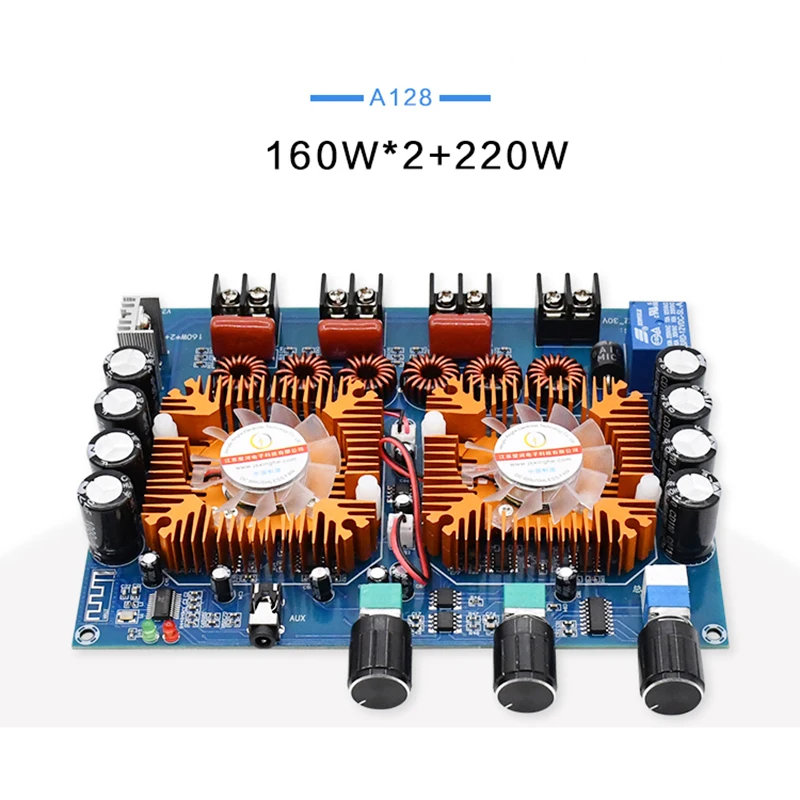

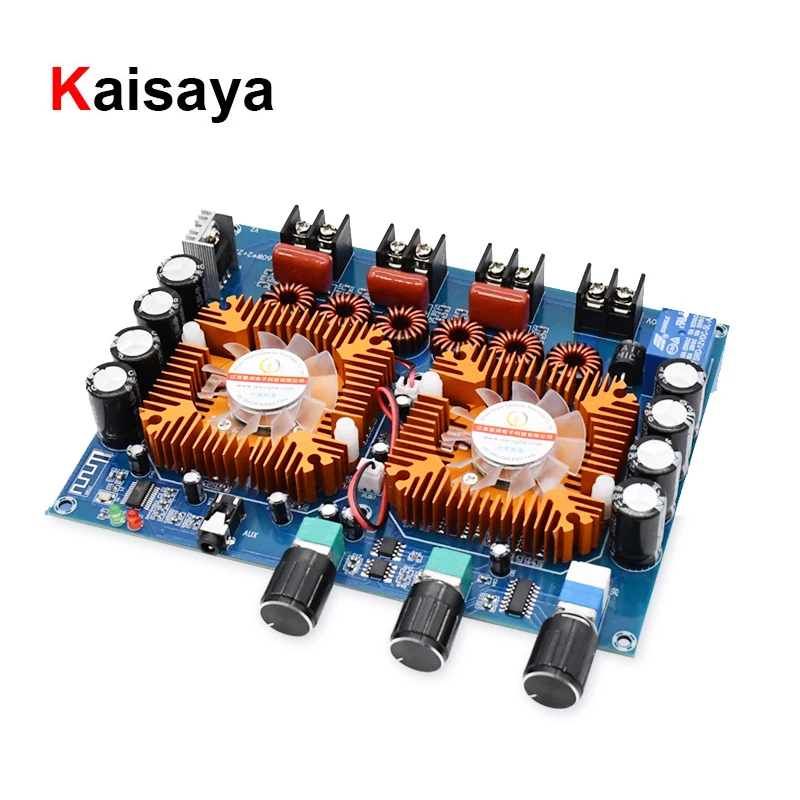

TDA7498E Digital Bluetooth 5.0 Power Amplifier Board 160W*2+220W

Product name: 2.1 High-power digital power amplifier board

Product model: XH-A128

Function type: Amplify audio

Chip type: digital chip

Chip model: TDA7498E*2

Power supply voltage: DC12-32∨

Output impedance: 4-89

Number of channels: two channels

Output power: 160W*2+220W

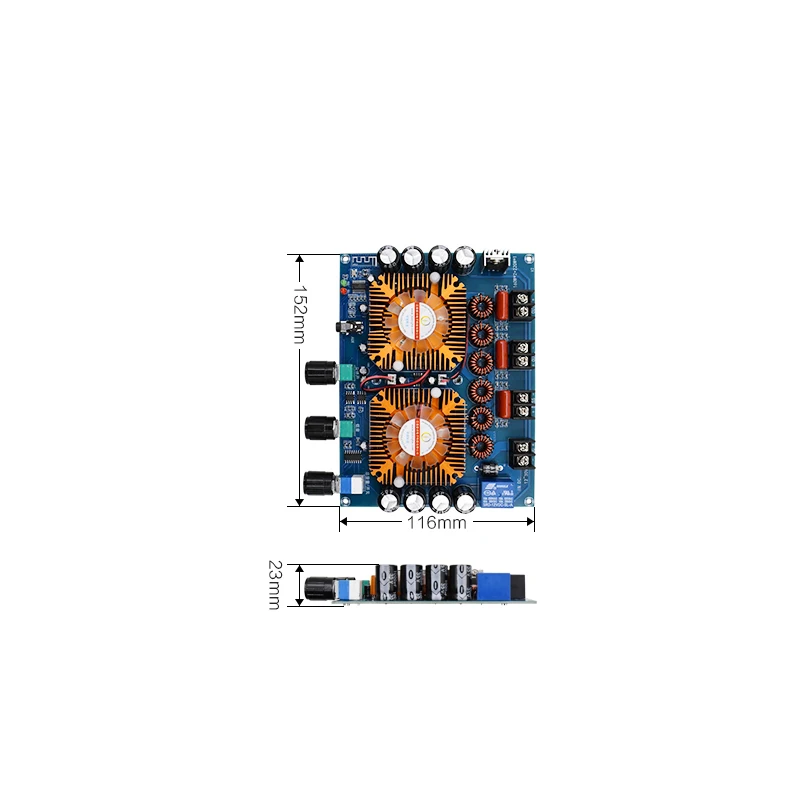

Appearance size: 152*116*23mm

Product weight: 243g

Package included:

1pc* bluetooth amplifier

Common problem

When the volume is turned up, the sound will be stuck, intermittently, and it can be played normally when the volume is turned down.

Answer: Reason 1: Due to the low power of the power supply, the total output power of this power amplifier board is 540W.

When choosing, it is recommended to choose a voltage of 32V and a current of about 17A.

Reason 2: If there is no problem with the power supply, it may be that the power of the speaker is too small, for example, the output is 50W, but

Connect a 5W speaker, the loudspeaker will show the phenomenon of freezing, and it may burn the speaker

2. The problem of Bluetooth connection failure.

Answer: The Bluetooth of the mobile phone is turned on, but the Bluetooth of the power amplifier board cannot be found. It is not possible to change the mobile phone to test.

If there is a problem with the module, you can contact customer service.

3 The mobile phone can be connected but the laptop or desktop computer cannot be connected.

Answer: If you can connect to the machine and play music, it is said that there is no problem with the Bluetooth power amplifier board. It may be that there is a problem with the computer's Bluetooth driver, the version is too old or there are files missing. It is recommended to uninstall and then install the latest version of the driver.
