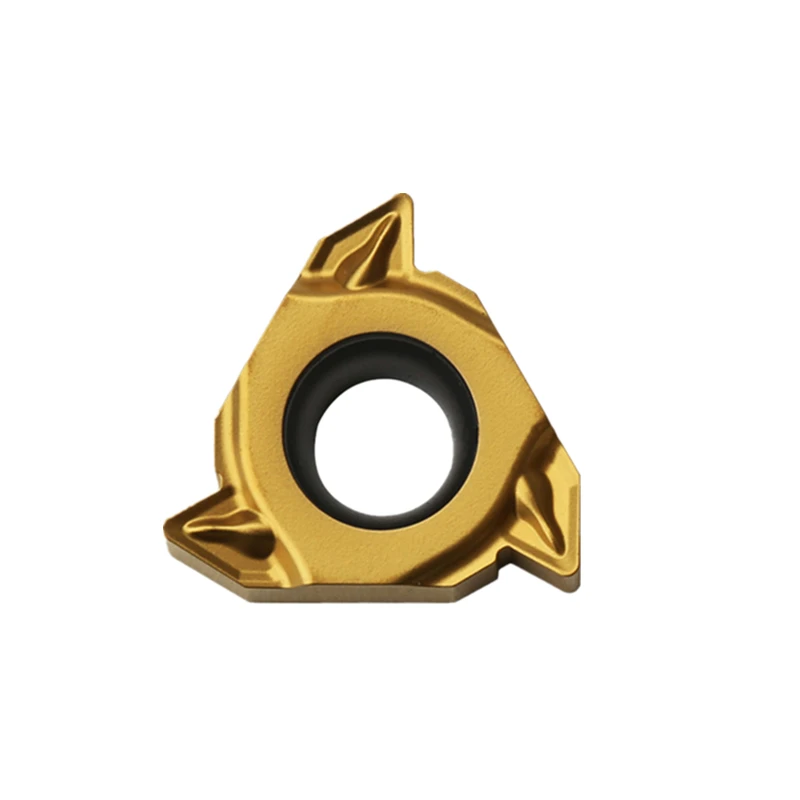

slab milling cutter ZCC RT16.01W-1.00GM RT16.01W-1.50GM RT16.01W-2.00GM YBG201 Internal Thread CNC Milling Insert for Steel Stainless Steel Lathe metal vice Machine Tools & Accessories

slab milling cutter ZCC RT16.01W-1.00GM RT16.01W-1.50GM RT16.01W-2.00GM YBG201 Internal Thread CNC Milling Insert for Steel Stainless Steel Lathe metal vice Machine Tools & Accessories

Name: slab milling cutter ZCC RT16.01W-1.00GM RT16.01W-1.50GM RT16.01W-2.00GM YBG201 Internal Thread CNC Milling Insert for Steel Stainless Steel Lathe metal vice
Brand: MMO Dropship
SKU: 3256802914956409
Price: 79.89 VND
Availability: InStock
Rating: 4.9 (80 reviews)

Code: TD-3256802914956409

Free Shipping

$ 79.89 $ 93.39

Other people want this. 13 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	KAVTECNC TOOLS
Certification:	NONE
Origin:	CN(Origin)
Coating:	Other
Model Number:	RT16.01W
Hardness:	A
Usage:	External Turning Tool
Material:	Hard Alloy

Introduction of numerical control blade (diamond) use

YBC151

High wear resistance of the matrix with MT-TICN, AL2O3, TIN coating combination; suitable for the finishing of steel.

YBC251

A good combination of MT-TICN, AL2O3, TIN coating, and a fine combination of edge security.

YBC351

High strength in the combination of MT-TICN, AL2O3, TIN, and, which has good toughness and plastic deformation.

YBD151

High wear resistance matrix and MT-TI (CN), thick AL2O3, TIN coating of an excellent combination, suitable for the finishing and semi finishing of cast iron materials.

YBM151

Special organization structure matrix and TiCN, thin Al2O3, tin coating combined with good impact resistance and resistance to plastic deformation capacity, and has good anti impact performance, suitable for stainless steel finishing and semi finishing machining and rough machining.

YBM251

Good toughness and strength of the matrix and TICN, thin AL2O3, TIN coating, suitable for stainless steel semi finishing and rough machining.

YBM253

CVD new grade stainless steel, widely used in the field of high efficiency and high efficiency machining. Using advanced ultra-fine grain nano coating technology, with the gradient alloy substrate with high toughness, excellent performance, in large depth of cut, feed, high speed cutting process has excellent cutting performance.

YBC152

Thick TICN and thick AL2O3 coating, in the same time, the impact toughness is improved, and the wear resistance is improved greatly, it is the ideal choice for the steel finishing to the semi finishing high speed cutting. Cutting speed can be improved more than 25%, in the same cutting speed, cutting tool life can be increased by more than 30%.

YBC252

The use of thick TICN and thick AL2O3 coating, has a very strong resistance to plastic deformation and cutting edge strength, is the general election of steel from finishing to rough machining. Under the high removal efficiency of cutting parameters, the performance of the cutting parameters is stable, and can achieve more green environmental protection of dry cutting. Cutting speed can be improved more than 25%, in the same cutting speed, cutting tool life can be increased by more than 30%.

YD101

Suitable for processing aluminum alloy

YD201

Suitable for processing aluminum alloy

KINGBOX blade YBD

Significant effect

1, improve the production efficiency, coating and substrate are adapted to the high-speed, high into the cast iron. (cutting speed can be improved by 30%-40%)

2, reduce the cost of the economy, the service life is improved by nearly 40%-50%.

YBD052

CVD coating, (ultra thick AL2O3+ thick TICN) coated with hard matrix, surface smooth, fine grain. The dry high speed cutting of gray cast iron shows excellent wear resistance.

YBD102

CVD coating, (thick AL2O3+ thick TICN) coating and hard substrate, in the high-speed machining of ductile cast iron, which reflects the good wear resistance and impact resistance.

YBD152

CVD coated grades, in thick AL2O3+ thickness of TiCN coating with the hard substrate binding, good resistance to spalling resistance, suitable for cast iron in high speed turning, in medium speed can withstand slight intermittent cutting, this brand is used in cast iron milling also strong versatility.

YBD252

CVD coated grades, in thick AL2O3+ thickness of TiCN coating with the hard substrate combination, abrasion resistance and toughness good combination for in toughness requirements (e.g. ductile iron, cast iron low wet milling, also suitable for intermittent turning.

New type of nano coating

The special coating process, the blade surface is smooth, low friction, smooth chip removal.

The nanostructured coatings are unique, combined with the matrix more closely, toughness and high hardness

YBG205 stainless steel PVD coating grade

Suitable for the workpiece is relatively small, processing surface finish requirements higher processing areas.

Add abrasion resistant and high temperature rare elements of ultrafine TIAIN based nano coating, high hardness and excellent high temperature performance for cutting edge to provide effective protection, special coating processing technology, coating and substrate are firmly combined, suitable for precision turning of stainless steel materials.

YBG102

The combination of NC-TIAIN coating and fine grain matrix is suitable for all kinds of material finishing and high temperature alloy.

YBG202

The combination of NIC-TIAIN coating and the strong toughness matrix of the ultrafine particles is suitable for the processing of various materials, semi finish turning and high temperature alloy.

YBG302

The combination of NIC-TIAIN coating and the toughness of hard alloy matrix is suitable for cutting, cutting and processing of various kinds of materials, and the combination of safety and wear resistance is achieved.

Super hard blade number

YCB011 workpiece material: cast iron processing category: Finishing

PCBN grade high CBN content, with good hardness (HV3400-3800), thermal stability, thermal conductivity, and good abrasion resistance, mainly used for high speed and high precision cutting and processing of cast iron, iron base p / M materials and heat resistant alloy.

YCB012 workpiece material: high hardness material processing category: Finishing

The lower CBN content, the finer grain structure of PCBN grades, with high hardness (HV3200-3500)

Good thermal stability and relatively low heat conduction rate, mainly used for hardened steel (HRC45-65) high speed and high precision continuous or slightly interrupted cutting processing, recommended to minimize the use of dry cutting.

YCD011 workpiece material: non-ferrous metal processing category: Finishing

Medium grain structure of the PCD grades, has a very high hardness (HV7000) excellent wear resistance of thermal conductivity and is mainly used for nonferrous metals (al, Cu and its alloys) and non metal (ceramic, wood and reinforced plastics, etc.), high speed, high efficiency and high precision cutting processing is a general good PCD grades.
