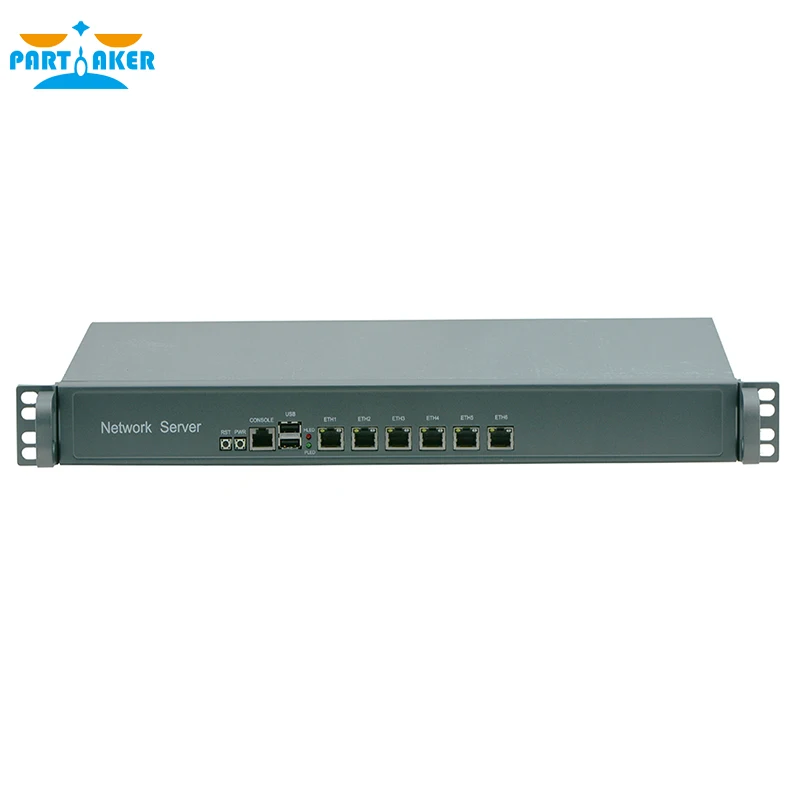

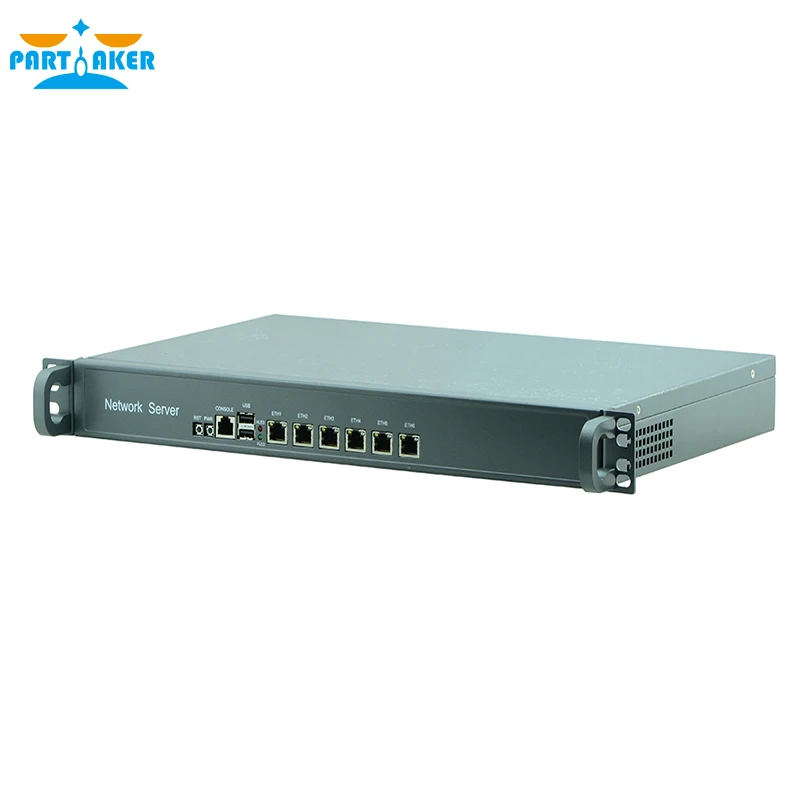

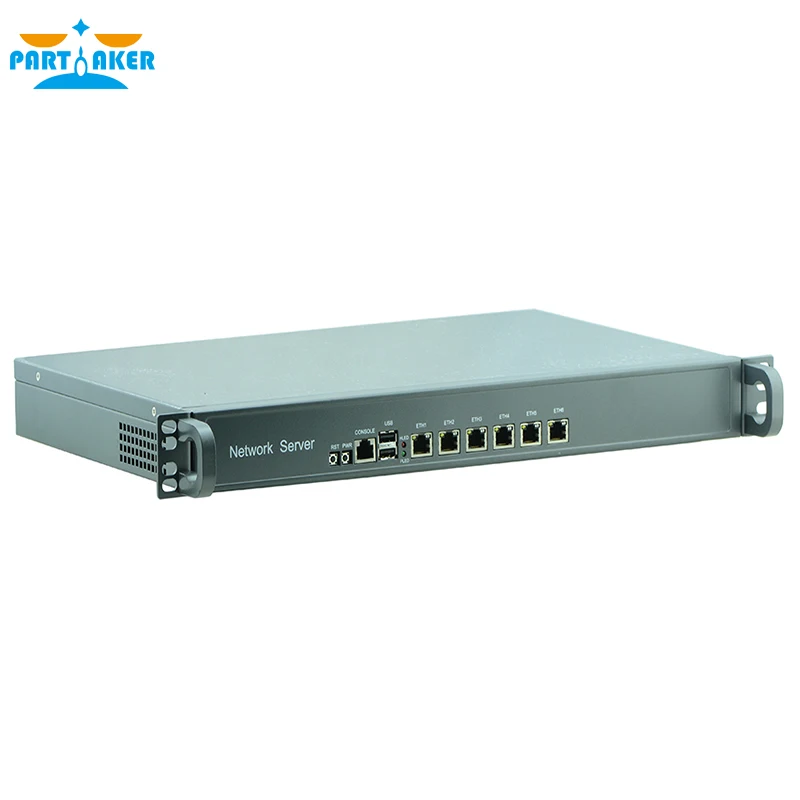

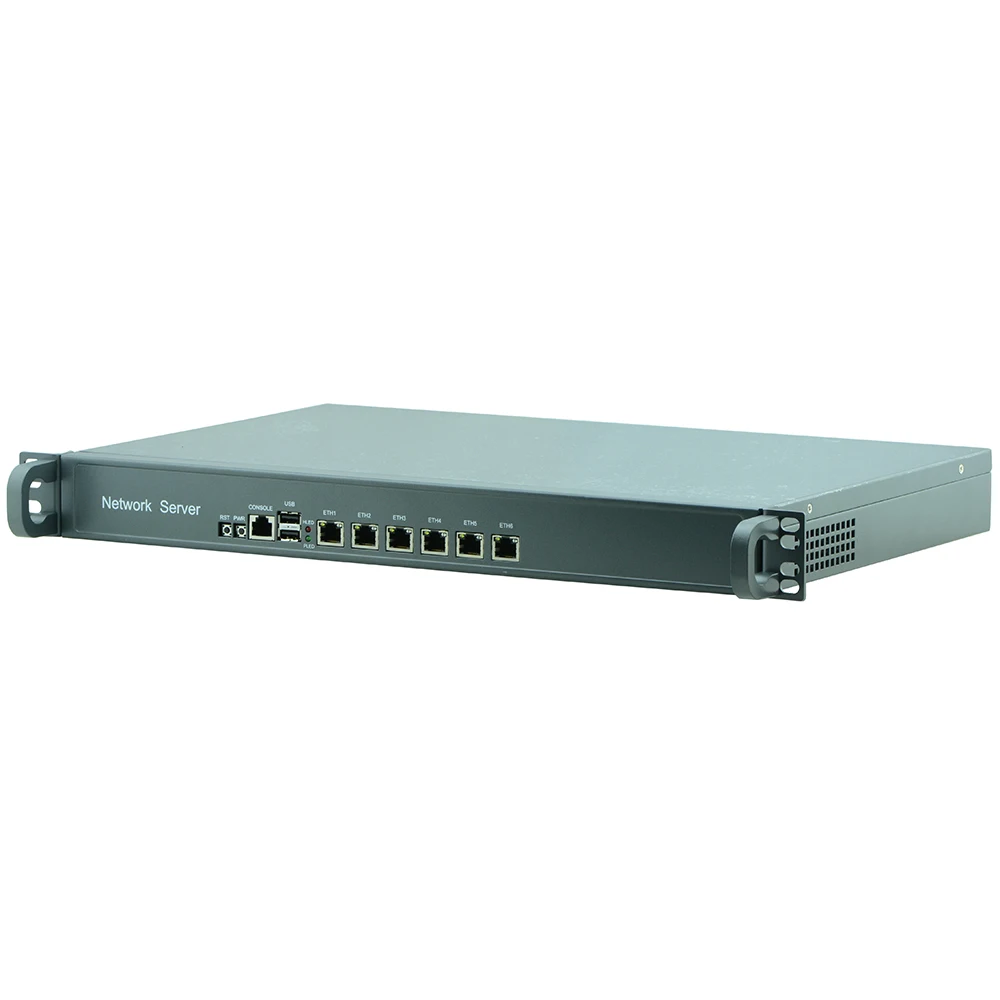

signal internet booster 1U Rack Firewall Router Network Server 6 82583v J1900 1.8G Support ROS Mikrotik PFSense F4 smart wifi signal booster Wireless Routers
Code: TD-32856248376
Free Shipping
$ 691.63
$ 1154.85
Other people want this. 19 people have this in their carts right now.
| Brand Name: | Partaker |
|---|---|
| Origin: | CN(Origin) |
| With Modem Function: | No |
| Type: | wireless |
| Certification: | CE |
| Certification: | FCC |
| Certification: | RoHS |
| Model Number: | F4 J1900 |
| Standards And Protocols: | Wi-Fi 802.11g |
| Function: | Firewall |
| Model Number: | Model Number |
| Wired Transfer Rate: | 10/100/1000Mbps |
| Storage: | 2 2.5 HDD/1 3.5"HDD, 1 MSATA SSD |
| COM: | 1 CI SCO COM Port |
| Power: | 1 ATX Open PSU Interface |
| Memory: | 2 DDR4 Dual Channel 2133MHz Max 16GB |
Soft route is with the use of a desktop or server software to form a routing solution, mainly by software settings to reach the router function; while the hard route is based on use of special hardware devices, including the processor, power supply, embedded software, Setting the router functionality provided.
Software router is not complicated, very simple, normal operation will use PC software can be installed on the route, as the name suggests is the system software setup routing function
Depending on the different operations can be divided based on the windows platform and software-based routers Linux / bsd platform development, based on the Windows platform software firewall more common ISA Server, Winroute Firewall, Internet behavior management soft grass routes, etc. Some of these software is commercialized, usually based on the number of authorized users of different charges and different, the cost of buying genuine software firewall for many small and medium enterprises is undoubtedly spending a small fortune, grass Internet behavior management software-based routing is limited windows platform and also hit a soft free routing software; and based on Unix / Linux platform software firewall we generally less contact, to benefit from open source operation, currently based on Unix / Linux platform software firewall mushroomed continue to introduce these Most software firewall is free, a common sea spiders, ikuai8, RouterOS, m0n0Wall, SmoothWall, Ipcop, CoyoteLinux [1], etc. These systems are characterized by low total general hardware requirements, or even just need a 486 computer, a floppy disk, you can install two cards out of a very professional software firewall, which has eliminated a lot of friends down the low-end computers, means to take one out of the computer, install a free firewall software, do not spend a penny on DIY out a professional firewall, and these systems also include NAT function itself, and can achieve broadband sharing, which means that this free firewall is actually a good broadband router, this is how exciting things, but for now, this kind of free software route is usually inserted in order to survive or because of excessive advertising leads to dissatisfied users.

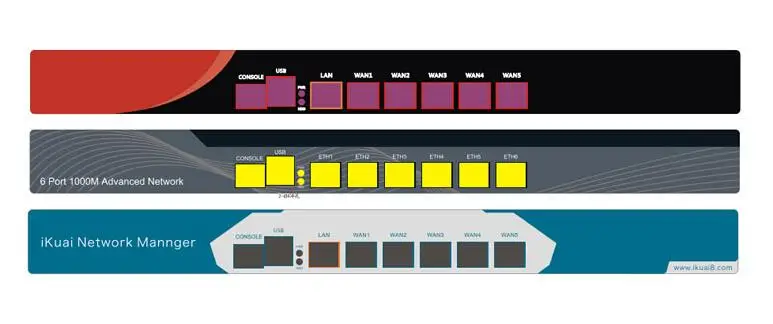

LOGO Sticker can be customized, MOQ100pcs
Our firewall appliance can install routing software like Radius_Manager, RouterOS, ROS, Panabit, PFSense, monowall, PFS, OPENWRT, Yunbs, XiaoCao, Wayos, Netzone, Bytevalue, Bithighway, Hi-Spider, iKuai etc
Specification
Chassis
Color
Silver black
Dimension
430mm*280mm*44.5mm
Structure
1U280 Standard chassis
Material
High quality galvanized steel sheet
Installation
1U standard rack mounting method
Motherboard
Model
D52SL
Processor
Integrated Intel®D525/1.8GHz dual core processor
Chipset
Adopt Intel® ICH8M Express chipset
Graphics
Graphics Core
Integrated Intel®GMA3150 Graphics
Support 1*VGA display output
Storage
Memory
1* DDR3 SODIMM memory slot, max support 2GB
HDD
Support 2*2.5 inch or 1*3.5 inch HDD expansion
CF
Support 1* CF expansion
SSD
Support 1*MSATA SSD expansion
Audio
Sound Card
N/A
Network
Ethernet
6* Intel 82583V, 1000/100/10Mbps
WiFi
1* Mini-PCIE slot, support USB WiFi, 3G module
I/O Port
COM Port
1* CISCO serial port
USB
2* USB2.0
LAN
6* RJ45 Gigabit LAN Port
Power Switch
1* Power switch, 1* reset switch
LED
1* HDD LED, 1* Power LED
Display
1* VGA
Power
1* ATX Open power supply port
Antenna
2* WIFI/3G SMA antenna(Optional)
Power Adaptor
Input
AC 110V~220V
Output
DC 12V 5A
Type
AC to DC 12V 5A Open Power
Reliability
Operating Temp.
0℃~45℃
Storage Temp.
-20℃~70℃
Relative Humidity
5%-95%, no condensing
Vibration
0.5g rms/5-500HZ/random/operating
Operating System
Support WindowsXP, Windows7, Linux OS
Items
Chassis
Color
Silver black
Dimension
430mm*280mm*44.5mm
Structure
1U280 Standard chassis, high quality galvanized steel sheet
Processor
CPU
Integrated Intel® Celeron® J1900 2.0GHz quad core processor, TDP10W
Graphics
Graphics
Integrated Intel®HD Graphics, support 1*VGA display output
Memory
RAM
1* DDR3L SODIMM memory slot, support 1600/1333MHz 1.35V, up to 8GB
Storage
SATA
Support 1*2.5 inch HDD expansion
SSD
Support 1*MSATA SSD expansion
Front I/O
Serial Port
1* CISCO COM port
USB
2* USB2.0
LAN
6* RJ45 Gigabit LAN Port
Power Switch
1* Power switch, 1* reset switch
LED
1* HDD LED, 1* Power LED

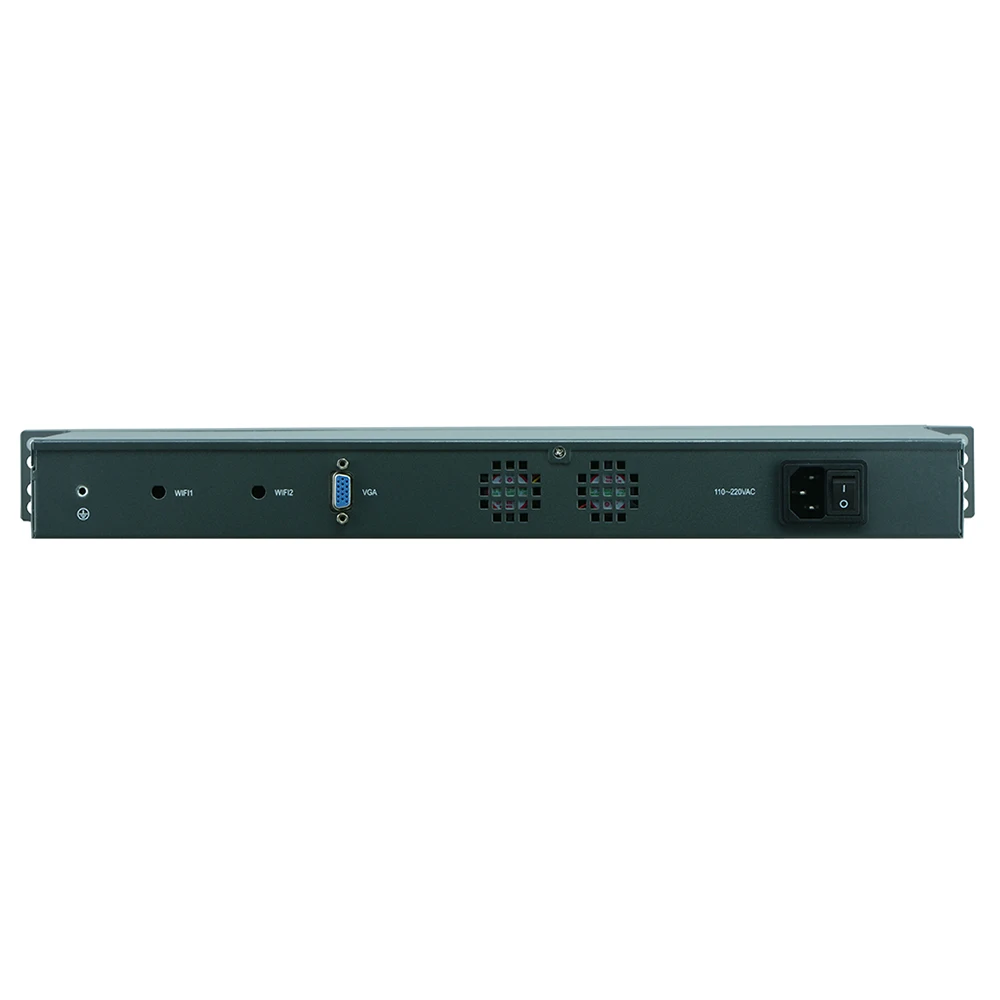

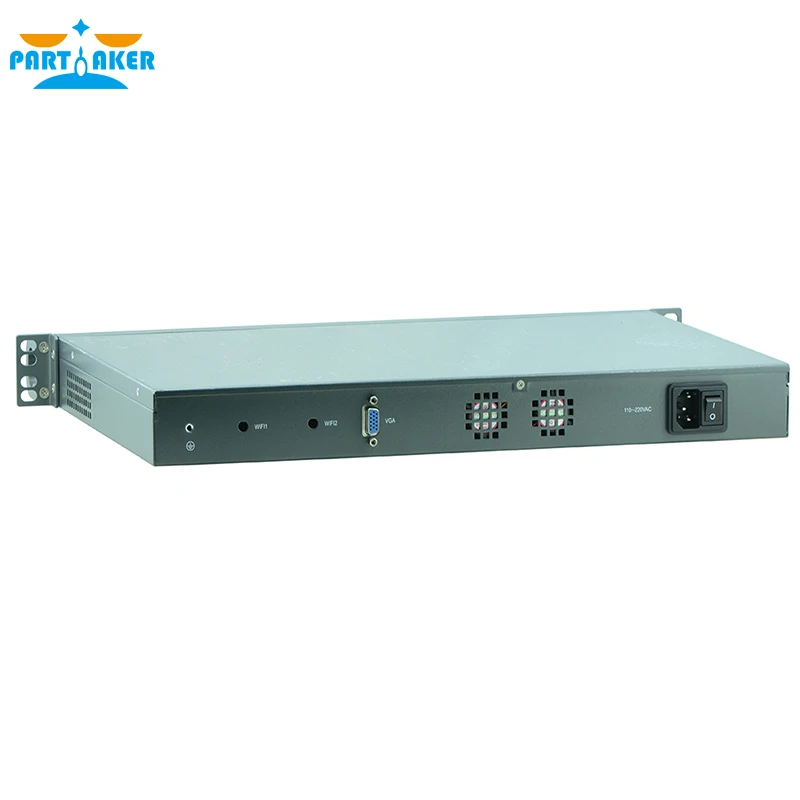

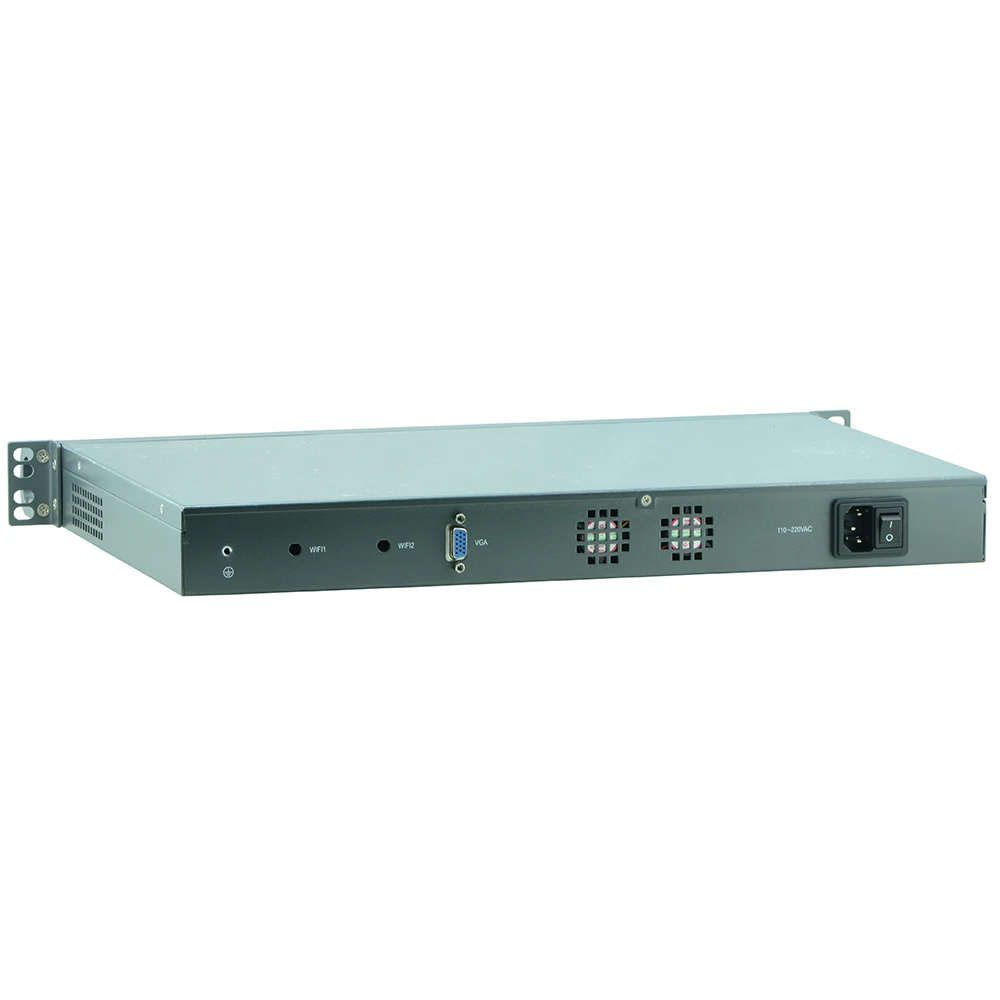

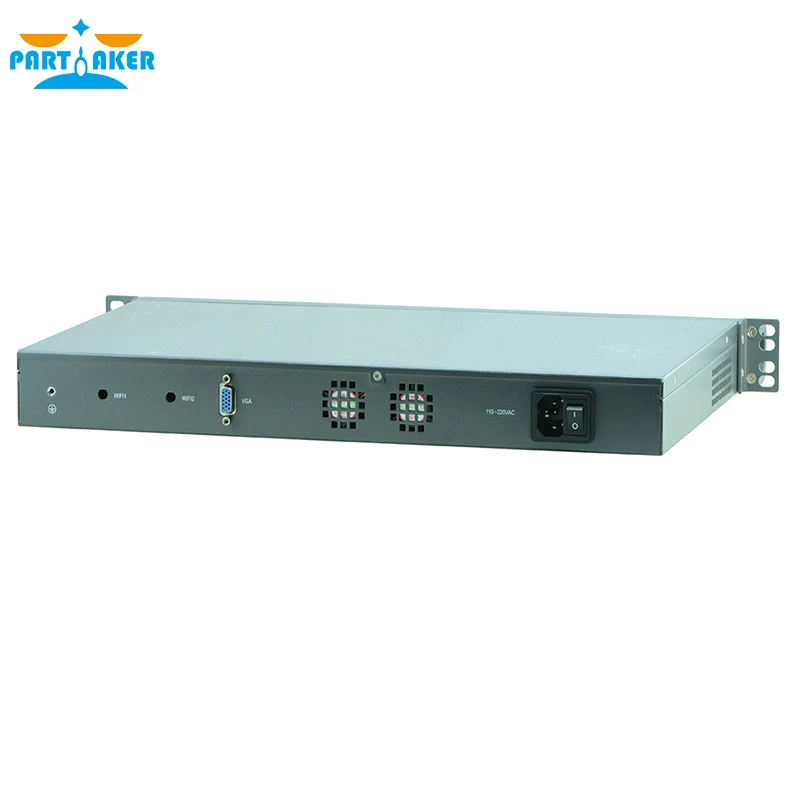

Rear I/O
Display
1* VGA
Power
1* ATX Open power supply port
Antenna
2* WIFI/3G SMA antenna(Optional)
Power Adaptor
Input
AC 110V~220V
Output
DC 12V 5A
Type
AC to DC 12V 5A Open Power
Reliability
Installation
1U standard chassis
Operating Temp.
0℃~45℃
Storage Temp.
-20℃~70℃
Relative Humidity
5%-95%, no condensing
Vibration
0.5g rms/5-500HZ/random/operating
