Description
Shipping & Returns

Brand Name:	Sunhokey
Origin:	CN(Origin)
Form:	Solid
Model Number:	MK-0587

Features

CPU: RISC-V Dual Core 64bit, with FPU; 400MHz neural network processor

MAIX is Sipeed' s purpose-built product series designed to run AI at the edge. Move AI models from cloud down to devices on the edge of the network where they can run faster, at lower cost, and with greater privacy.

MAIX isn't just a hardware solution, it combines custom hardware, open software, and state-of-the-art AI algorithms. Different kinds of dev. boards, kits, peripherals as well as wide compatibility enable rapid and agile prototype development, make AIoT projects much easier. And thanks to MAIX' s performance, small footprint, low power, and low cost, it enables the broad deployment of high-quality Edge AI.

Applications

Smart Home

Medical Industry

Smart Industry

Education

Agriculture

Specification

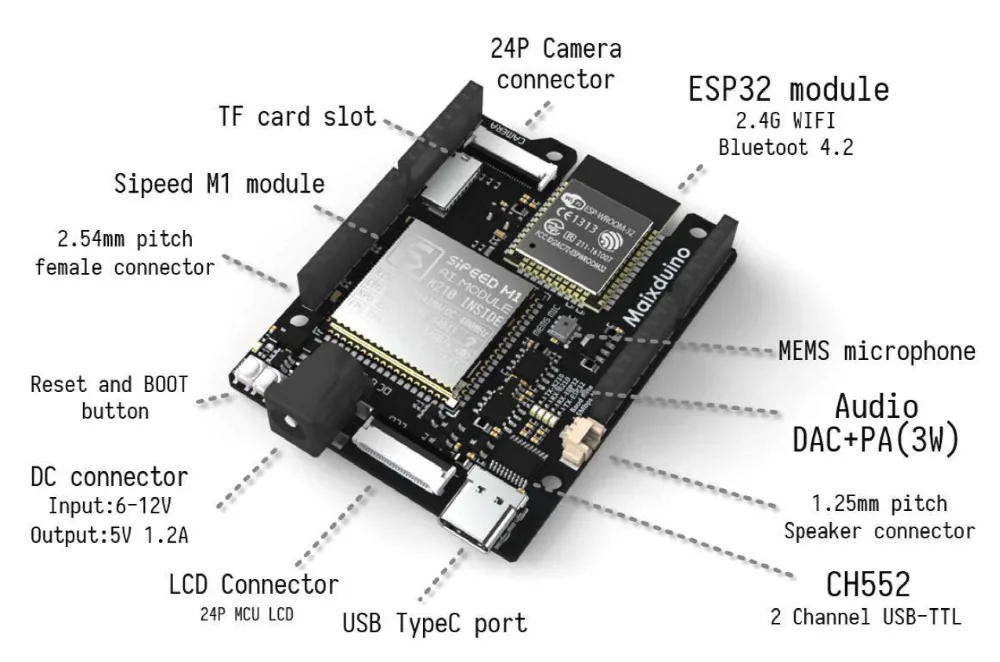

Master module

Sipeed MAIX-I AIoT module

Power input

USB Type-C

DC-DC step-down circuit:support 6-12V input;Provide 5V 1.2A output

Micro SD card（TF card） slot

Support Self-elastic card holder

Onboard MEMS microphone

MSM261S4030H0 is an omnidirectional, Bottom-ported, I2S digital output MEMS Microphone. It has high performance and Reliability.

DVP Camera interface

24P 0.5mm FPC connector

LCD connector

8bit MCU LCD 24P 0.5mm FPC connector

Audio output

DAC+PA:

TM8211:16 bit dynamic range;Low harmonic distortion

NS4150:3W output power;Up to 90% efficiency;

ESP32 module

Support 2.4G 802.11.b/g/n

802.11 n (2.4 GHz) speeds up to 150 Mbps

Bluetooth v4.2 full standard, including traditional Bluetooth (BR/EDR) and Bluetooth Low Energy (BLE)

Supply voltage of external power supply

4.8V ~ 5.2V

Supply current of external power supply

>600mA

Temperature rise

<30K

Range of working temperature

-30℃ ~ 85℃

MCU: ESP8285

Tensilica L106 32-bit MCU

Wireless Standard

802.11 b/g/n

Frequency Range

2400Mhz - 2483.5Mhz

TX Power(Conduction test)

802.11.b : +15dBm

802.11.g : +10dBm(54Mbps)

802.11.n : +10dBm (65Mbps)

Antenna Connector

IPEX 3.0x3.0mm

Wi-Fi mode

Station/SoftAP/SoftAP+Station

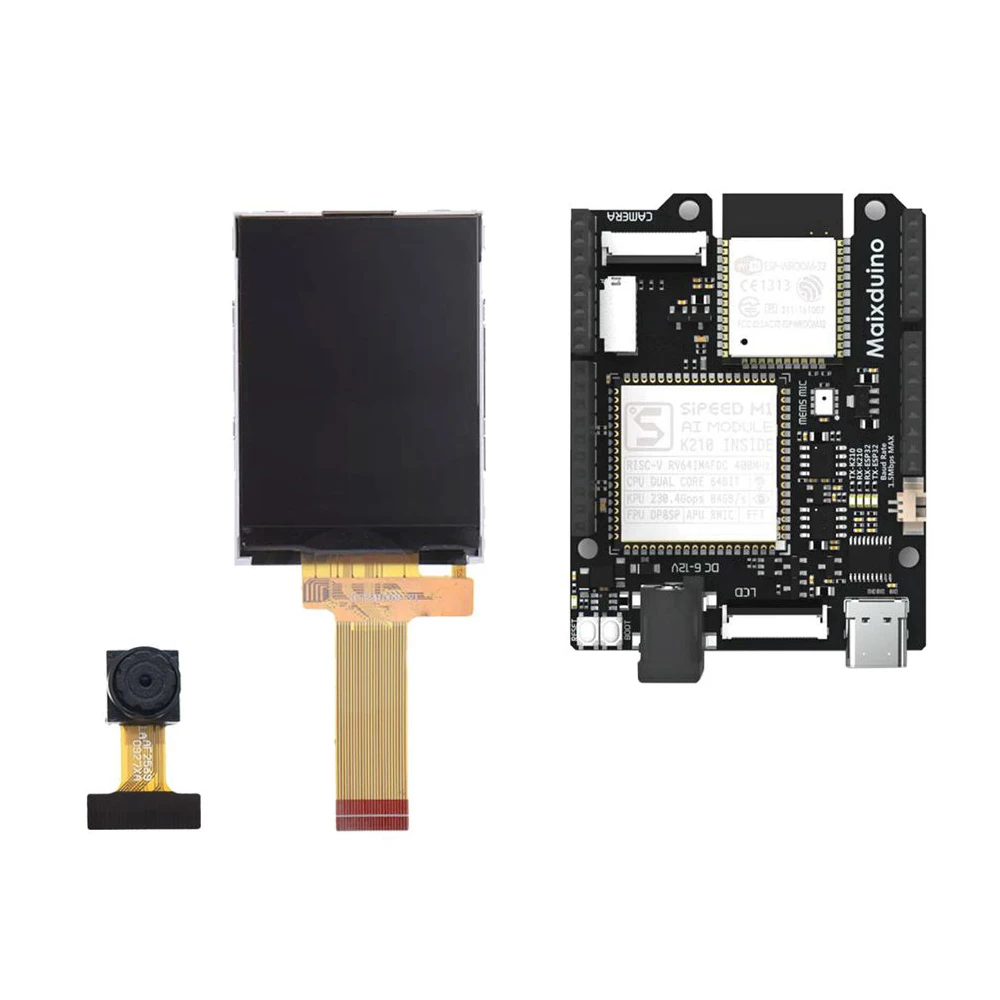

Part List

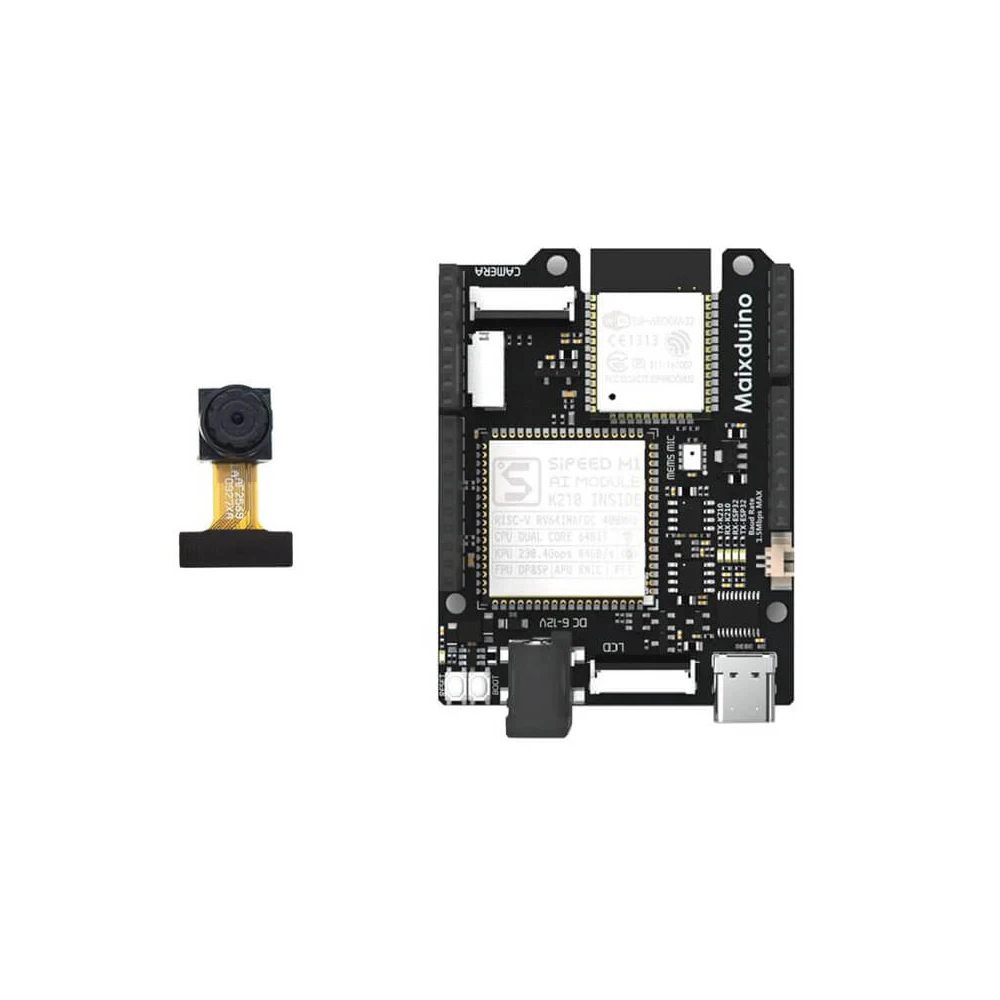

Maixduino+ov2640

Maixduino Kits
