sensor for temperature gauge Top Rated V21.9 T300 Key Programmer T300 chip key decoder Support Multi-brands t 300 Auto Key Programmer English/Spanish temperature gauge for car Diagnostic Tools

Brand Name:	MB STAR Dig
External Testing Certification:	CCC
Origin:	CN(Origin)
Model Name:	Auto Key Programmer
Electronic:	No
Hardware Version:	Top Rated V21.9
Item Height:	1.6inch
Item Length:	15inch
Power:	12 w 24W
Material Type:	plastic and metal
Item Type:	Auto Key Programmer
Item Weight:	1.9kg
Software Version:	V21.9 Or V17.8
Voltage:	12v ~24v
Item Width:	15inch
Top Rated:	Auto Key Programmer
languages:	English, Spanish
Performance:	Program new key
T300:	Distinguish types of ECU
Software Version:	V21.9 or V17.8
Package:	Carton box

Top Rated V21.9 T300 Key Programmer T300 chip key decoder Support Multi-brands t 300 Auto Key Programmer English/Spanish

Top 4 Reasons to Get T300

1. Latest version:V21.9

( 21.9) Can work a few models of vehicles on 2020 year!!!!!!!!

Please select what version and what language you need!!!

Version:V21.9 Or 17.8

There are two languages: English, Spanish

select which language version you want!

Functions:

Use for key programming. More cars than any other transponder machine .

Function introduces of T300 chip key decoder

1. Read the vehicle malfunction code

2. Clear the vehicle malfunction code

3. Read the system data stream

4. Read IMM0/ECU ID

5. Fetch the machinery key code

6. Clear vehicle key memory

7. Program new key

8. Read vehicle key login password

9. Distinguish types of ECU

10. ECU-IMMOBILISER programme

11. Read EKA password

12. Programme new EKA password

13. Programme telecontrol implement

Vehicle Coverage:

Model Place of origin

ACURA Japan

work for AU-D*I Germany

For AL*FA Italy

For B*UCK

For CH*EVROLET

For CIT*ROEN France

For CH*RYSLER

For DO*DGE

For DA*CIA USA

For DAE*WOO Korea

For FO*RD

For FO*RD USA USA

For EXC*ELLE

For FI*AT Italy

For GEN*E*RAL MOTORS USA

For G**M H*OLD*EN USA

For HO*ND A

For HY*UND*AI Korea

For IS*U*ZU

For IV*E*CO Japan

For IN*FINN*ITI Japan

For IN*FINN*ITI CAN-BUS Japan

For JA*GU*AR England

For JE*E*P

For KI*A Korea

For LA*ND RO*VER England

For LA*NC*IA Italy

For LD*V

For LE*XUS Japan

For LIN*ICOLN USA

For MA*Z*DA USA Japan

For MA*Z*DA M6 Japan

For ME*RC*URY USA

For VA*LKS*WAGEN

For MI*TSUB*ISHI Japan

For NI*SS*AN Japan

For P*EUG*EOT Franc

For R*EN*AULT France

For P*ROT*ON

For PO*NT*IAC

For R*OVER

For S*UB*ARU England

For SE*AT Spain

For SK*ODA Czech

For SU*ZUKI Japan

For SU*ZUKI

For TO*YO*TA Korea

For TO*YO*TA

For V*W Germany

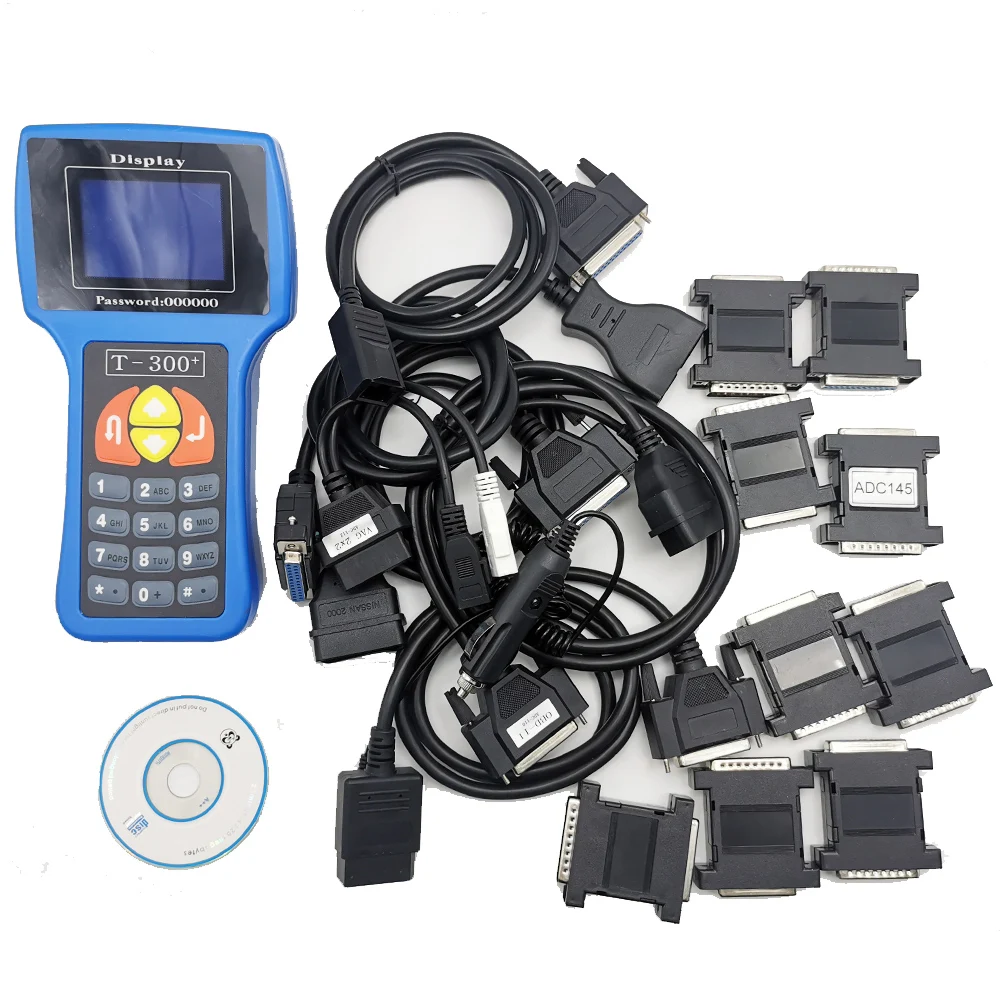

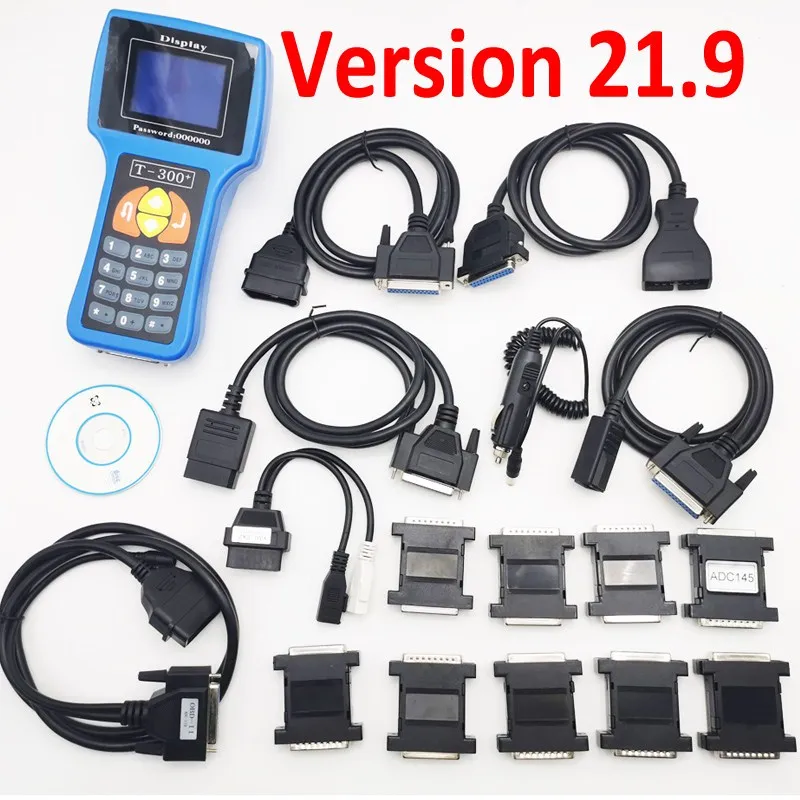

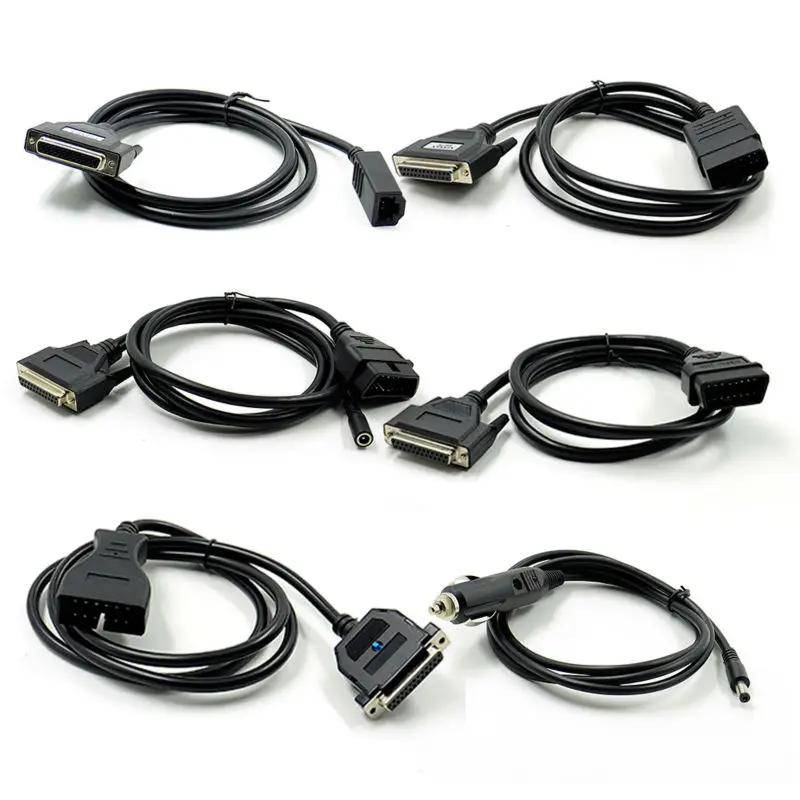

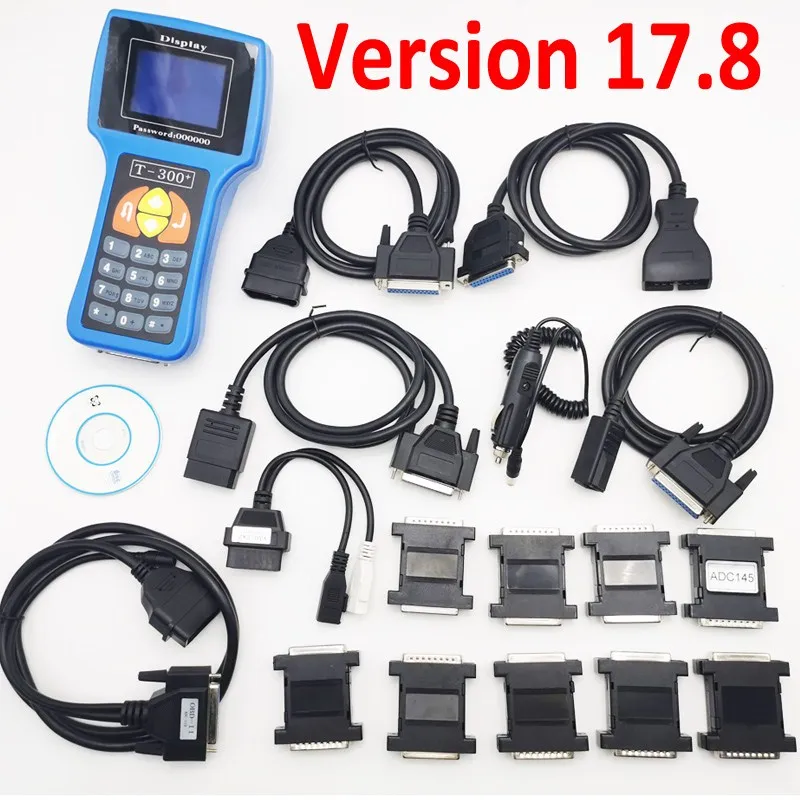

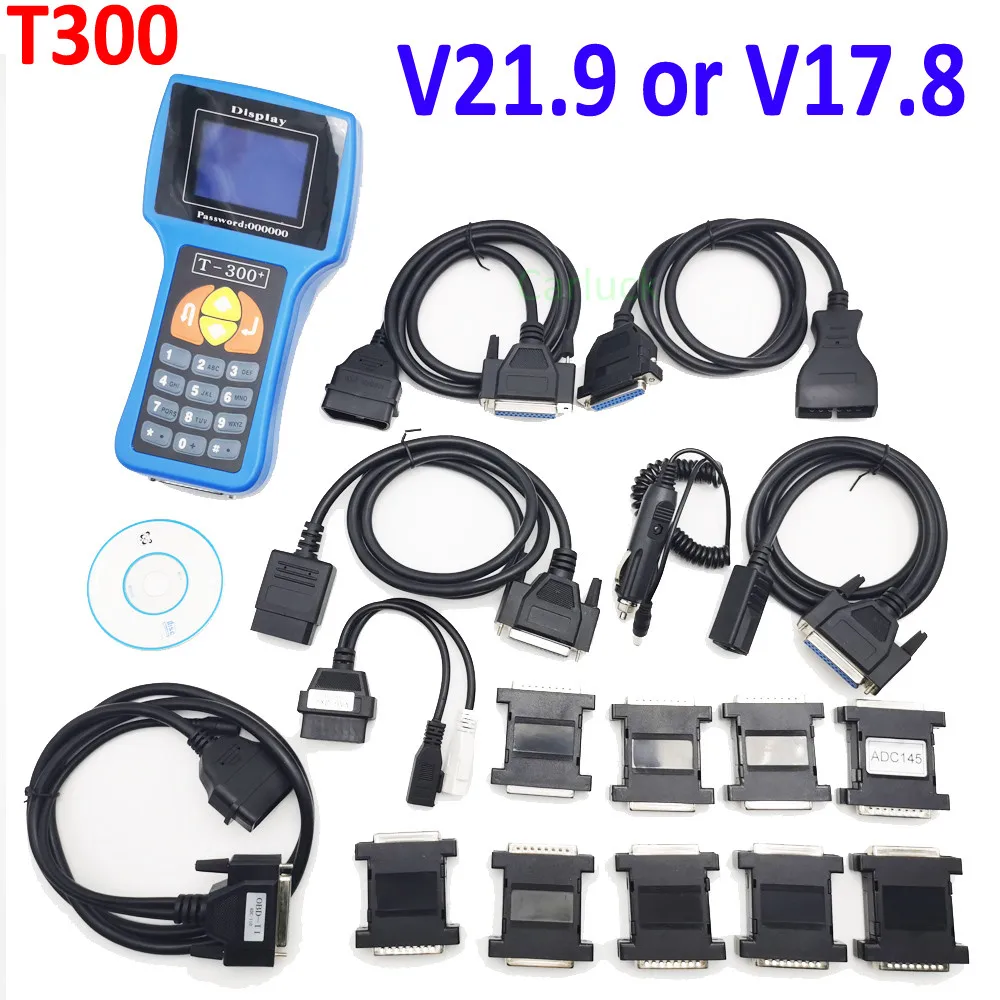

Package contains:

1. HO*ND A-16 Adaptor

2. SUZ*UKI Adaptor

3. MIT*SUBISHI Adaptor

4. OBDII-16 Adaptor

5. OBDII-16 POWER Adaptor

6. AU*DI 2+2 Adaptor

7. HO*ND-3 Adaptor

8. For Nis*s*an OBDII

9. Nis*s*an 14

10. Nis*s*an adaptor

11. chr*ys*ler-1 adaptor

12. Ch*ry*sler-2 adaptor

13. G*M-12 adaptor

14. OBDII TO B*EN*Z SPRINTER

15. AD*C 45 Adapter

16. Peug*eot Adapter

17. User Manual

Work for AU-DI-VW Transponder key matching with 5 digits Login Code Procedure for adding transponder keys to vehicles with separate Immobilizer box:

(work for Au-di to year 97, Golf 3, Passat B4, Transporter, Lupo, Sharan)

Switch ignition ON with new key. Select: Immobilizer -> Login

Enter 5 numbers Login Code (add 0 if you have 4 digits Login Code).

For example, if your Login is 1234, enter 01234.

Save

Go to Adaptation

Enter 01 in "Channel Number"

Enter

The "Stored Value" is the number of keys currently matched.

Enter number corresponding to the total number of keys to be matched, - for ex 2 ;

Enter -> Save

Switch ignition off and remove key

Insert next key to ignition and switch ignition on again

Wait 15 sec. Repeat this step with each key until all keys have been matched.

Select: Immobilizer -> Login. Enter Login Code. Go to Adaptation

Enter 00 in "Channel Number"

Enter 0 and Save. This will learn ECU with Immobiliser.

Procedure for adding transponder keys to vehicles with Immobilizer in the instrument cluster:

(Audi from year 97, Golf 4, Passat B5, B6 )

Switch ignition ON with new key. Select: Instrument -> Login

Enter 5 numbers Login Code (add 0 if you have 4 digits Login Code).

For example, if your Login is 1234, enter 01234.

Save

Go to Adaptation

Enter 21 in "Channel Number"

Enter

The "Stored Value" is the number of keys currently matched.

Enter number corresponding to the total number of keys to be matched, - for ex 2 ;

Enter -> Save

Switch ignition off and remove key

Insert next key to ignition and switch ignition on again

Wait 15 sec. Repeat this step with each key until all keys have been matched.

Select: Immobilizer -> Login. Enter Login Code. Go to Adaptation

Enter 00 in "Channel Number"

Enter 0 and Save. This will learn ECU with Immobiliser

Others:
