Brand Name: | GVDA |
---|---|
DIY Supplies: | ELECTRICAL |
Certification: | CE |
Certification: | FCC |
Certification: | RoHS |
Origin: | CN(Origin) |

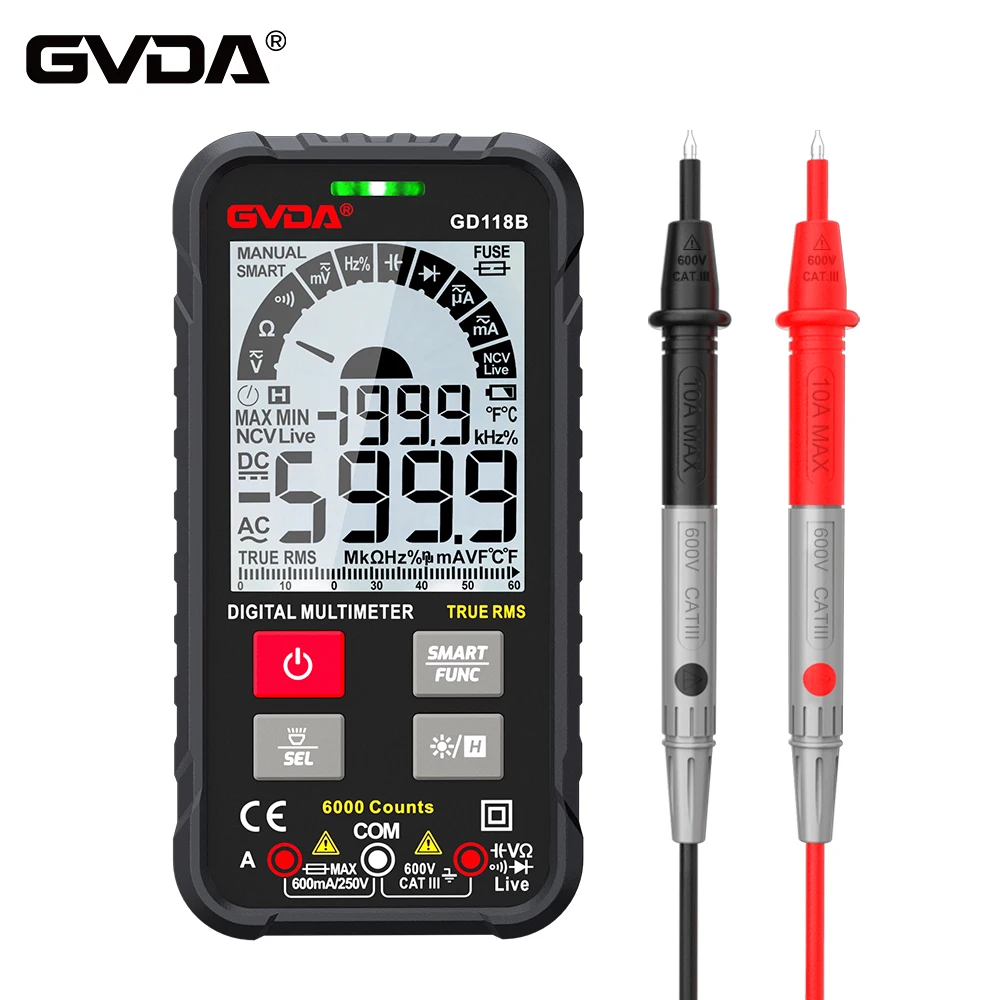

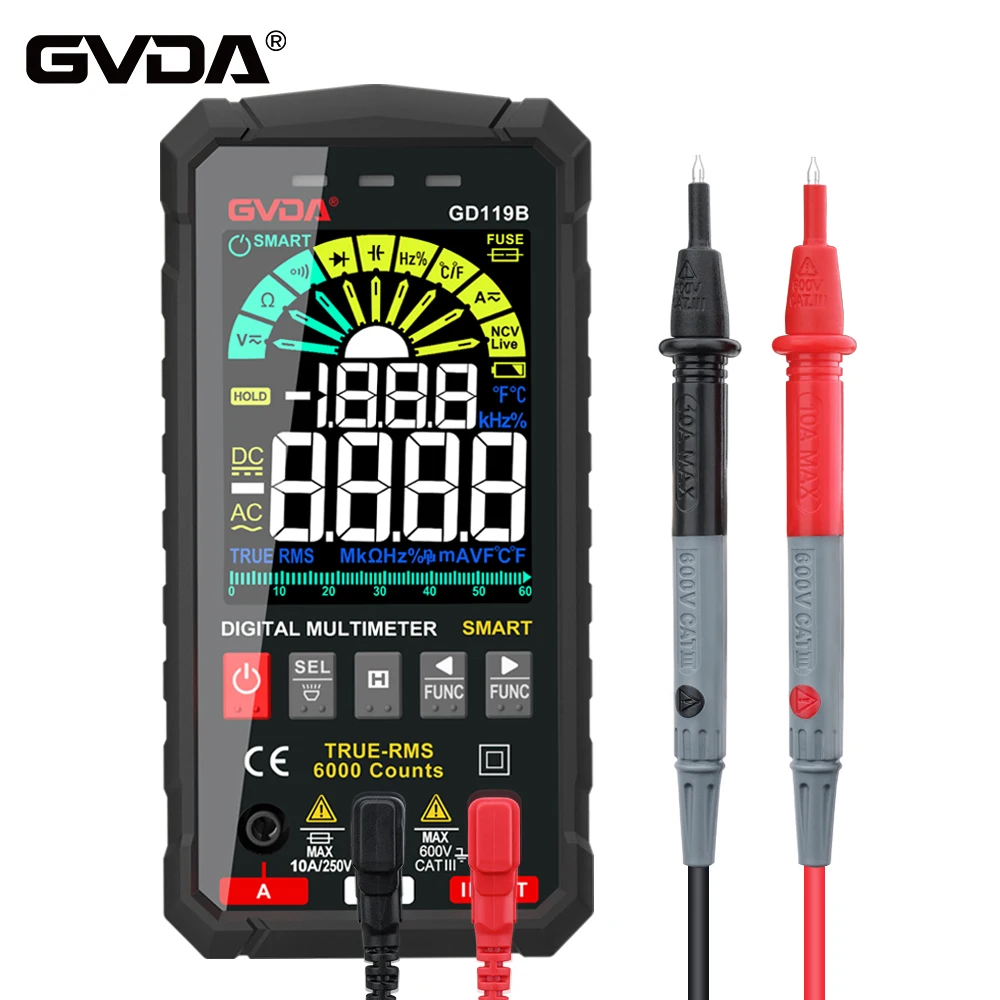

Model Number: | GD118B/GD119B |
AC Current: | 6000μA/60mA/600mA |
Is Smart Device: | No |
AC Voltage: | 60mV/600mV/6V/60V/600V |
Measuring Resistance Range: | 600Ω-60MΩ |
Operating Mode: | LCD Display |
Measuring Inductance Range: | Voltage Meter |
Display Type: | Digital Display |
DC Current: | 6000μA/60mA/600mA |
DC Voltage: | 60mV/600mV/6V/60V/600V |
Measuring Capacitance Range: | 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF |
Dimensions: | 113x68x19mm |
Operating Temperature: | 0 - 40 ℃ |
Frequency/Duty: | 10Hz-10MHz |
Temperature coefficient: | 0.1*Accuracy/°C |
Maximum voltage allowed input terminals: | 600V |
Current protection: | F600mA/250V fuse |
Sampling: | approx.3 times/second |
Display: | maximum 6000 count |
Over range indication: | display show"OL" |
Low Battery Indication: | Yes |
Polarity indication: | display "-"sign automatically |
Digital Multimeter: | Ohm Tester |
Universal Multimetro: | NCV Meter |
Voltage Meter: | AC DC Current Tester |
Capacitance Tester: | Intelligent True RMS Multimeter |
Flash Light Function: | Yes |
Diode Test: | Yes |
GD118B Power Supply: | 2x 3V CR2032 Batteries(Not Included) |

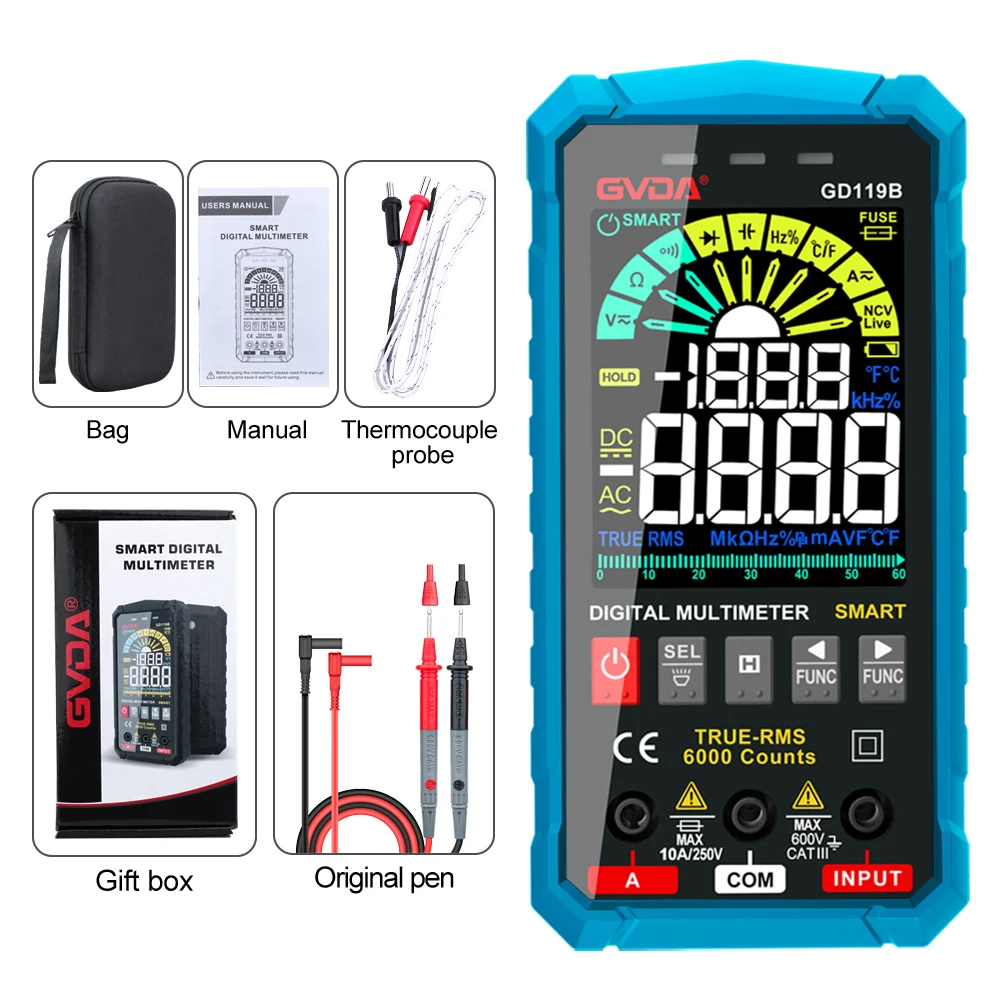

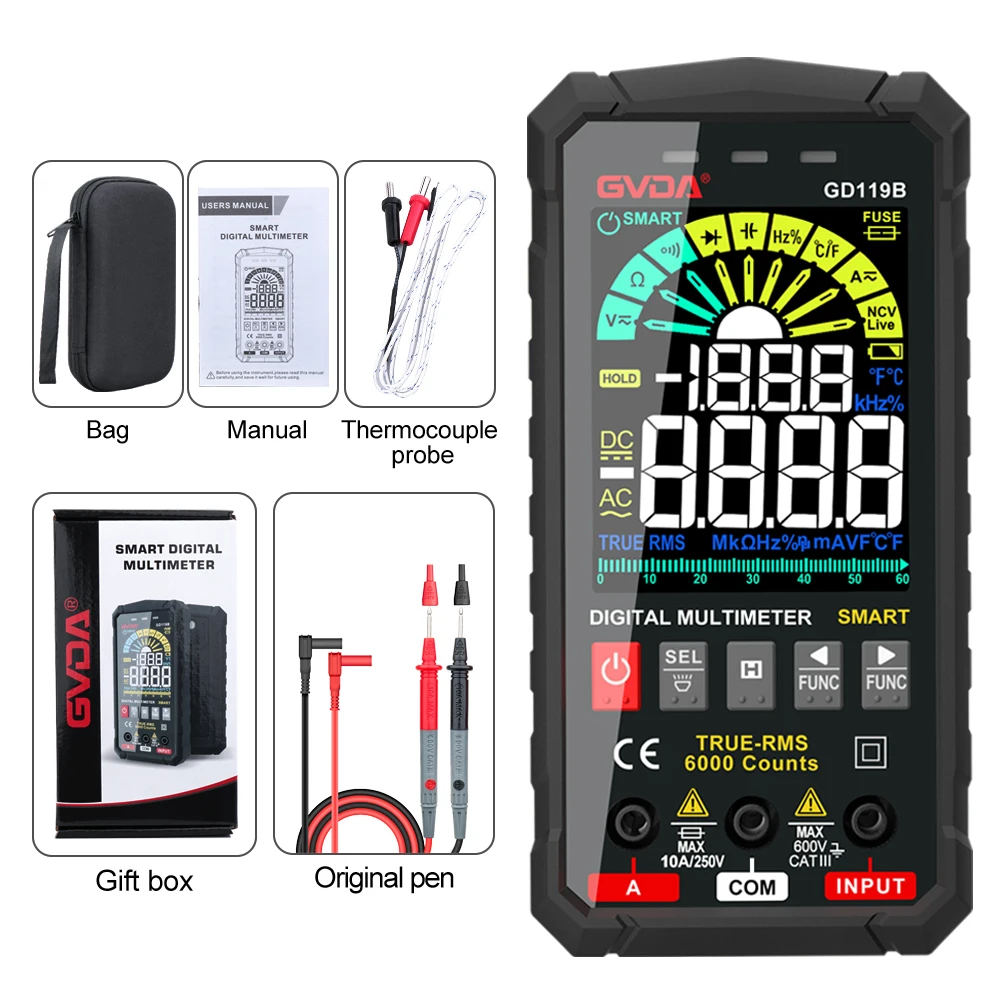

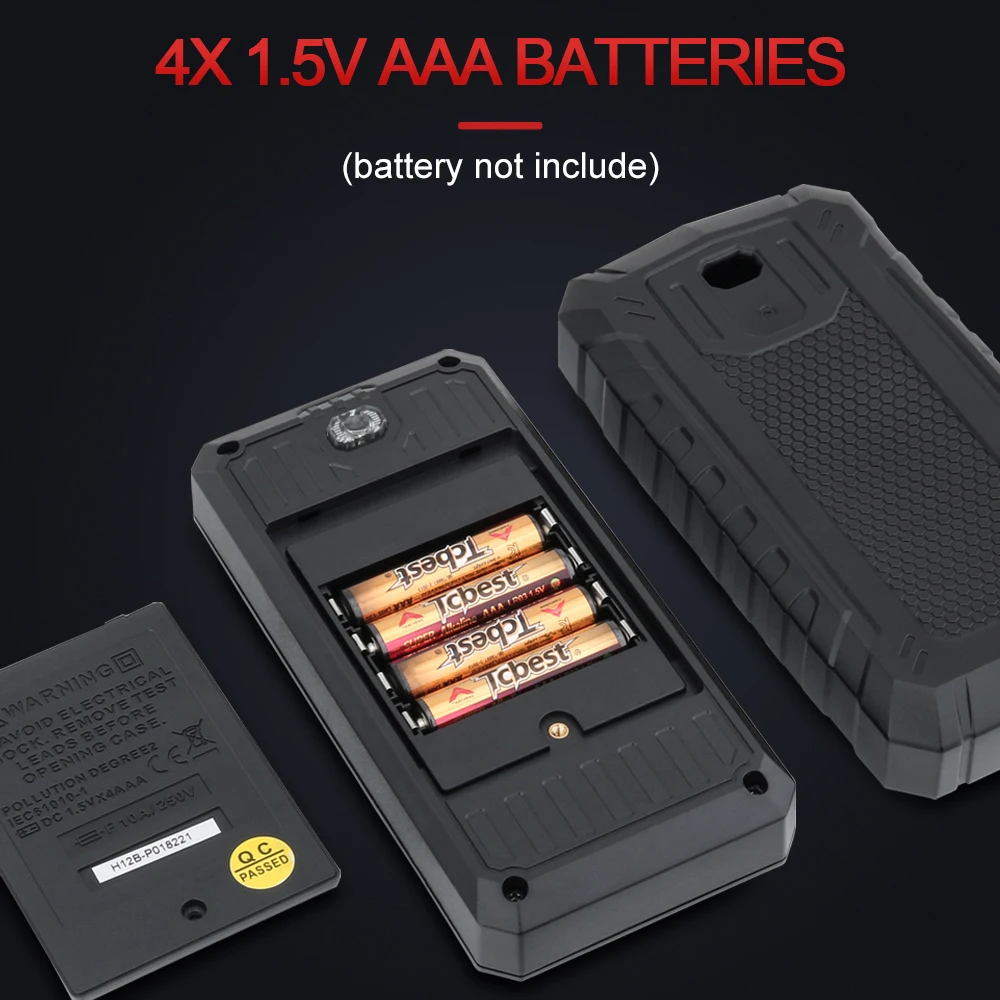

GD119B Power Supply: | 4*AAA battery(Not Include) |
Digital Multimeter6000 Counts AC/DC
Capacitance Resistance Ohm Tester

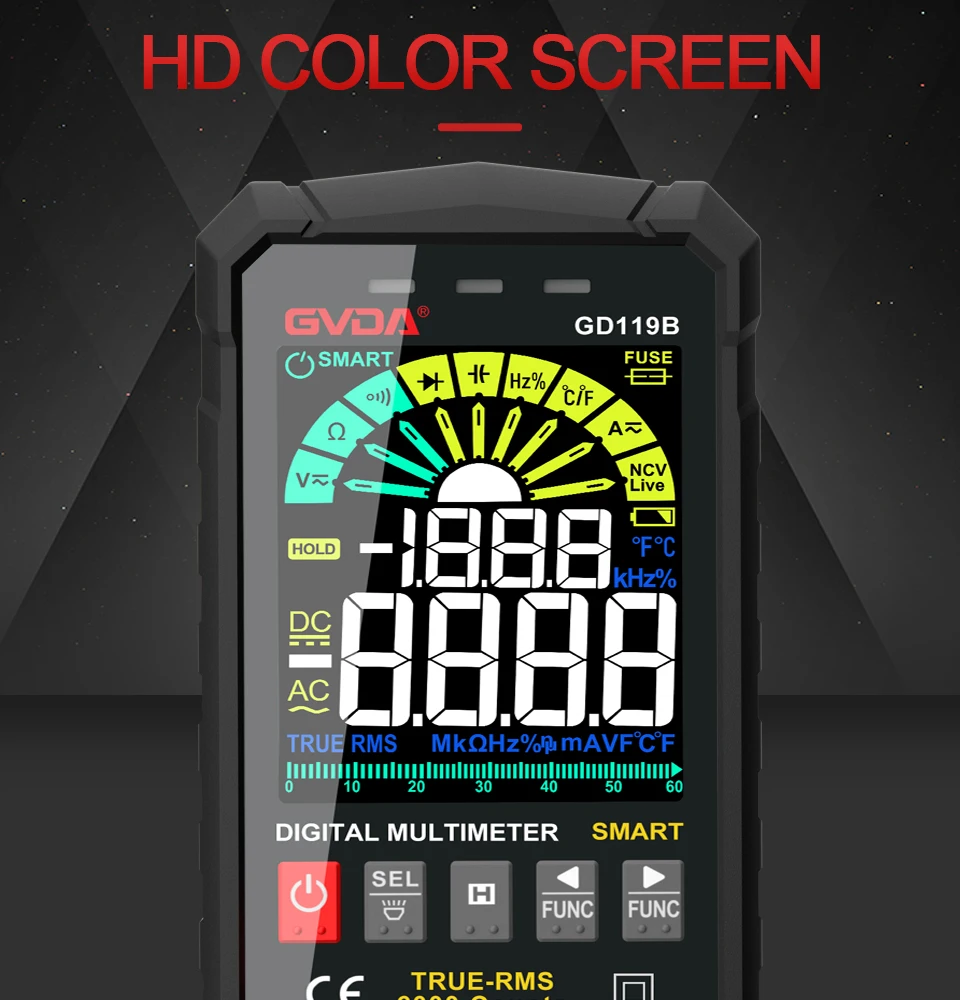

1. 1.8cm Super thin and 2.88inch Larger LCD display
2. Maximum display: Maxium 6000 Counts display
3. Intelligent identification and manual function are integrated
4. Sampling Rate: About 3 times per second
5. Over range display: the highest position shows "OL"
6. Low voltage display: low battery indication
7. Working environment: (0-40)°C,relative humidity <80%
8. Power Supply: 2x 3V CR2032 Batteries ( Not included)
9. It is a stable performance, high precision, high reliability clear readings, and overload protection.
Model Number

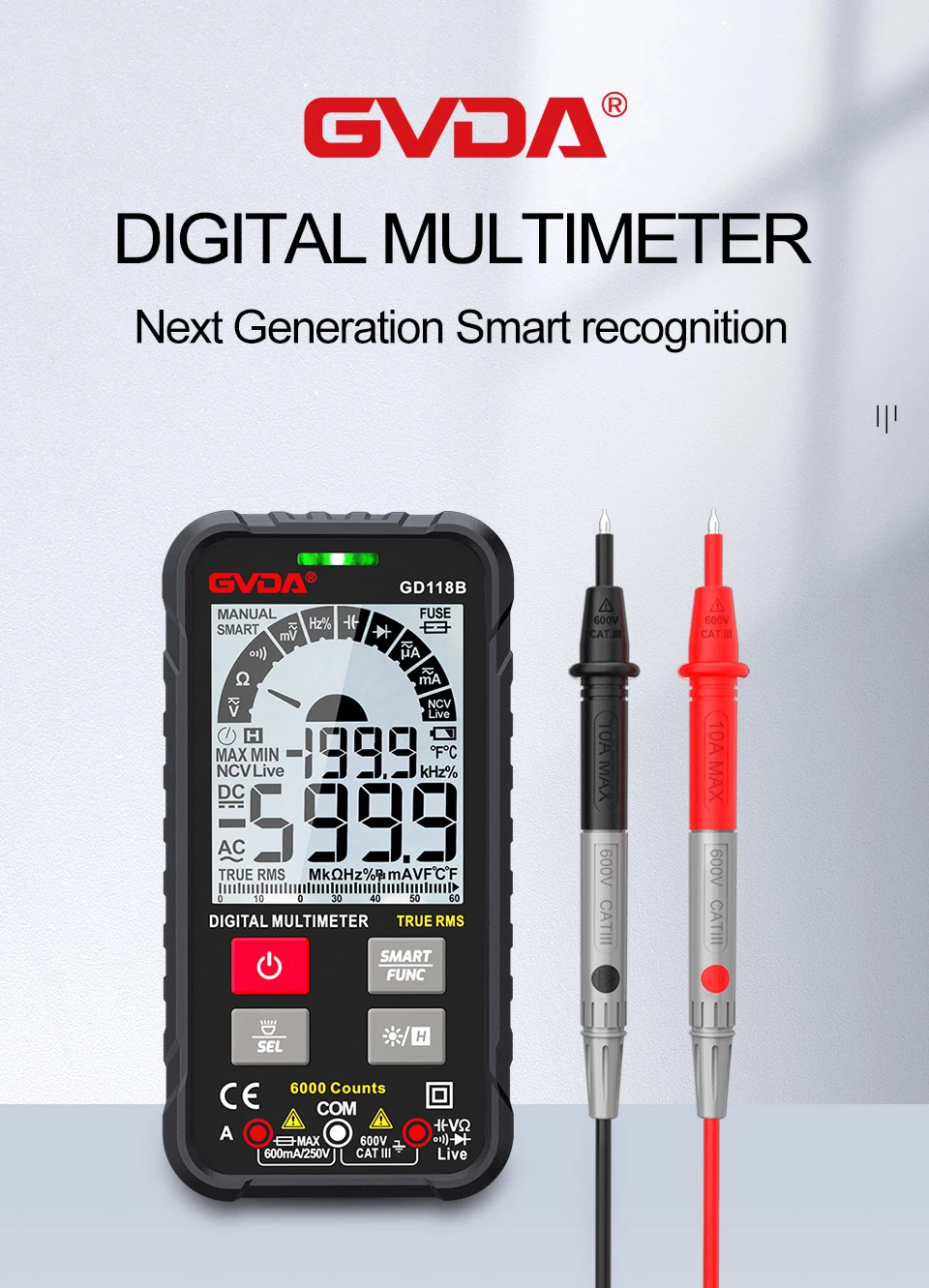

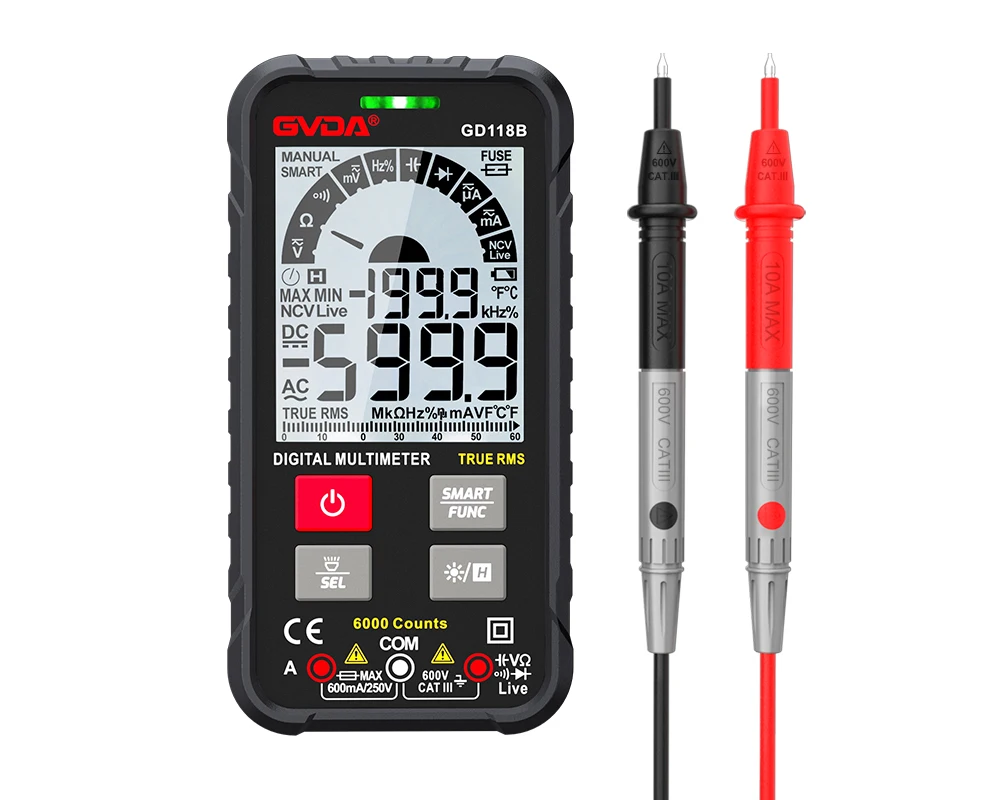

GD118B
Functions
Range
Resolution
Accuracy
DC Voltage
60mV
0.01mV
±(0.5%+3)
600mV
0.1mV
6V
0.001V
60V
0.01V
600V
0.1V
AC Voltage
60mV
0.01mV
±(1.0%+3)
600mV
0.1mV
6V
0.001V
60V
0.01V
600V
0.1V
DC Current
6000μA
1μA
±(1.2%+5)
60mA
0.01mA
600mA
0.1mA
AC Current
6000μA
1μA
±(1.5%+5)
60mA
0.01mA
600mA
0.1mA
Resistance
600Ω
0.1Ω
±(1.0%+5)
6KΩ
0.001KΩ
60KΩ
0.01KΩ
600KΩ
0.1KΩ
6MΩ
0.001MΩ
±(1.5%+3)
60MΩ
0.01MΩ
Capacitance
6nF
0.001nF
±(4.0%+5)
60nF
0.01nF
600nF
0.1nF
6μF
0.001μF
60μF
0.01μF
600μF
0.1μF
6mF
0.001mF
±(5.0%+5)
60mF
0.01mF
Frequency/Duty
10Hz
0.001Hz
±(1.0%+5)
100Hz
0.01Hz
1000Hz
0.1Hz
10kHz
0.001KHz
100kHz
0.01KHz
1000kHz
0.1KHz
10mHz
0.001MHz
±(3.0%+5)
1-99%
0.1%
Counts
6000 Counts
Sampling
approx. 3 times/second
Over range indication
Display "OL"
Current protection
F600mA/250V fuse
Temperature coefficient
0.1*Accuracy/°C(<18°C or >28°C)
Working temperature and humidity
0-40°C(<80%RH,<10°C non-condensing)
Storage temperature and humdity
-10-60°C(<70%RH,without batteries)
Smart Function
(AC/DC Voltage,resistance and continuity)
√
Auto Identifcation of current input
√

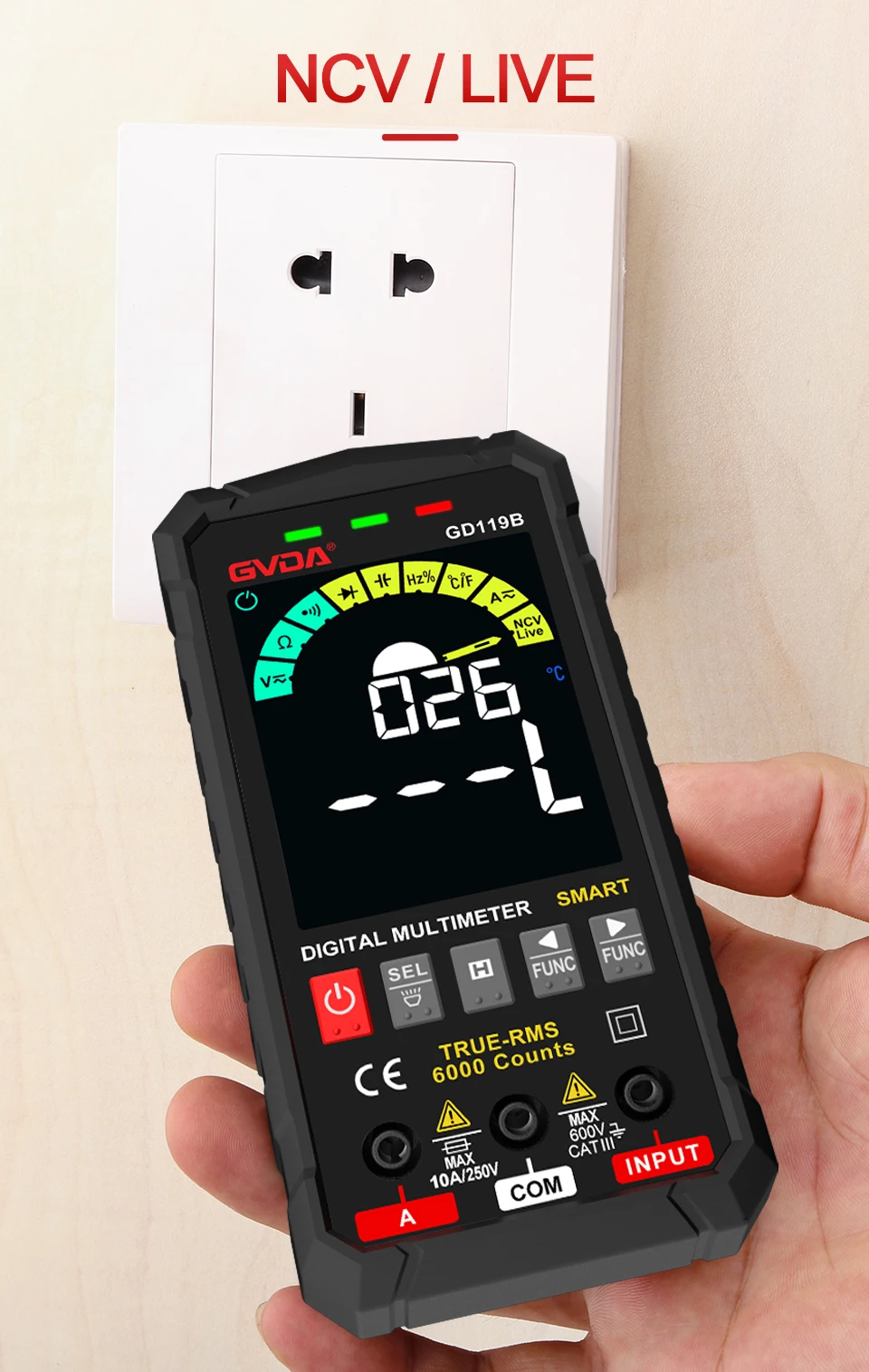

NCV/Live/Continuity test
√ (sound and light alarm)
Diode test
√ (sound alarm)
Bargraph/Data hold /True RMS
√
Fuse Burning Prompt
√
Low batery indication
√
Auto power off/Flashlights
√
Power supply
2x CR2302 Batteries(Not Included)
Product Weight
Approx.150g
Product Size
113x68x19mm
Package Size
170x95x50mm
Package Weight
275g
Package Contents

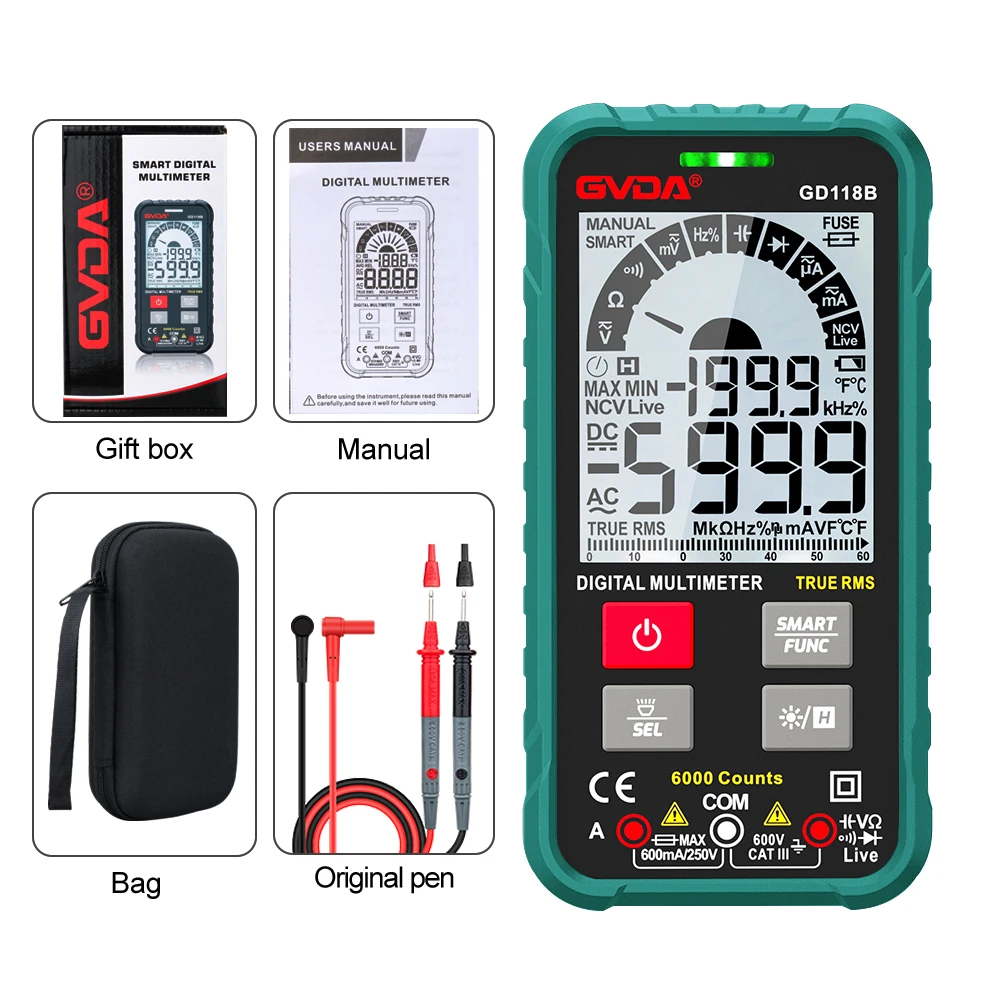

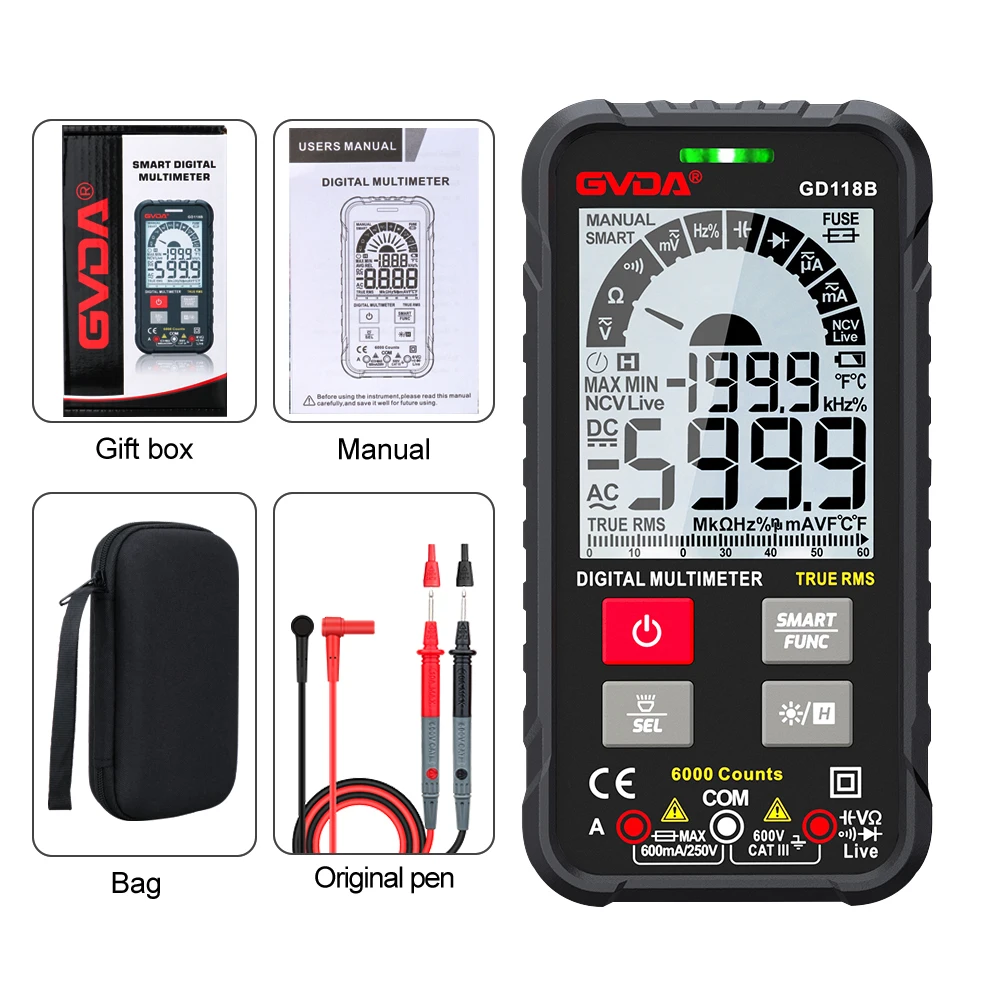

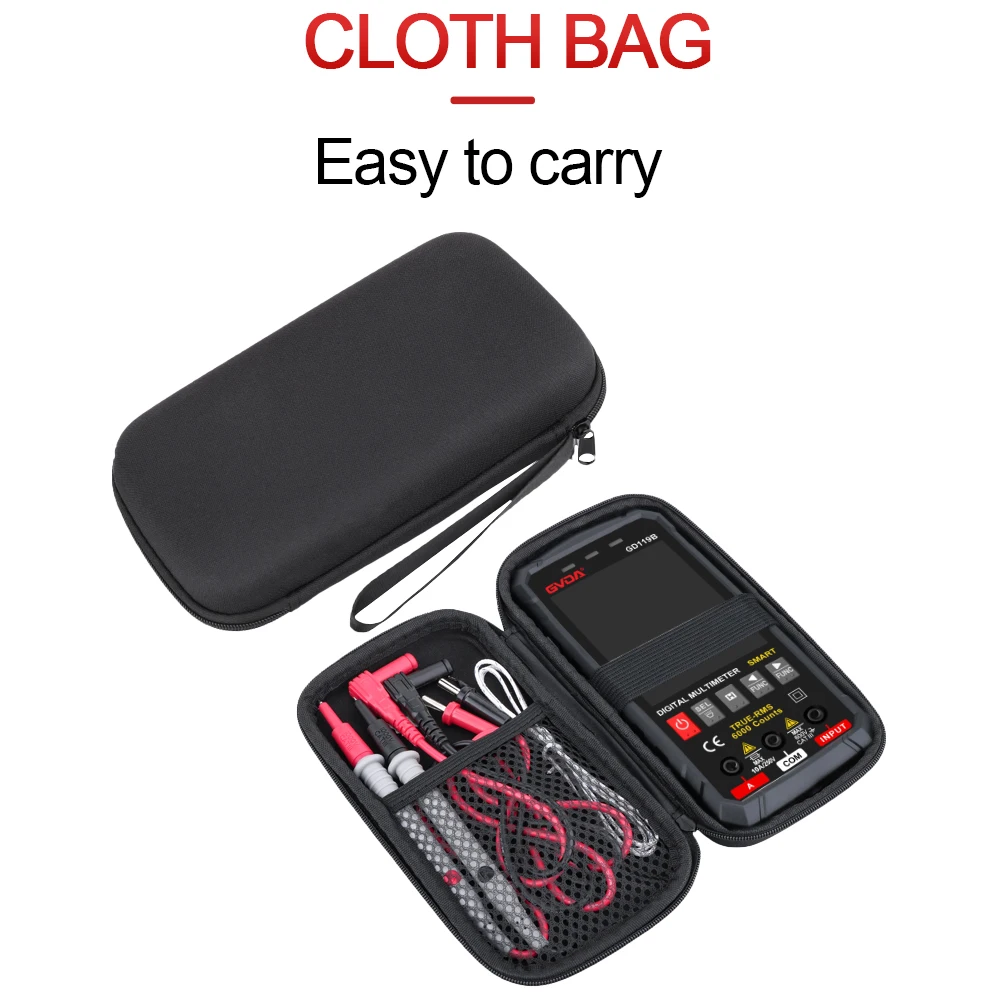

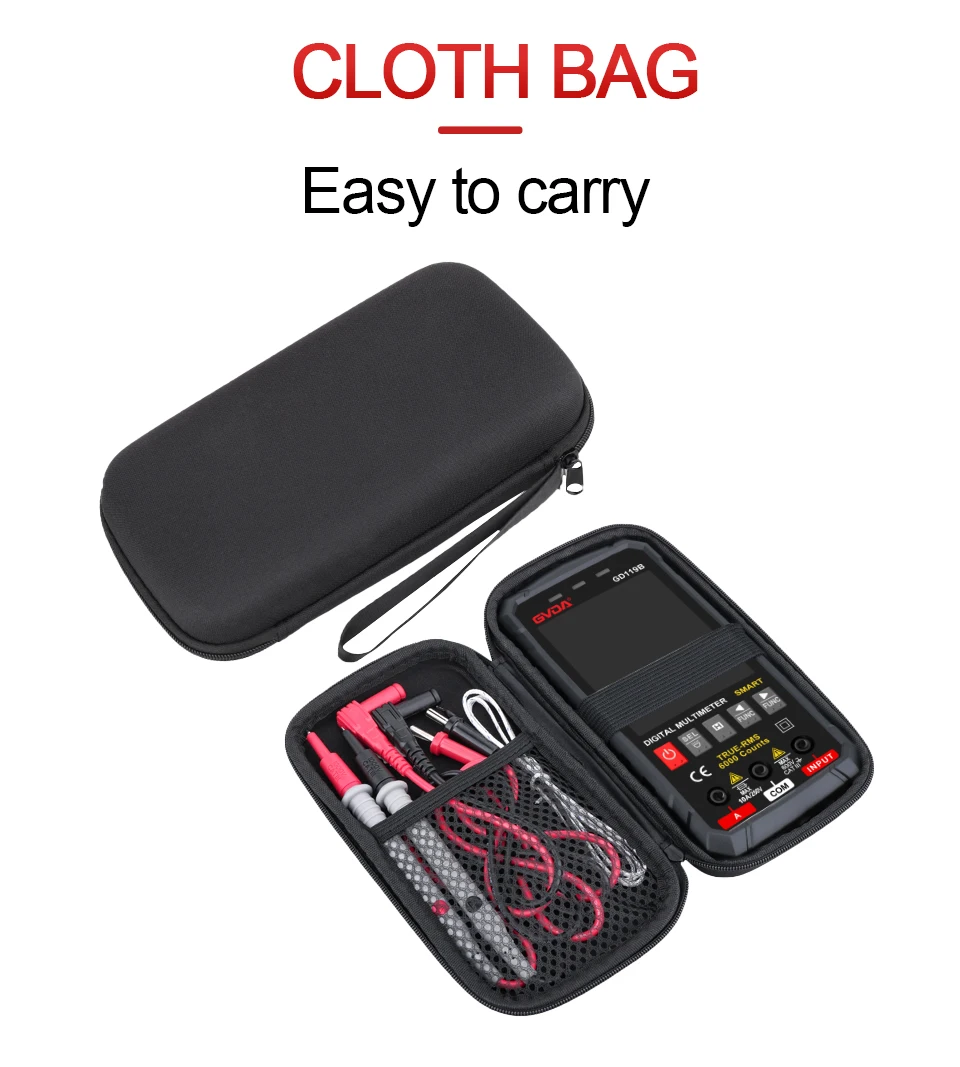

1pcs Multimeter / 1pcs pen cable / 1pcs cloth bag
