rubber switch cap Tact Push Button Switch 12V Copper 4PIN DIP2 SMD Micro Switch 6X6X5 4.3 5 5.5 6 7 8 9 10 11 12 13 15MM TV Toys home use Button light switch automatic Wall Switches

Code: TD-3256802928820440 750 orders
Free Shipping
$ 27.56
Color:
H 4.3MM
H 4.5MM
H 5MM
H 5.5MM
H 6MM
H 6.5MM
H 7MM
H 7.5MM
H 8MM
H 8.5MM
H 9MM
H 9.5MM
H 10MM
H 11MM
H 12MM
H 13MM
H 14MM
H 15MM
H 16MM
Voltage:
20Pieces-lot
50Pieces-lot
Size:
6X6mm DIP4 Series
6X6mm SMD Series
6X6mm DIP2 Series
Note

Quantity:
Other people want this. 25 people have this in their carts right now.
Brand Name:  ETERNALFAR
Origin:  CN(Origin)
Material:  Plastic
Item Type:  Switches
Warranty:  365day
Switch Type:  Touch On/Off Switch
Certification:  ROHS
Model Number:  6*6*H-DIP-SMD
Features:  DIP
Warranty:  1year
Model Number:  6*6*H-DIP4
Model Number:  6*6*H-SMD
Model Number:  6*6*H-DIP2

PACKAGE FOR 20Piecs/lot and 50Pieces/lot

  High Quality Tactile Button Switch Momentary Tact 6X6mm 2 PIN 4 PIN DIP SMD Series

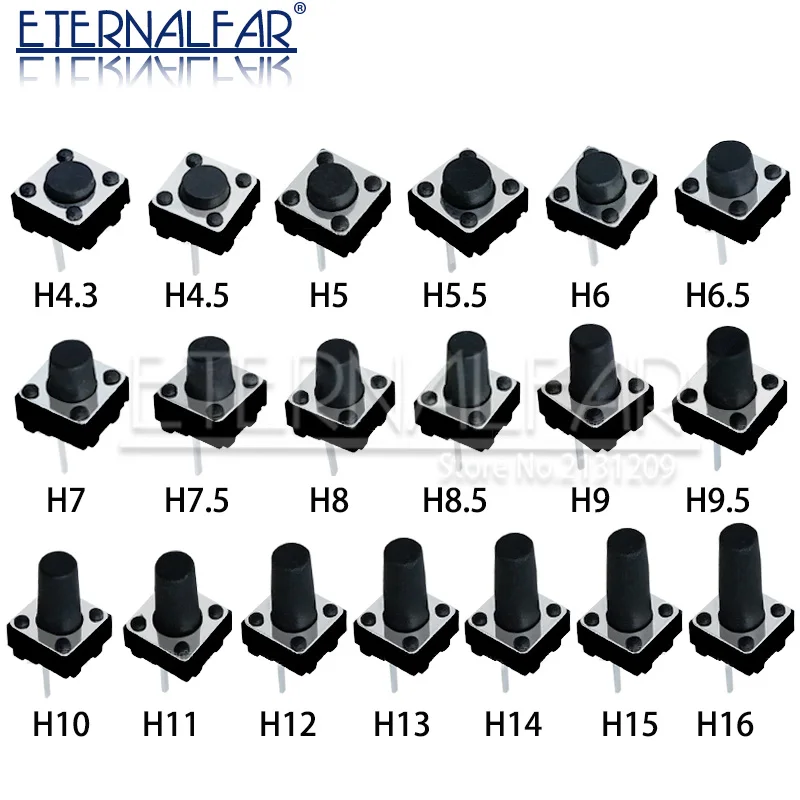

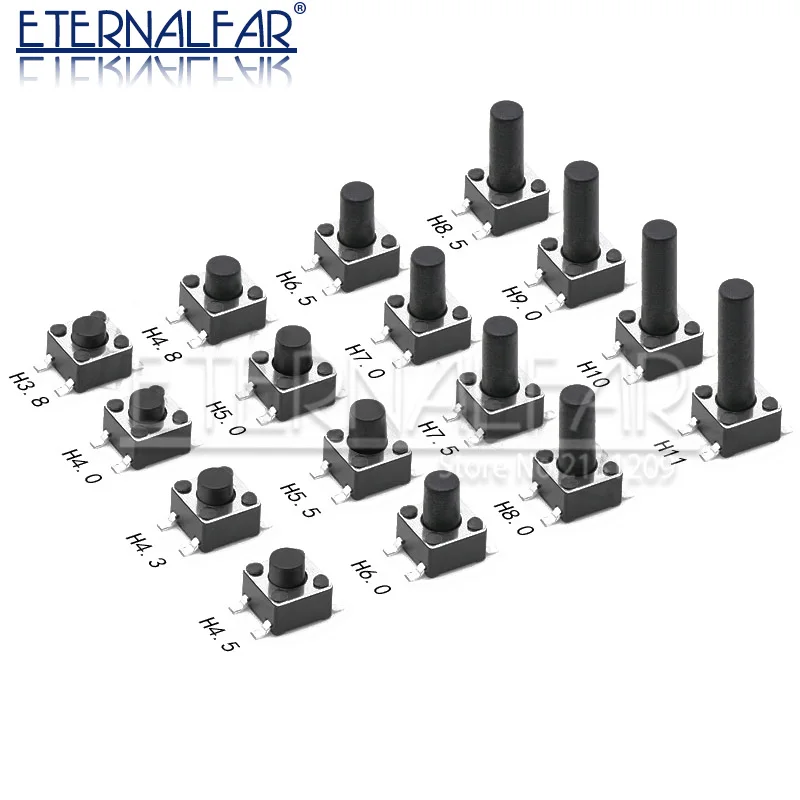

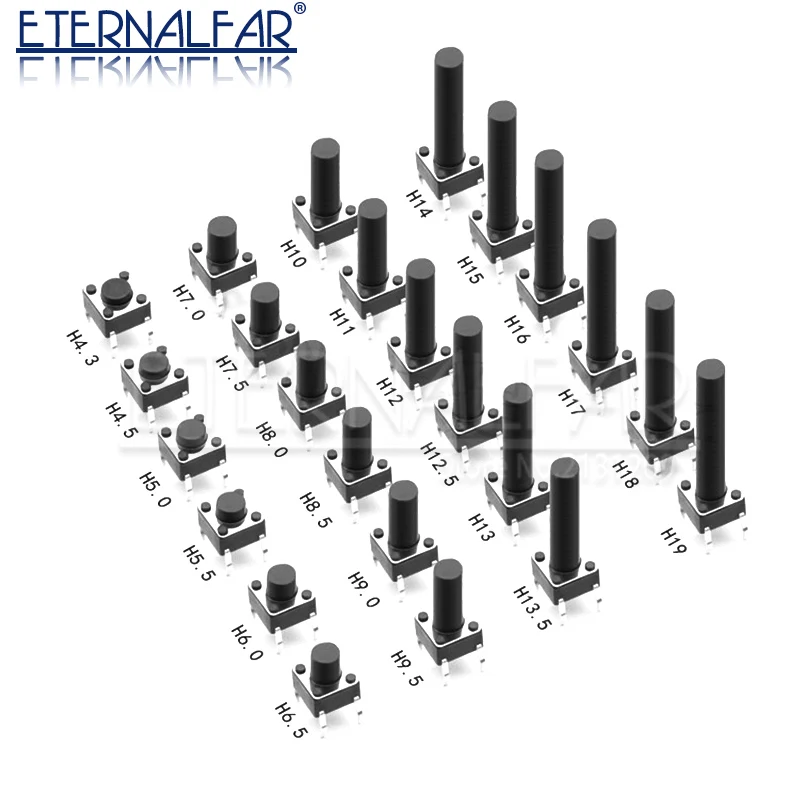

Height Includes:4.3mm/4.5mm/5mm/5.5mm/6mm/6.5mm/7mm/7.5mm/8mm/8.5mm/9mm/9.5mm/10mm/11mm/12mm/13mm/14mm/15mm/16mm


Main technical indicators of tact switch series
(Specification of TACT switch Series)
Operating temperature range Temperature: -25°~+-85°C
Rated Load: DC12V 0.1A
Contact Resistance: <=0.03Ω
Withstand Voltage: AC250 V (50Hz) /MIN
Actuation Force: 1.3+-0.5N
Insulation Resistance Lnsulation Resistance :>=100MΩ
Life: 100000 times (times)

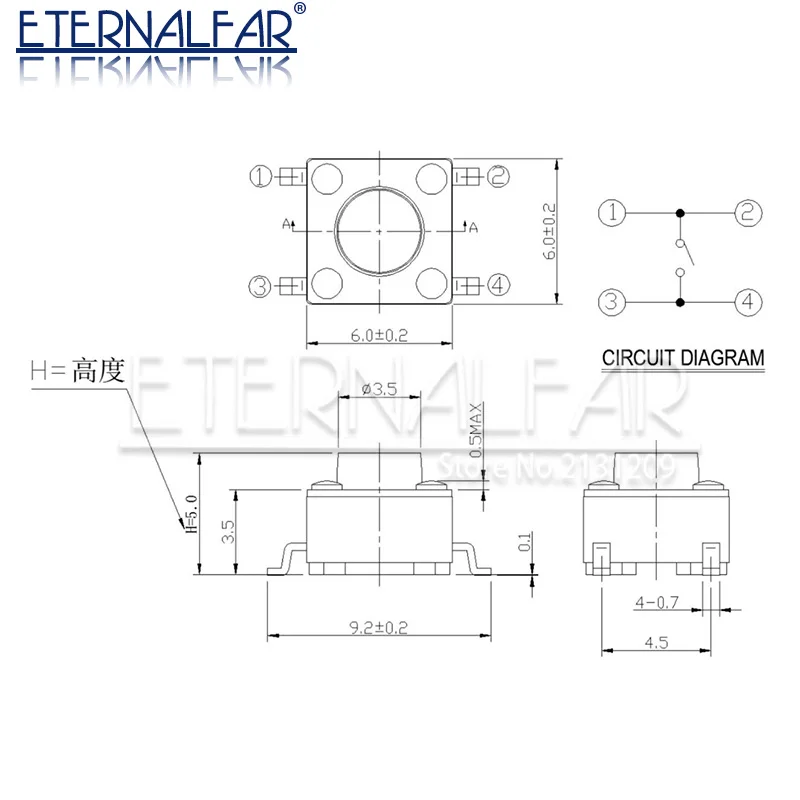

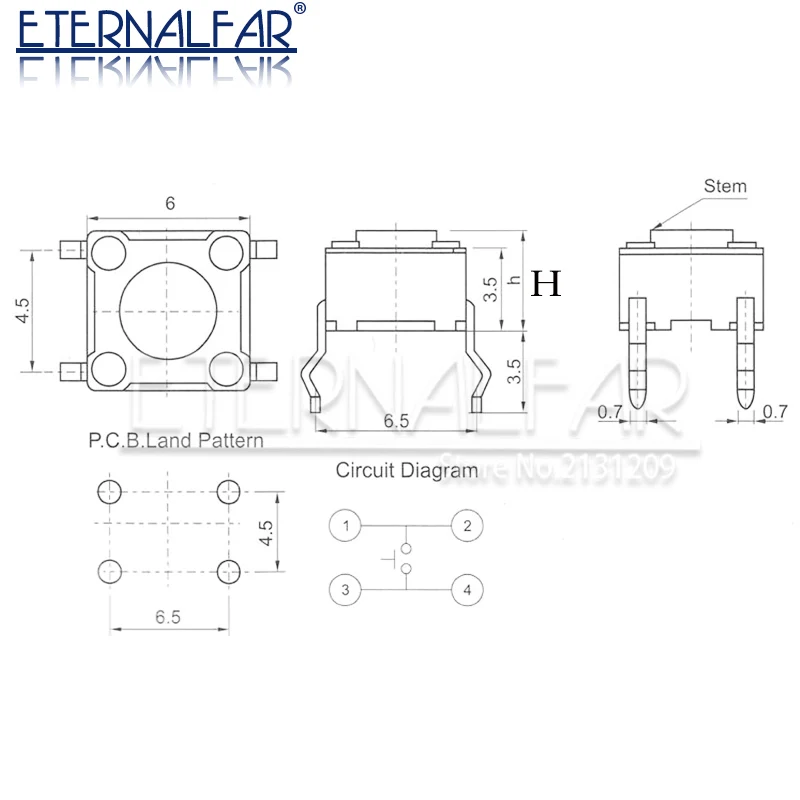

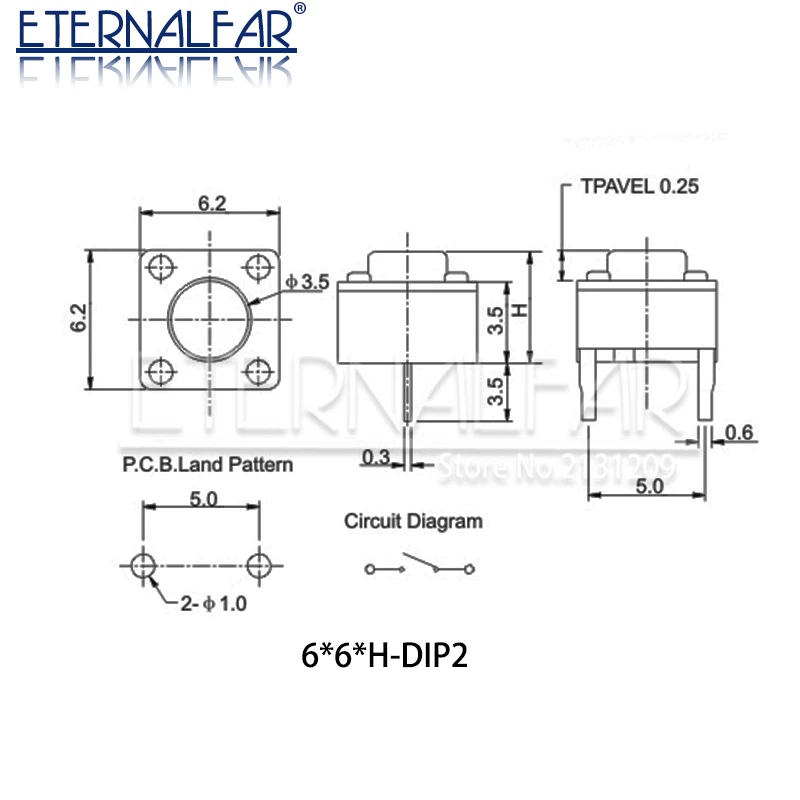

Reference size drawing:

Note (Remark): In the figure below, h represents height and the unit is millimeters.

For example, 6*6*7, that is, the height is 7mm (millimeters)

rubber switch cap Tact Push Button Switch 12V Copper 4PIN DIP2 SMD Micro Switch  6X6X5 4.3 5 5.5 6 7 8 9 10 11 12 13 15MM TV Toys home use Button light switch automatic
rubber switch cap Tact Push Button Switch 12V Copper 4PIN DIP2 SMD Micro Switch  6X6X5 4.3 5 5.5 6 7 8 9 10 11 12 13 15MM TV Toys home use Button light switch automatic
rubber switch cap Tact Push Button Switch 12V Copper 4PIN DIP2 SMD Micro Switch  6X6X5 4.3 5 5.5 6 7 8 9 10 11 12 13 15MM TV Toys home use Button light switch automatic
rubber switch cap Tact Push Button Switch 12V Copper 4PIN DIP2 SMD Micro Switch  6X6X5 4.3 5 5.5 6 7 8 9 10 11 12 13 15MM TV Toys home use Button light switch automatic
rubber switch cap Tact Push Button Switch 12V Copper 4PIN DIP2 SMD Micro Switch  6X6X5 4.3 5 5.5 6 7 8 9 10 11 12 13 15MM TV Toys home use Button light switch automatic
rubber switch cap Tact Push Button Switch 12V Copper 4PIN DIP2 SMD Micro Switch  6X6X5 4.3 5 5.5 6 7 8 9 10 11 12 13 15MM TV Toys home use Button light switch automatic
