R5 Pomo alloy sheet 600:15K audio signal boost cattle 5 times boost front impedance matching transformer dimmable light switch Wall Switches

R5 Pomo alloy sheet 600:15K audio signal boost cattle 5 times boost front impedance matching transformer dimmable light switch Wall Switches

Name: R5 Pomo alloy sheet 600:15K audio signal boost cattle 5 times boost front impedance matching transformer dimmable light switch
Brand: MMO Dropship
SKU: 3256802153438408
Price: 44.6 VND
Availability: InStock
Rating: 4.9 (73 reviews)

Code: TD-3256802153438408

Free Shipping

$ 44.6 $ 46.21

Quantity:

Other people want this. 9 people have this in their carts right now.

Description
Shipping & Returns

Origin:	CN(Origin)
Certification:	NONE
Certification:	NONE

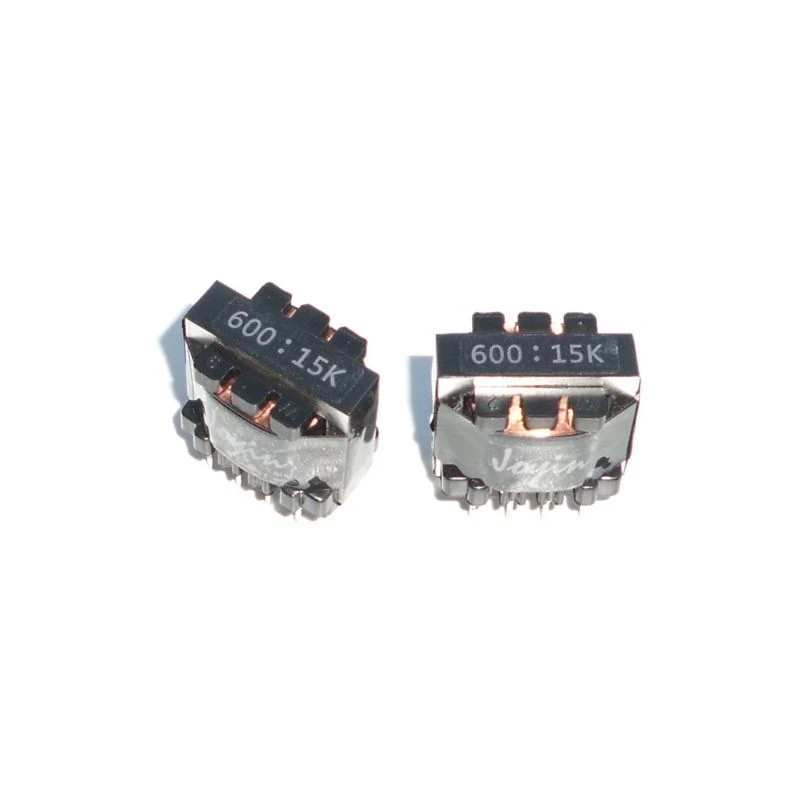

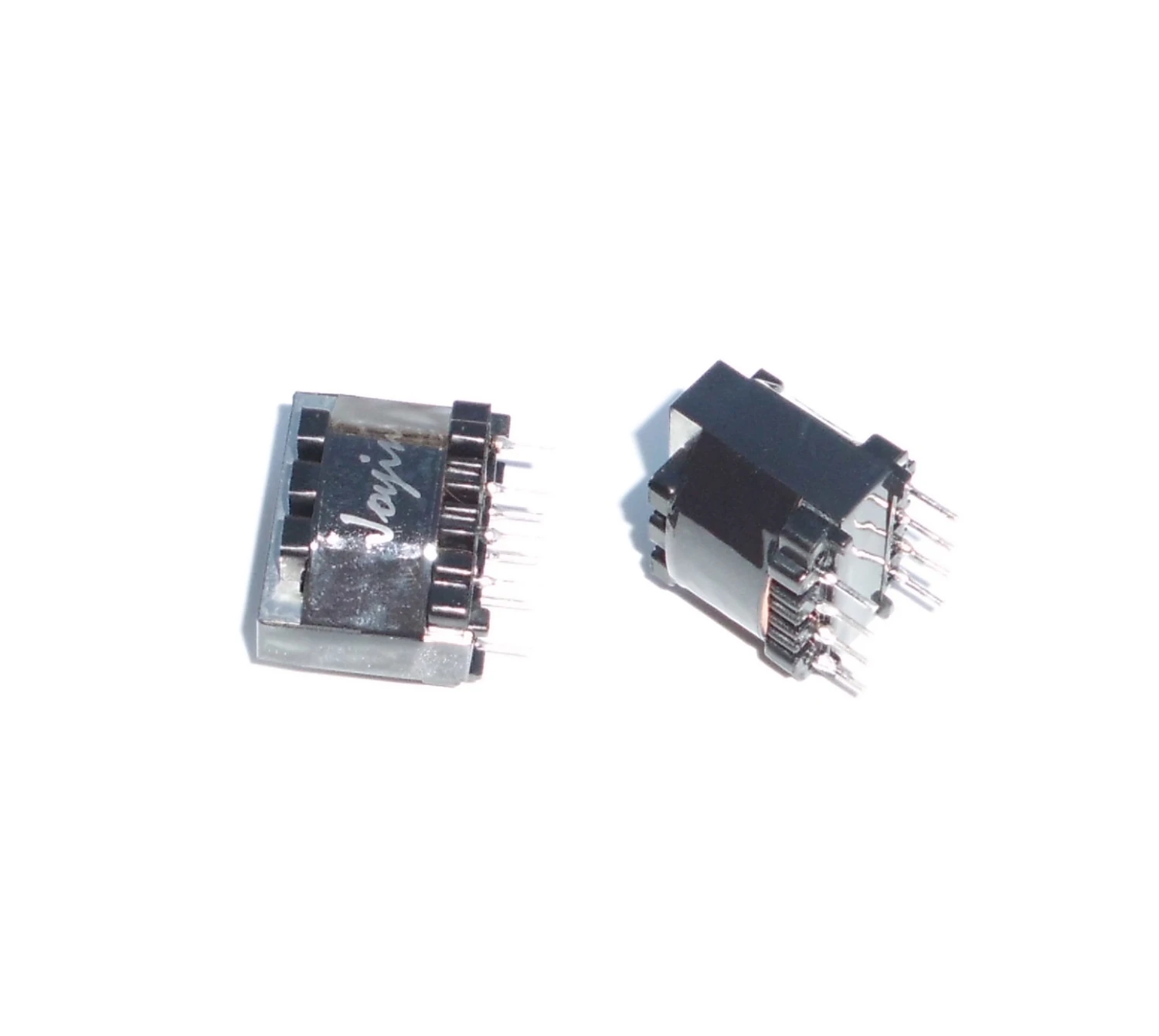

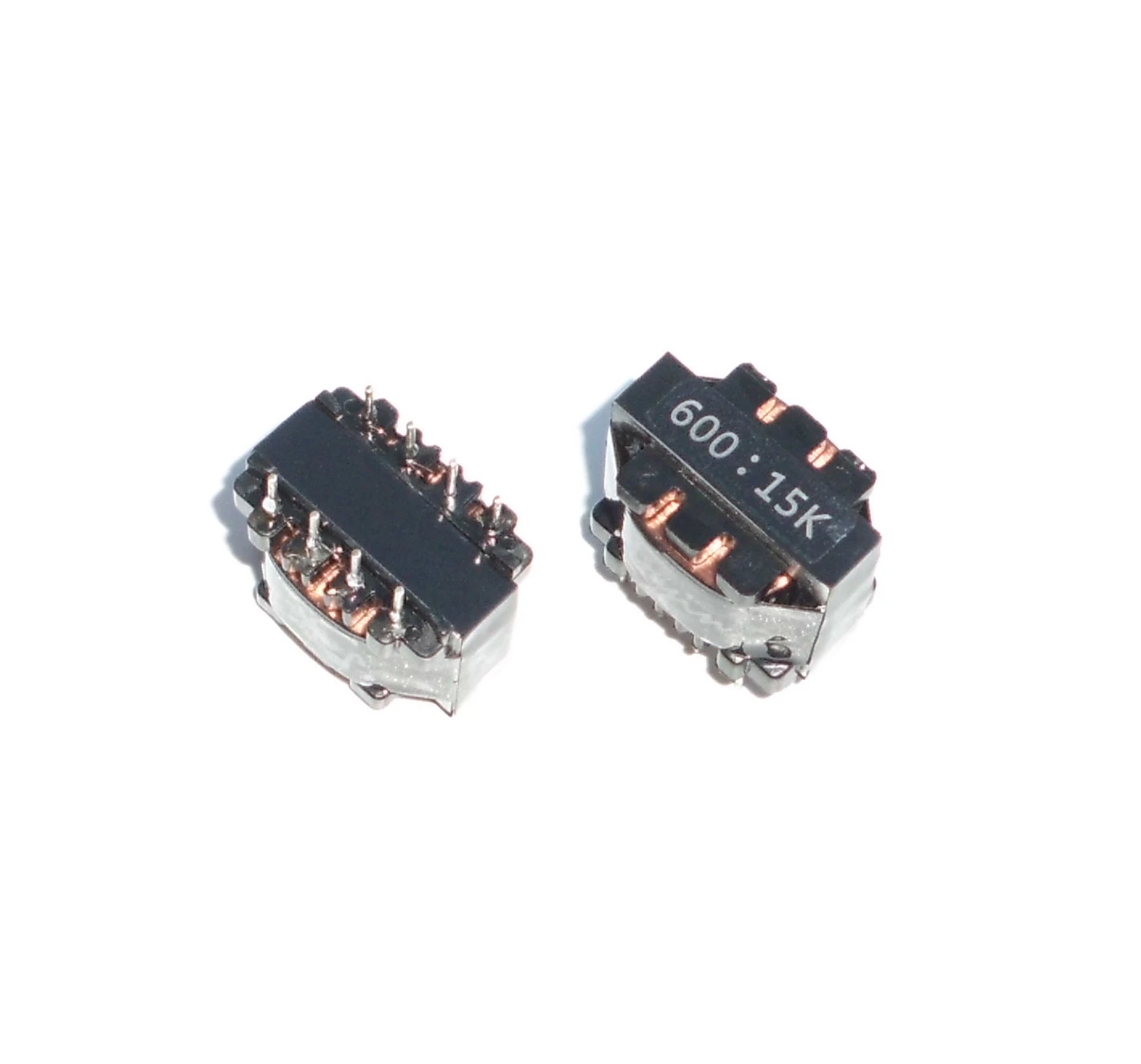

R5 permalloy 600:15k audio signal boost N5 times boost front stage impedance matching transformer

&The primary voltage ratio of permalloy 600:15k audio transformer is 1:5, which is not the actual volume increase ratio. According to the conversion formula of voltage ratio and decibel: DB = 20log (U2 / U1), the actual volume increase is about 14dB. The transformer is suitable for the sound source such as computer, mobile phone and so on. The low signal voltage leads to the insufficient power of the front level signal pressure drive. By increasing the signal voltage, the overall volume of the system can be increased. It is also suitable for impedance matching of the front and rear stages. If the impedance difference between the front stage and the rear stage is too large, the normal operation and sound field effect of the whole system cannot be exerted. The impedance matching of the input transformer can play a role of connecting the past and the future and sublimate the sound system to another peak state. The impedance matching function of audio transformer is also very common in many machines.

The imported permalloy iron core with 85% nickel content, domestic high-quality oxygen-free copper enamelled wire, CNC microcomputer automatic winding machine are used to wind the wire to ensure that the wire package is smooth and orderly, 3 primary clamps 2 secondary, primary positive winding secondary rewinding, dislocation wiring and other complex ways are used for winding, the secondary inductance is up to 700 h, and the parameters such as leakage inductance, low distribution capacitance and wide frequency response are also within a reasonable range. Transformer can be single end in single end out, single end in balance out.

Here are the detailed transformer parameters

Iron core material: 85% permalloy containing nickel

Shielding mode: all-round shielding of copper foil around iron core

DC resistance: 224 ohms (primary) & nbsp; 1.06k (secondary)

Measured inductance: about 90h (primary) & nbsp; about 1700h (secondary)

-27979;- 39057;- 2170910Hz~55KHz -0.5dB 20Hz~25KHz -0.3dB

Input maximum passable current: 8Ma

Note: different test instruments may have different parameters. Subject to the parameters marked in the delivery. This transformer is suitable for the former signal.
