portable modem for laptop Wireless EM7455 LTE 4G NGFF Module DW5811E K9CNF/MR7VT/2J05X/1DPXG/3P10Y E7270 E7470 E7370 E5570 FDD/TDD LTE 4G Cat6 Gobi6000 modem usb wifi 4g 3G Modems

Brand Name:	YUEXMBPS
Certification:	NONE
Origin:	CN(Origin)
Kind:	Internal
Application:	Laptop
Model Number:	EM7455
Package:	No
Interface Type:	NGFF
Card Type Device:	4G Card
Type:	wireless
Condition:	Used, test before ship out!

Condition: Used, Test before ship out!

Part Number: K9CNF/ KF1W5/ MR7VT/ 2J05X/ 1DPXG/ 3P10Y/ V8KN6

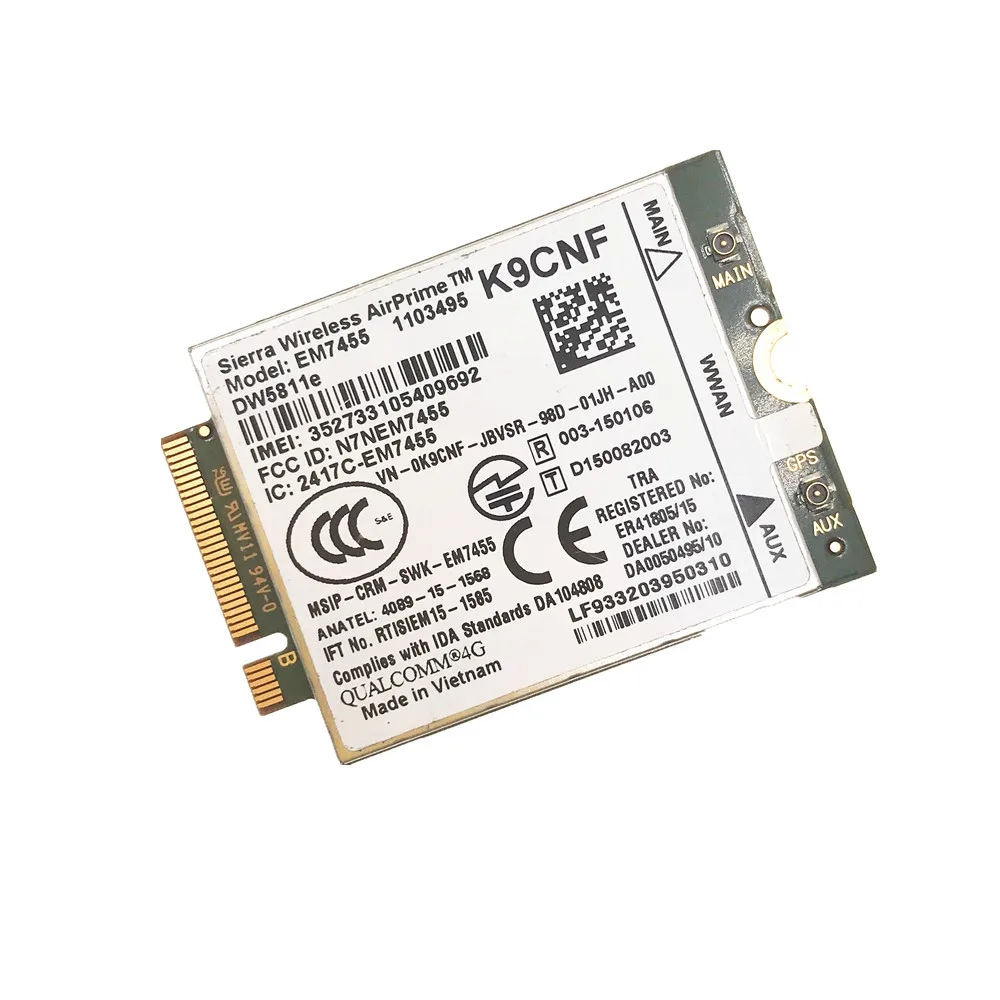

The EM7455 module is part of the EM Series offering unprecedented LTE speeds, bandwidth, and network performance

In the M.2 form factor commonly used in network equipment.

This LTE-Advanced Cat-6 embedded module offers up to 300 Mbps download speed and supports most 4G LTE bands

In the market by providing coverage for the Americas and EMEA in a single SKU. With automatic fallback for 3G networks

And integrated GNSS receiver (GPS, GLONASS, Beidou, and supported Galileo satellite systems), the EM7455 is ideal for Networking and telematic applications.

Together with the largest operator certifications in the industry and network switching capability, EM7455 (EM7430 to APAC)

Allows customers to change their network provider at any time, providing more flexibility in manufacturing.

LTE Support (North America / EMEA) -B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (1700 MHz AWS),

B7 (800 MHz-DD), B7 (800 MHz-B), B7 (2600 MHz), B8 (900 MHz), B8 (900 MHz), VITAMIN B12

B25 (1900 MHz), B26 (850 MHz), B29 (700 MHz-D block), B30 (2300 MHz), B41

HSPA + Support Band (Global) -B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (1700 MHz

AWS), B5 (850 MHz),

B8 (900 MHz)

specifications:

Sierra Wireless Airprime EM7455 Technical Specifications:

Category: 4G Module

Manufacturer: Sierra Wireless

Chipset: Qualcomm

Form Factor: PCIe M.2

Pins: 52-pin

Frequency bands

LTE FDD: Band B1-B5, B7, B12, B13, B17, B20, B25, B26, B29, B30, B41

UMTS / HSPA +: B1, B2, B3, B4, B5, B8

Technologies: UMTS, HSDPA, HSPA +, LTE

Maximum Download Speed: 300 Mbps

Max Upload Speed: 50 Mbps

Temperature: -10 o C to 55 o C

Certifications / Regulatory: Planned: FCC, IC, CE, NCC, GCF, PTCRB

Conveyors Approved: Planned: AT & T, Verizon, Sprint, Vodafone, Telefonica, Orange

Connectors: Main, Aux / GNSS, GNSS

Satellite systems: GPS, Glonass, Beidou, Galileo

Modes: Standalone, SUPL 2.0, XTRA 3.0

Contrl Options: APIs, AT Commands

Rated voltage: 1.8 V

Active Antenna Control: 4 pin

Dynamic Power Control: 1-pin

Interfaces: "USB 3.0, USB 2.0 High Speed"

SIM interface: 2x1.8 v or 3 v

Audio: PCM / I2S

Other interfaces: Main Radio Disable, GNSS Disable, Flash Output LED, Wake on WAN, reset

Compatible with Dell:

DELL Latitude 14 7000 Series E7470,

DELL Latitude 12 7000 Series E7270,

DELL Latitude 13 7000 Series E7370

DELL Latitude 15 5000 Series E5570

DELL Latitude 14 5000 Series E5470

Not for IBM/Lenovo/Thinkpad/HP model.

Package Includes:

1 x WWAN Card
