portable car battery charger Autel AP200 Bluetooth OBD2 Scanner Code Reader with Full System Diagnosis Support iOS Android car battery charger Code Readers & Scanning Tools

Brand Name:	Autel
Origin:	CN(Origin)
External Testing Certification:	ce
Hardware Version:	SC397
Model Name:	Autel AP200
Item Weight:	0.5kg
Electronic:	No
Warranty:	One year
Shipping:	Fast and safe
Performance:	Excellent

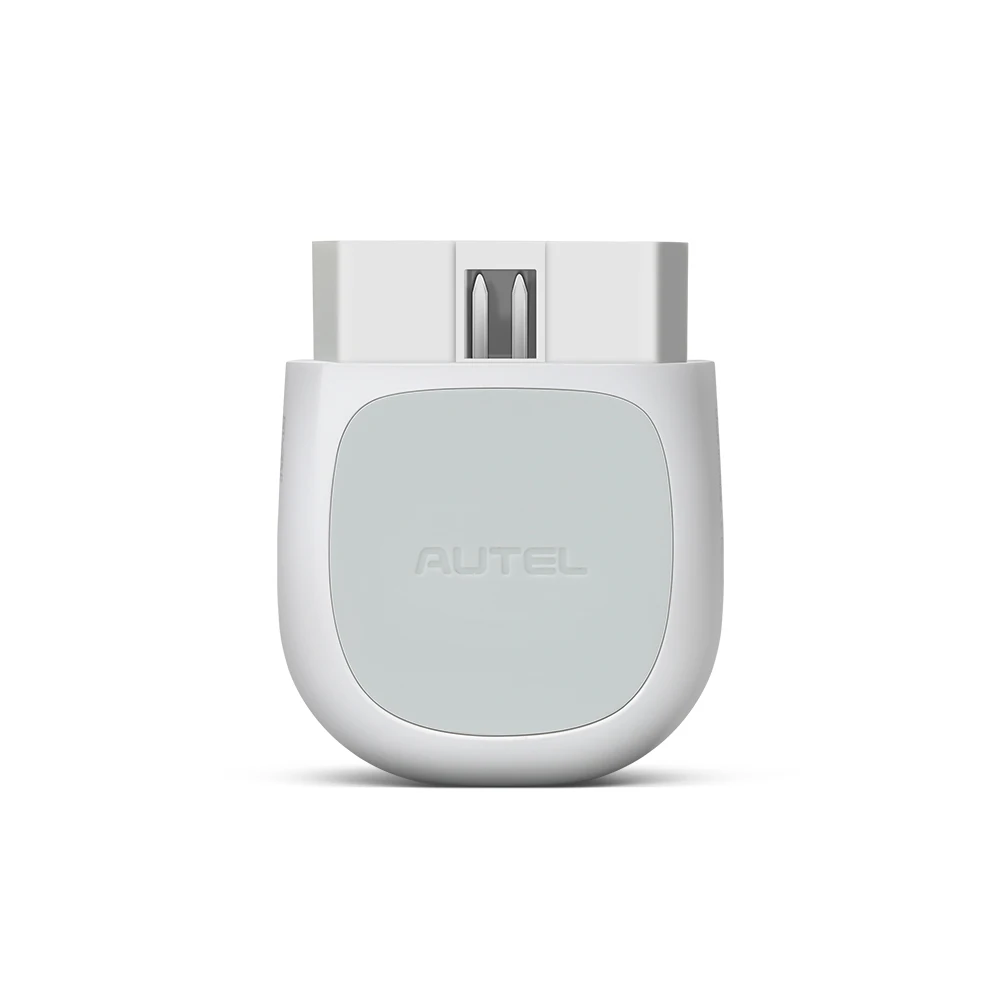

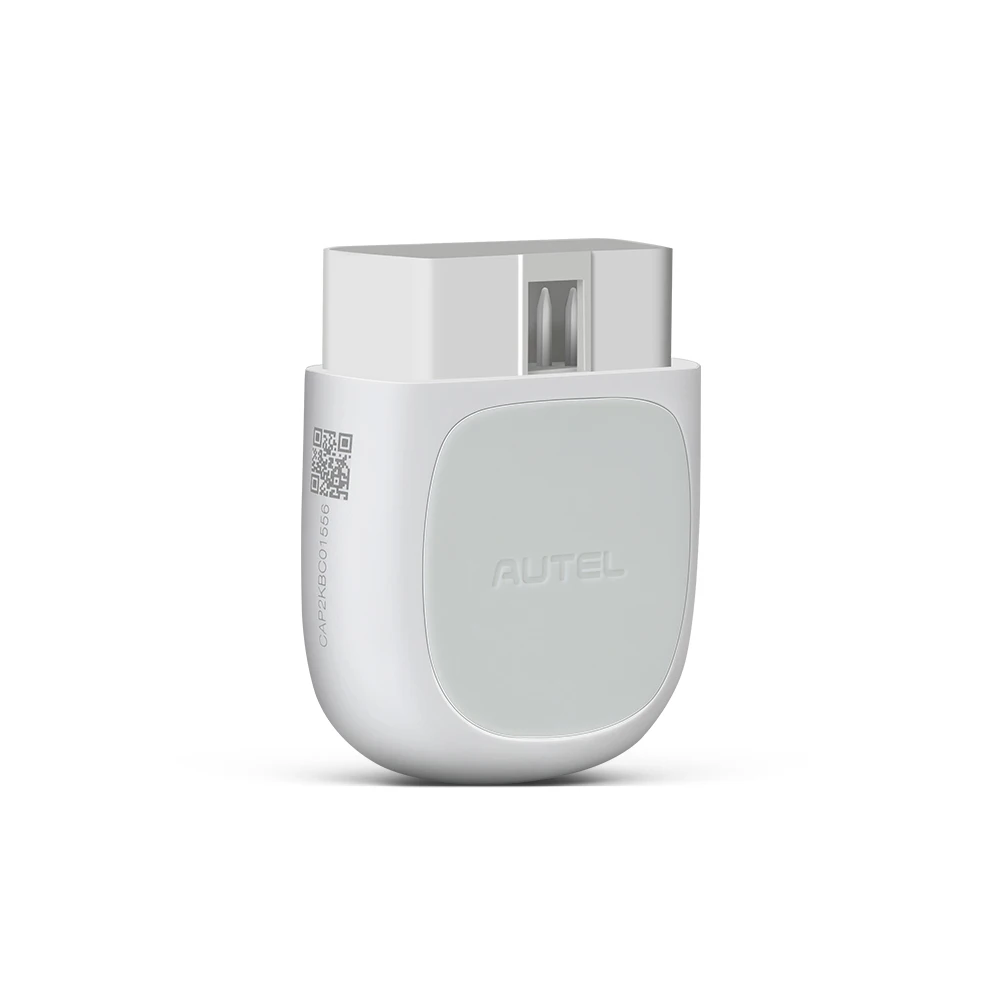

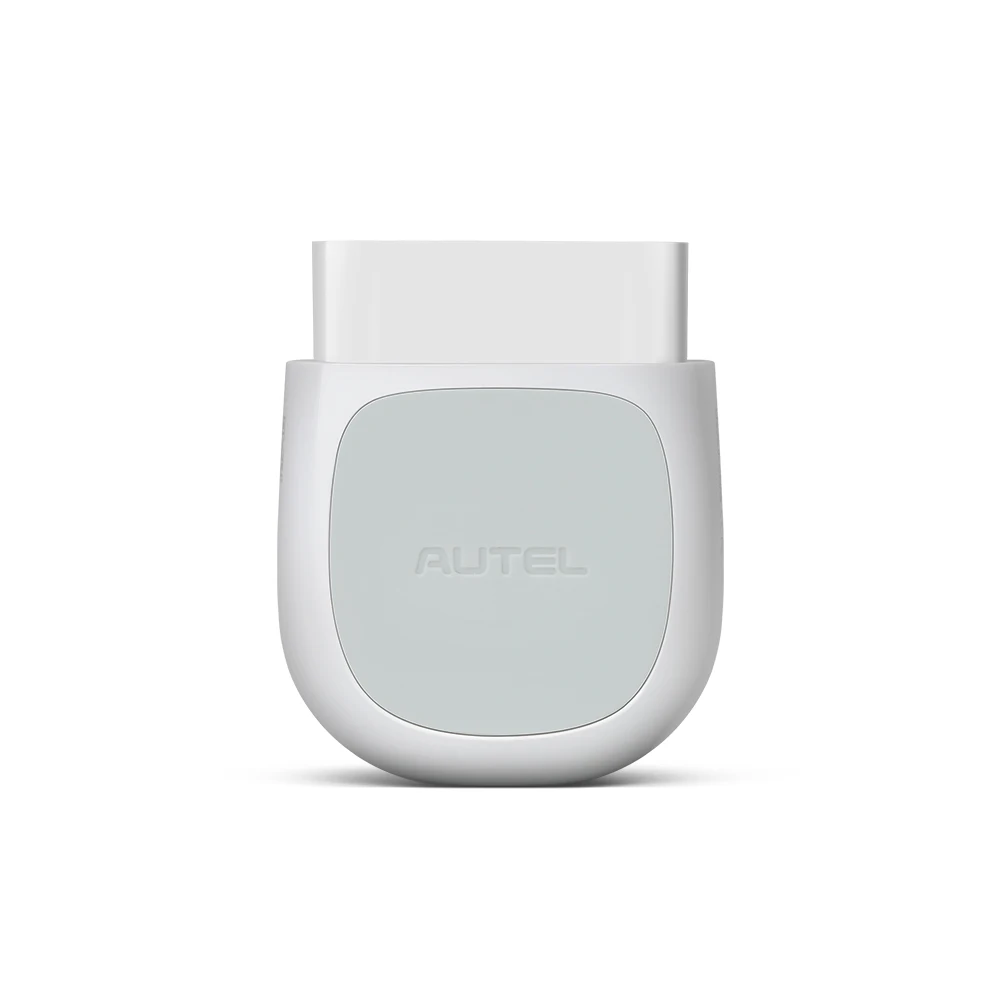

The wireless diagnostic interface MaxiAP AP200 is a small interface adapter used to connect to a vehicle's diagnostic connector (DLC) and connect with the Android or iOS device for vehicle data transmission, making your Android or iOS devices (hereinafter referred to as device or devices) a powerful diagnostic tool. The MaxiAP AP200 package includes a Bluetooth (BT) OBDII connector and a MaxiAP200 app. It is the perfect Do-It-Yourself tool for customers looking for quick and easy diagnostic functions of all systems. It is almost compatible with all vehicle models of European, Asian, and North America makes.

Autel AP200, as an innovative Bluetooth OBD2 scanner, equipped with its own App -“Maxi AP200”, complete OBD2 functions, along with various reset services (Oil/EPB/BMS/TPMS/SAS Resets, DPF Regeneration and IMMO Service etc.), is a compact option for family DIYers to troubleshoot vehicle's issues in no time.

Highlights:

1. BLUETOOTH CONNECTION: This portable OBD2 scanner is characterized by Bluetooth connection, and you can download the free APP “MaxiAP200” on your iOS or Android devices to get the car diagnosis going on without any worries about the compatibility.

2. VERSATILE CAR DIAGNOSIS: As an innovative obd2 scan tool, this AP200 includes but is not limited to OBD2 functions, it also provides users with a wide variety of reset services including Oil/EPB/BMS/TPMS/SAS Resets, DPF Regeneration and IMMO Service.

3. HIGH COST PERFORMANCE: This obd2 scanner offers one free vehicle-specific software allowing you to diagnose one car for free, and you need to spend only $15.99(Android) /$21.99(iOS) buying 12-month use permission of one more car model.

4. SPECIAL AUTOVIN FEATURE: The Auto VIN function of the AP200 helps quickly reveal car’s info, including the vehicle type, country of origin, engine size, etc. and the report about the car info can be transformed as PDF file for better PC Printing.

5. HISTORY RECORDING DISPLAY: While offering you detailed diagnostic result, this car scanner is capable of recording history diagnostic information and the history recordings can be used as an effective data reference in the period of car diagnosis.

6. Unrivalled Economical Scanner: As tempting as this obd2 scanner looks, you might just further stimulate appetite when you see its price tag (much lower than MK808's while sharing almost the same powerful features). Along with the 12-month nationwide , it is ideal for any family Dyers looking for quality yet effective diagnostic device.

Functions:

1. SUPERIOR SYSTEMS DIAGNOSES

1). With superior systems diagnoses, this multipurpose obd2 scanner can be used to read all available systems' ECU information to facilitate the vehicle diagnosis. The complete systems vary from different cars and they usually include Engine, transmission, ABS, SRS, SAS, TPMS, EPB and Fuel systems etc.

2). Read DTCs from the vehicle's control systems to locate problem areas, and offer solutions;

3). Erase the codes easily after DTCs retrieving and certain repairs have been carried out;

4). Live data shows each parameter item displayed in analog, text, waveform graph modes etc.;

5). The active test used to access vehicle-specific subsystem and component tests.

2. ADVANCED RESET SERVICES:

This Bluetooth OBD2 scanner is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. There is some commonly-used special reset services are listed for your reference:

1). Oil Reset – Perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate.

2). EPB Reset – Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, setting brakes after disc or pad replacement, etc.

3). BMS Reset – Evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4). SAS Reset – perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the sensor EEPROM.

5). TPMS Reset – quickly look up the tire sensor IDs from the vehicle's ECU, as well as to perform TPMS replacement and sensor test.

6). IMMO Service - Disable the lost vehicle keys and program the replacement key fob.

7). DPF Regeneration – Manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

3. COMPLETE OBD2 FUNCTIONS:

1. Read extensive current, pending and permanent codes in OBD system quickly

2. Clear detected fault codes and turn off the Check Engine Light efficiently

3. View graphical live data of vehicle's computer module(s) for easy analyses

4. View the vehicle's operating parameters at the moment a DTC is detected

5. Read I/M readiness status to have a vehicle inspected for state emissions compliance

6. Perform O2 sensor test to check fuel efficiency and vehicle emissions

7. Read the results of on-board diagnostic monitoring tests for specific components/systems

8. Retrieve the vehicle information of VIN, CINs, and CVNs completely

9. Perform the component Test by allowing initiating a leak test for the vehicle's EVAP system

4. 10 Modes of OBD2: The fast-access option "EOBD" for OBD II/EOBD vehicle diagnosis to check for DTCs, isolate the cause of an illuminatedmal function indicator lamp (MIL), check monitor status prior to emissions certification testing, verify repairs, and perform a number of other services that are emissions-related.

DTC& FFD

I/M Readiness

Live Data

On-Board Monitor

Component Test

Vehicle Information

Vehicle Status

5. Other Functions:

AutoVIN technology identifies vehicles automatically.

Generate repair reports of tested vehicles and support PDF format for easy sharing and printing.

Keep records of vehicles tested previously.

How to Use Autel MaxiAP AP200?

1. Download and install the app-MaxiAP200 in Google Play or App Store to your device;

2. Register and log in the MaxiAP200 APP;

3. Get one free car software through Mall after binding VCI for the first time;

4. Plug the MaxiAP200 tool into the vehicle’s Data Link Connector (DLC);

5. Turn on the vehicle ignition while turn the engine off;

6.Tap Me/Setting button of your device to pair the MaxiAP AP200 with your device;

7. Start to diagnose your car.

How to Update Autel MaxiAP AP200?

1. The installed vehicle-specific software can be seen on the Home Screen. When a new version is available, an update button will display. Tap the button to update the software.

2. Tap Me -> VCI Management ->

Detect firmware to update the firmware if a new version is available.

Autel MaxiAP AP200 Print Function:

1. For iOS devices, the saved report can be printed via the Print function on the device.

2. For Android devices, download and install a third-party Print app to print the saved report

Note: The device needs to be connected with a printer to print.

Specifications:

Commnications: BL 4.2 Dual-Mode

Wireless Frequency: 2.4 GHz

Input Voltage Range: 9VDC to 26 VDC

Supply Current: 100mA@12 V

Sleep Mode Current: 3 mA@12 V

Operating Temp: 0℃ to 50℃

Storage Temp: -20℃ to 70℃

Dimensions(L*W*H): 59.2mm(2.33")*48.5mm(1.91")*24.6mm(0.97")

Weight: 35g (0.07lb.)

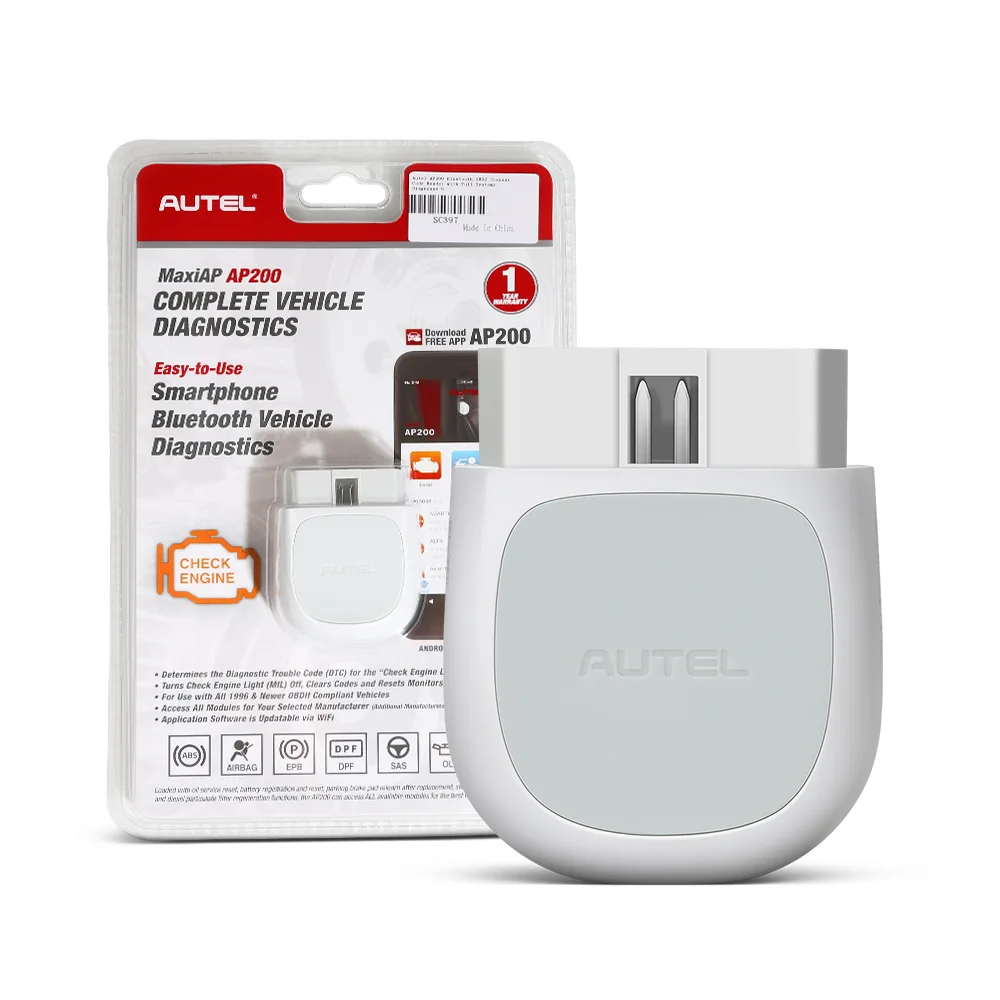

Package includes:

1pc x Autel MaxiAP AP200
