pioneer radio Free Shipping 1Din Mp3 Car Player HD Big Screen Digital Bluetooth USB Charge Car Radio Support FM AM RDS Stereo tape recorder double din head unit Car Radios

Welcome to my store ! Have a good shopping time !
Loving life, loving shopping.

100% brand new and high quality.

Tips:

1.This car multimedia player is compatible with all cars. Please check the Installation Dimension;
2. After receiving the product, please try to check whether the machine is normal, and then install it (testing method: connect red and yellow lines to the positive pole and black line to the negative pole of the 12V power supply). When installing, please be careful not to connect the line incorrectly, so as not to affect the normal use. When connecting speaker wires, pay attention to the positive and negative poles.
NOTE: Please use the accessories in the package for installation, other accessories may not be compatible!

Features:

1. Radio (FM/AM)
2. Read TF card/USB storage device
3. AUX input audio
4. Bluetooth function, dual BT (connect two mobile phones at the same time)
5. RCA audio output can be connected to subwoofer
6. 7 colorful lights
7. USB phone charging
8. APP mobile phone remote control
9. Locate and find a car
10. 4 sound effects
11. Audio recording

Specifications:

Basic parameters
Model SWM 1789
Type Car MP3
System None
Software Solutions Jerry
Radio frequency FM 87.5~108MHz / AM 522~1620KHz
Radio IC 4732
Amplifier IC 7388
Output power 60Wx4
Working voltage 12~14.4V
Working temperature -10~60℃
Bluetooth Version Version 5.1 (default name: Car-BT)
wifi frequency not supported
GPS signal not supported

Performance parameters
CPU SWT6D955
Running memory none
storage memory no
Display resolution none
Screen size LCD _VA display (large colorful light screen)

Size parameters
Installation size 178x50mm
Shell size 188*58mm
Mainframe depth 60MM
Color box size 208*80*156mm (cowhide box)
FCL size 430mm*420mm*323mm
FCL number 20

Weight parameter
Single weight 0.438KG
FCL net weight 8.76KG
FCL gross weight 9.70KG

Function parameter
Mobile phone interconnection APP connection (name: CAR APP)
Locate and find car support
screen rotation not supported
Reversing camera not supported
Play video warning Not supported
Steering wheel controls not supported
Video output not supported
Offline maps not supported
Driving recorder does not support
GPS navigation not supported
Front USB 2-way USB interface, one charging and one USB2.0 reading
TF card support
DAB function not supported
reset button support

RCA port parameters
Audio output 4 channels (2 channels left channel + 2 channels right channel)
Video output not supported
Audio input Front AUX input (left channel + right channel)
Video input not supported
Reversing video input not supported

format parameter
Audio format MP3/WMA/WAV/FLAC
Video format not supported
Image format not supported

language parameter
English

Other parameters
Factory set password not supported

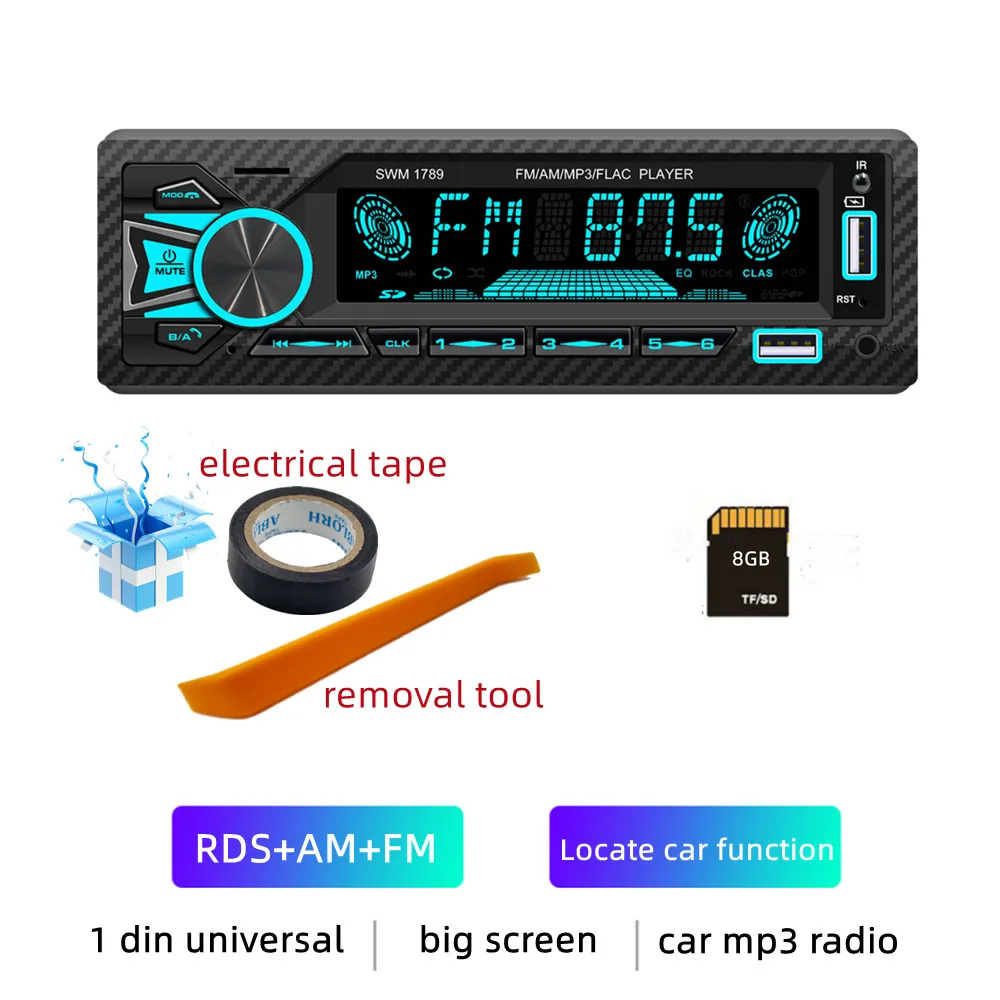

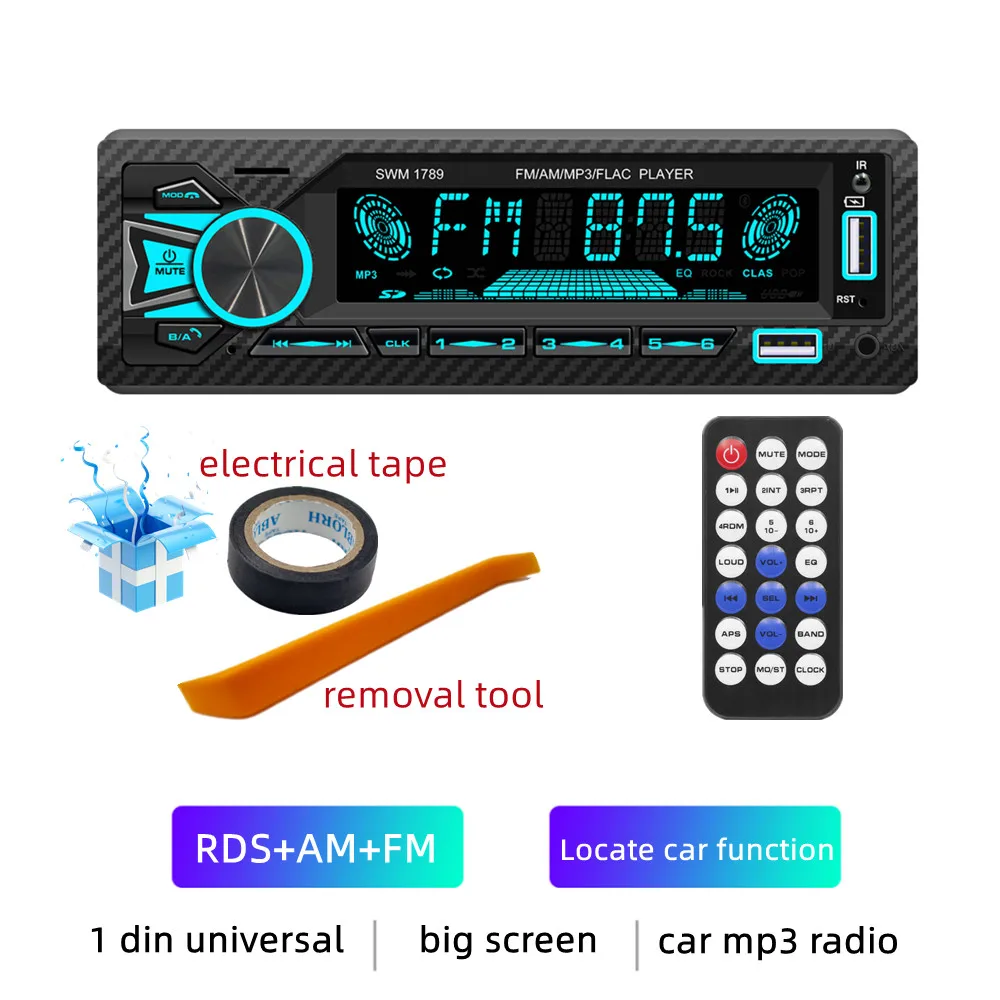

Packing List:

1 x Car MP3 Player
1 x Power Cable
1 x Speaker Cable
1 x remote control
2 x Dismantling key
1 x User Manual

Kindly note:

This product installation needs professional skills. If not, please go for professional help.Details refer to the instruction manual.

Bluetooth : Search for Bluetooth devices on your phone. Pair to device using the password "0000".

FAQ:

1.Why can't turn on the car radio ?

2.Why the car radio will show "No Signal" when we reversing?

3.Why does the camera display "!" and "Can't watch video while driving" when I use USB to watch videos?

4.Why can't search FM?

5.Why can't connect the Bluetooth of car radio?

5.1.Open the phone settings interface, open the Bluetooth in the Bluetooth function, search for Bluetooth devices, find the player's Bluetooth model to be paired; if you need a pairing code, enter 0000; if not, try 1234 or 123456.
5.2.Please try to use another mobile phone to test this function.
All methods are correct and still cannot use Bluetooth, Please unplug the plug on the back of the player and plug it in after 3 minutes.

Notes:
1. Due to the difference between different monitors, the pictures may not reflect the actual color of the item. Thank you!
2. Please leaving a message before you give the bad feedback, if the products have some problems.
3.Transition: 1cm=10mm=0.39inch
4.Please allow 1-3cm measuring deviation due to manual measurement.pls make sure you do not mind before you bid.
