ORICO NS800U3 3.5-inch 8-bit multi-disk magnetic drive USB3.0 desktop storage cabinet SATA3 Support 80TB high-speed storage hard disk enclosure 3.5 HDD Box Enclosures

Package:	Yes
Internal Interface:	SATA
Size:	3.5"
Model Number:	NS800U3
Supporting Hard Drive Capacity:	10TB
Brand Name:	Orico
External Interface:	USB
Case Material:	Aluminum

Model: ORICO NS800U3

Product Material: Aluminum + ABS

Support capacity: single 10TB

Support system: Windows / Mac / Linux

Output Interface: USB3.0 Type-B

Transfer rate: 5Gbps UASP

Product Power Supply: 12V10A external power supply

Indicator function: turn on the power light blue light, read and write data flashing blue light

Tool-free new milestone

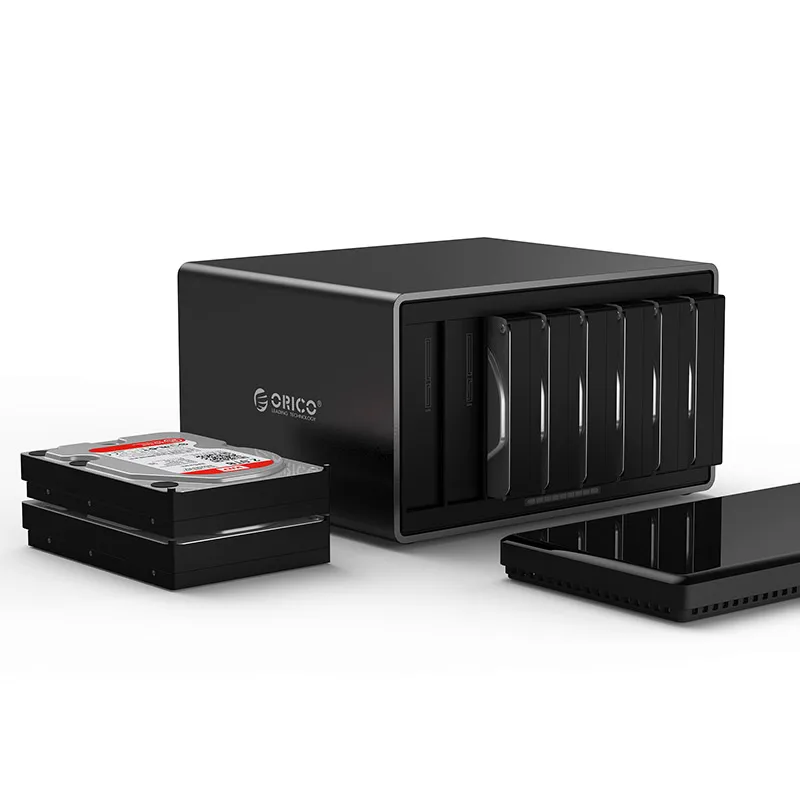

Eight-core magnetic patented design

Features of the patent-magnetic hard disk-free tool disassembly, the contents of the hard disk replacement will become unusually fluid. Compared with other mechanical door design, the built-in permanent magnets not only do not have to worry about the life span caused by mechanical wear, but also the revolutionary experience of replacing each hard disk with the smooth experience and the hard disk inside.

Synchronous support 80TB content storage

Privatization of Enterprise Volume Center

With the rise of business-critical personal information, cloud-based transformation and data security, having a proprietary array storage system makes it necessary to preserve data permanently. Internationally renowned storage ORICO provides a single disk to support 10TB 2-bit, 4-bit, 5-bit, 8-bit hard drive replacement large-capacity secure array of storage, the important data storage becomes borderless.

True USB3.0 master program, UASP acceleration

5Gbps transmission, the first step in the challenge speed

USB3.0 to SATA3.0 bridging scheme, the theoretical speed of up to 5Gbps, UASP protocol support, greatly enhance the transmission performance, reduce CPU utilization, data latency and latency, providing high performance data transmission between the host and the device.

Padded aluminum body rugged aesthetic unprecedented

The thickened aluminum body with the thickest part of more than 3.5mm will greatly enhance the robustness of the entire storage system in addition to its aesthetics so that it can handle a wide range of work environments.

Source of power without fear of large capacity

Upgraded 100V-230V 120W wide power supply, in addition to keeping the hard drive to deal with all kinds of large power consumption and stable operation of data security and different work environments, and now 10TB even later to upgrade the new capacity will become even more fearless.

Honeycomb vents cool enough quiet enough

The rear panel is almost covered by honeycomb vents, with DC cooling air duct, 92MM double ball bearing high-quality fan with large emission and low noise operation, up to 45CFM huge convection air volume, less than 20dB mute work Environment, making the entire storage in a quiet low temperature environment to prevent overheating, to ensure long-term reliability.

Media compatibility

Support mainstream operating systems such as Windows / Linux / Mac, in addition to connecting desktop notebooks, but also Surface Pro / smart TV / PS4 / XBOX / HD smart set-top box, as the HD entertainment video library.

Western Digital × ORICO

ORICO is an important strategic partner for many years for Western Digital Corp, a world-renowned hard disk manufacturer. As an enterprise-class hard drive - the founder of NASWare®3.0 technology, your external storage can be more reliable and high-speed, we solemnly recommend supporting the use of several companies, with 7 × 24 high-speed low-consumption, and have a certain fault tolerance, anti-chain Technology red plate series.
