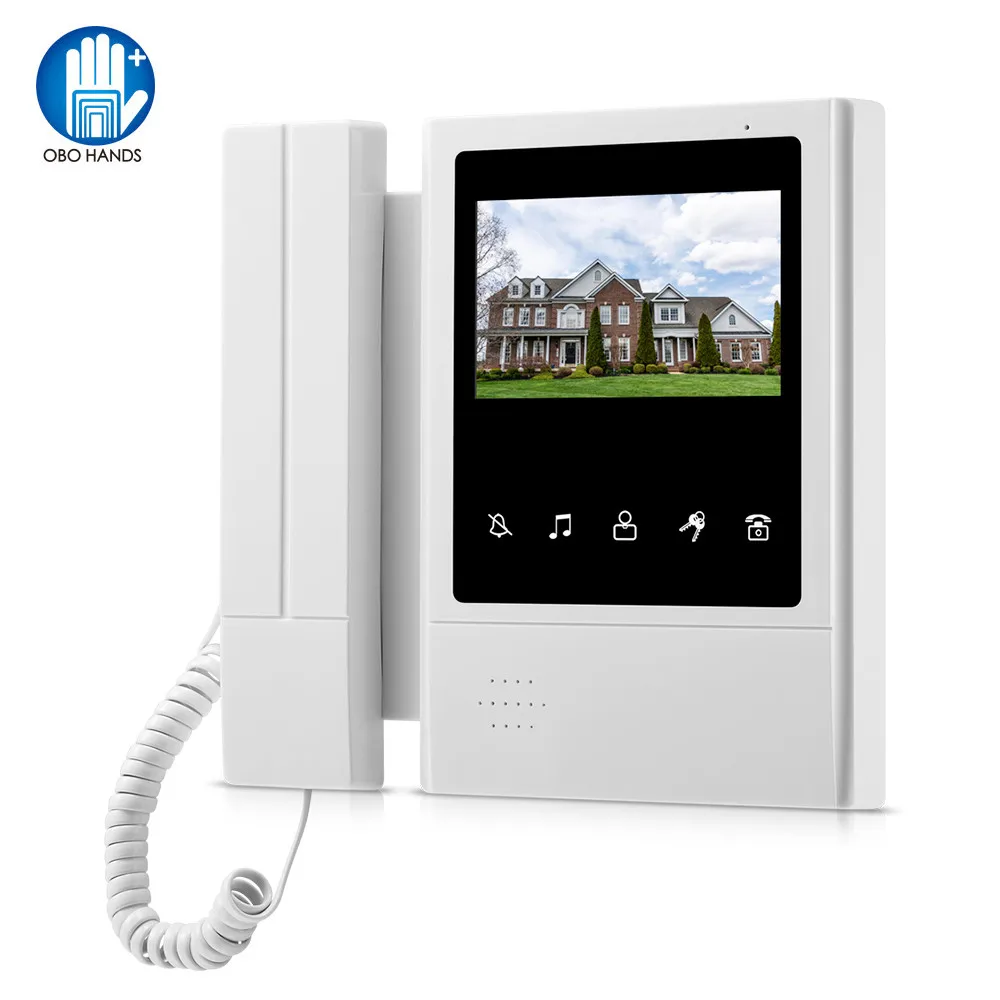

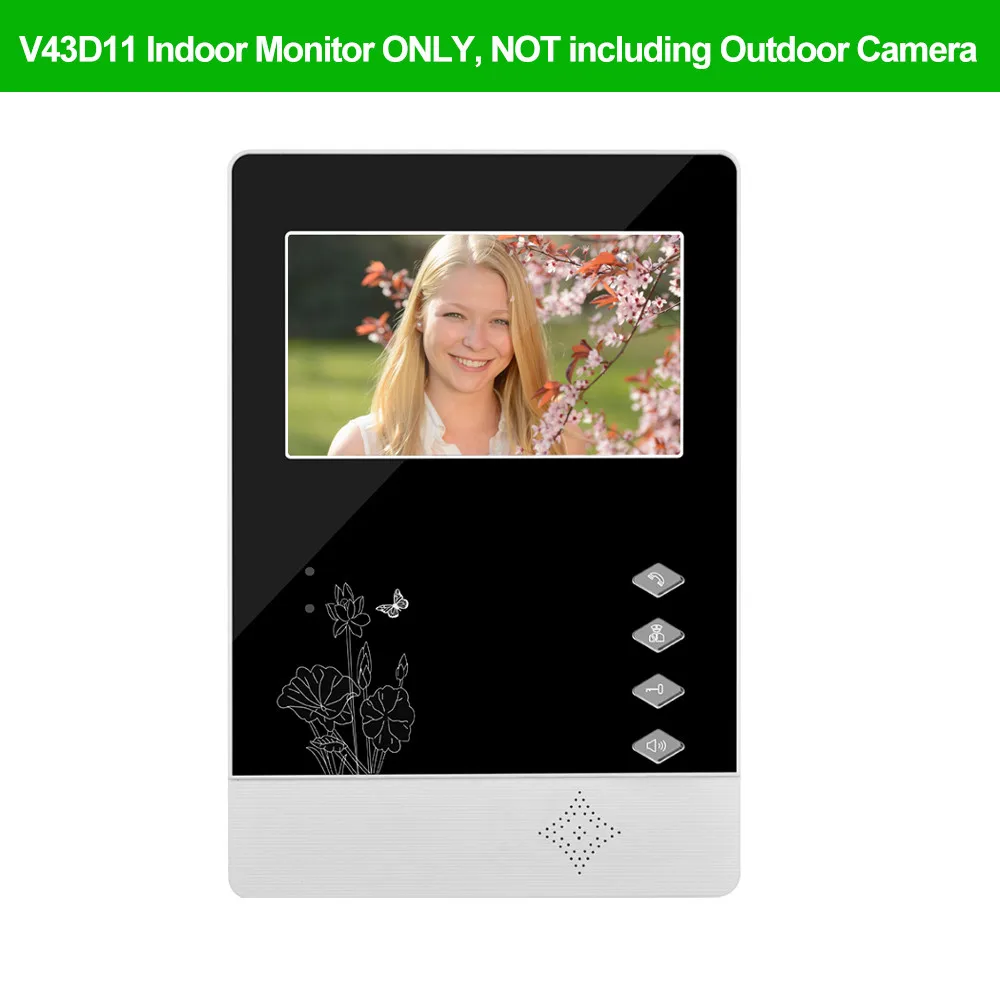

OBO 4.3inch TFT-LCD Color Video Door Phone Doorbell Intercom System Indoor Monitor Screen Video Doorphone for Home 25 Ringtone axis intercom Door Intercom Systems
Code: TD-33013721467
17 orders
Free Shipping
$ 129.99
$ 142.34
Other people want this. 30 people have this in their carts right now.
| Brand Name: | OBO HANDS |
|---|---|
| Connection Method: | Wired |
| Certification: | CE |
| Origin: | CN(Origin) |
| Answering Mode: | Hands-free |
| Camera Sensor type: | CMOS |
| Display Size: | 4.3 |
| Display Screen Type: | color |
| Material: | ABS/metal |
| Viewing Angle (°): | 90 |

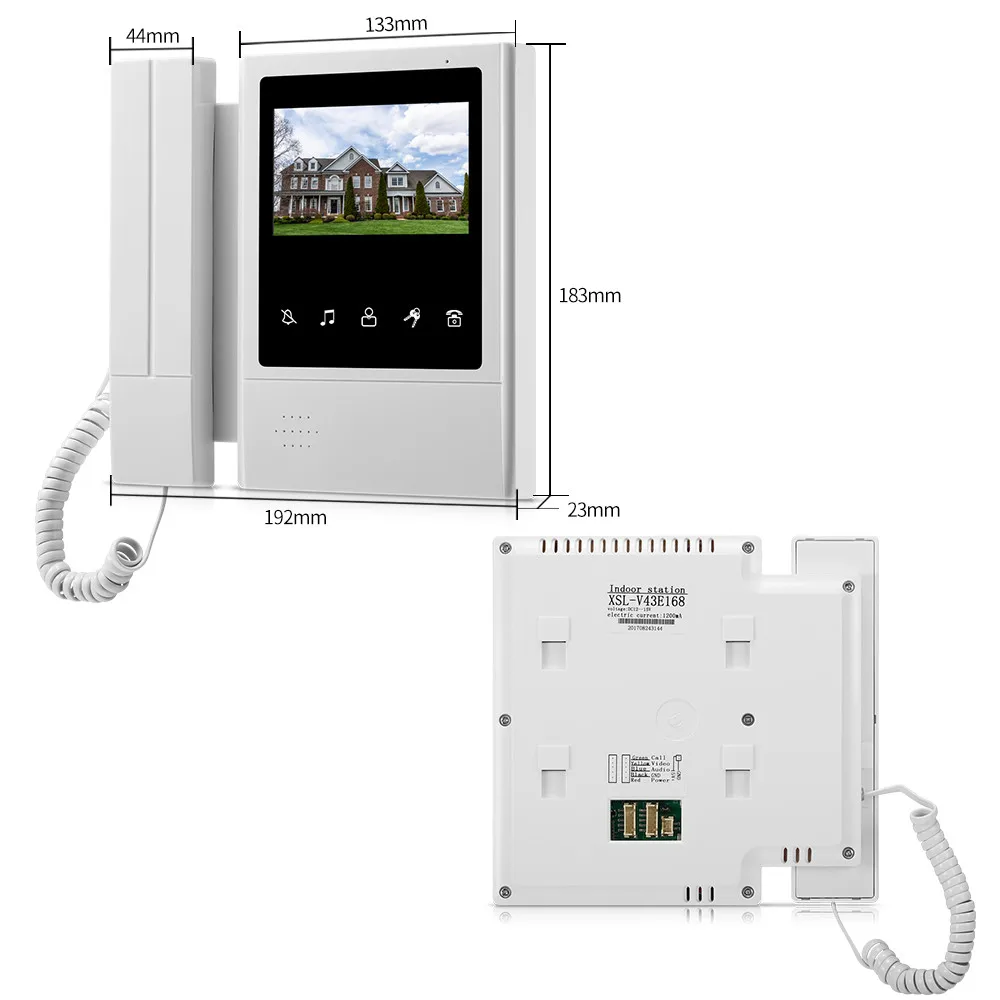

| Size: | 192mm(L) x 183mm(W) x 23mm(H) |
| Plug Type: | AU Plug |
| Plug Type: | EU plug |
| Plug Type: | US plug |
| Plug Type: | UK Plug |
| Power: | DC15V/1.2A |

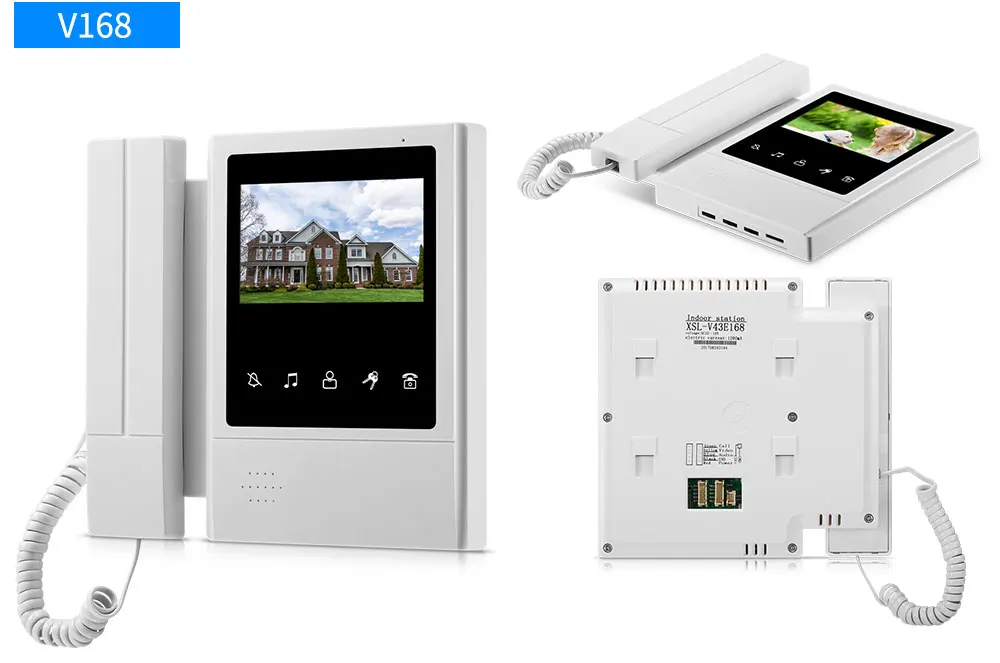

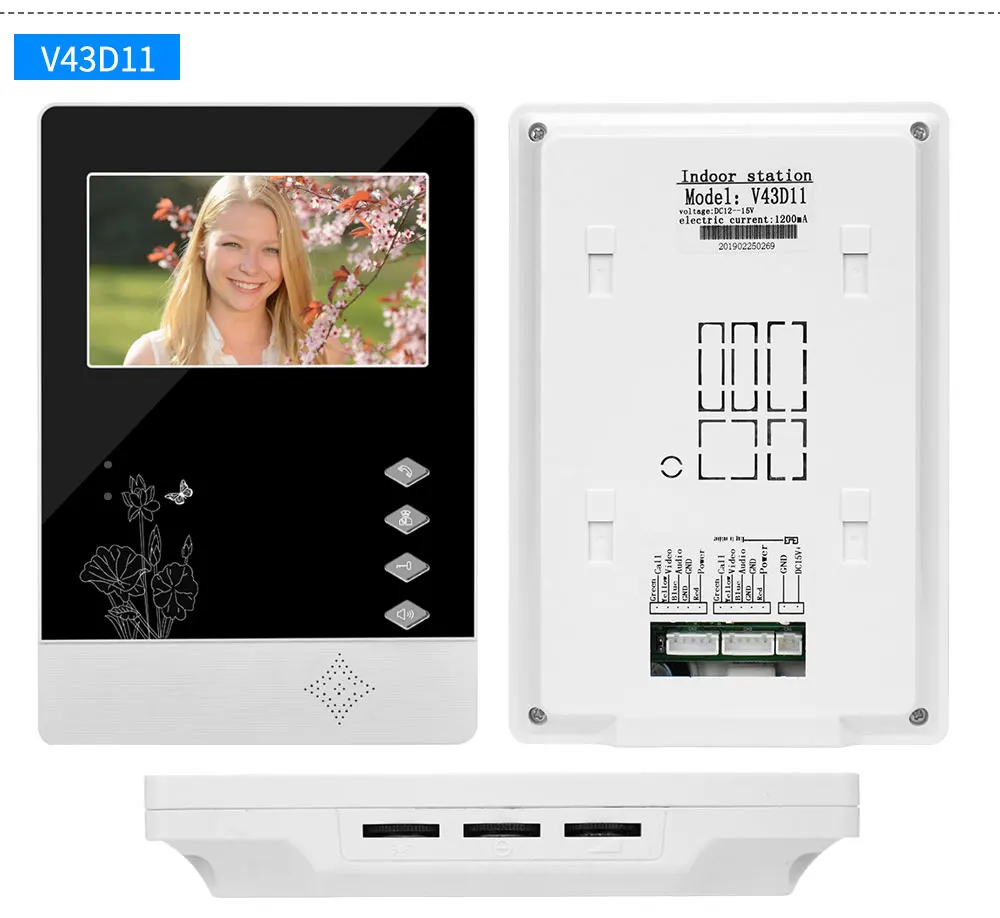

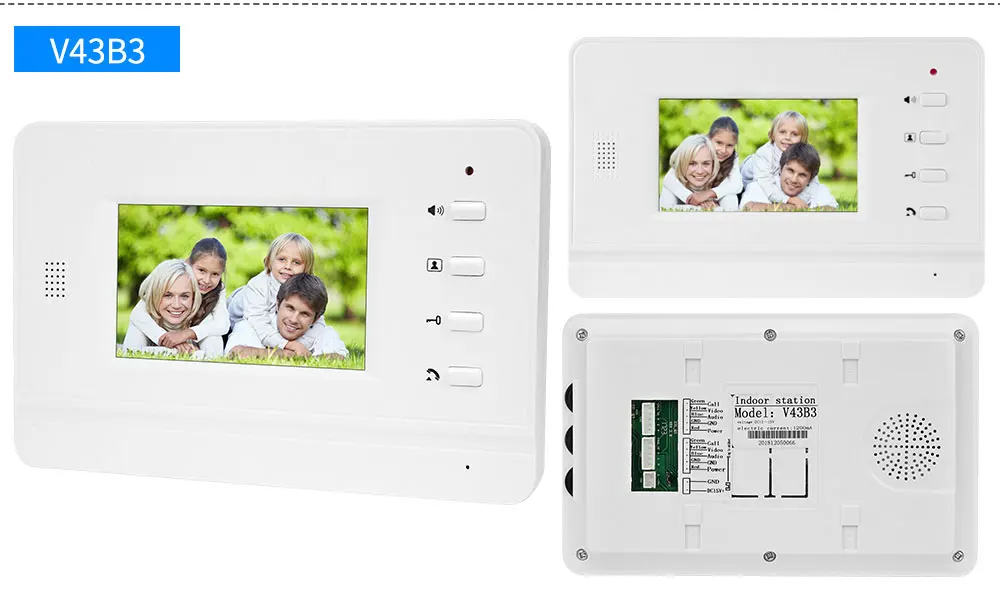

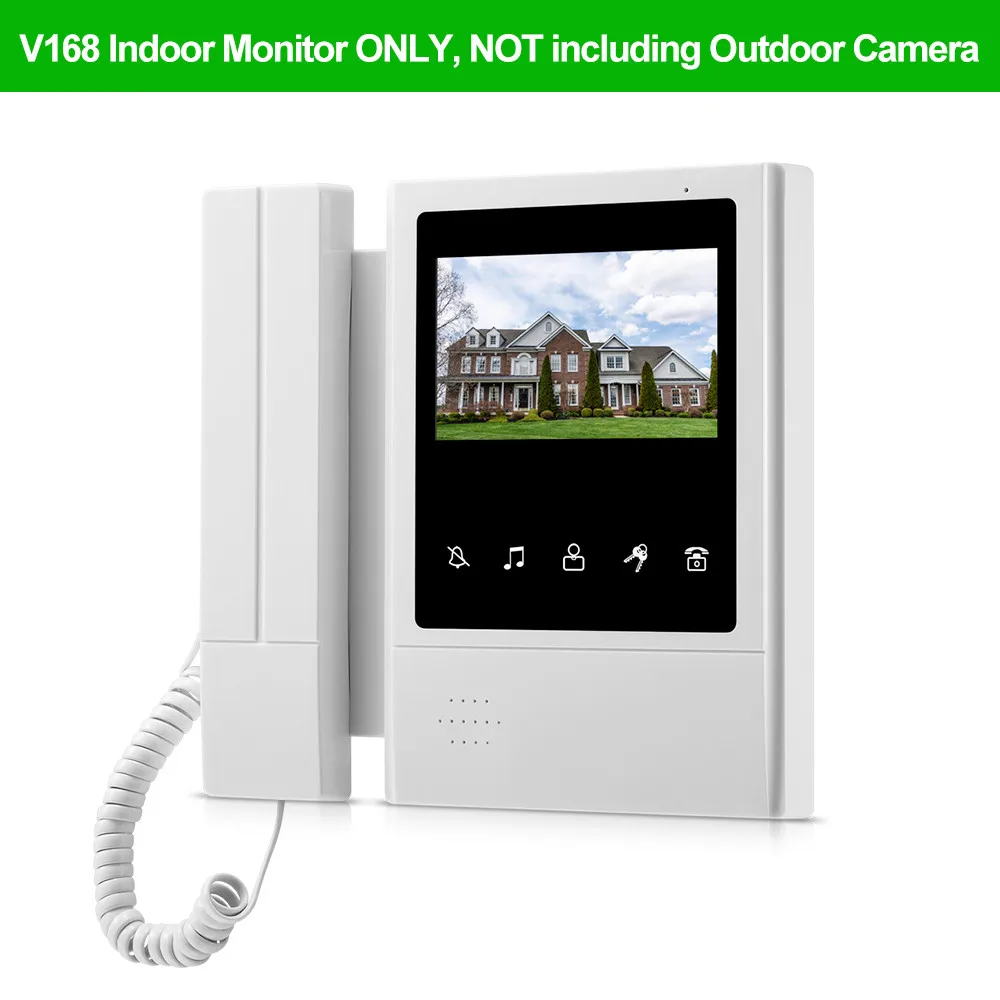

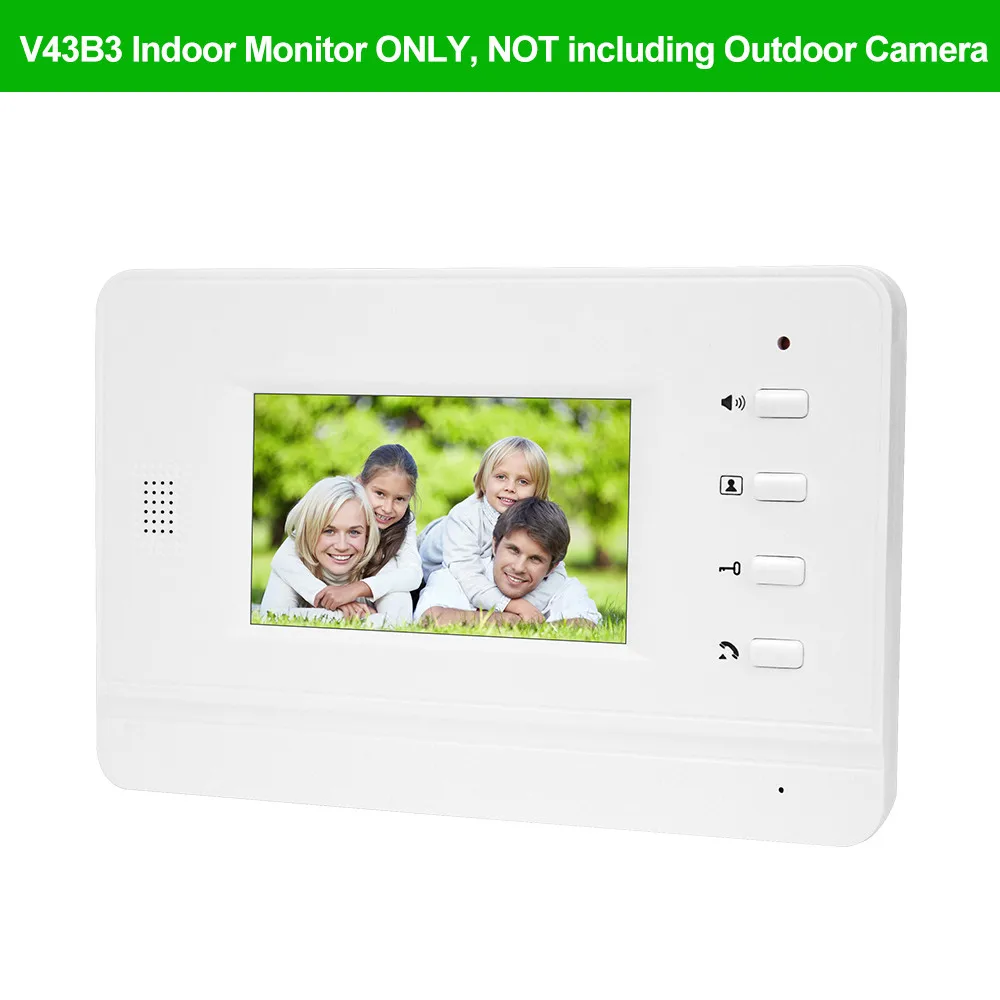

| Model Number: | V43B3 / V43D11 / V43E156 / V43E168 |
| IP Camera Interface: | No |
| Zone Input: | None |
| Samrt Home Interface: | No |
| Kit Configuration: | Monitor Only |
| Installation: | Wall Mounting |
| Resolution: | 700TVL |
| Doorbell: | Yes |
| Access Control: | None |
| Sensor Size(Inch): | 1/4 |
| Technology: | DIGITAL |
| Camera: | CMOS |
| Type: | Indoor Machine |
| Power: | 220v |
| Connection Type: | Wired |
| Waterproof: | Yes |
| Distance: | support up to 100 meters |
| Color: | White / Black |

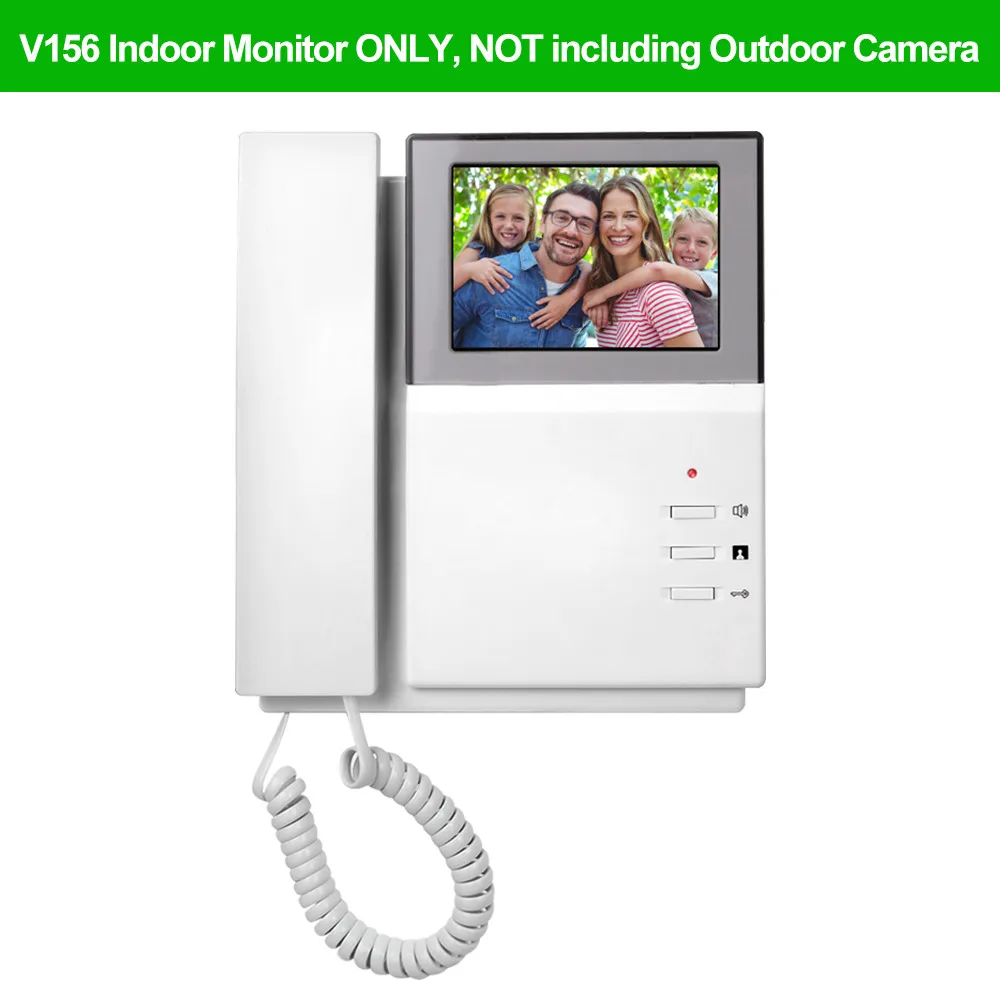

4.3inch TFT Color Video Door Bell, Video Intercom System
not including outdoor camera
This video door phone use international 5-wire( or 4-wire ) structure design. Use 5-wired system, the fifth wire ( green wire ) can be used for the intercom between monitor. The Max distance of audio & video transmission is 100meters.

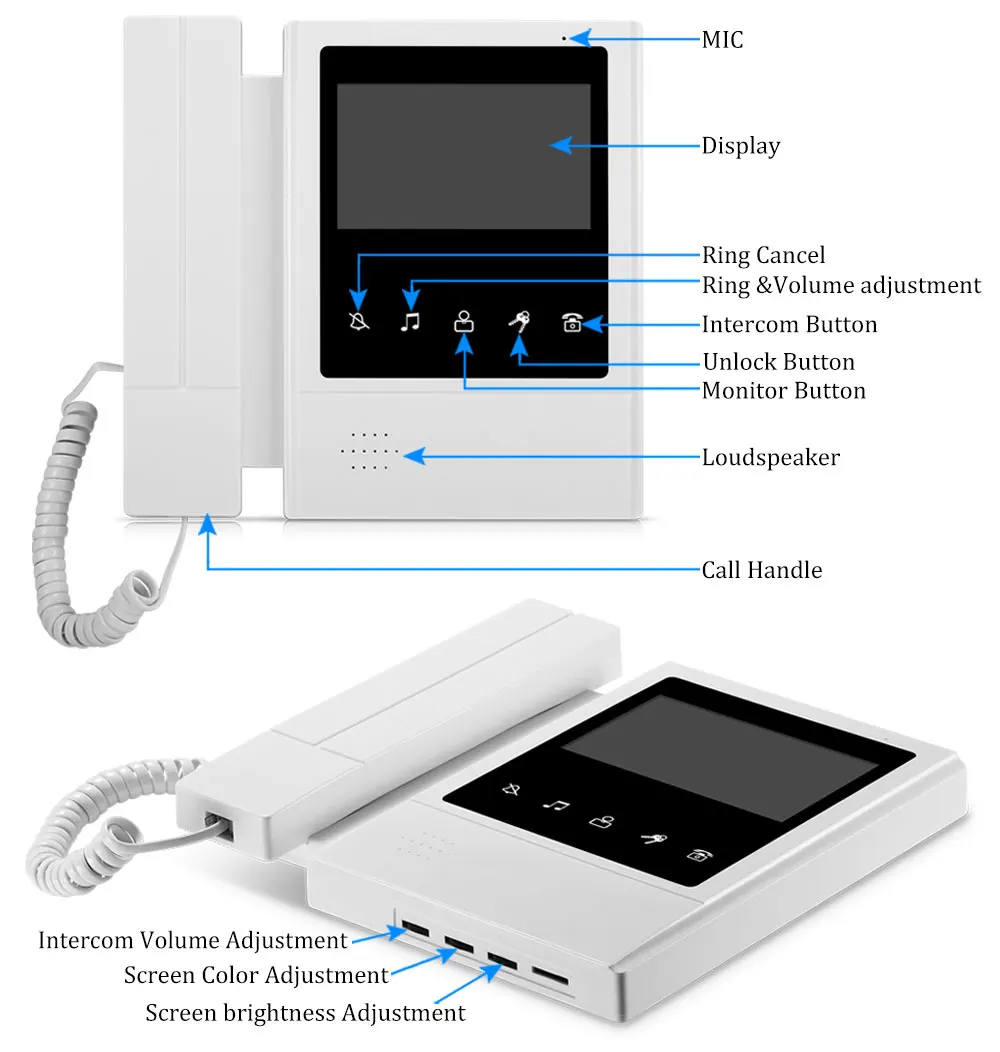

Video : We use import TFT-LCD Screen, with high resolution,image is very clear.
The screen color and brightness can be adjusted by yourself.
Audio: We use tel-phone general chip, clearly, strong anti-jamming capability, low failure rate.
We use professional music chip, with 25 music can be chosen, all with adjustable volume.

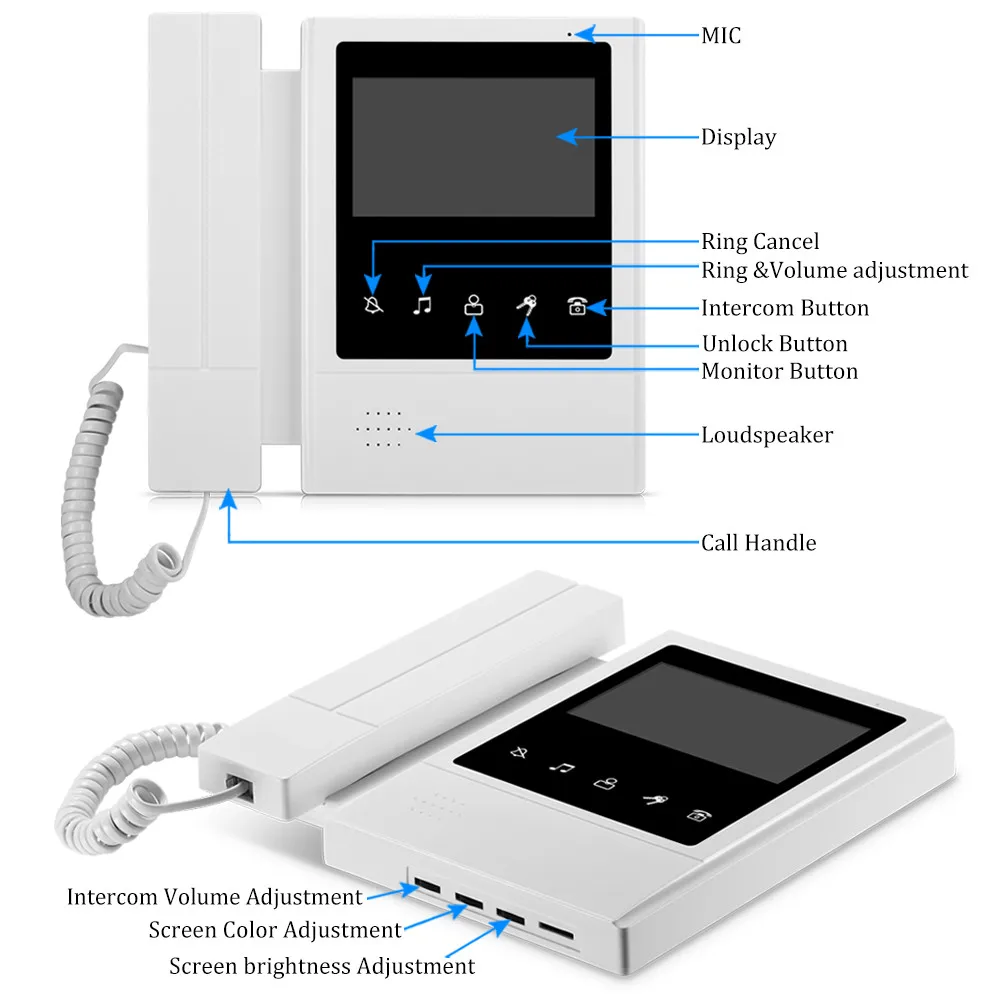

The indoor unit have the monitor function, you can monitor the outdoor scene at any time.
It is an ideal home security product which will make for a safer home environment.
Product Details
1. Using 4-core cable to connect camera to monitor, useing 5-core cable to connect monitor to next monitor. The Max distance support 100 meter. Different distance, use different
diameter
cable.

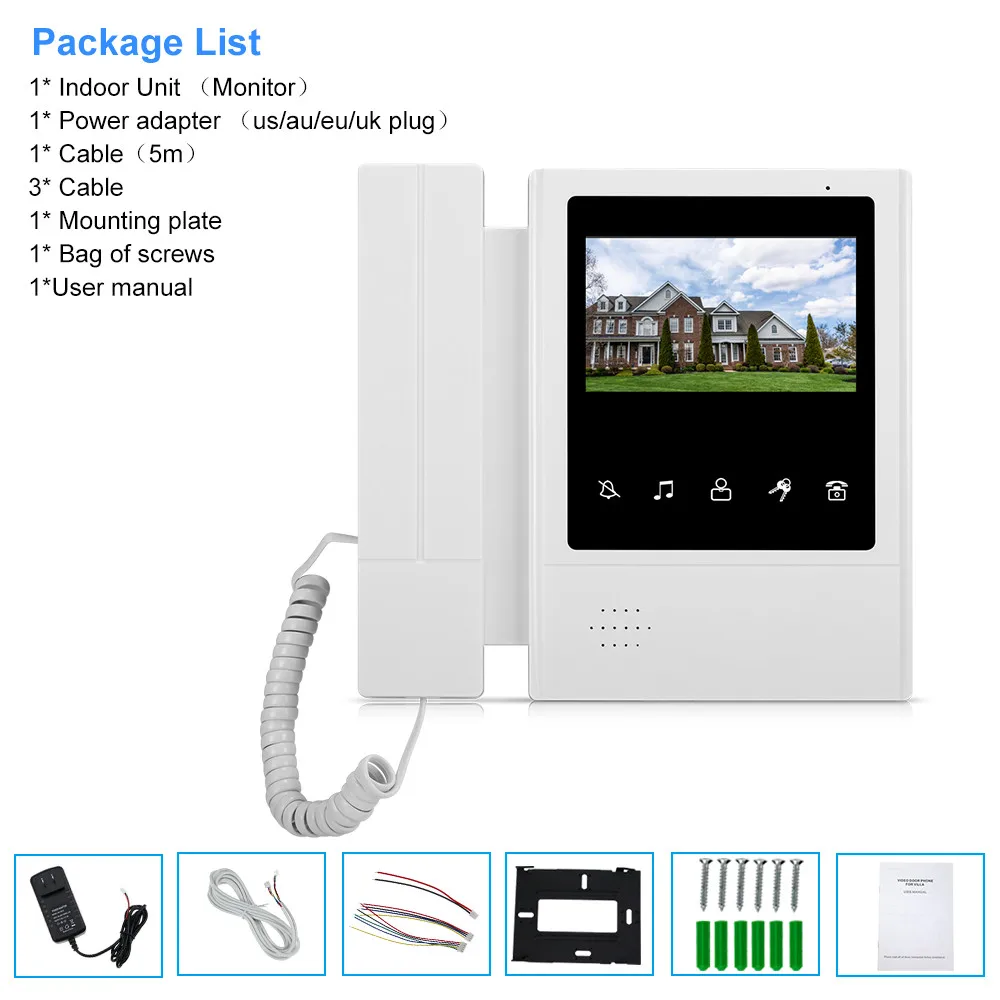

please check the following from to choose correspnding cable. ( We will send 5 meters cable to you to test, for the longer cable, need to buy by yourself when installing)
2.
When a visitor ring the bell, the monitor will be activated and show the image outside. Press the answer button, then you can talk to outside, press the answer button again to turn it off. If you do not press the button after conversation is finished or if no one answer the call, the monitor will turn off automatically after 60s.
3.

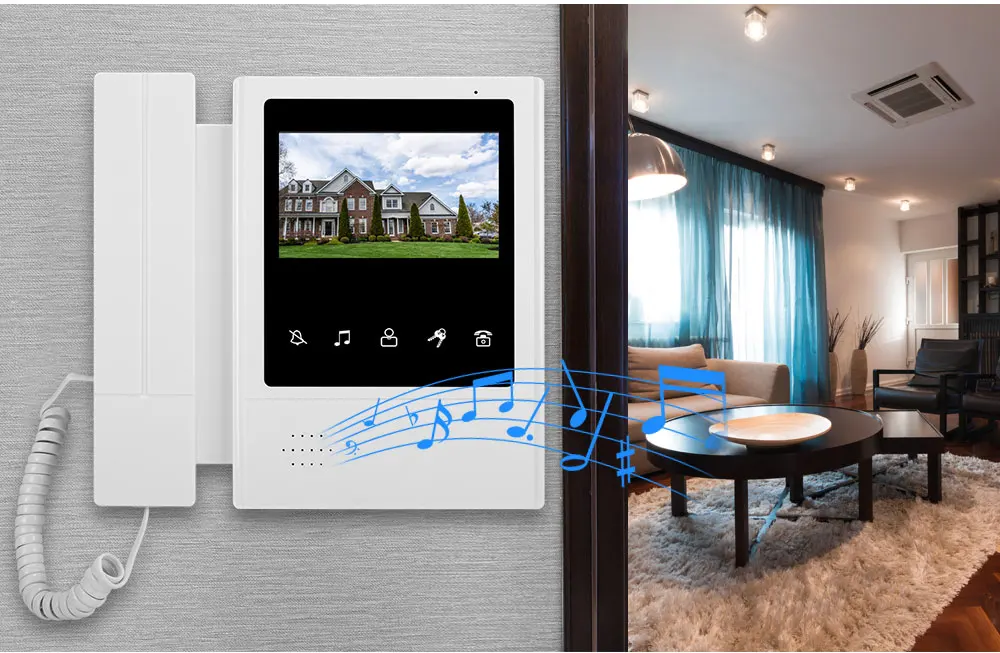

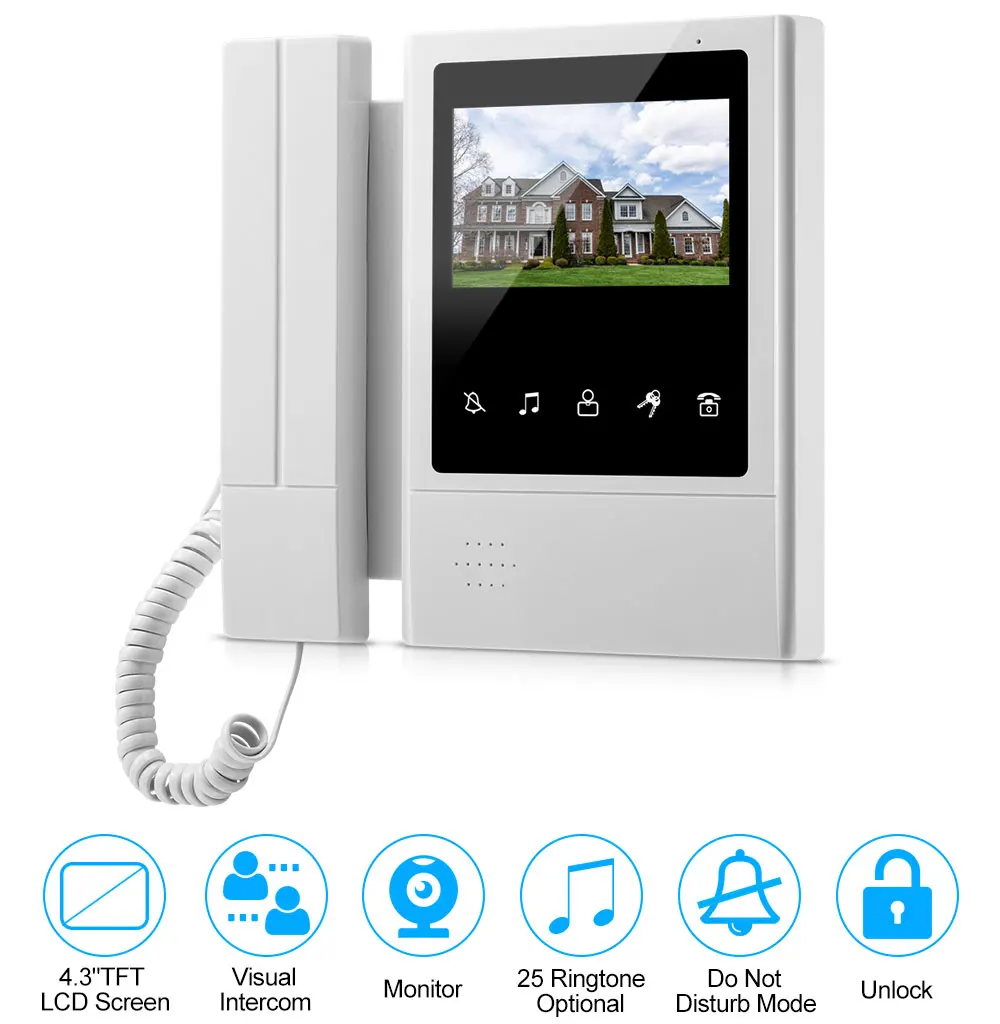

Multiple ringtones - free switch
The 25 chord ringtones can be switched freely, elegantly and fair-sounding. Both of the ringtones and volume can be adjustable, can meet the original needs of your time. Don't need to worry about can't hear voice or hear it too loud any more.
4. Set "Do Not Disturb mode" when you sleep, or when you need a quiet space, giving you a quiet space.

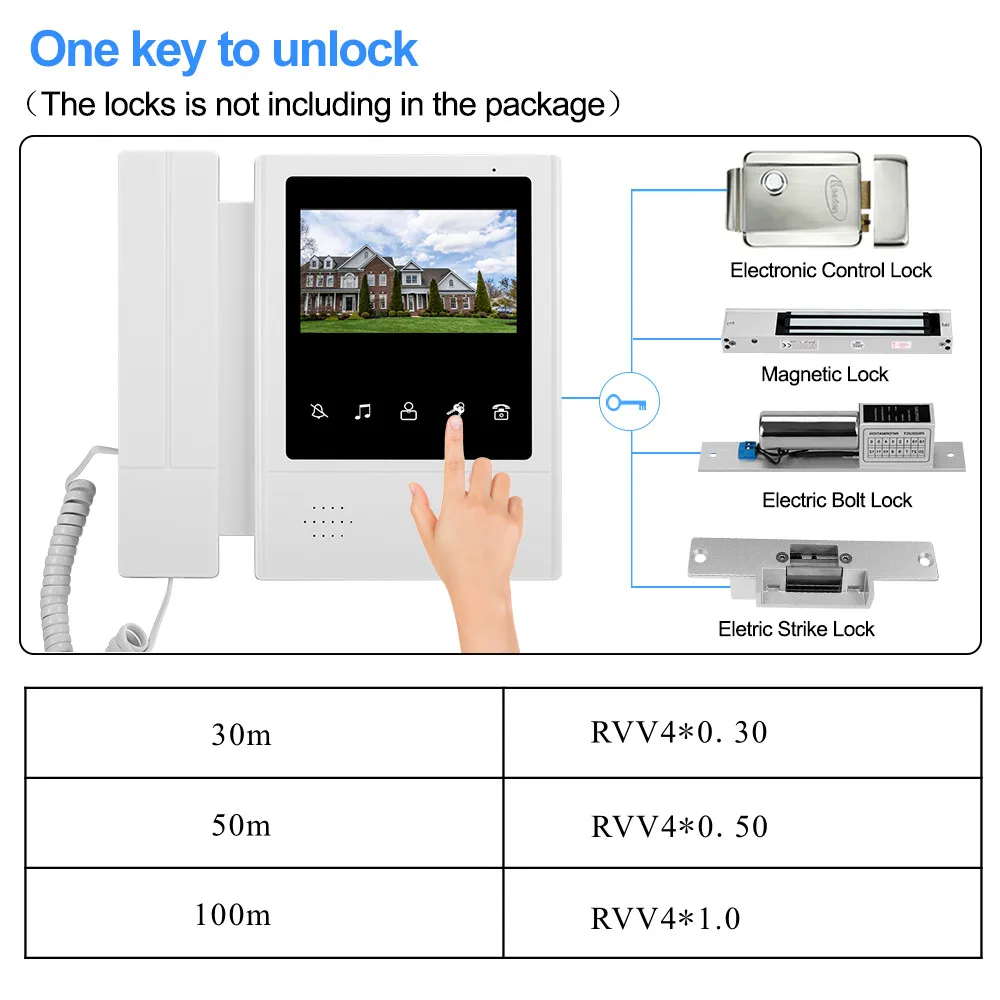

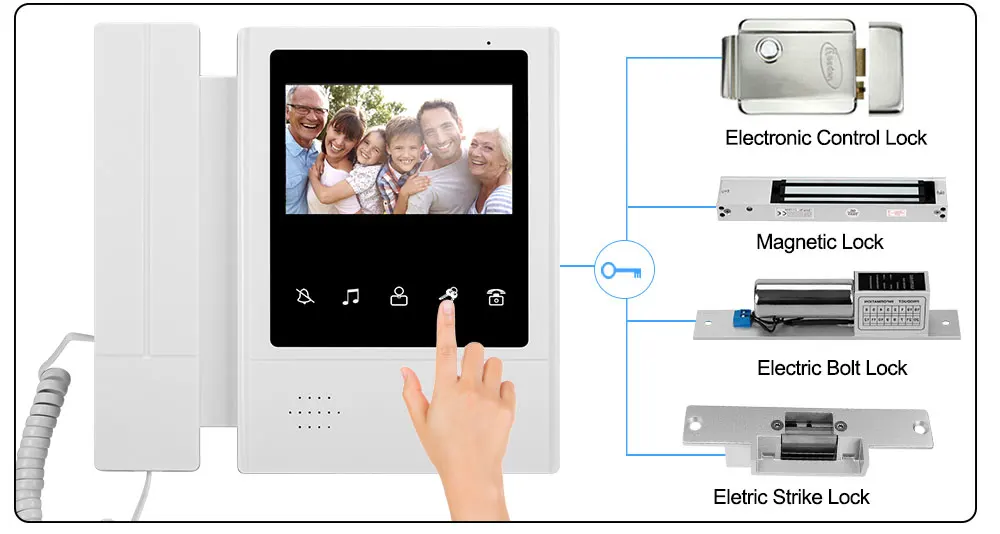

5. Can work with DC12V electric lock. Open the door with the unlock button on indoor monitor
( both of the indoor monitor and locks not including in the package, if you want them, please contact us)
Product Specification:
Wiring Instruction
It is a 4-wire system, use 4-core cable to connect the camera to monitor.
(Please note the locks, Outdoor unit camera at below photo is not included, if you need, please feel free to contact us）
Very Important
This cameras can only work with any of the monitor as the below picture. We can not guarantee if your own monitor will work with our camera. If you already have such monitor as the picture or want to add extra camera, please feel free to contact us before buying. Thank you!
Please leave us message which type of the power plug you want, otherwise, we will send EU type by
default
.
